1999 Chevrolet Astro Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 1999 Astro trims — Base Extended Cargo Van 3-Door, Base Standard Cargo Van 3-Door, Base Extended Passenger Van 3-Door +5 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual

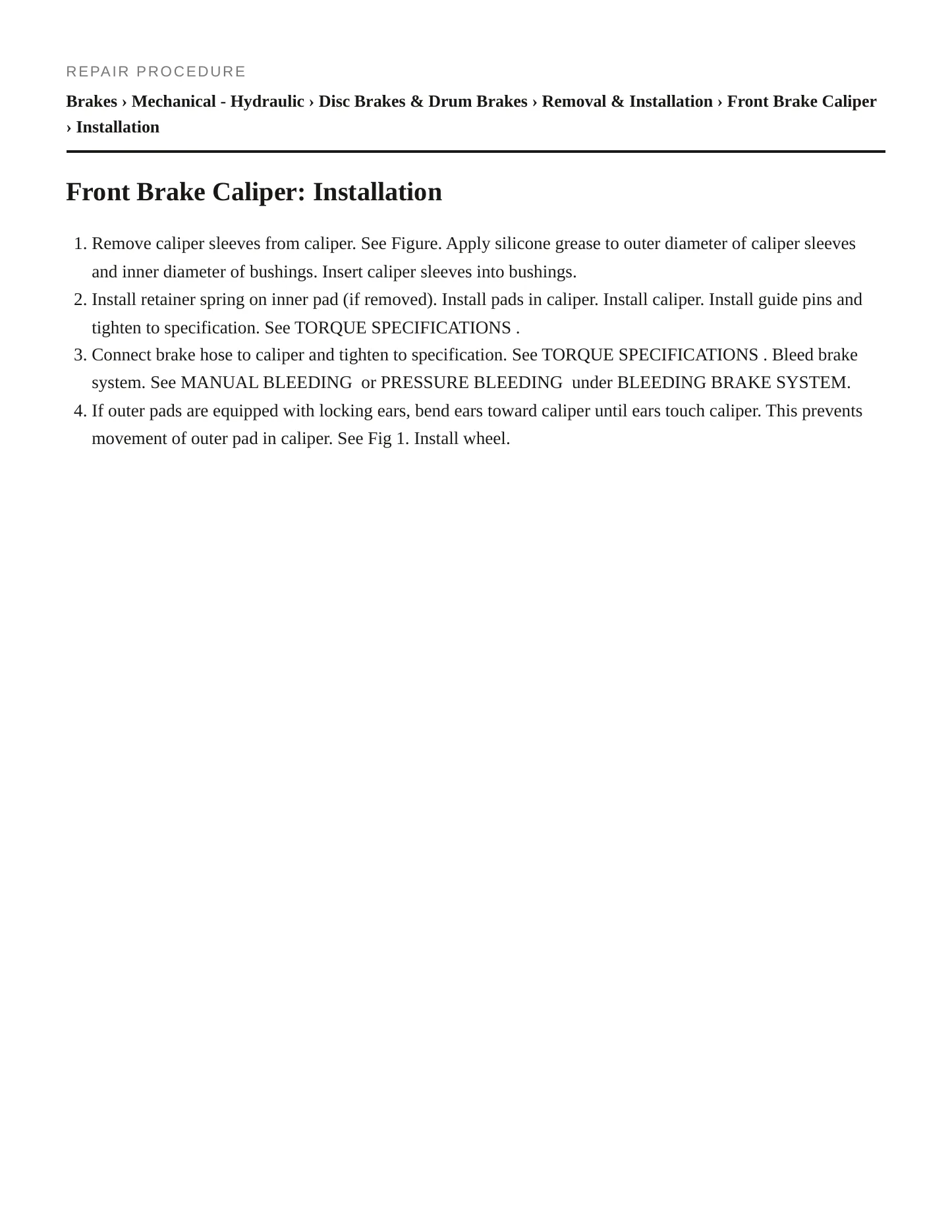

Complete repair procedures

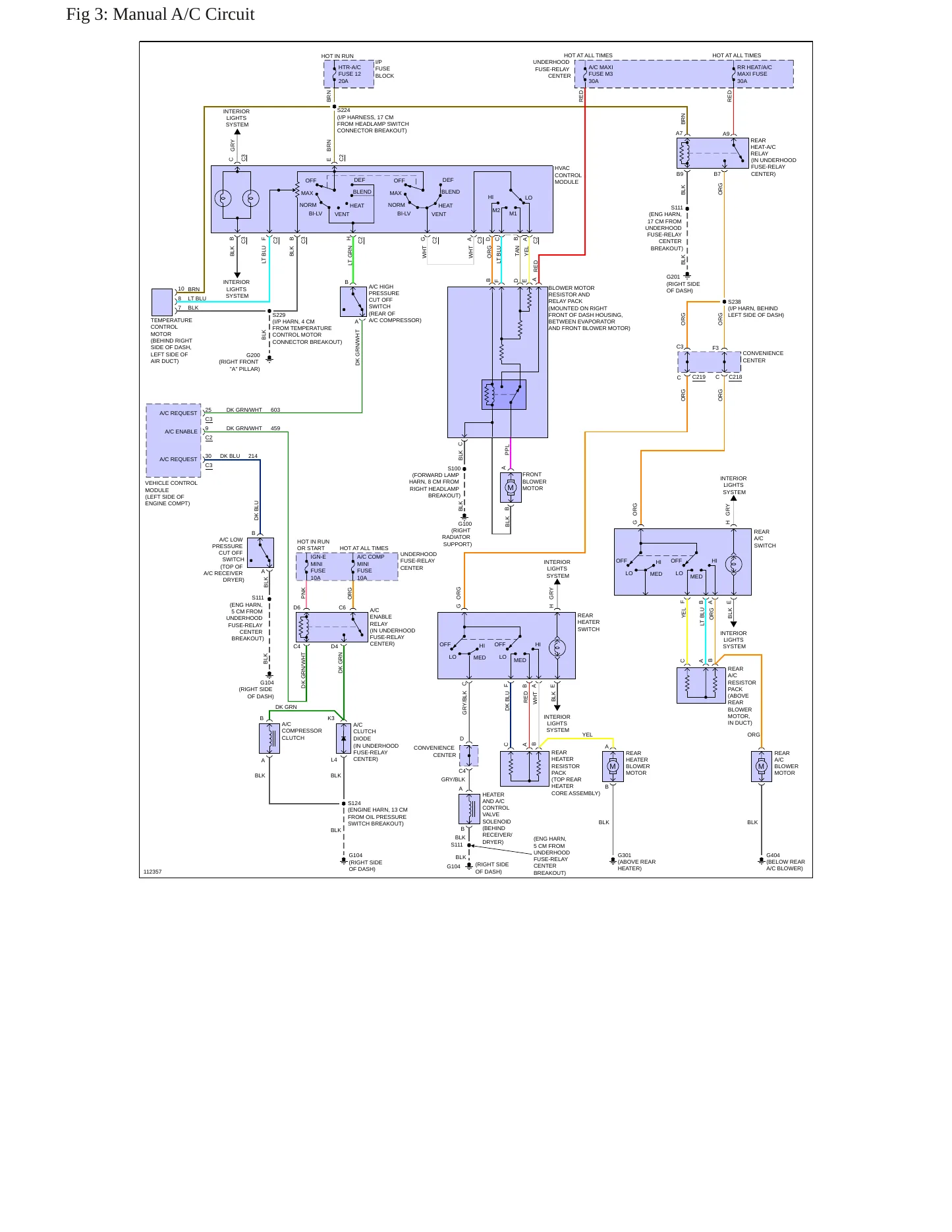

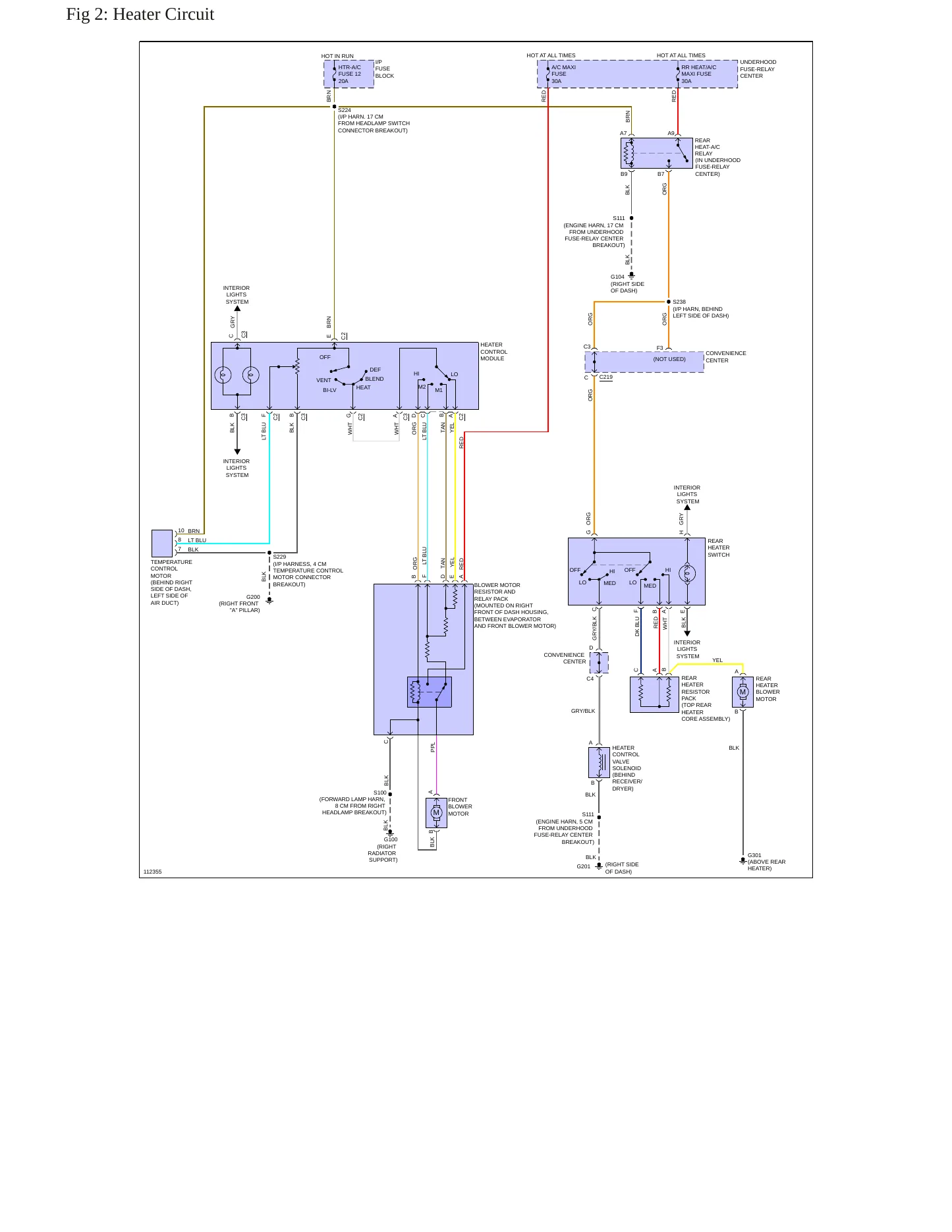

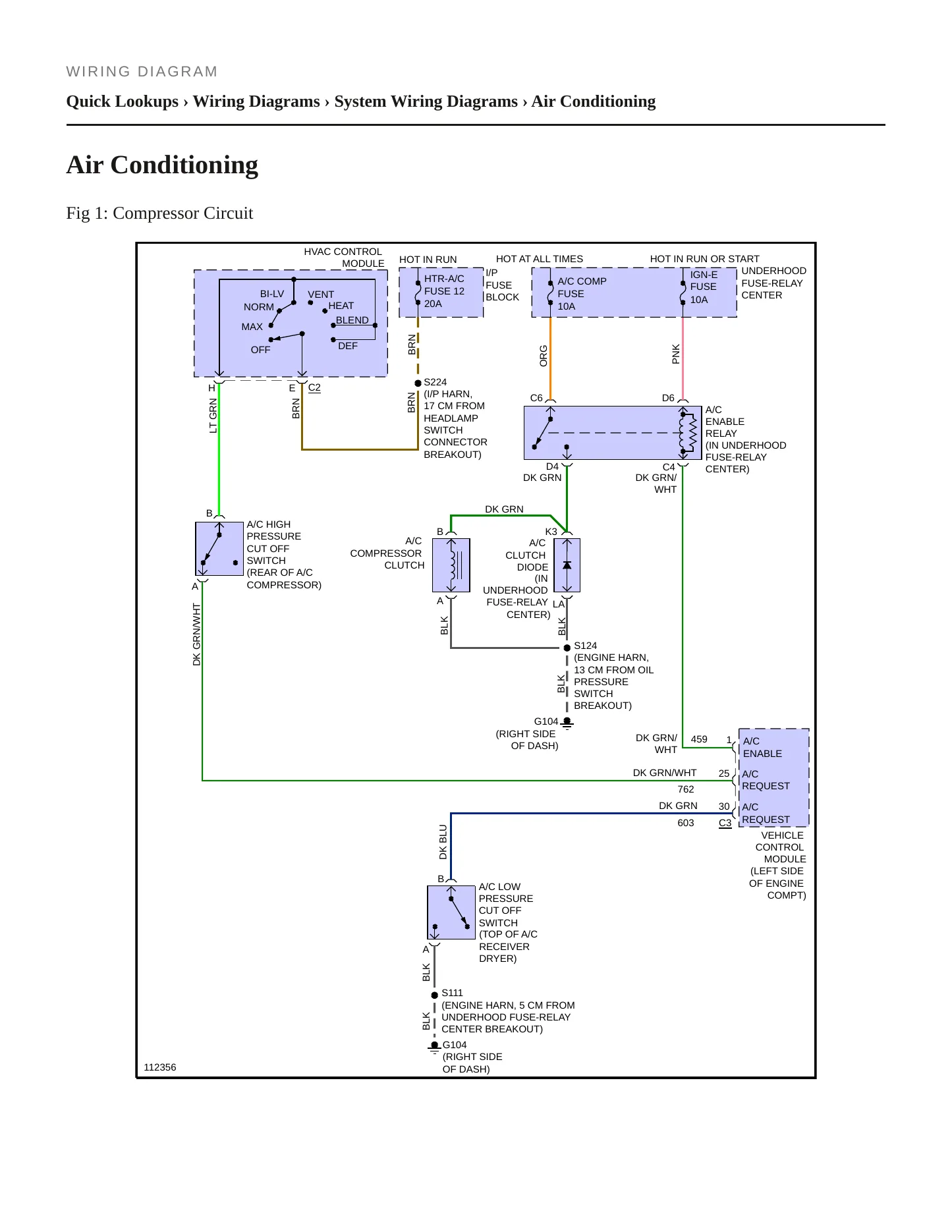

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
1999 Chevrolet Astro Service and Repair Manual
Regular price
$29.99 USD
Unit price
This factory service and repair manual for the 1999 Chevrolet Astro documents four three-door van bodies — extended and standard, cargo and passenger — around the 262-cubic-inch 4.3-liter V6, an overhead-valve, naturally aspirated gasoline engine, in Base, LS and LT trim. The engine sections give its clearances, torque sequences and management diagnostics; the chassis sections give brake, steering and suspension specifications; and the electrical sections carry the wiring diagrams for each body and equipment combination the year offered.
Engines covered
- 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 3-door extended cargo van
- 3-door standard cargo van
- 3-door extended passenger van
- 3-door standard passenger van
Trims covered
- Base
- LS
- LT
Known issues on the 1999 Astro. Four recalls are on the federal record for this model year. One concerns the fasten-belt reminder, which may not sound at all or may stop sounding early, so the driver loses the prompt the standard requires. Another covers a replacement fuel filter that can seal poorly where it connects and let fuel escape near an ignition source, and two more cover replacement lamp assemblies supplied without amber side reflectors. Complaints total 156, with service brakes at 26, the power train at 19 and the electrical system at 16 — all three covered here.
CERTAIN CK MOTORSPORTS COMBINATION HEADLIGHTS, CLEAR CORNER, BUMPER, AND SIDE MARKER LIGHTS SOLD AS REPLACEMENT LAMPS FOR USE ON THE PASSENGER VEHICLES LISTED ABOVE. SOME COMBINAT
Consequence
WITHOUT THE AMBER REFLECTORS, THE VEHICLE WILL BE POORLY ILLUMINATED, POSSIBLY RESULTING I
Remedy
CK MOTORSPORT WILL NOTIFY OWNERS AND REPLACE THE NONCOMPLIANT LAMPS FREE OF CHARGE. THE R
CERTAIN PRO-A MOTORS CORNER LAMPS, TURN SIGNALS, AND HEADLIGHTS SOLD AS REPLACEMENT LAMPS FOR USE ON CERTAIN PASSENGER VEHICLES LISTED ABOVE. SOME COMBINATION LAMPS THAT ARE NOT E
Consequence
WITHOUT THE AMBER REFLECTORS, THE VEHICLE WILL BE POORLY ILLUMINATED, POSSIBLY RESULTING I
Remedy
PRO-A MOTORS WILL NOTIFY OWNERS AND OFFER TO REPURCHASE THE LAMPS. THE RECALL BEGAN ON AP
CERTAIN REPLACEMENT FUEL FILTERS, FRAM BRAND NAME P/N G3727, WITH DATE CODES X52911 THROUGH X60801 SEQUENTIALLY OR X600141 AND A MEXICO COUNTRY OR ORIGIN MARKING ON THE FUEL FILTER
Consequence
THIS CONDITION MAY CAUSE AN INADEQUATE SEAL AT THE CONNECTION, POTENTIALLY LEADING TO A FU
Remedy
HONEYWELL WILL NOTIFY OWNERS AND REPLACE THE FUEL FILTERS FREE OF CHARGE. THE RECALL BEGA
VEHICLE DESCRIPTION: MINI VANS. SOME OF THESE VEHICLES FAIL TO COMPLY WITH REQUIREMENTS OF FMVSS NO. 208, "OCCUPANT CRASH PROTECTION." THE "FASTEN SAFETY-BELT" AUDIBLE WARNING
Consequence
THIS DOES NOT MEET THE REQUIREMENTS OF THE STANDARD.
Remedy
DEALERS WILL INSTALL A NEW ALARM MODULE. OWNER NOTIFICATION BEGAN JUNE 27, 2001. OWNER
This technical bulletin provides information and a solution to a condition of Brake Pedal Moves or Self Applies at Full Turns.
This Preliminary Information communication advises the technician that the Hydro-Boost is not serviceable and will need to be replaced if the brake pedal moves or applies on its own at a full turn.
This warranty administration bulletin provides information regarding the field action courtesy transportation policy.
This Preliminary Information communication advises the technician that the Hydro-Boost is not serviceable and will need to be replaced if the brake pedal moves or applies on its own at a full turn.
This Preliminary Information communicates to the dealer the process for downloading or updating operating software for the Tire Pressure Monitor, Active Fuel Injector tester, multi media tester, PICO Scope, GR8 starting/charging tester and
Underbody Component Corrosion The following information may be helpful when addressing underbody component corrosion with customers. Some customers may comment that one or more of their vehicle's underbody components are showing some form o
Underbody Component Corrosion The following information may be helpful when addressing underbody component corrosion with customers. Some customers may comment that one or more of their vehicle's underbody components are showing some form o
Refinishing Aluminum Wheels This bulletin updates General Motor's position on refinishing aluminum wheels. GM does not endorse any repairs that involve welding, bending, straightening o re-machining. Only cosmetic refinishing of the wheel's
Showing the 8 most recent of 61 technical service bulletins on file with NHTSA.
WHILE DRIVING 40 MPH VEHICLE STALLED. THEN, VEHICLE SUDDENLY ACCELERATED. CONSUMER APPLIED THE BRAKES, BUT THEY WERE INOPERATIVE. THIS CAUSED THE VEHICLE TO CRASH INTO A TREE. UP
WHILE DRIVING 40 MPH VEHICLE STALLED. THEN, VEHICLE SUDDENLY ACCELERATED. CONSUMER APPLIED THE BRAKES, BUT THEY WERE INOPERATIVE. THIS CAUSED THE VEHICLE TO CRASH INTO A TREE. UP
AIRBAGS FAILED TO DEPLOY IN AN APPROX. 50 MPH HEAD-ON CRASH. *TR
WAS IN FRONT IMPACT HEAD-N COLLISION ON 12/12/01. SPEED BETWEEN 40 AND 65 MPH. AIRBAGS FAILED TO DEPLOY.*AK
Showing the 4 most serious of 204 complaints filed with NHTSA.
