1993 Chevrolet Astro Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 1993 Astro trims — Base Extended Cargo Van 3-Door, CL Extended Passenger Van 3-Door, CS Standard Passenger Van 3-Door +5 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual

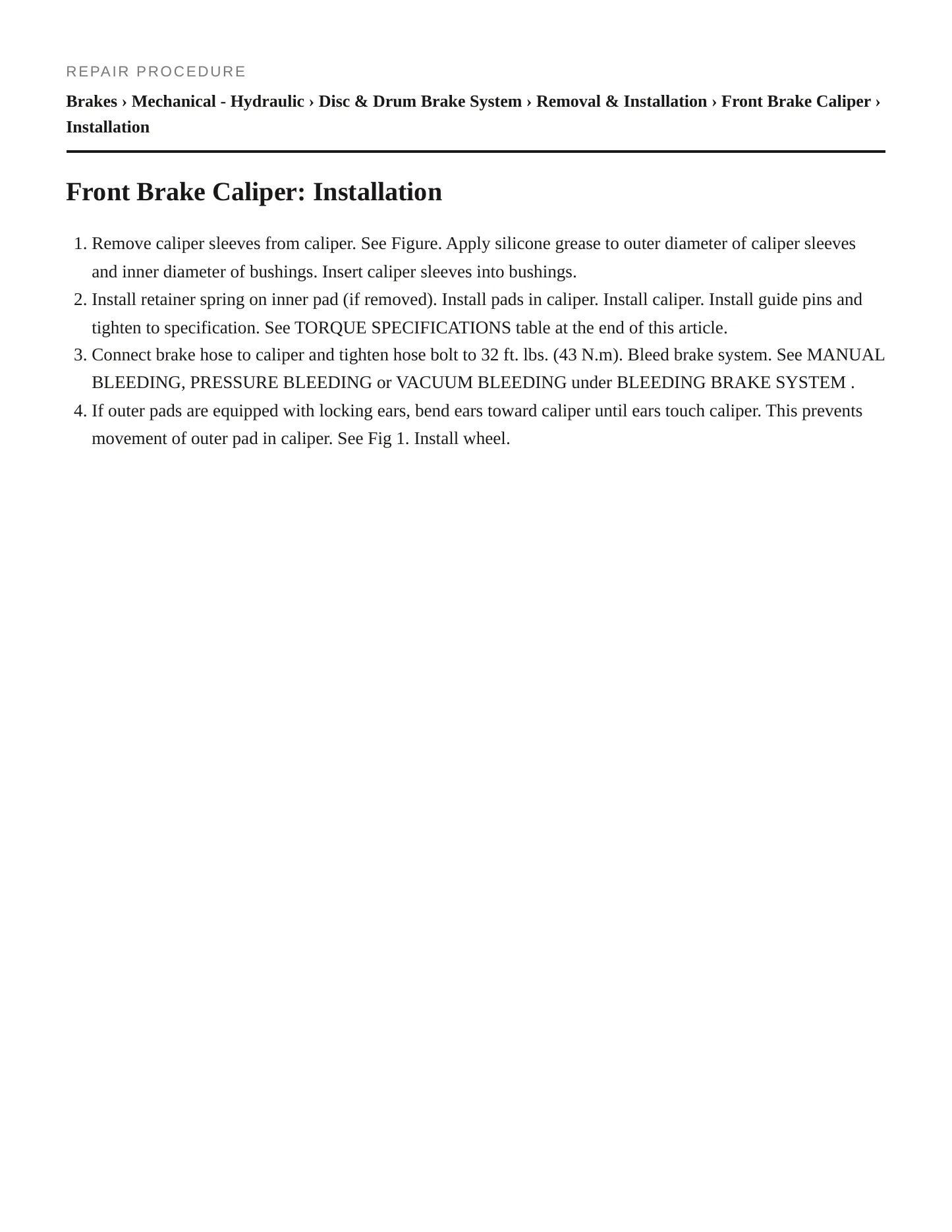

Complete repair procedures

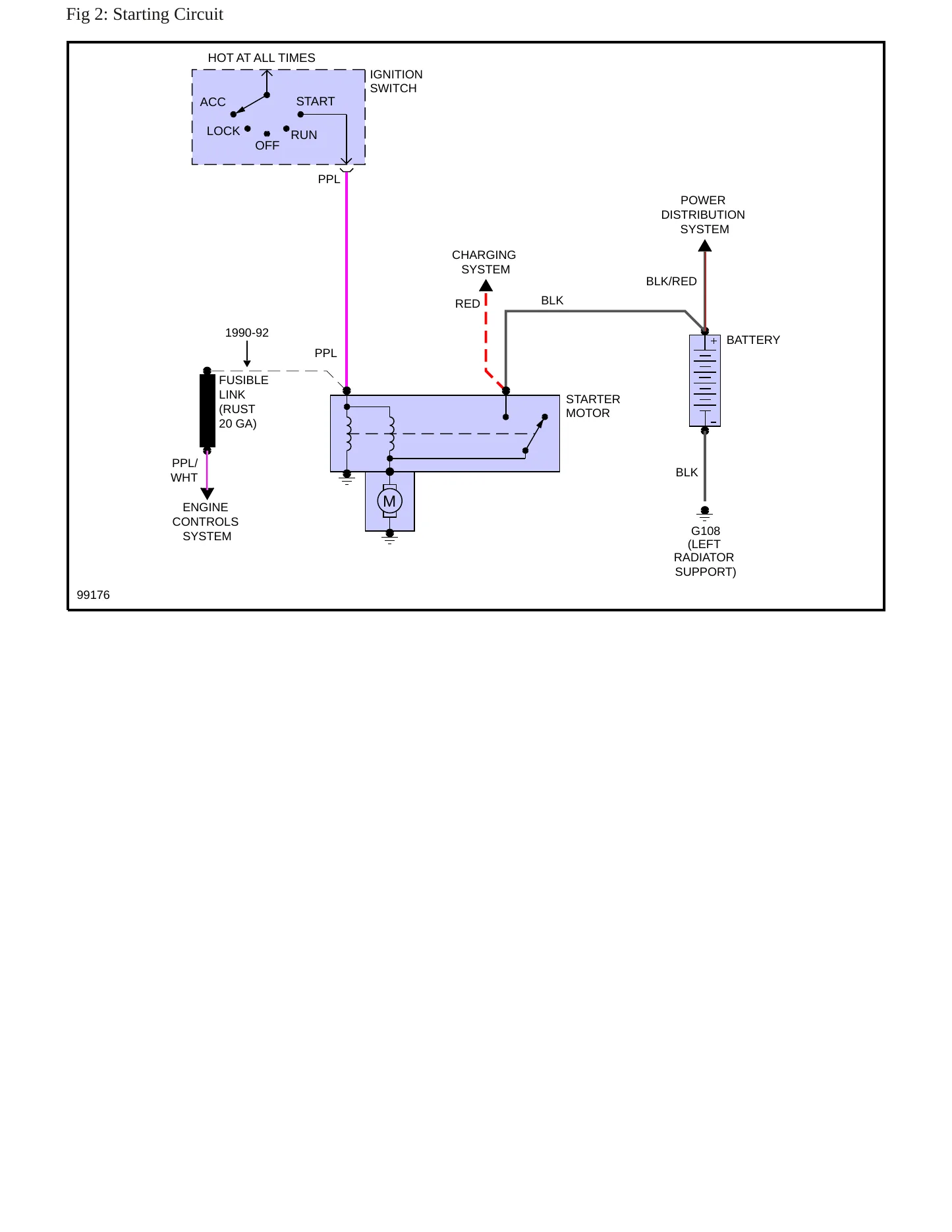

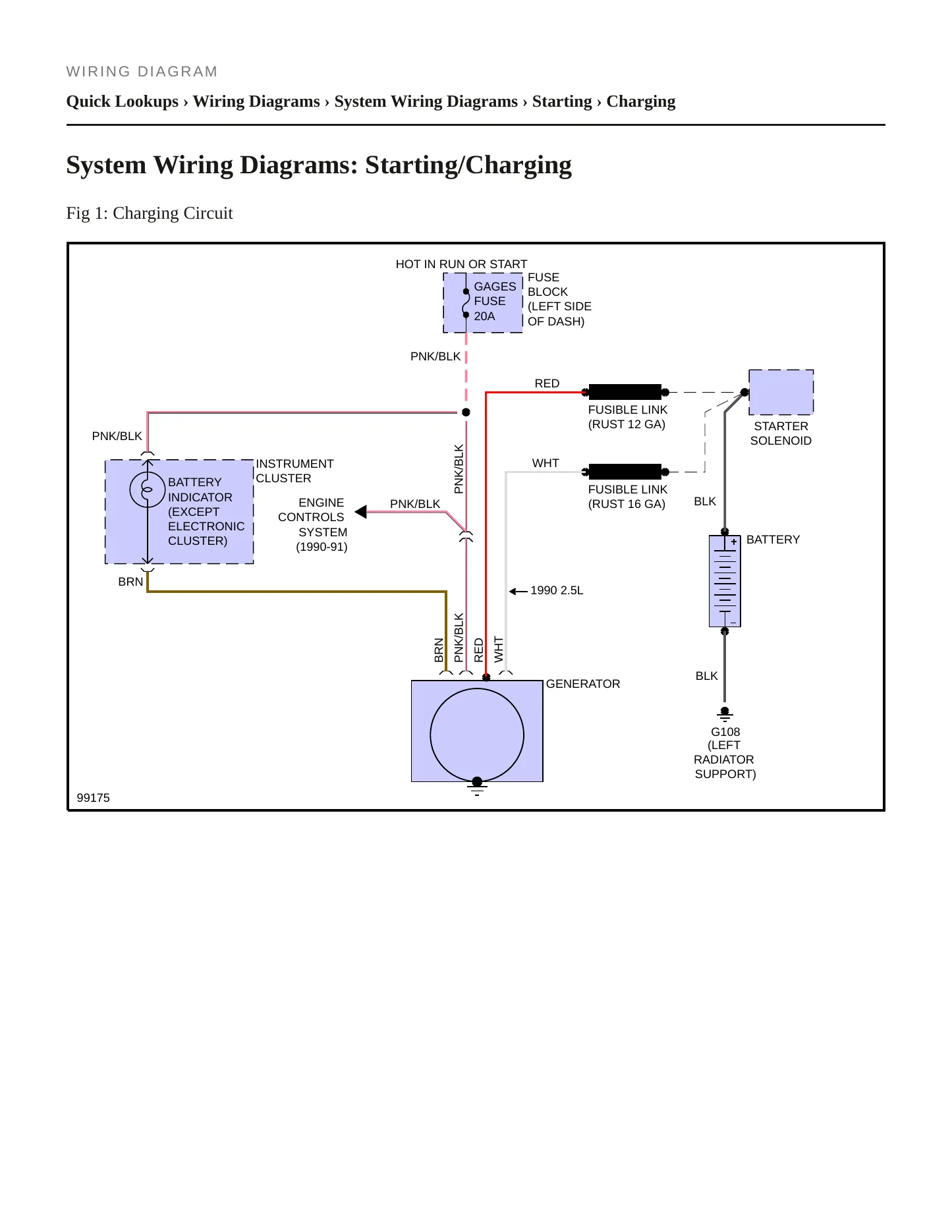

Wiring diagrams & schematics

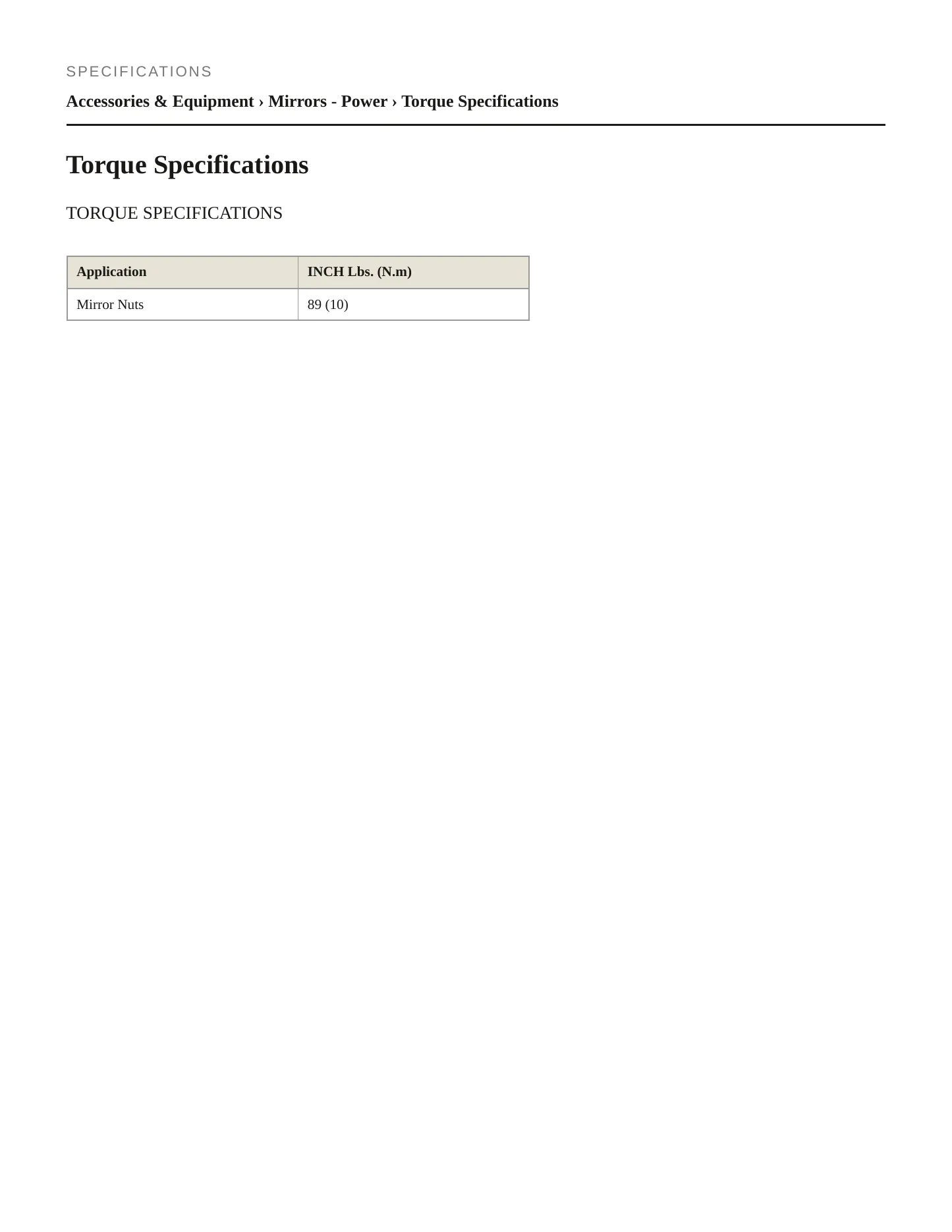

Torque specifications
Full search & bookmarks
$29.99
1993 Chevrolet Astro Service and Repair Manual
Regular price
$29.99 USD
Unit price
This factory service and repair manual for the 1993 Chevrolet Astro is a one-engine, four-body book. Everything in it turns on the naturally aspirated 4.3-liter overhead-valve V6 of 262 cubic inches, gasoline-fueled, fitted to standard and extended three-door vans in passenger and cargo configurations across Base, CL, CS and LT trim. That single powertrain keeps the fuel, ignition and cooling specifications short and unambiguous, while suspension, brake and body electrical work is documented across the standard and extended bodies separately.
Engines covered
- 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 3-door extended cargo van
- 3-door extended passenger van
- 3-door standard passenger van
- 3-door standard cargo van
Trims covered
- Base
- CL
- CS
- LT
Known issues on the 1993 Astro. The federal record carries five recalls here. Fuel makes up two of them — a replacement return line with an under-torqued bleed valve that can leak at the valve, and a replacement filter that can seal poorly at its connection — and both end in the same place, fuel escaping near an ignition source. A third concerns front seat back height falling short of the head restraint standard. Suspension and power train together account for 40 of the 166 complaints, behind 45 on service brakes; driveline, suspension and brake procedures are all specified in this manual.
CERTAIN CK MOTORSPORTS COMBINATION HEADLIGHTS, CLEAR CORNER, BUMPER, AND SIDE MARKER LIGHTS SOLD AS REPLACEMENT LAMPS FOR USE ON THE PASSENGER VEHICLES LISTED ABOVE. SOME COMBINAT
Consequence
WITHOUT THE AMBER REFLECTORS, THE VEHICLE WILL BE POORLY ILLUMINATED, POSSIBLY RESULTING I
Remedy
CK MOTORSPORT WILL NOTIFY OWNERS AND REPLACE THE NONCOMPLIANT LAMPS FREE OF CHARGE. THE R
CERTAIN PRO-A MOTORS CORNER LAMPS, TURN SIGNALS, AND HEADLIGHTS SOLD AS REPLACEMENT LAMPS FOR USE ON CERTAIN PASSENGER VEHICLES LISTED ABOVE. SOME COMBINATION LAMPS THAT ARE NOT E
Consequence
WITHOUT THE AMBER REFLECTORS, THE VEHICLE WILL BE POORLY ILLUMINATED, POSSIBLY RESULTING I
Remedy
PRO-A MOTORS WILL NOTIFY OWNERS AND OFFER TO REPURCHASE THE LAMPS. THE RECALL BEGAN ON AP
CERTAIN REPLACEMENT FUEL FILTERS, FRAM BRAND NAME P/N G3727, WITH DATE CODES X52911 THROUGH X60801 SEQUENTIALLY OR X600141 AND A MEXICO COUNTRY OR ORIGIN MARKING ON THE FUEL FILTER
Consequence
THIS CONDITION MAY CAUSE AN INADEQUATE SEAL AT THE CONNECTION, POTENTIALLY LEADING TO A FU
Remedy
HONEYWELL WILL NOTIFY OWNERS AND REPLACE THE FUEL FILTERS FREE OF CHARGE. THE RECALL BEGA
CERTAIN R&B, INC. CENTRAL MULTIPORT FUEL INJECTION (CMFI) FUEL RETURN LINES, MODELS HELP 55163, NAPA BALKAMP 700-3270, AND THE CONNECTION 2560001, SOLD FOR USE AS REPLACEMENT EQUIP
Consequence
A FUEL LEAK CAN OCCUR AT THE VALVE, POSSIBLY RESULTING IN A FIRE.
Remedy
R&B, INC. WILL NOTIFY OWNERS AND AT THE CUSTOMERS REQUEST, EITHER REPLACE THE FUEL LINE OR
THE FRONT DRIVER AND PASSENGER SEAT BACK HEIGHT DOES NOT CONFORM TO THE REQUIREMENTS OF FMVSS NO. 202, "HEAD RESTRAINTS."
Consequence
CONSEQUENCE OF NON-COMPLIANCE: SEAT OCCUPANTS ARE SUBJECT TO INCREASED RISK OF INJURY IN
Remedy
SHERRY DESIGNS WILL PROVIDE AN ATTACHABLE HEADREST FOR THE DEALER OR CUSTOMER TO ADD TO TH
GENERAL MOTORS: ON ALL 1988-2009 FULL SIZE CHEVROLET/GMC PICKUPS, UTILITIES AND VANS, THE BRAKE PEDAL WILL MOVE DOWN OR SELF APPLY DURING FULL LOCK TURNS OR NEAR FULL LOCK TURNS. CHEVROLET ASTRO AND GMC SAFARI VANS; HUMMER 2 ARE INCLUDED. *
DIAGNOSTIC INFORMATION FOR INTERMITTENT TRANSMISSION DOWNSHIFT, SLIP, BUSY/CYCLING TCC OR NOISY COOLING FAN. *TT
WINDOW REGULATOR MOTOR DOES NOT FIT. *TT
DIAGNOSIS OF CRACKED OR BROKEN TRANSMISSION CASE. *TT 2006 AND PRIOR CARS AND LIGHT DUTY TRUCKS. *TT
SOME CUSTOMERS MAY COMMENT THAT THE RIGHT REAR DOOR HANDLE ON THE CARGO DOOR BREAKS. *TT
SUBJECT REGARDING ABS 3-SENSOR EBC4 - SPECIAL POLICY. *TT
INTERMITTENT HESTIATIONS, LOW POWER, AND ROUGH RUNNING ENGINE IN COLD TEMPERATURES (REPLACE PCM). *TW
SPECIAL POLICY ADJUSTMENT - LINEAR EXHAUST GAS RECIRCULATION SYSTEM. *TW
Showing the 8 most recent of 22 technical service bulletins on file with NHTSA.
WHILE DRIVING ABOUT 75 MPH LEFT REAR TIRE HAD A TREAD SEPARATION, CAUSING VEHICLE TO ROLL. CHEVROLET, ASTRO VAN, 1993. *AK RIDGESTONE DUELER APT, LT215/75R15, DOT 7BD0PUB507, DR
WAS INVOLVED IN A SINGLE ACCIDENT, WHICH A DEER RAN OUT IN FRONT OF ME I MERGE RIGHT TO AVOID HITTING THE DEER, AND ROLLED 1.5 TIMES AND WHEN RESTING UPON TOP OF TRUCK, THE REAR LE
WAS INVOLVED IN A SINGLE ACCIDENT, WHICH A DEER RAN OUT IN FRONT OF ME I MERGE RIGHT TO AVOID HITTING THE DEER, AND ROLLED 1.5 TIMES AND WHEN RESTING UPON TOP OF TRUCK, THE REAR LE
WHILE TRAVELING TEN TO FIFTEEN MPH ON DRY ROAD CONDITIONS ABS BRAKING SYSTEM FAILED, CAUSING A FRONTAL COLLISION WITH A PICK-UP TRUCK. REAR DRUM BRAKES HAVE RECENTLY BEEN REPLACE
Showing the 4 most serious of 177 complaints filed with NHTSA.
