2004 GMC Safari Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 2004 Safari trims — Base Extended Cargo Van 3-Door, Base Standard Cargo Van 3-Door, Base Extended Passenger Van 3-Door +5 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

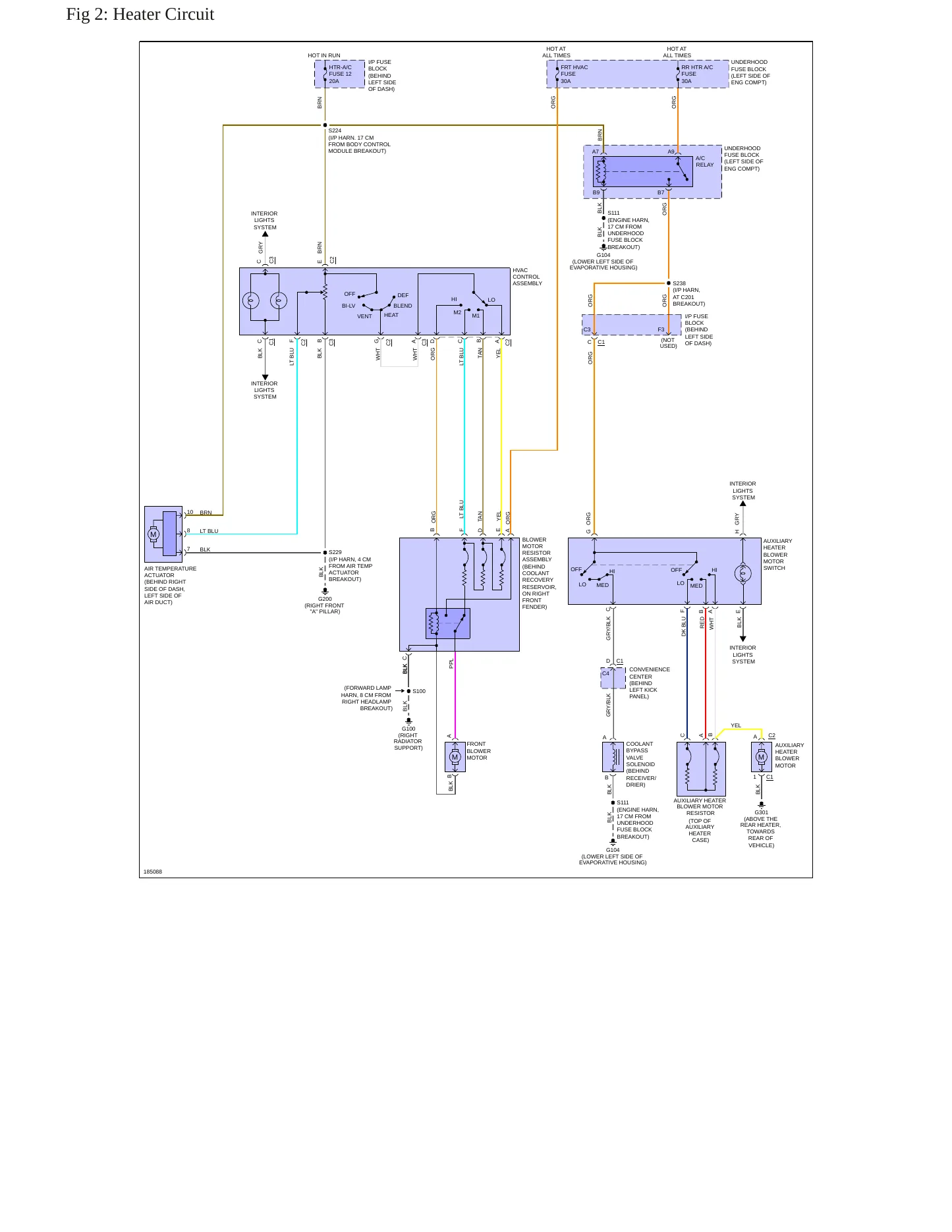

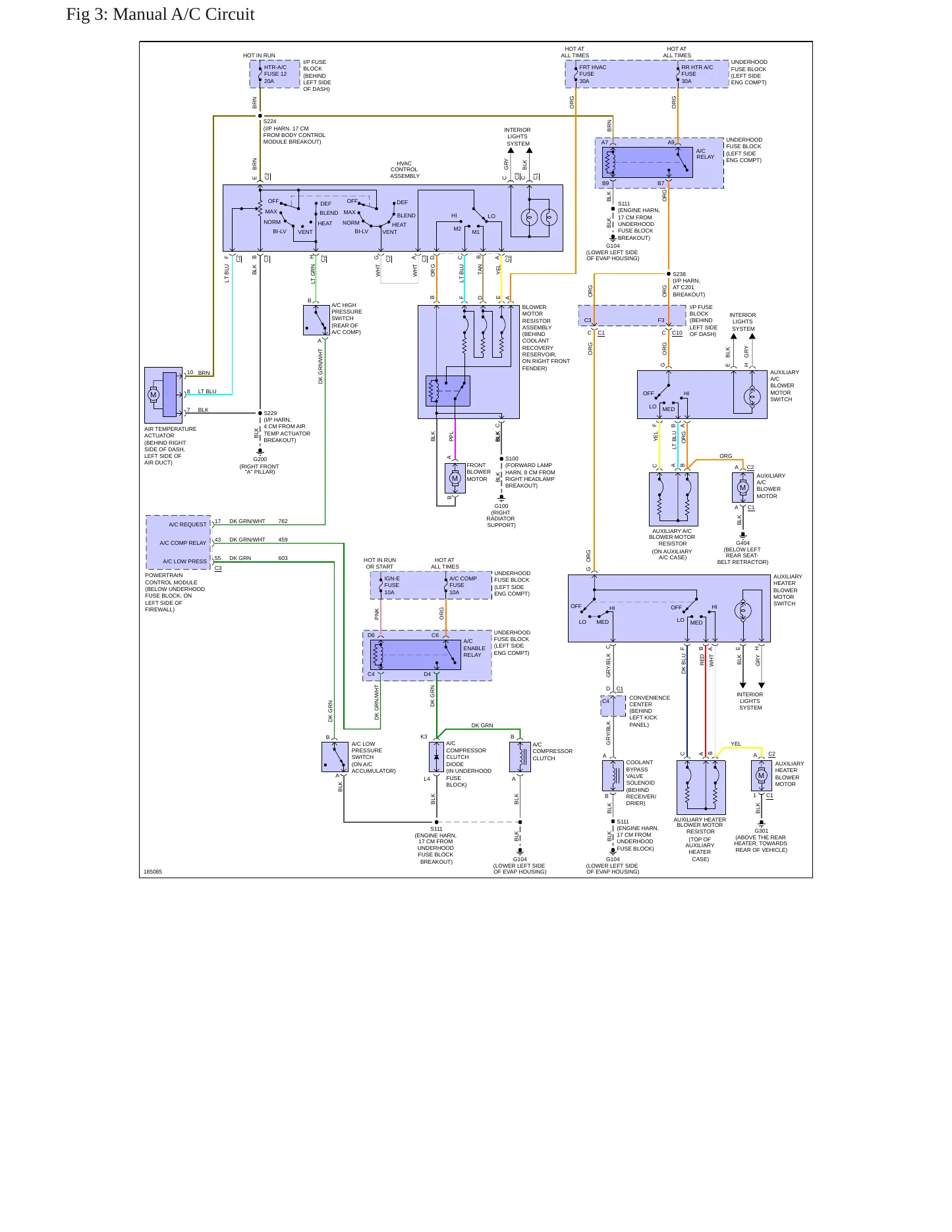

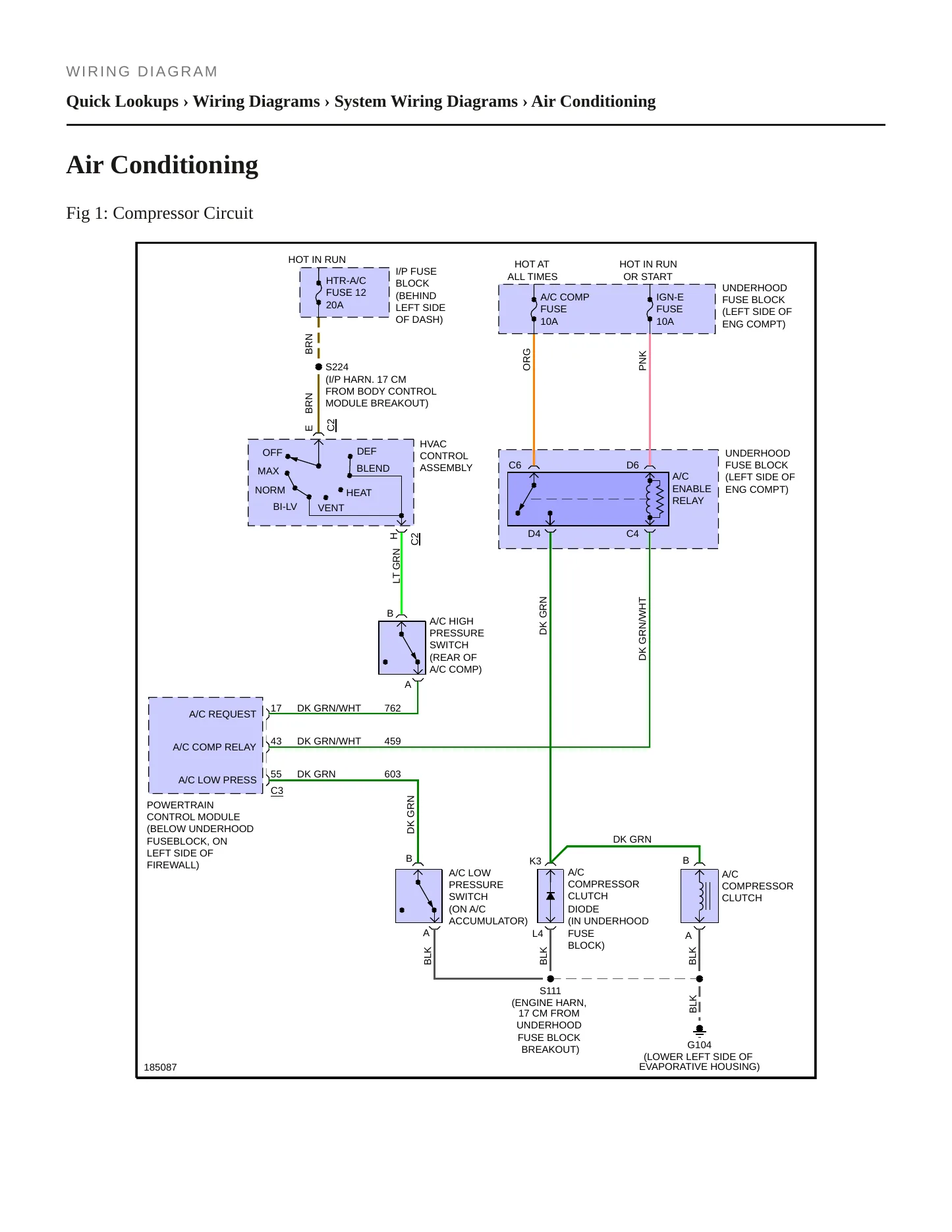

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
2004 GMC Safari Service and Repair Manual
Regular price
$29.99 USD
Unit price
This factory service and repair manual for the 2004 GMC Safari covers both wheelbases in both roles: standard and extended cargo vans, standard and extended passenger vans, all three-door, in Base, SLE and SLT trim. The only engine listed is the 262-cubic-inch 4.3L V6, an overhead-valve unit running naturally aspirated on gasoline. Wheelbase drives nearly all the variation in the chassis and body chapters while the powertrain content stays fixed, and specifications, torque values, wiring diagrams and diagnostic procedures are indexed by system throughout.
Engines covered
- 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 3-door extended cargo van
- 3-door standard cargo van
- 3-door extended passenger van
- 3-door standard passenger van
Trims covered
- Base
- SLE
- SLT
Known issues on the 2004 Safari. The federal record carries two recalls against this van. In one, a replacement fuel filter seals imperfectly at its connection and lets fuel escape where an ignition source could reach it. In the other, aftermarket corner lamps, turn signals and headlights were supplied without the amber side reflectors the lighting standard requires, leaving the van poorly marked from the side. Only six owner complaints are logged, two of them on the suspension and one each on the service brakes and the fuel system. Front-end alignment, fuel delivery and brake hydraulics all have procedures and specifications in this book.
CERTAIN PRO-A MOTORS CORNER LAMPS, TURN SIGNALS, AND HEADLIGHTS SOLD AS REPLACEMENT LAMPS FOR USE ON CERTAIN PASSENGER VEHICLES LISTED ABOVE. SOME COMBINATION LAMPS THAT ARE NOT EQUIPPED WITH AMBER S
Consequence
WITHOUT THE AMBER REFLECTORS, THE VEHICLE WILL BE POORLY ILLUMINATED, POSSIBLY RESULTING IN A VEHICL
Remedy
PRO-A MOTORS WILL NOTIFY OWNERS AND OFFER TO REPURCHASE THE LAMPS. THE RECALL BEGAN ON APRIL 3, 200
CERTAIN REPLACEMENT FUEL FILTERS, FRAM BRAND NAME P/N G3727, WITH DATE CODES X52911 THROUGH X60801 SEQUENTIALLY OR X600141 AND A MEXICO COUNTRY OR ORIGIN MARKING ON THE FUEL FILTER HOUSING MANUFACTURE
Consequence
THIS CONDITION MAY CAUSE AN INADEQUATE SEAL AT THE CONNECTION, POTENTIALLY LEADING TO A FUEL LEAK. I
Remedy
HONEYWELL WILL NOTIFY OWNERS AND REPLACE THE FUEL FILTERS FREE OF CHARGE. THE RECALL BEGAN ON OCTOB
This PI communicates the requirement to provide a pico file to receive diagnostic assistance from TAC.
This Preliminary Information communication provides information to the technician about vehicles that have an unusual noise and is difficult to identify, isolate or pinpoint. Technician should get record a sound clip or take a video of the
This Preliminary Information communicates to the dealer the process for downloading or updating operating software for the Tire Pressure Monitor, Active Fuel Injector tester, multi media tester, PICO Scope, GR8 starting/charging tester and
This Preliminary Information communication provides information to the technician about vehicles that the Heater-Vent-Air Conditioning blows warm air. Before calling General Motors Technical Assistance Center technician will need to have hi
This Preliminary Information communication provides information to the technician about vehicles that the Heater-Vent-Air Conditioning blows warm air. Before calling General Motors Technical Assistance Center technician will need to have hi
This Preliminary Information communication provides information to the technician about changing the tire and wheel size on vehicles. General Motors will only support a tire calibration for tires that have been sized, tested and designed fo
Vehicle Wide Programming (VWP) is a new process to update software on GM Vehicles. It provides the ability via a single selection within Techline Connect to first identify which modules need updating and then proceed to updating affected mo
GM is receiving damaged (cracked or broken) transmission cores returned to the reman facilities. The damage is being caused either in the removal process by the technician, or inadequate packaging or shipping. This bulletin advises the deal
Showing the 8 most recent of 178 technical service bulletins on file with NHTSA.
TL* THE CONTACT OWNS A 2004 GMC SAFARI AWD. THE CONTACT WAS DRIVING APPROXIMATELY 3-5 MPH AND COMING TO A STOP WHEN THE ABS ACTIVATED ABNORMALLY AND CAUSED THE BRAKES TO PULSATE. THE VEHICLE WAS TAKEN
TL* THE CONTACT OWNS A 2004 GMC SAFARI AWD. THE CONTACT WAS DRIVING APPROXIMATELY 3-5 MPH AND COMING TO A STOP WHEN THE ABS ACTIVATED ABNORMALLY AND CAUSED THE BRAKES TO PULSATE. THE VEHICLE WAS TAKEN
TL*THE CONTACT OWNS A 2004 GMC SAFARI. THE CONTACT STATED THAT THE VACUUM HOSE FAILED IN HER VEHICLE. SHE TOOK THE VEHICLE TO A MECHANIC, WHO DISCOVERED A HOLE IN THE AIR CONDITIONING LINE. THE FAI
TL*THE CONTACT OWNS A 2004 GMC SAFARI. THE CONTACT STATED THAT THE VACUUM HOSE FAILED IN HER VEHICLE. SHE TOOK THE VEHICLE TO A MECHANIC, WHO DISCOVERED A HOLE IN THE AIR CONDITIONING LINE. THE FAI
THE REAR END WAS MAKING A NOISE AND WAS TAKEN TO THE CAR DEALER CHECKED THE VEHICLE. THE DEALER SAID THAT THE PROBLEM WAS WITH THE CARRIER BEARINGS AND THE RING & PINION (FACTORY DEFECT). THE VEHICLE
Showing the 5 most serious of 8 complaints filed with NHTSA.
