2002 GMC Safari Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 2002 Safari trims — SL Extended Cargo Van 3-Door, SLT Extended Passenger Van 3-Door, SLE Extended Passenger Van 3-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual

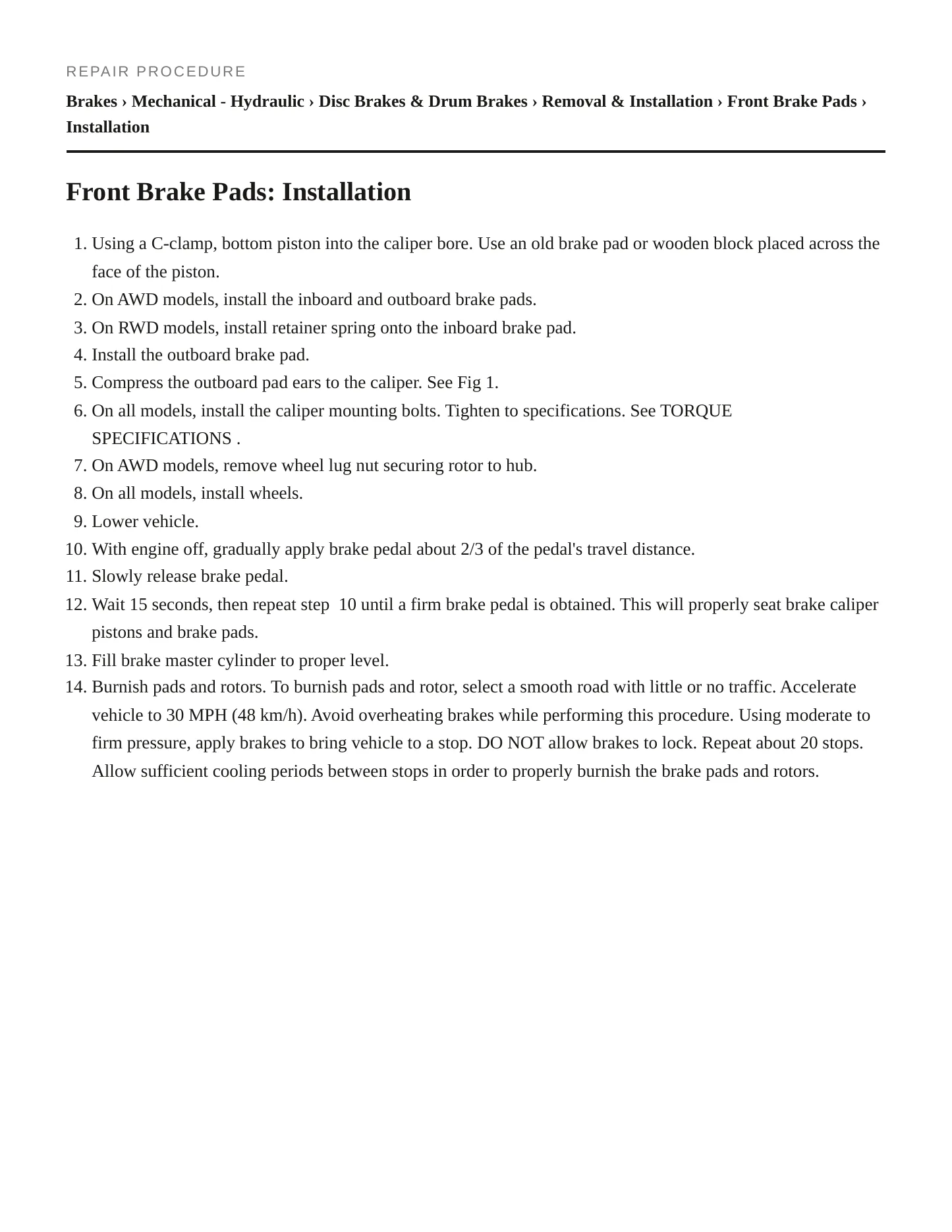

Complete repair procedures

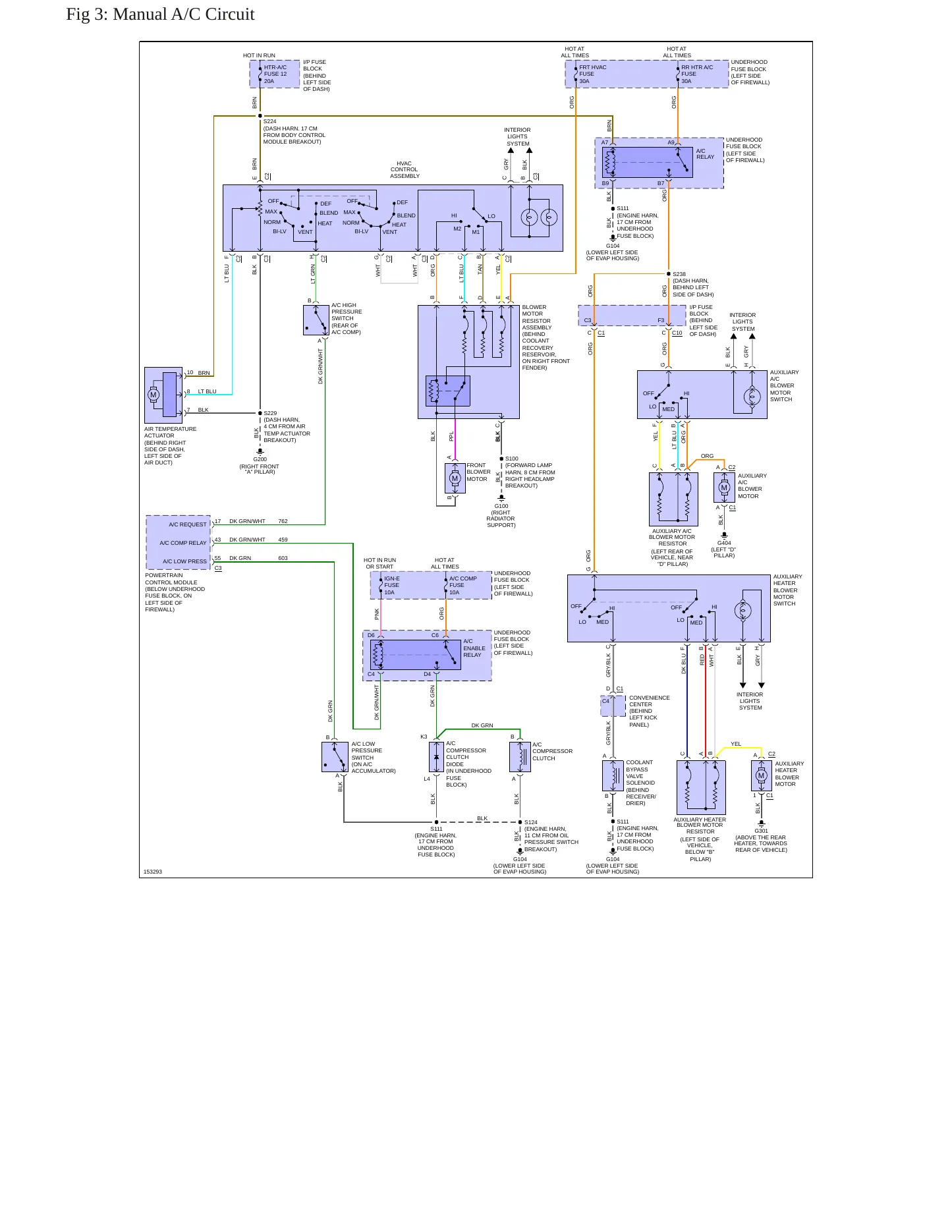

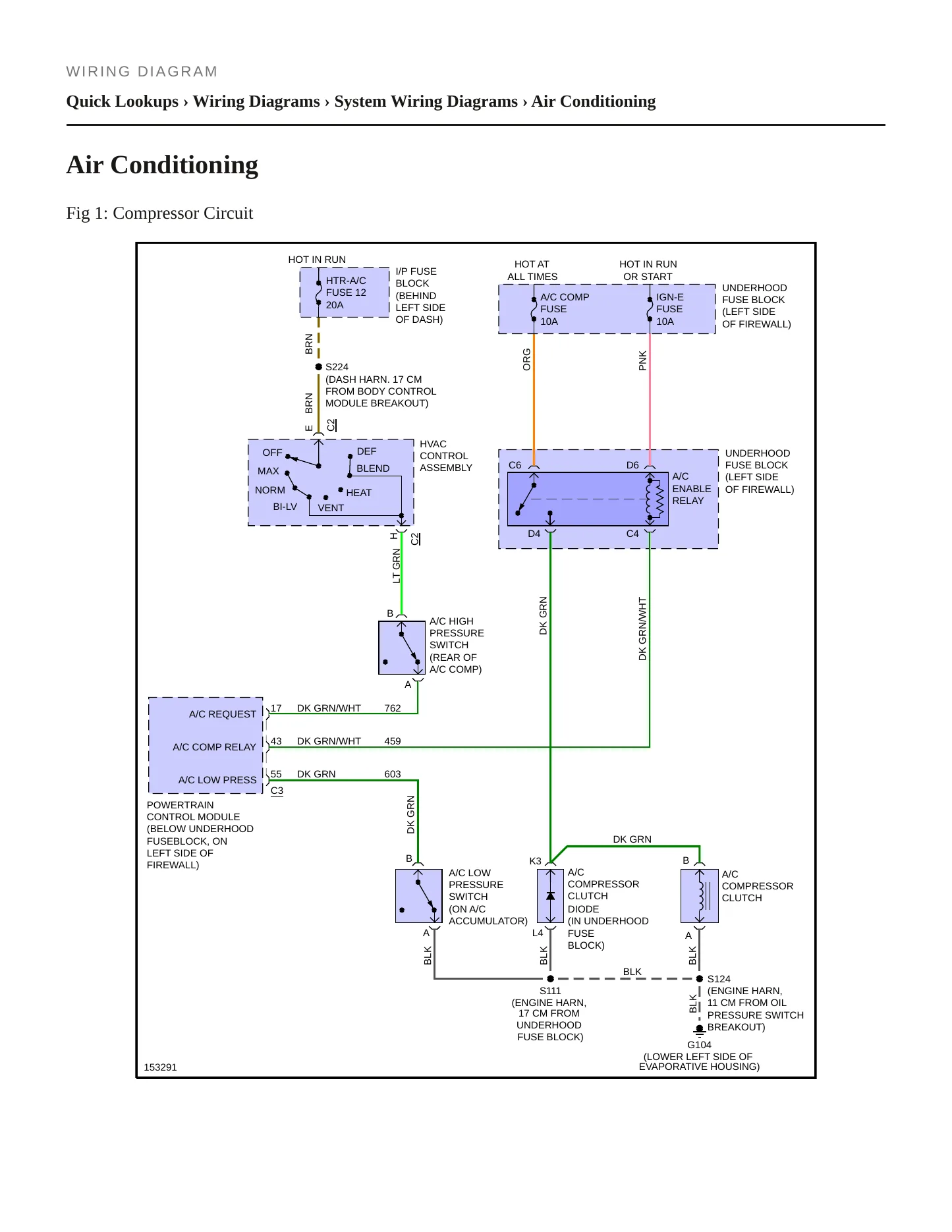

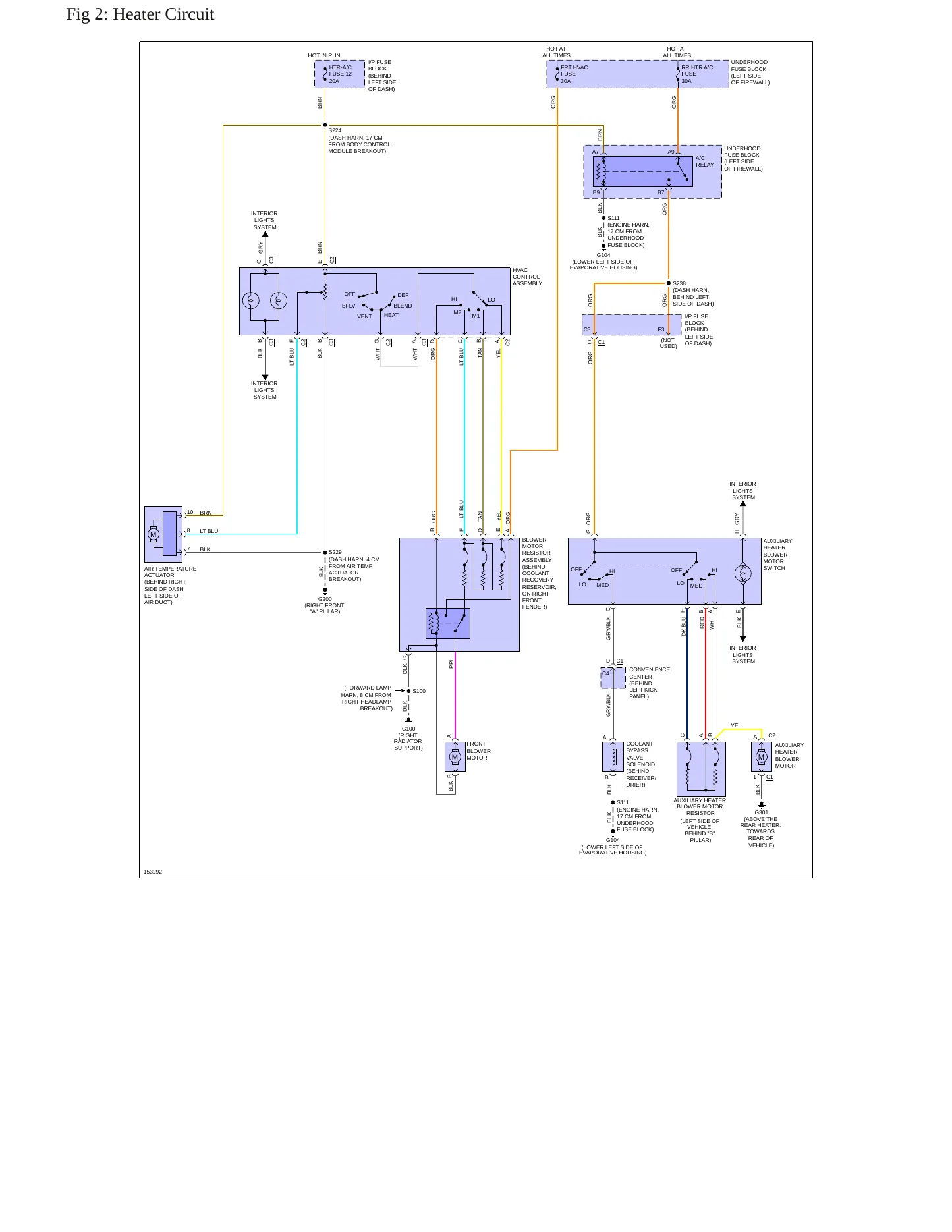

Wiring diagrams & schematics

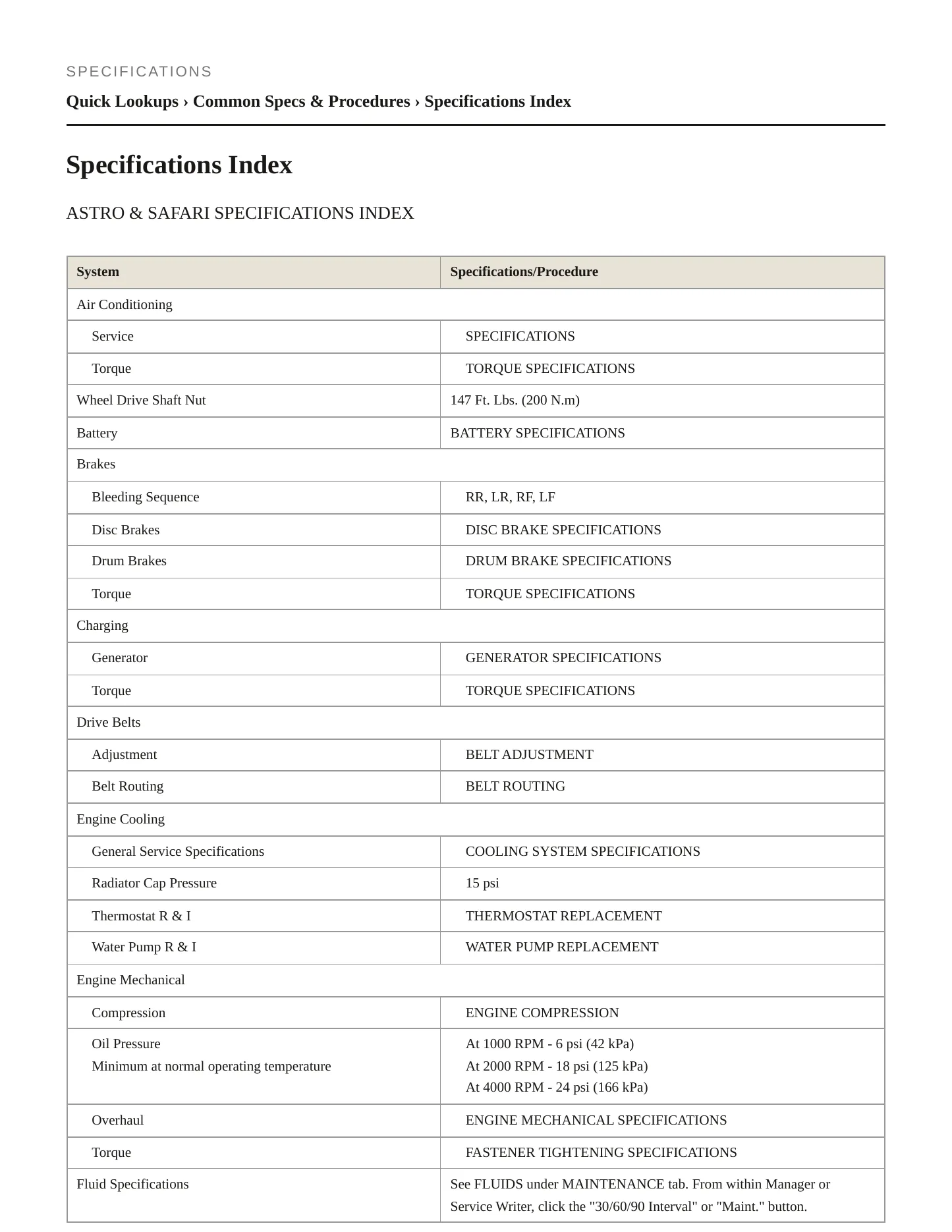

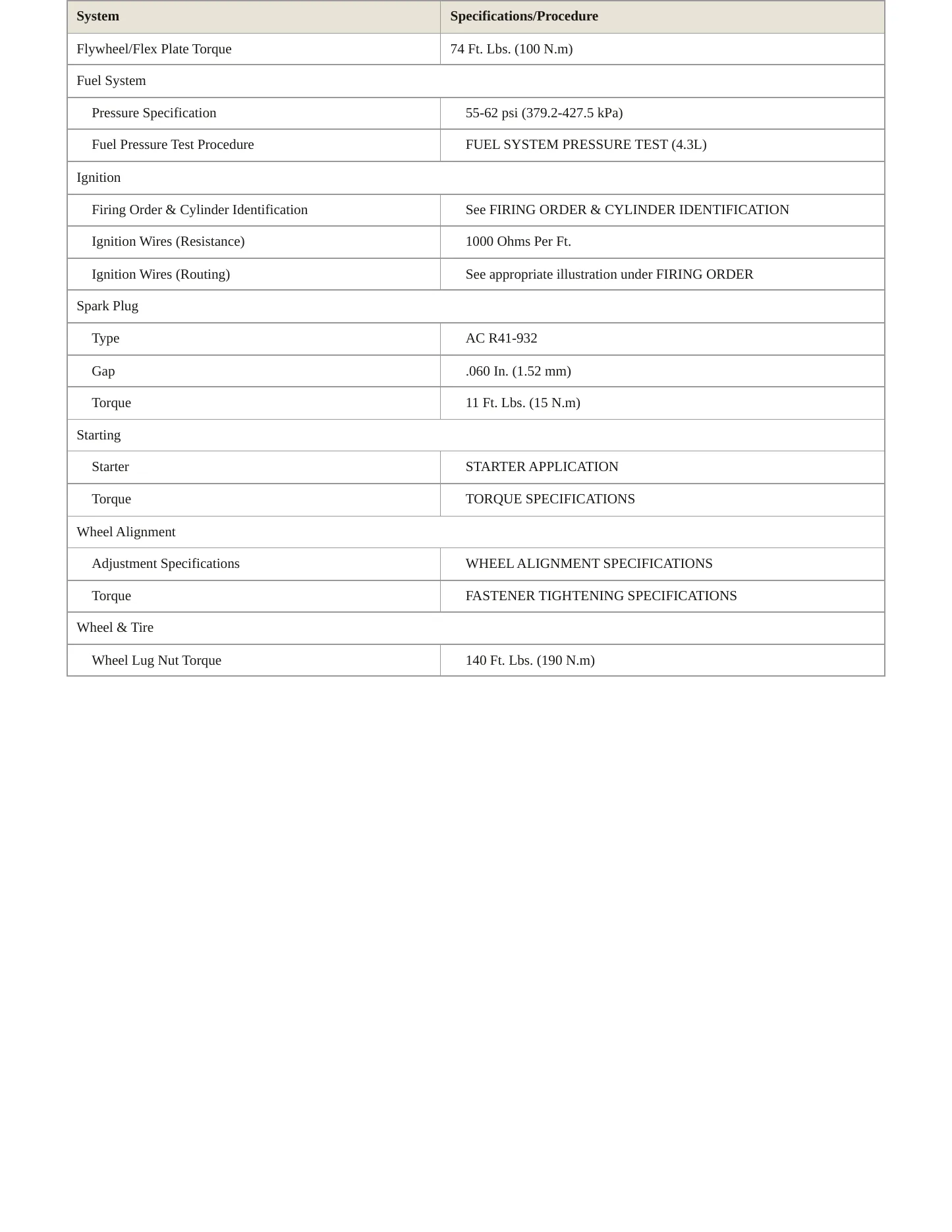

Torque specifications
Full search & bookmarks
$29.99
2002 GMC Safari Service and Repair Manual
Regular price
$29.99 USD
Unit price
This factory service and repair manual for the 2002 GMC Safari has a short lineup to describe: SL, SLE and SLT trims, extended cargo and extended passenger bodywork in three-door form, and one engine, a naturally aspirated 4.3L V6 measuring 262 cubic inches and using overhead valves. With so little variation to track, the book reads as a straight system reference, running from engine mechanical and fuel through the transmission, brakes, suspension, steering, body and electrical systems, each of them documented with specifications, torque values, wiring diagrams and diagnostic procedures.
Engines covered
- 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 3-door extended cargo van
- 3-door extended passenger van
Trims covered
- SL
- SLE
- SLT
Known issues on the 2002 Safari. Lighting and fuel account for the three recalls carried on the federal record. An open circuit inside the multifunction switch can knock out the stop lamps and the hazard lamps together. A replacement fuel filter may not seal where it connects, and gasoline escaping near an ignition source can burn. Replacement corner lamps and headlights sold without amber side reflectors fall short of the federal lighting requirement. The 32 owner complaints lean the same way, with 11 on the service brakes, six on the electrical system and three on the suspension.
ON CERTAIN MINIVANS, THE MULTIFUNCTION SWITCH MAY DEVELOP AN OPEN CIRCUIT CONDITION IN THE STOP LAMP OR HAZARD LAMP CIRCUIT THAT RESULTS IN THE STOP LAMPS AND HAZARD LAMPS BEING INOPERATIVE.
Consequence
THE LOSS OF STOP LAMPS AND REAR HAZARD LAMPS COULD FAIL TO WARN A FOLLOWING DRIVER THAT THE VEHICLE
Remedy
DEALERS WILL REPLACE THE HAZARD WARNING FLASHER SWITCH AND APPLY SPECIAL GREASE TO THE CONTACTS AT T
This PI communicates the requirement to provide a pico file to receive diagnostic assistance from TAC.
This Preliminary Information communication provides information to the technician about vehicles that have an unusual noise and is difficult to identify, isolate or pinpoint. Technician should get record a sound clip or take a video of the
This Preliminary Information communicates to the dealer the process for downloading or updating operating software for the Tire Pressure Monitor, Active Fuel Injector tester, multi media tester, PICO Scope, GR8 starting/charging tester and
This Preliminary Information communication provides information to the technician about vehicles that the Heater-Vent-Air Conditioning blows warm air. Before calling General Motors Technical Assistance Center technician will need to have hi
This Preliminary Information communication provides information to the technician about vehicles that the Heater-Vent-Air Conditioning blows warm air. Before calling General Motors Technical Assistance Center technician will need to have hi
Vehicle Wide Programming (VWP) is a new process to update software on GM Vehicles. It provides the ability via a single selection within Techline Connect to first identify which modules need updating and then proceed to updating affected mo
GM is receiving damaged (cracked or broken) transmission cores returned to the reman facilities. The damage is being caused either in the removal process by the technician, or inadequate packaging or shipping. This bulletin advises the deal
This service bulletin advises of a new fuel injection cleaner kit used for decarbonizing the intake valves to correct conditions of rough idle, Crank no start, extended crank or misfire, MIL with DTCs, and explains how Top Tier fuels should
Showing the 8 most recent of 166 technical service bulletins on file with NHTSA.
TL* THE CONTACT OWNS A 2002 GMC SAFARI. WHILE DRIVING 45 MPH, THE CONTACT'S VEHICLE WAS STRUCK ON THE DRIVER'S SIDE BY A 2006 DODGE CARAVAN. THE CONTACT'S VEHICLE THEN CRASHED INTO A POLE. THE AIR BAG
WHILE DRIVING DURING FOGGY CONDITIONS AT 20 TO 25 MPH, CONSUMER LOST CONTROL OF VEHICLE AND HIT A TREE. THE AIRBAGS FAILED TO DEPLOY. AS A RESULT, THE DRIVER BROKE HER BACK. A POLICE REPORT WAS TAK
WHILE DRIVING AT 30 MPH IN RUSH HOUR TRAFFIC CONSUMER TRIED TO APPLY THE BRAKES BUT THE BRAKES LOCKED UP. VEHICLE SHUDDERED, THE ABS KICKED IN, AND A COLLISION OCCURRED. CONSUMER FELT THAT THE BRAKE
VEHICLE HAD BRAKE FAILURE WHILE GOING DOWN AN INCLINE. BRAKE PEDAL WENT ALL THE WAY TO THE FLOOR BUT DIDN'T HOLD. THE VEHICLE WAS TOTALED. CONSUMER FELT GM SHOULD REPLACE THE VEHICLE. *AK *CB *JB
ENGINE FIRE. STARTED BY A FAULTY IGNITION MODULE. *NM
Showing the 5 most serious of 35 complaints filed with NHTSA.
