1992 GMC Safari Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 1992 Safari trims — Base Extended Cargo Van 3-Door, Base Standard Cargo Van 3-Door, Base Extended Passenger Van 3-Door +5 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

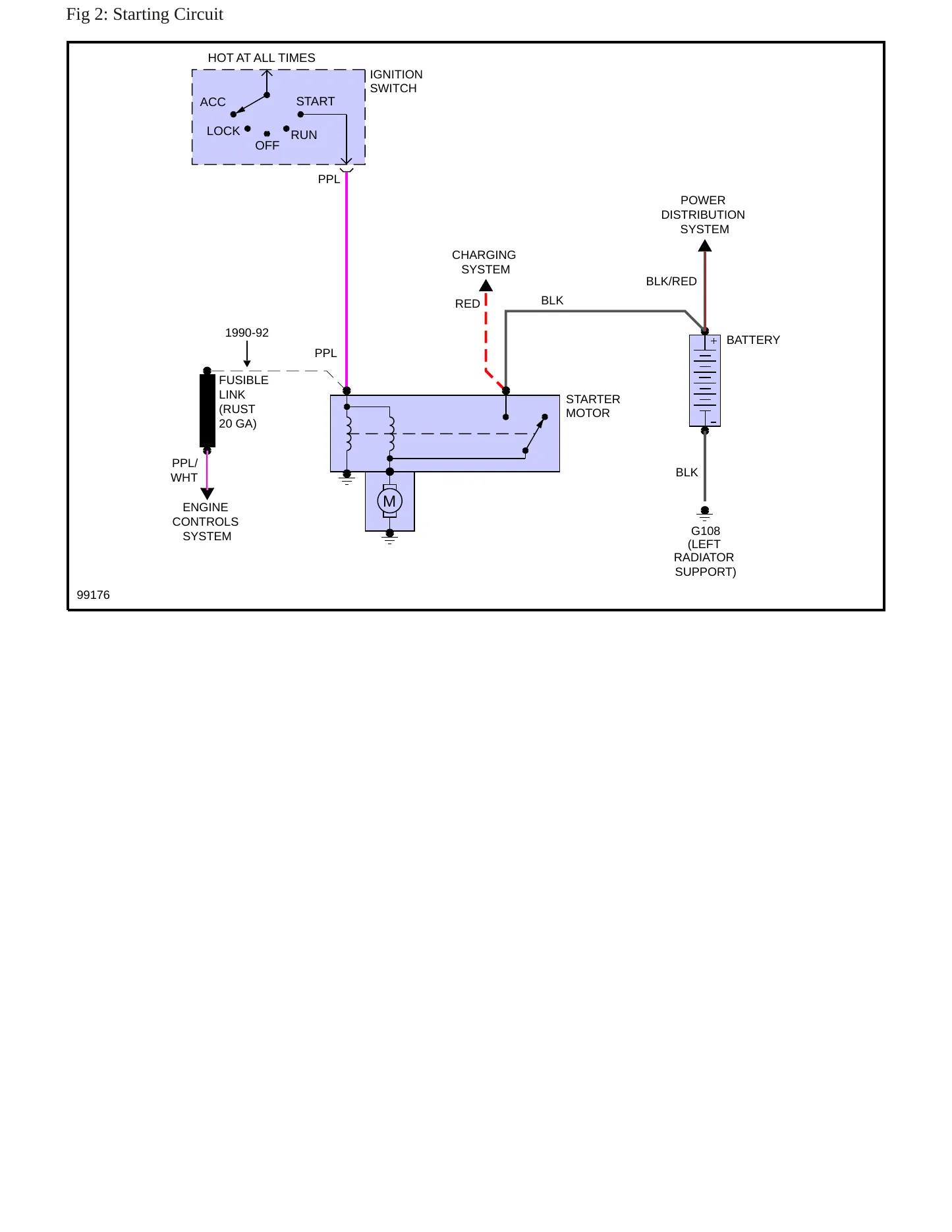

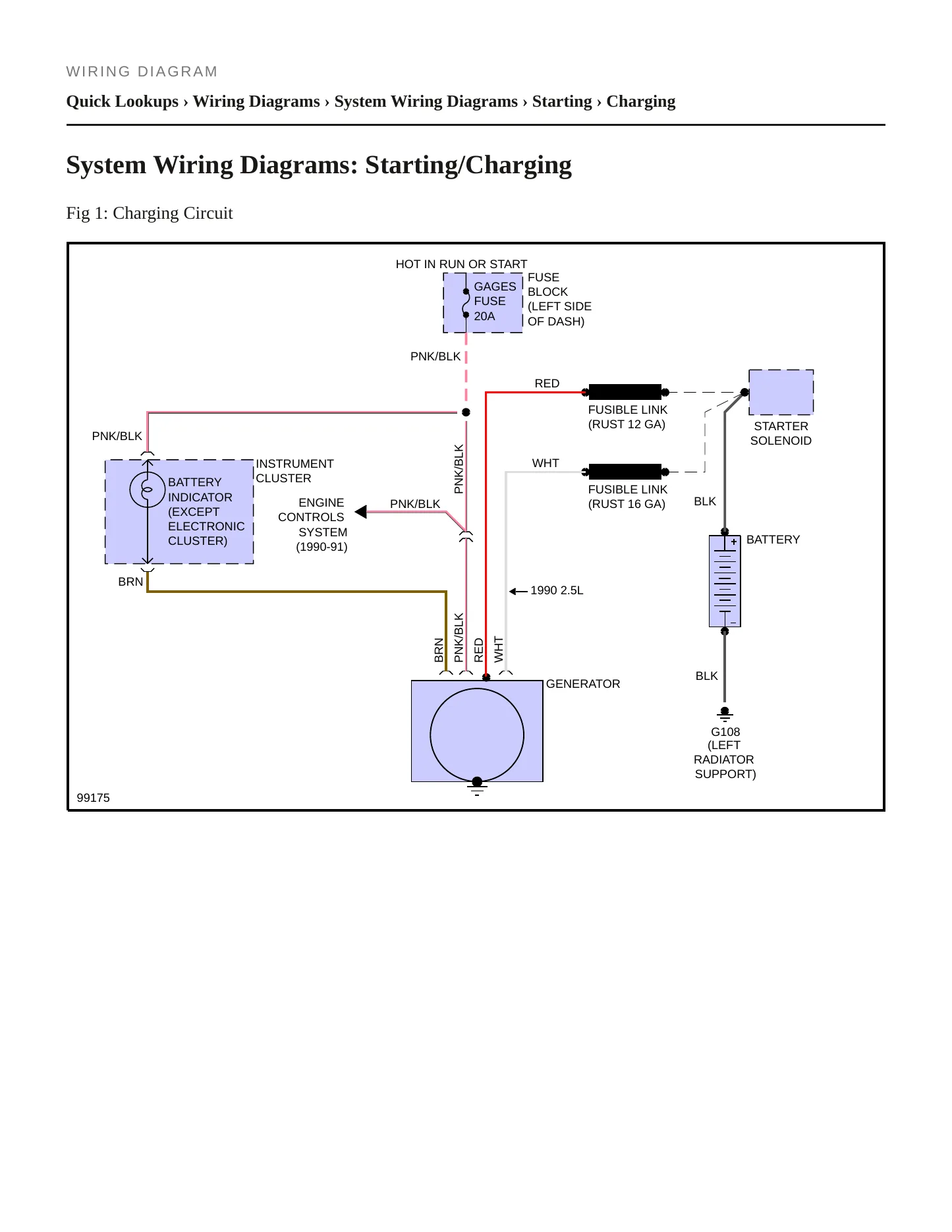

Wiring diagrams & schematics

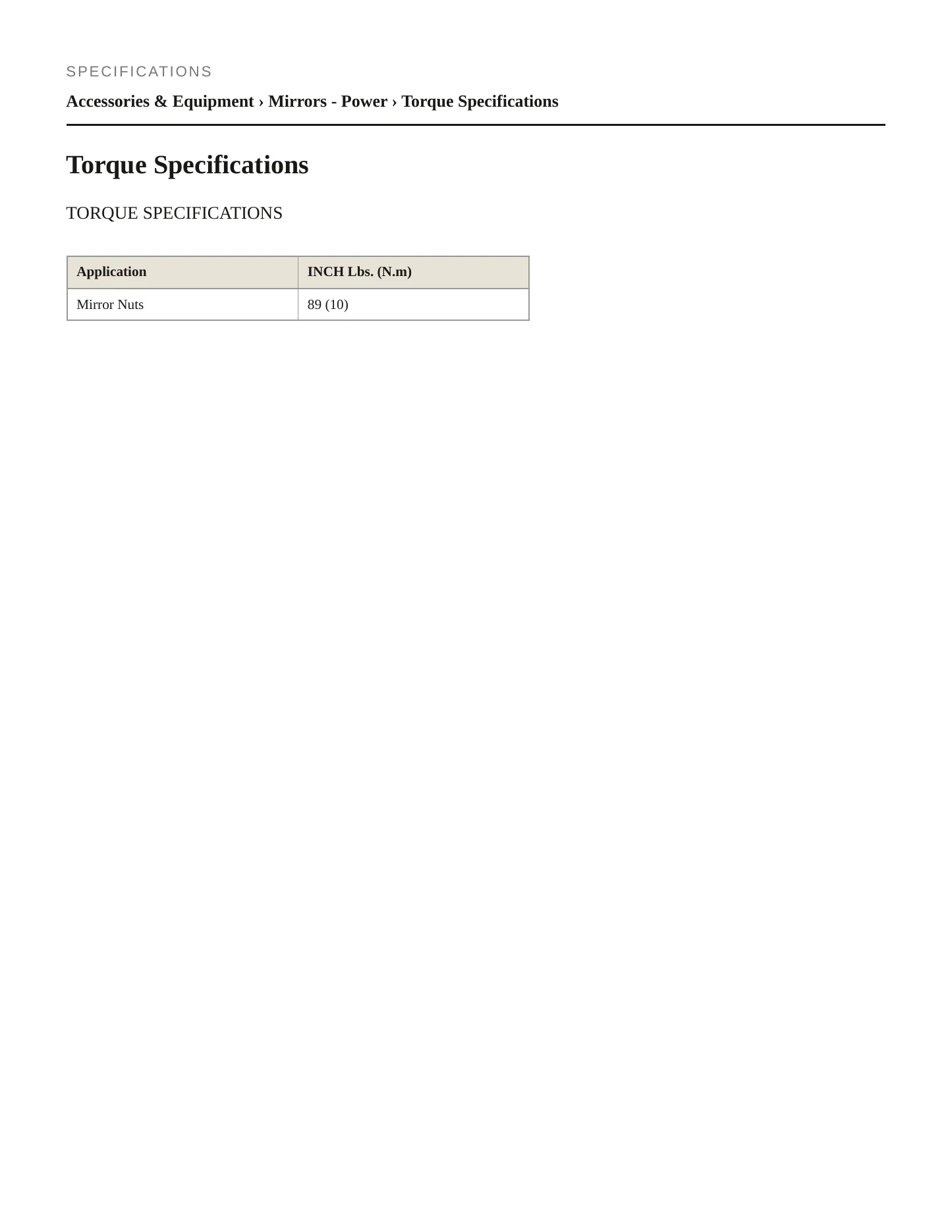

Torque specifications
Full search & bookmarks
$29.99
1992 GMC Safari Service and Repair Manual
Regular price
$29.99 USD
Unit price
This factory service and repair manual for the 1992 GMC Safari is written around the 4.3L V6, a 262-cubic-inch overhead-valve gasoline engine breathing without forced induction, in a van that reached buyers as an extended or standard cargo van and an extended or standard passenger van, each with three doors. Base, SLE and SLT are the trims listed. Every one of those variants is served by the same set of procedures, specifications, torque values, wiring diagrams and diagnostics, arranged so the correct figure can be found by system.
Engines covered
- 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 3-door extended cargo van
- 3-door standard cargo van
- 3-door extended passenger van
- 3-door standard passenger van
Trims covered
- Base
- SLE
- SLT
Known issues on the 1992 Safari. Three recalls are on the federal record. Two of them concern fuel: replacement central multiport injection return lines whose bleed valve can leak, and replacement fuel filters that may not seal at their connection, either of which can put gasoline near an ignition source. The third is the two-piece brake rotor that corrodes at its joint and can separate, costing braking at that wheel. Complaints run to 66, half of them, 33, on the service brakes, with ten on the suspension and five on the electrical system, all systems this manual diagnoses and specifies.
SEVERE CORROSION DUE TO ROAD SALT AT THE JOINT OF THE STAMPED STEEL CENTER SECTION AND THE CAST OUTER SECTION CAN CAUSE THE SECTIONS TO SEPARATE.
Consequence
SEPARATION OF THE ROTOR SECTIONS CAN CAUSE LOSS OFBRAKING ABILITY IN THE AFFECTED WHEEL. THIS COULD
Remedy
REPLACE THE FRONT BRAKE ROTORS WITH NEW ROTORS WITH A CORROSION PROTECTION COATING. HOWEVER, IF REPL
GENERAL MOTORS: ON ALL 1988-2009 FULL SIZE CHEVROLET/GMC PICKUPS, UTILITIES AND VANS, THE BRAKE PEDAL WILL MOVE DOWN OR SELF APPLY DURING FULL LOCK TURNS OR NEAR FULL LOCK TURNS. CHEVROLET ASTRO AND GMC SAFARI VANS; HUMMER 2 ARE INCLUDED. *
DIAGNOSTIC INFORMATION FOR INTERMITTENT TRANSMISSION DOWNSHIFT, SLIP, BUSY/CYCLING TCC OR NOISY COOLING FAN. *TT
WINDOW REGULATOR MOTOR DOES NOT FIT. *TT
DIAGNOSIS OF CRACKED OR BROKEN TRANSMISSION CASE. *TT 2006 AND PRIOR CARS AND LIGHT DUTY TRUCKS. *TT
SPECIAL POLICY ADJUSTMENT - LINEAR EXHAUST GAS RECIRCULATION SYSTEM. *TW
CPI ENGINE NOISE (INSTALL NEW GEARS/NEW MEM-CALS). *SD
COLD ENGINE KNOCK. *TW
HVAC FAN INOPERATIVE. *TW
Showing the 8 most recent of 10 technical service bulletins on file with NHTSA.
ABS FAILURE, WHILE DRIVING ON NORMAL ROAD CONDITIONS THE BRAKE PEDAL WENT TO THE FLOOR AND DRIVER COULD HEAR THE BRAKES MAKING A ROARING NOISE, BUT THE VEHICLE WOULD NOT STOP. THIS CAUSED A REAR-END C
ABS: BRAKES FAILED TO STOP VEHICLE; CAUSED REAREND COLLISION. TT
WHILE STOPPING AND TRYING TO MERGE INTO TRAFFIC VEHICLE WAS REAR ENDED FROM THE BACK DUE TO BRAKE FAILURE. *AK
WHEN THE BRAKES ARE APPLIED THE PEDAL GETS HARD, RESULTING IN EXTENDED STOPPING DISTANCE, WHICH CAUSED A COLLISION TO OCCUR. THE DEALER HAS BEEN NOTIFIED. *AK
UNDERHOOD FIRE TOTALLED THE VEHICLE. PLEASE PROVIDE FURTHER DETAILS. *AK
Showing the 5 most serious of 66 complaints filed with NHTSA.
