1990 Ford E-350 Econoline Club Wagon Service and Repair Manual

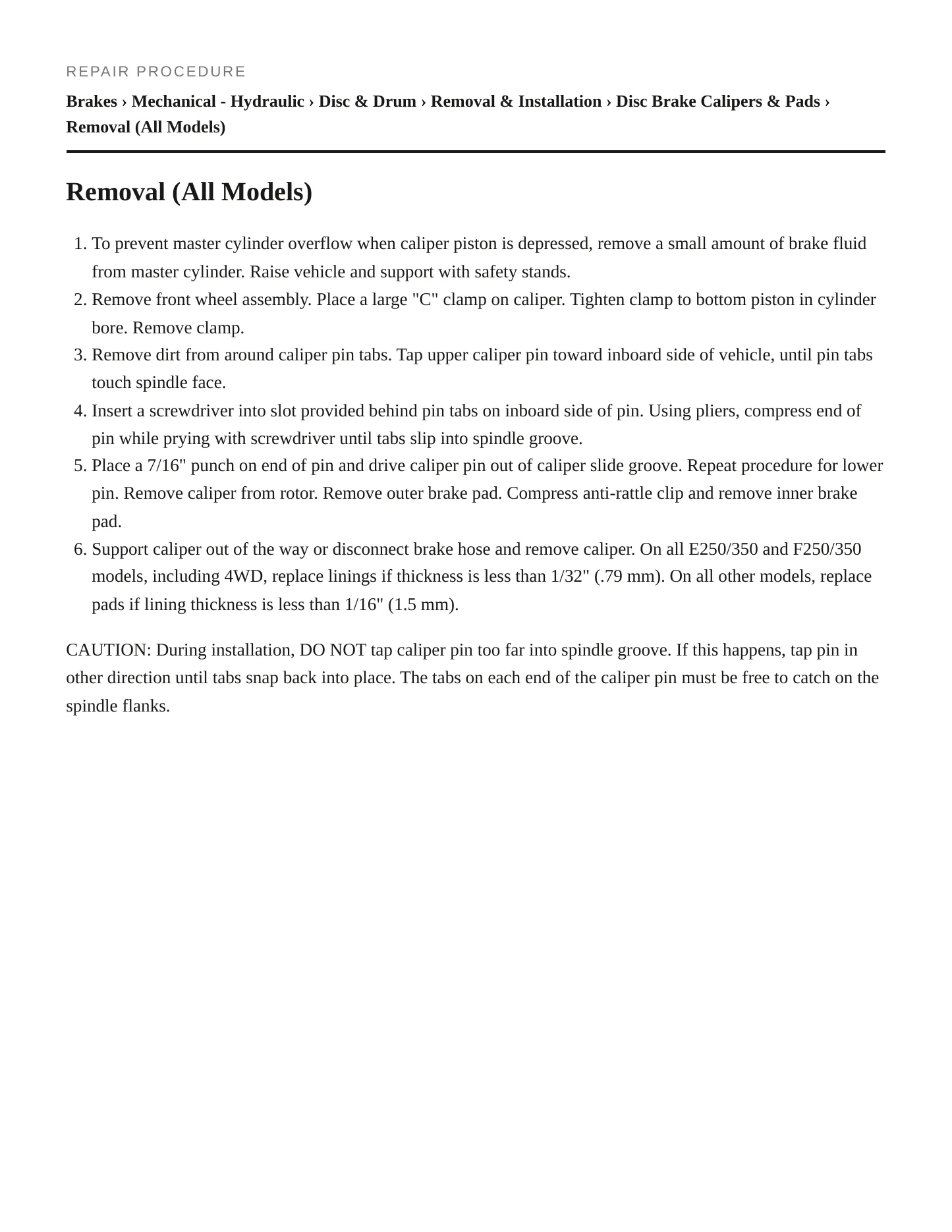

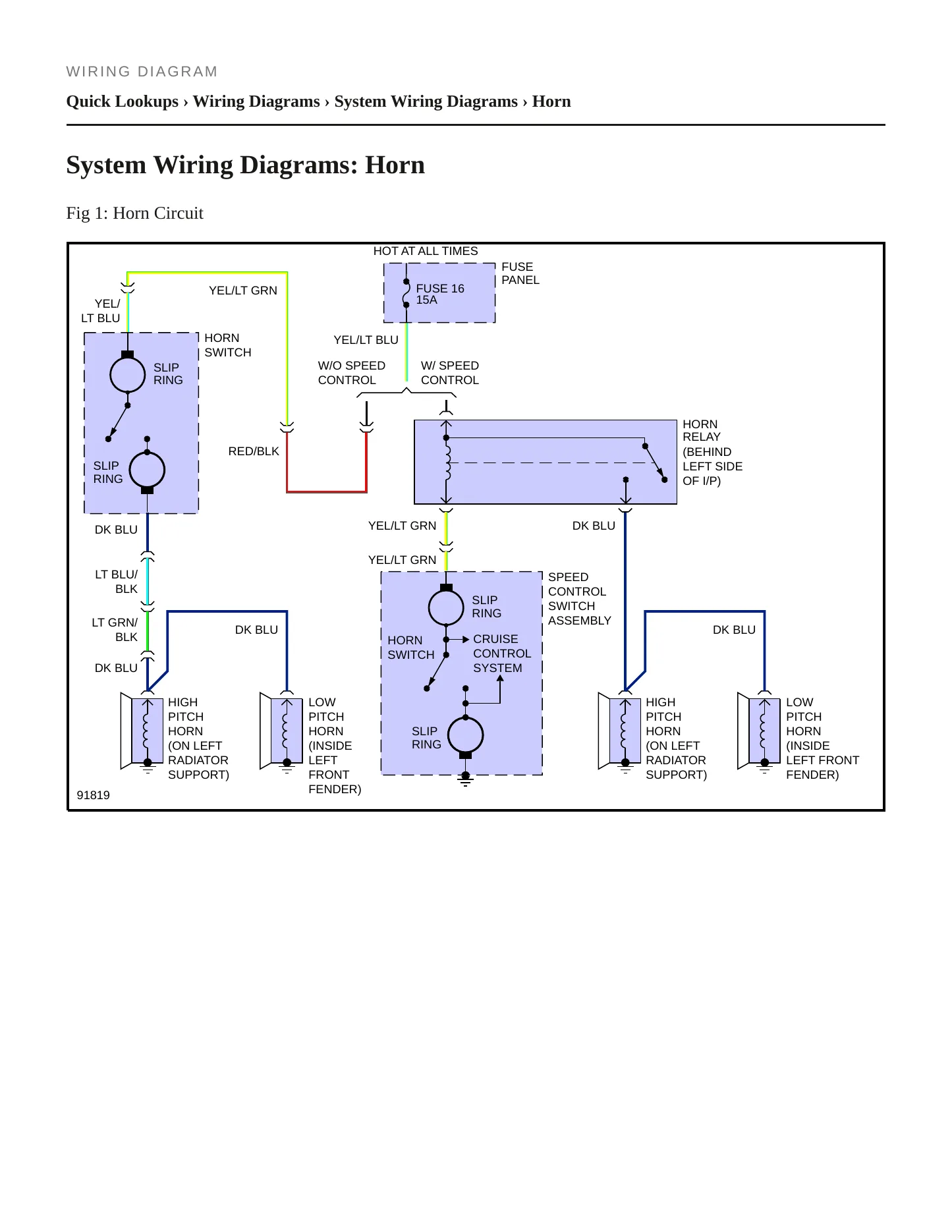

This factory service and repair manual for the 1990 Ford E-350 Econoline Club Wagon lists two trims, Custom and XL, on a single body, the extended passenger van. The engine bay could hold the 5.8L gasoline V8, the 7.3L diesel V8, the 7.5L gasoline V8 or the 4.9L inline-six, and all four are covered in full. Procedures, specifications, torque values, wiring diagrams and diagnostics run system by system, from engine mechanical work through the driveline and brakes to the electrical circuits.
Engines covered
- 5.8L V8 (351 cu in) — OHV, naturally aspirated, gasoline
- 7.3L V8 (445 cu in) — OHV, naturally aspirated, diesel
- 7.5L V8 (460 cu in) — OHV, naturally aspirated, gasoline
- 4.9L inline-six (300 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 2-door extended passenger van
Trims covered
- Custom
- XL
Known issues on the 1990 E-350 Econoline Club Wagon. Two recalls are on federal record. The dual fuel tank selector valve could malfunction and overfill a tank until fuel ran past the filler cap, and the snap ring that locates the park gear on the transmission output shaft could fracture, so a wagon left without its parking brake set could roll away. Twenty-six complaints have been filed with NHTSA, with the service brakes named in more than half and smaller counts for the structure and the fuel system. Brake, transmission and fuel storage repairs are all documented here.
THE DUAL FUEL TANK SELECTOR VALVE MAY MALFUNCTION AND CAUSE AN OVERFILL CONDITION IN ONE OF THE FUEL TANKS, RESULTING IN AN OVERFLOW OF FUEL PAST THE FILLER CAP.
UNDER CERTAIN CONDITIONS, THE SNAP RING THAT LOCATES THE PARK GEAR ON THE OUTPUT SHAFT OF THE TRANSMISSION MAY FRACTURE.
FUEL FROM REAR TANK OVERFLOWED TO FRONT TANK WHICH LEAKED OUT EXCESS FUEL. OCCURRED ONCE BEFORE REPAIRS. DID A SEARCH FOR THE ISSUE AND FOUND THAT THERE WAS A SECRET OPEN WARRANTY COVERING THE ISSUE,
THE FRONT DISC BRAKE CALIPERS DO NOT RETRACT AFTER APPLYING THE BRAKES, FRICTION FROM THE BRAKE PADS CAUSES THE BRAKE FLUID TO BOIL EFFECTIVELY RESULTING IN NO BRAKE OPERATION, THIS HAPPENS EVERYTIME
Showing the 2 most serious of 26 complaints filed with NHTSA.
