2006 Ford Explorer Service and Repair Manual

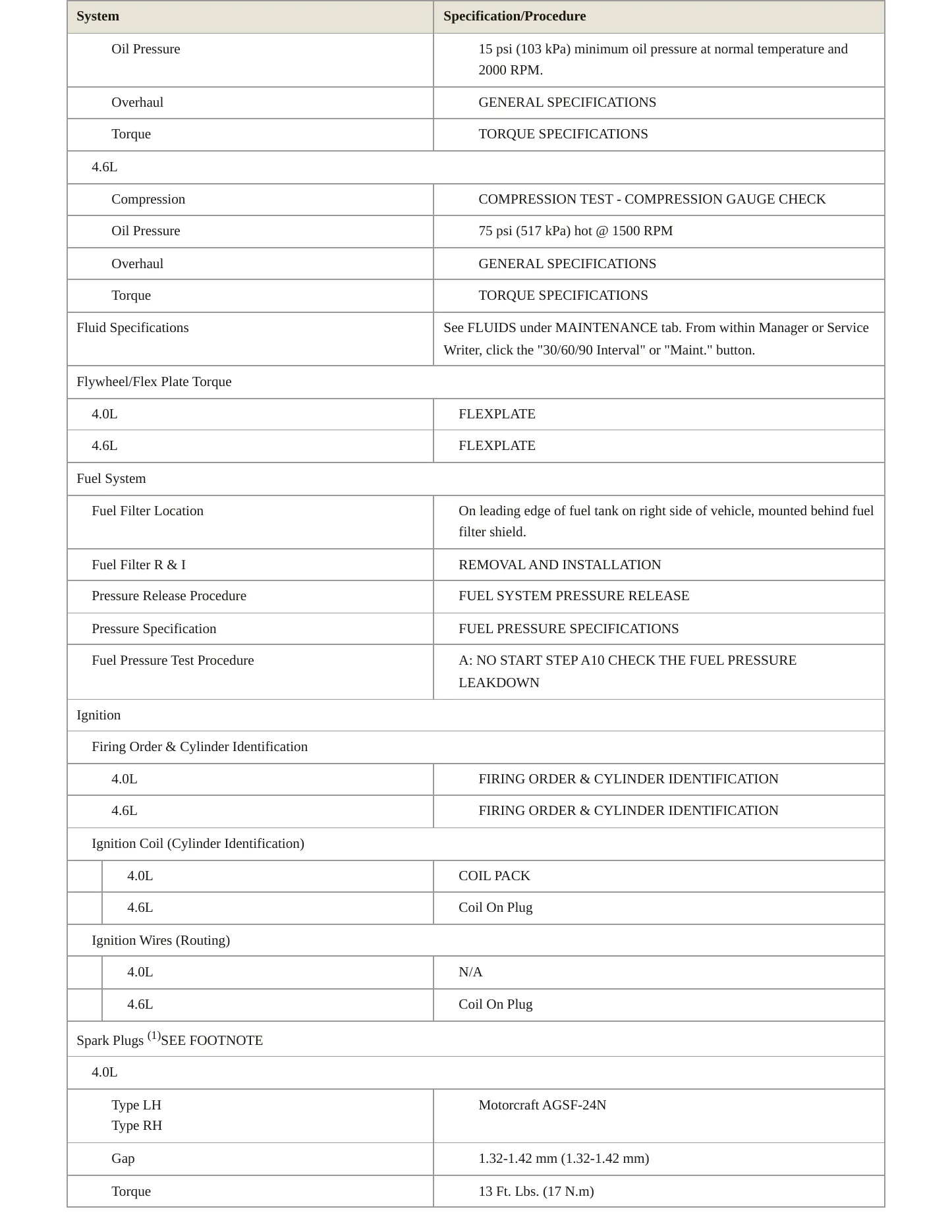

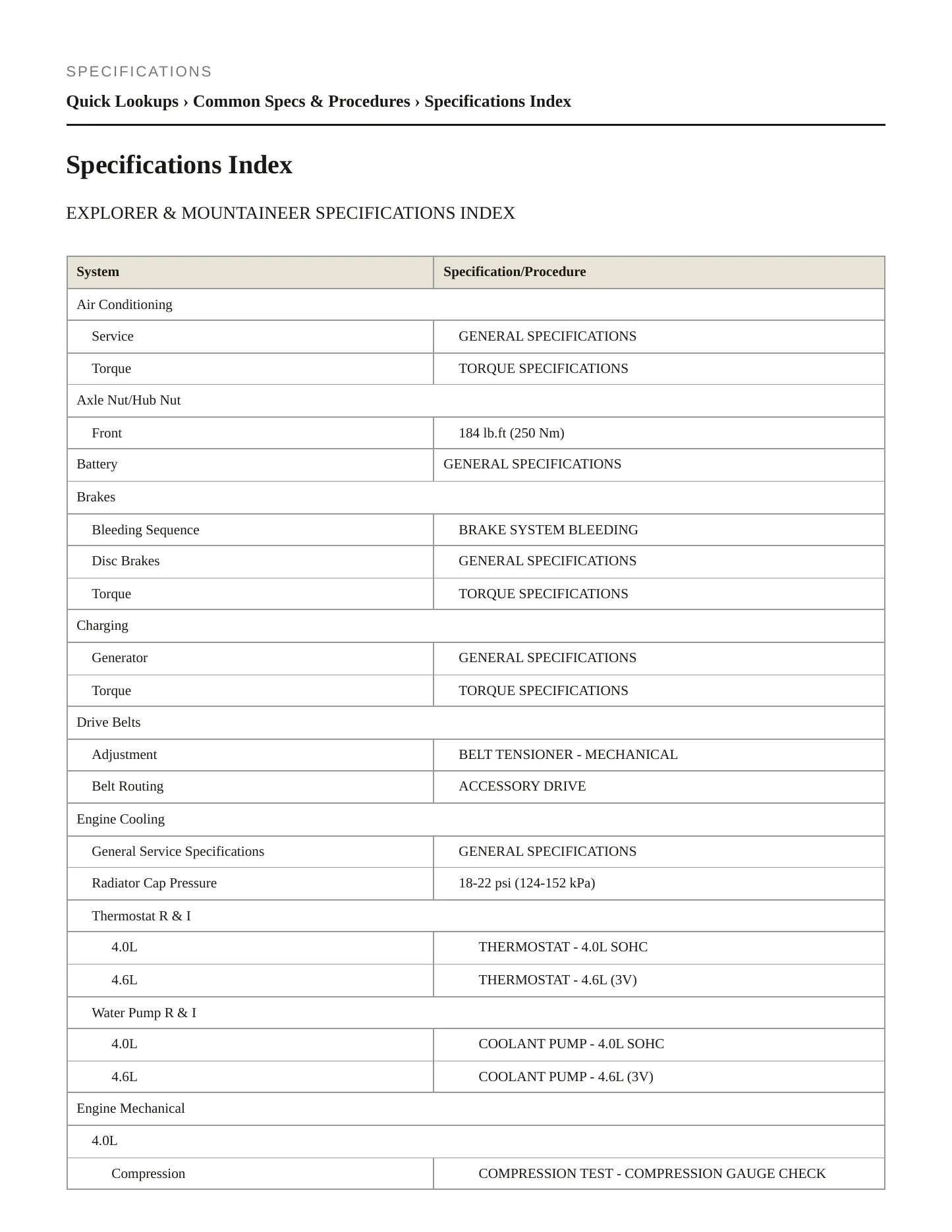

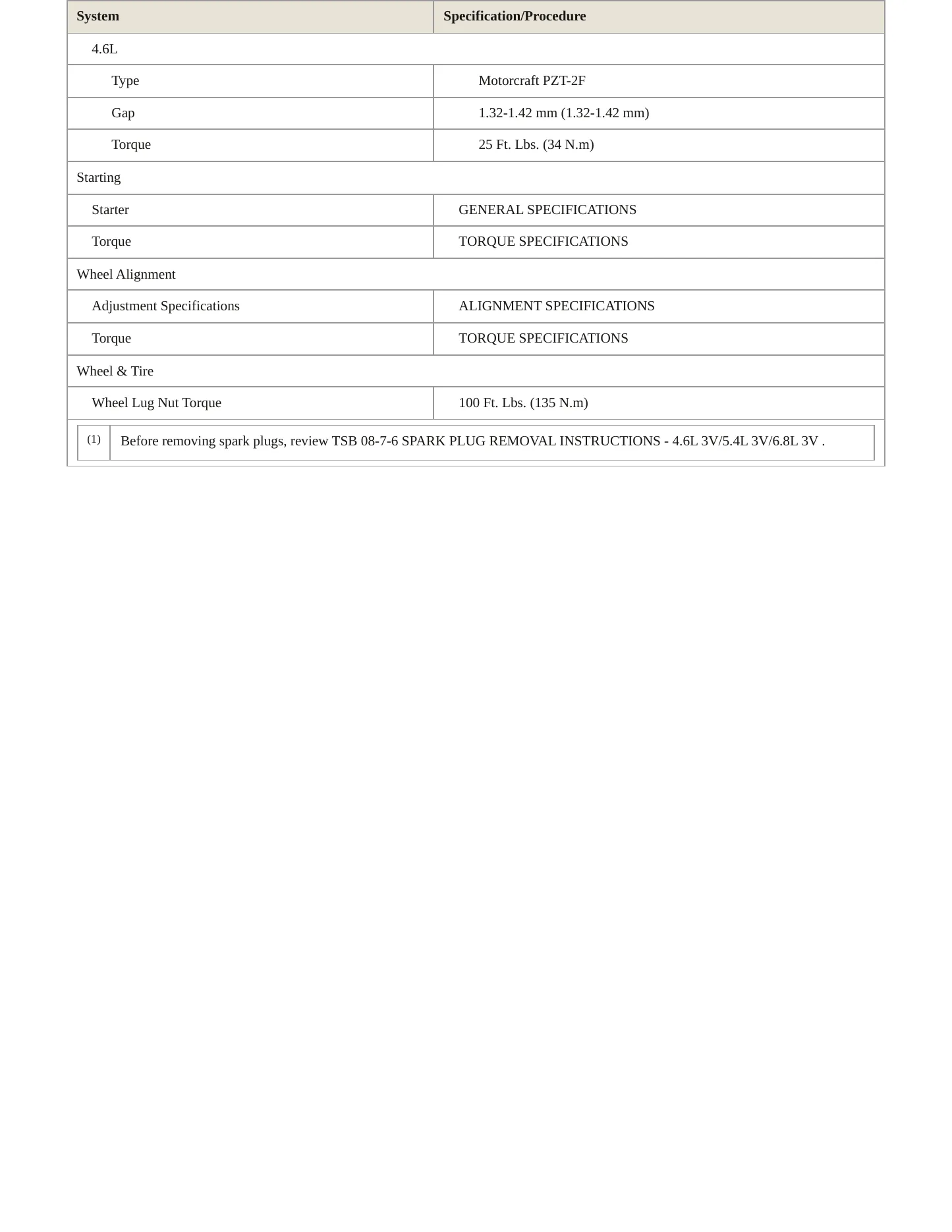

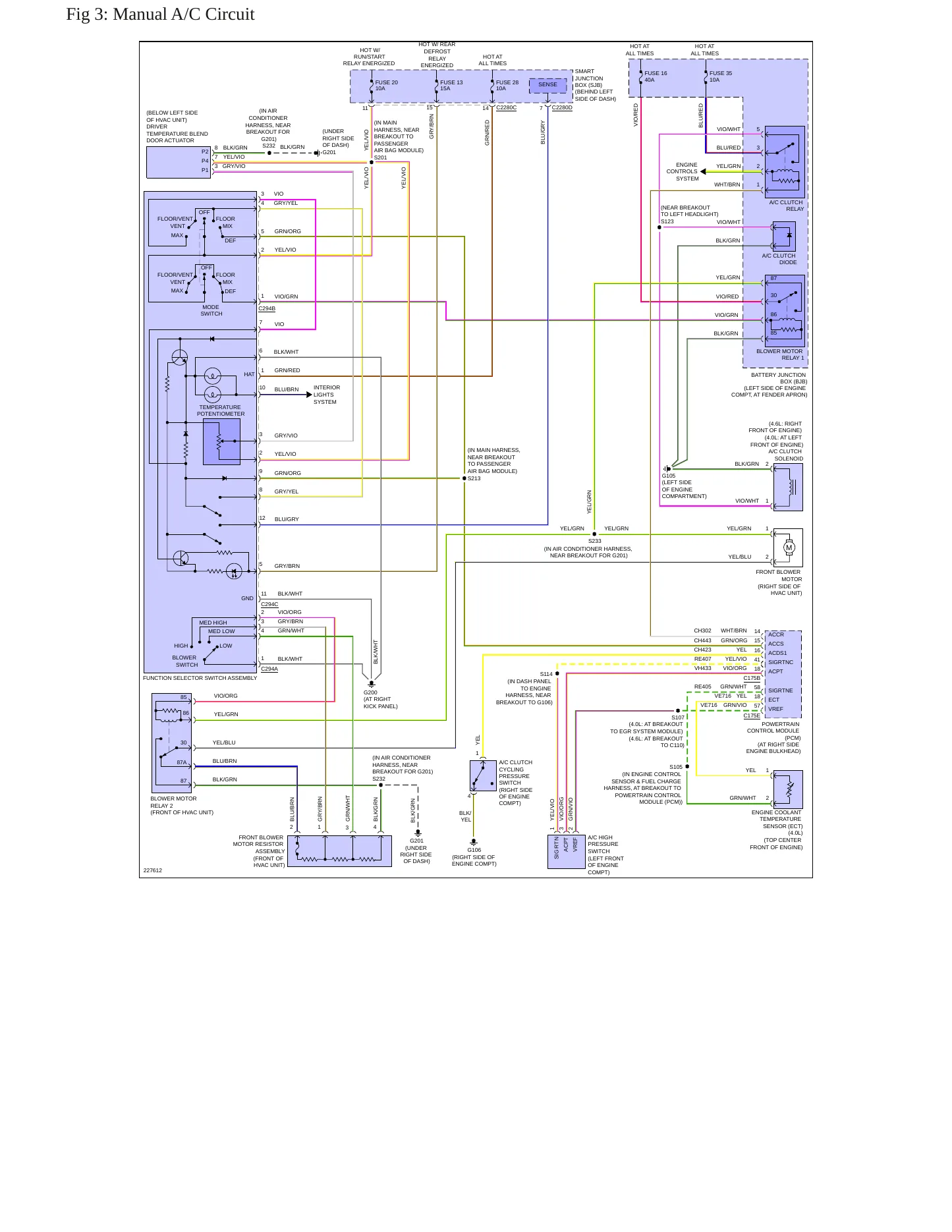

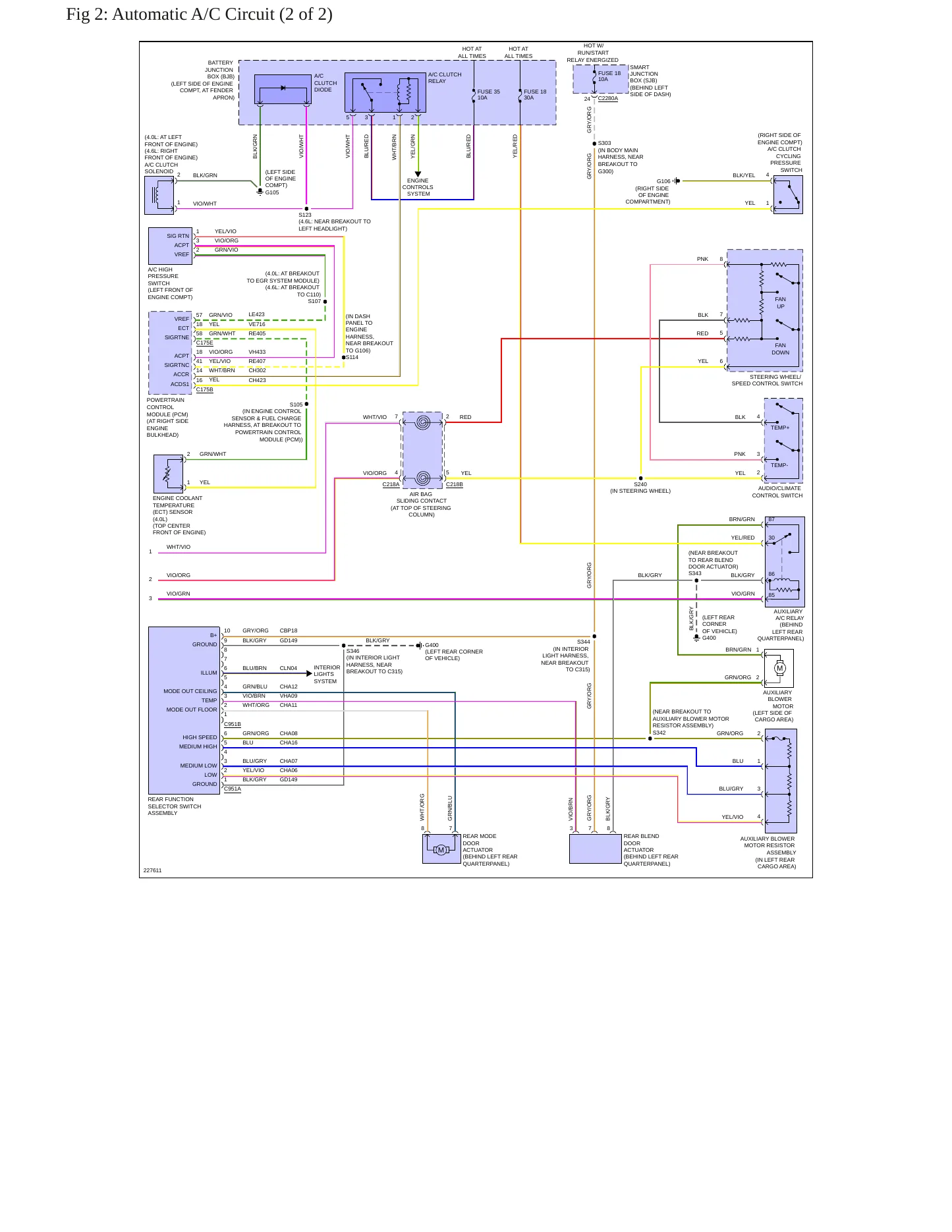

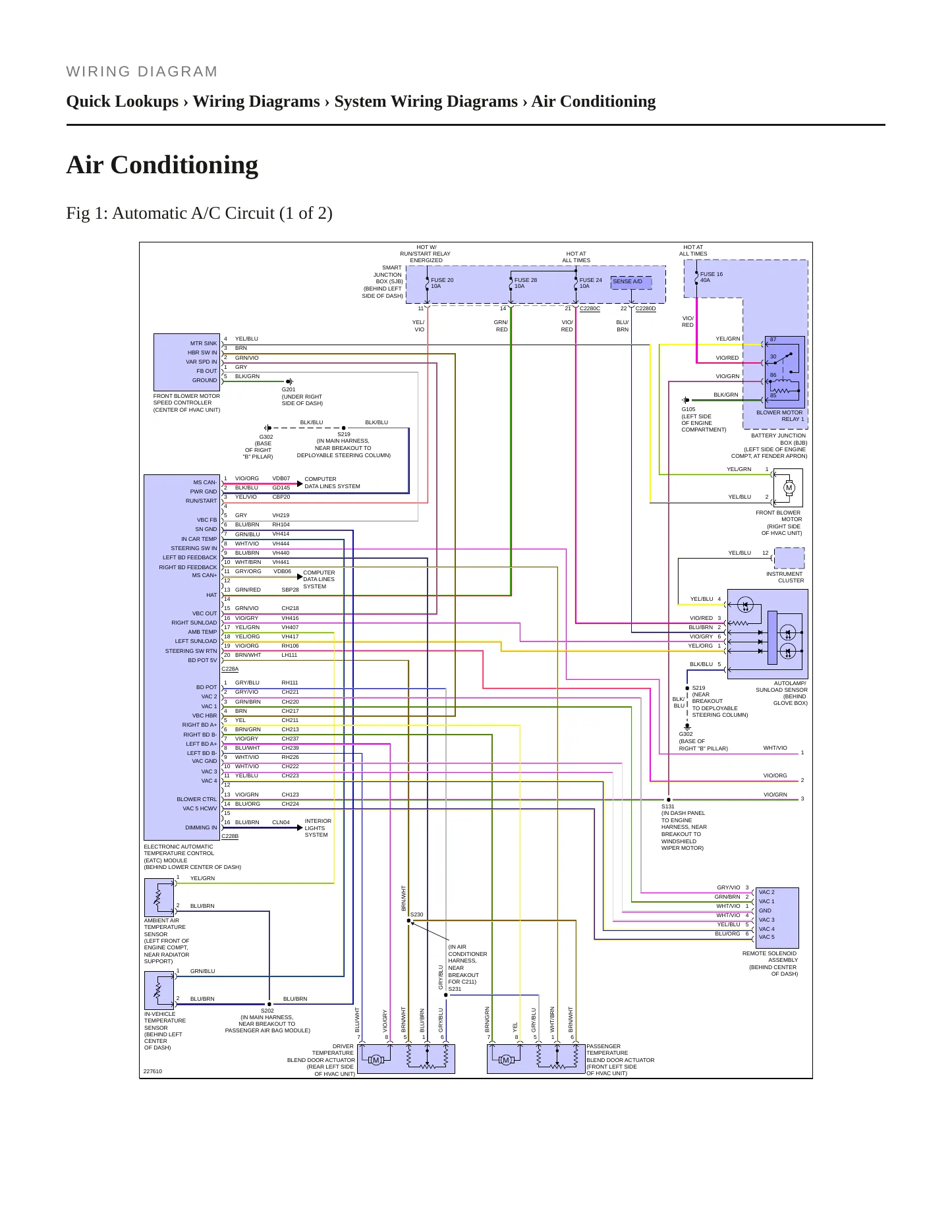

This factory service and repair manual for the 2006 Ford Explorer is written for the single overhead-cam 4.0L V6 and the single overhead-cam 4.6L V8, both naturally aspirated and gasoline-fueled, in the 4-door sport utility body. Four trims are listed: Eddie Bauer, Limited, XLS and XLT. The manual carries procedures, specifications, torque values, wiring diagrams and diagnostics for both engines and for the transmission, driveline, brakes, suspension, steering, body and electrical systems, so a V8 Limited and a V6 XLS are served by the same set of sections.

Engines covered

• 4.0L V6 (245 cu in) — SOHC, naturally aspirated, gasoline
• 4.6L V8 (281 cu in) — SOHC, naturally aspirated, gasoline

Body styles covered

• 4-door sport utility

Trims covered

• Eddie Bauer
• Limited
• XLS
• XLT

Known issues on the 2006 Explorer. Four recalls are on federal record for this year. The windshield wiper motor could be built without grease on the output shaft gear, and after continuous high-speed use the gear could distort or fracture; aftermarket seat covers made of heavier thread were incompatible with seats containing side air bags; and replacement tempered glass from one supplier might not break safely. Owners have filed 635 complaints with NHTSA, concentrated on the power train at 279, engine and engine cooling at 163 and service brakes at 30. Wiper motor replacement, transmission diagnostics and cooling system procedures are set out in the manual.
