2002 Toyota Sequoia Service and Repair Manual
Regular price
$34.99 USD
Unit price
Covers all 2002 Sequoia trims — Limited, SR5 ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

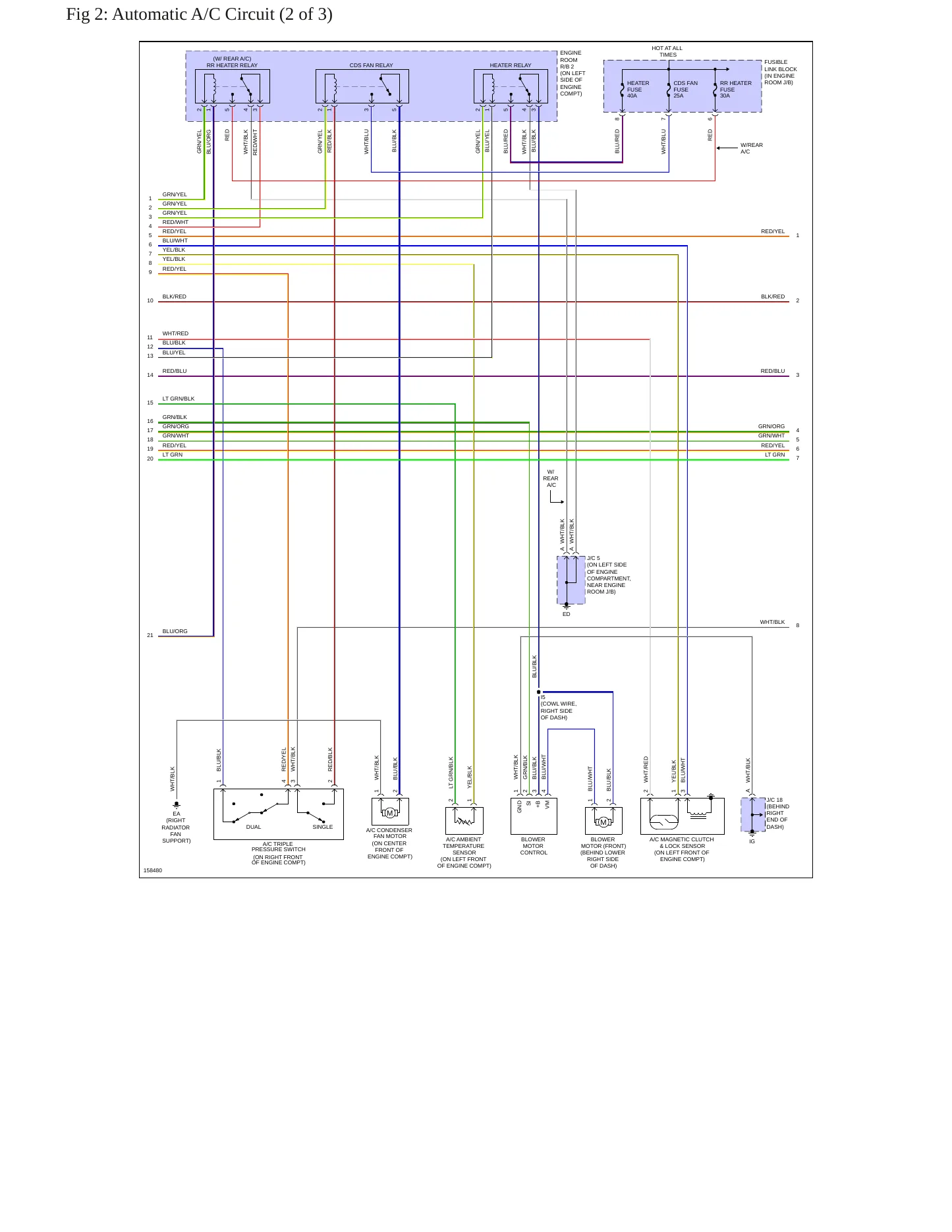

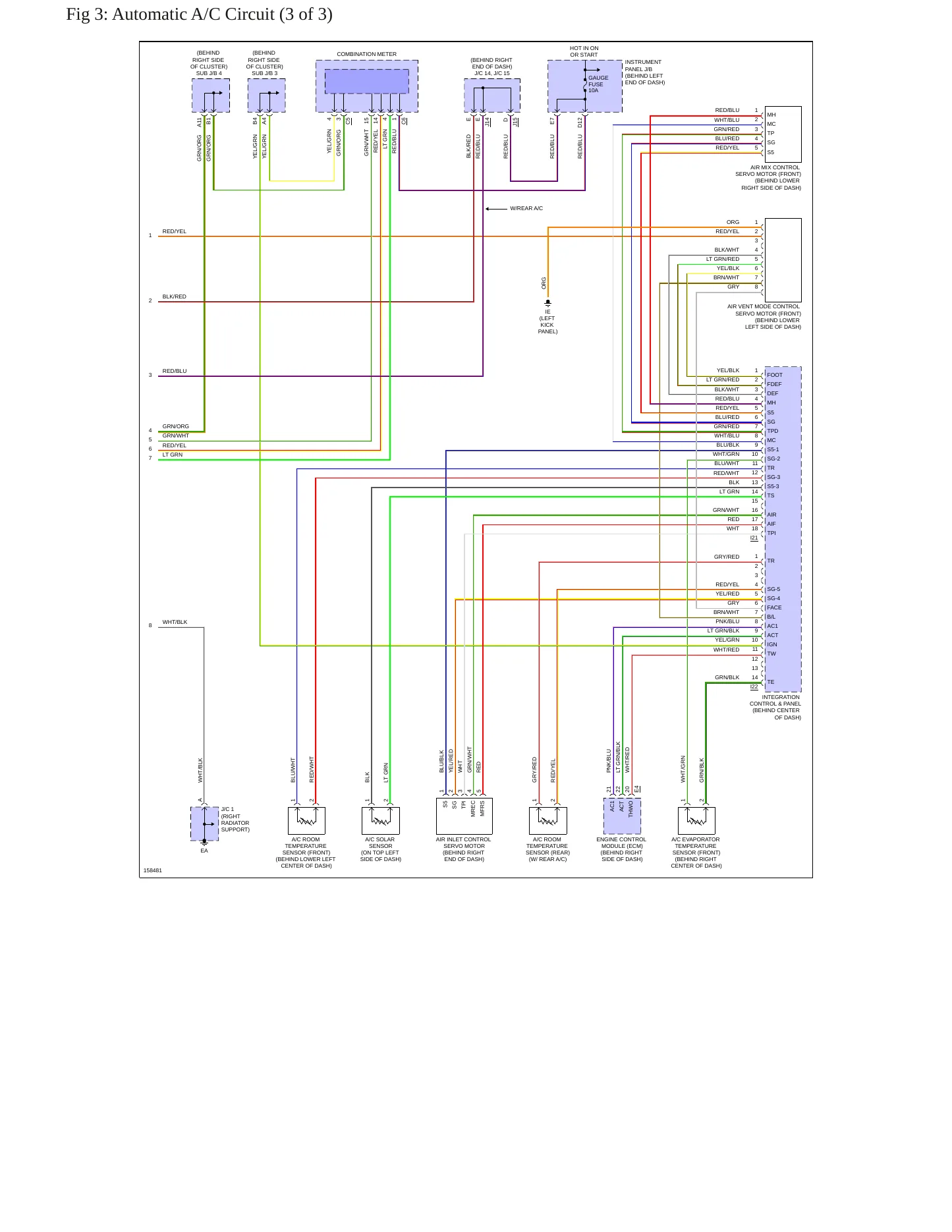

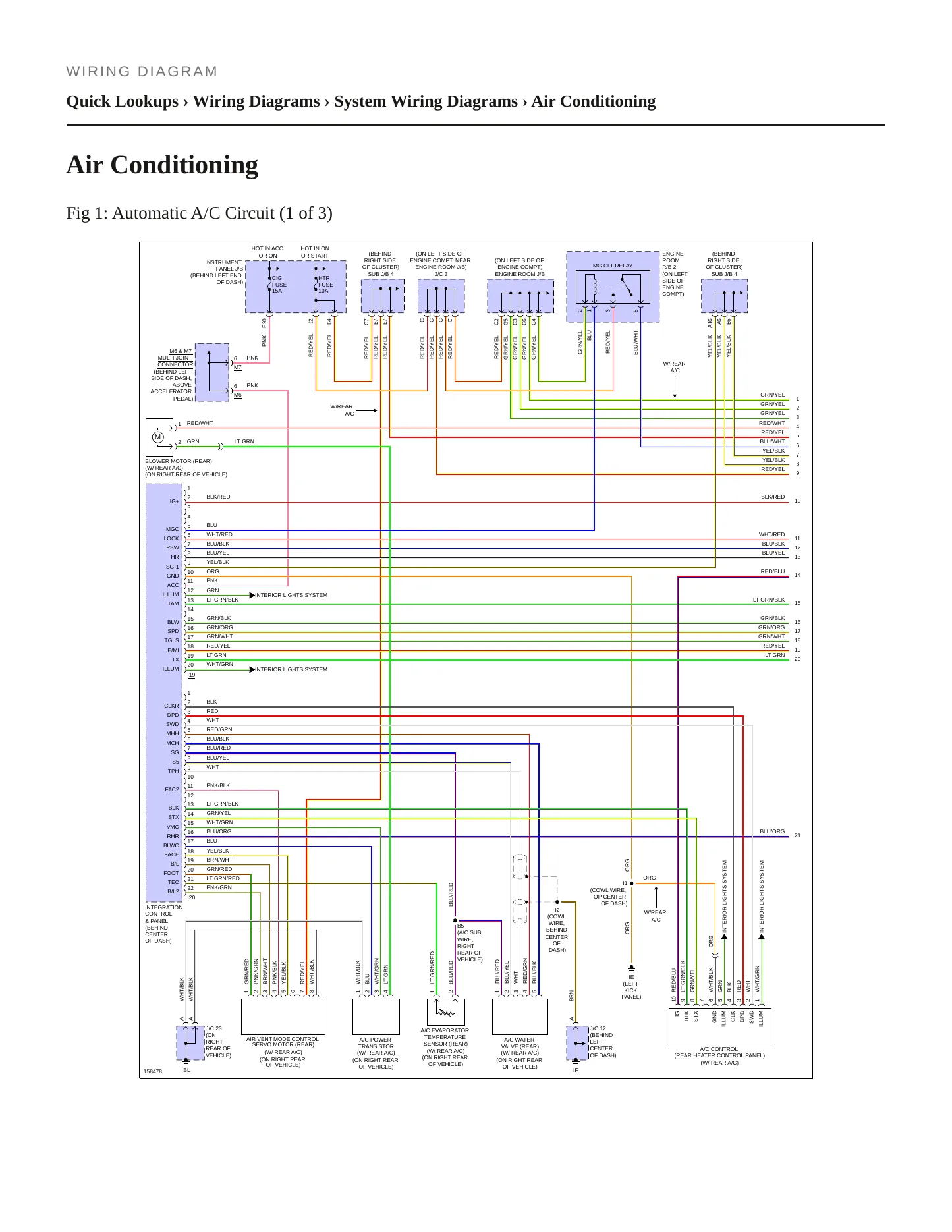

Wiring diagrams & schematics

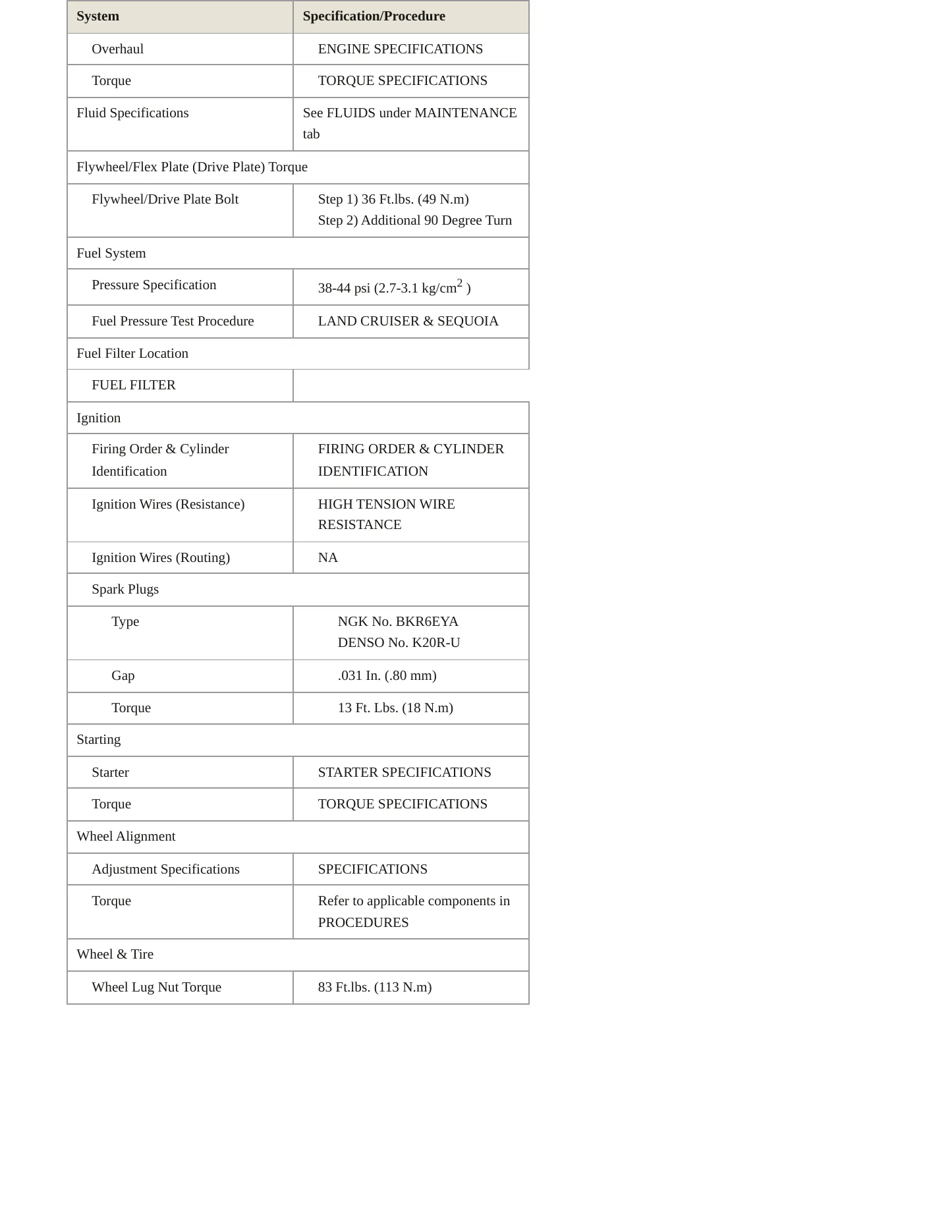

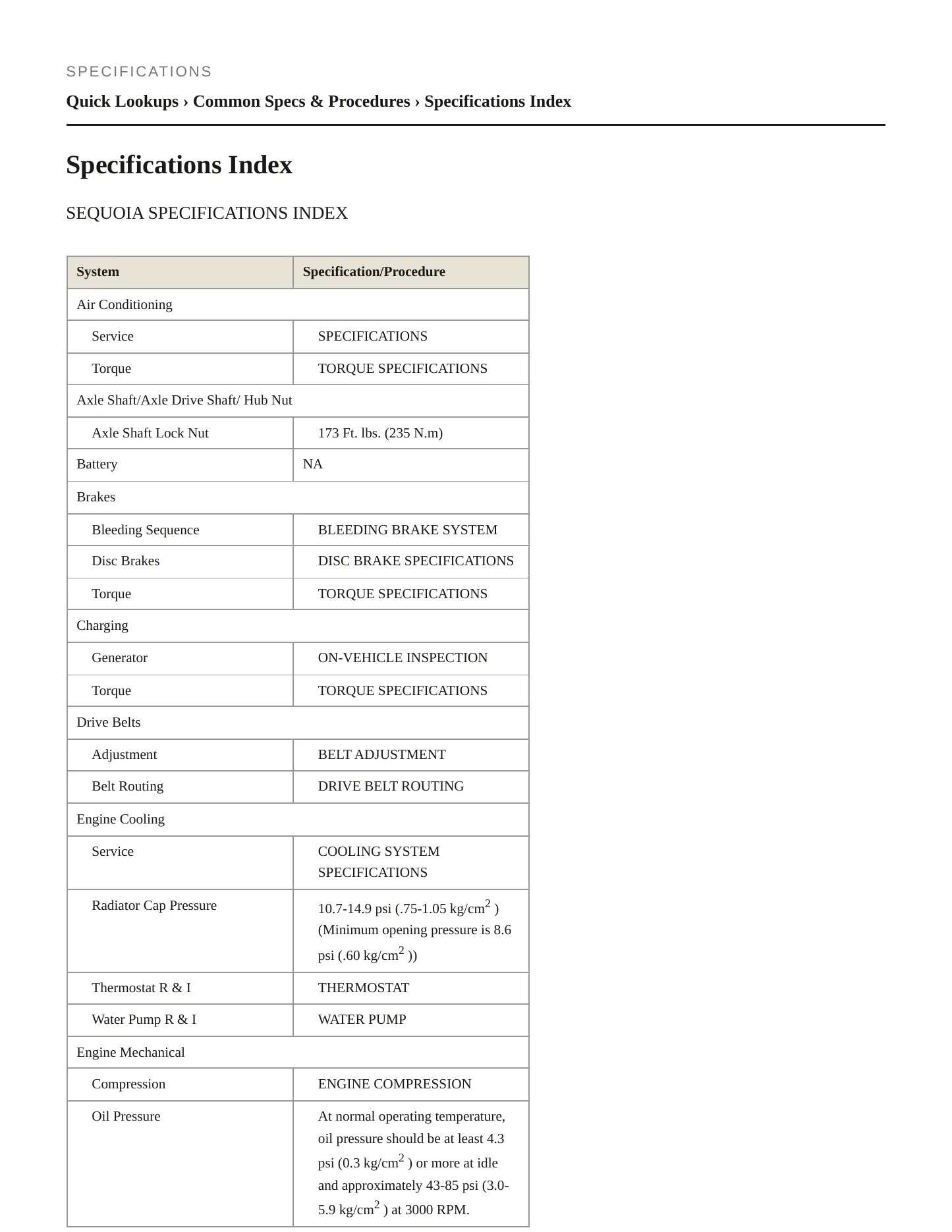

Torque specifications
Full search & bookmarks
$34.99
2002 Toyota Sequoia Service and Repair Manual
Regular price
$34.99 USD
Unit price
The 2002 Toyota Sequoia is a full-size SUV sold in SR5 and Limited form behind a single powertrain, the 4.7L V8 (the 2UZ-FE). The clearances, torque figures and repair sequences that apply to it are the ones Toyota published for the 2002 model year rather than values carried over from an adjacent Sequoia year.
Engines
- 4.7L 4663CC V8 GAS DOHC Naturally Aspirated
Trims
- Limited
- SR5
Known issues on the 2002 Sequoia. Five recalls are on federal record for this vehicle. Two of them name the passenger-side frontal air bag inflator module (19V741000 and 18V883000), and both warn that an inflator explosion may result in sharp metal fragments striking the driver or other occupants. Two more are recorded against the air bags (15V285000 and 15V286000), where the concern is the inflator in the event of a crash necessitating deployment of the passenger's frontal air bag. The fifth (05V225000) is a front suspension campaign against the control arm lower ball joint, which may separate from the knuckle, causing loss of steering control. Alongside those, 1,125 owner complaints are on record for this vehicle and 90 technical service bulletins have been issued.
Air bag inflator work on the passenger side and inspection of the front lower ball joint where it meets the knuckle are the two areas that record points at, and both call for the 2002 Sequoia's own torque figures and step order rather than a generic sequence.
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain 2010-2016 4Runner, 2003-2006 Tundra, 2003-2013 Corolla, 2009-2010 Corolla Matri
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious in
Remedy
Toyota will notify owners. Depending on the vehicle model, dealers will replace the front driver inflator, front passen
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain 2002-2005 Lexus SC and Toyota Sequoia, 2003-2005 Toyota Corolla and Tundra, and
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious in
Remedy
Toyota will notify the Toyota and Lexus owners. General Motors will notify the Pontiac Vibe owners. Depending on the v
Toyota Motor Engineering & Manufacturing (Toyota) notified the agency on May 13, 2015 that they are recalling certain model year 2004 Sequoia vehicles
Consequence
In the event of a crash necessitating deployment of the passenger's frontal air bag, the inflator could rupture with met
Remedy
2003-2004 Corolla and Corolla Matrix vehicles that are recalled under both 15V-043 and 15V-285 are under a Do Not Drive
Toyota Motor Engineering & Manufacturing (Toyota) notified the agency on May 13, 2015, that they are recalling 2005-2007 Lexus SC, Toyota Corolla, Cor
Consequence
In the event of a crash necessitating deployment of the passenger's frontal air bag, the inflator could rupture with met
Remedy
2003-2004 Corolla and Corolla Matrix vehicles that are recalled under both 15V-043 and 15V-286 are under a Do Not Drive
CERTAIN CK MOTORSPORTS COMBINATION HEADLIGHTS, CLEAR CORNER, BUMPER, AND SIDE MARKER LIGHTS SOLD AS REPLACEMENT LAMPS FOR USE ON THE PASSENGER VEHICLE
Consequence
WITHOUT THE AMBER REFLECTORS, THE VEHICLE WILL BE POORLY ILLUMINATED, POSSIBLY RESULTING IN A VEHICLE CRASH WITHOUT WARN
Remedy
CK MOTORSPORT WILL NOTIFY OWNERS AND REPLACE THE NONCOMPLIANT LAMPS FREE OF CHARGE. THE RECALL BEGAN ON JULY 1, 2006.
CERTAIN CARDONE MASTER CYLINDERS WITH PART NUMBERS 10-2925, 10-2987, 10-2987MZA, 10-3083, 11-3015, 11-3042, 11-3044, 11-3045, 11-3047, 11-3064, AND 11
Consequence
LOSS OF BRAKE FLUID CAN RESULT IN POOR BRAKING PERFORMANCE, POSSIBLY RESULTING IN A VEHICLE CRASH.
Remedy
CARDONE WILL NOTIFY OWNERS AND OFFER TO REPURCHASE ANY DEFECTIVE MASTER CYLINDERS. THE RECALL BEGAN DURING APRIL 2007.
ON CERTAIN SPORT UTILITY VEHICLES, DUE TO A MANUFACTURING ISSUE IN THE FRONT SUSPENSION LOWER BALL JOINT, THERE IS A POSSIBILITY THAT THE SURFACE OF T
Consequence
THE LOWER BALL JOINT MAY SEPARATE FROM THE KNUCKLE CAUSING LOSS OF STEERING CONTROL AND A CRASH COULD OCCUR.
Remedy
DEALERS WILL REPLACE THE FRONT SUSPENSION LOWER BALL JOINTS FREE OF CHARGE. THE RECALL BEGAN ON JULY 5, 2005. OWNERS M
ON CERTAIN 4X2 VEHICLES EQUIPPED WITH AN ALLOY WHEEL TIRE UPGRADE (OPTIONS WM4, WM8, ZL1-ZL4, DH4, OR DH5) INSTALLED BY THE PROCESSING CENTERS IN JACK
Consequence
DIFFERENT OPERATING CHARACTERISTICS CAN BE EXPERIENCED WHEN THE SPARE TIRE IS INSTALLED ON THE VEHICLE.
Remedy
OWNERS WILL BE PROVIDED WITH A CAUTION LABEL AND AN INSERT FOR THEIR OWNER'S MANUAL. OWNER NOTIFICATION BEGAN JULY 15,
The condition known as acid rain is caused by airborne chemicals or particles in the atmosphere, which mix with rainwater, nighttime dew, or high humidity to form acidic compounds. If these contaminants settle and remain on a painted vehicl
To prevent brake rotor rust from forming during transportation and storage, wheel film will be used instead of a cardboard type of anti-rust cover. The purpose of the wheel film is to shield the disc brake rotor from weather elements and in
Acid rain results from rainwater or other airborne moisture that become acidic due to industrial chemical impurities in the atmosphere. If these acidic compounds settle on an exposed vehicle, especially the horizontal areas such as the hood
Toyota vehicles are currently protected with RapgardTM protective film designed to protect the horizontal painted surfaces. This material protects from acid rain, environmental fallout, and rail contamination. Follow the Removal Procedure i
Vehicles may occasionally be subjected to contamination by airborne iron particles shed from railroad tracks, train wheels, exposure to heavy machinery facilities, grinding, welding, etc. This type of contamination can be identified by the
The condition known as acid rain is caused by airborne chemicals or particles in the atmosphere, which mix with rainwater, nighttime dew, or high humidity to form acidic compounds. If these contaminants settle and remain on a painted vehicl
To prevent brake rotor rust from forming during transportation and storage, wheel film will be used instead of a cardboard type of anti-rust cover. The purpose of the wheel film is to shield the disc brake rotor from weather elements and in
Acid rain results from rainwater or other airborne moisture that become acidic due to industrial chemical impurities in the atmosphere. If these acidic compounds settle on an exposed vehicle, especially the horizontal areas such as the hood
Showing the 8 most recent of 161 technical service bulletins on file with NHTSA.
THE FRONT BRAKES SEEM TO WEAR OUT AT AN EXCELERATED RATE. I HAD THE FRONT ROTORS REPLACED WHEN THE VEHICLE HAD UNDER 30
ON AUGUST 13, 2011 WHILE TRAVELING ON I-75 SOUTH OF ATLANTA A VEHICLE LEFT THE ROAD & ATTEMPTED TO RETURN AND OVER CORRE
DURING RUSH HOUR, A VEHICLE BEFORE ME ABRUPTLY STOPPED. TO AVOID FROM HITTING THEM I SWERVED TO THE LEFT HITTING A WALL
WAS DRIVING ON THE INTERSTATE IN THE LEFT HAND LANE. TRIED TO MERGE INTO THE RIGHT HAND LANE AND NOTICED A CAR IN MY BL
CONSUMER WAS DRIVING 15-25 MPH ACROSS AN INTERSECTION WHEN ANOTHER VEHICLE MADE A LEFT TURN INTO THE INTERSECTION. THE
Showing the 5 most serious of 692 complaints filed with NHTSA.
