2016 Ford E-350 Super Duty Service and Repair Manual

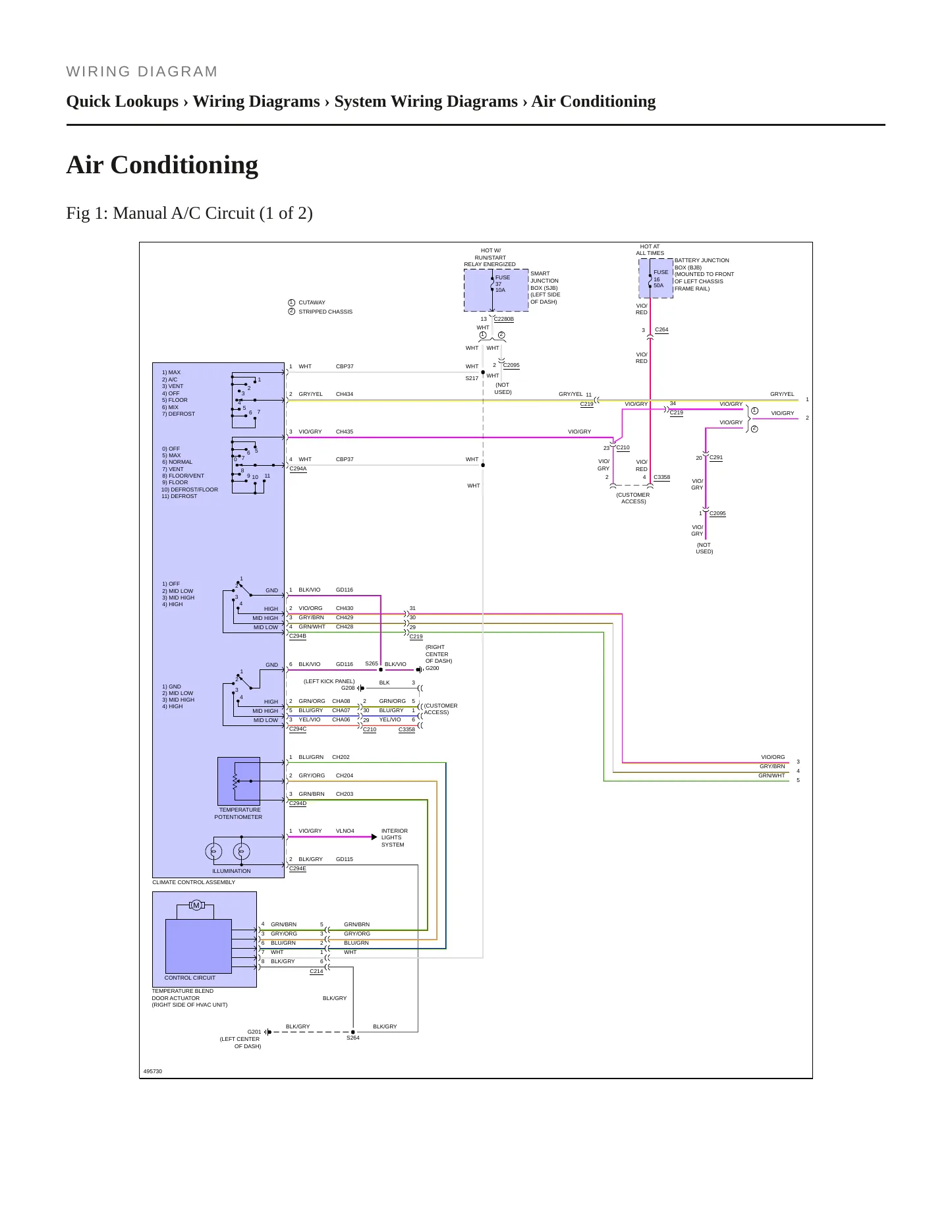

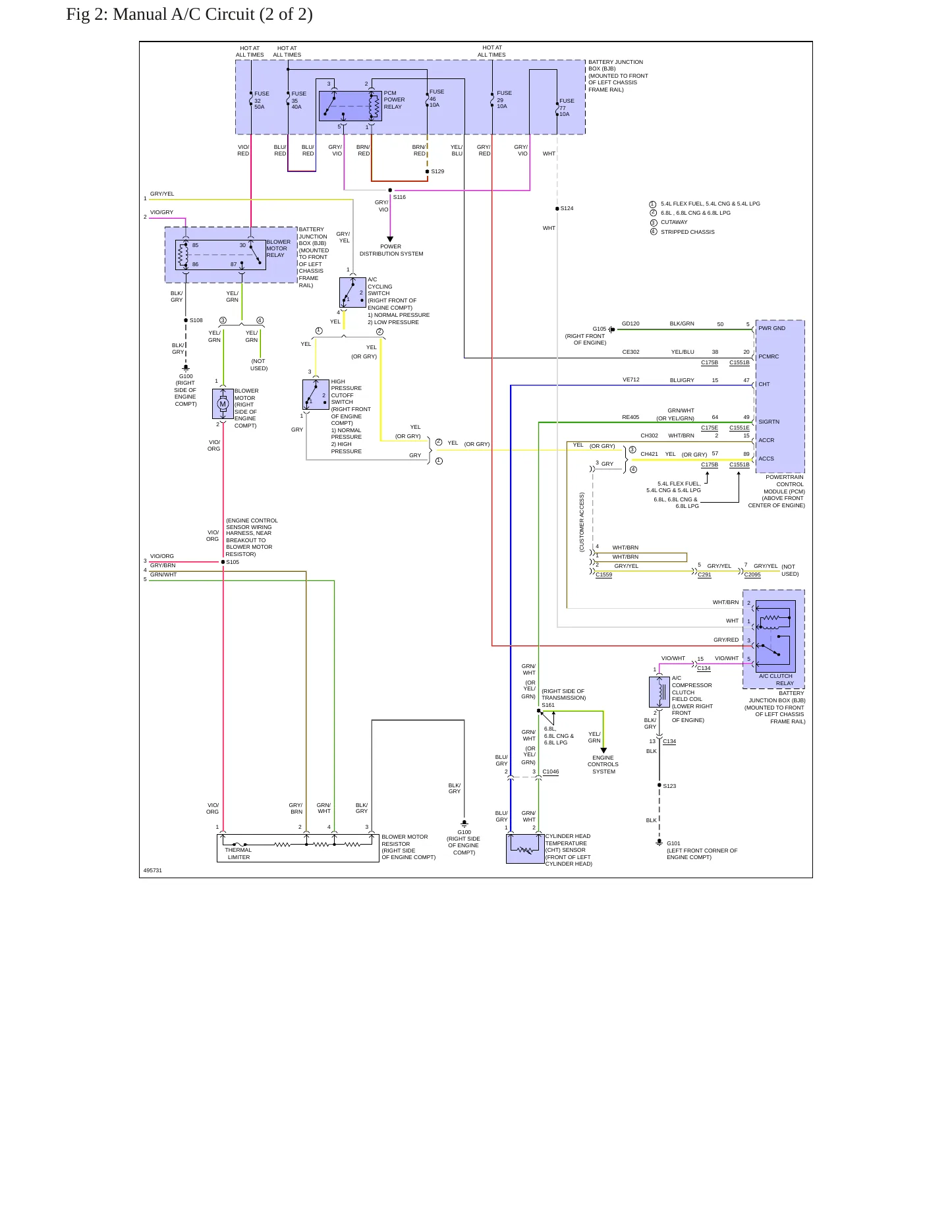

This factory service and repair manual for the 2016 Ford E-350 Super Duty is written for the chassis and the two-door cutaway van in Base and Base Stripped trims, powered by either the 5.4L SOHC V8 with LPG (propane), flex-fuel or CNG fueling or the 6.8L SOHC V10 with gasoline, CNG or LPG (propane) fueling. Alongside the engine procedures, specifications and torque values, the wiring diagrams and diagnostics cover the chassis harness, including the optional trailer brake controller circuit that figures in this year's federal record, so that upfitters and repair shops can trace the factory wiring before any body is added.
Engines covered
- 5.4L V8 (330 cu in) — SOHC, naturally aspirated, LPG (propane) or flex-fuel or CNG
- 6.8L V10 (415 cu in) — SOHC, naturally aspirated, gasoline or CNG or LPG (propane)
Body styles covered
- Chassis
- 2-door cutaway van
Trims covered
- Base
- Base Stripped
Known issues on the 2016 E-350 Super Duty. This model year carries three recalls on federal record. Two are Ford campaigns on vans with the 6.8L engine and the optional trailer brake controller: in one the controller may not actuate the trailer brakes, and in the other the trailer braking system may fail, lengthening stopping distances either way. The third concerns converter-installed foldaway seat back cushions that may not stay locked under load. Owners have logged five complaints with NHTSA, on the power train, structure and seats. The manual's trailer brake controller wiring diagrams and diagnostics, and its seat and driveline procedures, address those items.
Quality Van Sales, Inc. (Quality Van) is recalling certain 2015-2018 Ford Transit and E-350 vehicles modified to be equipped with Freedman GO-ES Foldaway Seat back cushions. The seat cushion may not
Ford Motor Company (Ford) is recalling certain model year 2016 E-350 and E-450 vehicles manufactured November 3, 2014, to September 1, 2015, and equipped with a 6.8L engine and an optional trailer bra
Ford Motor Company (Ford) is recalling certain model year 2016 E-350 and E-450 vehicles manufactured November 3, 2014, to December 10, 2015 and equipped with a 6.8L engine and an optional trailer brak
Ford and Lincoln vehicles equipped with wired keyless entry keypad systems and accessory wireless keyless entry keypad systems may or may not come with a wallet card containing the master code. Unlike the integrated wired keypad, the access
While performing a transmission repair on some 2012-2024 Ford and Lincoln vehicles, a transmission seal kit may be on backorder due to supply chain interruptions. While performing a transmission repair on some 2012-2024 Ford and Lincoln veh
All accessory stick-on keyless entry keypads come with a wallet card containing the master code. If the accessory keypad was factory installed, this card will be placed in the glove box and should be handed to the vehicles owner during ini
During service and repair requiring removal and replacement of a crankshaft bolt and/or crankshaft damper, achieving proper torque of the crankshaft pulley bolt is critical. Incorrect torque may allow the bolt to loosen resulting in the tim
Various 2013-2019 vehicles may exhibit an illuminated malfunction indicator lamp (MIL) with diagnostic trouble code (DTC) P264F after powertrain control module (PCM) replacement. This DTC indicates that the engine serial number (ESN) must b
Various 2013-2019 vehicles may exhibit an illuminated malfunction indicator lamp (MIL) with diagnostic trouble code (DTC) P264F after powertrain control module (PCM) replacement. This DTC indicates that the engine serial number (ESN) must b
Torqshift Transmission - Malfunction indicator lamp (MIL) diagnostic trouble codes (DTCS) P0751, P0730 and/or P2700
2009-2017 VEHICLES EQUIPPED WITH A 6R80, 6R100, 6R140 AUTOMATIC TRANSMISSION HAVE AN UPDATED MAIN CONTROL VALVE BODY OVERHAUL PROCEDURE. REFER TO WORKSHOP MANUAL (WSM), SECTION 307-01 FOR MAIN CONTROL VALVE BODY (7A100) OVERHAUL PROCEDURES.
Showing the 8 most recent of 15 technical service bulletins on file with NHTSA.
The contact owns a 2016 Ford E-350. The contact stated that while driving at an undisclosed speed, the check engine warning light illuminated. The vehicle was taken to an independent mechanic, who related the failure to Ford Campaign Numbe
THE ECONOLINE VAN FOR THE EXHAUST ODOR, WHEN WE FIRST TESTED THE VEHICLE IN THE SHOP WITH THE VEHICLE RUNNING (NO EXHAUST HOSE ON THE TAILPIPE) THE CO DETECTOR READ 49 PPM AFTER ABOUT 15 MINUTES. WHEN WE TESTED THE SECOND TIME, THE VEHICLE
Showing the 2 most serious of 5 complaints filed with NHTSA.
