1990 Ford F-250 Service and Repair Manual

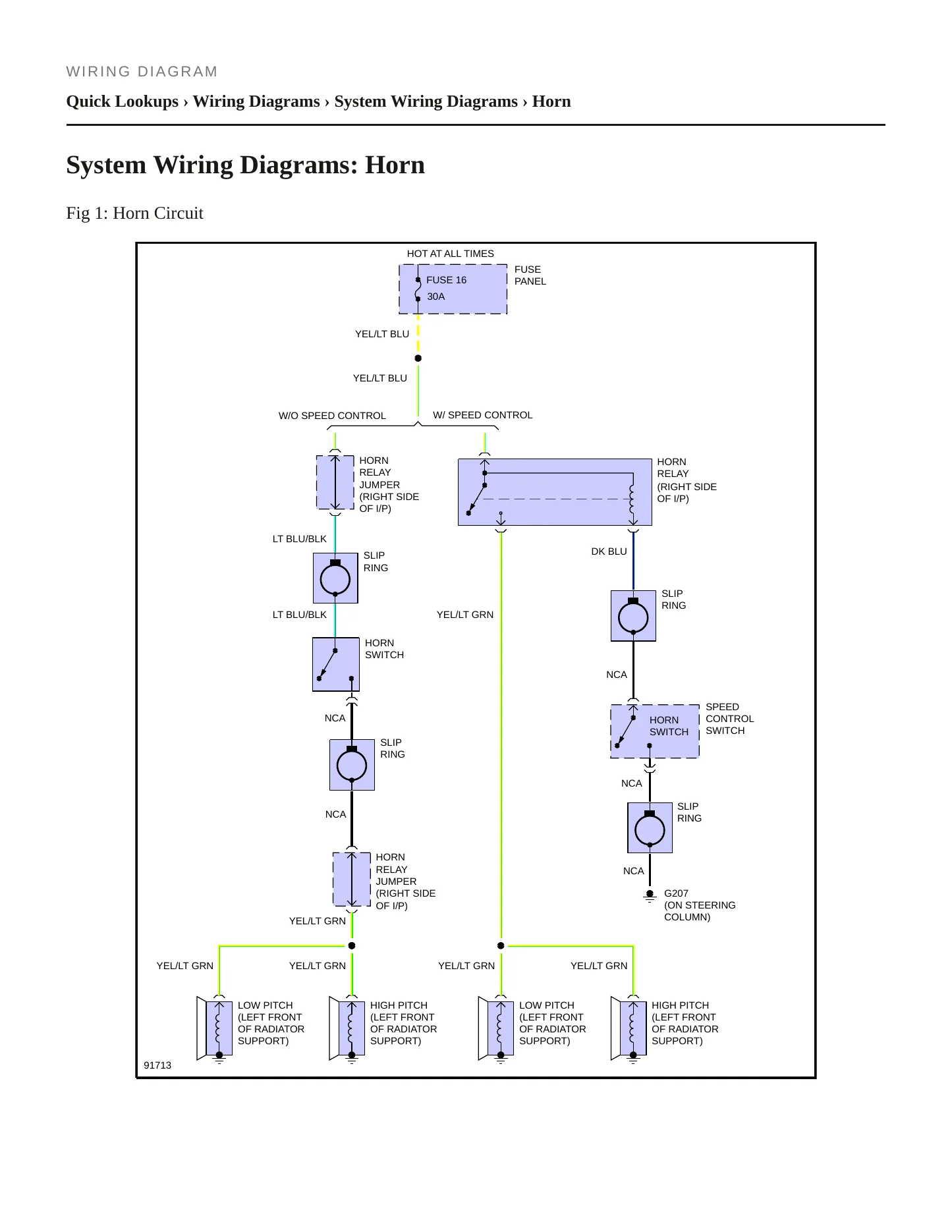

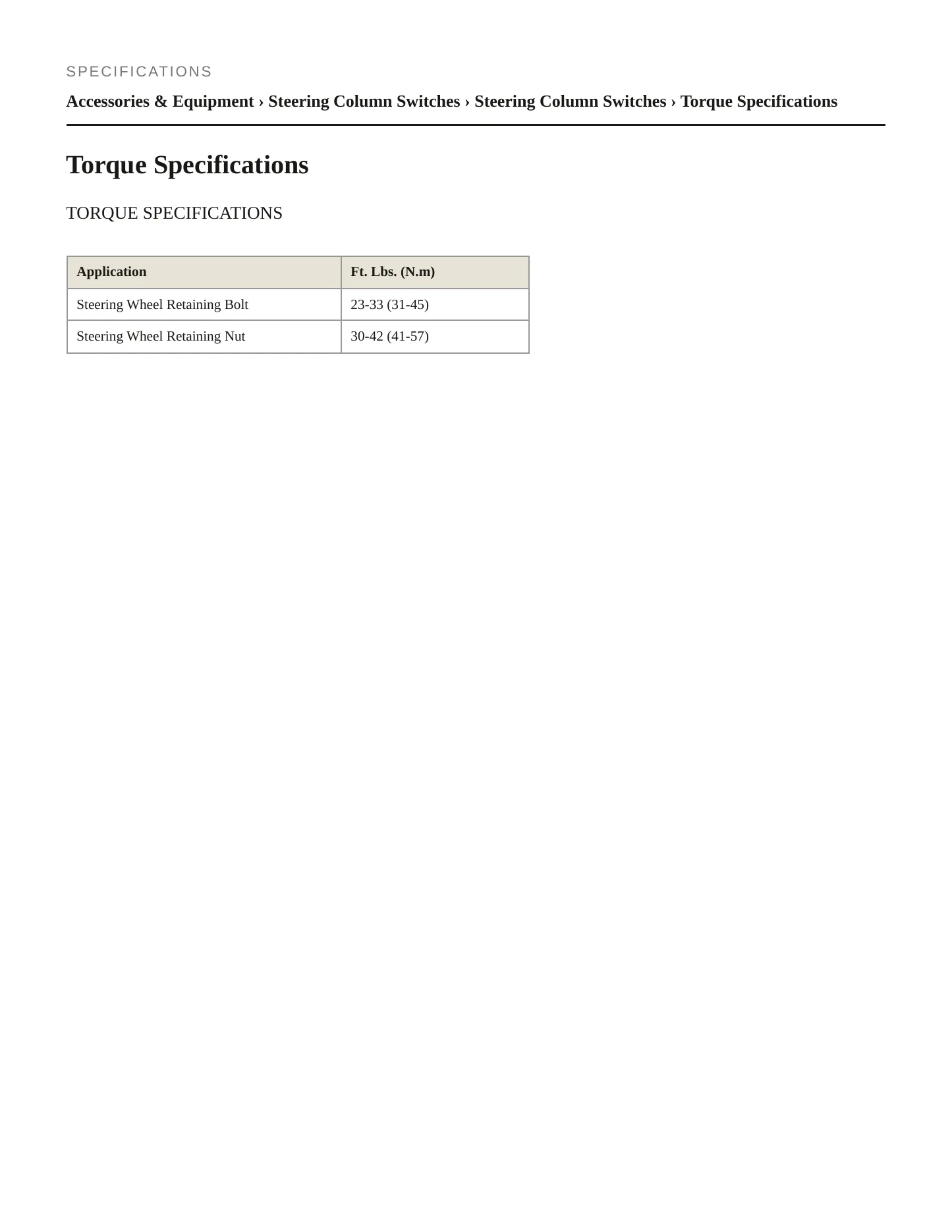

This factory service and repair manual for the 1990 Ford F-250 is the reference for a truck sold with five engines: the 5.8L V8, the 7.3L V8 diesel, the 5.0L V8, the 7.5L V8 and the 4.9L inline-six, every one of them a naturally aspirated OHV design. Ford built it as a two-door standard cab pickup and a two-door extended cab pickup, in three trims, Custom, XL and XLT Lariat. Gasoline and diesel fuel systems, the transmissions behind each engine, axles, brakes, steering and the body are all covered with procedures, specifications, torque values, wiring diagrams and diagnostics.

Engines covered

• 5.8L V8 (351 cu in) — OHV, naturally aspirated, gasoline
• 7.3L V8 (445 cu in) — OHV, naturally aspirated, diesel
• 5.0L V8 (302 cu in) — OHV, naturally aspirated, gasoline
• 7.5L V8 (460 cu in) — OHV, naturally aspirated, gasoline
• 4.9L inline-six (300 cu in) — OHV, naturally aspirated, gasoline

Body styles covered

• 2-door standard cab pickup
• 2-door extended cab pickup

Trims covered

• Custom
• XL
• XLT Lariat

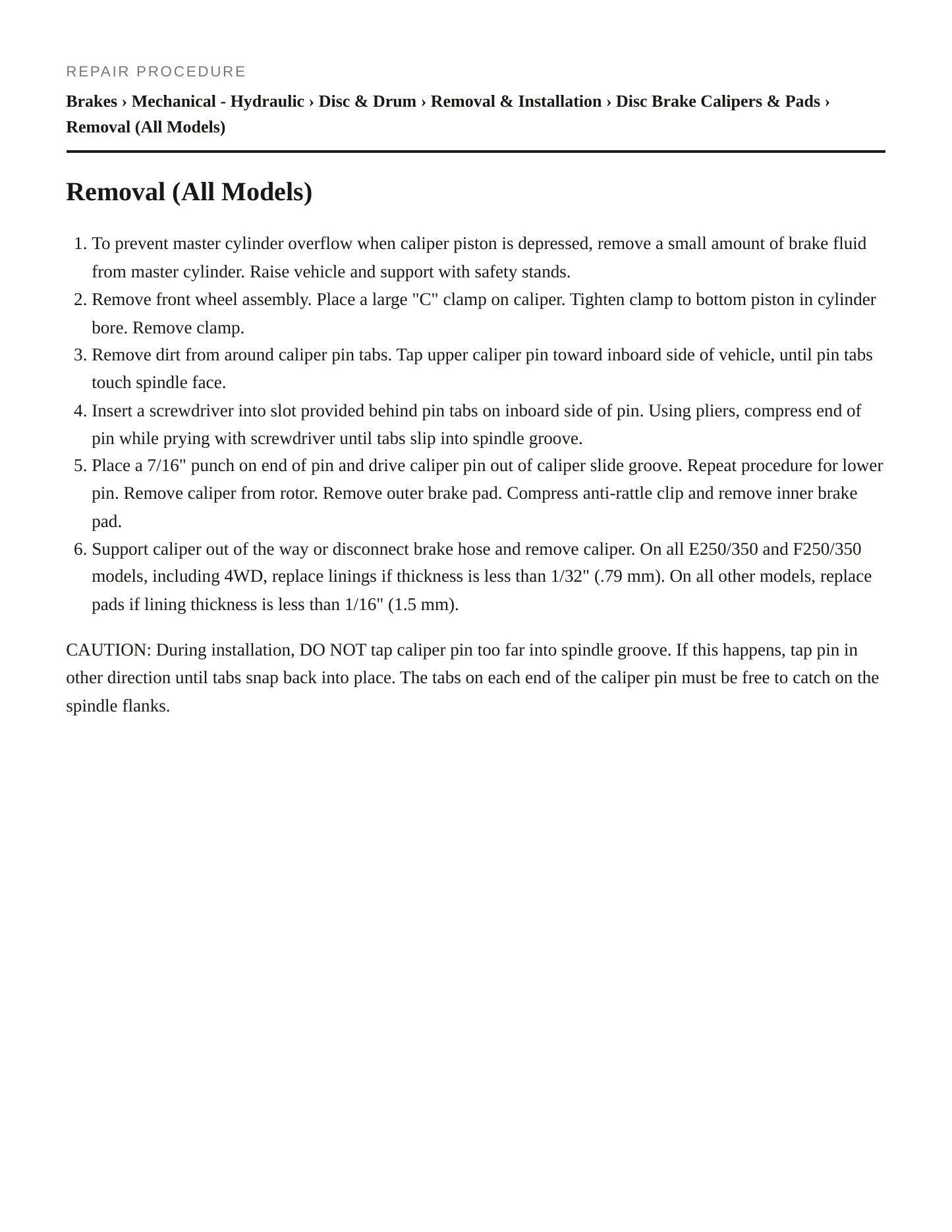

Known issues on the 1990 F-250. Seven recalls are on federal record for the 1990 F-250, most of them about fuel. Steel fuel return tubes can chafe on a pinch weld flange until they leak; a faulty fuel pump check valve can push unused fuel into the second tank until it overflows; and crossed supply and return connectors on some trucks move fuel between tanks. Owners have filed 115 complaints with NHTSA, 37 on the fuel system, 27 on the service brakes and 14 on the electrical system. Dual tank fuel system, brake and ignition procedures, specifications and wiring diagrams in the manual cover those areas.
