2013 Nissan Sentra Service and Repair Manual
Regular price
$49.99 USD
Unit price
Covers all 2013 Sentra trims — SV Sedan 4-Door, SL Sedan 4-Door, Exclusive Sedan 4-Door +6 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

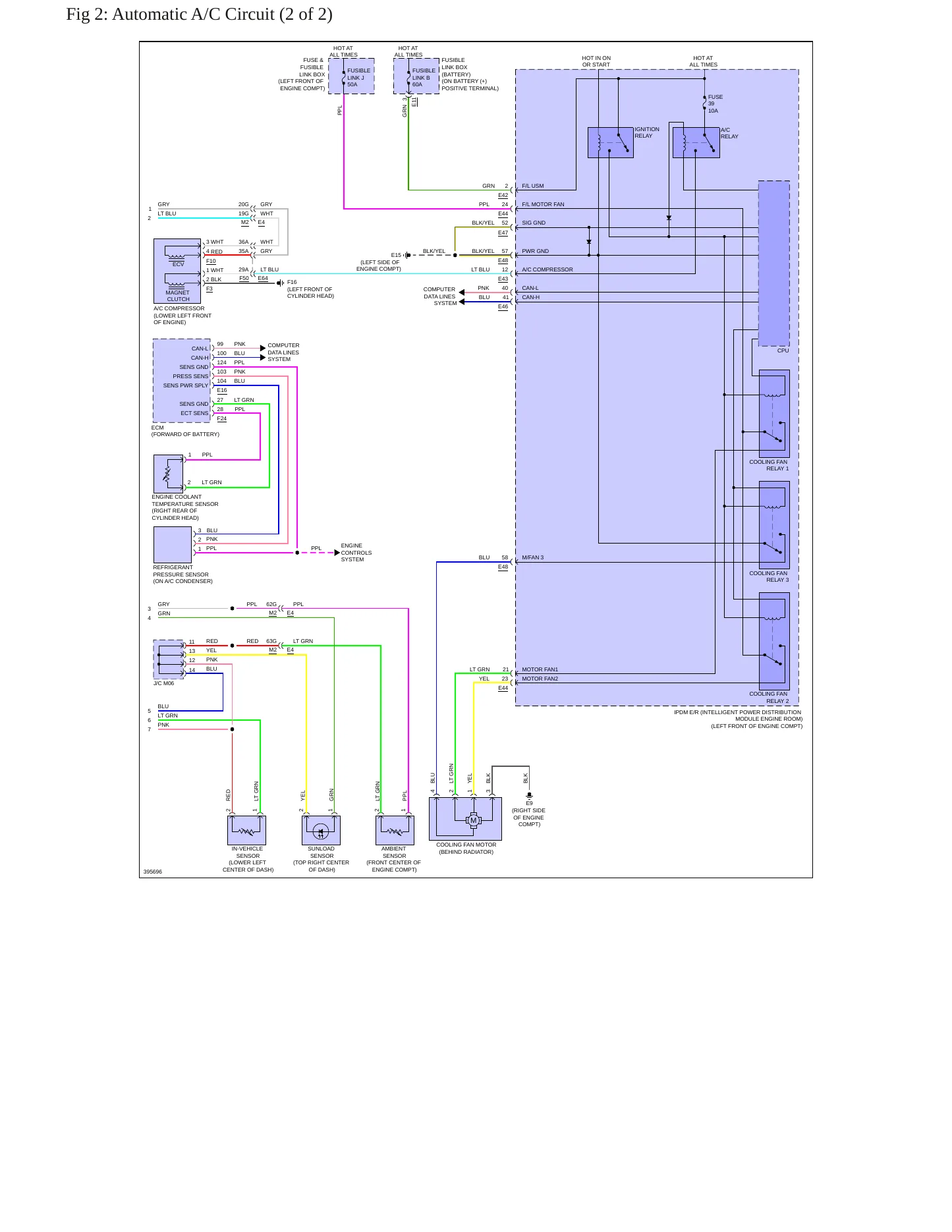

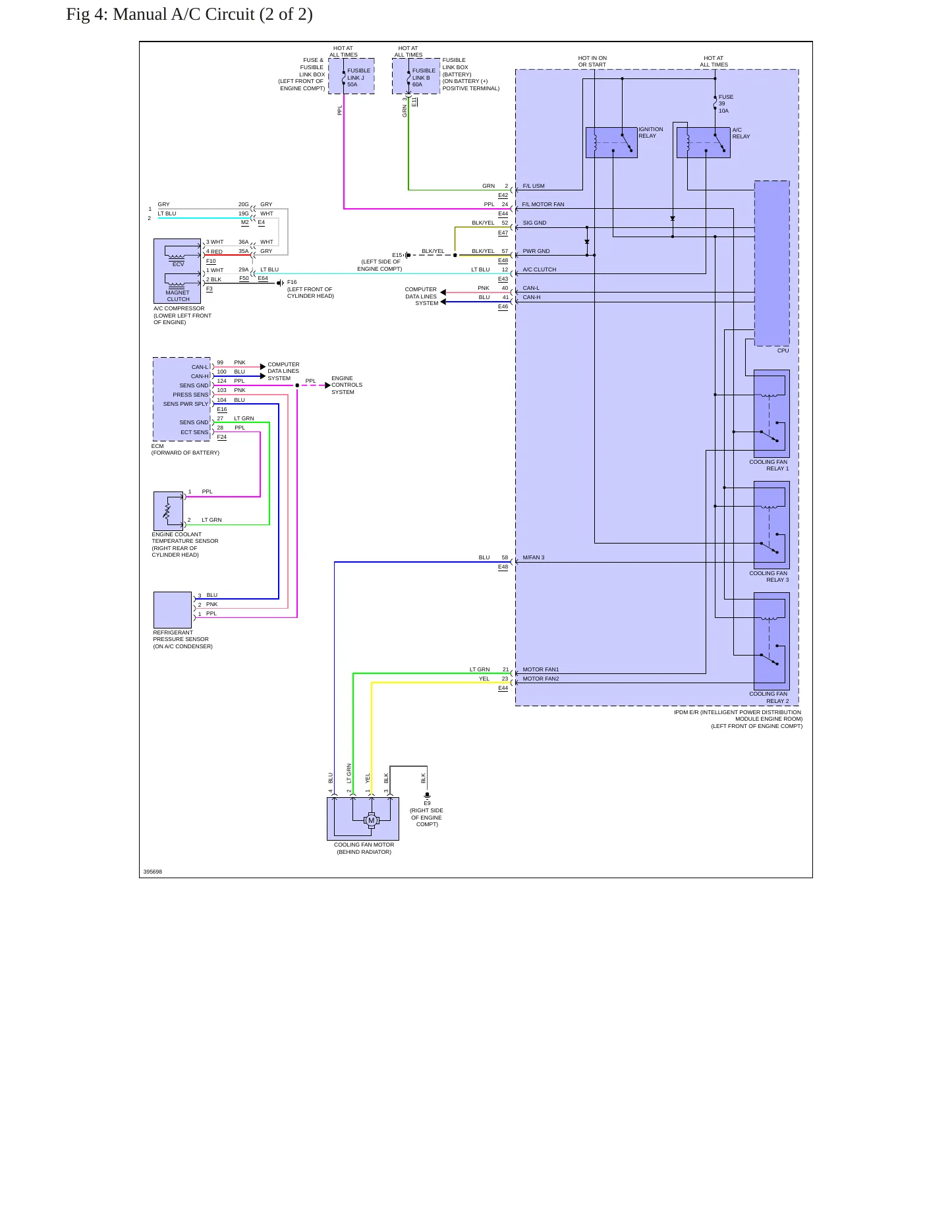

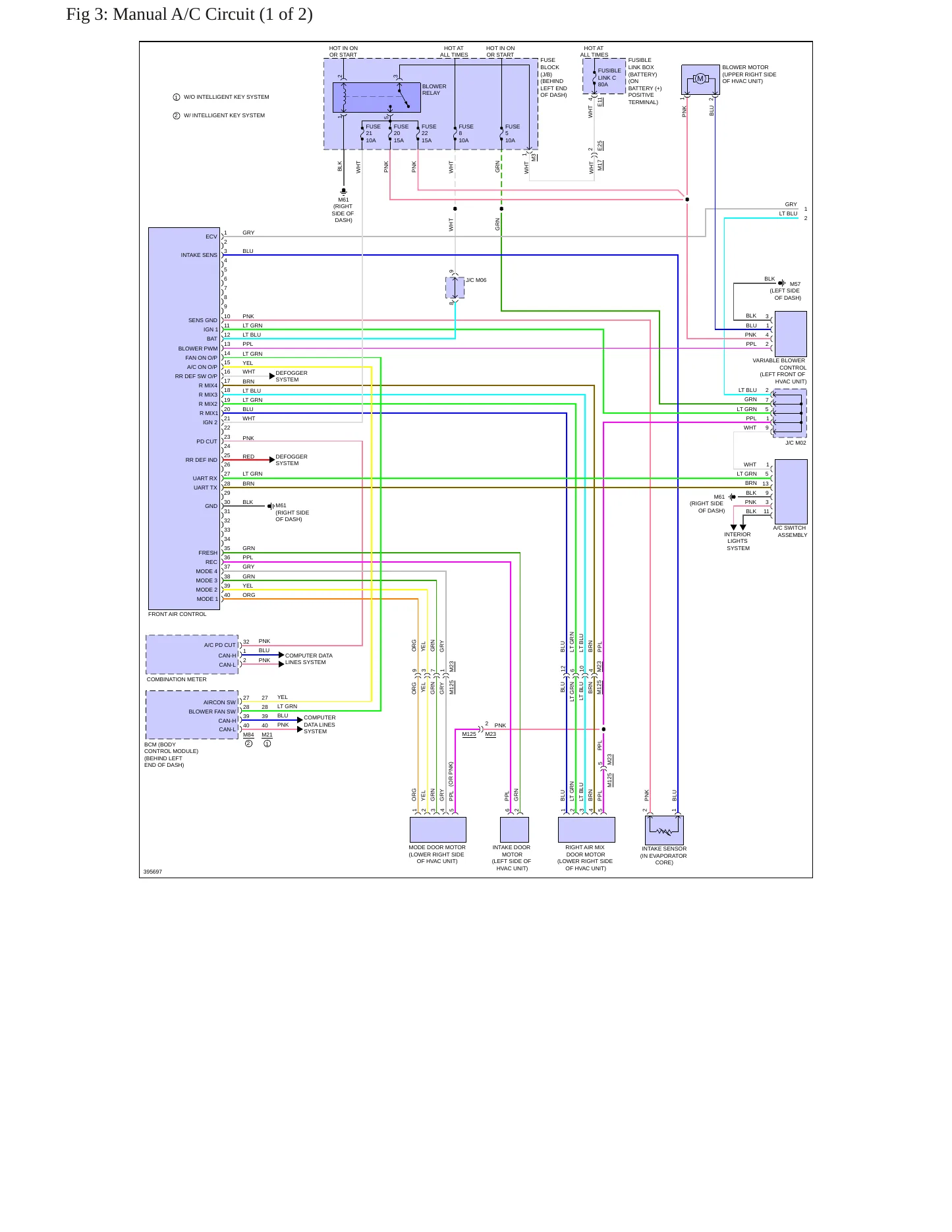

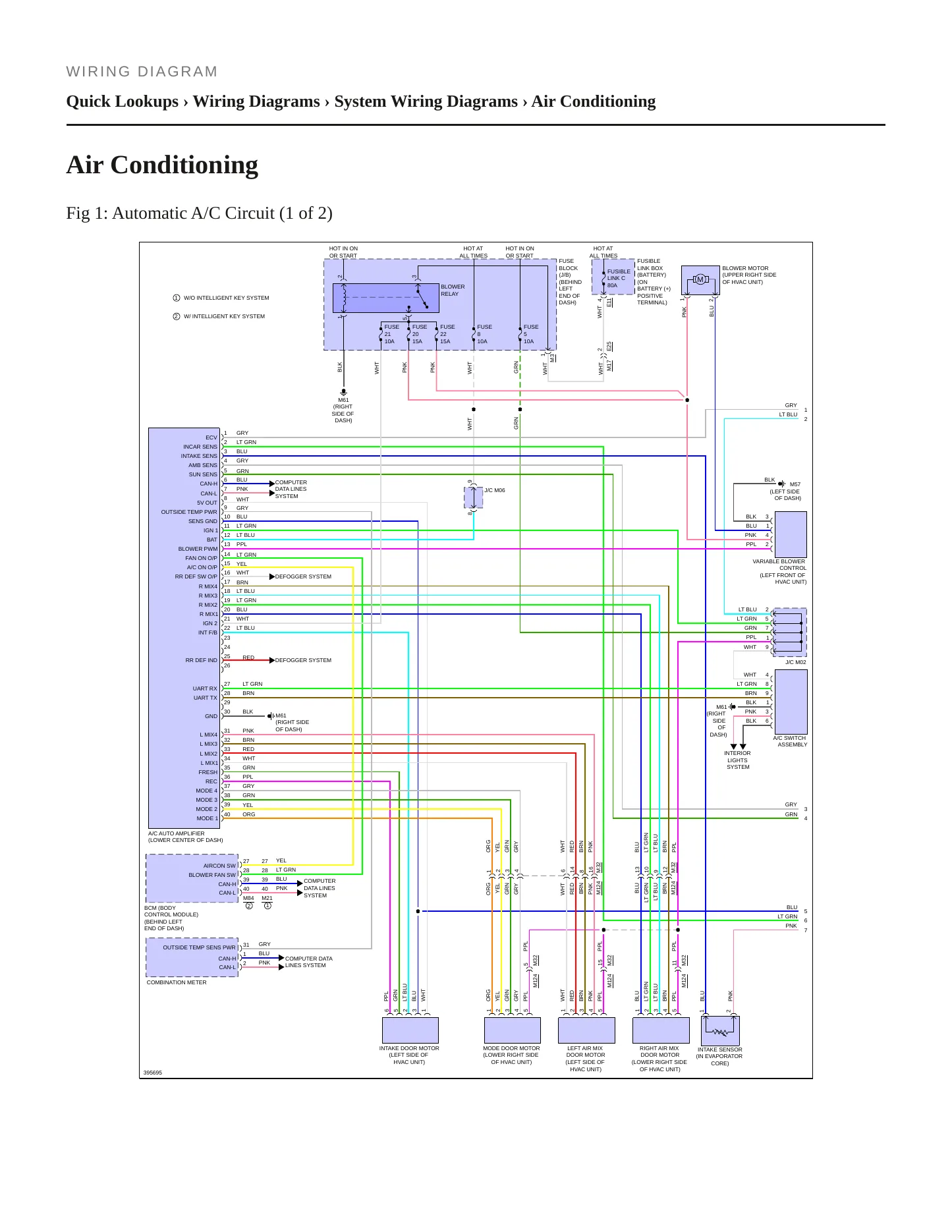

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$49.99
2013 Nissan Sentra Service and Repair Manual
Regular price
$49.99 USD
Unit price
This factory service and repair manual for the 2013 Nissan Sentra is built around this exact year, engine and trim, so the torque values, wiring diagrams and diagnostic steps inside are the ones Nissan published for your 1.8L l4 (engine code MRA8DE) car, not a generic figure pulled from another model year.
Engines covered
- 1.8L inline-four (110 cu in) — DOHC, naturally aspirated, gasoline
Body styles covered
- 4-door sedan
Trims covered
- Advance
- Exclusive
- FE+S
- FE+SV
- S
- Sense
- SL
- SR
- SV
Known issues on the 2013 Sentra. Six recalls are on federal record for this model year. One covers a front passenger seat belt bracket that can deform when used to secure a child restraint, causing the Occupant Classification System to misclassify the seat and leave the frontal air bag from switching off as designed. A second covers Occupant Detection System sensors built out of specification, which can permanently suppress the passenger air bag. A third covers electrical system software that can have the same OCS incorrectly read the passenger seat as empty when an adult is sitting in it. A fourth covers an incorrectly installed OCS control unit from a prior repair, causing the same empty-seat misclassification. A fifth covers the OCS again, where the front passenger air bag may not deploy as intended in a crash. The sixth covers the fuel tank assembly: some units built between September and October 2012 were not properly sealed and can leak gasoline when the tank is full, raising fire risk near an ignition source. Owners have filed 638 complaints for the year, and no technical service bulletins are logged. The factory diagnostic and repair procedures behind each of those systems are here.
Whether you're tracing an OCS fault code, inspecting the fuel tank seal, or working through a routine service interval, it keeps you on the OEM procedure and the correct specification for your specific 2013 Sentra.
Nissan North America, Inc. (Nissan) is recalling certain model year 2013-2016 Sentra vehicles manufactured June 4, 2012, to April 9, 2016. The front passenger seat belt bracket may become deformed if it is used to secure a Child Restraint System (CR
Consequence
If the frontal passenger air bag deploys in the event of a crash when a child seat is installed in the front passenger seat, there will be an increased risk of injury to the child in the CRS.
Remedy
Nissan will notify owners, and dealers will reinforce the seat belt bracket as well as reprogram the Air Bag Control Unit (ACU) and OCS Electronic Control Unit (ECU), free of charge. The recall began
Nissan North America, Inc. (Nissan) is recalling certain model year 2013-2015 Altima and Pathfinder vehicles, 2013-2014 Nissan Sentra vehicles, 2013 Infiniti JX35 vehicles, 2014-2015 Infiniti QX60 vehicles and 2014 Infiniti QX60 Hybrid vehicles. The
Consequence
If the OCS does not detect an adult occupant in the passenger seat, the passenger air bag would be deactivated. Failure of the passenger airbag to deploy during a crash (where deployment is warranted
Remedy
Nissan will notify owners, and dealers will update the OCS software, free of charge. The recall began on November 30, 2015. Owners may contact Nissan at 1-800-647-7261.
Nissan North America, Inc. (Nissan) is recalling certain model year 2013-2014 Altima, LEAF, Pathfinder, and Sentra, model year 2013 NV200 (aka Taxi) and Infiniti JX35 and model year 2014 Infiniti Q50 and QX60 vehicles. In the affected vehicles, the
Consequence
If the OCS does not detect an adult occupant in the passenger seat, the passenger airbag would be deactivated. Failure of the passenger airbag to deploy during a crash (where deployment is warranted)
Remedy
Nissan will notify owners, and dealers will update the OCS software, free of charge. The recall began on April 14, 2014. Owners may contact Nissan at 1-800-647-7261.
Nissan North America, Inc. (Nissan) is recalling certain model year 2016-2017 Nissan Maxima, 2013-2016 Nissan Altima, NV200, LEAF, Sentra, and Pathfinder, 2014-2016 Nissan NV200 Taxi, Infiniti QX60, QX60 Hybrid, and Q50 Hybrid, 2014-2017 Nissan Rogue
Consequence
If the passenger frontal air bag does not deploy as intended in the event of a crash, the passenger is at an increased risk of injury.
Remedy
Nissan will notify their owners. Chevrolet City Express owners will be notified by General Motors. Dealers will reprogram the Air Bag Control Unit (ACU) and OCS Electronic Control Unit (ECU) in Alti
Nissan is recalling certain model year 2013 Altima, LEAF, Pathfinder, Sentra, and Infiniti JX35 vehicles. Sensors within the passenger Occupant Detection System (ODS) may have been manufactured out of specification. This may cause the system to mal
Consequence
If the vehicle is involved in a crash necessitating airbag deployment and the passenger airbag is suppressed, there may be an increased risk of personal injury.
Remedy
Nissan will notify owners, and dealers will inspect the ODS sensors and replace them as neccessary, free of charge. The recall began on May 6, 2013. Owners may contact Nissan Customer Service at 1-8
Nissan is recalling certain model year 2013 Sentra vehicles manufactured from September 11, 2012, through October 4, 2012. Some fuel tank assemblies were not properly sealed during the manufacturing process. As a result, a small amount of gasoline
Consequence
A gasoline leak in the presence of an ignition source may lead to a vehicle fire.
Remedy
Nissan will notify owners, and dealers will replace the fuel tanks as necessary, free of charge. The recall began on April 1, 2013. Owners may contact Nissan Customer Service at 1-800-647-7261.
CERTIFICATION LABEL AND VIN PLATE REPLACEMENT SERVICE INFORMATION Because of collision damage or other vehicle repair, a replacement Certification Label or VIN Plate/Label may be needed. HINT: Certification Label = FMVSS (Federal Motor Vehi
CERTIFICATION LABEL AND VIN PLATE REPLACEMENT SERVICE INFORMATION Because of collision damage or other vehicle repair, a replacement Certification Label or VIN Plate/Label may be needed. HINT: Certification Label = FMVSS (Federal Motor Vehi
DTC B00A0-00 STORED This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin. IF YOU CONFIRM DTC B00A0-00 (OCCUPANT DETECTION SENSOR UNIT) is stored, AND OCS zero point reset
VEHICLE KEY NOT DETECTED / AUTHENTICATED, ENGINE WILL NOT START This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
CAN COMMUNICATION NETWORK DIAGNOSTIC FLOW CHART This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
CAN COMMUNICATION CODES DIAGNOSTIC TIPS AND GUIDELINES This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
WINDOW GLASS WARRANTY INFORMATION This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
REMOVING FOREIGN MATERIAL FROM THE WINDOW GLASS This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
Showing the 8 most recent of 201 technical service bulletins on file with NHTSA.
TL* THE CONTACT OWNED A 2013 NISSAN SENTRA. WHILE DRIVING AT 45 MPH, THE VEHICLE VEERED OFF THE ROAD AND CRASHED INTO A DITCH. THE VEHICLE BURST INTO FLAMES AND WAS DESTROYED. THE DRIVER SUSTAINED FAT
TRAVELING NORTHBOUND ON HWY 5 . A TRUCK VEERED INTO THE LANE AND HIT THE CAR HEAD ON. SEVERE DAMAGE YET THE AIR BAGS DID NOT DEPLOY. THANKFULLY MY DAUGHTER HAD ON HER SEAT BEAT. I JUST BROUGHT THIS CA
BRAKES FAILED TO FUNCTION WHEN ATTEMPTING TO STOP WHILE GOING 35 MPH ON A DRY, STRAIGHT ROADWAY. THE PEDAL HAD SOME TENSION BEHIND IT BUT DIDN'T FEEL RIGHT, KIND OF SPONGY AND IT WENT ALL THE WAY TO T
THE MORNING STARTED OFF WITH HAVING PROBLEMS WITH ESF LGHT, AND HAND BRAKE LIGHT EVEN THOUGH HAND BRAKE WAS NOT APPLIED. I TRIED TO PULL OVER MANY TIMES, AND FIX LIGHTS BUT NOTHING WORKED. I WAS AT A
TL* THE CONTACT OWNED A 2013 NISSAN SENTRA. THE CONTACT STATED THAT THE VEHICLE WAS STRUCK ON THE PASSENGER SIDE BY ANOTHER VEHICLE. THE AIR BAGS DID NOT DEPLOY. A POLICE REPORT WAS FILED. THERE WERE
WHILE DRIVING THE CAR WOULD LOSE ACCELERATION. THE FIRST TIME IT HAD HAPPEN IT WAS AROUND APRIL 2017 ON A HOT DAY. I THOUGHT MAYBE ME TURNING THE AIR ON PLUS WITH THE HEAT THAT IT WAS THE REASON FOR T
The contact owns a 2013 Nissan Sentra. The contact stated while driving at 45 mph when the air bag warning light illuminated. The contact took the vehicle to a local dealer who inspected the vehicle a
I HIT A METAL BARRIER AT 75 MPH ON THE HIGHWAY NOT ONE AIRBAG DEPLOYED. I HAVE HAD 2 SURGERIES SIGNIFICANT BRAIN DAMAGE AND MEMORY LOSS. NISSAN WON'T EVEN ACKNOWLEDGE THERE WAS A PROBLEM. ALSO TRANS
Showing the 8 most serious of 638 complaints filed with NHTSA.
