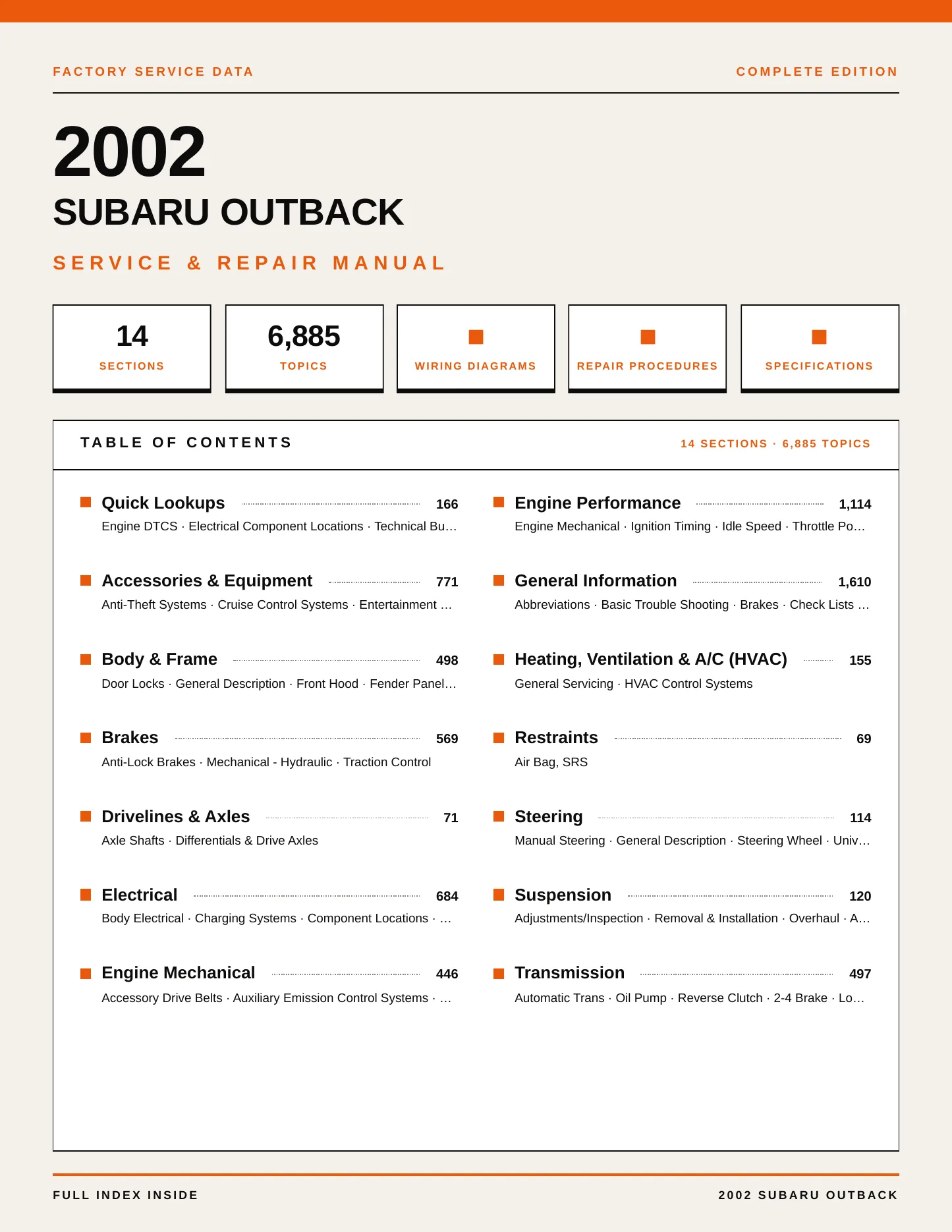

2002 Subaru Outback Service and Repair Manual

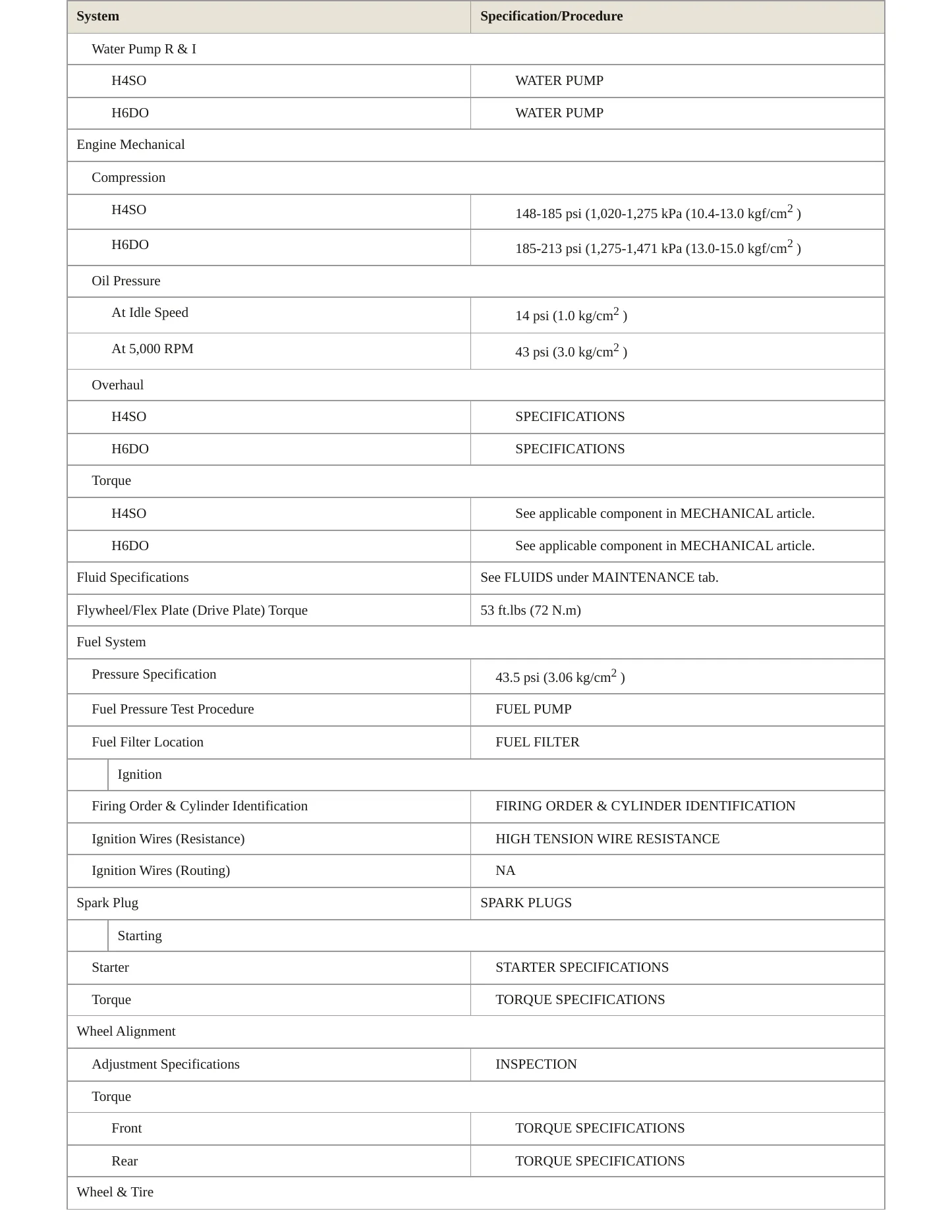

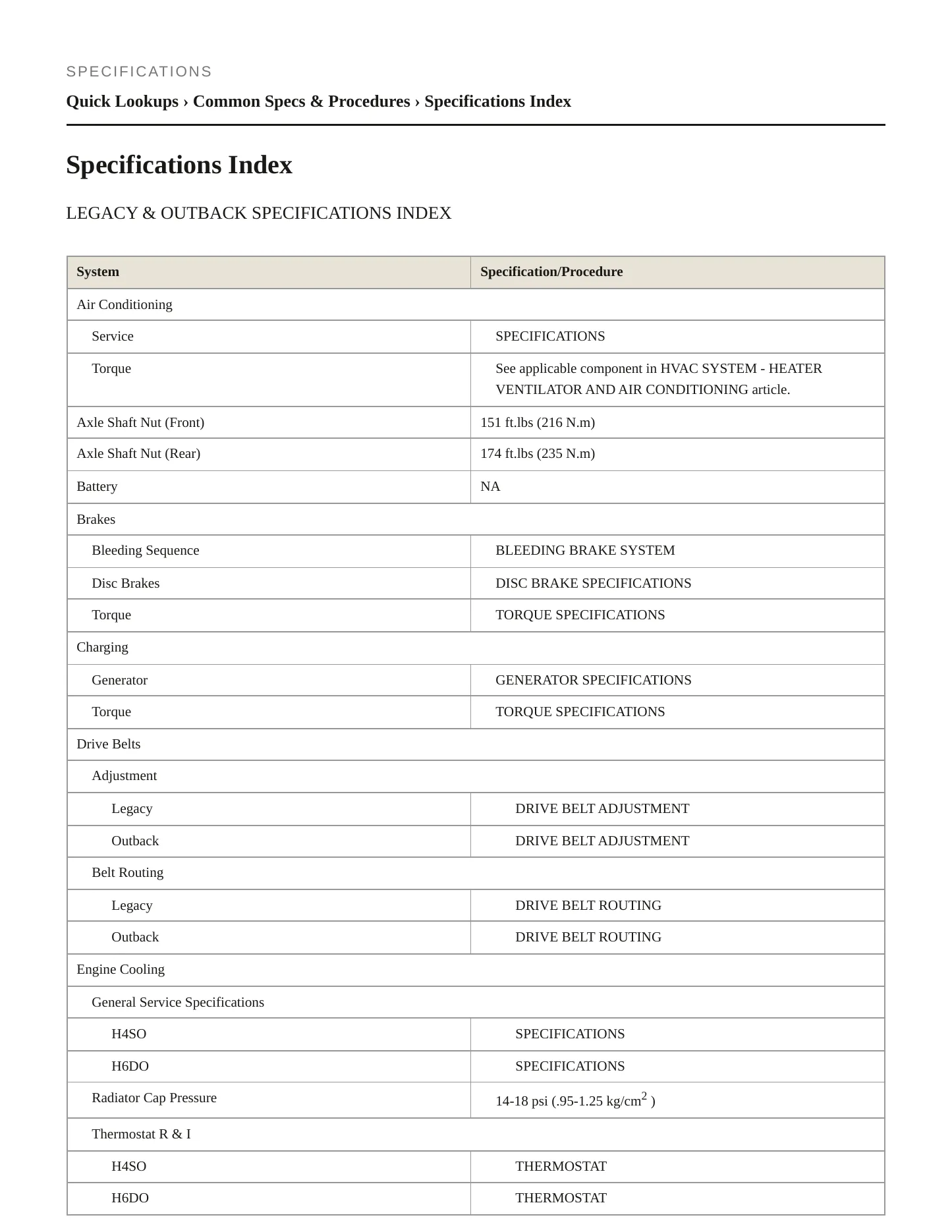

This factory service and repair manual for the 2002 Subaru Outback covers a model offered as a 4-door wagon and as a 4-door sedan, spread across five trims: Base, H6, L.L. Bean, Limited and VDC. Two engines were fitted. The smaller is a 2.5L flat-four with a single overhead camshaft; the larger, a 3.0L H6, uses double overhead camshafts. Neither is turbocharged, and both burn gasoline. Engine, fuel, ignition, cooling, transmission, brake, suspension, steering and electrical work is supported with procedures, specifications and torque values.

Engines covered

• 2.5L flat-four — SOHC, naturally aspirated, gasoline
• 3.0L H6 — DOHC, naturally aspirated, gasoline

Body styles covered

• 4-door wagon
• 4-door sedan

Trims covered

• Base
• H6
• L.L. Bean
• Limited
• VDC

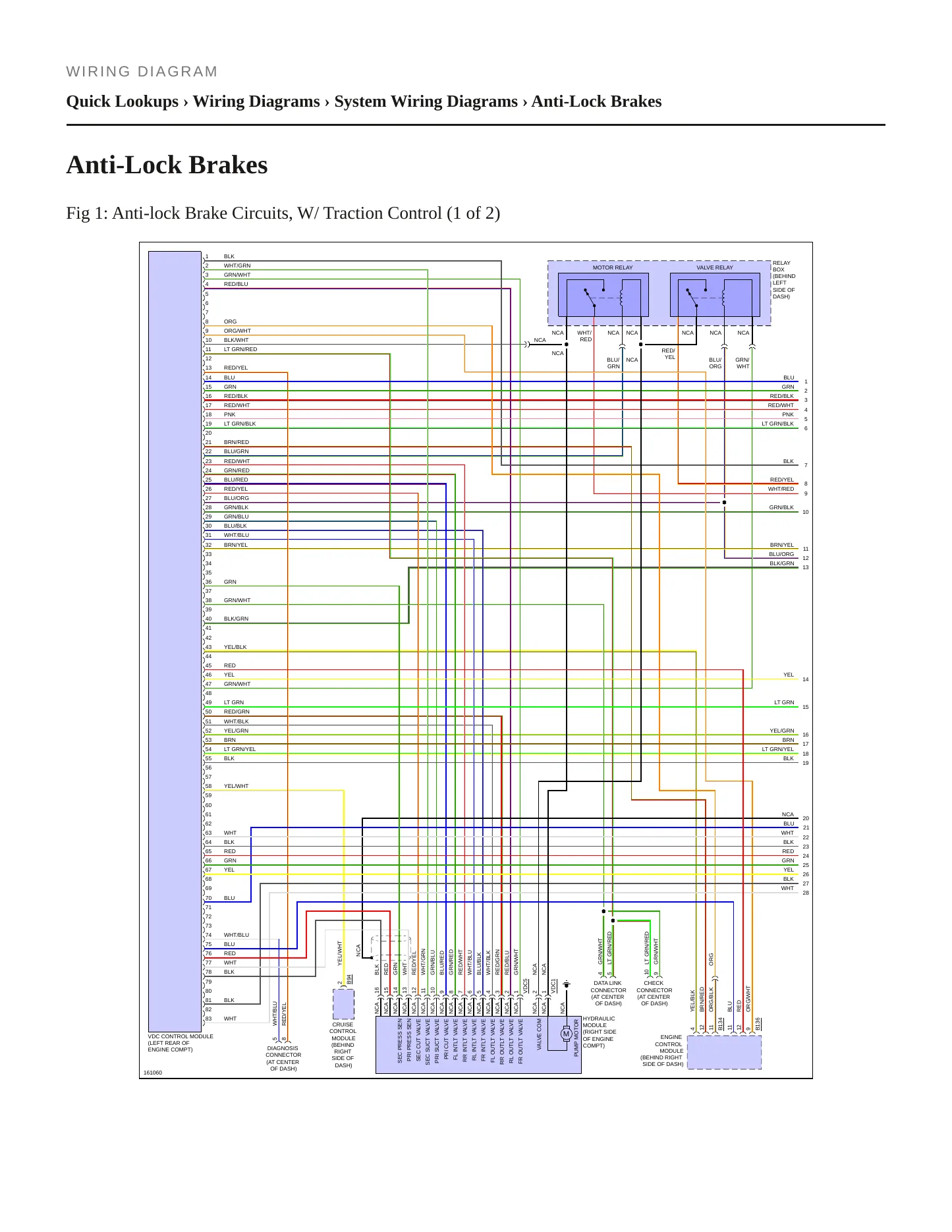

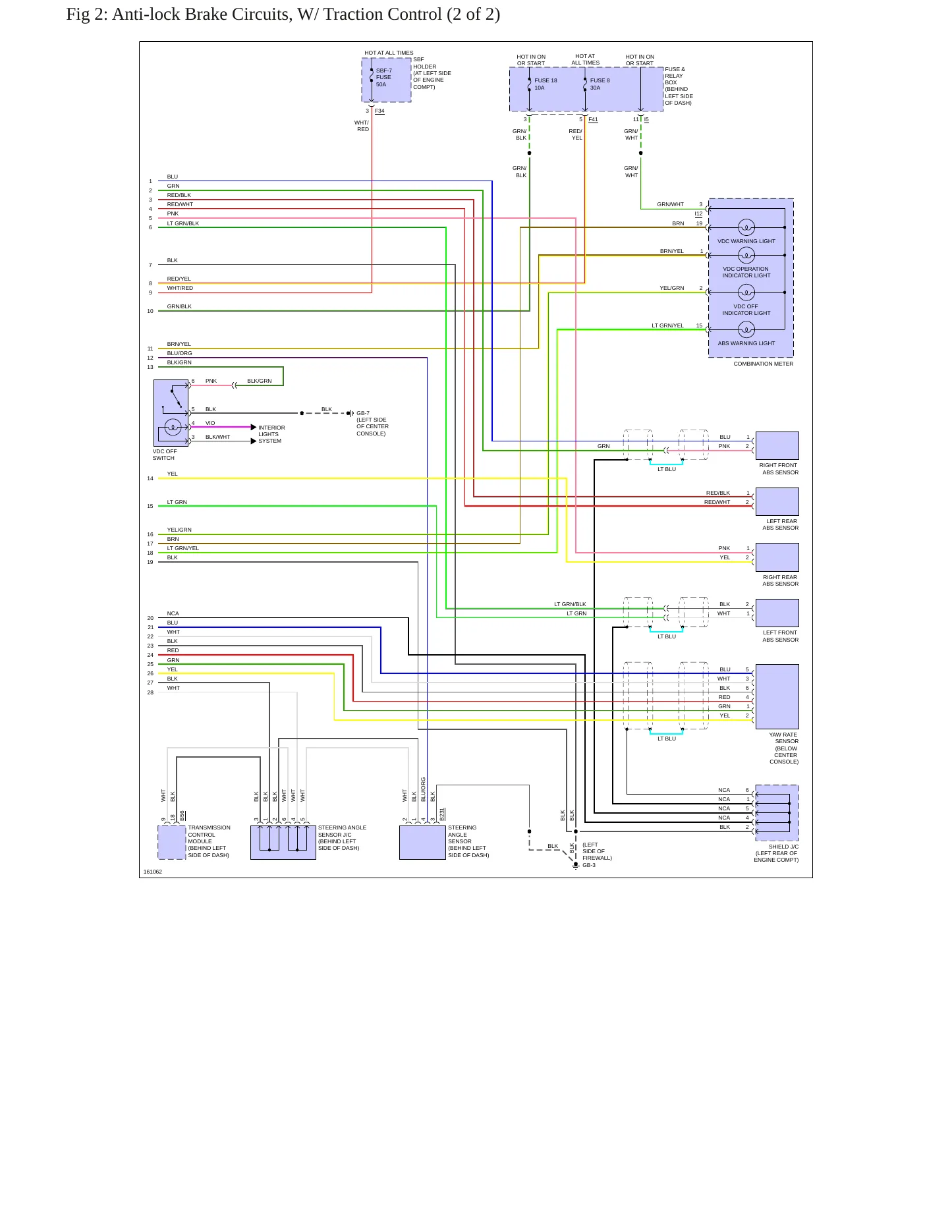

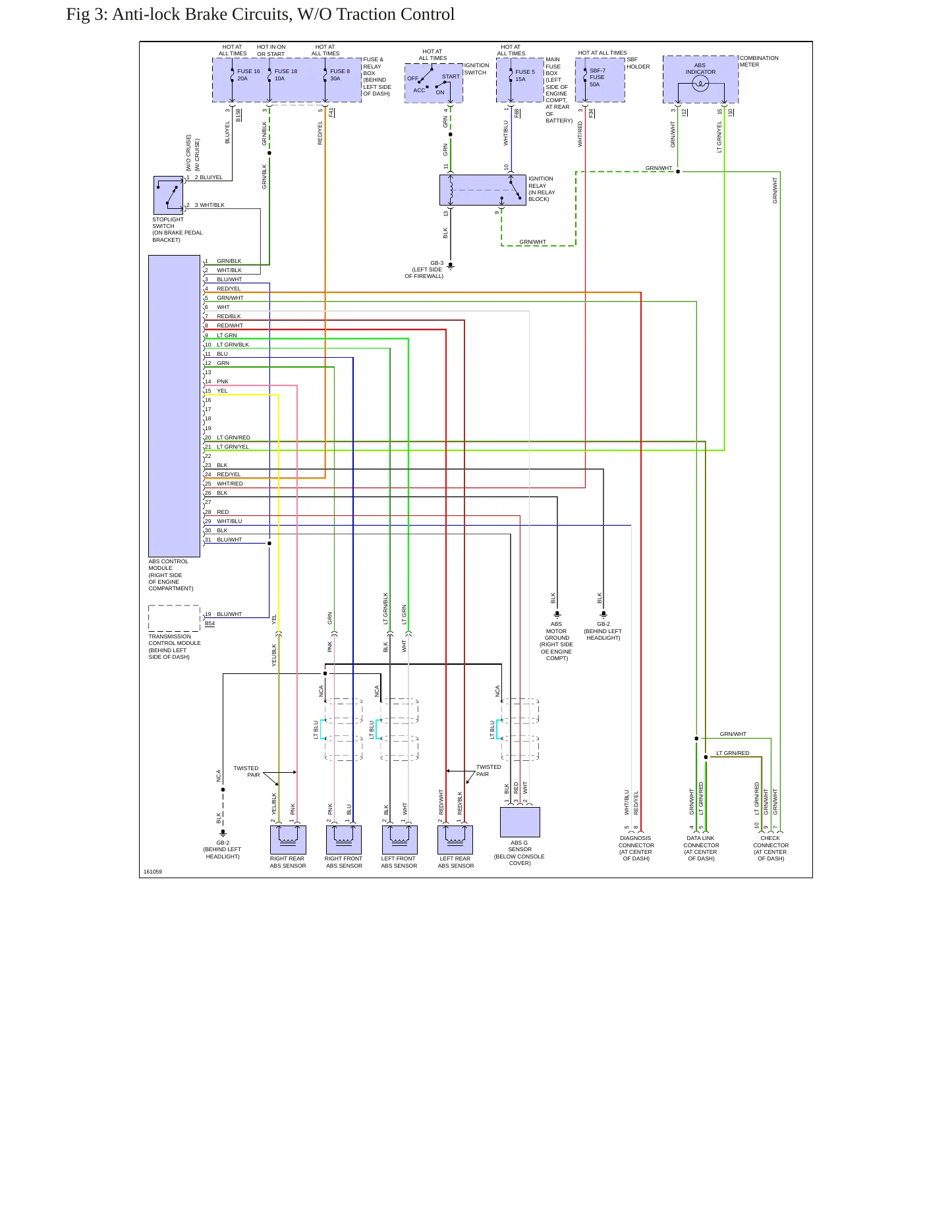

Known issues on the 2002 Outback. Four recalls name the 2002 Outback. On certain 2002 Outback vehicles the brake master cylinder could misbehave in freezing weather, leaving the brakes applied after the driver's foot came off the pedal; dealers fitted new master cylinders. Certain 2002 Outback vehicles were also recalled because the cruise cable could jump its track and keep the throttle open, and certain 2002 Outback vehicles with automatic transmissions because a badly made parking rod could stop park from engaging. Of 142 owner complaints, 27 concern the hydraulic brakes and 23 the gasoline fuel system; 9 complaints reported a crash and 9 an injury. The brake, fuel and transmission systems are backed here by procedures, specifications, torque values, wiring diagrams and diagnostics.
