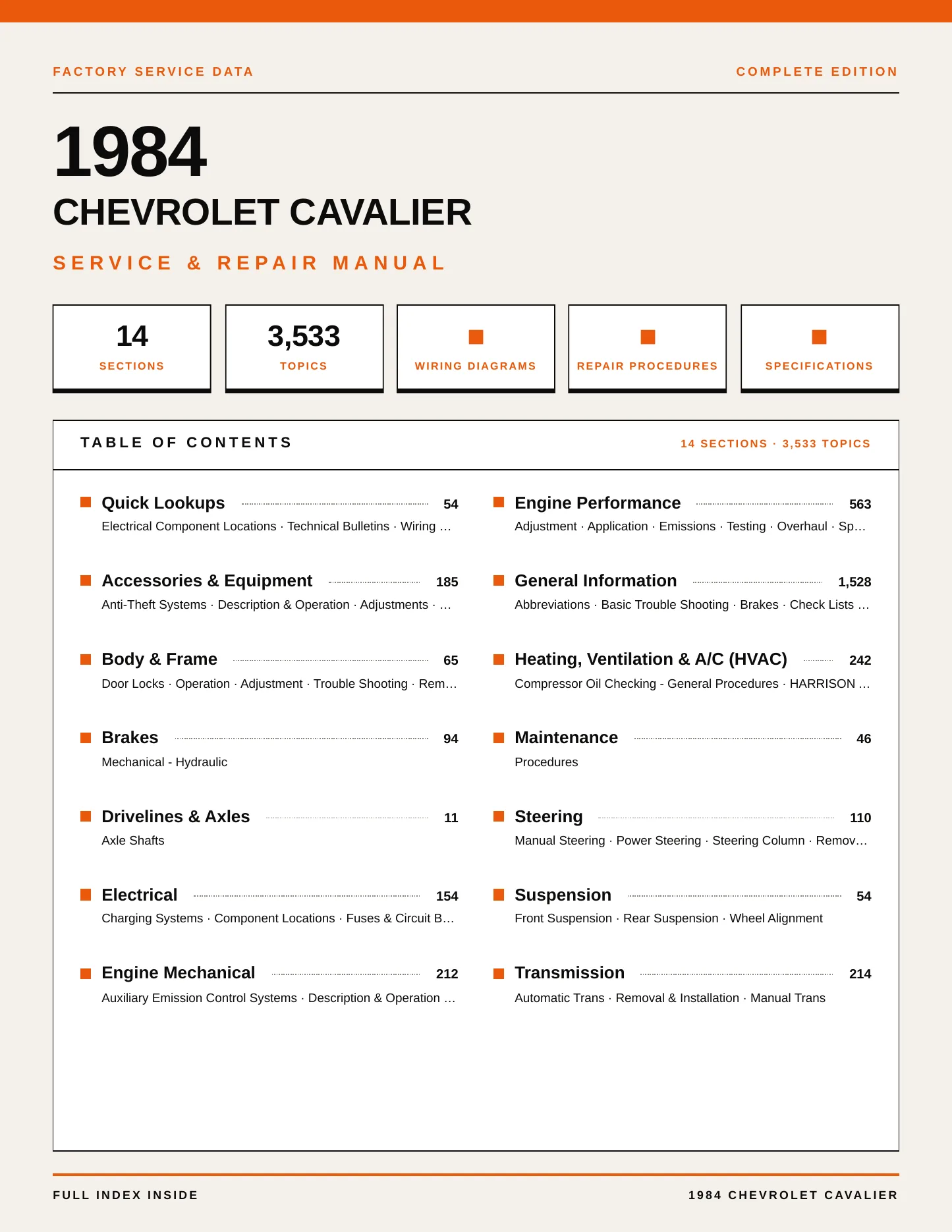

1984 Chevrolet Cavalier Service and Repair Manual
This factory service and repair manual for the 1984 Chevrolet Cavalier has five trims to keep straight, Base, CL, CS, Olympic and Type-10, spread over a convertible, a coupe, a sedan, a wagon and a hatchback. Powertrain work is simpler than that list suggests, because every one of them uses the same naturally aspirated 2.0L overhead-valve inline-four of 122 cubic inches on gasoline. Specifications, torque values, wiring diagrams and diagnostic routines follow the systems of the car rather than its trim labels, with body coverage broken out where the shells actually differ.
Engines covered
- 2.0L inline-four (122 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 2-door convertible
- 2-door coupe
- 4-door sedan
- 4-door wagon
- 2-door hatchback
Trims covered
- Base
- CL
- CS
- Olympic
- Type-10
Known issues on the 1984 Cavalier. Three recalls are on the federal record, and two of them concern the front seats. In the first, the floor pan anchor bar can fatigue and break where the driver's seat adjuster stud passes through, so the seat tips rearward while the car moves. In the second, bucket seat back locks may not hold in a crash. The third covers a replacement fuel filter that seals poorly and can weep gasoline near a hot engine. Ten complaints were entered, three on the power train and two on the seat belts; restraint anchorage, seat assembly and fuel line service are detailed here.
SOME VEHICLES HAVE BUCKET SEAT BACK LOCKS THAT DO NOT CONFORM TO FEDERAL MOTOR VEHICLE SAFETY STANDARD 207, ANCHORAGE OF SEATS. IN EVENT OF A CRASH, THE SEAT BACK LOCK MAY NOT FUNC
INSPECTION OF SEAT BACK LOCKS WILL BE PERFORMED. LOCKS THAT HAVE BENT, BROKEN OR MISSING H
VEHICLE SWERVED OUT OF CONTROL, RESULTING IN ACCIDENT AND INJURIES. *SKD
DRIVER'S SEAT BELT DID NOT LOCK UP, RESULTING IN DRIVER HITTING THE WINDSHIELD TWICE. *AK
THE VEHICLE WAS HIT FROM THE REAR AND IN TURN, HIT THE VEHICLE IN FRONT OF IT, AND THE REAR LAP BELT BROKE AT THE BUCKLE. DEALER HAS NOT SEEN VEHICLE. *AK
THE DRIVERS SEAT LOCK IS EXPERIENCING RECALL (84V011) PROBLEMS. NLM
Showing the 4 most serious of 10 complaints filed with NHTSA.
