2019 Nissan Altima Service and Repair Manual
Regular price
$49.99 USD
Unit price
Covers all 2019 Altima trims — Platinum Sedan 4-Door, SV Sedan 4-Door, SL Sedan 4-Door +5 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

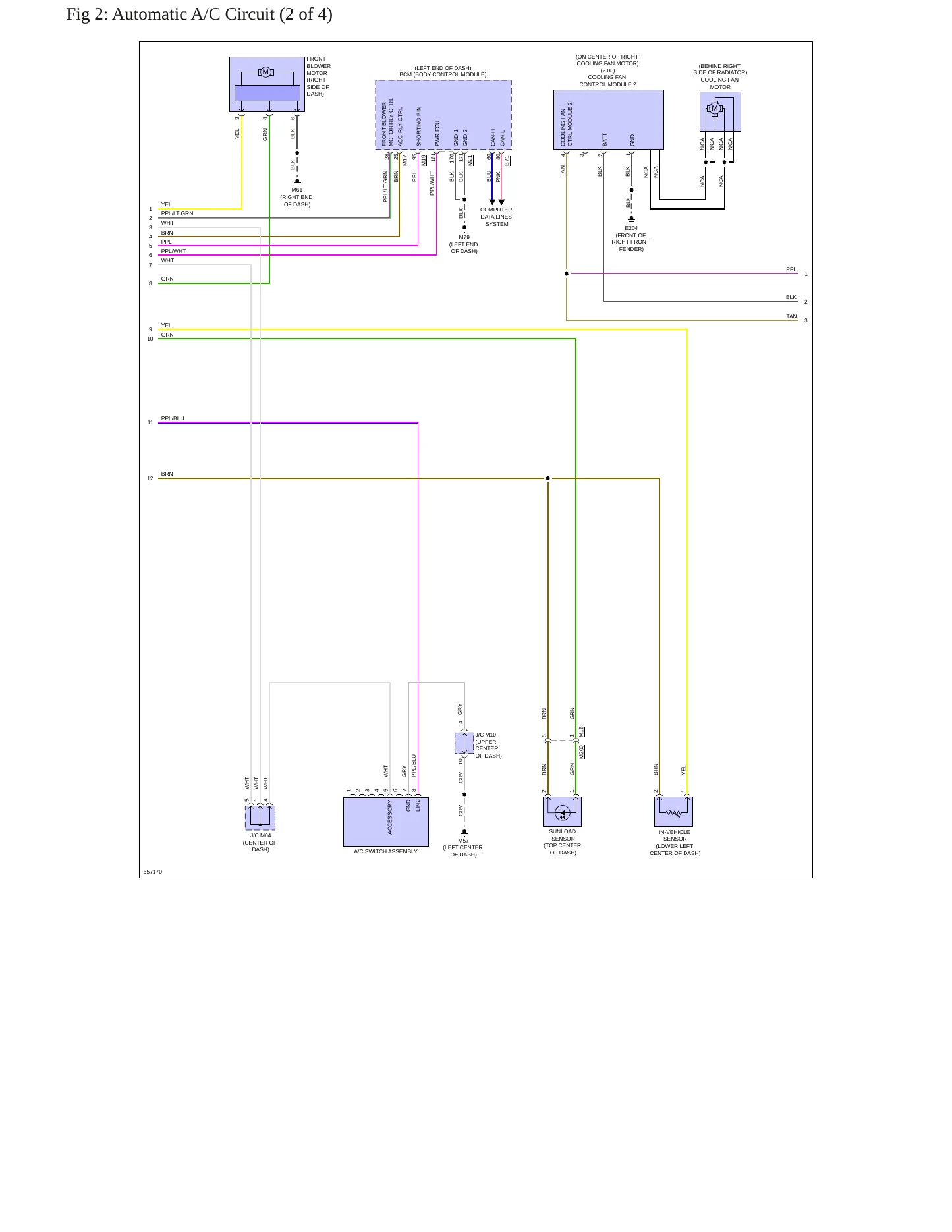

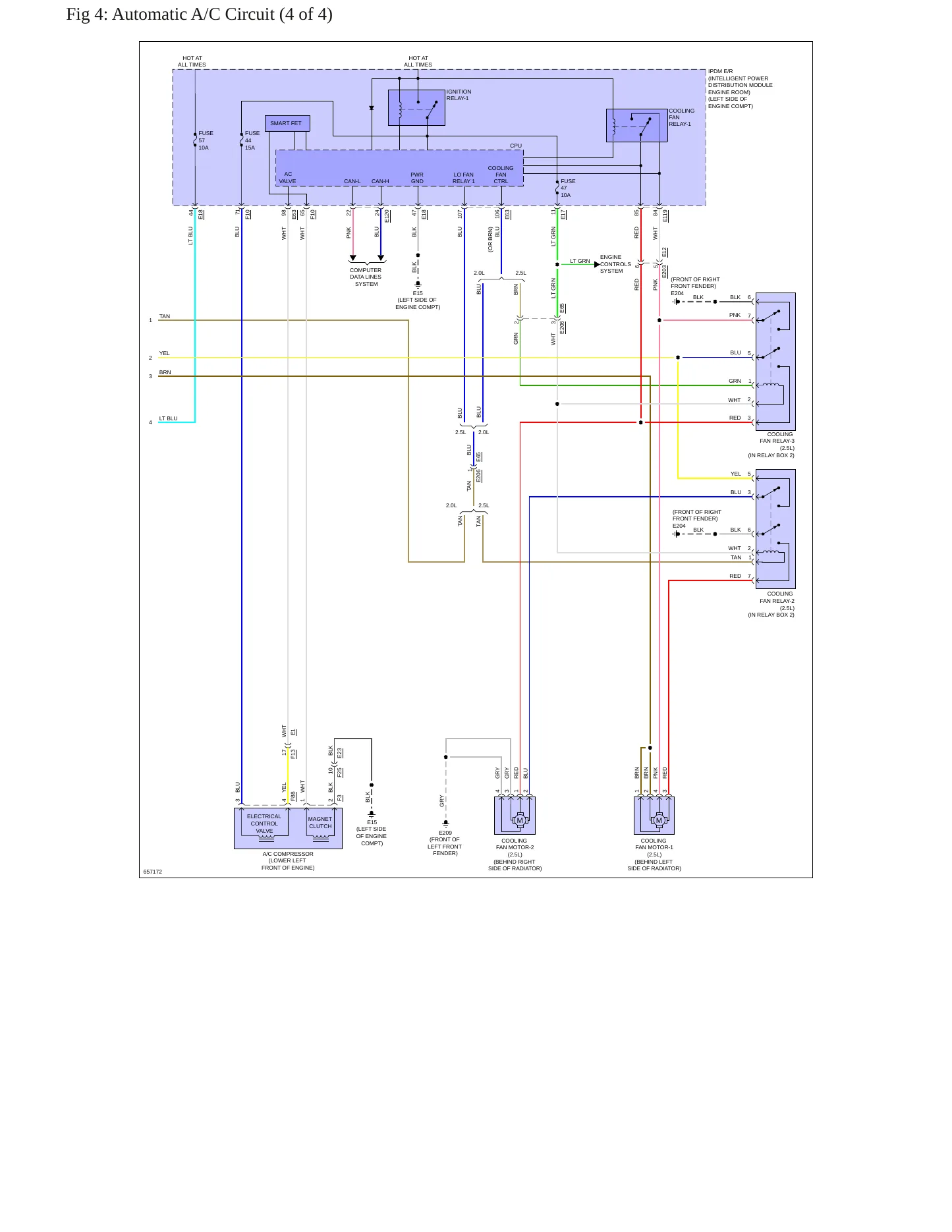

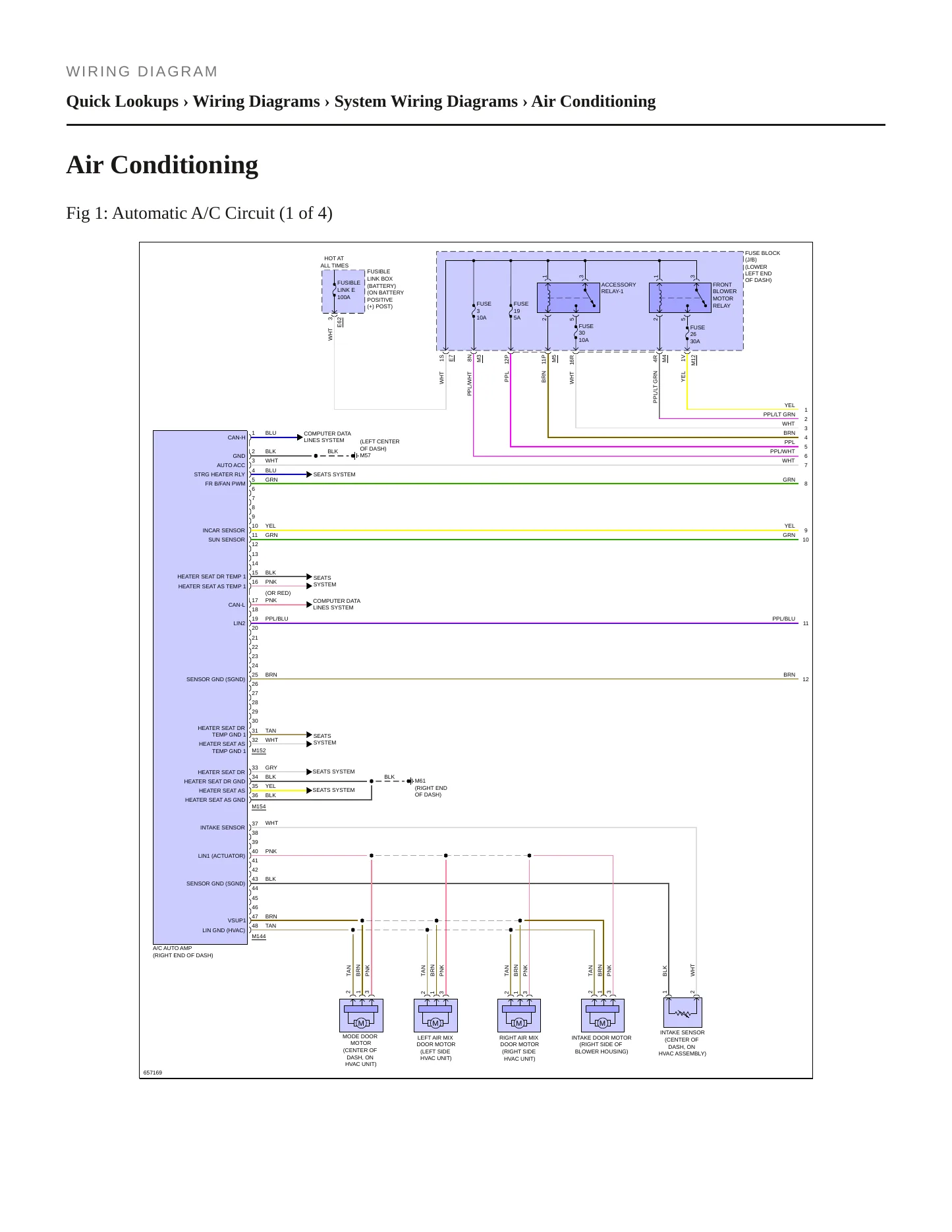

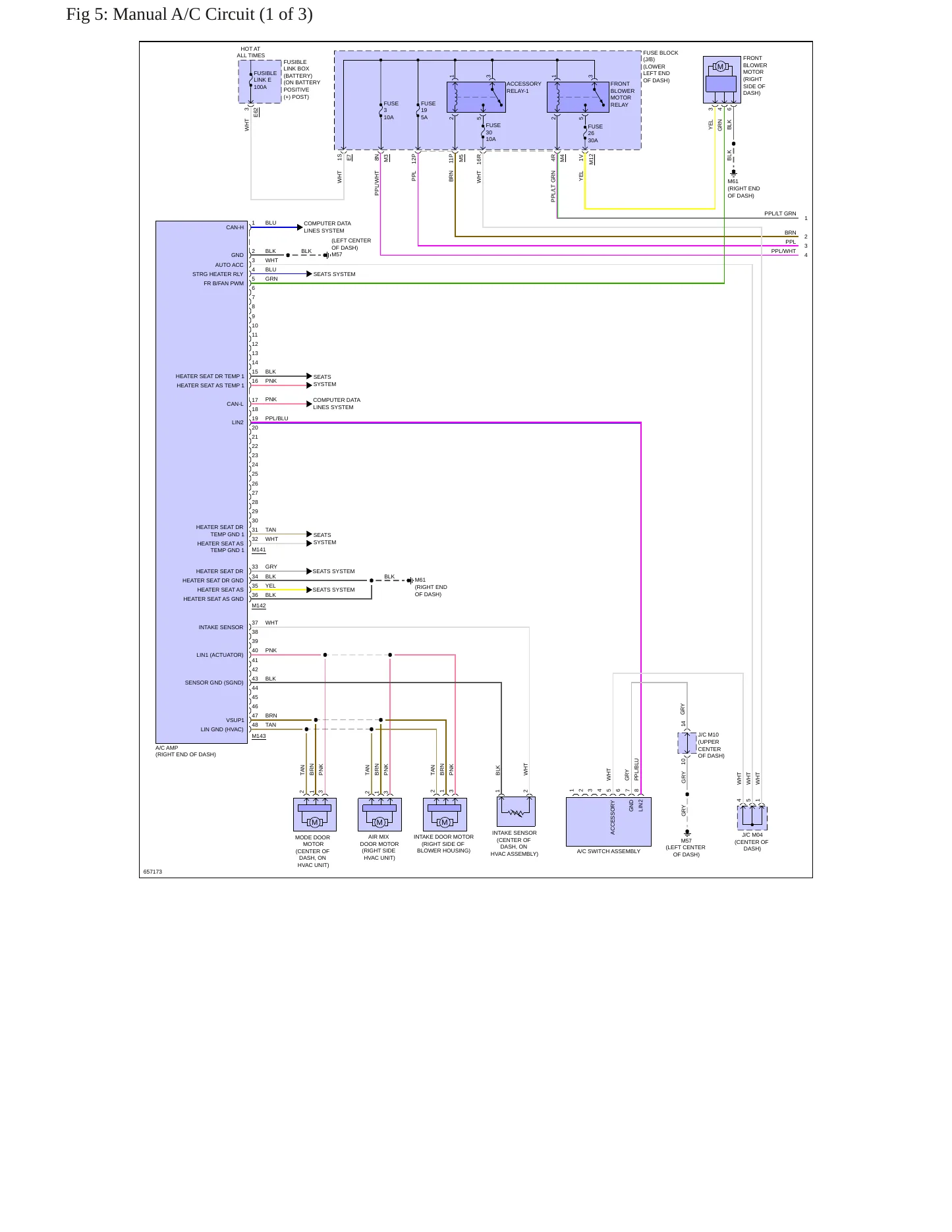

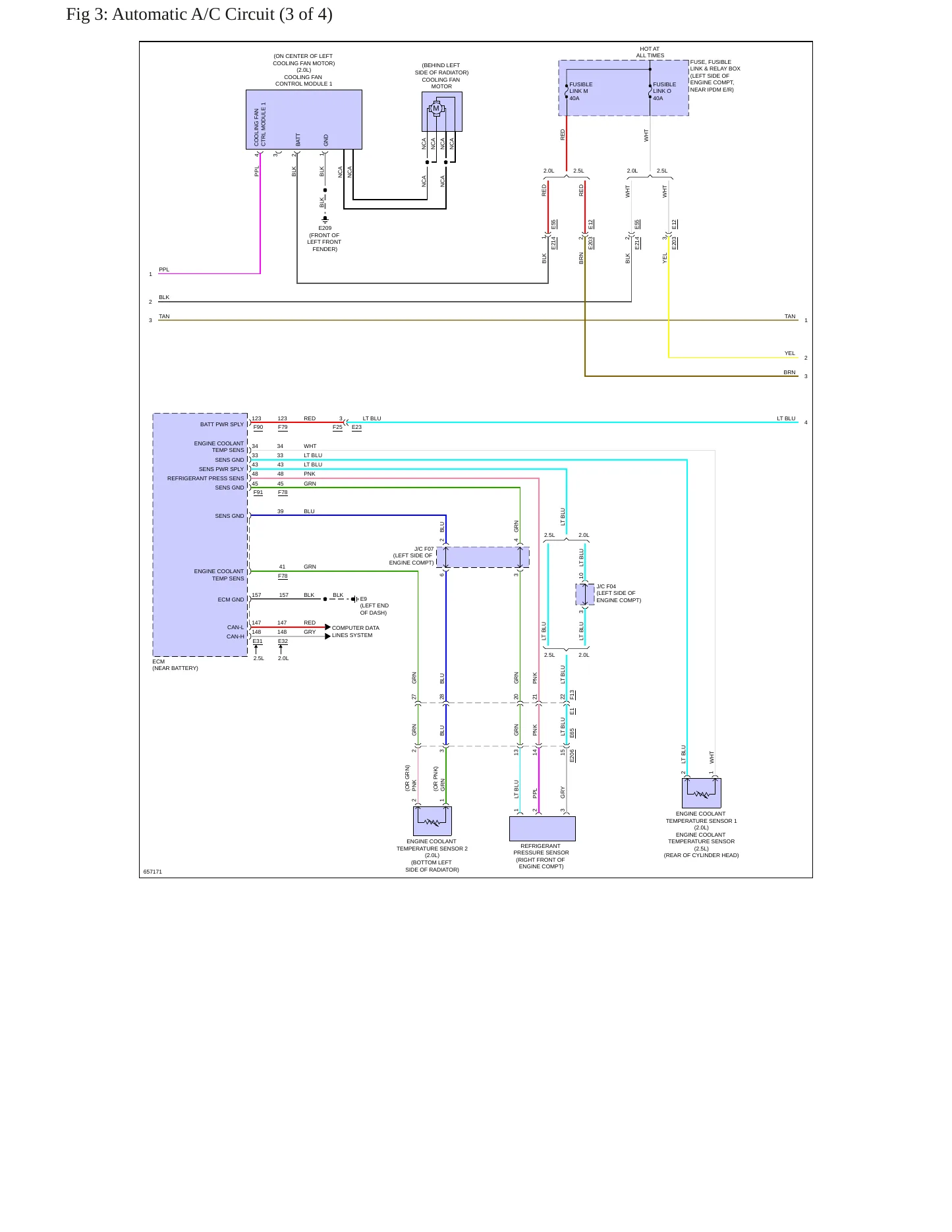

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$49.99
2019 Nissan Altima Service and Repair Manual
Regular price
$49.99 USD
Unit price
The 2019 Altima was built around two four-cylinders with little in common: the 2.0L KR20DDET, a variable compression turbo, and the naturally aspirated 2.5L PR25DD. Fuel delivery hardware, bearing design and torque figures diverge between them, and Nissan sold the car in eight trims that year, so the engine code and trim in front of you decide which specification applies rather than a close value borrowed from a neighboring model year.
Engines covered
- 2.5L inline-four (152 cu in) — DOHC, naturally aspirated, gasoline
- 2.0L inline-four — DOHC, turbocharged, gasoline
Body styles covered
- 4-door sedan
Trims covered
- Advance
- Edition ONE
- Exclusive
- Platinum
- S
- SL
- SR
- SV
Known issues on the 2019 Altima. Seven recalls are on federal record for this model year. One covers Continental tires that were cured for too long during production, which may develop a break in the sidewall, resulting in sudden air loss or belt edge separation that leads to tread and belt loss; either condition can cause a loss of vehicle control. Two separate campaigns cover fuel delivery: on front-wheel-drive 2.5 liter cars the fuel pump lock ring may not be fully engaged, possibly causing fuel to leak, and on a separate group of 2019 cars the retainer clip connecting the low pressure fuel tube to the high pressure fuel pump may not have been locked into position, so the tube can shift and cause a leak or fully disconnect and stall the engine. A fuel leak in the presence of an ignition source increases the risk of a fire. A fourth covers a brake switch bracket in the incorrect location that may cause the brake switch to remain on, leaving the brake lights illuminated when the brakes are not being pressed and allowing the transmission shift lever to be moved out of Park without the brake pedal being pressed, so the vehicle can roll unexpectedly. Two more cover the rearview camera: on one, the back-up camera and display settings can be adjusted such that the rear view image is no longer visible and the system will retain that setting the next time the vehicle is placed in reverse, and the lack of an image in the display increases the risk of a crash; on the other, damage to the camera harness can cause distortion or loss of the rearview camera display image, reducing the driver's rear view. The seventh covers the 2.0L variable compression turbo engine, whose bearings may have manufacturing defects that can lead to engine failure, and a bearing failure may cause a breach in the engine block that discharges hot oil, adding the risk of an engine fire. Owners have logged 229 complaints for the year, and no technical service bulletins are on record. The factory diagnostic and repair procedures behind each of those systems are here.
From a fuel pump lock ring reseal to a rearview camera harness trace or a bearing inspection on the VC-Turbo, it holds you to Nissan's own procedure and the right specification for this 2019 Altima.
Nissan North America, Inc. (Nissan) is recalling certain 2019-2020 Altima and 2018-2021 Titan vehicles equipped with Continental tires. On the affected vehicles, it is possible that one or more tires were cured for too long during tire production.
Consequence
Over cured tires may develop a break in the sidewall, resulting in sudden air loss or belt edge separation which could lead to tread/belt loss. Either condition can cause a loss of vehicle control, i
Remedy
Nissan will notify owners, and dealers will inspect the tires, and replace them as necessary, free of charge. Owner notification letters were mailed on May 11, 2021. Owners may contact Nissan custom
Nissan North America, Inc. (Nissan) is recalling certain 2019 Altima vehicles equipped with front wheel drive (FWD) and 2.5 liter engines. The fuel pump lock ring may not be fully engaged, possibly causing fuel to leak. As such, these vehicles fail
Consequence
A fuel leak in the presence of an ignition source increases the risk of a fire.
Remedy
Nissan will notify owners, and dealers will inspect the fuel tank assembly. If the lock ring is disengaged, dealers will tighten the ring to specification. If the lock ring is detached, dealers will r
Nissan North America, Inc (Nissan) is recalling certain 2019 Altima vehicles. The retainer clip connecting the low pressure fuel tube to the high pressure fuel pump may not have been locked into position.
Consequence
If the retainer clip is unlocked, the fuel tube may shift and cause a fuel leak, increasing the risk of a fire. If the fuel tube fully disconnects, the engine can stall, increasing the risk of a cras
Remedy
Nissan has notified owners, and dealers will route the fuel hose into the holding clip and lock the retainer clip into place, as necessary, free of charge. The recall began February 11, 2019. Owners
Nissan North America, Inc. (Nissan) is recalling certain 2019 Nissan Altima vehicles. The brake switch bracket may be in the incorrect location, which may cause the brake switch to remain on.
Consequence
If the brake switch remains in the ON position, the brake lights will remain illuminated when the brakes are not being pressed, which may confuse other drivers. Additionally, the transmission shift l
Remedy
Nissan will notify owners, and dealers will inspect and install a new brake pedal as needed, free of charge. The recall began May 15, 2019. Owners may contact Nissan customer service at 1-800-867-76
Nissan North America, Inc. (Nissan) is recalling certain 2018-2019 Nissan Altima, Armada, Frontier, Kicks, Leaf, Maxima, Murano, NV, NV200, Pathfinder, Rogue, Rogue Sport, Sentra, Titan, Titan Diesel, Versa Note and Versa Sedan vehicles, as well as I
Consequence
The lack of an image in the back-up camera display increases the risk of a crash.
Remedy
Nissan will notify owners in phases, having dealers update the back-up camera settings software, free of charge. The recall began November 11, 2019 and all affected VINs should be activated. Owners
Nissan North America, Inc. (Nissan) is recalling certain 2019-2021 Altima and 2020-2021 Sentra vehicles. Damage to the camera harness can cause distortion or loss of the rearview camera display image. As such, these vehicles fail to comply with the
Consequence
A rearview camera that does not properly display an image can reduce the driver's rear view, increasing the risk of a crash.
Remedy
Dealers will inspect the rearview camera and harness for damage and replace them as necessary. If no damage is found, the dealer will apply protective tape and reroute the rearview camera harness. R
Nissan North America, Inc. (Nissan) is recalling certain 2021-2024 Rogue, 2019-2020 Altima, 2019-2022 Infiniti QX50, and 2022 Infiniti QX55 vehicles equipped with 3-cylinder 1.5L or 4-cylinder 2.0L variable compression turbo (VC-Turbo) engines. The e
Consequence
Engine failure increases the risk of a crash. A bearing failure may cause a breach in the engine block, allowing hot oil to be discharged, increasing the risk of an engine fire.
Remedy
Dealers will reprogram the engine control module (ECM) software, free of charge. Owner letters were mailed April 8, 2026. Owners may contact Nissan's customer service at 800-647-7261 or Infiniti's cus
CERTIFICATION LABEL AND VIN PLATE REPLACEMENT SERVICE INFORMATION Because of collision damage or other vehicle repair, a replacement Certification Label or VIN Plate/Label may be needed. HINT: Certification Label = FMVSS (Federal Motor Vehi
CERTIFICATION LABEL AND VIN PLATE REPLACEMENT SERVICE INFORMATION Because of collision damage or other vehicle repair, a replacement Certification Label or VIN Plate/Label may be needed. HINT: Certification Label = FMVSS (Federal Motor Vehi
TELEMATICS SERVICE INFORMATION HINT: This bulletin applies to vehicles equipped with a 4G network compatible TCU. TCUs compatible with 3G network only are no longer supported. SERVICE INFORMATION The APPLIED VEHICLES that come equipped with
AUTOMATIC EMERGENCY BRAKING WARNING LIGHT BLINKING APPLIED SYSTEMS: Vehicles equipped with a lane camera (see Figure 1) SERVICE INFORMATION If the Automatic Emergency Braking (AEB) warning light or is blinking (but not illuminated steadily)
INTELLIGENT CRUISE CONTROL INOPERATIVE AND AEB/FEB WARNING LIGHT ON OR RADAR OBSTRUCTION MESSAGE DISPLAYED WITH DTC C1A16 OR C2582 IF YOU CONFIRM IMPORTANT: The purpose of ACTION (on the next page) is to give you a quick idea of the work yo
LANE CAMERA AIMING VEHICLE REFERENCE VALUES NOT IN ESM SERVICE INFORMATION If the lane camera requires aiming, the values in Table A on page 4 must be used. For all other models/model years, consult the Electronic Service Manual (ESM).
DTC B00A0-00 STORED This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin. IF YOU CONFIRM DTC B00A0-00 (OCCUPANT DETECTION SENSOR UNIT) is stored, AND OCS zero point reset
REAR AUTOMATIC BRAKING WARNING LIGHT ILLUMINATED AND/OR DTC C1B56-04 AND/OR C1B56-97 STORED IN THE ADAS CONTROL UNIT This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
Showing the 8 most recent of 188 technical service bulletins on file with NHTSA.
AUTOMATIC EMERGENCY BRAKING (AEB) FUNCTION FAILED AT A RED LIGHT. AEB HAD BEEN SET IN A 3-VEHICLE DISTANCE. HOWEVER, UPON ARRIVING AT THE RED LIGHT, ON A CITY STREET, WITH ANOTHER VEHICLE IN FRONT OF
desconocidos
The contact owned a 2019 Nissan Altima. The contact stated while driving approximately 10 mph and making a left turn, another vehicle crashed into the front driver's side of the vehicle. All the air b
TL* THE CONTACT OWNS A 2019 NISSAN ALTIMA. THE CONTACT STATED THAT WHEN DRIVING AT 20 MPH, THE CONTACT ENGAGED THE BRAKE PEDAL ATTEMPTING TO BRING THE VEHICLE TO A STOP. THE VEHICLE FAILED TO STOP AND
While driving straight on a two lane road, steering wheel suddenly locked, unable to regain control the car was locked in a turning position causing the vehicle to crash into a pole. Car is totaled. N
I was hit front passenger side at 45mph and air bags didn’t deploy. And now I have suspension and electrical issues on my 2019 Nissan Altima.
I HAD AN ACCIDENT ON THE HIGHWAY AND OBTAINED SEVERE FRONTAL DAMAGE TOTALING OVER 5000.00 AND THE AIRBAGS DID NOT DEPLOY AT ALL, I PURCHASED THE VEHICLE 0N THE 30TH OF MAY 2019
2019 Niss Altima 3-12-2022 McDonald County, MO Vehicle was rammed and forced off the road causing the vehicle crash into trees. The vehicle received heavy damage to the front and rear. AIR BAGS D
Showing the 8 most serious of 229 complaints filed with NHTSA.
