2015 Toyota Avalon Service and Repair Manual
Regular price
$34.99 USD
Unit price
Covers all 2015 Avalon trims — Hybrid Limited, Hybrid XLE Premium, Hybrid XLE Touring +5 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

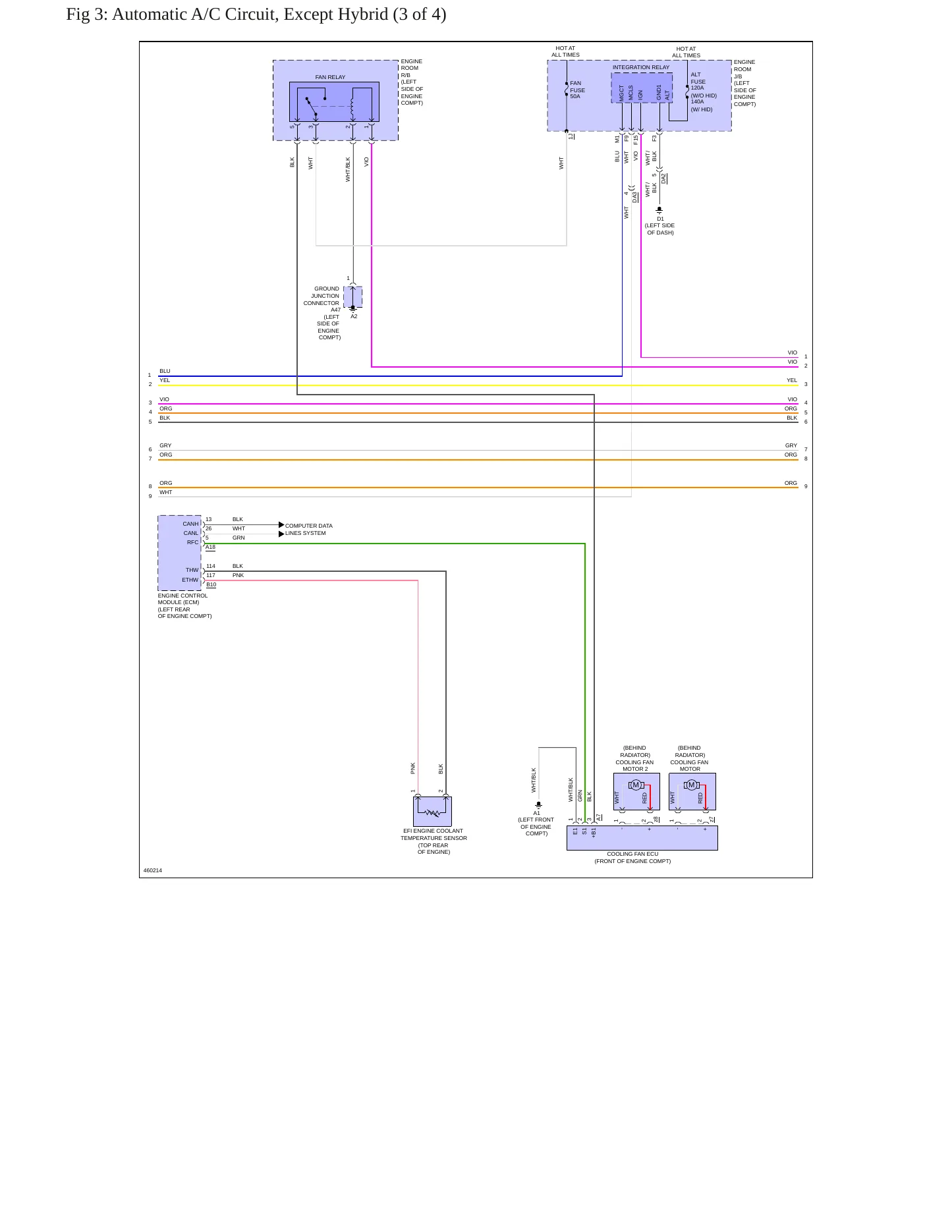

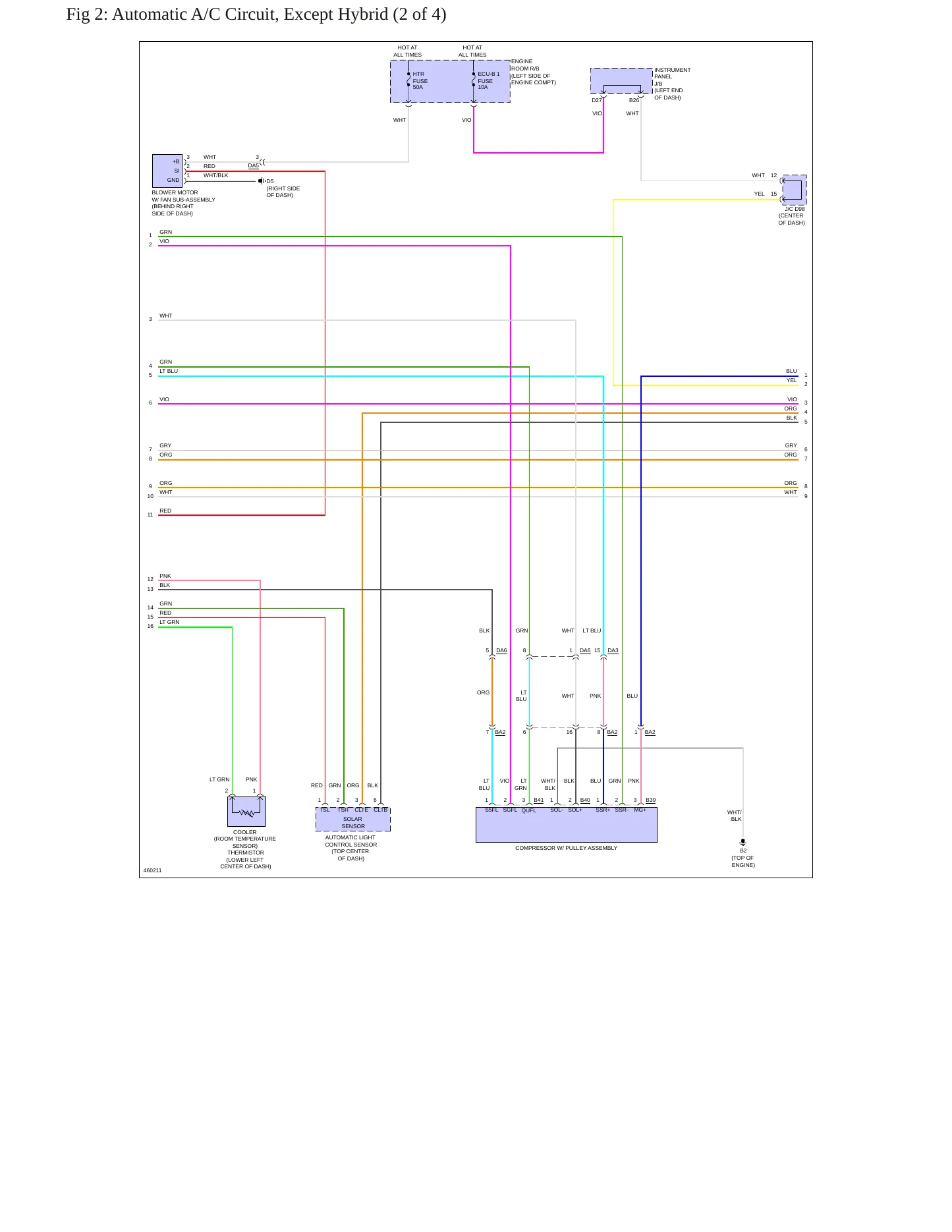

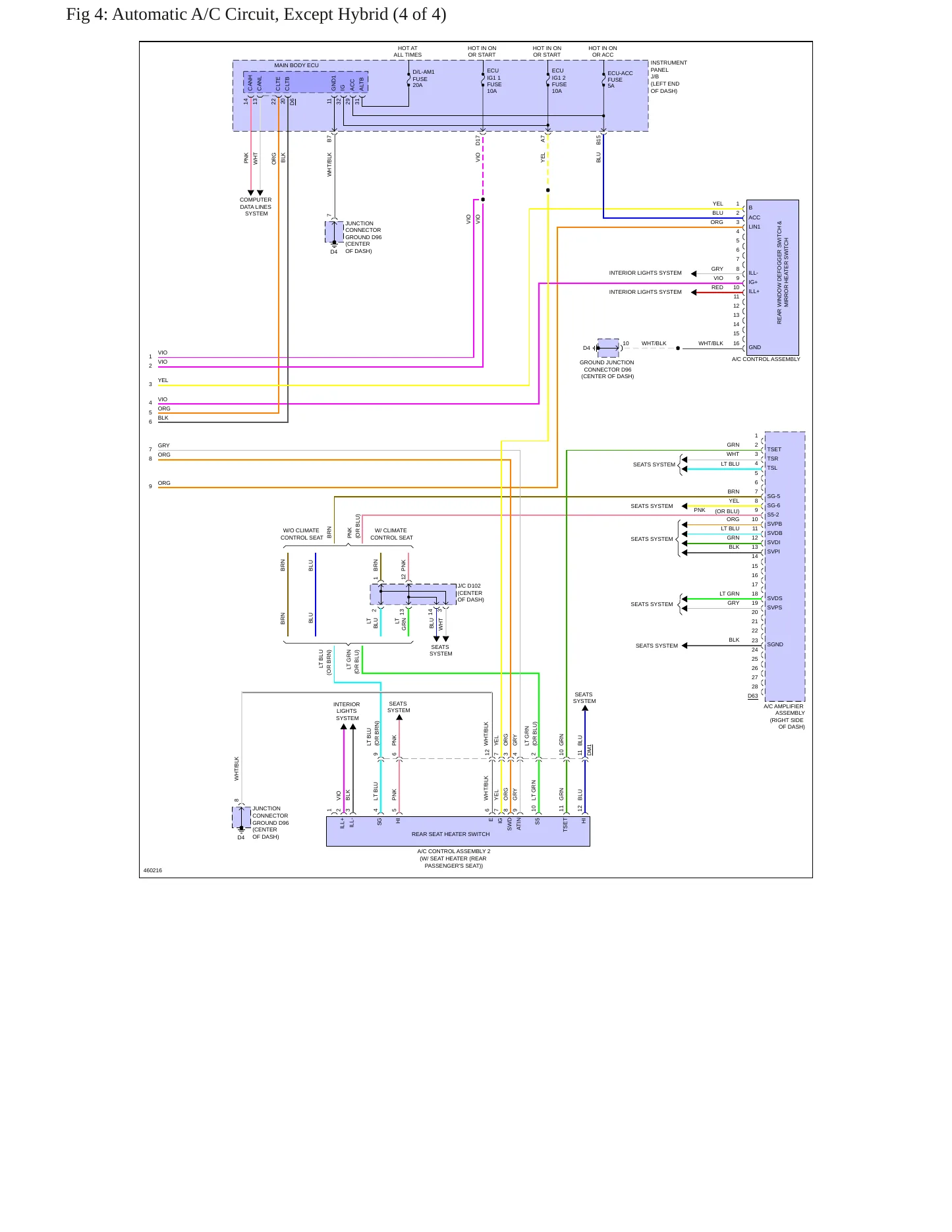

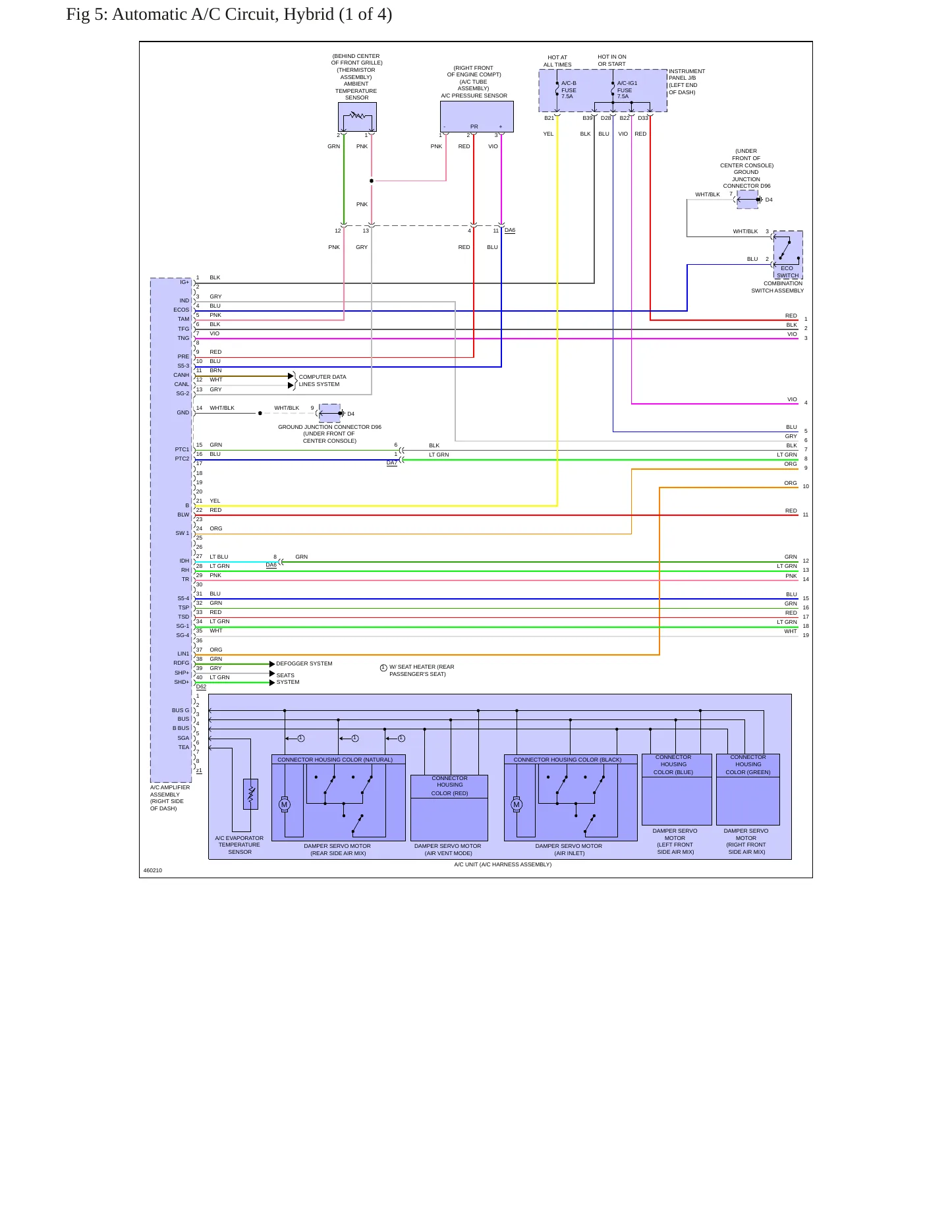

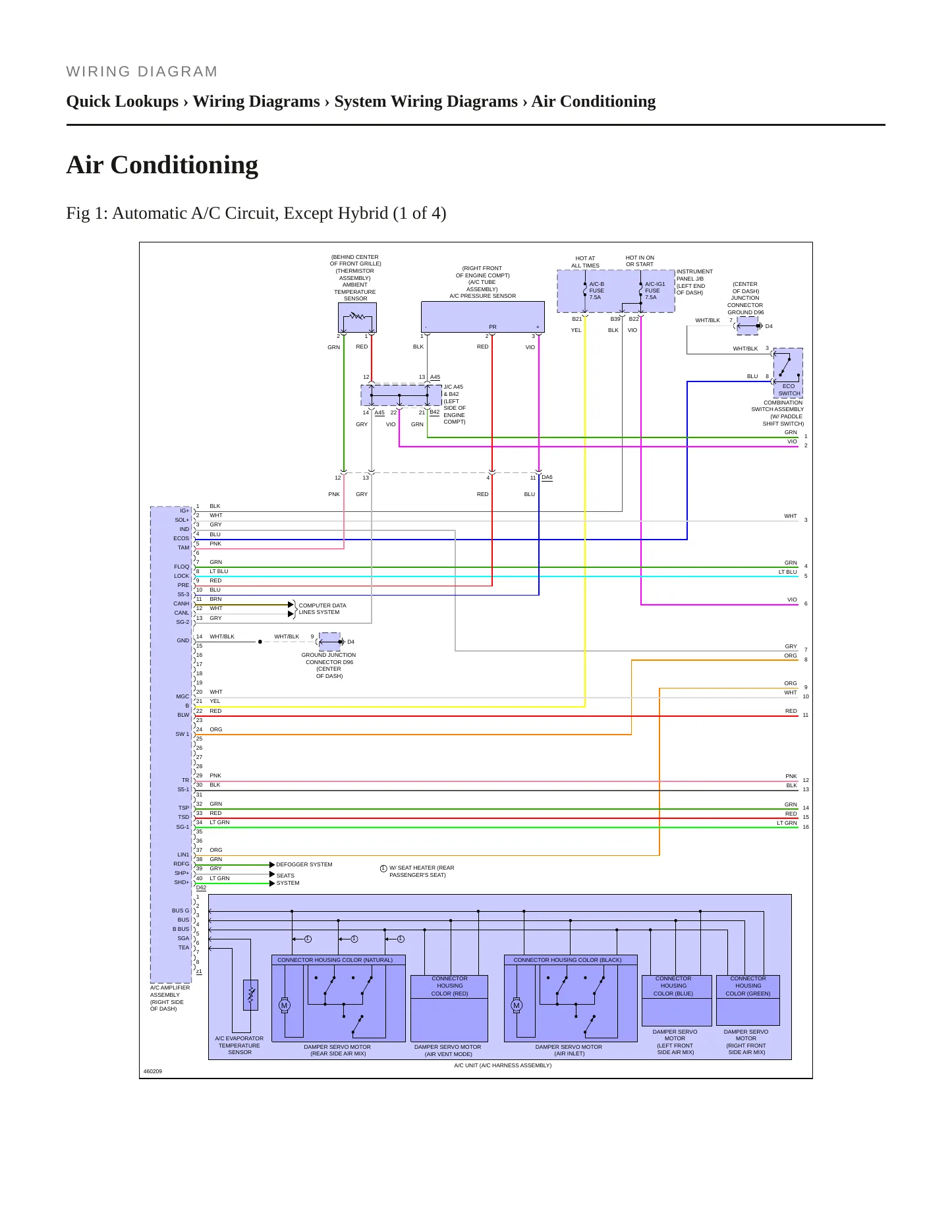

Wiring diagrams & schematics

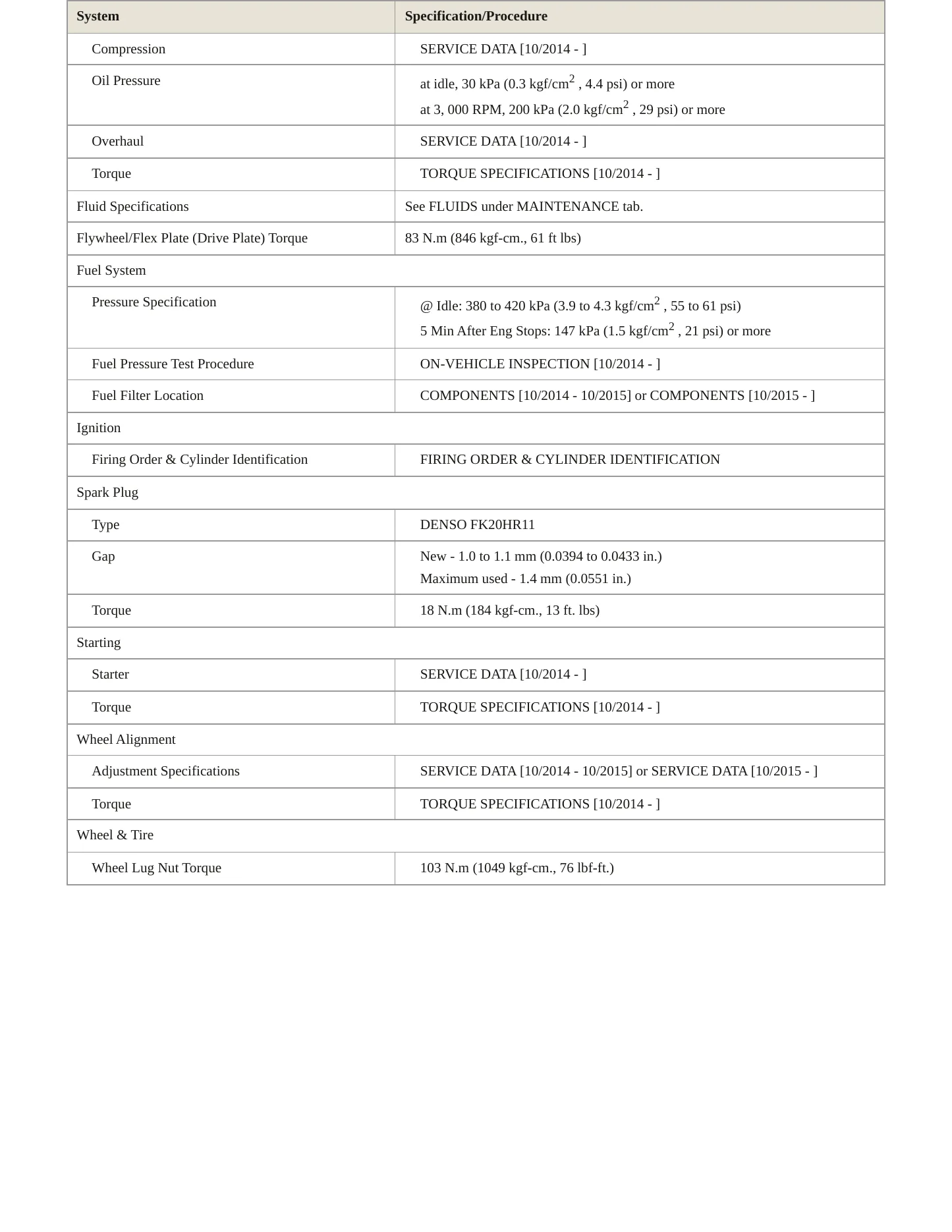

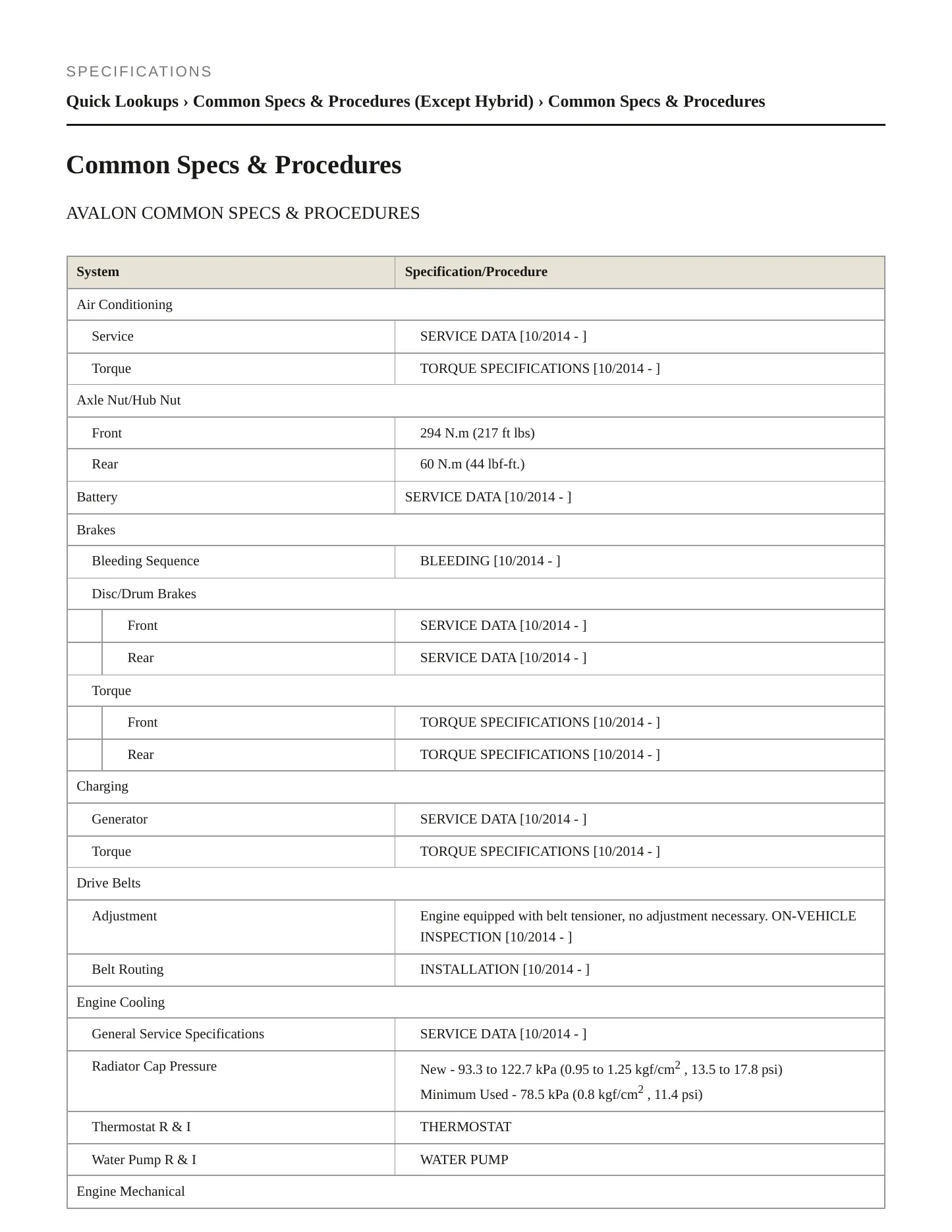

Torque specifications
Full search & bookmarks
$34.99
2015 Toyota Avalon Service and Repair Manual
Regular price
$34.99 USD
Unit price
This factory service and repair manual is written to the 2015 Toyota Avalon as it was actually built, down to whether your car carries the 2.5L hybrid four (2AR-FXE) or the 3.5L V6 (2GRFE) and which of the eight trims left the line, so the specifications and torque sequences you work to are the ones Toyota published for this car and not a value carried over from a neighboring year.
Engines
- 2.5L 2500CC l4 HYBRID Naturally Aspirated
- 3.5L 3456CC V6 GAS DOHC Naturally Aspirated
Trims
- Hybrid Limited
- Hybrid XLE Premium
- Hybrid XLE Touring
- Limited
- XLE
- XLE Premium
- XLE Touring
- XLE Touring SE
Known issues on the 2015 Avalon. Two recalls are on federal record for this model year, and both name the Avalon and the Avalon Hybrid. One covers the air bag/restraint control module: during certain crashes, air bags and/or seat belt pretensioners may not deploy as intended. The other covers the crash imminent braking function of the forward collision avoidance system on Avalon and Avalon Hybrid vehicles manufactured October 19, 2012 to October 27, 2015, where a vehicle that unexpectedly brakes increases the risk of a crash. NHTSA lists 63 owner complaints for the year, and Toyota has issued 149 technical service bulletins.
Those are the systems an Avalon owner is most likely to end up chasing, and each one is worked to Toyota's own specification for this car, hybrid or V6, rather than to a generic figure.
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain model year 2013-2015 Avalon and Avalon Hybrid vehicles manufactured October 19,
Consequence
A vehicle that unexpectedly brakes increases the risk of a crash.
Remedy
Toyota will notify owners, and dealers will replace certain PCS components, free of charge. The recall began on July 28
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain 2011-2019 Corolla, 2011-2013 Matrix, 2012-2018 Avalon, and 2013-2018 Avalon Hy
Consequence
In the event of a crash, air bags and/or seat belt pretensioners that do not deploy as intended may increase the risk of
Remedy
Toyota will notify owners, and dealers will inspect the ECU and install a noise filter between the air bag control modul
Some 2005 2026 Toyota vehicles that have undergone water intrusion may exhibit a condition in which a musty odor is present. Follow the procedures in this bulletin to remediate the odor and address this condition. The purpose of this Servic
The air conditioning dye injection tool kit has been developed to aid in identifying the location of air conditioning refrigerant leaks. The procedures outlined in this Service Bulletin aid in locating, inspecting, and repairing refrigerant
The condition known as acid rain is caused by airborne chemicals or particles in the atmosphere, which mix with rainwater, nighttime dew, or high humidity to form acidic compounds. If these contaminants settle and remain on a painted vehicl
To prevent brake rotor rust from forming during transportation and storage, wheel film will be used instead of a cardboard type of anti-rust cover. The purpose of the wheel film is to shield the disc brake rotor from weather elements and in
Acid rain results from rainwater or other airborne moisture that become acidic due to industrial chemical impurities in the atmosphere. If these acidic compounds settle on an exposed vehicle, especially the horizontal areas such as the hood
Toyota vehicles are currently protected with RapgardTM protective film designed to protect the horizontal painted surfaces. This material protects from acid rain, environmental fallout, and rail contamination. Follow the Removal Procedure i
Vehicles may occasionally be subjected to contamination by airborne iron particles shed from railroad tracks, train wheels, exposure to heavy machinery facilities, grinding, welding, etc. This type of contamination can be identified by the
Some 2005 2024 Toyota vehicles that have undergone water intrusion may exhibit a condition in which a musty odor is present. Follow the procedures in this bulletin to remediate the odor and address this condition. The purpose of this Servic
Showing the 8 most recent of 314 technical service bulletins on file with NHTSA.
I WAS HEADING DOWN SNOW GEESE SOUTH IN DUCK N.C. TO TURN LEFT ONTO WOOD DUCK DRIVE. AS I APPROACHED THE TURN, MY BRAKES
TL* THE CONTACT OWNED A 2015 TOYOTA AVALON. THE CONTACT STATED THAT THE FRONT DRIVER'S AIR BAG FAILED. WHILE DRIVING 35
TL* THE CONTACT OWNED A 2015 TOYOTA AVALON HYBRID. THE CONTACT STATED THAT WHILE DRIVING AT 35 MPH, THE VEHICLE WAS INVO
The contact owns a 2015 Toyota Avalon. The contact stated while pulling into a parking space, the vehicle accelerated un
ON MAY 25TH, 2020 I WAS PULLING INTO A TACO BELL DRIVE THROUGH. IT WAS LOCATED UP A LITTLE HILL. AS I DROVE UP THE HIL
Showing the 5 most serious of 53 complaints filed with NHTSA.
