2009 GMC Yukon XL 1500 Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 2009 Yukon XL 1500 trims — SLE Sport Utility 4-Door, Denali Sport Utility 4-Door, SLT Sport Utility 4-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

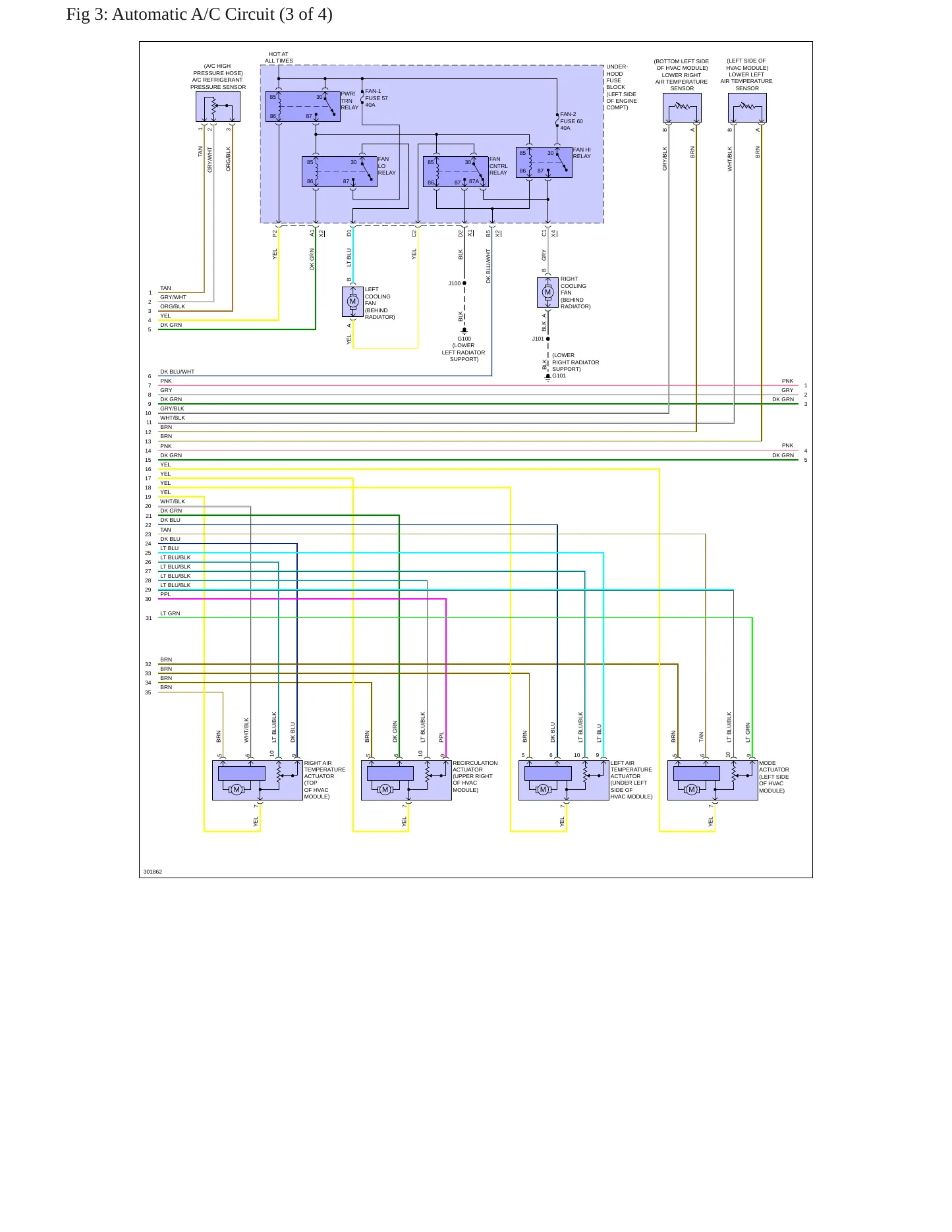

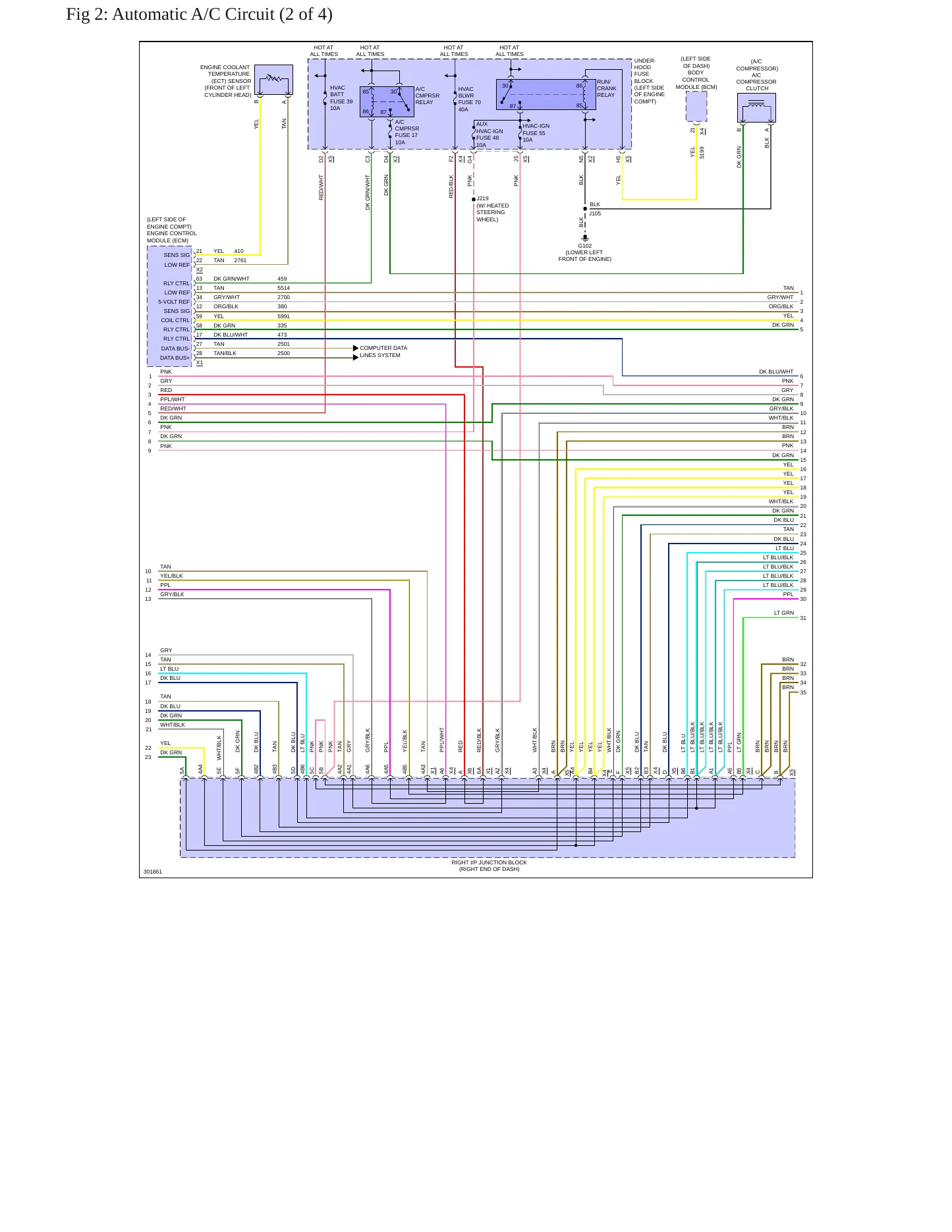

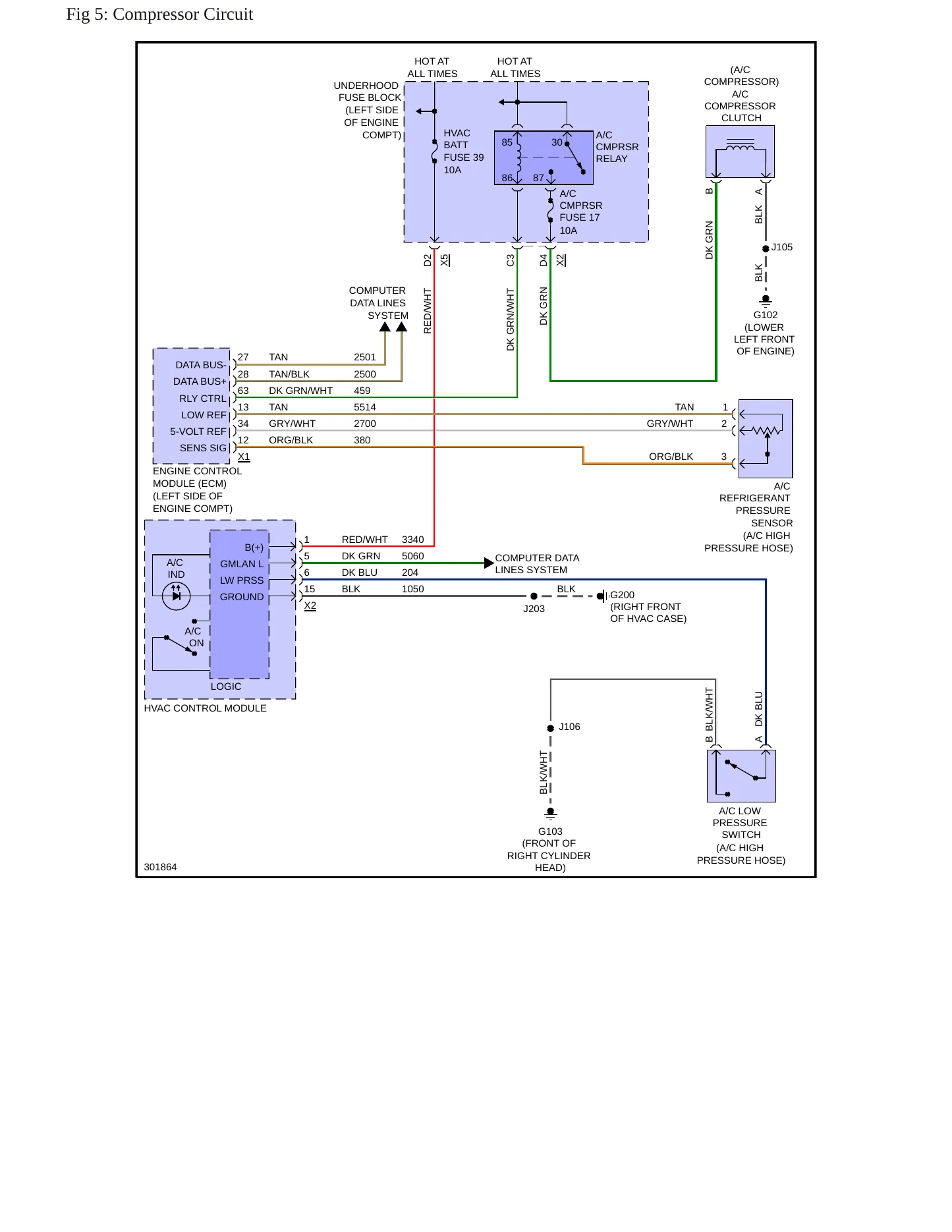

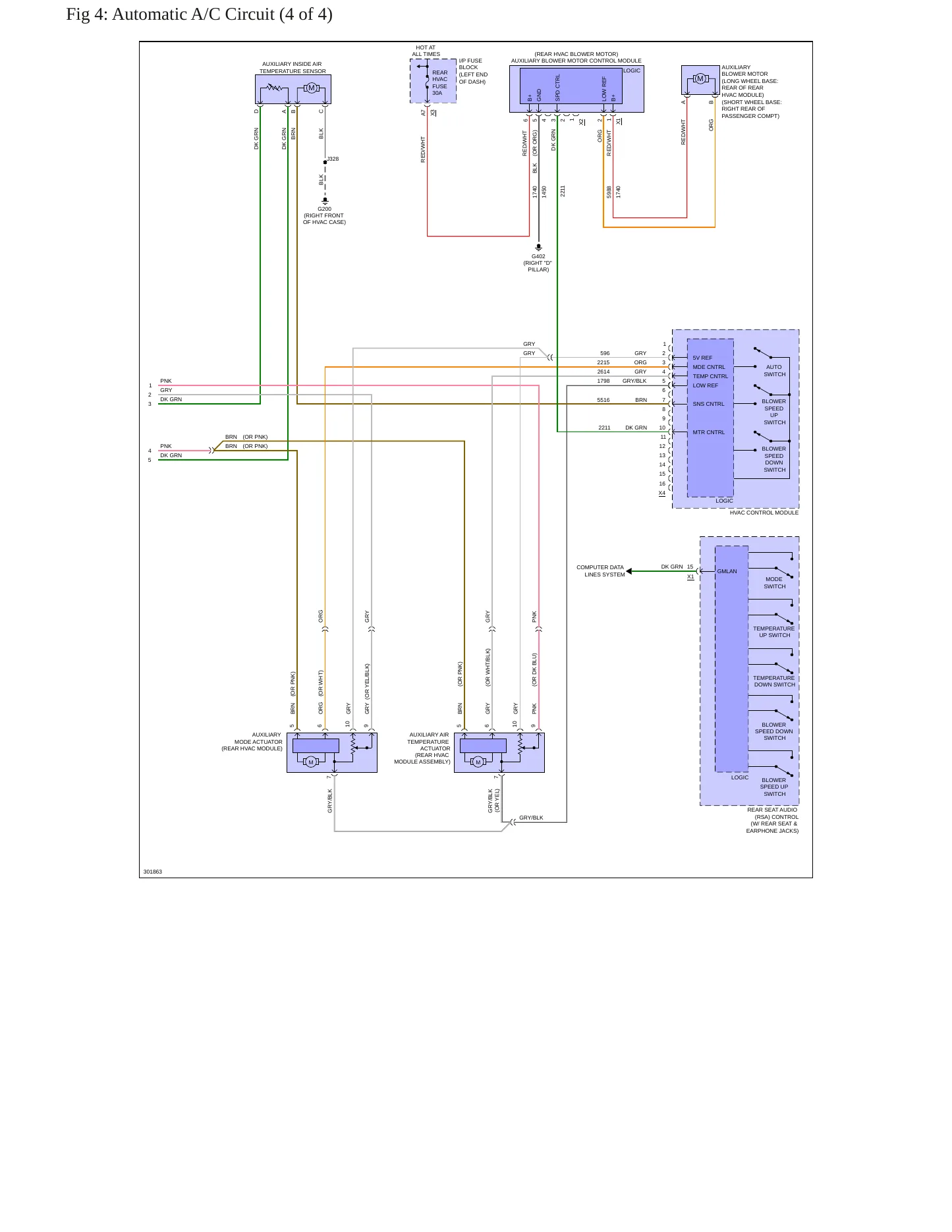

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
2009 GMC Yukon XL 1500 Service and Repair Manual
Regular price
$29.99 USD
Unit price
This factory service and repair manual for the 2009 GMC Yukon XL 1500 covers three naturally aspirated overhead-valve V8s, two of which take ethanol blends: the 364-cubic-inch 6.0L runs on gasoline, the 325-cubic-inch 5.3L on flex-fuel or gasoline, and the 376-cubic-inch 6.2L on flex-fuel. One 4-door sport utility body and the Denali, SLE and SLT trims complete the range. Fuel-system diagnostics get particular attention, since the expected sensor values and calibrations are not the same across the gasoline and flex-fuel engines.
Engines covered
- 6.0L V8 (364 cu in) — OHV, naturally aspirated, gasoline
- 5.3L V8 (325 cu in) — OHV, naturally aspirated, flex-fuel or gasoline
- 6.2L V8 (376 cu in) — OHV, naturally aspirated, flex-fuel
Body styles covered
- 4-door sport utility
Trims covered
- Denali
- SLE
- SLT
Known issues on the 2009 Yukon XL 1500. Five recalls stand on the federal record for this model year. Three concern frontal passenger airbag inflators that can burst on deployment and scatter metal fragments inside the vehicle. A fourth covers a heated washer fluid module that can ignite after an internal short. The fifth is a fuel system control module whose sealant could separate from the housing, letting water reach the circuit and leaving the engine hard to start, stalling or dead. Of 212 owner complaints, 86 concern airbags, 26 the structure and 15 the electrical system, and the restraint, fuel control and wiring diagnostics here address all three.
No active recalls
The 2009 GMC Yukon XL 1500 has no recalls on file with NHTSA.
New Vehicle Monitoring Programs Section in IVH
This Preliminary Information communication provides information to the technician about vehicles that have an intermittent no crank, no start, or start stall concern with the security light coming on. Technician may find Diagnostic Trouble
This PI communicates the requirement to provide a pico file to receive diagnostic assistance from TAC.
This Preliminary Information communication provides information to the technician about the use of J-35616-64B and Mini 50 terminal test probe, replacement terminals, and terminated leads.
This Preliminary Information communication provides information to the technician about the use of J-35616-64B and Mini 50 terminal test probe, replacement terminals, and terminated leads.
This Preliminary Information communication provides information to the technician about the use of J-35616-64B and Mini 50 terminal test probe, replacement terminals, and terminated leads.
This service bulletin provides a procedure to flush and bleed power steering system to correct a power steering noise or fluid leak concern that is caused during extremely low temperatures.
This service bulletin provides information for dealers/technicians on OnStar Module 2G Sunset Information.
Showing the 8 most recent of 233 technical service bulletins on file with NHTSA.
TAKATA RECALL IS MY ONLY COMPLAINT. TO DATE, GM HAS NOT REMEDIED THIS PROBLEM GM SAYS MY VEHICLE IS SAFE TO DRIVE BUT I GUARANTEE THE CEO OF GM IS NOT RIDING AROUND IN A VEHICLE THAT COULD CAUSE SER
DASH SERIOUSLY CRACKED AND LOOSE AT TOP OF INSTRUMENT CLUSTER COWL SO THAT IT CAUSES A RATTLING NOISE. COULD EFFECT SAFE DEPLOYMENT OF AIR BAG.
DASH SERIOUSLY CRACKED AND LOOSE AT TOP OF INSTRUMENT CLUSTER COWL SO THAT IT CAUSES A RATTLING NOISE. COULD EFFECT SAFE DEPLOYMENT OF AIR BAG.
TAKATA RECALL. RECALL NOTICE WAS RECEIVED OVER A YEAR AGO BUT NO REMEDY IS AVAILABLE YET.
TAKATA RECALL. NO REPLACEMENT HAS OCCURRED AND IT HAS BEEN OVER 2 YEARS.
Showing the 5 most serious of 14 complaints filed with NHTSA.
