1990 Toyota 4Runner Service and Repair Manual
Regular price
$34.99 USD
Unit price
Covers all 1990 4Runner trims — 2D Utility, 4D Utility ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual

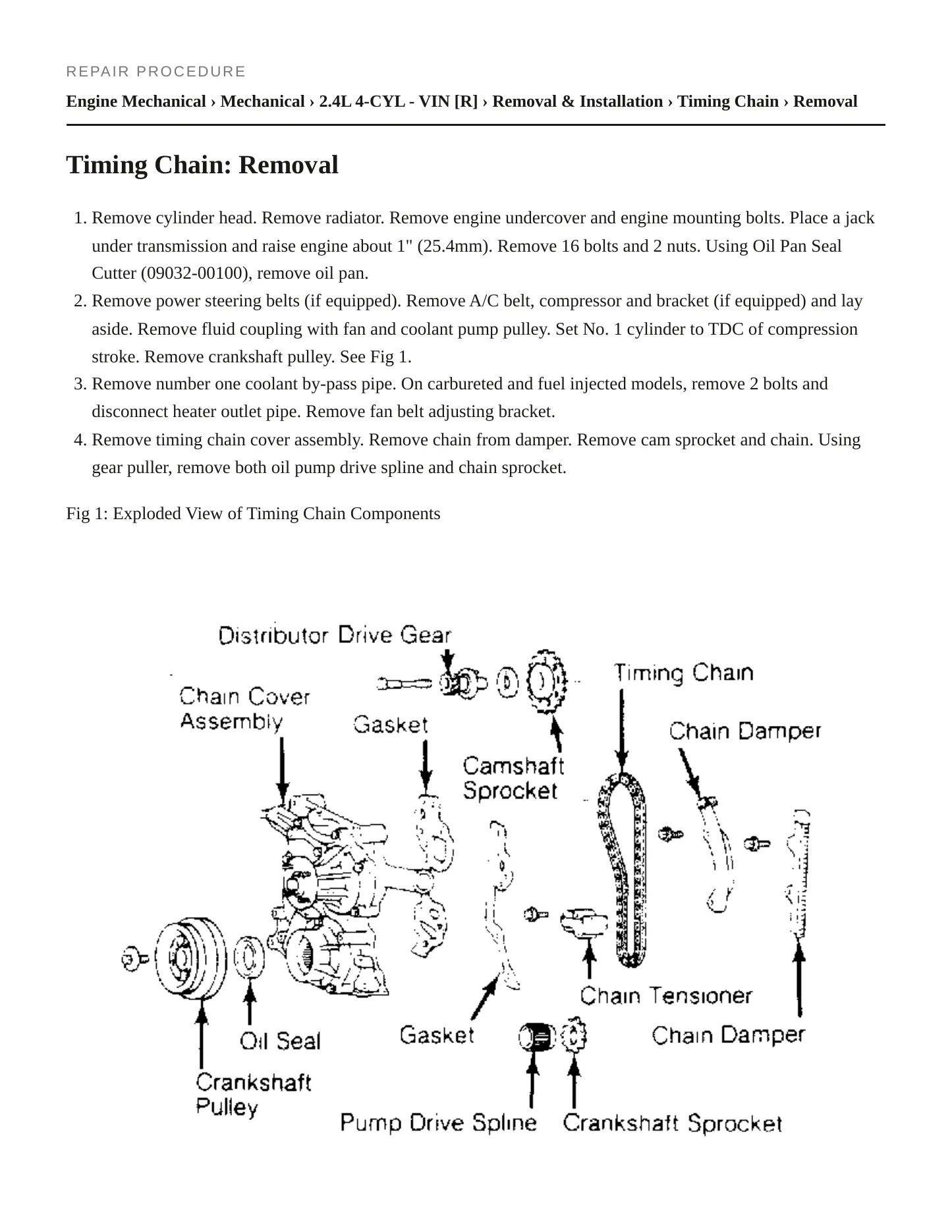

Complete repair procedures

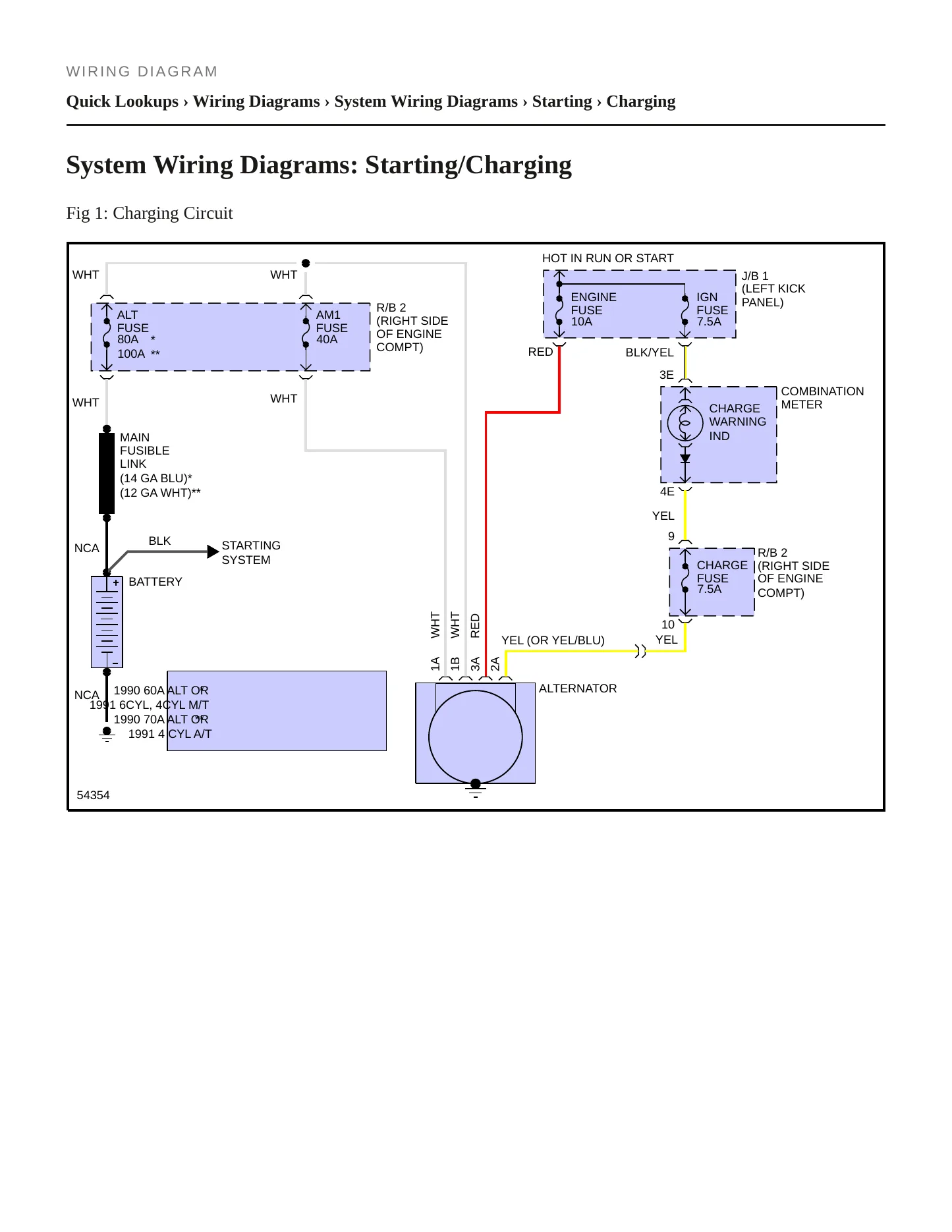

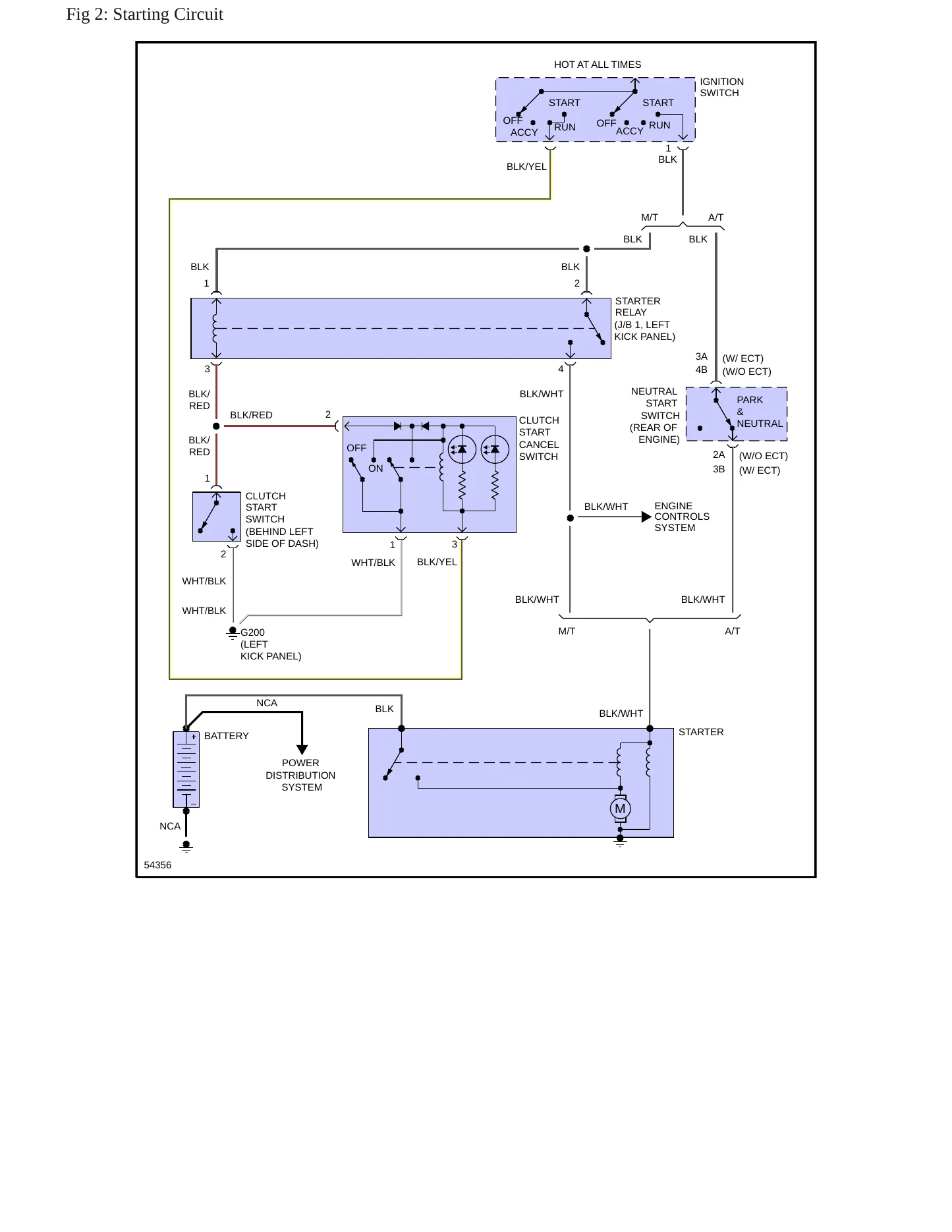

Wiring diagrams & schematics

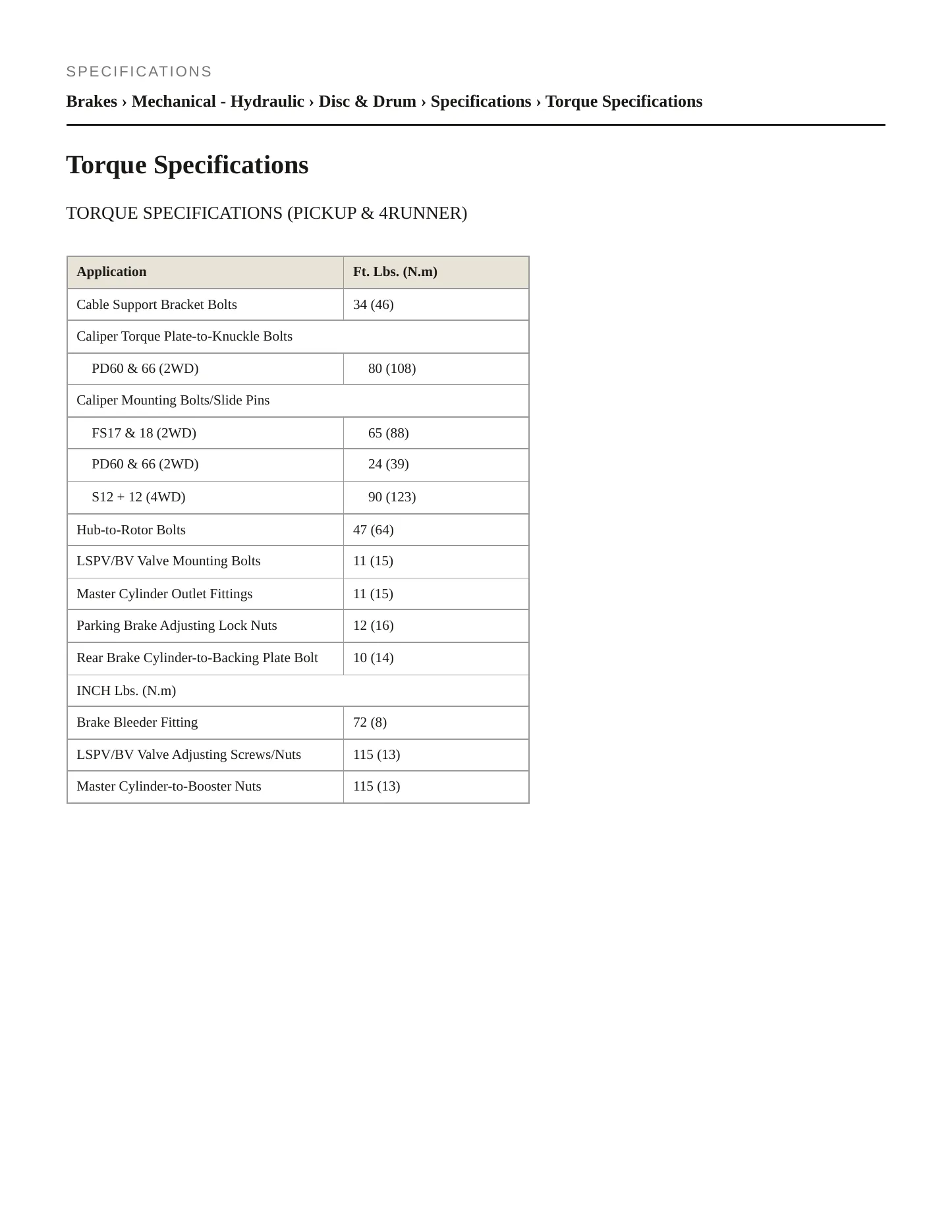

Torque specifications
Full search & bookmarks
$34.99
1990 Toyota 4Runner Service and Repair Manual
Regular price
$34.99 USD
Unit price
The 1990 Toyota 4Runner is a body-on-frame utility built on Toyota's compact truck platform, and for this model year the choice was between the 2.4L four-cylinder (22RE) and the 3.0L V6 (3VZ-E). The two are different enough in valvetrain, ignition and cooling that a torque value or clearance taken from one will not carry over to the other, so the first step on any job is confirming which engine and which trim you are working on.
Engines
- 2.4L l4 GAS Naturally Aspirated
- 3.0L 2958CC V6 GAS SOHC Naturally Aspirated
Trims
- 2D Utility, Automatic
- 2D Utility, Standard
- 4D Utility, Automatic
- 4D Utility, Standard
- 4D Utility
Known issues on the 1990 4Runner. One recall stands on the federal record for this model year, and it concerns the steering linkage relay rod. It covers certain pickup trucks and sport utility vehicles: if the steering wheel is repeatedly turned under conditions where high steering effort and power assist are required, and the vehicle continues to be operated in that condition, the relay rod may fracture. Owners of this model year have filed 95 complaints with NHTSA, and 13 technical service bulletins have been issued for it.
On a truck this age the steering linkage is worth a look regardless of the recall: the relay rod, idler arm and tie rod ends wear as a set, and a fracture at the relay rod is what the campaign above was written to prevent. The specifications here are Toyota's own for the 1990 4Runner, tied to the engine and trim you own.
ON CERTAIN PICKUP TRUCKS AND SPORT UTILITY VEHICLES, IF THE STEERING WHEEL IS REPEATEDLY TURNED UNDER CERTAIN CONDITIONS WHERE HIGH STEERING EFFORT AN
Consequence
IF THE VEHICLE IS CONTINUED TO BE OPERATED IN THIS CONDITION, THE RELAY ROD MAY FRACTURE, INCREASING THE RISK OF A CRASH
Remedy
DEALERS WILL REPLACE THE STEERING RELAY ROD. THE RECALL BEGAN OCTOBER 5, 2005. OWNERS MAY CONTACT TOYOTA AT 1-800-331-
CERTAIN CK MOTORSPORTS COMBINATION HEADLIGHTS, CLEAR CORNER, BUMPER, AND SIDE MARKER LIGHTS SOLD AS REPLACEMENT LAMPS FOR USE ON THE PASSENGER VEHICLE
Consequence
WITHOUT THE AMBER REFLECTORS, THE VEHICLE WILL BE POORLY ILLUMINATED, POSSIBLY RESULTING IN A VEHICLE CRASH WITHOUT WARN
Remedy
CK MOTORSPORT WILL NOTIFY OWNERS AND REPLACE THE NONCOMPLIANT LAMPS FREE OF CHARGE. THE RECALL BEGAN ON JULY 1, 2006.
TSB: Replacement certification labels (the vinyl label installed on the driver door or door post) and VIN plates (the metal plate riveted to dashboard) (see Figure 1) for most 1979 ? 2023 model year vehicles may be available provided the re
POL: This consolidated Tire Warranty Guide contains the complete warranty terms for all brands of ground and spare tires currently in use by Toyota. This information must be kept near the point of vehicle sale and be available to any custom
Product general information.
Replacement vin plates.
TSB: Replacement certification labels (the vinyl label installed on the driver door or door post) and VIN plates (the metal plate riveted to dashboard) (see Figure 1) for most 1979 ? 2021 model year vehicles may be available provided the re
TSB: SUPERSESSION NOTICE The information contained in this bulletin supersedes Service Bulletin Nos. PG021-88, PG015-89, PG0015-90, PG002-91, PG002-93, PG005-97, PG007-01, PG007-07, PG006-01, PG004-97, T-SB-0144-08, and T-SB-0304-17. The af
TSB: OBSOLETE NOTICE April 07, 2020: This bulletin is now obsolete. Please see T-SB-0032-20. Replacement Certification Labels and VIN Plates
Dealer Package: 12/18/2018 The Program Details section has been updated. SPECIAL POLICY ADJUSTMENT FOR 1988 - EARLY 1990 TRUCK & 4RUNNER WITH 3VZ?E V6 ENGINES AND SPECIAL SERVICE CAMPAIGN (V06) FOR 1990 - EARLY 1995 TRUCK, 4RUNNER & T100 WI
Showing the 8 most recent of 29 technical service bulletins on file with NHTSA.
DRIVER HIT THE BRAKES AND ABS BRAKES FAILED TOYOTA TRUCK, 4-RUNNER LOST CONTROL/ROLLED OVER, A BABY AND ADULT DRIVER F
CONSUMER WAS DRIVING 40 TO 45 MPH THE REAR PASSENGER SIDE REAR AXLE CAME OFF CAUSING THE TRUCK TO ROLLOVER TRUCK WAS TOT
WHILE DRIVING ABOUT 50 MPH, SWITCHING LANES THE VEHICLE WOBBLED AND SPUN OUT OF CONTROL, CAUSING THE VEHICLE TO ROLLO
THE REAR AXLE BROKE AT 70MPH, RESULTING IN A COLLISION WHICH CAUSED MINOR INJURIES.*AK *ML
1990 4 RUNNER WAS INVOLVED IN AN ACCIDENT WHICH OCCURRED DUE TO FAULTY STEERING RELAY ROD. *TS THE CONSUMER RECEIVED A
Showing the 5 most serious of 85 complaints filed with NHTSA.
