2011 Toyota Sienna Service and Repair Manual
Regular price
$34.99 USD
Unit price
Covers all 2011 Sienna trims — Base, LE, Limited +2 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

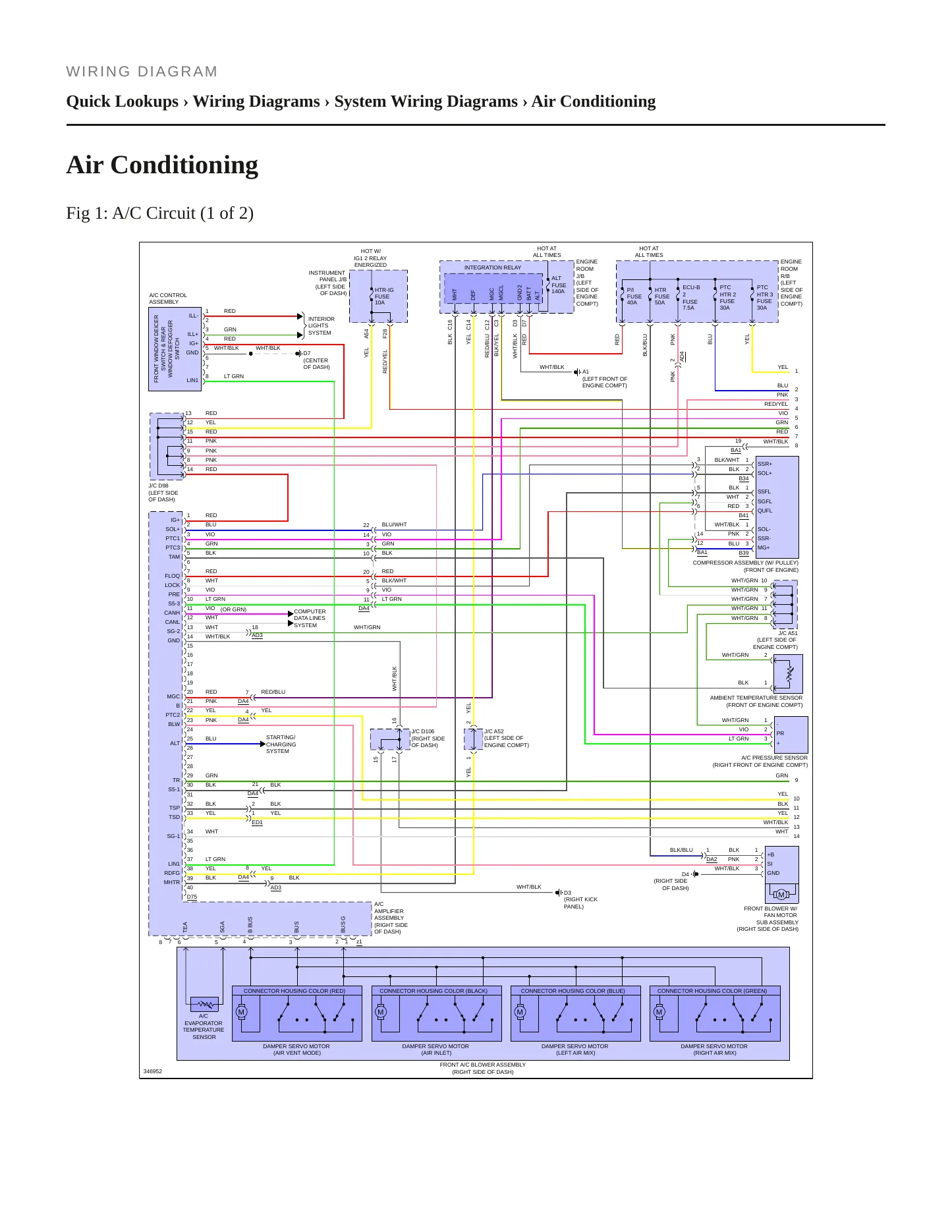

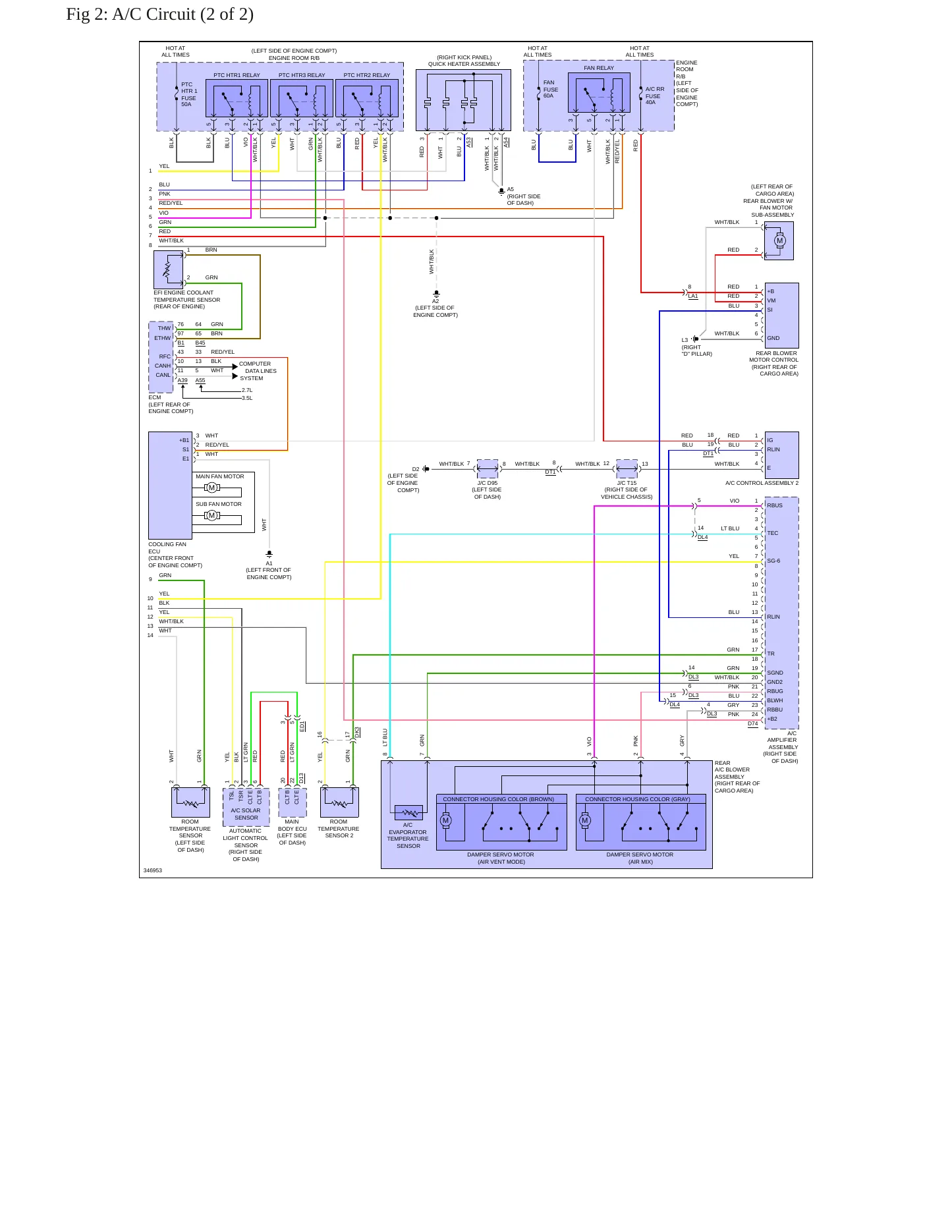

Wiring diagrams & schematics

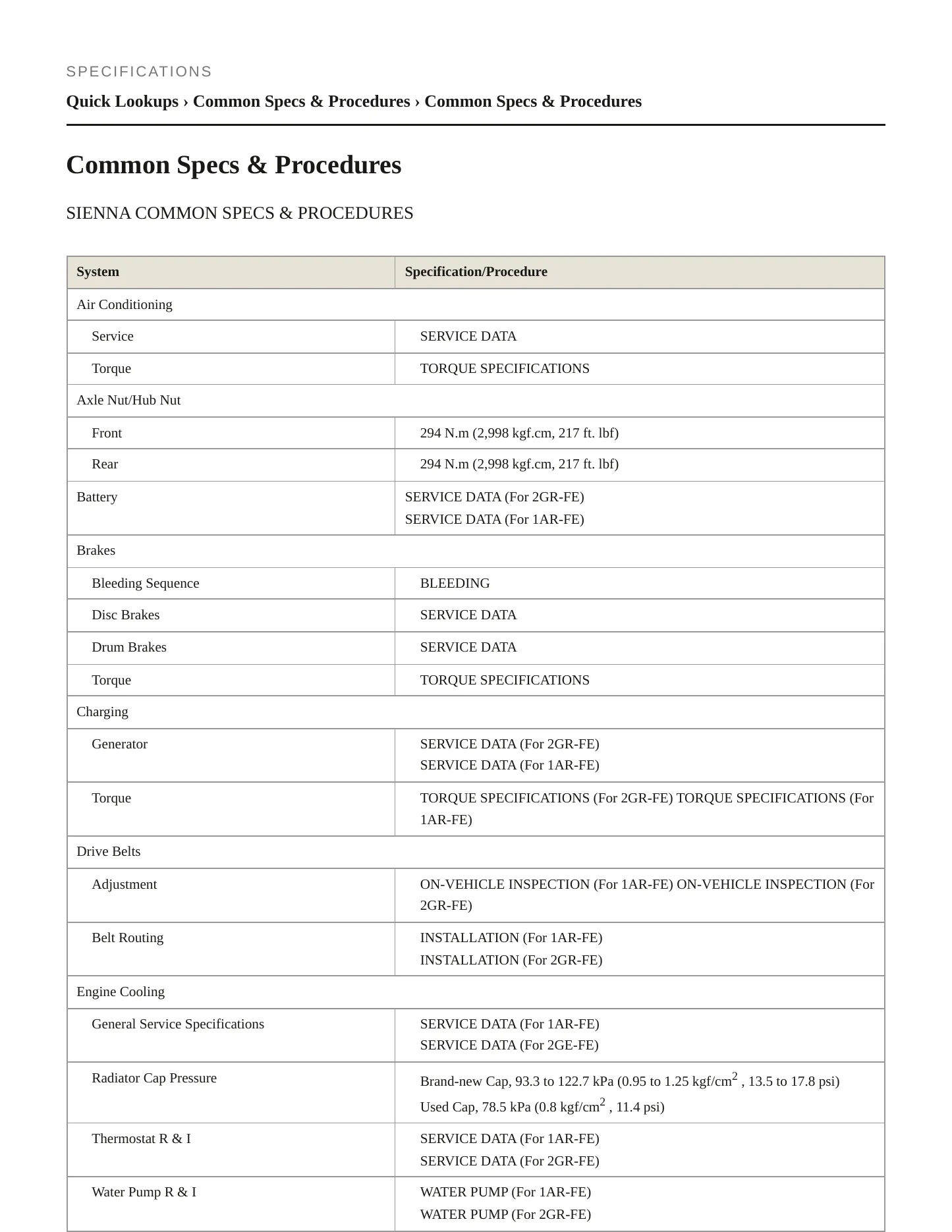

Torque specifications
Full search & bookmarks
$34.99
2011 Toyota Sienna Service and Repair Manual
Regular price
$34.99 USD
Unit price
The 2011 Toyota Sienna was sold with two engines, the 2.7L four (1AR-FE) and the 3.5L V6 (2GRFE), and in both cargo and passenger van bodies, so torque values, clearances and service sequences change from one build to the next. The figures used throughout are Toyota's own for this model year rather than values carried over from an adjacent one.
Engines
- 2.7L 2700CC l4 GAS Naturally Aspirated
- 3.5L 3456CC V6 GAS DOHC Naturally Aspirated
Trims
- Base, Van Cargo
- Base, Van Passenger
- LE
- Limited
- SE
- XLE
Known issues on the 2011 Sienna. Eleven recalls are on federal record for this model year. Three concern the vehicle placard and tire loading label: incorrect information on the placard may lead to tire overloading, an inaccurate label could lead to owners overloading their vehicles and tires, and in the third a driver may overload a vehicle, which may increase the risk of a crash. Two cover the frontal passenger side airbag inflator module, where in the earlier campaign an inflator rupture may result in metal fragments striking the vehicle occupants and in the later one an inflator explosion may result in sharp metal fragments striking the driver or other occupants. One covers the power sliding door: if the door opens while the vehicle is moving, there would be an increased risk of injury. One covers the front passenger seat occupant sensing system, which may be out of calibration. One covers the A-pillar trim panel, where a damaged retention clip may allow the trim panel to come loose. One covers the brake stop lamp switch, mounted on a small bracket welded on the left side of the service brake pedal support assembly, which could result in brake drag with associated brake noise and vibration. One covers the front right drive shaft, which may break during vehicle operation and leave the vehicle without power. The last covers the front seat heater, where a damaged copper strand heating element may short circuit, increasing the risk of a fire. Owners have filed 812 complaints against the 2011 Sienna, and 132 technical service bulletins have been issued for it.
Whether the job is a power sliding door that can open while the van is moving, brake drag traced back to the stop lamp switch bracket, or an inspection of the front right drive shaft, the work stays on the factory procedure and the correct figure for this 2011 Sienna.
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain 2014-2016 Toyota 4Runner, 2014-2015 Scion xB, Lexus IS350C, IS250C, 2014 Toyota
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious in
Remedy
Toyota will notify owners. Depending on the vehicle model, dealers will replace the front passenger air bag inflator, o
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain 2010-2016 4Runner, 2003-2006 Tundra, 2003-2013 Corolla, 2009-2010 Corolla Matri
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious in
Remedy
Toyota will notify owners. Depending on the vehicle model, dealers will replace the front driver inflator, front passen
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain model year 2011-2016 Toyota Sienna minivans manufactured January 4, 2010, to Au
Consequence
If door opens while the vehicle is moving, there would be an increased risk of injury to the vehicle occupants.
Remedy
Toyota will notify owners, and dealers will replace the junction block, rear sliding door wire harnesses, and install tw
Southeast Toyota Distributors, LLC (SET) is recalling certain model year 2010-2011 Prius and Corolla, 2009-2011 Venza, 2006-2010 Avalon, 2007-2010 FJ
Consequence
Damage to the seat heater wiring could cause the wires to short, increasing the risk of the seat burning and causing per
Remedy
SET will notify owners, and dealers will disconnect the heaters with copper strand heating elements and refund the purch
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain model year 2008-2011 Scion xB and Lexus IS F, 2009-2011 Toyota Corolla and Coro
Consequence
An inflator rupture may result in metal fragments striking the vehicle occupants resulting in serious injury or death.
Remedy
Toyota will notify the Toyota and Lexus owners. General Motors will contact the Pontiac owners. Depending on the model
Southeast Toyota Distributors, LLC (SET) is recalling certain 2005-2011 4Runner, Highlander, Sequoia, and Sienna, 2005-2010 Avalon and Tundra, 2006-20
Consequence
If damaged, the copper strand heating element may short circuit, increasing the risk of a fire.
Remedy
SET will notify owners, and dealers will disconnect the seat heaters, free of charge, and refund the purchase price of t
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain model year 2004-2011 Sienna vehicles originally sold in, or currently registere
Consequence
If the carrier cable is corroded due to road salt, the spare tire may separate from the vehicle, increasing the risk of
Remedy
Toyota sent owners in August 2014 an interim notification to advise owners of the recall and that dealers will perform a
Southeast Toyota Distributors, LLC (SET) is recalling certain models interspersed through model years 2009 through 2013 as follows: model year 2009-20
Consequence
If the front passenger seat occupant sensing system is out of calibration, the front passenger airbags may not deploy or
Remedy
Southeast Toyota will notify owners, and dealers will test the sensitivity of the occupant detection sensors, and recali
TOYOTA IS RECALLING CERTAIN MODEL YEAR 2011 THROUGH 2012 SIENNA VEHICLES FOR FAILING TO COMPLY WITH THE REQUIREMENTS OF FEDERAL MOTOR VEHICLE SAFETY S
Consequence
INCORRECT INFORMATION ON THE VEHICLE PLACARD MAY LEAD TO TIRE OVERLOADING AND POSSIBLY CAUSE TIRE FAILURE INCREASING THE
Remedy
TOYOTA WILL NOTIFY OWNERS, AND WILL PROVIDE A REMEDY WHEN IT IS AVAILABLE. TOYOTA WILL MAIL OUT A CORRECTED PLACARD TO
SOUTHEAST TOYOTA IS RECALLING CERTAIN MODEL YEAR 2010-2011 COROLLA VEHICLES EQUIPPED WITH A NON-TOYOTA, BLUE TOOTH HANDS FREE DEVICE OR NAVIGATION UN
Consequence
A DAMAGED A-PILLAR TRIM PANEL RETENTION CLIP MAY ALLOW THE TRIM PANEL TO COME LOOSE AND INJURE AN OCCUPANT IN THE EVENT
Remedy
DEALERS WILL INSPECT THE A-PILLAR TRIM PANEL RETENTION CLIP AND REPLACE IT IF NECESSARY FREE OF CHARGE. THE SAFETY RECA
Southeast Toyota is recalling certain model year 2008 and 2010-2013 Toyota Tundra, 2010-2012 Rav4, 2012 Toyota Sequoia, 2010-2011 Toyota Corolla, 2010
Consequence
An inaccurate label could lead to owners overloading their vehicles and tires. An overloaded vehicle can result in a ti
Remedy
Southeast Toyota will notify owners and provide a corrected label with instructions concerning its installation. A smal
TOYOTA IS RECALLING CERTAIN MODEL YEAR 2011 VENZA AND SIENNA PASSENGER CARS MANUFACTURED FROM MARCH 7, THROUGH MARCH 10, 2011. THERE IS A POSSIBILITY
Consequence
SHOULD THE DRIVE SHAFT BREAK DURING VEHICLE OPERATION, THE VEHICLE WILL LOSE POWER WITHOUT PRIOR WARNING. LOSS OF MOTIV
Remedy
TOYOTA WILL NOTIFY OWNERS AND DEALERS WILL INSPECT THE DRIVE SHAFT, AND, IF THE DRIVE SHAFT IS IDENTIFIED AS ONE THAT MA
SOUTHEAST TOYOTA IS RECALLING CERTAIN MODEL YEAR 2005-2011 PASSENGER VEHICLES FOR FAILING TO COMPLY WITH THE REQUIREMENTS OF FEDERAL MOTOR VEHICLE SAF
Consequence
A DRIVER MAY OVERLOAD A VEHICLE WHICH MAY INCREASE THE RISK OF A CRASH.
Remedy
DEALERS WILL MAIL TO CONSUMERS THE CORRECTED LABEL OR THE CUSTOMER WILL HAVE THE OPTION FOR DEALERS TO INSTALL THE LABEL
TOYOTA IS RECALLING CERTAIN MODEL YEAR 2011 SIENNA VEHICLES. THE BRAKE STOP LAMP SWITCH IS MOUNTED ON A SMALL BRACKET WELDED ON THE LEFT SIDE OF THE
Consequence
THIS COULD RESULT IN BRAKE DRAG WITH ASSOCIATED BRAKE NOISE, VIBRATION, AND/OR ILLUMINATION OF THE BRAKE WARNING LIGHT.
Remedy
DEALERS WILL REPLACE THE BRACKET ASSEMBLY FREE OF CHARGE. TOYOTA PLANS TO MAIL AN INTERIM OWNER NOTIFICATION IN THE MID
Some 2005 2026 Toyota vehicles that have undergone water intrusion may exhibit a condition in which a musty odor is present. Follow the procedures in this bulletin to remediate the odor and address this condition. The purpose of this Servic
The condition known as acid rain is caused by airborne chemicals or particles in the atmosphere, which mix with rainwater, nighttime dew, or high humidity to form acidic compounds. If these contaminants settle and remain on a painted vehicl
To prevent brake rotor rust from forming during transportation and storage, wheel film will be used instead of a cardboard type of anti-rust cover. The purpose of the wheel film is to shield the disc brake rotor from weather elements and in
Acid rain results from rainwater or other airborne moisture that become acidic due to industrial chemical impurities in the atmosphere. If these acidic compounds settle on an exposed vehicle, especially the horizontal areas such as the hood
Toyota vehicles are currently protected with RapgardTM protective film designed to protect the horizontal painted surfaces. This material protects from acid rain, environmental fallout, and rail contamination. Follow the Removal Procedure i
Vehicles may occasionally be subjected to contamination by airborne iron particles shed from railroad tracks, train wheels, exposure to heavy machinery facilities, grinding, welding, etc. This type of contamination can be identified by the
Some 2005 2024 Toyota vehicles that have undergone water intrusion may exhibit a condition in which a musty odor is present. Follow the procedures in this bulletin to remediate the odor and address this condition. The purpose of this Servic
The condition known as acid rain is caused by airborne chemicals or particles in the atmosphere, which mix with rainwater, nighttime dew, or high humidity to form acidic compounds. If these contaminants settle and remain on a painted vehicl
Showing the 8 most recent of 371 technical service bulletins on file with NHTSA.
OCTOBER 2010 I PURCHASED A TOYOTA SIENNA 2011. 3 MONTHS LATER I DROVE BACK FROM WORK AND I HAVE MY 4 CHILDREN WITH ME I
I PUT MY VEHICLE IN PARK AND THEN TURNED ON THE HAZARD LIGHTS, AS I WAS PARKED AT THE ENTRANCE TO A BUSY HIGHWAY, AND JU
TL* THE CONTACT OWNS A 2011 TOYOTA SIENNA. THE CONTACT STATED THAT WHILE TURNING AT UNKNOWN SPEEDS, ANOTHER VEHICLE CRAS
TL* TAKATA RECALL. THE CONTACT OWNS A 2011 TOYOTA SIENNA. WHILE DRIVING APPROXIMATELY 30 MPH, ANOTHER VEHICLE CRASHED IN
TL* THE CONTACT OWNS A 2011 TOYOTA SIENNA. WHILE DRIVING BETWEEN 30-35 MPH, THE CONTACT'S VEHICLE WAS STRUCK BY ANOTHER
Showing the 5 most serious of 611 complaints filed with NHTSA.
