2004 Audi A6 Service and Repair Manual
Regular price
$40.99 USD
Unit price
Covers all 2004 A6 trims — Base Sedan 4-Door, Confort Sedan 4-Door, Luxury Sedan 4-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

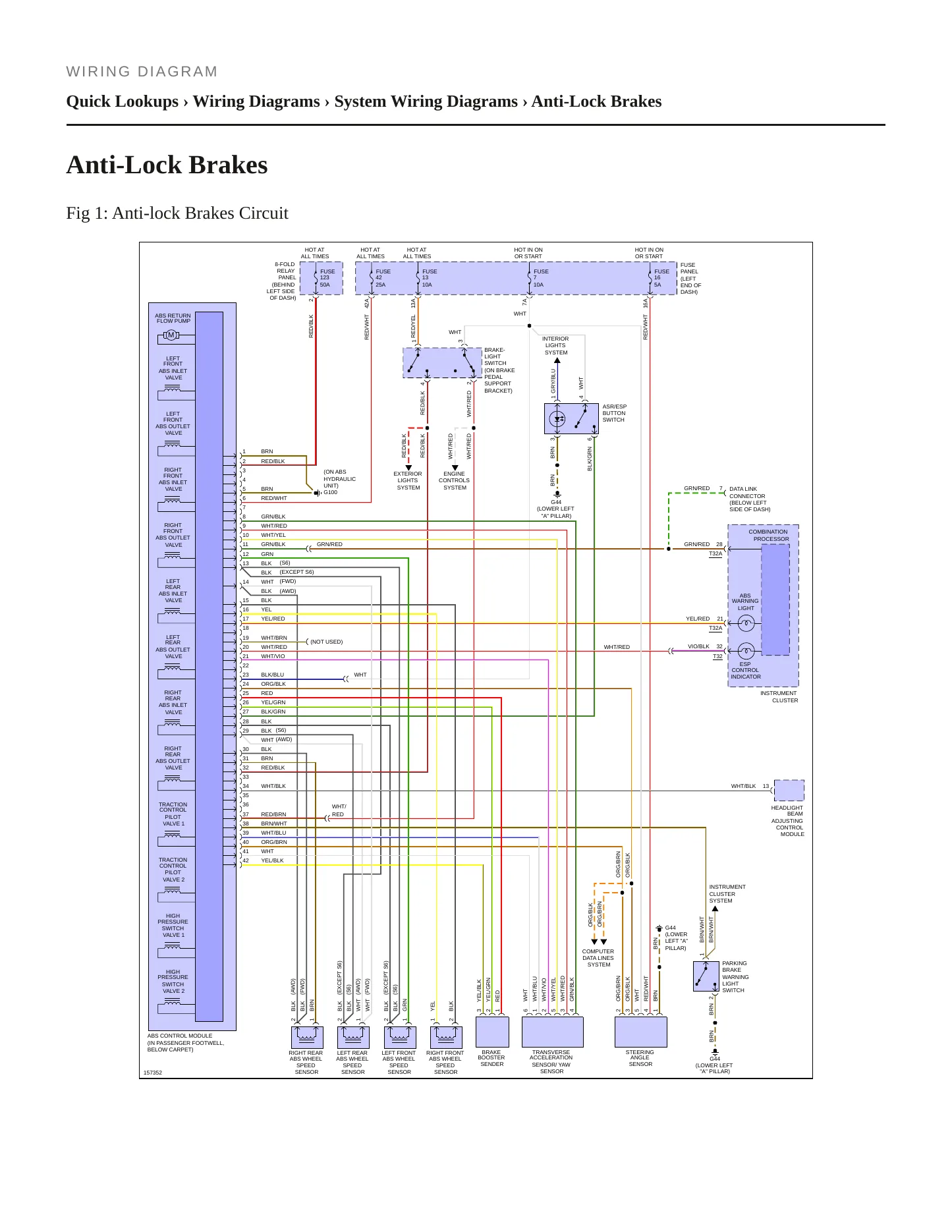

Wiring diagrams & schematics

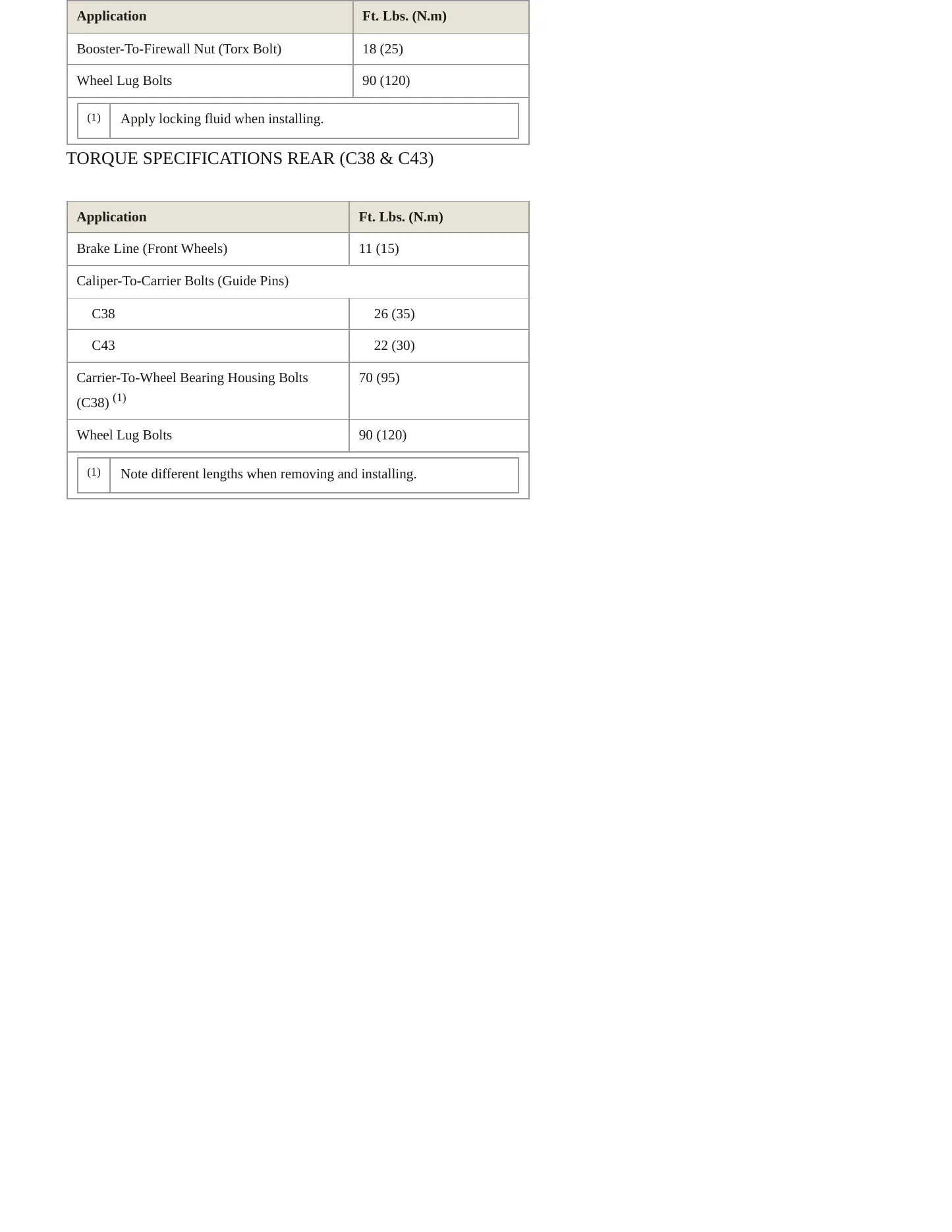

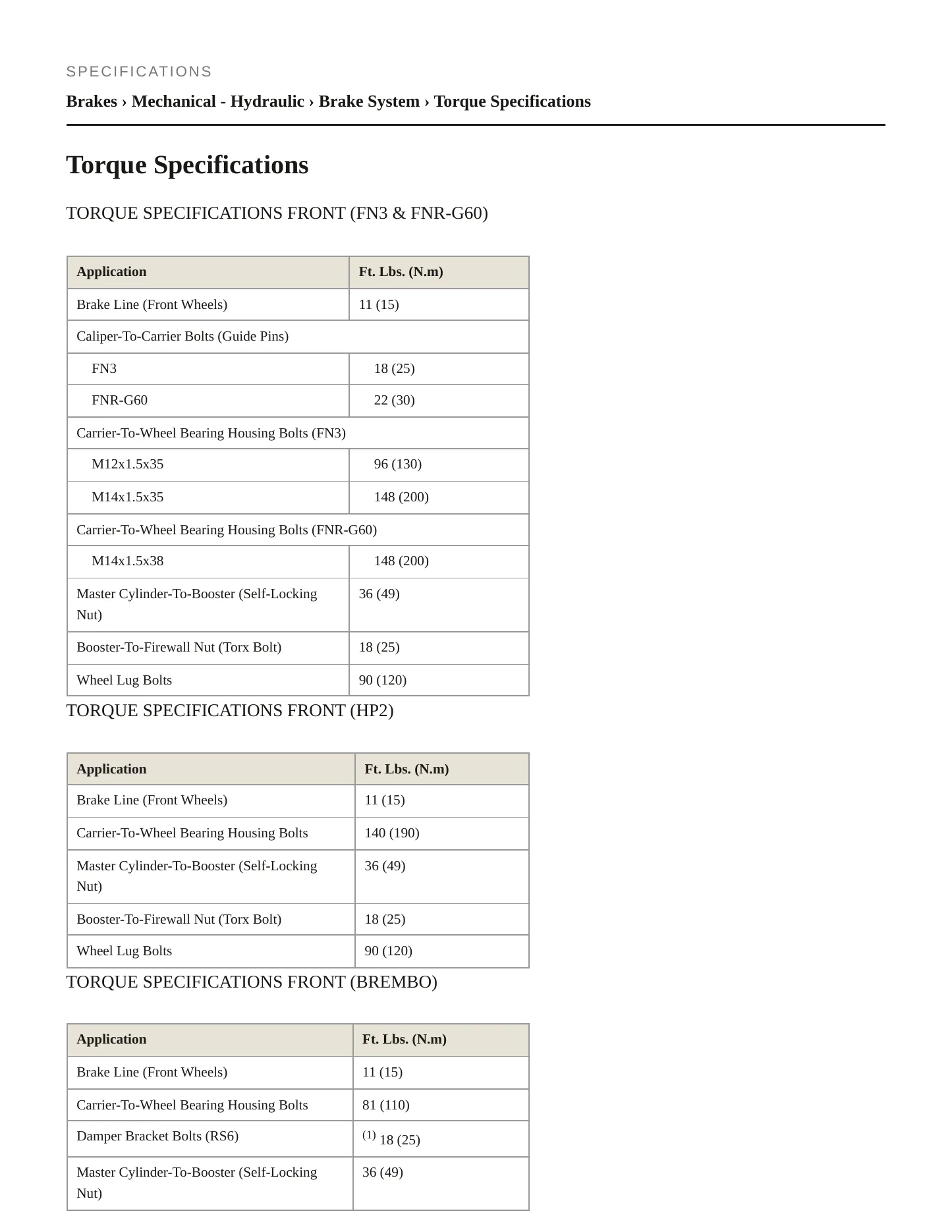

Torque specifications
Full search & bookmarks
$40.99
2004 Audi A6 Service and Repair Manual
Regular price
$40.99 USD
Unit price
This manual is built specifically for the 2004 Audi A6, so the torque values, wiring diagrams, and diagnostic steps inside track the 3.0L V6 (engine code AVK) and the exact trim under the hood rather than a generic A6-era approximation.
Engines covered
- 3.0L V6 — DOHC, naturally aspirated, gasoline
Body styles covered
- 4-door sedan
Trims covered
- Base
- Confort
- Luxury
Known issues on the 2004 A6. Four recalls are on federal record for this model year. Two cover the fuel tank rollover valve: aging plastic combined with bending stress from the aluminum ventilation line can crack the valve nipple, and a resulting fuel leak near an ignition source can lead to a vehicle fire. Two more cover the headlight switch wiring: connector pins in the switch can short circuit, and separately the switch wiring harness can be contacted through the dashboard knee bolster, either of which risks overheating or a fire originating in the left dashboard area. Owners have filed 35 complaints for the year and no technical service bulletins are logged. The factory diagnostic and repair procedures behind each of those systems are here.
From tracing a headlight switch short to inspecting the fuel tank rollover valve or a routine service interval, it keeps you on the OEM procedure and the correct specification for your specific 2004 A6.
VOLKSWAGEN IS RECALLING CERTAIN MODEL YEAR 2001-2004 AUDI A6, MODEL YEAR 2002-2003 S6 AND MODEL YEAR 2003 RS6 VEHICLES EQUIPPED WITH 4.2L ENGINES AND MANUFACTURED FROM JUNE 19, 2001, THROUGH JUNE 8, 2004. THE AGING OF THE PLASTIC MATERIAL IN THE FUE
Consequence
A FUEL LEAK IN THE PRESENCE OF AN IGNITION SOURCE COULD LEAD TO A VEHICLE FIRE.
Remedy
DEALERS WILL REINFORCE THE NIPPLE ON THE ROLLOVER VALVE TO PREVENT LEAKAGE OR REPAIR THE CRACKING AT THE NIPPLE. THE RECALL IS EXPECTED TO BEGIN DURING JUNE 2011. OWNERS MAY CONTACT AUDI AT 1-800-82
VOLKSWAGEN IS RECALLING 68,240 MY 2001-2004 AUDI A6 QUATTRO VEHICLES EQUIPPED WITH 2.7L, 2.8L, OR 3.0L ENGINES AND MY 2001-2005 ALLROAD QUATTRO VEHICLES EQUIPPED WITH 2.7L OR 4.2L ENGINES. THE AGING OF THE PLASTIC MATERIAL IN THE FUEL TANK ROLLOVER
Consequence
A FUEL LEAK IN THE PRESENCE OF AN IGNITION SOURCE COULD LEAD TO A VEHICLE FIRE.
Remedy
DEALERS WILL REINFORCE THE NIPPLE ON THE ROLLOVER VALVE TO PREVENT LEAKAGE OR REPAIR THE CRACKING AT THE NIPPLE. THE RECALL BEGAN ON JUNE 27, 2008. OWNERS MAY CONTACT AUDI AT 1-800-822-2834.
ON CERTAIN PASSENGER VEHICLES EQUIPPED WITH HALOGEN LOW BEAM HEADLIGHTS, CERTAIN CONNECTOR PINS IN THE HEADLIGHT SWITCH CONNECTOR COME INTO CONTACT WITH EACH OTHER CAUSING A SHORT CIRCUIT. NOTE: VEHICLES WITH XENON LOW BEAM HEADLIGHTS ARE NOT AFFE
Consequence
THIS CONDITION COULD LEAD TO OVERHEATING OR FIRE.
Remedy
DEALERS WILL REROUTE THE WIRING HARNESS BY INSTALLING A JUMPER WIRING HARNESS. THE RECALL BEGAN ON DECEMBER 16, 2006. OWNERS MAY CONTACT AUDI AT 1-800-822-2834.
ON CERTAIN PASSENGER VEHICLES, IF A DRIVER'S KNEES PUSH AGAINST THE KNEE BOLSTER (CRASH ELEMENT) LOCATED UNDER THE DASHBOARD, IT CAN CONTACT THE HEADLIGHT SWITCH WIRING HARNESS, AND AN ELECTRICAL SHORT COULD OCCUR.
Consequence
A FIRE COULD ORIGINATE IN THE LEFT DASHBOARD AREA.
Remedy
DEALERS WILL INSTALL A PROTECTIVE COVERING ON THE KNEE BOLSTER (CRASH ELEMENT). IN ADDITION, THE WIRING HARNESS AS WELL AS THE FELT PROTECTOR ON THE LEFT SIDE OF THE DASHBOARD CARRIER WILL BE CHECKED
Audi Delivery Guidelines.
Audi Delivery Guidelines.
This bulletin provides information on the additional reporting requirements for safety related inquiries.
This Technical Service Bulletin (TSB) details the general process for carrying out a Software Version Management (SVM) software update for any TSB or Update.
High quality media files (video and sound) are now integrated into technical service bulletins on a case-by-case basis. Media files can now be viewed on any smartphone or tablet.
The use of contaminated gasoline or gasoline with a low content of deposit control additives may result in one or more conditions.
Vehicle lacks power or will not move after stop due to simultaneous depressing of the brake and accelerator pedals
ATF pan leaks
Showing the 8 most recent of 151 technical service bulletins on file with NHTSA.
TL*THE CONTACT OWNS A 2004 AUDI A6 AVANT. THE CONTACT STATED THAT THE CHECK ENGINE LIGHT HAD BEEN ILLUMINATING INTERMITTENTLY. THE DEALER STATED THAT THE CONTACT SHOULD NOT WORRY ABOUT THE LIGHT. WHIL
TL* THE CONTACT OWNED A 2004 AUDI A6. WHILE DRIVING AT 20 MPH, SMOKE APPEARED FROM THE ENGINE COMPARTMENT AND THE VEHICLE CAUGHT FIRE. A POLICE REPORT WAS FILED AND THERE WERE NO INJURIES REPORTED. TH
TL* THE CONTACT OWNS A 2004 AUDI A6. THE CONTACT STATED THAT WHILE DRIVING 65 MPH, THAT THERE WAS A FAILURE IN THE ELECTRIC HARNESS UNDER THE PASSENGER SEAT. THE CONTACT STATED THAT HE NOTICED A BURNI
WINDSHIELD WIPERS DO NOT EFFECTIVELY CLEAR THE SNOW; THE SNOW IS PUSHED INTO THE AIR INTAKE; THE MELTED SNOW FORMS ICE/SNOW GLOBS ON THE WINDSHIELD WIPERS REDUCING VISIBILITY TO VERY HAZARDOUS LEVELS.
- ABS Module has intermittent failures, available for inspection - Anti-lock brakes will not work - Yes, the problem reoccurs and the module loses power and then errors out - Others - VCDS - ABS light
SIGNIFICANT GAS LEAK CAUSED BY BROKEN GAS "IN TANK SENDING UNITS" HOUSING AND SEAL. GAS WILL LEAK AND FILL THE INSIDE OF THE CAR WITH FUMS AS WELL AS UNDER THE CAR. REPLACEMENT REQUIRED BUYING A REVI
RE: SAFETY RECALL 20L8/JY; 08V157000: FUEL TANK ROLLOVER VALVE MODIFICATION; VIN: (XX); 2004 AUDI A6 3.0L QUATTRO AT5 ATTACHED DOCS: 1. 20L8/JY RECALL NOTICE. 2. 7.14.2008 & 11.18.18 AUDI N. SCOTT
I HAVE A 2004 AUDI A6 QUATTRO 3.0 L. THIS WEEKEND MY GROWN SON WAS SITTING IN THE BACK SEAT AND HAD HIS SUIT IN A GARMENT BAG NEXT TO HIM. THE HEATED SEATS WERE BOTH ON IN THE BACK. THEY SMELLED SOMET
Showing the 8 most serious of 35 complaints filed with NHTSA.
