2003 GMC Savana 1500 Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 2003 Savana 1500 trims — Base Standard Cargo Van 3-Door, SLE Standard Passenger Van 3-Door, Base Standard Passenger Van 3-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual

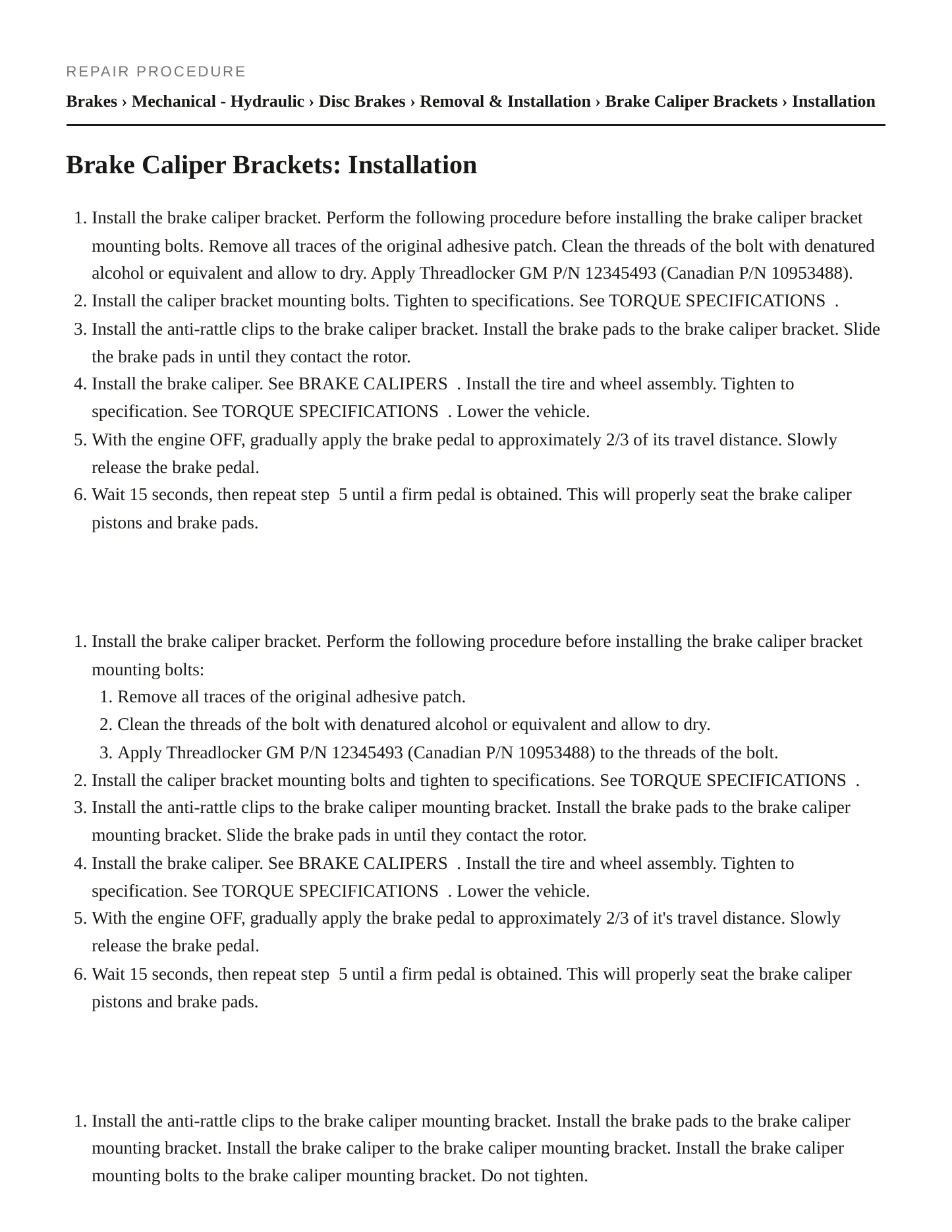

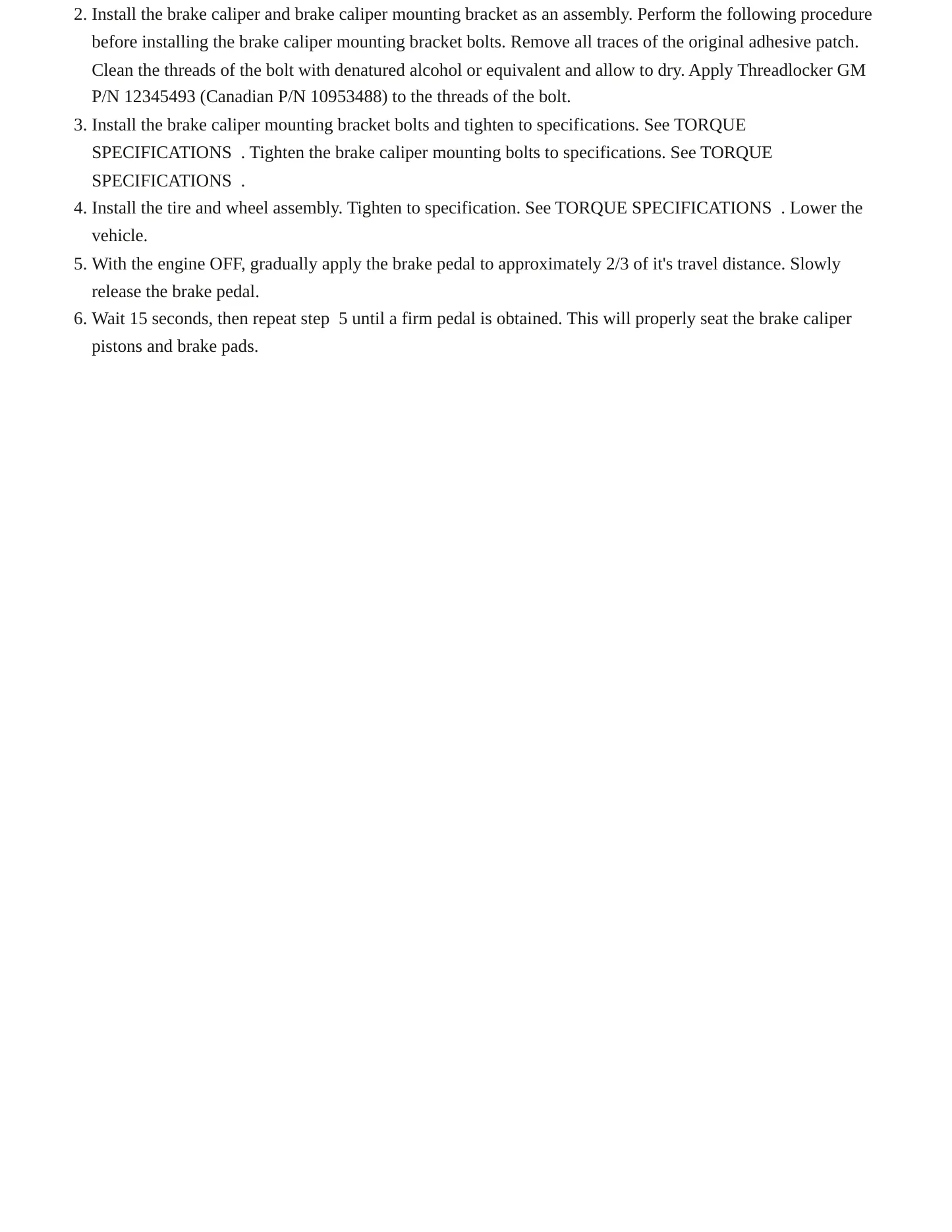

Complete repair procedures

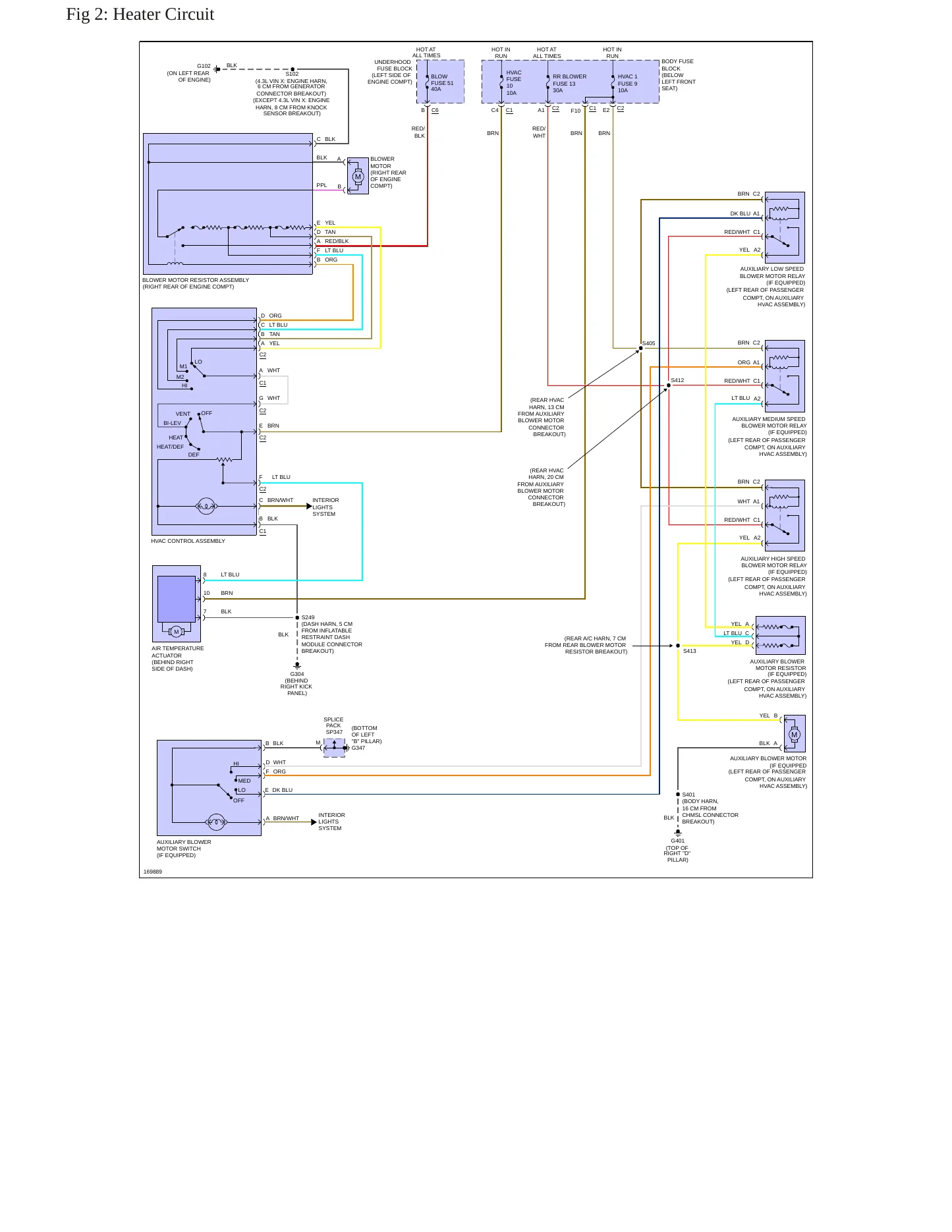

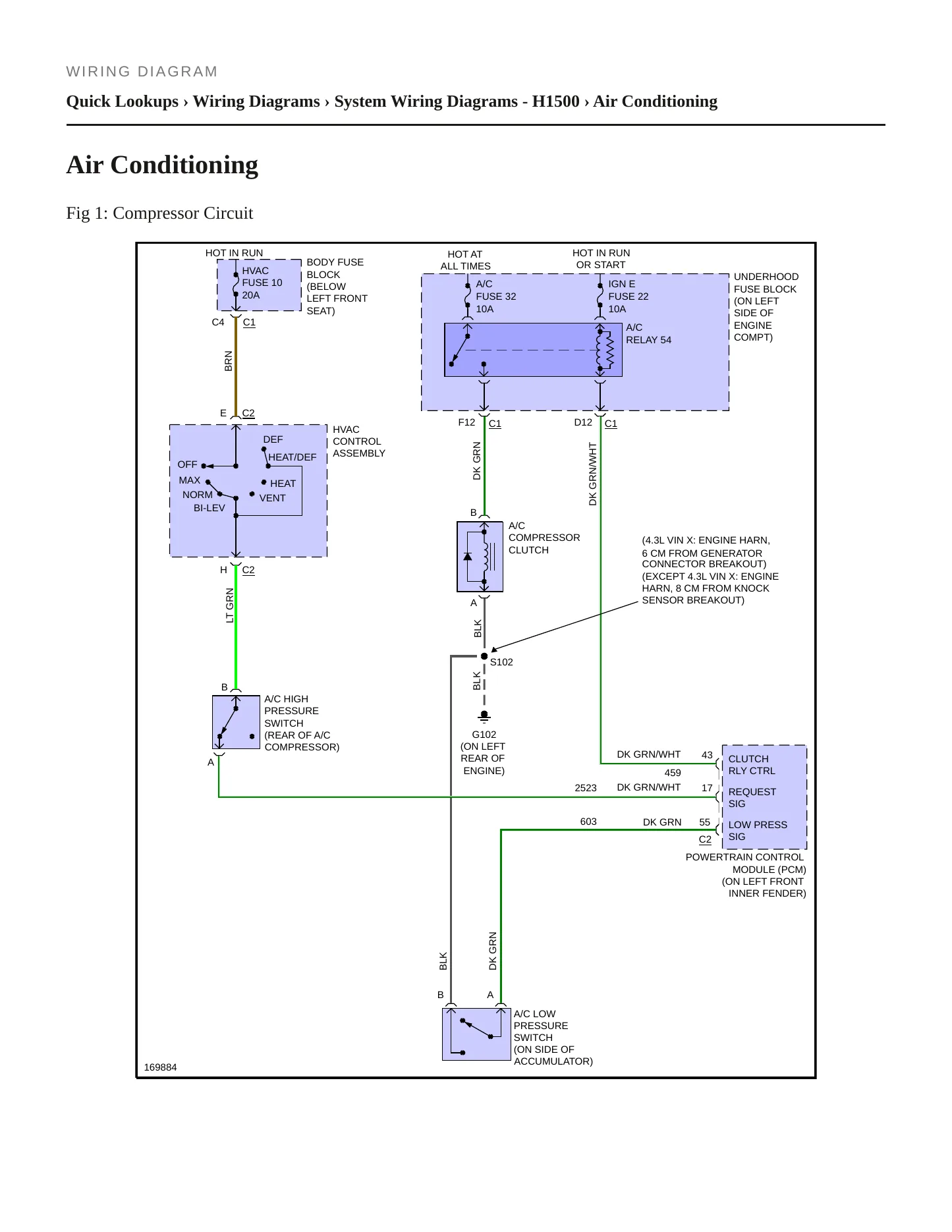

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
2003 GMC Savana 1500 Service and Repair Manual
Regular price
$29.99 USD
Unit price
This factory service and repair manual for the 2003 GMC Savana 1500 opens on a revised engine chart: the 5.3L V8 of 325 cubic inches joins the familiar 4.3L V6, both naturally aspirated overhead-valve gasoline engines. Bodies stay at two, a three-door standard cargo van and a three-door standard passenger van, and trims at Base and SLE. The V8 brings its own specifications, tightening sequences and diagnostic routines, and they sit alongside the driveline, brake, suspension, steering, body and electrical sections that serve both engines.
Engines covered
- 5.3L V8 (325 cu in) — OHV, naturally aspirated, gasoline
- 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 3-door standard cargo van
- 3-door standard passenger van
Trims covered
- Base
- SLE
Known issues on the 2003 Savana 1500. Eight recalls are on the federal record, and steering dominates them. The nut holding the pitman arm to the steering linkage may not have been tightened enough, and a separation there means losing control of the van. The right-hand tie rod end nut can loosen until the tie rod parts from the steering knuckle. Corrosion at the fuel filler pipe can let fuel spill during refueling near an ignition source. Owner complaints total 36, five each on the service brakes and the engine and cooling system and four on the fuel system.
CERTAIN REPLACEMENT FUEL FILTERS, FRAM BRAND NAME P/N G3727, WITH DATE CODES X52911 THROUGH X60801 SEQUENTIALLY OR X600141 AND A MEXICO COUNTRY OR ORIGIN MARKING ON THE FUEL FILTER HOUSING MANUFACTURE
Consequence
THIS CONDITION MAY CAUSE AN INADEQUATE SEAL AT THE CONNECTION, POTENTIALLY LEADING TO A FUEL LEAK. I
Remedy
HONEYWELL WILL NOTIFY OWNERS AND REPLACE THE FUEL FILTERS FREE OF CHARGE. THE RECALL BEGAN ON OCTOB
This PI communicates the requirement to provide a pico file to receive diagnostic assistance from TAC.
This service bulletin explains how to measure for oil consumption and possible reasons for loss of oil.
This service bulletin explains how to measure for oil consumption and possible reasons for loss of oil.
This Preliminary Information communication provides information to the technician about changing the tire and wheel size on vehicles. General Motors will only support a tire calibration for tires that have been sized, tested and designed fo
Vehicle Wide Programming (VWP) is a new process to update software on GM Vehicles. It provides the ability via a single selection within Techline Connect to first identify which modules need updating and then proceed to updating affected mo
GM is receiving damaged (cracked or broken) transmission cores returned to the reman facilities. The damage is being caused either in the removal process by the technician, or inadequate packaging or shipping. This bulletin advises the deal
This service bulletin advises of a new fuel injection cleaner kit used for decarbonizing the intake valves to correct conditions of rough idle, Crank no start, extended crank or misfire, MIL with DTCs, and explains how Top Tier fuels should
This bulletin provides information for use on a Product Assistance Claim (PAC), which is formerly known as a Product Allegation Resolution (PAR) claim.
Showing the 8 most recent of 82 technical service bulletins on file with NHTSA.
AIR BAGS DID NOT DEPLOY HIGH IMPACT ACCIDENT 55 TO 65 MPH HIT CONCRETE WALL BOUGHT VAN NEW 2003 SAVANNA 1500. *TR
TL* THE CONTACT OWNS A 2003 GMC SAVANA 1500. THE CONTACT STATED THAT THERE WAS A ODOR OF FUEL INSIDE THE VEHICLE. UPON INSPECTION, IT WAS DISCOVERED THAT FUEL WAS LEAKING FROM THE VEHICLE DUE TO CORRO
GAS TANK LEAKS WHEN FULL. THE SEAM WHERE THE FILLER NECK MEETS THE TANK'S NIPPLE IS CRACKED. GM DOES NOT MANUFACTURE A REPLACEMENT TANK, NO USED TANKS AVAILABLE. I'M FORCED TO DRIVE A VAN THAT LEAKS F
