1998 GMC Savana 1500 Service and Repair Manual

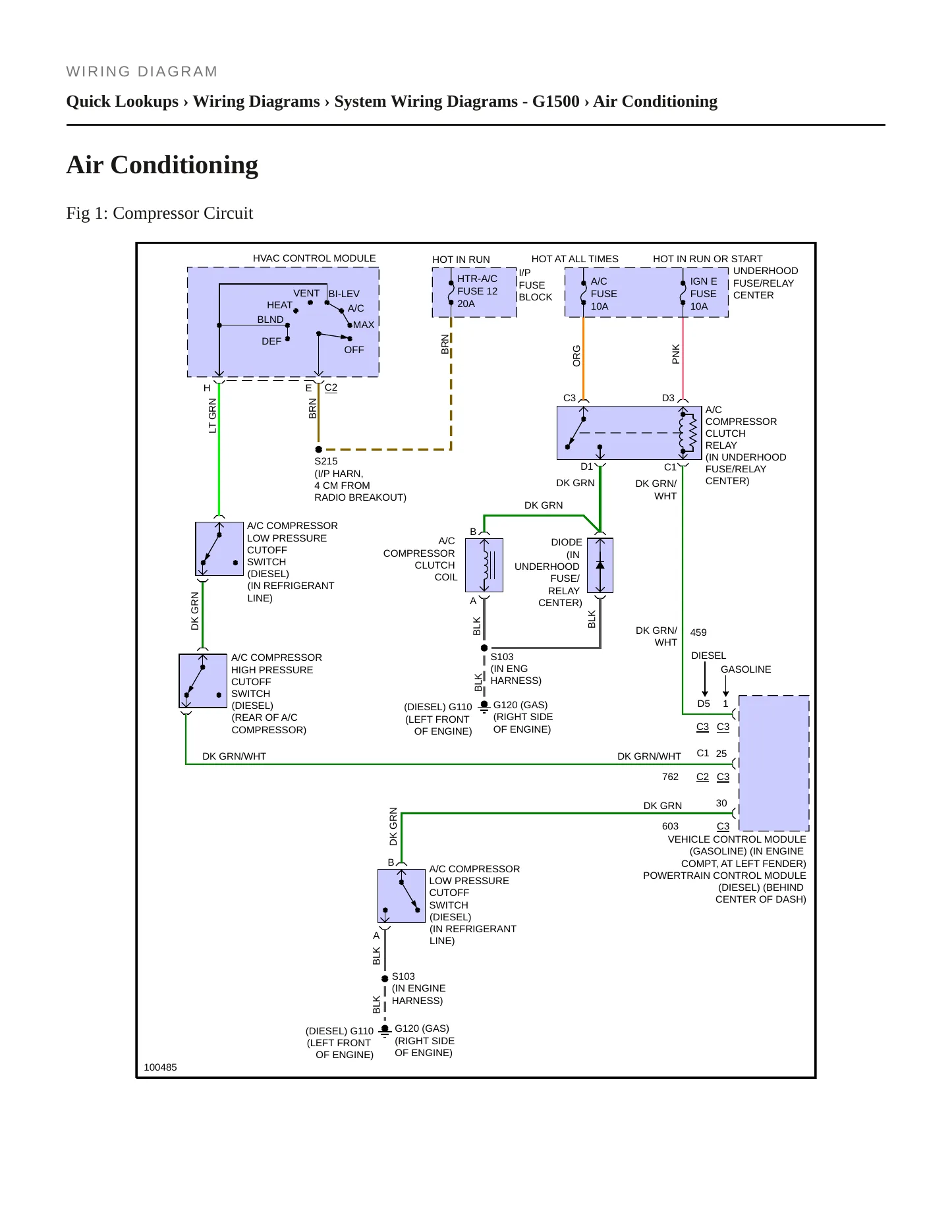

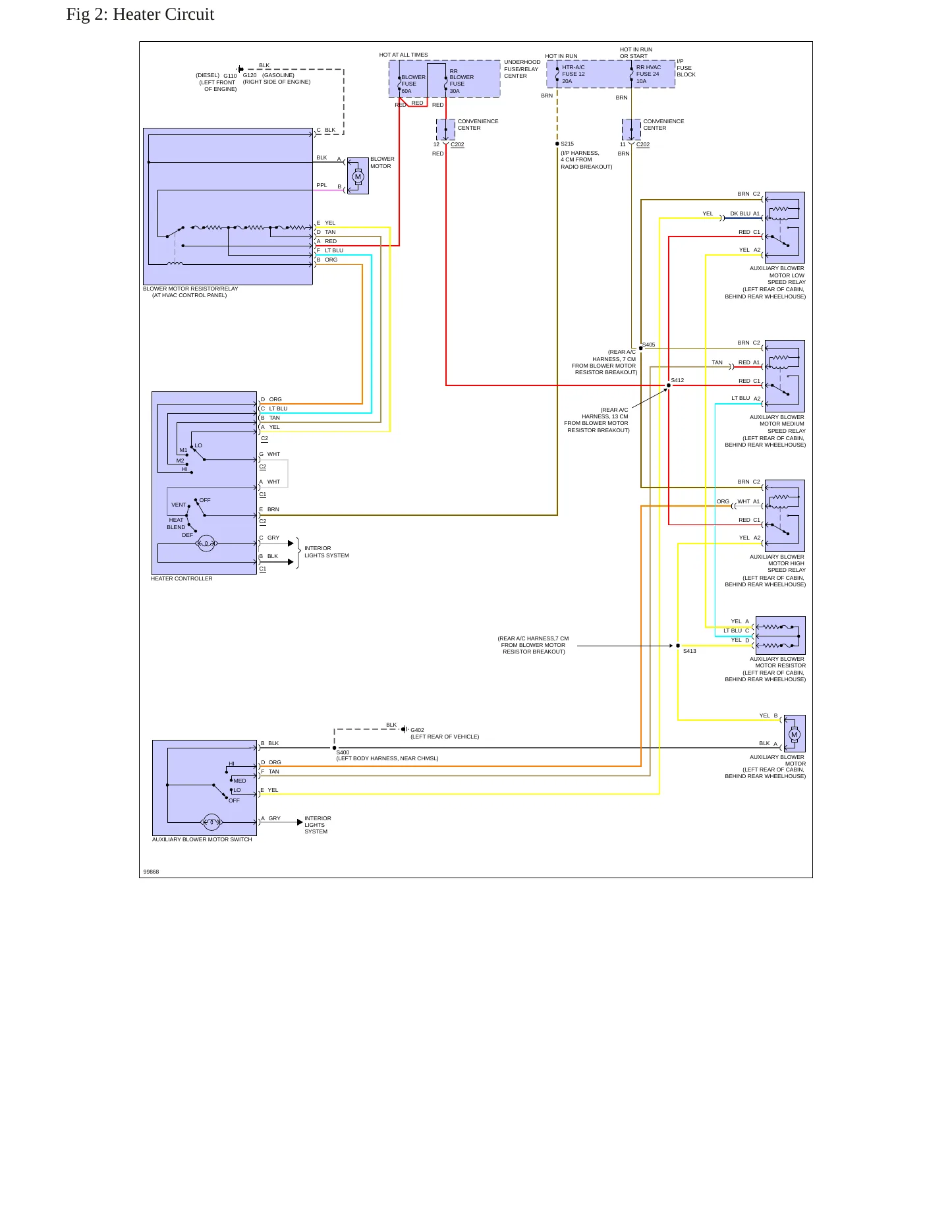

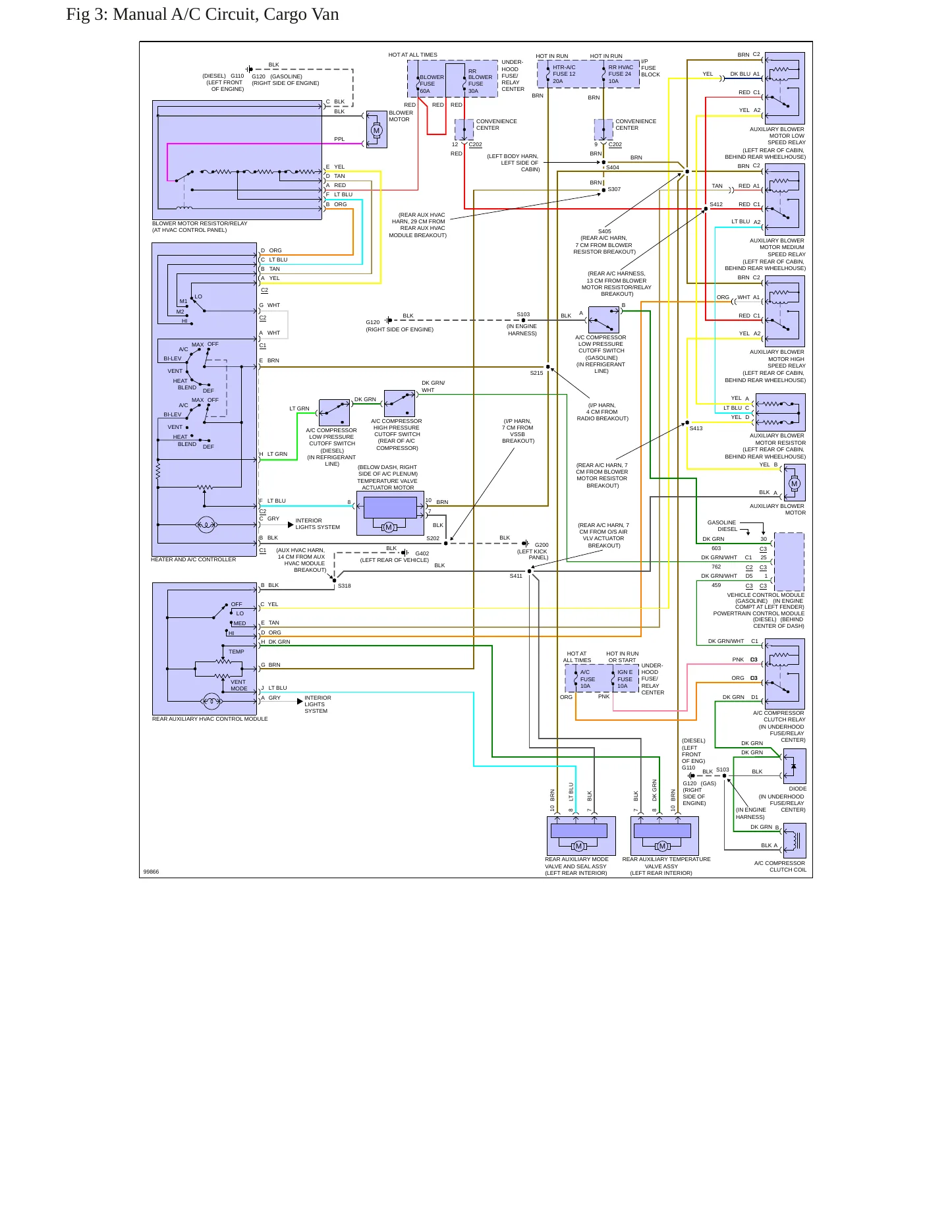

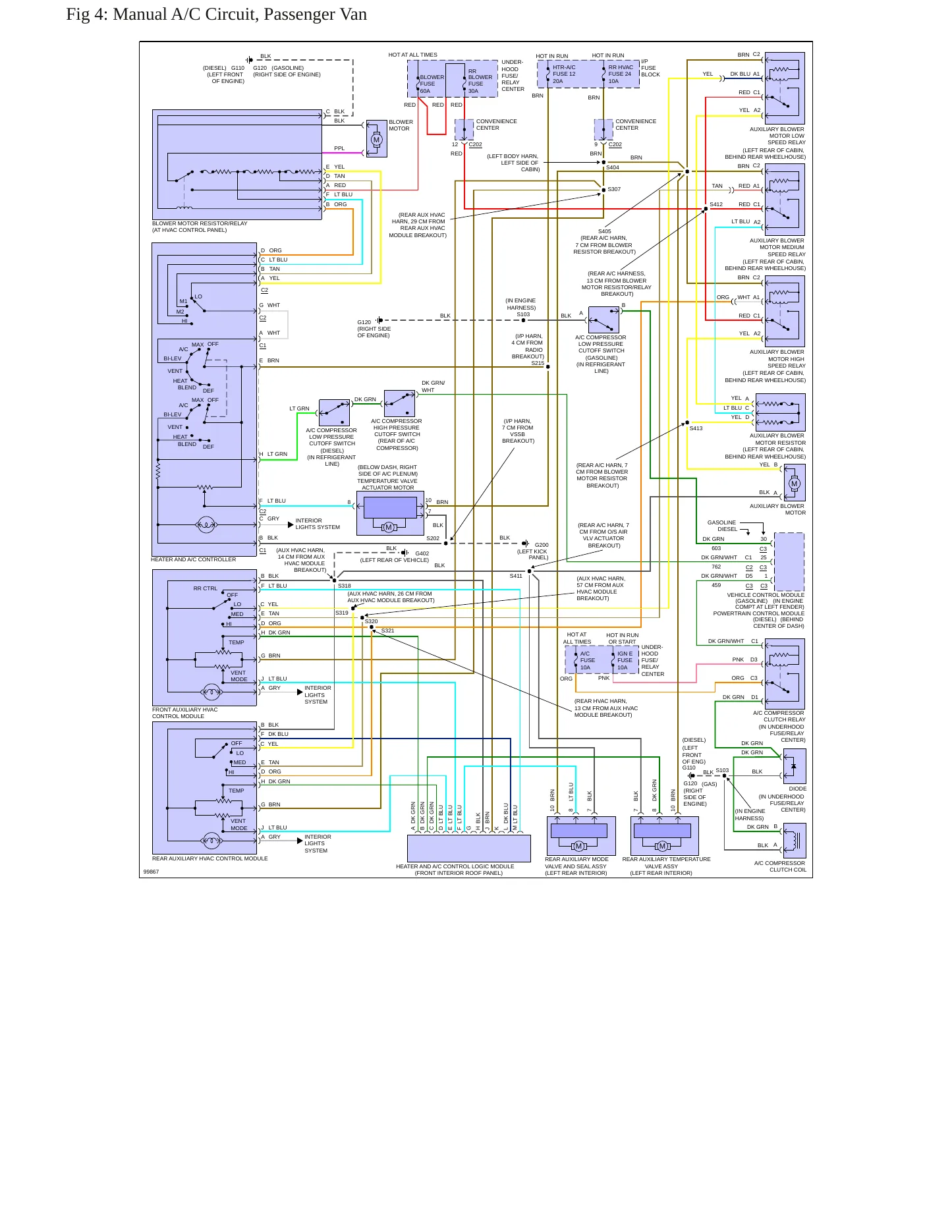

This factory service and repair manual for the 1998 GMC Savana 1500 covers a van still offered in Base and SLE trim as a three-door standard cargo van or a three-door standard passenger van, and still available with any of three naturally aspirated overhead-valve gasoline engines: the 5.0L V8, the 4.3L V6 and the 5.7L V8. Each engine has its own specifications, clearances and torque values here, while the shared chassis, brake, suspension and body systems are documented with procedures, wiring diagrams and diagnostics of their own.
Engines covered
- 5.0L V8 (305 cu in) — OHV, naturally aspirated, gasoline
- 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline
- 5.7L V8 (350 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 3-door standard cargo van
- 3-door standard passenger van
Trims covered
- Base
- SLE
Known issues on the 1998 Savana 1500. Two recalls are on the federal record. The serious one concerns front brake rotor and hub assemblies cast from out-of-specification gray iron, which can crack in service; left alone, the cracks can travel around the wheel mounting bolt circle until the wheel separates from the van. The other covers aftermarket combination corner and bumper lamp assemblies that do not meet the federal lighting standard. Owner complaints total 33, with nine on the service brakes, six on the air bags and four on the electrical system, all covered in the diagnostic sections.
This warranty administration bulletin provides information regarding the field action courtesy transportation policy.
This service bulletin provides information for maintenance cleaning of the fuel injectors and gasoline detergent additive.
Expanded Availability for Remanufacture and Return (R&R) Electronic Control Modules
