2002 Nissan Maxima Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 2002 Maxima trims — GLE Sedan 4-Door, SE Sedan 4-Door, GXE Sedan 4-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

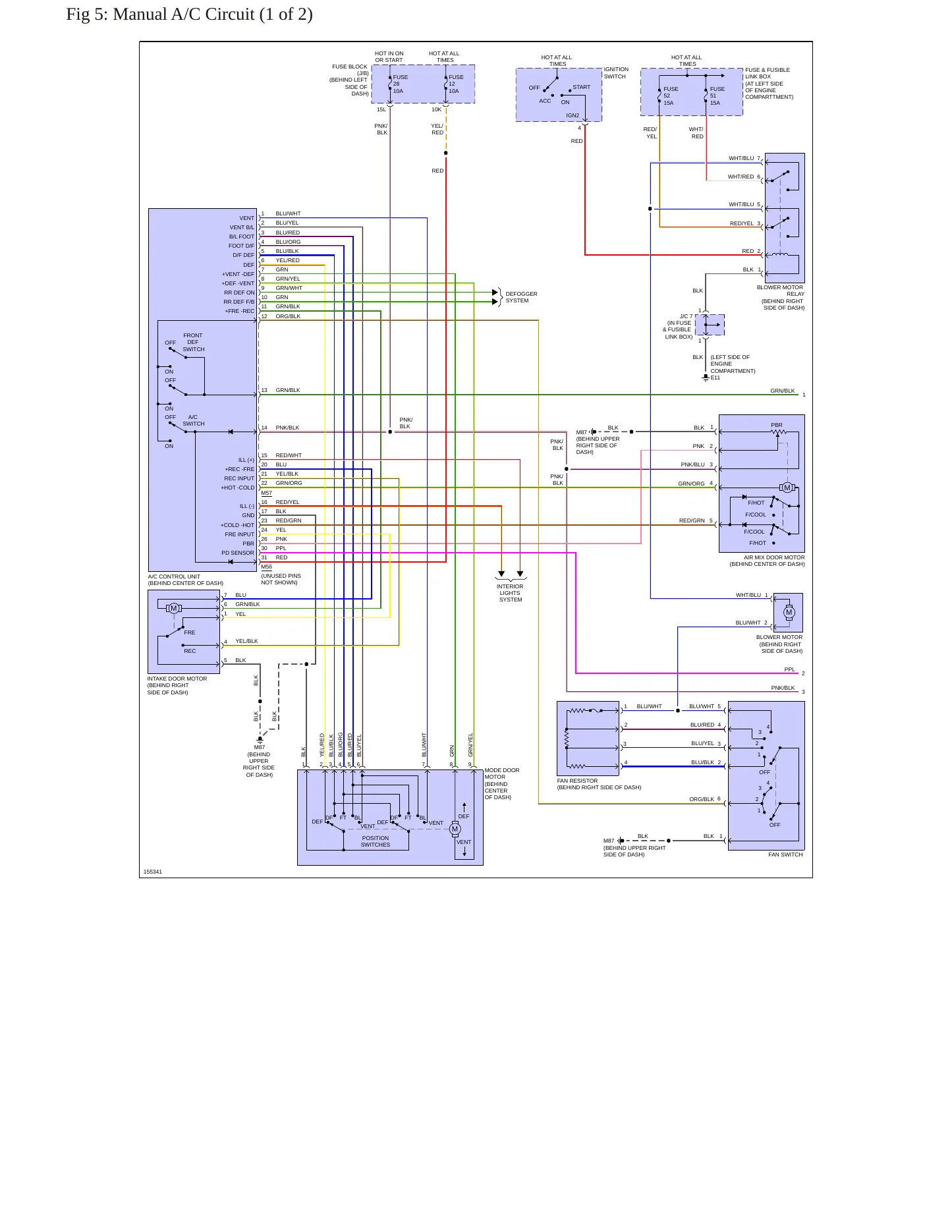

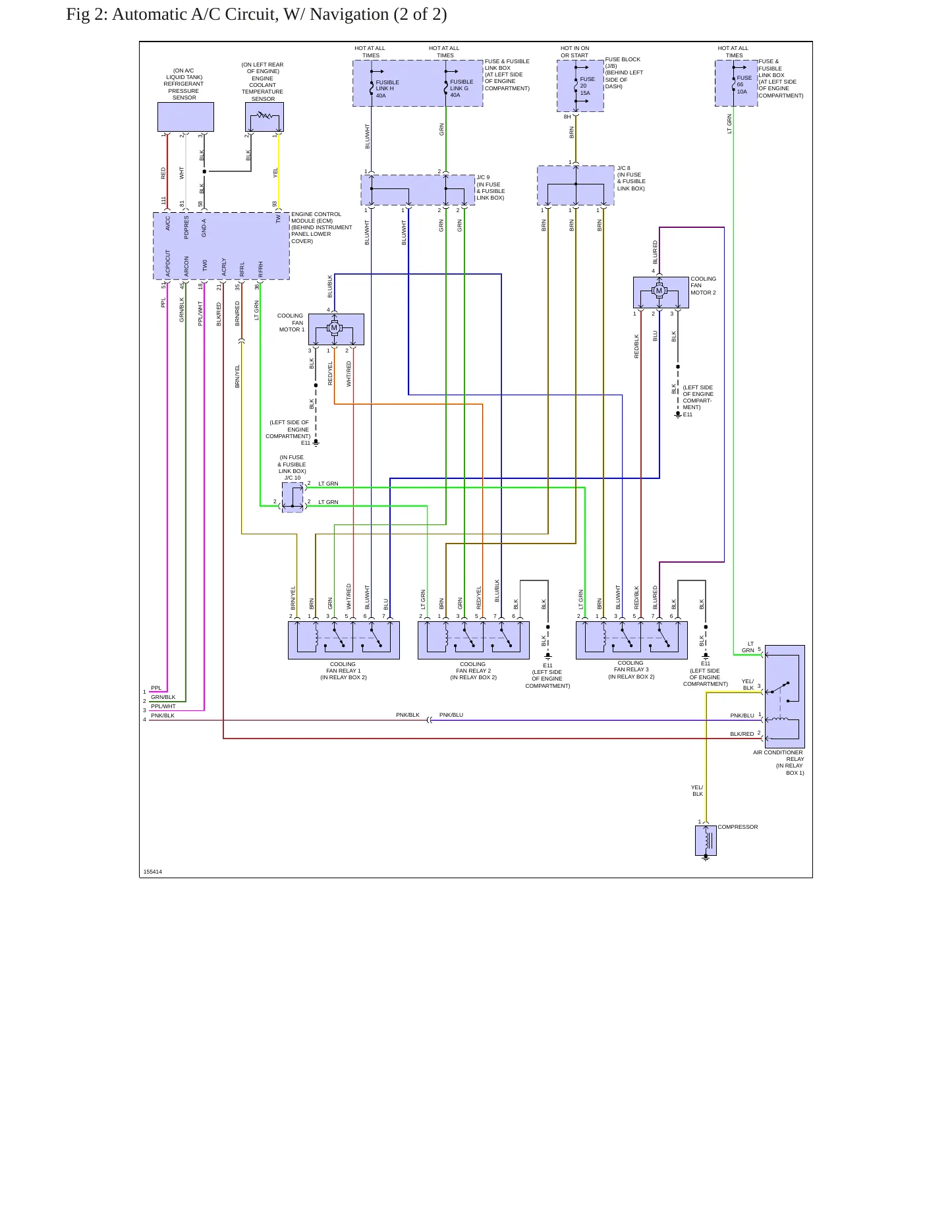

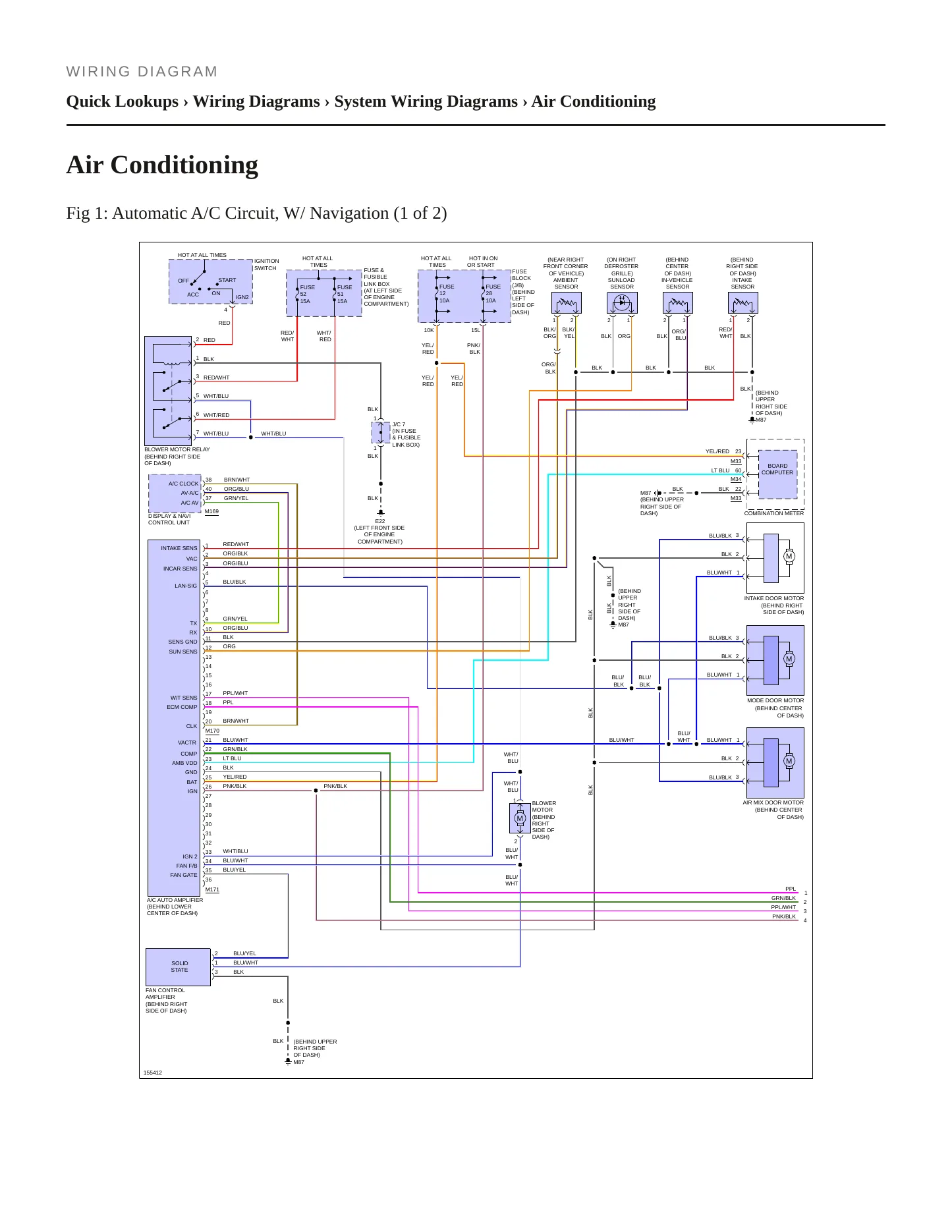

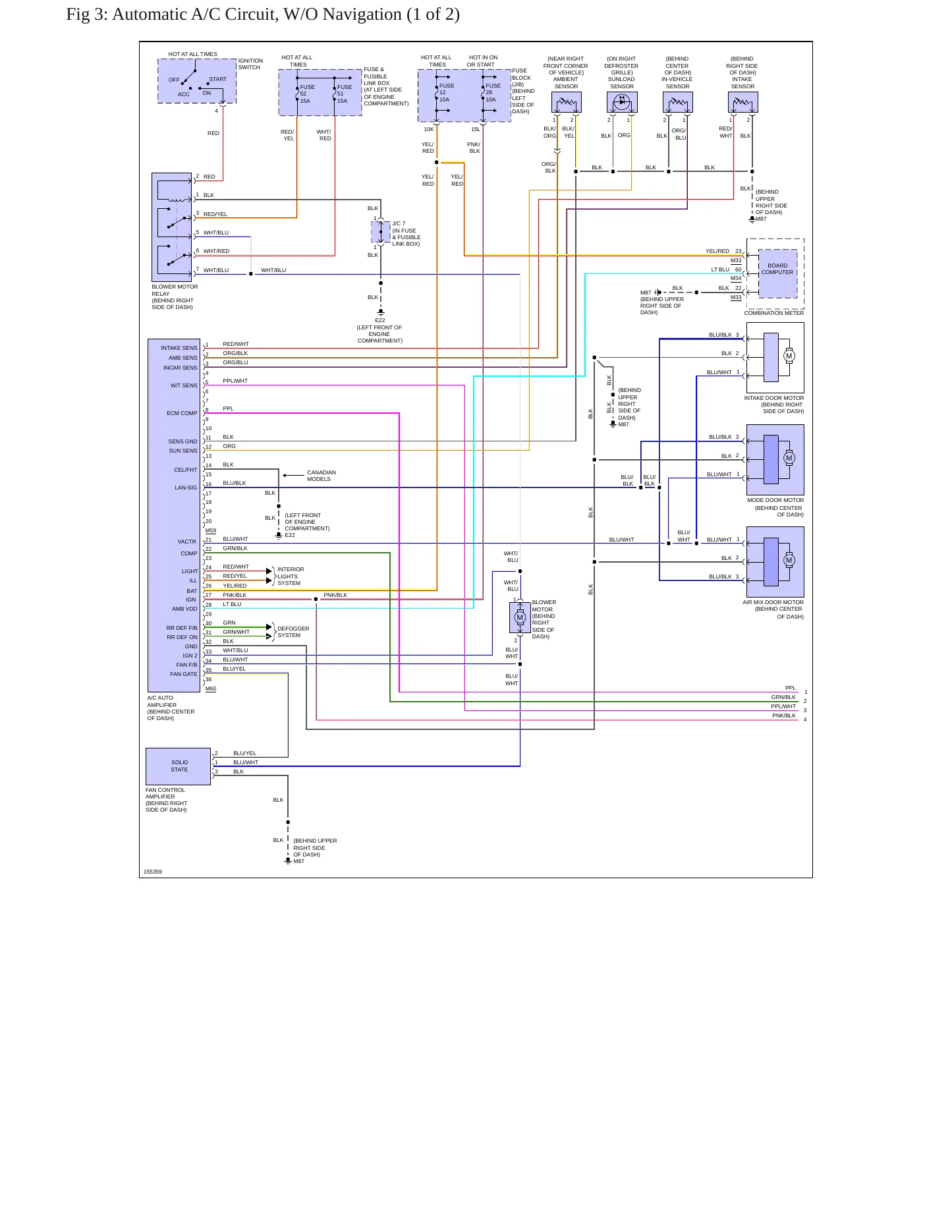

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
2002 Nissan Maxima Service and Repair Manual
Regular price
$29.99 USD
Unit price
This 2002 Nissan Maxima factory service and repair manual is built around this exact year, trim and the 3.5L V6 (VQ35DE) under its hood, so the torque values and procedures inside match what Nissan actually published for this car instead of an approximation pulled from a nearby model year.
Engines covered
- 3.5L V6 — DOHC, naturally aspirated, gasoline
Body styles covered
- 4-door sedan
Trims covered
- GLE
- GXE
- SE
Known issues on the 2002 Maxima. Nine recalls are on federal record for this model year. Two cover the frontal passenger air bag inflator, which can rupture on deployment and throw metal fragments at occupants; a related recall covers driver-side inflator replacement service parts with the same explosion risk. Two more cover aftermarket combination corner and bumper lamp assemblies that lack the required amber side reflectors, reducing visibility. The front lower control arm's transverse link pin can break at its frame mount, causing a knocking sound and abnormal steering. A crank or cam position sensor circuit board can develop a faulty solder joint from heat stress, triggering the service engine soon light, a no-start condition, reduced power, or a sudden stall. The electronic throttle's accelerator pedal stopper can allow the pedal to over-travel under excessive force, severely limiting engine speed unexpectedly. And the odometer on traction-control-equipped units registers kilometers without a "KM" label as federal rules require. Owners have filed 220 complaints for the year, and no technical service bulletins are logged. The factory diagnostic and repair procedures behind each of those systems are here.
Whether you're inspecting the front suspension pin, tracing a stall back to the cam position sensor, or working through a routine service interval, it keeps you on the OEM procedure and the correct specification for your specific 2002 Maxima.
Nissan North America, Inc. (Nissan) is recalling certain 2001-2003 Maxima, 2002-2006 Sentra, 2002-2004 Pathfinder, 2007-2011 Versa Sedan and Versa Hatchback, 2001-2004 Infiniti I30 and I35, 2002-2003 Inifiniti QX4, 2003-2008 Infiniti FX35 and FX45 an
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy
Nissan will notify owners, and dealers will replace the front passenger air bag inflators with alternate desiccated inflators, free of charge. The recall began February 12, 2020. Owners may contact
Nissan North America, Inc. (Nissan) is recalling certain model year 2001-2003 Nissan Maxima, 2002-2004 Pathfinder, 2002-2006 Sentra, 2002-2003 Infiniti QX4 and I35, 2003 FX35 and FX45, and 2001 I30 vehicles. Upon deployment of the passenger side fro
Consequence
In the event of a crash necessitating deployment of the passenger's frontal air bag, the inflator could rupture with metal fragments striking the vehicle occupants potentially resulting in serious inj
Remedy
Nissan will notify owners, and dealers will replace the passenger air bag inflator, free of charge. The recall began on June 15, 2015. Owners may contact Nissan customer service at 1-800-647-7261. N
SABERSPORT IS RECALLING 16,270 COMBINATION CORNER AND BUMPER LAMP ASSEMBLIES OF VARIOUS PART NUMBERS SOLD FOR USE AS AFTERMARKET EQUIPMENT FOR VARIOUS PASSENGER VEHICLES. THESE HEADLAMPS FAIL TO CONFORM TO THE REQUIREMENTS OF FEDERAL MOTOR VEHICLE S
Consequence
DECREASED LIGHTING VISIBILITY MAY RESULT IN A VEHICLE CRASH.
Remedy
SABERSPORT WILL NOTIFY OWNERS AND OFFER A FULL REFUND FOR THE NONCOMPLIANT COMBINATION LAMPS. THE SAFETY RECALL BEGAN ON MAY 11, 2009. OWNERS MAY CONTACT SABERSPORT AT 1-909-598-7589.
DOPE, INC. IS RECALLING 42,540 COMBINATION CORNER AND BUMPER LAMP ASSEMBLIES OF VARIOUS PART NUMBERS SOLD FOR USE AS AFTERMARKET EQUIPMENT FOR VARIOUS PASSENGER VEHICLES. THESE HEADLAMPS FAIL TO CONFORM TO THE REQUIREMENTS OF FEDERAL MOTOR VEHICLE S
Consequence
DECREASED LIGHTING VISIBILITY MAY RESULT IN A VEHICLE CRASH.
Remedy
DOPE, INC. WILL NOTIFY OWNERS AND OFFER A FULL REFUND FOR THE NONCOMPLIANT COMBINATION LAMPS. THE SAFETY RECALL BEGAN ON JULY 28, 2009. OWNERS MAY CONTACT DOPE, INC. AT 1-626-272-1798.
ON CERTAIN PASSENGER VEHICLES, THE PIN AT THE END OF THE FRONT SUSPENSION TRANSVERSE LINK (LOWER CONTROL ARM) COULD BREAK WHERE IT IS MOUNTED TO THE FRAME.
Consequence
THIS CAN CAUSE A KNOCKING SOUND AND ABNORMAL STEERING. THIS COULD RESULT IN DIFFICULTY CONTROLLING THE VEHICLE AND INCREASING THE RISK OF A CRASH.
Remedy
DEALERS WILL REPLACE THE TRANSVERSE LINKS ON THE LEFT AND RIGHT SIDES WITH NEW ONES. OWNER NOTIFICATION BEGAN JULY 29, 2002. OWNERS WHO TAKE THEIR VEHICLES TO AN AUTHORIZED DEALER ON AN AGREED UP
ON CERTAIN PASSENGER VEHICLES, THE CIRCUIT BOARD FOR THE CRANK POSITION SENSOR OR CAM POSITION SENSOR MAY HAVE AN IMPROPER SOLDER JOINT DUE TO SOLDER DEFORMATION CAUSED BY HEAT STRESS ACCELERATED BY THE EXISTENCE OF FLUX RESIDUE DURING THE SOLDERING
Consequence
THIS COULD CAUSE THE "SERVICE ENGINE SOON" WARNING LIGHT TO COME ON, CREATE A NO START CONDITION, CAUSE REDUCED ENGINE POWER, OR CAUSE THE ENGINE TO STOP RUNNING WITHOUT WARNING DURING VEHICLE OPERATI
Remedy
DEALERS WILL REPLACE THE CRANK POSITION SENSORS. CAMSHAFT POSITION SENSOR(S), AND IN SOME CASES, THE VARIABLE TIMING CONTROL SENSOR(S). VEHICLES INVOLVED IN A PREVIOUS RECALL CAMPAIGN, 01V357, ARE A
ON CERTAIN PASSENGER VEHICLES EQUIPPED WITH A TRACTION CONTROL SYSTEM, THE ODOMETER IN THE SUBJECT VEHICLES REGISTERS DISTANCE IN KILOMETERS INSTEAD OF MILES AS IS SPECIFIED IN THE DESIGN. THE ODOMETER DOES NOT HAVE A LABEL THAT INDICATES "KILOMETER
Remedy
DEALERS WILL INSPECT THE ODOMETER TO DETERMINE IF IT IS CORRECT AND, IF NOT, WILL REPLACE THE SPEEDOMETER/ODOMETER ASSEMBLY. OWNER NOTIFICATION BEGAN DECEMBER 12, 2001. OWNERS WHO TAKE THEIR VEHIC
ON CERTAIN PASSENGER VEHICLES EQUIPPED WITH AN ELECTRONIC THROTTLE CONTROL SYSTEM, THE STOPPER FOR THE ACCELERATOR PEDAL WILL PREVENT EXCESSIVE MOVEMENT OF THE ACCELERATOR POSITION SENSOR. IF THE DRIVER APPLIES OVERLY EXCESSIVE FORCE TO THE ACCELERA
Consequence
THIS WILL CAUSE THE ENGINE MALFUNCTION INDICATOR LAMP TO COME ON AND THE ENGINE SPEED TO BE SEVERELY LIMITED. IF THIS OCCURS UNEXPECTEDLY, IT COULD LEAD TO A CRASH.
Remedy
DEALERS WILL INSTALL A NEW ACCELERATOR PEDAL STOPPER. OWNER NOTIFICATION BEGAN MARCH 11, 2002. OWNERS WHO TAKE THEIR VEHICLES TO AN AUTHORIZED DEALER ON AN AGREED UPON SERVICE DATE AND DO NOT REC
Nissan North America, Inc. (Nissan) is recalling certain air bag inflator replacement service parts that may have been installed as part of a theft or collision repair. The parts include certain passenger-side air bag inflators designed to fit Infin
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy
Dealers will inspect and replace the inflators as necessary, free of charge. Owner notification letters are expected to be mailed September 14, 2022. Owners may contact Nissan's customer service at
CERTIFICATION LABEL AND VIN PLATE REPLACEMENT SERVICE INFORMATION Because of collision damage or other vehicle repair, a replacement Certification Label or VIN Plate/Label may be needed. HINT: Certification Label = FMVSS (Federal Motor Vehi
CERTIFICATION LABEL AND VIN PLATE REPLACEMENT SERVICE INFORMATION Because of collision damage or other vehicle repair, a replacement Certification Label or VIN Plate/Label may be needed. HINT: Certification Label = FMVSS (Federal Motor Vehi
VEHICLE KEY NOT DETECTED / AUTHENTICATED, ENGINE WILL NOT START This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
WINDOW GLASS WARRANTY INFORMATION This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
REMOVING FOREIGN MATERIAL FROM THE WINDOW GLASS This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
WINDSHIELD CRACKING This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
DIAGNOSIS OF VEHICLE PULL (DRIFT) AND/OR STEERING WHEEL OFF-CENTER This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
SILICONE-BASED LUBRICANT OR GREASE CAN DAMAGE ELECTRICAL COMPONENTS SERVICE INFORMATION Do not apply Silicone-based lubricants or grease to, or around, any interior electrical components. To avoid the risk of death or severe personal injury
Showing the 8 most recent of 82 technical service bulletins on file with NHTSA.
DRIVING ON CIRCLE INTERSECTION THE CAR SHUT OFF UNABLE TO TURN STEERING WHEEL AND CRASHED INTO A BUILDING TOTALING CAR.
DRIVER'S SEAT FAILED ON IMPACT WITH ANOTHER VEHICLE. SEAT WENT INTO FULL RECLINE POSITION WHICH CAUSED THE DRIVER TO BE THROWN OUT OF HIS SEATBELT AND THROUGH THE BACK WINDSHIELD. *TR
TAKATA RECALL OUR 17 YR OLD DAUGHTER WAS IN A ACCIDENT ON THE INTERSTATE, HER CAR ROLLED MULTIPLE TIMES....THE AIR BAG NEVER DEPLOYED-HER NECK (C7) WAS FRACTURED. IF THE AIR BAG WOULD HAVE DEPLOYED M
TL* THE CONTACT OWNS A 2002 NISSAN MAXIMA. THE CONTACT STATED THAT WHILE DRIVING 35 MPH, THE CONTACT CRASHED INTO THE REAR OF ANOTHER VEHICLE. UPON IMPACT, THE AIR BAGS FAILED TO DEPLOY. THE CONTACT A
THE VEHICLE EXPERIENCED SUDDEN ACCELERATION AND CRASHED THROUGH A WALL. *JB SCC
I HAVE A 2002 NISSAN MAXIMA SE THAT I PURCHASED NEW FROM A NISSAN DEALERSHIP. THE VEHICLE IS VERY WELL TAKEN CARE OF AND HAS ALWAYS BEEN SERVICED BY NISSAN. LAST WEEK I WAS INVOLVED IN AN ACCIDENT I
1. STRUCK BY A SMALL DEER ON FRONT BUMPER/GRILL 2. BOTH FRONT AIRBAGS DEPLOYED UNNECESSARILY, AND WITH VERY LITTLE DAMAGE TO VEHICLE. AIRBAG CAUSED MINOR UNNECESSARY INJURY. 3. AIRBAGS, MODULE,
VEHICLE WAS MOVING ABOUT 25 TO 30 MPH WHEN IT WAS HIT IN THE FRONT AND THE AIR BAGS FAILED TO DEPLOY. PROVIDE FURTHER DETAILS. *JB
Showing the 8 most serious of 220 complaints filed with NHTSA.
