1995 Chevrolet G20 Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 1995 G20 trims — Base Standard Cargo Van 3-Door, Sportvan Extended Passenger Van 3-Door, Beauville Extended Passenger Van 3-Door +2 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

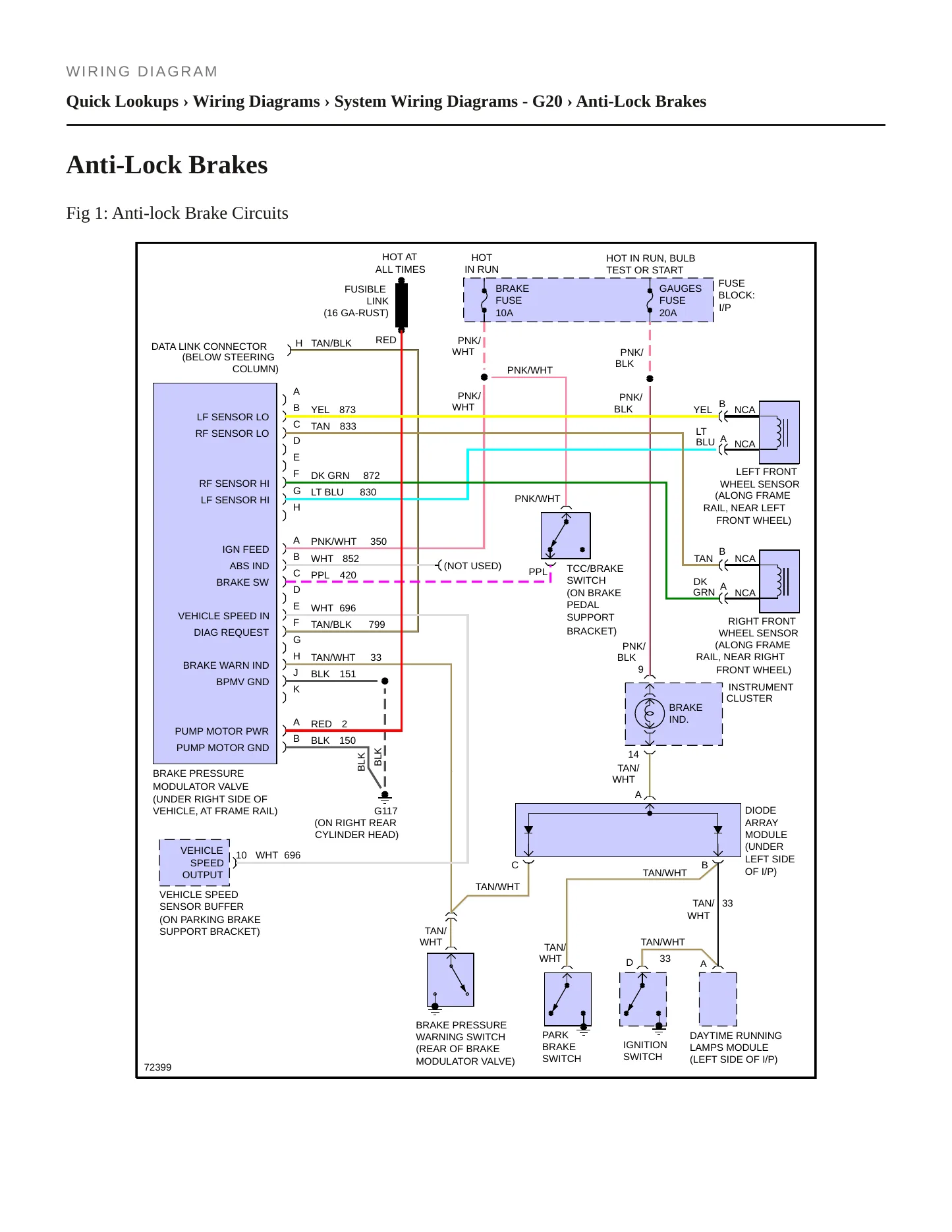

Wiring diagrams & schematics

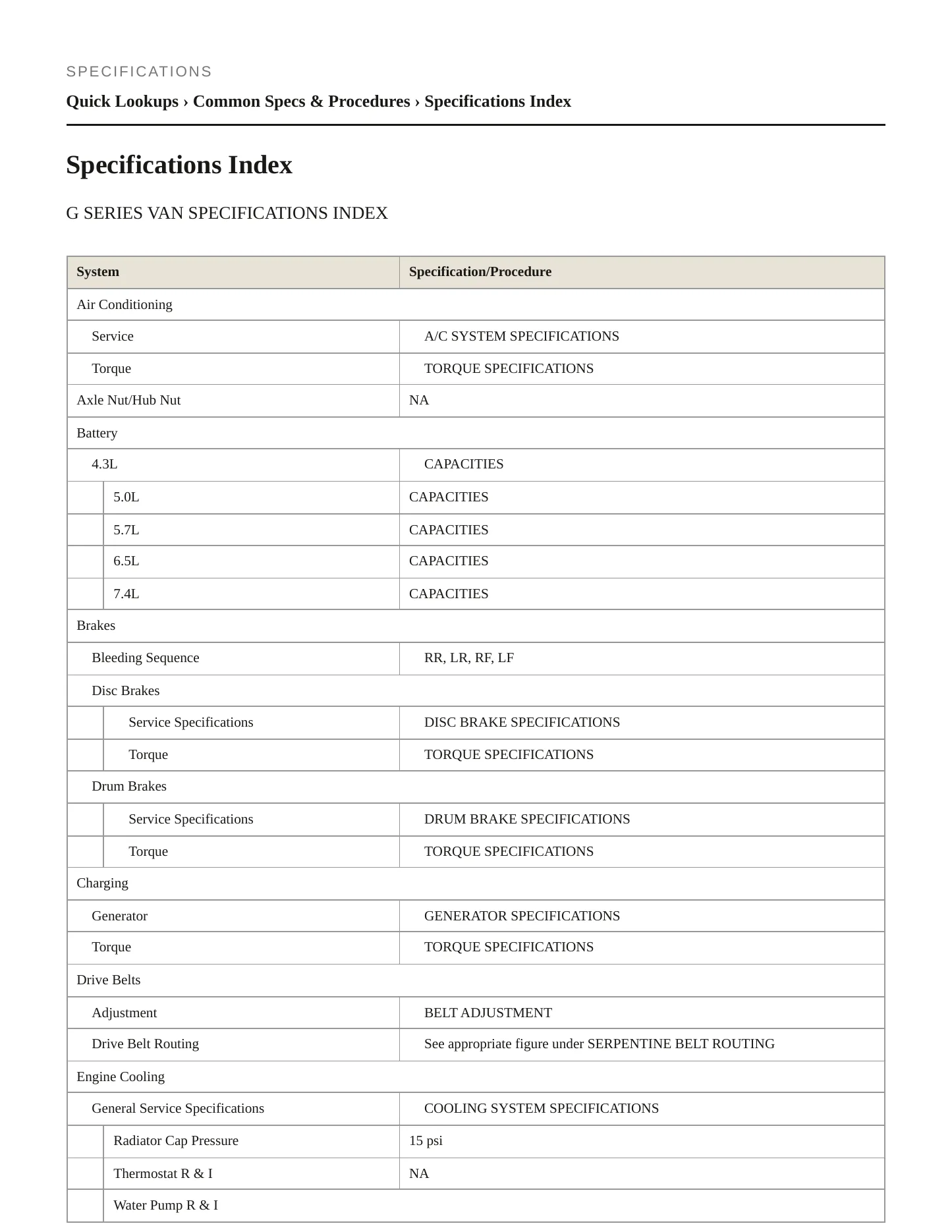

Torque specifications
Full search & bookmarks
$29.99
1995 Chevrolet G20 Service and Repair Manual
Regular price
$29.99 USD
Unit price
This factory service and repair manual for the 1995 Chevrolet G20 covers four body configurations and four trims, Base, Beauville, Chevy and Sportvan, with cargo vans in standard and extended form alongside the extended passenger van. Power comes from a 4.3L V6 of 262 cubic inches, a 5.0L V8 of 305, a 5.7L V8 of 350 or a 6.5L diesel V8 of 395, each overhead-valve and naturally aspirated. Body, chassis and driveline sections apply across the range, and engine-specific figures are called out wherever they differ.
Engines covered
- 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline
- 5.0L V8 (305 cu in) — OHV, naturally aspirated, gasoline
- 5.7L V8 (350 cu in) — OHV, naturally aspirated, gasoline
- 6.5L V8 (395 cu in) — OHV, naturally aspirated, diesel
Body styles covered
- 3-door standard cargo van
- 3-door extended passenger van
- 3-door van standard cargo van
- 3-door van extended cargo van
Trims covered
- Base
- Beauville
- Chevy
- Sportvan
Known issues on the 1995 G20. Six recalls are on the federal record here. Two of them concern the sliding side door, whose rear latch was riveted badly enough that the door may not hold as required in a crash. Another warns that vans with three-sensor antilock brakes can need longer to stop on mixed surfaces during an antilock stop. A replacement fuel filter that seals poorly at its connection can leak gasoline and, near an ignition source, start a fire. Complaints number 87, weighted toward the service brakes at 36, then the suspension at nine and the seat belts at seven, all systems specified in this manual.
THESE VEHICLES WERE BUILT WITH A SLIDING SIDE-DOOR REAR LATCH THAT WAS IMPROPERLY RIVETED. THIS DOES NOT MEET THE REQUIREMENTS OF FMVSS NO. 206, "DOOR LOCKS AND DOOR RETENTION COMP
Consequence
CONSEQUENCE OF NON-COMPLIANCE: IN THE EVENT OF A VEHICLE CRASH, THE DOOR WILL NOT PERFORM
Remedy
DEALERS WILL REPLACE THE SLIDING DOOR REAR LATCH ON ALL SUSPECT VEHICLES.
This warranty administration bulletin provides information regarding the field action courtesy transportation policy.
Expanded Availability for Remanufacture and Return (R&R) Electronic Control Modules
NO DEPLOYMENT OF DRIVER'S AIR BAG IN ACCIDENT, RESULTING IN INJURIES.
IN THIS ACCIDENT A CAR AND OUR VAN IMPACTED BOTH AT APP. 40MPH EACH HIT WITH FRONTAL IMPACT CAUSING EXT. DAMAGE TO OUR VAN AS WELL AS THE PASS. RESTRAINT NOT WORKING AND CAUSING IN
IN THIS ACCIDENT A CAR AND OUR VAN IMPACTED BOTH AT APP. 40MPH EACH HIT WITH FRONTAL IMPACT CAUSING EXT. DAMAGE TO OUR VAN AS WELL AS THE PASS. RESTRAINT NOT WORKING AND CAUSING IN
TRAVELING STRAIGHT AT HIGHWAY SPEEDS (65MPH), ON A VERY SMOOTH HIGHWAY, A LOUD POP WAS HEARD AND MY FRONT END DRIVER'S SIDE SUSPENSION COLLAPSED. I VEERED LEFT, STARTED TO ROLL, A
Showing the 4 most serious of 114 complaints filed with NHTSA.
