2020 Nissan TITAN Service and Repair Manual
Regular price
$49.99 USD
Unit price
Covers all 2020 TITAN trims — SL Crew Cab Pickup 4-Door, SV Extended Cab Pickup 4-Door, SV Crew Cab Pickup 4-Door +6 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

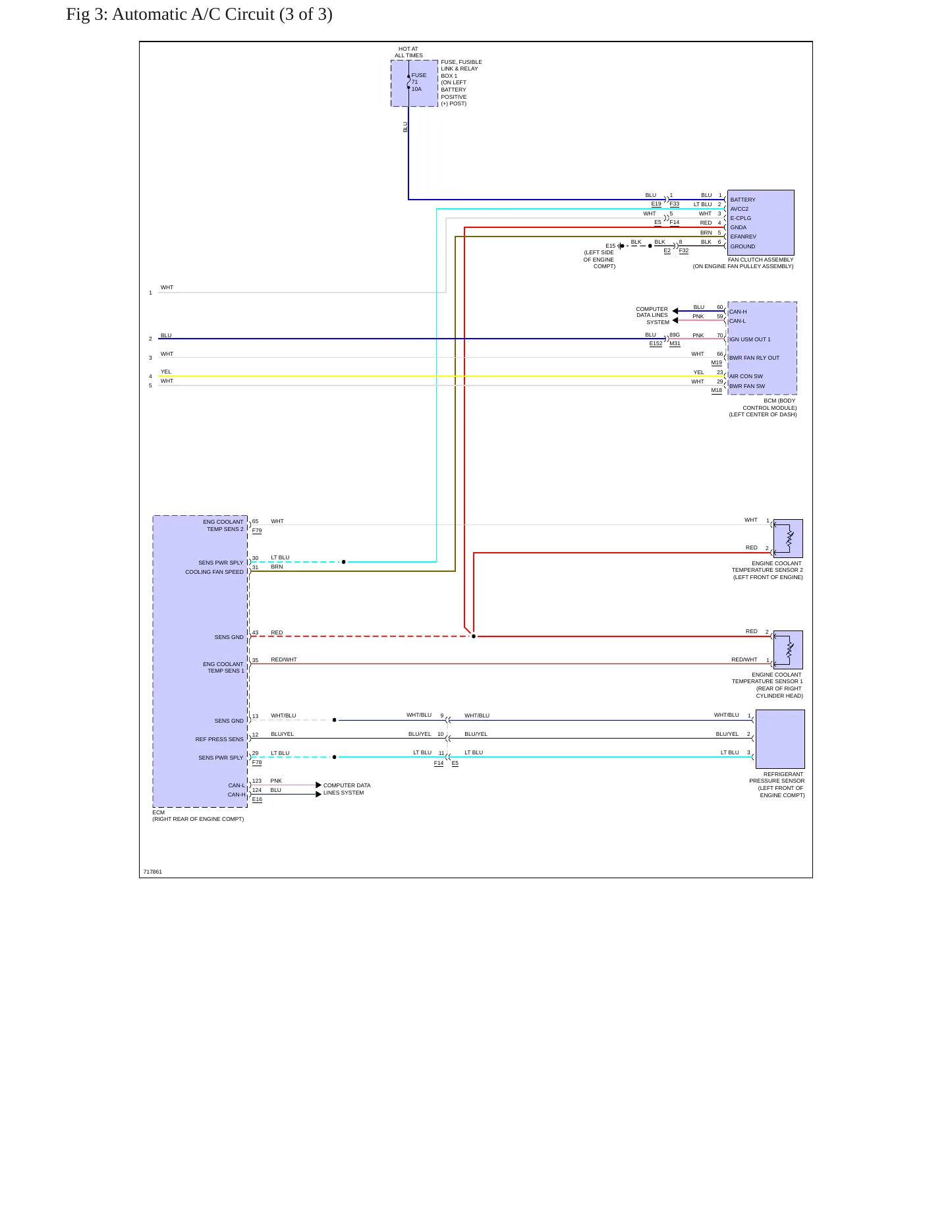

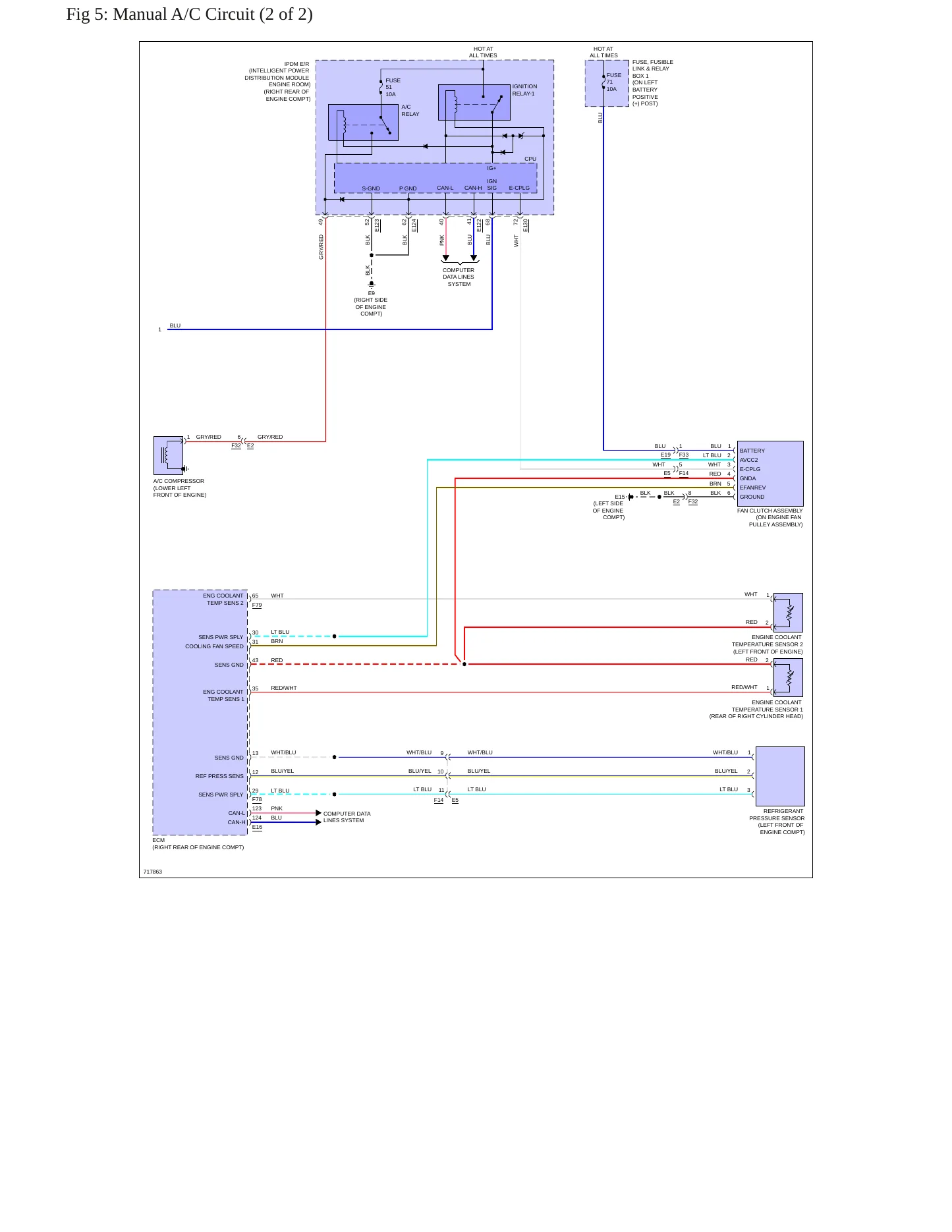

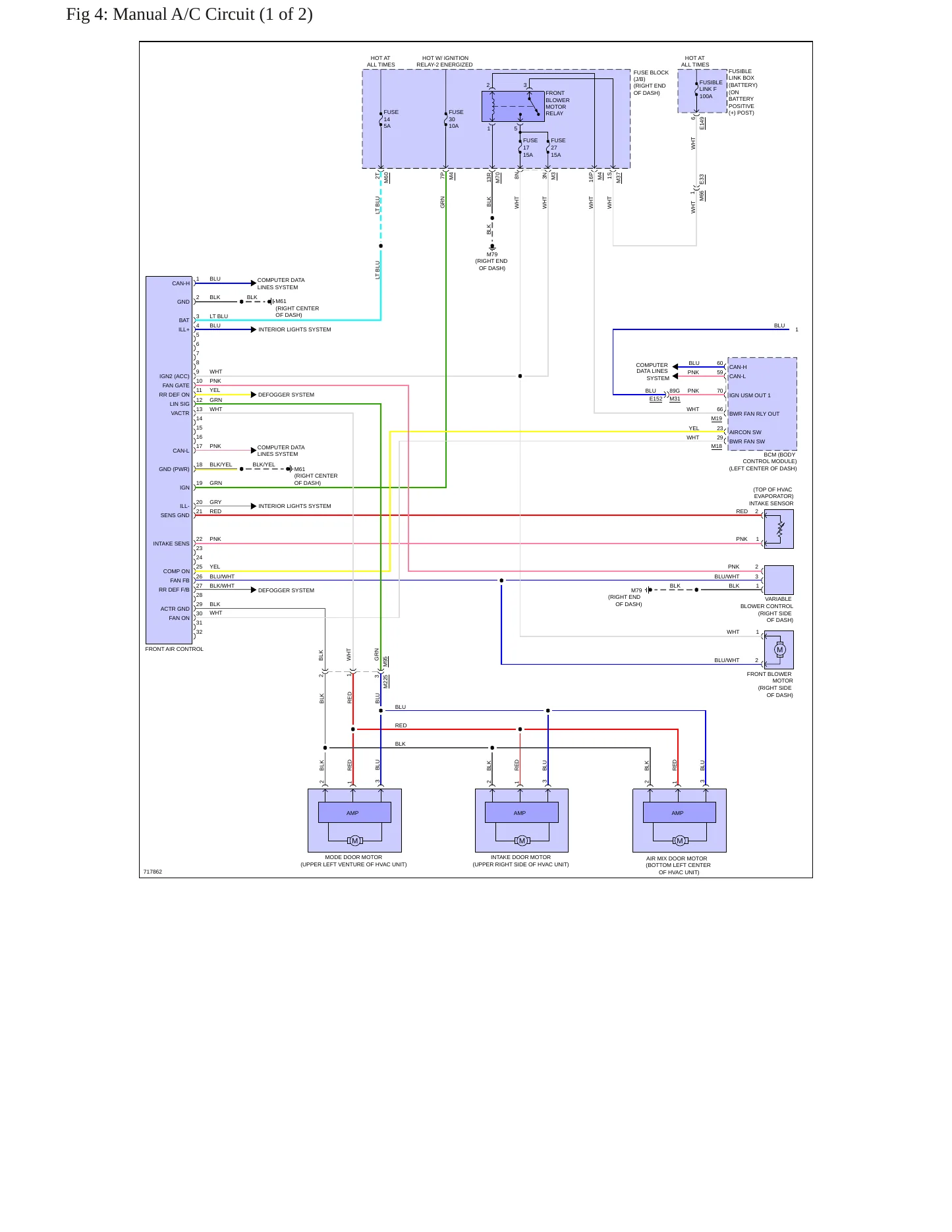

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$49.99
2020 Nissan TITAN Service and Repair Manual
Regular price
$49.99 USD
Unit price
This 2020 Nissan TITAN factory service and repair manual is built for this exact model year, engine, and trim, giving you the 5.6L V8 (VK56VD) specifications, torque figures, and repair sequences Nissan published for your truck instead of a generic full-size pickup procedure.
Engines covered
- 5.6L V8 — DOHC, naturally aspirated, gasoline
Body styles covered
- 4-door crew cab pickup
- 4-door extended cab pickup
Trims covered
- Platinum
- Platinum Reserve
- PRO-4X
- S
- SL
- SV
Known issues on the 2020 TITAN. Five recalls are on federal record for this model year. The first covers Continental tires that may have been over-cured during production, which can develop a sidewall break or belt edge separation leading to sudden air loss and loss of vehicle control. The second covers the engine wiring harness, where an exposed wire can short or arc against another wire, risking an engine stall or fire. The third covers the front turn signal bulbs, which can crack and fail to illuminate, reducing visibility to other drivers. The fourth and fifth both cover the automatic transmission's parking pawl, which may not engage when shifted into park and can allow the vehicle to roll away. Owners have filed 21 complaints for the year, and no technical service bulletins are logged. The factory diagnostic and repair procedures behind each of those systems are here.
From a parking pawl inspection to chasing a wiring short in the engine bay, it keeps you on the OEM procedure and the correct specification for your specific 2020 TITAN.
Nissan North America, Inc. (Nissan) is recalling certain 2019-2020 Altima and 2018-2021 Titan vehicles equipped with Continental tires. On the affected vehicles, it is possible that one or more tires were cured for too long during tire production.
Consequence
Over cured tires may develop a break in the sidewall, resulting in sudden air loss or belt edge separation which could lead to tread/belt loss. Either condition can cause a loss of vehicle control, i
Remedy
Nissan will notify owners, and dealers will inspect the tires, and replace them as necessary, free of charge. Owner notification letters were mailed on May 11, 2021. Owners may contact Nissan custom
Nissan North America, Inc. (Nissan) is recalling certain 2020 Titan and Titan XD pickup trucks. The engine wiring harness could contain an exposed wire that can cause an electrical short or arcing if it contacts another wire.
Consequence
An electrical short can impair the performance of the engine, transmission, or fuel pump, increasing the risk of an engine stall and a crash. An electrical short or arcing increases the risk of a fir
Remedy
Nissan will notify owners, and dealers will inspect the engine harness, replacing it if necessary, free of charge. The recall began January 27, 2021. Owners may contact Nissan customer service at 1-
Nissan North America, Inc. (Nissan) is recalling certain 2020-2021 Titan, Titan XD, and Versa vehicles. The front right and/or left turn signal bulb can crack and fail to illuminate.
Consequence
Inoperable front turn signals cannot alert on-coming drivers and/or pedestrians that the vehicle will be turning, increasing the risk of a crash.
Remedy
Dealers will inspect and replace the bulbs as necessary, free of charge. Owner notification letters were mailed August 20, 2021. Owners may contact Nissan customer service at 1-800-867-7669. Nissan
Nissan North America, Inc. (Nissan) is recalling certain 2020-2022 Frontier and Titan vehicles. The transmission parking pawl may not engage when the vehicle is shifted into park, which can result in a vehicle rollaway.
Consequence
A vehicle rollaway increases the risk of a crash.
Remedy
Owners are advised to apply the parking brake every time they park their vehicle. Dealers will replace the transmission parking pawl pin, free of charge. Owner notification letters were mailed Novem
Nissan North America, Inc. (Nissan) is recalling certain 2020-2023 Titan, 2020-2022 Frontier, and 2023 Z vehicles. The transmission parking pawl may not engage when the vehicle is shifted into park, which can result in a vehicle rollaway.
Consequence
A vehicle rollaway increases the risk of a crash.
Remedy
Owners are advised to apply the parking brake every time they park their vehicle. Dealers will perform the applicable repairs below, free of charge: Model Year 2020-2022 Frontier vehicles: reprogra
CERTIFICATION LABEL AND VIN PLATE REPLACEMENT SERVICE INFORMATION Because of collision damage or other vehicle repair, a replacement Certification Label or VIN Plate/Label may be needed. HINT: Certification Label = FMVSS (Federal Motor Vehi
CERTIFICATION LABEL AND VIN PLATE REPLACEMENT SERVICE INFORMATION Because of collision damage or other vehicle repair, a replacement Certification Label or VIN Plate/Label may be needed. HINT: Certification Label = FMVSS (Federal Motor Vehi
FLUID LEAK FROM THE FRONT DIFFERENTIAL CASE ACTUATOR MOTOR PLASTIC THREADS SERVICE INFORMATION Figure 1 Figure 2 If the front differential has a fluid leak coming from the actuator motor plastic threads (Figure 1): a. Place an alignment mar
AUTOMATIC EMERGENCY BRAKING WARNING LIGHT BLINKING APPLIED SYSTEMS: Vehicles equipped with a lane camera (see Figure 1) SERVICE INFORMATION If the Automatic Emergency Braking (AEB) warning light or is blinking (but not illuminated steadily)
INTELLIGENT CRUISE CONTROL INOPERATIVE AND AEB/FEB WARNING LIGHT ON OR RADAR OBSTRUCTION MESSAGE DISPLAYED WITH DTC C1A16 OR C2582 IF YOU CONFIRM IMPORTANT: The purpose of ACTION (on the next page) is to give you a quick idea of the work yo
LANE CAMERA AIMING VEHICLE REFERENCE VALUES NOT IN ESM SERVICE INFORMATION If the lane camera requires aiming, the values in Table A on page 4 must be used. For all other models/model years, consult the Electronic Service Manual (ESM).
DTC B00A0-00 STORED This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin. IF YOU CONFIRM DTC B00A0-00 (OCCUPANT DETECTION SENSOR UNIT) is stored, AND OCS zero point reset
DTC B2E1B-06 (AUTOMATIC ECALL) STORED AS CURRENT IN THE IVC APPLIED VEHICLES: 2021-2022 Armada (Y62) 2022-2023 Frontier (D41) 2023 Kicks (P15) 2021-2023 Maxima (A36) 2022-2023 Pathfinder (R53) 2021, 2023 Rogue (T33) 2022-2023 Sentra (B18) 2
Showing the 8 most recent of 161 technical service bulletins on file with NHTSA.
Truck was exiting highway driver tried to disengage cruise control, would not disengage. Driver put truck in neutral to slow down truck but didnt slow down enough to avoid accident. Driver and passeng
The contact's husband owned a 2020 Nissan Titan. The contact stated while her husband was driving 65-75 MPH, he noticed a smoke odor. The contact's husband veered to the side of the road and immediate
The contact owns a 2020 Nissan Titan. The contact stated while driving 45 MPH on a dark roadway, the automatic high-beam headlights failed to activate as needed. The contact was able to manually activ
The problem I am writing about concerns this vehicle and recall #PC773 EGI HARNESS. Reference must also be made to Nissan #NTB20-89 dated December 8, 2020. I purchased this vehicle from Bates Nissan
Please also reference NTB21-028, NTB21-073. The failed system appears to be the engine/transmission power control. My safety and passenger safety was at risk. A dealer did inspect in May of 2021 and w
The EVAP Canister and Control Valve clogs with road dust/dirt. Fuel vapors have nowhere to exits the system and fuel will overflow when fueling the vehicle. Fuel vapors have no way to exit the tank wh
I the last 6 months the truck has the TCM replaced after leaving me stranded on the side of the road. prior to completely going out the two dealers that looked at the truck said there was nothing wron
Peoria Nissan found a bad weld at the right front strut tower. The weld failed causing a crack in the frame. As a result the entire frame required replacement. Nissan refuses to offer any warranty oth
Showing the 8 most serious of 21 complaints filed with NHTSA.
