1994 GMC K3500 Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 1994 K3500 trims — Sierra SLE Standard Cab Pickup 2-Door, Sierra SLT Cab & Chassis 2-Door, Sierra SL Crew Cab Pickup 4-Door +4 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

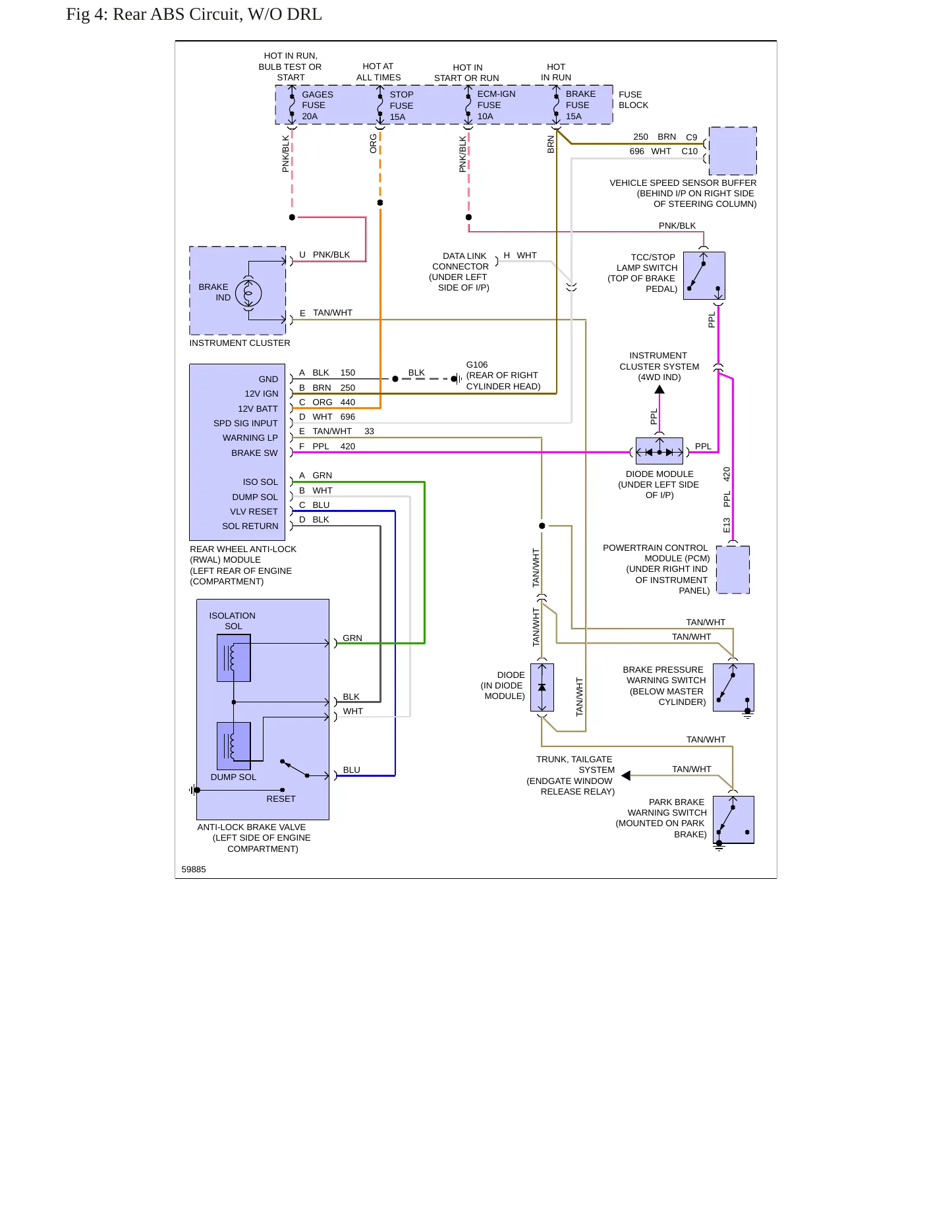

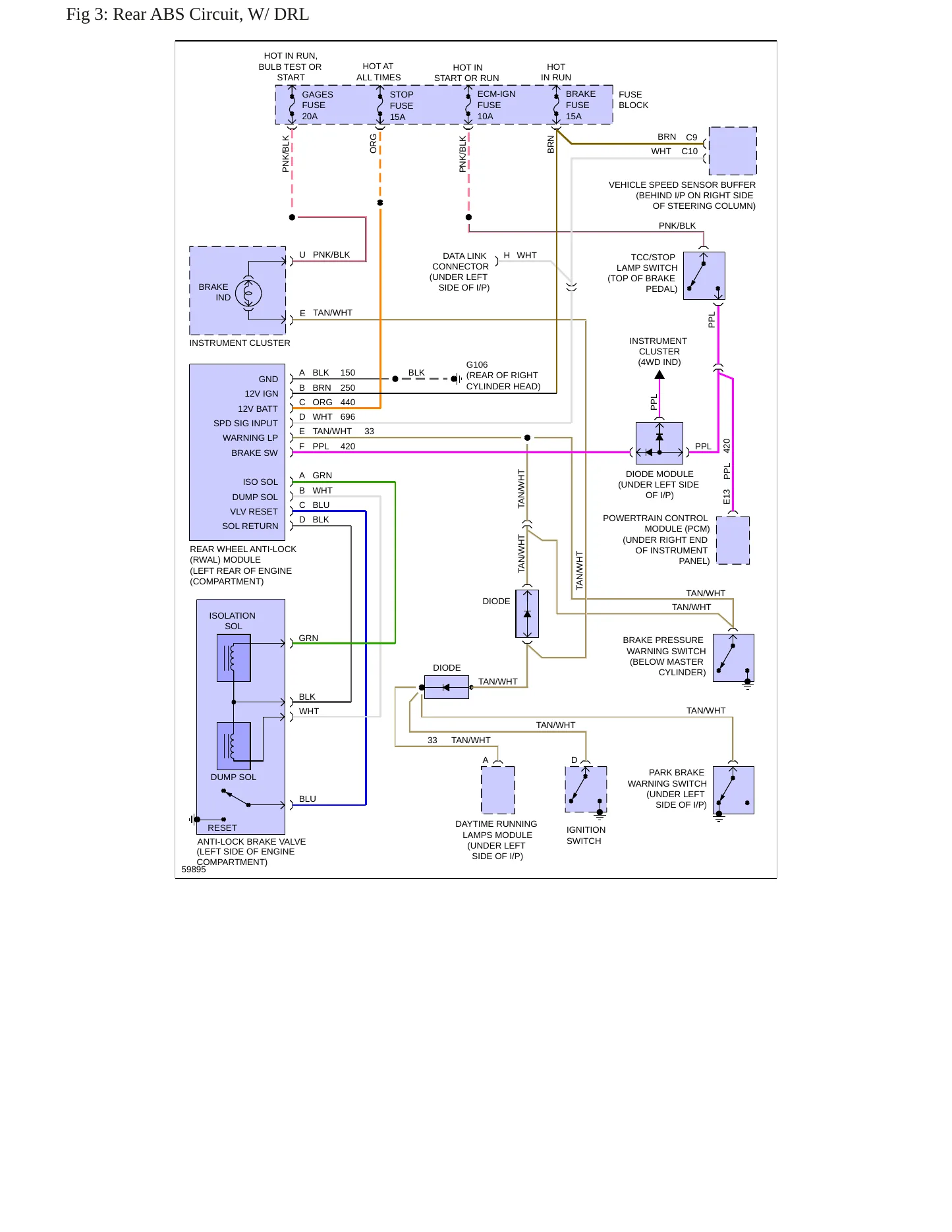

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
1994 GMC K3500 Service and Repair Manual
Regular price
$29.99 USD
Unit price
This factory service and repair manual for the 1994 GMC K3500 pairs a five-body lineup with three engines. The bodies are the standard cab pickup, the two-door cab & chassis, the four-door crew cab pickup, the four-door cab & chassis and the extended cab pickup; the engines are the turbocharged 6.5L diesel V8, the 7.4L gasoline V8 and the 5.7L gasoline V8. Sierra SL, Sierra SLE and Sierra SLT are the trims, and the same service content applies to all three.
Engines covered
- 6.5L V8 (395 cu in) — OHV, turbocharged, diesel
- 7.4L V8 (454 cu in) — OHV, naturally aspirated, gasoline
- 5.7L V8 (350 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 2-door standard cab pickup
- 2-door cab & chassis
- 4-door crew cab pickup
- 4-door cab & chassis
- 2-door extended cab pickup
Trims covered
- Sierra SL
- Sierra SLE
- Sierra SLT
Known issues on the 1994 K3500. Two recalls apply to this model year, both to replacement filters rather than to parts fitted at the factory. On the fuel side, a filter that does not seal at the connection can let fuel escape toward an ignition source; on the oil side, the same sealing failure can leave the engine without oil. Fire is the consequence in each case. Three owner complaints are logged with NHTSA, all of them under visibility. Fuel system procedures and torque values cover the first pair, and the wiring diagrams reach the circuits behind the third.
CERTAIN HONEYWELL FRAM RACING BRAND HP4 AND HP8 OIL FILTERS THAT WERE MANUFACTURED FROM MAY 25, 2006, THROUGH SEPTEMBER 14, 2007, AND SOLD FOR USE AS REPLACEMENT EQUIPMENT FOR VEHICLES LIST ABOVE. TH
Consequence
THIS CONDITION MAY CAUSE INADEQUATE SEALING AND LOSS OF ENGINE OIL, POSSIBLY RESULTING IN A FIRE.
Remedy
HONEYWELL WILL REPLACE THE AFFECTED OIL FILTERS FREE OF CHARGE. THE RECALL BEGAN DURING NOVEMBER 20
CERTAIN REPLACEMENT FUEL FILTERS, FRAM BRAND NAME P/N G3727, WITH DATE CODES X52911 THROUGH X60801 SEQUENTIALLY OR X600141 AND A MEXICO COUNTRY OR ORIGIN MARKING ON THE FUEL FILTER HOUSING MANUFACTURE
Consequence
THIS CONDITION MAY CAUSE AN INADEQUATE SEAL AT THE CONNECTION, POTENTIALLY LEADING TO A FUEL LEAK. I
Remedy
HONEYWELL WILL NOTIFY OWNERS AND REPLACE THE FUEL FILTERS FREE OF CHARGE. THE RECALL BEGAN ON OCTOB
Expanded Availability for Remanufacture and Return (R&R) Electronic Control Modules
CONSUMER STATE WINDSHIELD WIPER WOULD WORK INTERMIT WHILE IN USE. THERE IS A RECALL ON MAKE MODEL AND YEAR CONSUMER VIN DOSE NOT COMPILE. DEALER HAS BEEN CONTACTED PLEASE PROVIDE FURTHER INFORMATION.
ONGOING / INTERMITTENT PROBLEM WITH WINDSHIELD WIPERS FAILING TO OPERATE WHILE OPERATING OR NOT WORKING AT ALL, CAUSES POOR OR NO VISIBILITY WHEN NEEDED. DEALER WAS CONTACTED. *AK
Showing the 2 most serious of 3 complaints filed with NHTSA.
