2009 Nissan Frontier Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 2009 Frontier trims — SE Extended Cab Pickup 4-Door, SE Crew Cab Pickup 4-Door, LE Extended Cab Pickup 4-Door +4 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

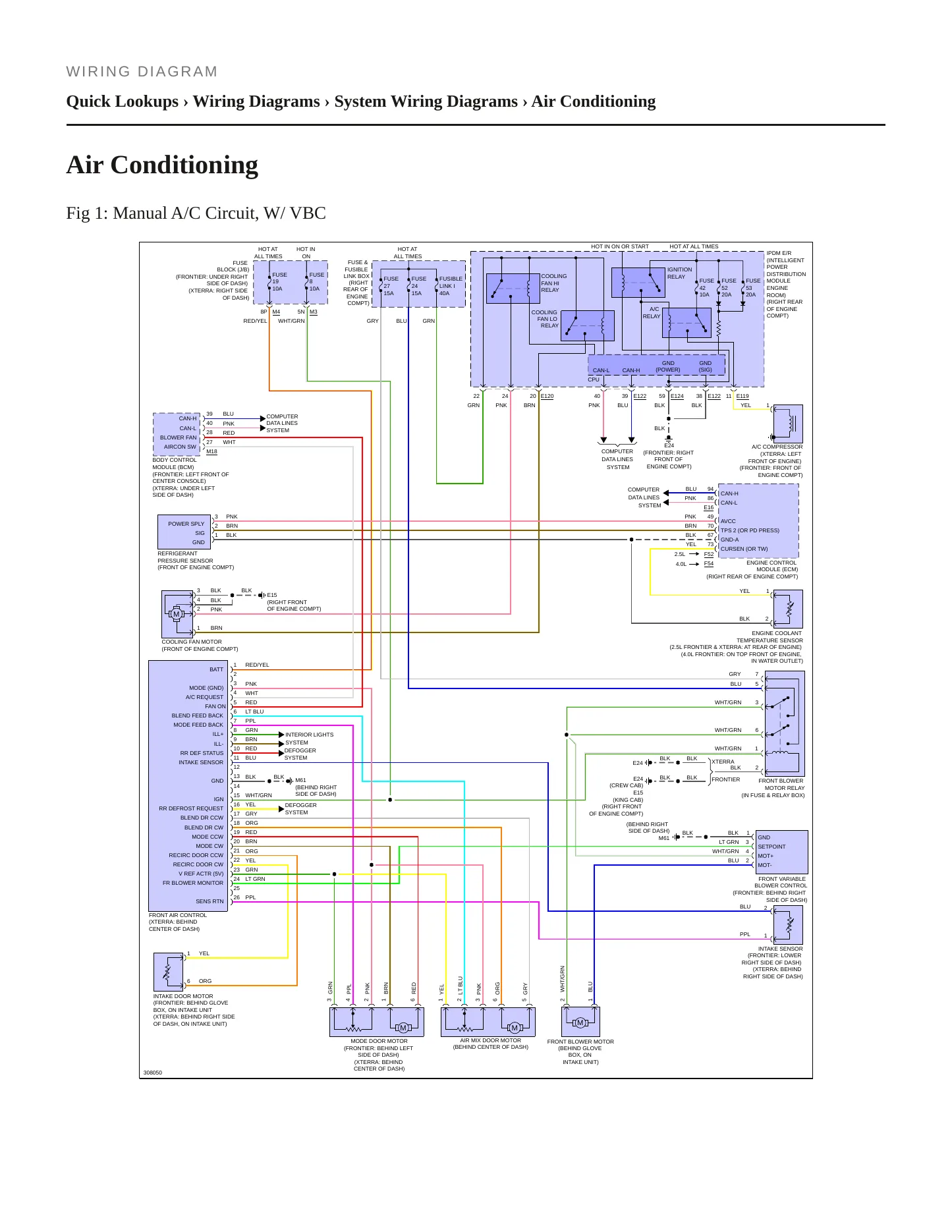

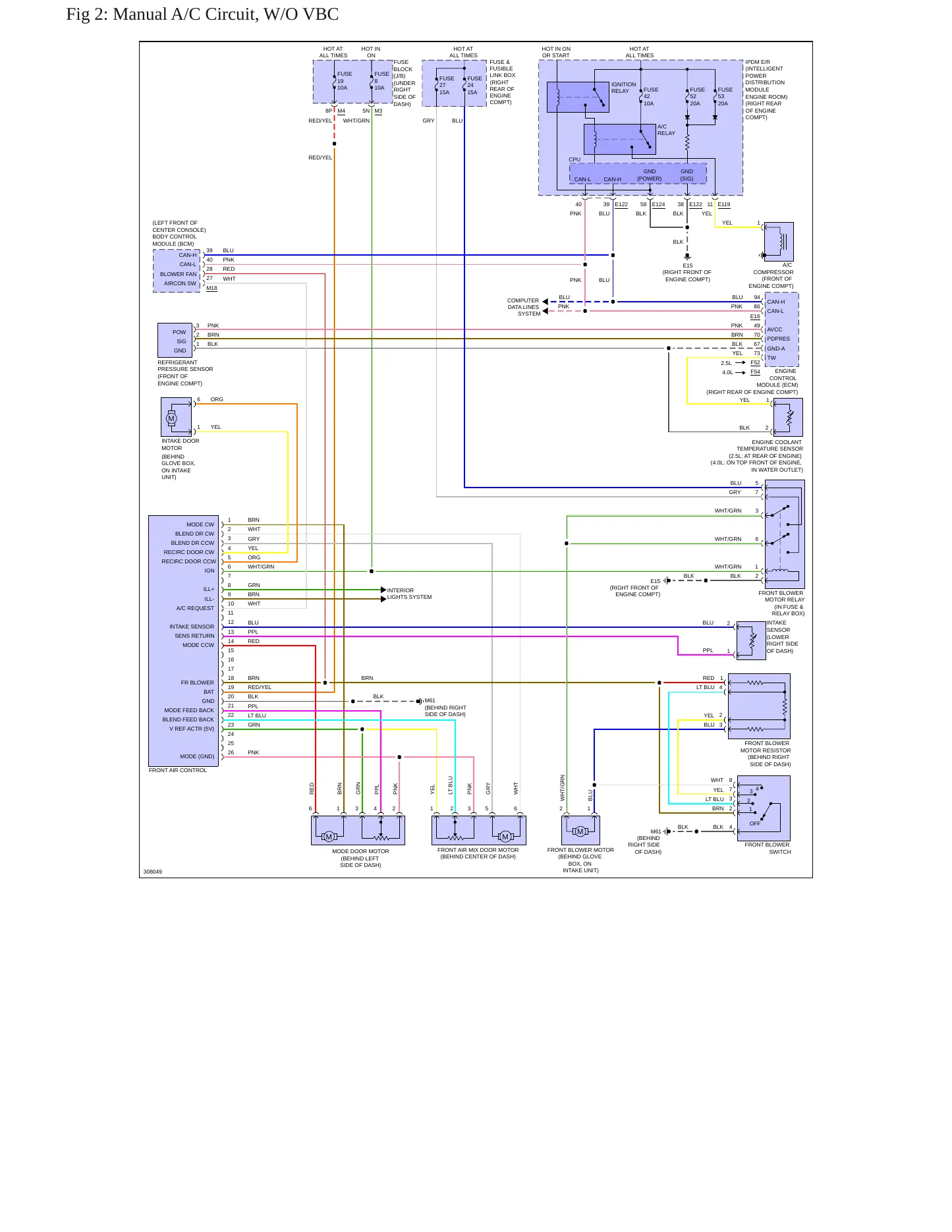

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
2009 Nissan Frontier Service and Repair Manual
Regular price
$29.99 USD
Unit price
This factory service and repair manual is built specifically for the 2009 Nissan Frontier, covering the exact engine, trim and driveline it left the factory with, including the 4.0L V6 (VQ40DE) and 2.5L I4 (QR25DE), so the specs and torque sequences you follow are Nissan's own figures for this truck rather than an approximation pulled from a different model year.
Engines covered
- 2.5L inline-four (152 cu in) — DOHC, naturally aspirated, gasoline
- 4.0L V6 — DOHC, naturally aspirated, gasoline
Body styles covered
- 4-door extended cab pickup
- 4-door crew cab pickup
Trims covered
- LE
- PRO-4X
- SE
- XE
Known issues on the 2009 Frontier. Five recalls are on federal record for this model year. The first covers a front or rear lower control link that may have been fitted as a replacement part with an improperly welded collar, which can separate and cause the vehicle's handling to deteriorate. The second covers aftermarket Marathon-brand seat covers whose heavier thread can interfere with full deployment of a side airbag in a crash. The third covers the front crash zone sensor, where road salt and snow melt can intrude into the sensor housing in cold-weather states and prevent the driver and passenger front airbags from deploying. The fourth covers Garmin nuvi 750 navigation units installed on some trucks, whose internal batteries can overheat. The fifth covers the resin emblem on the driver's airbag cover, which can crack and detach into a projectile during airbag deployment. No complaints or technical service bulletins are logged for the year. The factory diagnostic and repair procedures behind each of those systems are here.
Whether you're inspecting the front lower control arm, checking airbag wiring after a recall repair, or working through a routine service interval, it keeps you on the OEM procedure and the correct specification for your specific 2009 Frontier.
NISSAN IS RECALLING CERTAIN FRONT AND REAR LOWER LINKS, P/NOS. 54501ZQ00A, 54500ZQ00A, 551A1ZQ00A, 551A0ZQ00A , 54501EA00A, 54500EA00A, 551A1EA500, 551A0EA500, 54501ZR00A, AND 54500ZR00A, SOLD BETWEEN NOVEMBER 25, 2009 AND MAY 14, 2010 AS REPLACEMENT
Consequence
IF THE COLLAR WELD SEPARATES, THE VEHICLE HANDLING WILL DETERIORATE, POSSIBLY RESULTING IN A VEHICLE CRASH.
Remedy
NISSAN WILL NOTIFY OWNERS AND DEALERS WILL REPLACE ANY AFFECTED LOWER LINK FREE OF CHARGE. THE SAFETY RECALL BEGAN ON JULY 12, 2010. OWNERS MAY CONTACT NISSAN AT 1-800-647-7261.
MARATHON IS RECALLING CERTAIN SEAT COVERS, BRAND SUPERHIDES WITH PART NUMBERS 593, 594, 578, 960, 228, 228-09, 267-08, 333, 625, AND 630, SOLD FOR USE AS AFTERMARKET EQUIPMENT FOR VARIOUS PASSENGER VEHICLES. THESE SEAT COVERS ARE MADE OF HEAVIER THR
Consequence
AN IMPROPERLY DEPLOYED AIRBAG COULD RESULT IN SERIOUS INJURY.
Remedy
MARATHON WILL NOTIFY OWNERS OF RECORD AND REPLACE THE SEAT COVER FREE OF CHARGE. THE SAFETY RECALL BEGAN ON SEPTEMBER 14, 2010. OWNERS MAY CONTACT MARATHON AT 1-800-735-2769.
NISSAN IS RECALLING 242,720 MY 2005-2009 PATHFINDER, FRONTIER AND XTERRA VEHICLES ORIGINALLY SOLD IN OR CURRENTLY REGISTERED IN THE STATES OF CONNECTICUT, DELAWARE, ILLINOIS, INDIANA, IOWA, MAINE, MARYLAND, MASSACHUSETTS, MICHIGAN, MINNESOTA, MISSOU
Consequence
THIS ISSUE COULD RESULT IN THE NON-DEPLOYMENT OF THE DRIVER AND PASSENGER FRONT AIR BAGS IN A CRASH, INCREASING THE RISK OF PERSONAL INJURY.
Remedy
DEALERS WILL REPLACE THE FRONT CZS WITH A REDESIGNED SENSOR. THE RECALL BEGAN ON JANUARY 26, 2009. OWNERS IN THE OTHER STATES WILL RECEIVE EXTENDED WARRANTY COVERAGE FOR THE SENSOR TO 10 YEARS. THE
NISSAN IS RECALLING CERTAIN VEHICLES THAT WERE EQUIPPED WITH A GARMIN NUVI MODEL 750 NAVIGATION SYSTEM. THE BATTERIES CONTAINED IN THE AFFECTED GPS UNITS CAN OVERHEAT.
Consequence
OVERHEATED BATTERIES COULD RESULT IN A FIRE.
Remedy
NISSAN WILL NOTIFY OWNERS AND THE REPAIRS WILL BE PERFORMED BY GARMIN TECHNICIANS BY REPLACING THE BATTERY AND INSERTING A SPACER ON TOP OF THE BATTERY FREE OF CHARGE. THE SAFETY RECALL BEGAN ON SEP
Nissan North America, Inc. (Nissan) is recalling certain 2008-2011 Titan, Frontier, Xterra, Pathfinder, Armada, and 2008-2009 Quest vehicles. The resin emblem on the driver's air bag cover may develop cracks and detach during air bag deployment.
Consequence
A detached emblem can become a projectile during air bag deployment, increasing the risk of injury to vehicle occupants.
Remedy
Dealers will replace the drivers airbag cover. Owner letters were mailed December 8, 2023. Owners may contact Nissan's customer service at 1-800-867-7669. Nissan's number for this recall are PC944
CERTIFICATION LABEL AND VIN PLATE REPLACEMENT SERVICE INFORMATION Because of collision damage or other vehicle repair, a replacement Certification Label or VIN Plate/Label may be needed. HINT: Certification Label = FMVSS (Federal Motor Vehi
CERTIFICATION LABEL AND VIN PLATE REPLACEMENT SERVICE INFORMATION Because of collision damage or other vehicle repair, a replacement Certification Label or VIN Plate/Label may be needed. HINT: Certification Label = FMVSS (Federal Motor Vehi
VOLUNTARY SAFETY RECALL CAMPAIGN 2005-2013 FRONTIER, PATHFINDER, AND XTERRA; DRIVER AIR BAG COVER CAMPAIGN ID #: PC945 and PC948 APPLIED VEHICLES: 2005-2013 Frontier (D40) 2005-2012 Pathfinder (R51) 2005-2013 Xterra (N50) Check Service COMM
VEHICLE KEY NOT DETECTED / AUTHENTICATED, ENGINE WILL NOT START This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
CAN COMMUNICATION NETWORK DIAGNOSTIC FLOW CHART This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
CAN COMMUNICATION CODES DIAGNOSTIC TIPS AND GUIDELINES This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
WINDOW GLASS WARRANTY INFORMATION This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
REMOVING FOREIGN MATERIAL FROM THE WINDOW GLASS This bulletin has been amended. See AMENDMENT HISTORY on the last page. Please discard previous versions of this bulletin.
Showing the 8 most recent of 99 technical service bulletins on file with NHTSA.
No complaints filed
No consumer complaints on file with NHTSA for the 2009 Nissan Frontier.
