2003 Audi S6 Service and Repair Manual
Regular price
$40.99 USD
Unit price
Covers all 2003 S6 trims — Base Sedan 4-Door, Avant Wagon 4-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

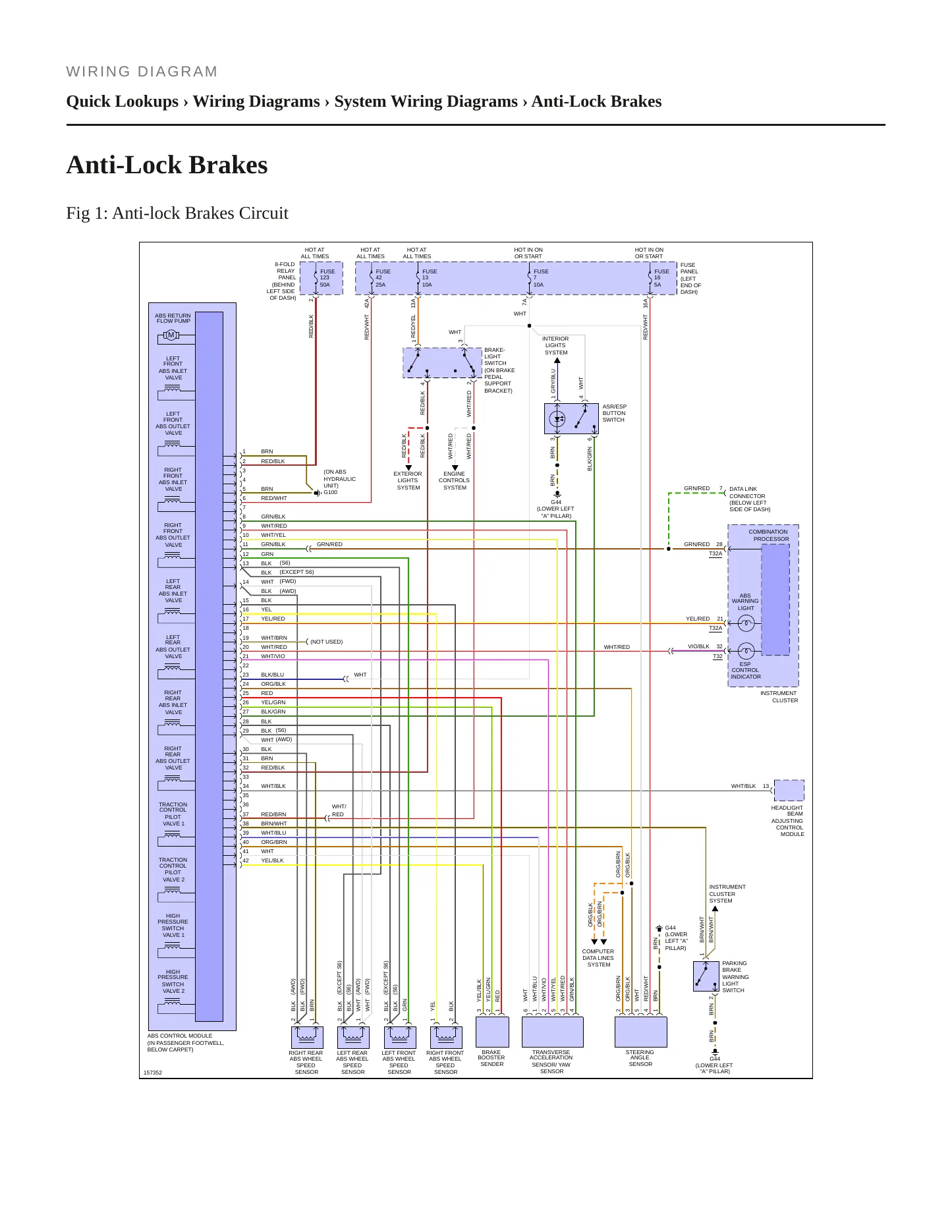

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$40.99
2003 Audi S6 Service and Repair Manual
Regular price
$40.99 USD
Unit price
This manual is built specifically for the 2003 Audi S6, covering the 4.2L V8 (engine code BBD) as Audi documented it for this exact model and trim, so the torque values and procedures inside match your car rather than a related A6 or RS6 variant.
Engines covered
- 4.2L V8 — DOHC, naturally aspirated, gasoline
Body styles covered
- 4-door sedan
- 4-door wagon
Trims covered
- Base
- Avant
Known issues on the 2003 S6. Two recalls are on federal record for this model year. The first covers the fuel tank assembly: aging of the plastic rollover valve combined with bending stress from the aluminum ventilation line can crack the valve nipple, and a resulting fuel leak near an ignition source could lead to a vehicle fire. The second covers the electrical system, where knee bolster contact under the dashboard can push against the headlight switch wiring harness, causing an electrical short that could originate a fire in the left dashboard area. Owners have filed 2 complaints for the year and no technical service bulletins are logged. The factory diagnostic and repair procedures behind each of those systems are here.
From a fuel tank vent line inspection to tracing the dashboard wiring harness or a routine service interval, it keeps you on the OEM procedure and the correct specification for your specific 2003 S6.
VOLKSWAGEN IS RECALLING CERTAIN MODEL YEAR 2001-2004 AUDI A6, MODEL YEAR 2002-2003 S6 AND MODEL YEAR 2003 RS6 VEHICLES EQUIPPED WITH 4.2L ENGINES AND MANUFACTURED FROM JUNE 19, 2001, THROUGH JUNE 8, 2004. THE AGING OF THE PLASTIC MATERIAL IN THE FUE
Consequence
A FUEL LEAK IN THE PRESENCE OF AN IGNITION SOURCE COULD LEAD TO A VEHICLE FIRE.
Remedy
DEALERS WILL REINFORCE THE NIPPLE ON THE ROLLOVER VALVE TO PREVENT LEAKAGE OR REPAIR THE CRACKING AT THE NIPPLE. THE RECALL IS EXPECTED TO BEGIN DURING JUNE 2011. OWNERS MAY CONTACT AUDI AT 1-800-82
ON CERTAIN PASSENGER VEHICLES, IF A DRIVER'S KNEES PUSH AGAINST THE KNEE BOLSTER (CRASH ELEMENT) LOCATED UNDER THE DASHBOARD, IT CAN CONTACT THE HEADLIGHT SWITCH WIRING HARNESS, AND AN ELECTRICAL SHORT COULD OCCUR.
Consequence
A FIRE COULD ORIGINATE IN THE LEFT DASHBOARD AREA.
Remedy
DEALERS WILL INSTALL A PROTECTIVE COVERING ON THE KNEE BOLSTER (CRASH ELEMENT). IN ADDITION, THE WIRING HARNESS AS WELL AS THE FELT PROTECTOR ON THE LEFT SIDE OF THE DASHBOARD CARRIER WILL BE CHECKED
Audi Delivery Guidelines.
Audi Delivery Guidelines.
This bulletin provides information on the additional reporting requirements for safety related inquiries.
High quality media files (video and sound) are now integrated into technical service bulletins on a case-by-case basis. Media files can now be viewed on any smartphone or tablet.
The use of contaminated gasoline or gasoline with a low content of deposit control additives may result in one or more conditions.
This Technical Service Bulletin (TSB) details the general process for carrying out a Software Version Management (SVM) software update for any TSB or Update.
ATF pan leaks
Vehicle lacks power or will not move after stop due to simultaneous depressing of the brake and accelerator pedals
Showing the 8 most recent of 89 technical service bulletins on file with NHTSA.
Pursuant to outstanding recall repair: Fuel tank leaks substantially when filled over 1/2 tank. Zimbrick Audi of Madison, WI confirms symptom, and confirms that fuel tank needs to be replaced pursuan
The contact owns a 2003 Audi S6. The contact stated that while refueling the vehicle in the driveway, gasoline was leaking from the vehicle. The vehicle was then repaired under NHTSA Campaign Number:
