1999 Chevrolet P30 Service and Repair Manual

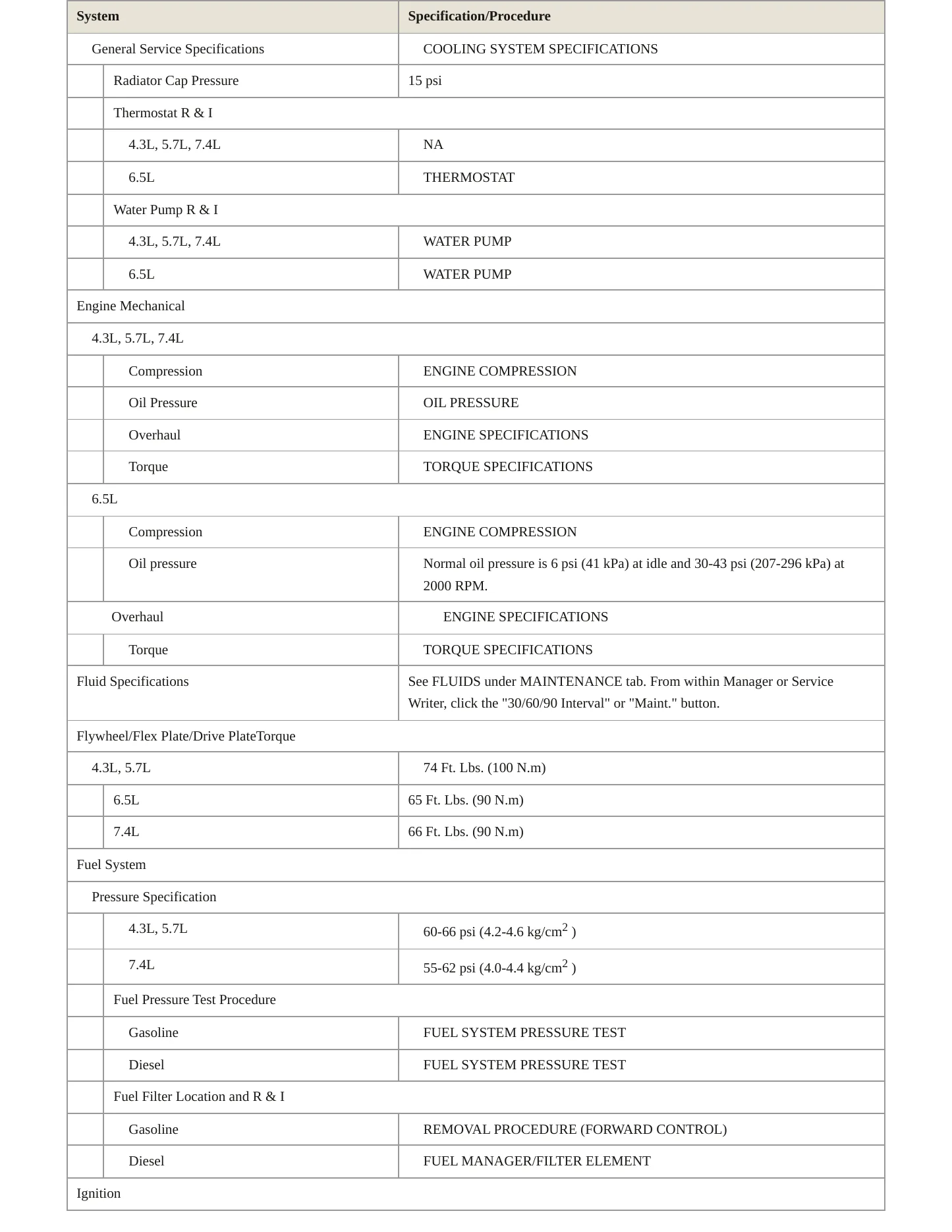

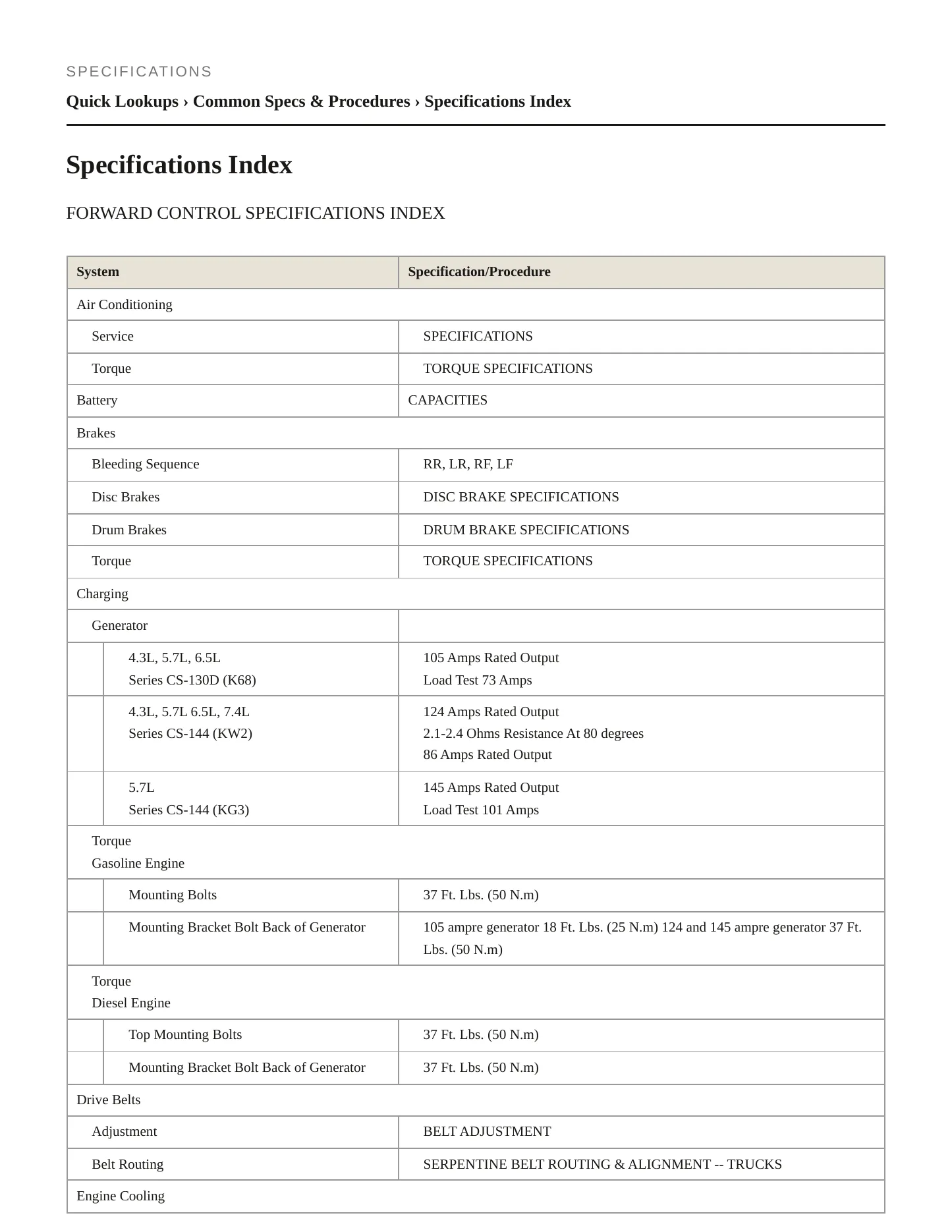

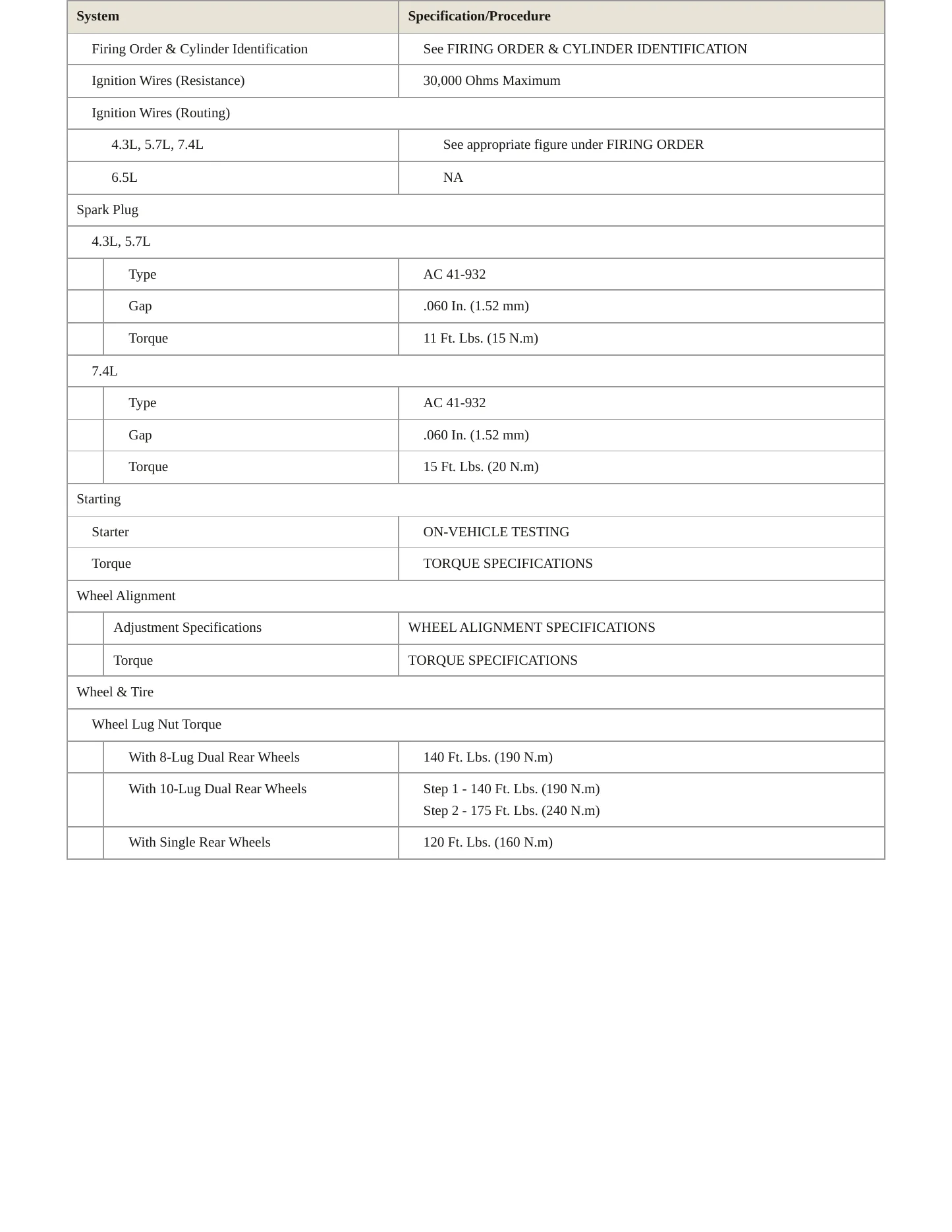

This factory service and repair manual for the 1999 Chevrolet P30 is a chassis book above all: the three configurations listed are a plain chassis, a stripped motorhome chassis and a two-door cab and chassis, in Base and Base Stripped trim. Six engines are covered, from the 4.1L inline-six through the 4.3L V6 and the 5.7L and 7.4L gasoline V8s to two versions of the 6.5L diesel V8. Specifications, torque values, wiring diagrams and diagnostics are set out system by system.

Engines covered

• 6.5L V8 (395 cu in) — OHV, turbocharged, diesel
• 7.4L V8 (454 cu in) — OHV, naturally aspirated, gasoline
• 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline
• 5.7L V8 (350 cu in) — OHV, naturally aspirated, gasoline
• 6.5L V8 (395 cu in) — OHV, naturally aspirated, diesel
• 4.1L inline-six (250 cu in) — OHV, naturally aspirated, gasoline

Body styles covered

• Chassis
• Motorhome, stripped chassis
• 2-door cab & chassis

Trims covered

• Base
• Base Stripped

Known issues on the 1999 P30. One recall appears on the federal record for this year, covering replacement oil filters that do not seal properly and can let the engine lose its oil, which may then reach something hot enough to ignite. Two owner complaints are recorded, one on the service brakes and one on suspension. Lubrication specifications and oil pressure testing, brake hydraulic and lining service, and spring, shock and front end procedures with their alignment figures and torque values are all covered in this manual.
