1996 Ford Escort Service and Repair Manual
This factory service and repair manual for the 1996 Ford Escort lists seven trims, Base, Aust, Equi, GT, LX, Mid and Sport, and two naturally aspirated gasoline engines, the 1.9-liter SOHC inline-four and the 1.8-liter DOHC inline-four. Four bodies are covered: the four-door wagon, the two-door hatchback, the four-door sedan and the four-door hatchback. Each engine gets its own specifications and torque values, and the shared systems, from driveline and suspension to restraints and body electrics, get procedures, wiring diagrams and diagnostics of their own.
Engines covered
- 1.9L inline-four (113 cu in) — SOHC, naturally aspirated, gasoline
- 1.8L inline-four (112 cu in) — DOHC, naturally aspirated, gasoline
Body styles covered
- 4-door wagon
- 2-door hatchback
- 4-door sedan
- 4-door hatchback
Trims covered
- Base
- Aust
- Equi
- GT
- LX
- Mid
- Sport

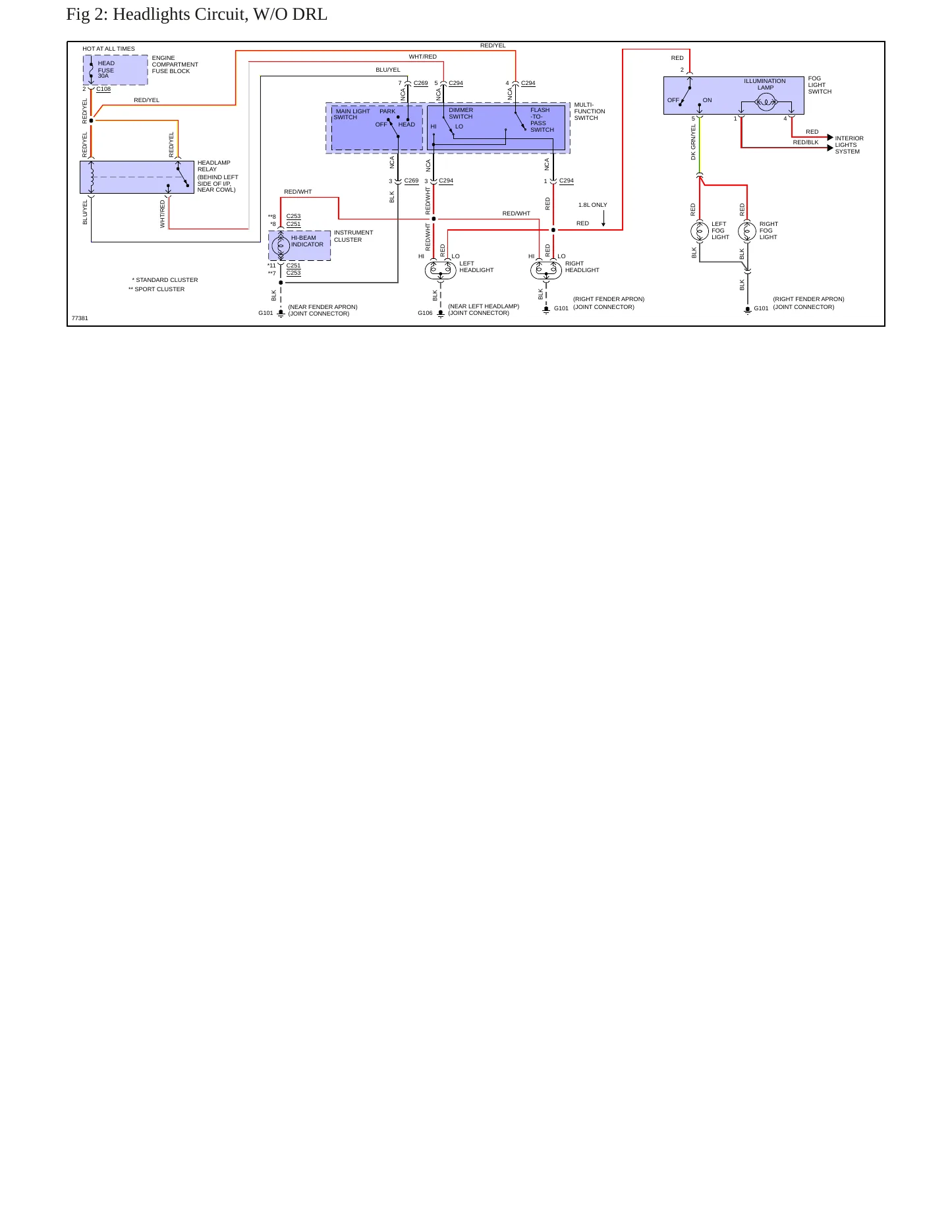

Known issues on the 1996 Escort. One recall is on federal record for the 1996 Escort, and it does not concern factory parts: aftermarket corner lamps, turn signals and headlights sold as replacements were built without the amber side reflectors the standard requires, leaving the car poorly marked to other drivers. Owners have filed 248 complaints with NHTSA. Seat belts head the list, followed by engine and cooling and then air bags. Restraint service, lighting circuits and engine diagnostics all have their sections here, with wiring diagrams for the exterior lamps included.
CERTAIN PRO-A MOTORS CORNER LAMPS, TURN SIGNALS, AND HEADLIGHTS SOLD AS REPLACEMENT LAMPS FOR USE ON CERTAIN PASSENGER VEHICLES LISTED ABOVE. SOME COMBINATION LAMPS THAT ARE NOT E
CLIMATE CONTROL A/C SERVICE TECH TIPS. *EH
LAMP-BRAKE-INVADVERTENT DISABLING OF BRAKE SHIFT INTERLOCK. *MJ
ENGINE OIL SYSTEM PRIMING PROCEDURES, SERVICE TIPS FOR REPORTS OF PREMATURE ENGINE FAILURE. *TT
SOME ENGINE ASSEMBLIES WITH ALUMINUM CYLINDER HEADS REPAIRED IN-VEHILE HAVE BEEN FOUND TO LEAK COOLANT AND/OR OIL FROM THE CYLINDER HEAD GASKET AREA. *TT
BRAKE SHIFT INTERLOCK.*JB
07-NOV-2001
SOME VEHICLES MAY EXHIBIT HEATER CORE LEAKS. *SLC
INFORMATION REGARDING TRANSMISSION FLUID USAGE CHARTS. *SLC
Showing the 8 most recent of 90 technical service bulletins on file with NHTSA.
DRIVER'S SIDE AIRBAG DID NOT COME OUT OF MIDDLE OF STEERING WHEEL AS INTENDED, INSTEAD CAME OUT MORE TO RIGHT, OCCUPANT RECEIVED INJURIES. *AK
SEALT BELT ON THE DRIVER'S SIDE SNAPPED OFF IN TRACK AND CAUSED A CONCUSION AS WELL AS A LARGE CONTUSION TO MY HEAD. IT REQUIRED 14 STITCHES AND 10 STAPLES. THE AIR BAGS DEPOLYED
Showing the 2 most serious of 248 complaints filed with NHTSA.
