1994 Chevrolet K1500 Service and Repair Manual

This factory service and repair manual for the 1994 Chevrolet K1500 has five engines to document, and two of them are 395 cubic inch diesel V8s that differ only in induction, one turbocharged and one naturally aspirated, so their specifications have to be read apart. The other three burn gasoline: a 4.3L V6 and 5.0L and 5.7L V8s. Two-door extended and standard cabs make up the body coverage, and Base, Cheyenne, Silverado and WT the equipment levels.

Engines covered

• 5.0L V8 (305 cu in) — OHV, naturally aspirated, gasoline
• 6.5L V8 (395 cu in) — OHV, turbocharged, diesel
• 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline
• 5.7L V8 (350 cu in) — OHV, naturally aspirated, gasoline
• 6.5L V8 (395 cu in) — OHV, naturally aspirated, diesel

Body styles covered

• 2-door extended cab pickup
• 2-door standard cab pickup

Trims covered

• Base
• Cheyenne
• Silverado
• WT

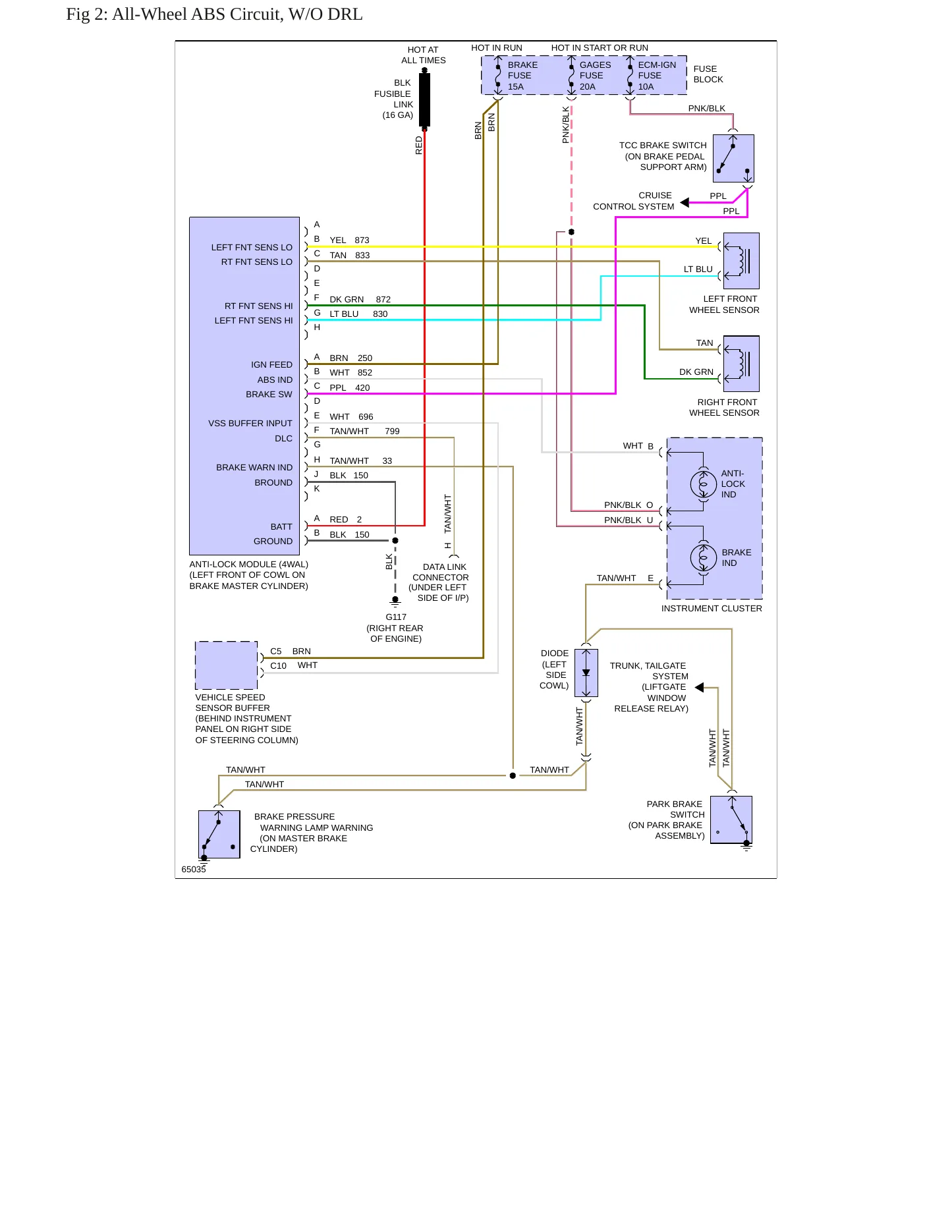

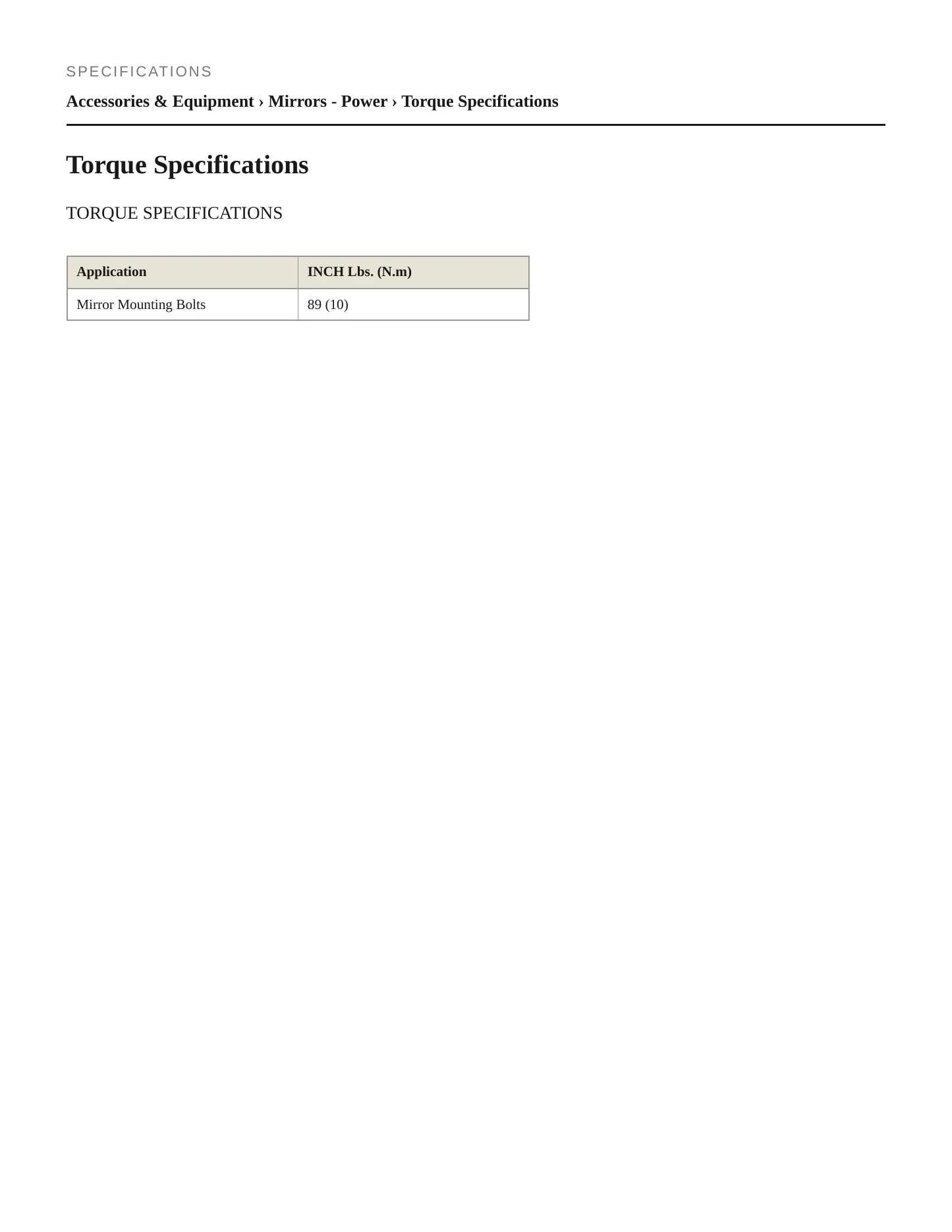

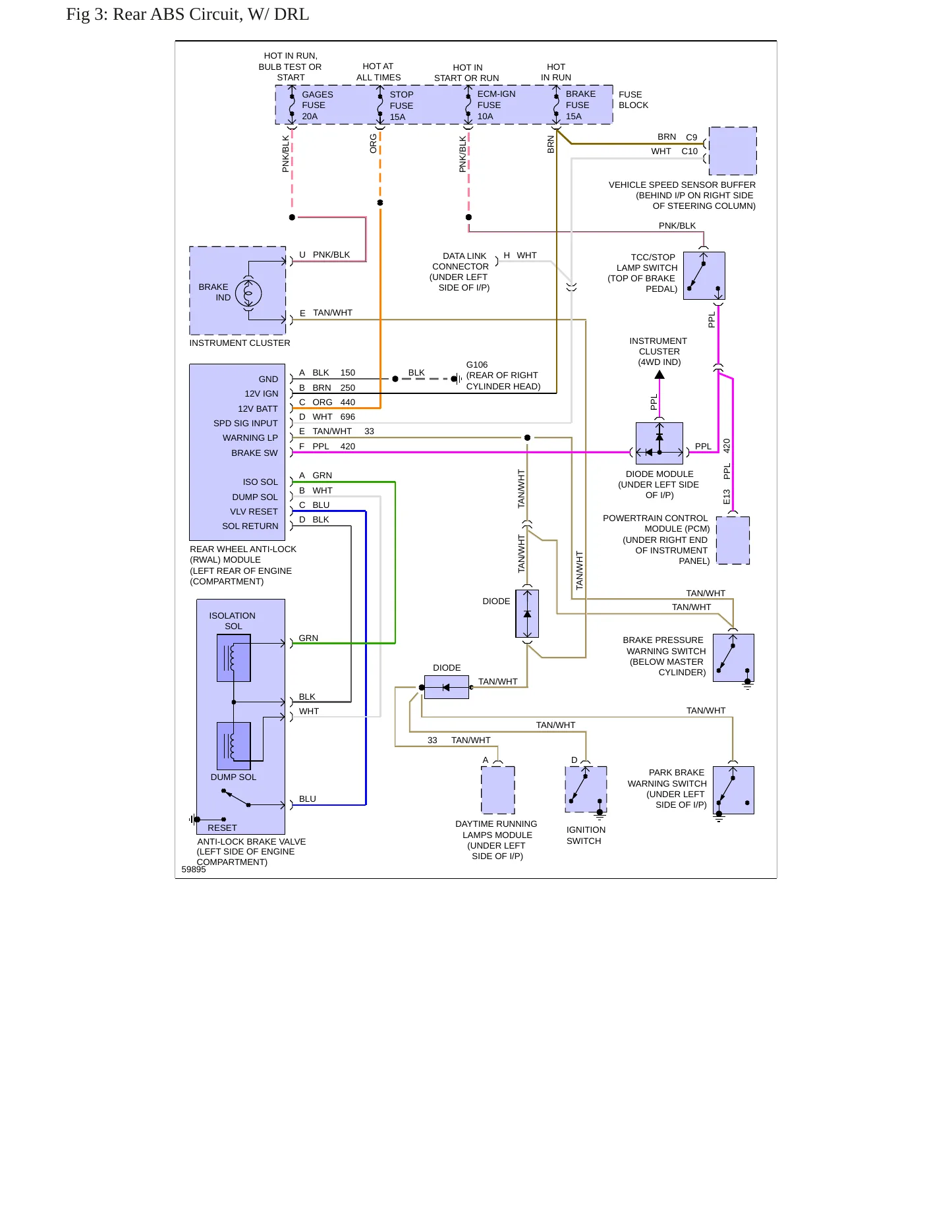

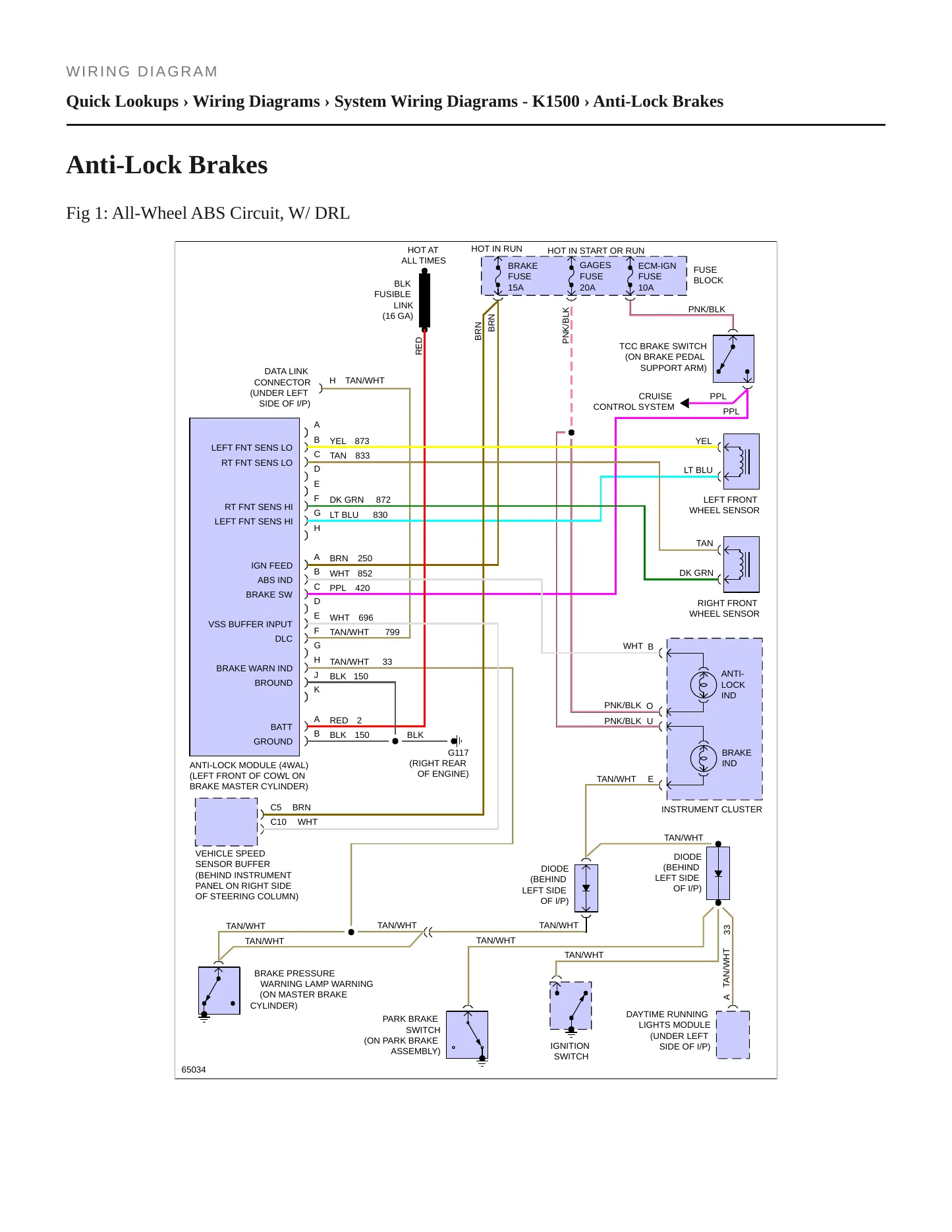

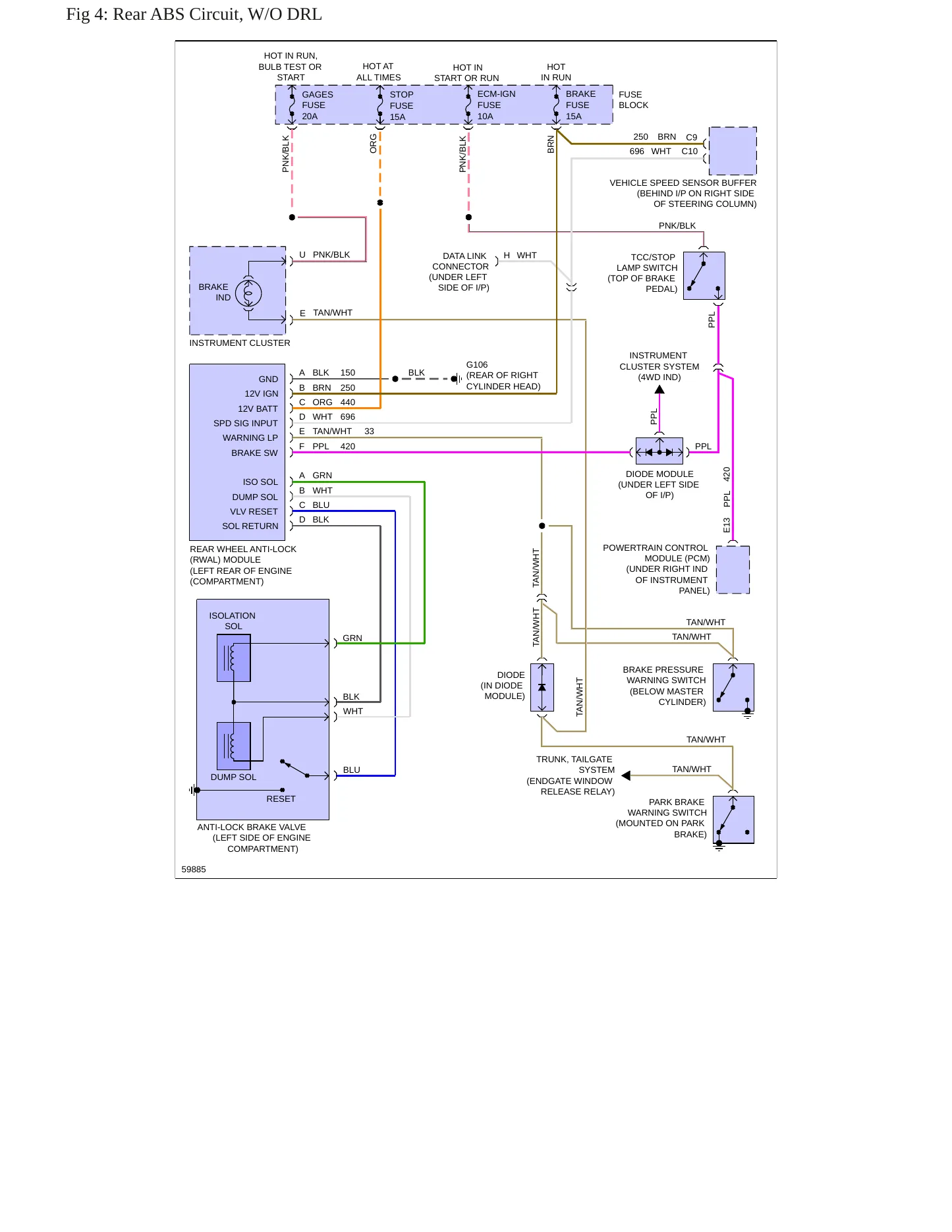

Known issues on the 1994 K1500. Nothing is recorded against the 1994 K1500 at the federal level, neither a recall nor an owner complaint. The manual's job here is descriptive rather than corrective. It carries procedures, specifications, torque values, wiring diagrams and diagnostics for all five engines, which matters most where the two 6.5L diesels are concerned, since the turbocharged version has its own service limits and its own diagnostic routine. Chassis and body sections cover the running gear, driveline, brakes and cab wiring shared by the standard and extended cab trucks.
