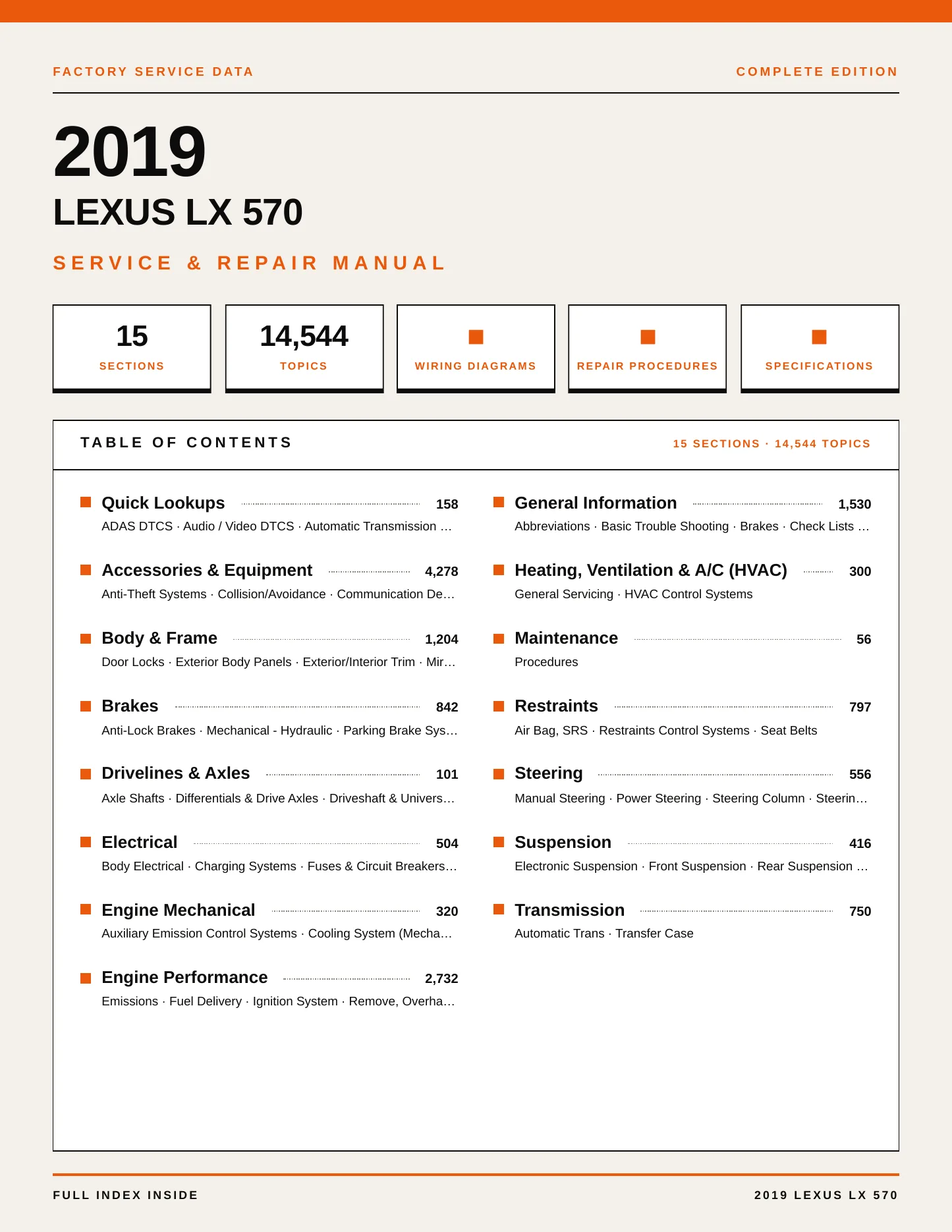

2019 Lexus LX 570 Service and Repair Manual
Regular price
$53.99 USD
Unit price
Fits the 2019 LX 570 — Base ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

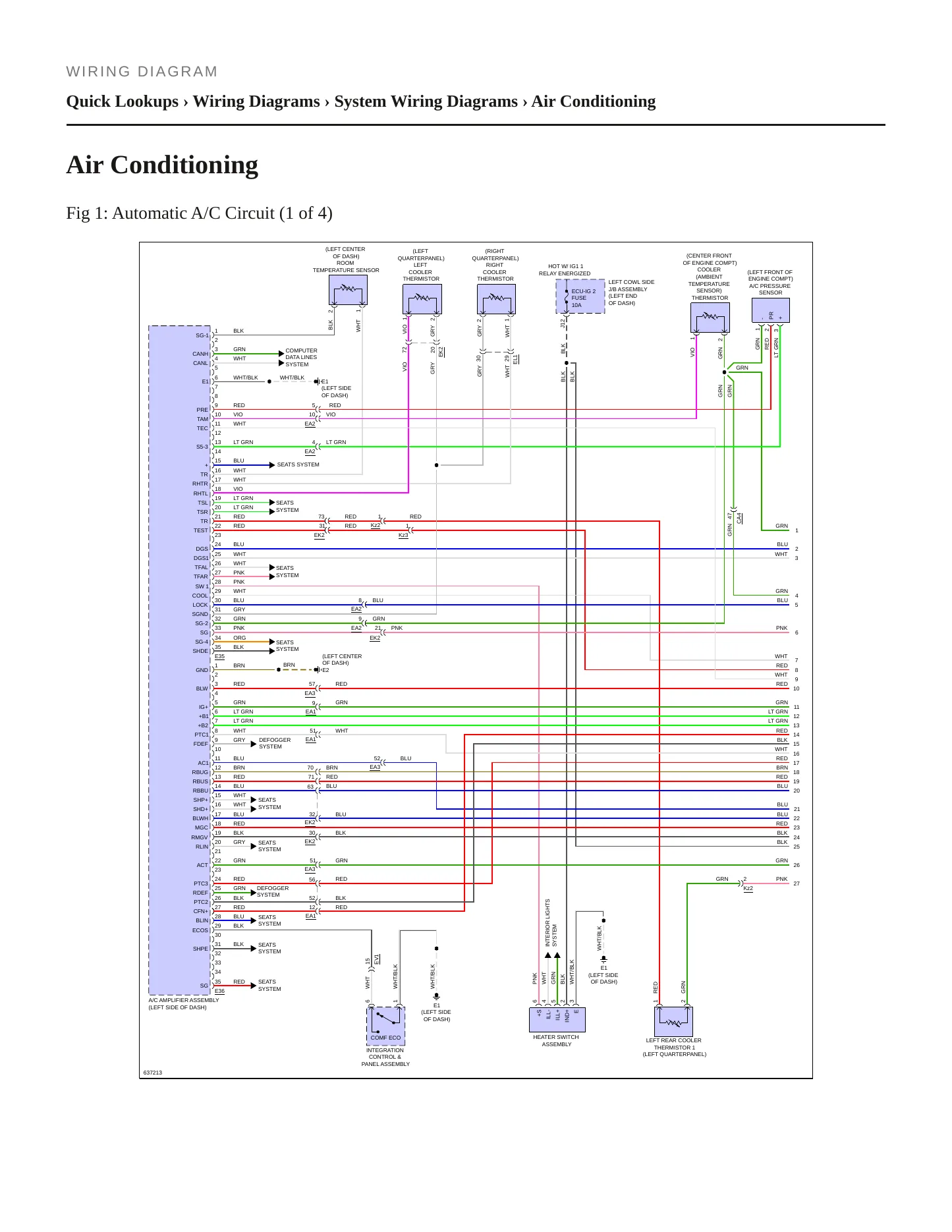

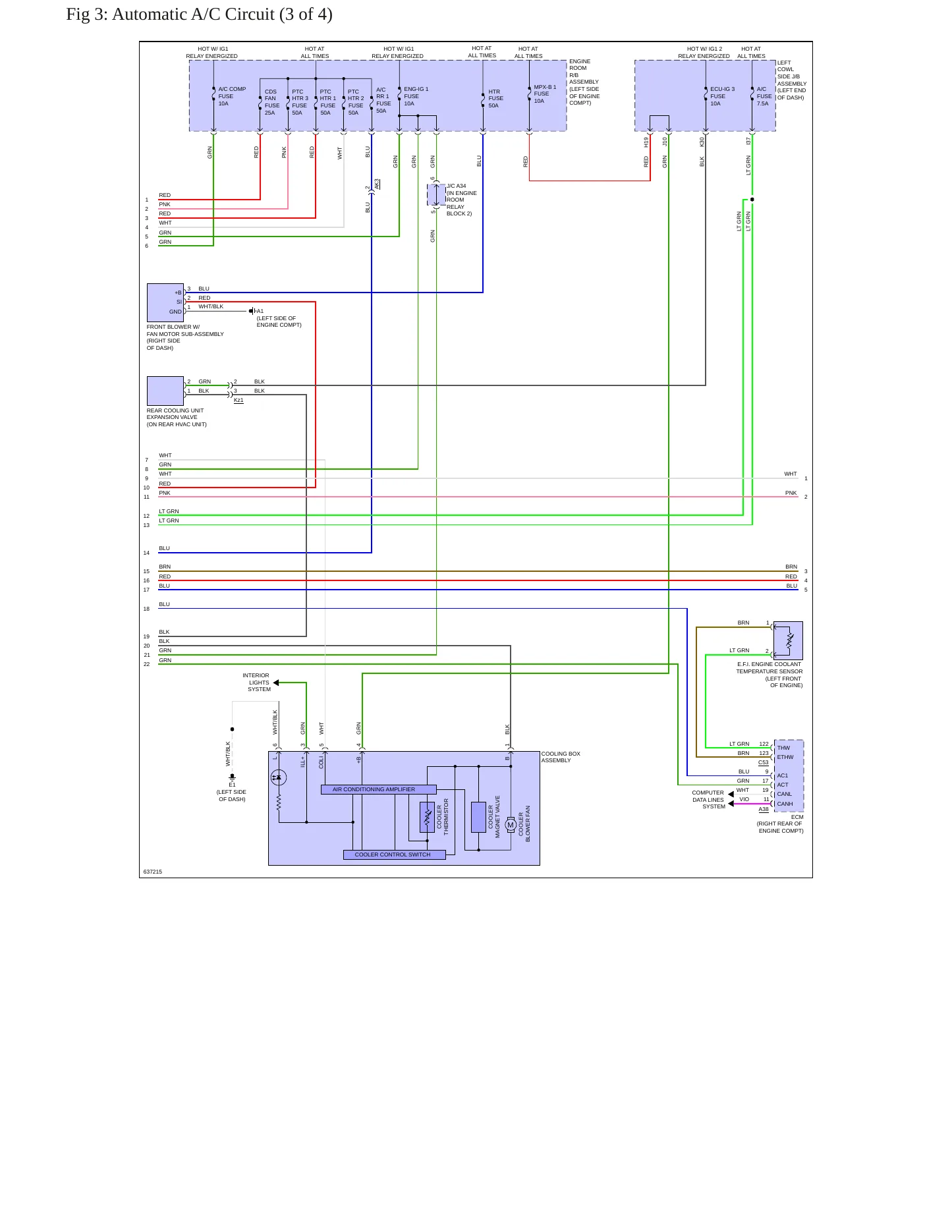

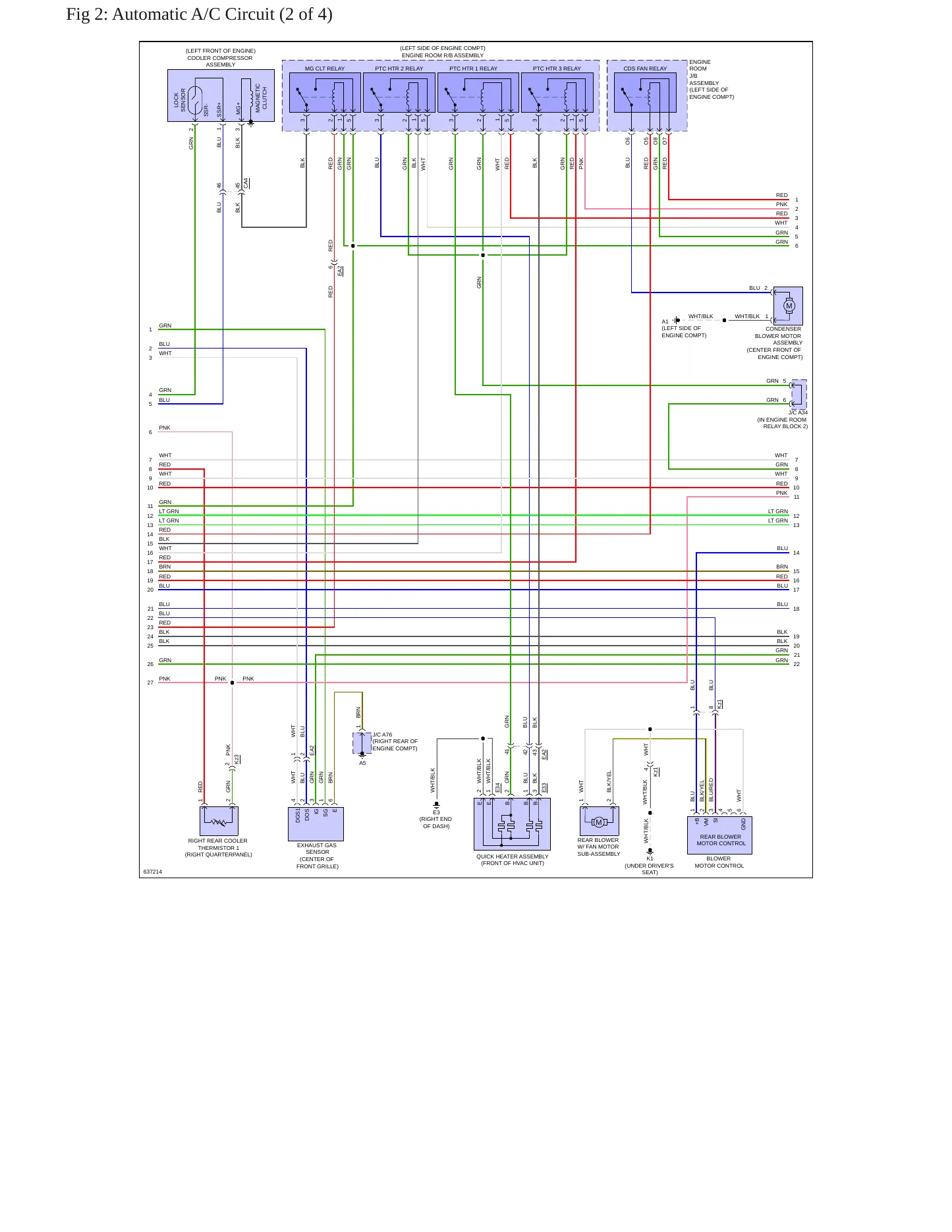

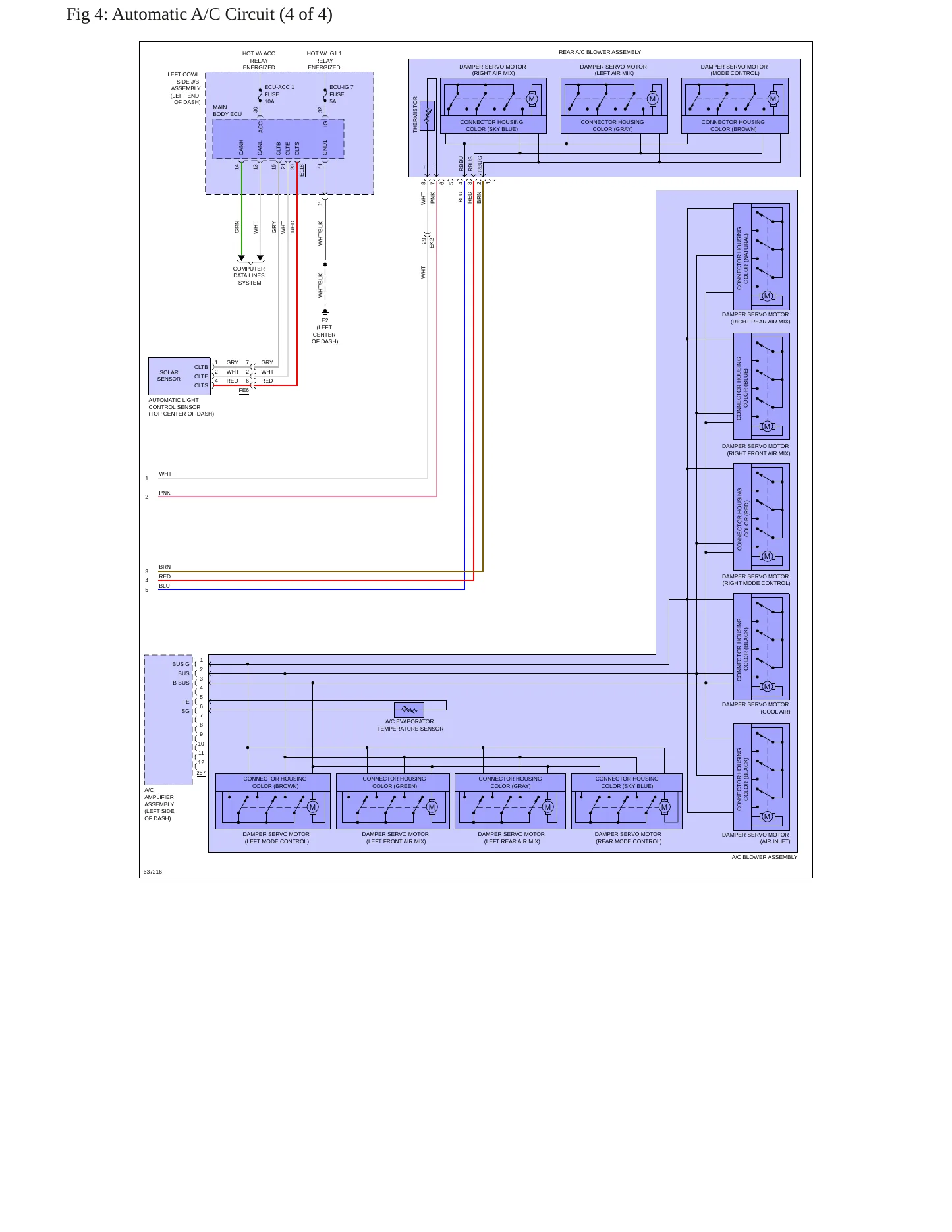

Wiring diagrams & schematics

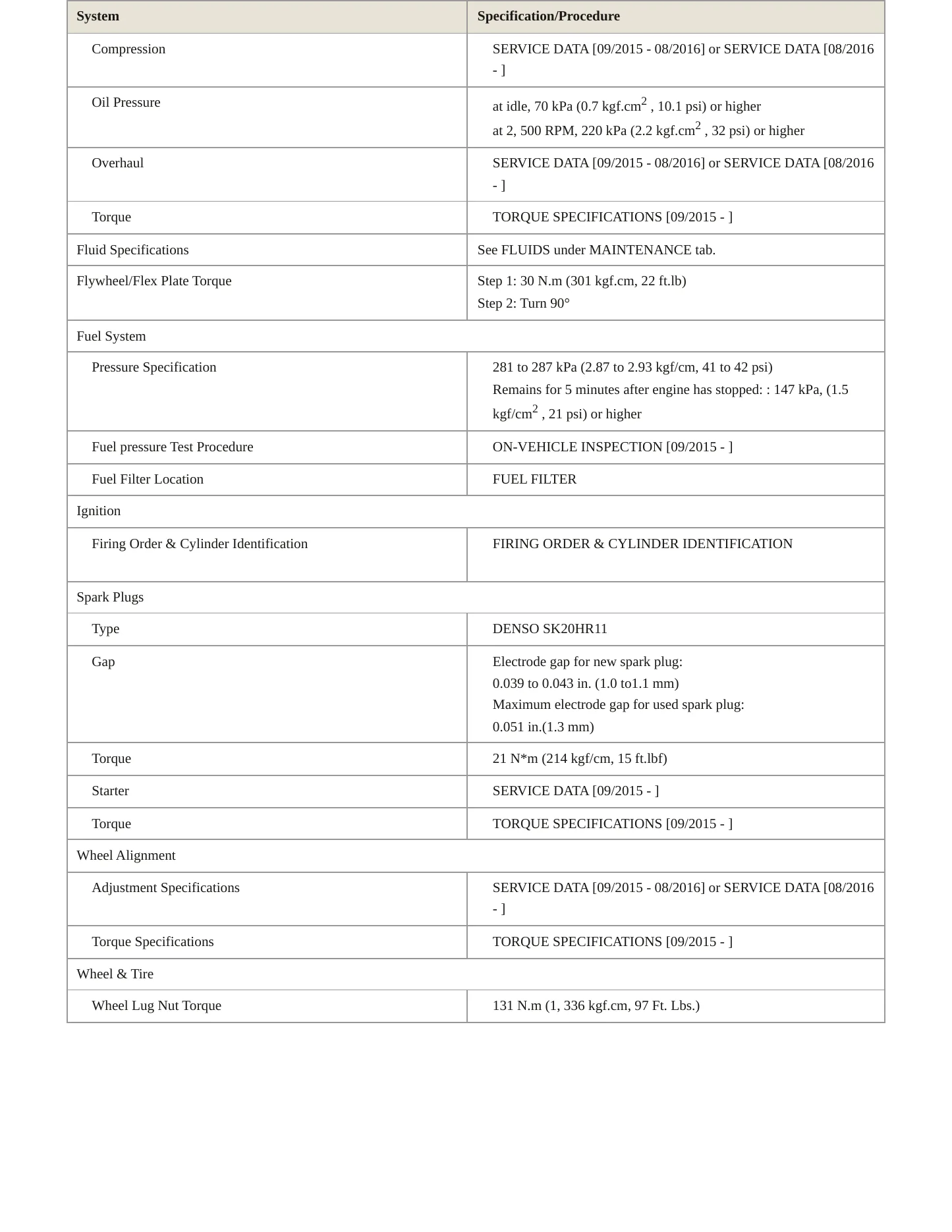

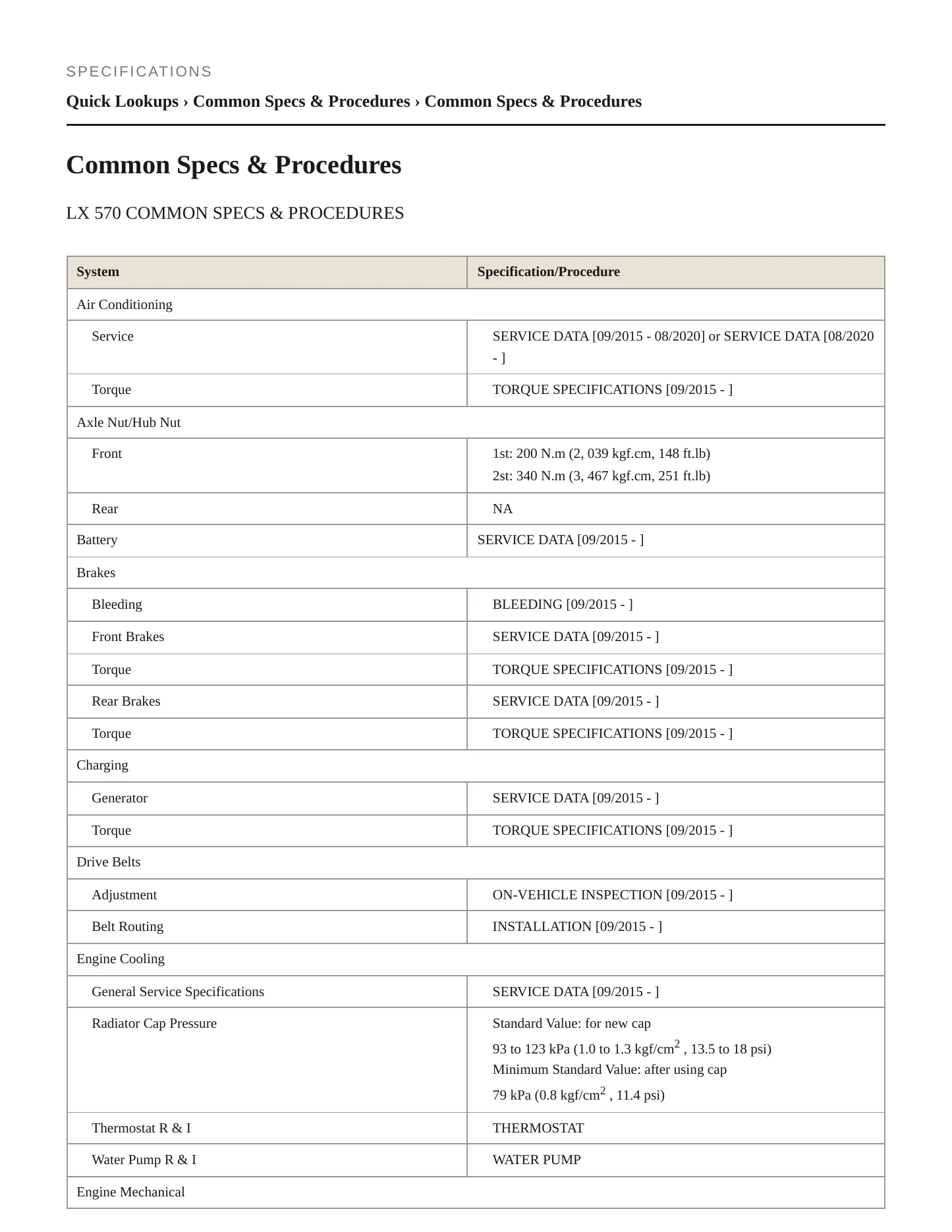

Torque specifications
Full search & bookmarks
$53.99
2019 Lexus LX 570 Service and Repair Manual
Regular price
$53.99 USD
Unit price
This service and repair manual is tied to one configuration — the 2019 Lexus LX 570 with the 5.7L V8 (3UR-FE) — so the clearances, torque values and diagnostic thresholds it lists are the ones Lexus published for this build year, not a number carried over from an adjacent one.
Engines
- 5.7L V8 GAS Naturally Aspirated
Trims
- Base
Known issues on the 2019 LX 570. Two recalls are on federal record for this model year. The first covers the front passenger air bag inflator module: over time the seat belt tension sensor wire harness may break and deactivate the front passenger air bag, the knee air bag and the passenger seat-mounted side air bag, and in the event of a crash deactivated air bags can increase the risk of injury. The second covers the gasoline fuel pump on the delivery side of the fuel system — if the fuel pump fails, the engine can stall while driving, increasing the risk of a crash. Owners have filed one complaint for the year, and no technical service bulletins are on record. The diagnostic and repair procedures behind both of those systems, restraint wiring and fuel delivery, are here.
Whether it is a broken seat belt tension sensor wire harness, an engine that stalls while driving, or a scheduled service interval, it holds you to the OEM procedure and the correct specification for this 2019 LX 570.
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain 2008-2019 Toyota Land Cruiser and Lexus LX 570 vehicles. Over time, the seat belt tension sensor wire harness may break and deactivate the front passenger air bag, knee air bag, and passenger seat-mounted side airbag.
Consequence
In the event of a crash, deactivated air bags can increase the risk of injury .
Remedy
Toyota will notify owners, and dealers will modify the front passenger seat belt assembly or replace it with an improved one, as necessary, free of charge. The recall began February 11, 2019. Owners may contact Toyota customer service at 1-888-270-9371 or Lexus customer service at 1-800-255-3987. Toyota's numbers for this recall are Lexus Interim J2L and Remedy JLL, Toyota Interim J15 and Remedy J05.
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain 2018-2019 4Runner, 2019-2020 Avalon, 2019 Corolla Hatchback, 2017-2019 Highlander, 2018-2020 Camry, 2020 Corolla, 2018-2019 Land Cruiser, 2017-2020 Tacoma, 2019-2020 RAV4, 2019-2020 Sequoia, 2017-2020 Sienna, 2019-2020 Tundra, 2018-2020 Lexus ES350, 2017 Lexus GS200t, 2017-2019 Lexus GS350, 2019 Lexus GS300, 2018-2020 Lexus LC500h, 2019-2020 Lexus LS500, 2018-2019 Lexus GX460, 2017 Lexus IS200t, 2019 Lexus IS300, 2019 Lexus IS350, 2018-2020 Lexus LC500, 2018 Lexus LS500, 2019 Lexus LS500h, 2018-2019 Lexus LX570, 2017 Lexus RC200t, 2019 Lexus RC300, RC350, 2017 and 2019-2020 Lexus RX350, 2018-2020 RX350L, 2019 Lexus UX200,
Consequence
If the fuel pump fails, the engine can stall while driving, increasing the risk of a crash.
Remedy
Toyota will notify owners, and dealers will replace the fuel pump assembly with an improved one, free of charge. Owners of specific models were notified that remedy parts were available starting January 21, 2021. Owners of other models will be notified as remedy parts become available. Remedy parts should be available for all affected vehicles by late March 2021. Owners may contact Toyota customer service at 1-888-270-9371 or Lexus customer service at 1-800-255-3987. Note: This recall is an
TSB: Some 2013 ? 2020 model year Lexus vehicles may exhibit a hard start and/or MIL ON condition with one or more of the following Diagnostic Trouble Codes (DTCs): ?DTC P0171 and/or P0174 (System Too Lean Bank 1/Bank 2) ?DTC P0087 Fuel Rail
DL: On December 20, 2022, a settlement of claims for certain low pressure fuel pumps was approved by the federal court. The settlement includes Lexus?s agreement to provide a Customer Support Program for certain 2013-2020 model year (MY) ve
Lexus Safety Recall and Service Campaign - Technician Certification Requirements 4.13.2022
TSB: Some 2005 ? 2022 model year Lexus vehicles that have undergone water intrusion may exhibit a condition in which a musty smell is present. Follow the procedures in this bulletin to remediate the odor and address this condition. The purp
POL: This consolidated Tire Warranty Guide contains the complete warranty terms for all brands of ground and spare tires currently in use by Lexus. This information must be kept near the point of vehicle sale and be available to any custome
TSB: This Service Bulletin includes guidelines meant to help determine whether to repair or replace a wire harness assembly based on damage type. This Service Bulletin should be used in conjunction with the applicable model and model year E
TSB: Some 2018 ? 2020 model year LX 570 vehicles equipped with Active Height Control may exhibit a squeak noise from the rear of the vehicle over uneven surfaces when the suspension is set to the low height position. The squeak noise is cau
TT: When used in conjunction with the Repair Manual, these Blind Spot Monitor, Forward Recognition Camera, and Front Millimeter Wave Radar tips leverage SSTs and readily available tools to support target placement in varying shop environmen
Showing the 8 most recent of 58 technical service bulletins on file with NHTSA.
CAR HAS LESS THAN 5K MILES. ON 5 INSTANCES, I OPENED THE POWER LIFTGATE BY DEPRESSING THE BUTTON ON THE LIFTGATE. AS I LOADED/UNLOADED ITEMS FROM THE CAR, THE LIFTGATE CLOSED DOWN ON ME WITH NO BEEPING OR SENSING THAT BODIES WERE PRESENT. ONE INSTANCE HAPPENED WHERE THE LIFTGATE PRESSED ON THE BACK OF MY DAUGHTER'S HEAD PUSHING HER DOWN TO THE BASE OF THE CARGO AREA. ALL 5 INSTANCES OCCURRED ON FLAT SURFACES WITH THE VEHICLE OFF AND IN VERY HOT TEMPERATURES. MY LOCAL LEXUS SERVICE DEPT WAS ABLE
