2009 Lexus LX 570 Service and Repair Manual
Regular price
$34.99 USD
Unit price
Fits the 2009 LX 570 — Base ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

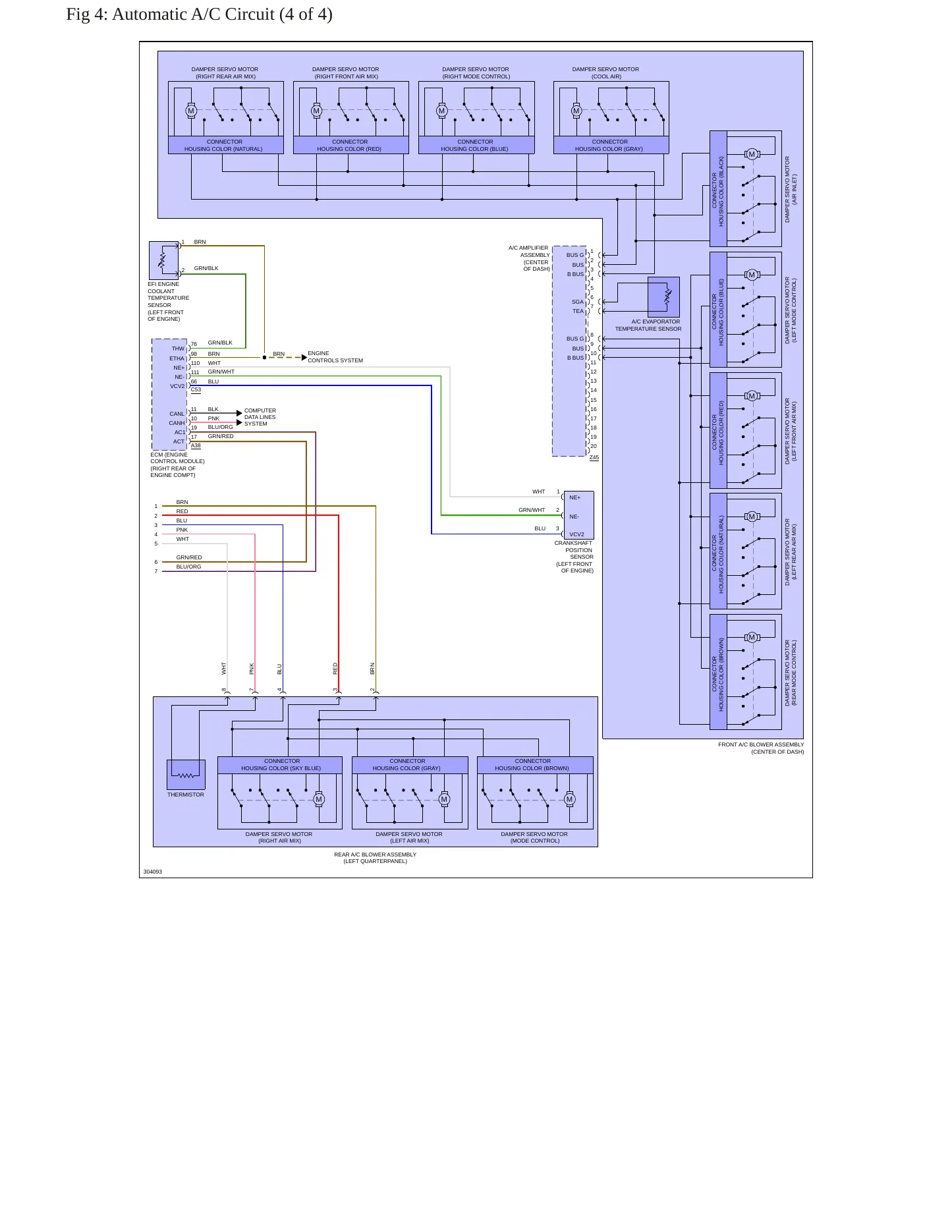

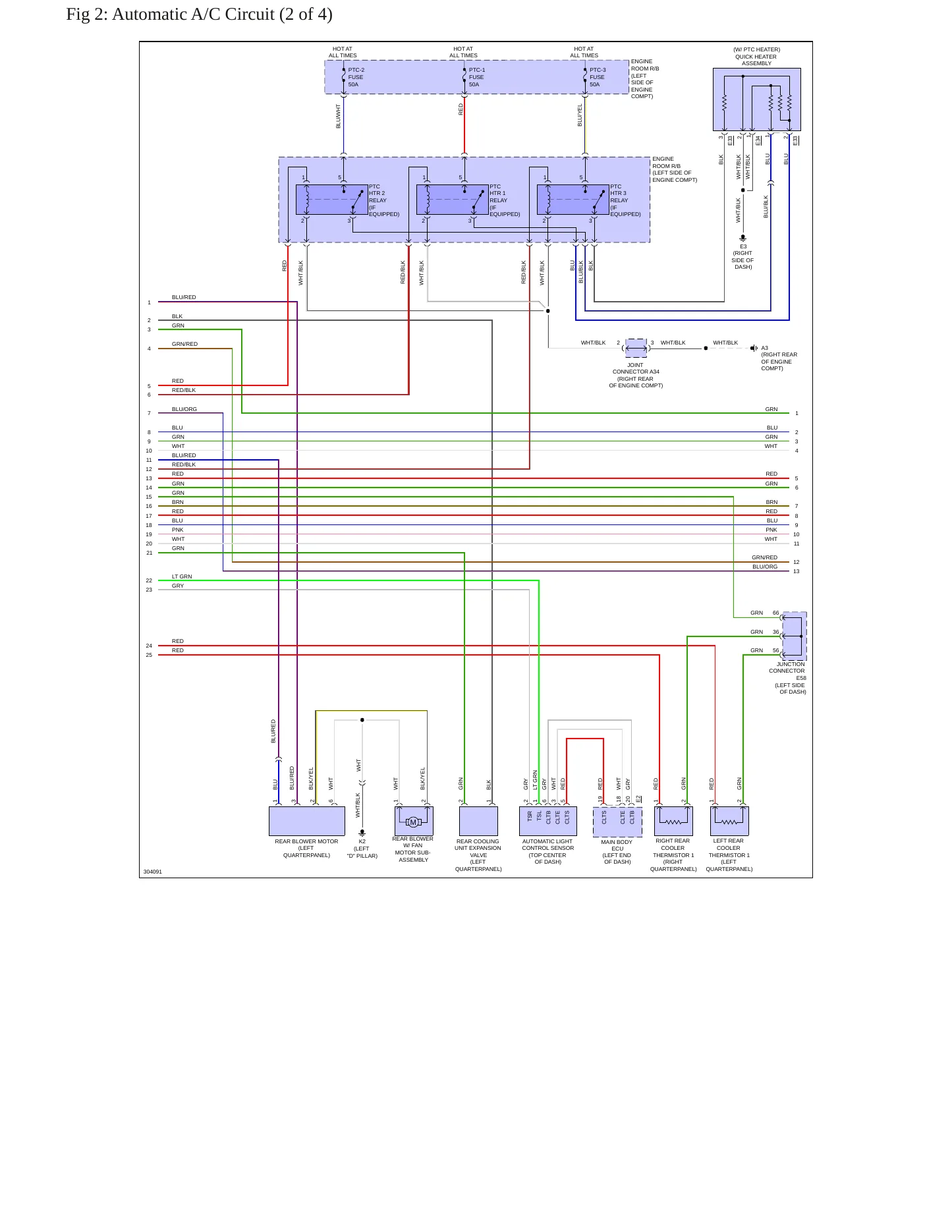

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$34.99
2009 Lexus LX 570 Service and Repair Manual
Regular price
$34.99 USD
Unit price
Everything in this 2009 Lexus LX 570 service and repair manual is tied to this one model year, its 5.7L V8 (3UR-FE) and the trim Lexus sold it in, so the torque values, clearances and service steps you work from are the ones written for this vehicle rather than approximations carried over from an adjacent year.
Engines
- 5.7L V8 GAS Naturally Aspirated
Trims
- Base
Known issues on the 2009 LX 570. Three recalls are on federal record for this model year. The first covers the front passenger air bag inflator: over time the seat belt tension sensor wire harness may break and deactivate the front passenger air bag, the knee air bag and the passenger seat-mounted side air bag, and deactivated air bags can increase the risk of injury in a crash. The second also covers the passenger side air bag: some vehicles may be equipped with an incorrect driver or front passenger air bag that may not deploy as intended in a crash, increasing the risk of injury. The third covers the accelerator pedal, which can get stuck in the wide open position after being trapped by an unsecured or incompatible driver's floor mat; a stuck open accelerator pedal may result in very high vehicle speeds and make it difficult to stop the vehicle, which could cause a crash, serious injury or death. Owners have filed 4 complaints for the year, and no technical service bulletins are on record. The diagnostic and repair procedures behind each of those systems are here.
Whether you are tracing a supplemental restraint fault, checking pedal and floor mat clearance or working through a scheduled service on the 3UR-FE, it keeps you on the OEM procedure and the correct specification for your 2009 LX 570.
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain 2008-2019 Toyota Land Cruiser and Lexus LX 570 vehicles. Over time, the seat belt tension sensor wire harness may break and deactivate the front passenger air bag, knee air bag, and passenger seat-mounted side airbag.
Consequence
In the event of a crash, deactivated air bags can increase the risk of injury .
Remedy
Toyota will notify owners, and dealers will modify the front passenger seat belt assembly or replace it with an improved one, as necessary, free of charge. The recall began February 11, 2019. Owners may contact Toyota customer service at 1-888-270-9371 or Lexus customer service at 1-800-255-3987. Toyota's numbers for this recall are Lexus Interim J2L and Remedy JLL, Toyota Interim J15 and Remedy J05.
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain 2008-2016 Toyota Land Cruiser, 2006 Lexus LX470, and 2008-2013 Lexus LX570 vehicles. These vehicles may be equipped with an incorrect driver or front passenger air bag. As such, these vehicles fail to comply with the requirements of Federal Motor Vehicle Safety Standard (FMVSS) number 208, "Occupant Crash Protection."
Consequence
An incorrect driver or front passenger air bag may not deploy as intended in the event of a crash, increasing the risk of injury.
Remedy
Toyota will notify owners, and dealers will replace the affected air bag assemblies, free of charge. The recall began September 29, 2017. Owners may contact Toyota customer service at 1-800-331-4331. Toyota's number for this recall is H0S. Lexus' number for this recall is HLD.
TOYOTA IS RECALLING CERTAIN MODEL YEAR 2008 THROUGH 2011 LEXUS LX570, 2003 THROUGH 2009 TOYOTA 4RUNNER, AND 2006 THROUGH 2010 RAV4 VEHICLES. THE ACCELERATOR PEDAL CAN GET STUCK IN THE WIDE OPEN POSITION DUE TO ITS BEING TRAPPED BY AN UNSECURED OR INCOMPATIBLE DRIVER'S FLOOR MAT.
Consequence
A STUCK OPEN ACCELERATOR PEDAL MAY RESULT IN VERY HIGH VEHICLE SPEEDS AND MAKE IT DIFFICULT TO STOP THE VEHICLE, WHICH COULD CAUSE A CRASH, SERIOUS INJURY OR DEATH.
Remedy
THE REMEDY IS NOW AVAILABLE. THE SAFETY RECALL BEGAN EARLY APRIL 2011. THE REMEDY WILL INVOLVE MODIFICATION OR REPLACEMENT OF THE ACCELERATOR PEDAL AND REPLACEMENT OF ANY TOYOTA ALL-WEATHER FLOOR MAT. OWNERS MAY CONTACT TOYOTA AT 1-800-331-4331 OR LEXUS AT 1-800-255-3987.
Lexus Safety Recall and Service Campaign - Technician Certification Requirements 4.13.2022
TSB: This Service Bulletin includes procedures to replace damaged or loose front carpet floor retainer(s) without replacing the carpet assembly. Follow the Repair Procedure in this bulletin to replace the loose or damaged carpet floor retai
TSB: Some 2005 ? 2022 model year Lexus vehicles that have undergone water intrusion may exhibit a condition in which a musty smell is present. Follow the procedures in this bulletin to remediate the odor and address this condition. The purp
POL: This consolidated Tire Warranty Guide contains the complete warranty terms for all brands of ground and spare tires currently in use by Lexus. This information must be kept near the point of vehicle sale and be available to any custome
World Standard Automatic Transmission Fluid
Theft Deterrent/Keyless Entry.
Brake Pedal Force Gauge SST for Parking Brake Inspection.
Techstream ECU Flash Reprogramming Procedure.
Showing the 8 most recent of 145 technical service bulletins on file with NHTSA.
I AM AN EXPERIENCED CPST (>800 SEATS PER YEAR) WHO YESTERDAY ASSISTED A MOTHER WITH INSTALLATION OF HER NEW GRACO SR-35 INFANT CAR SEAT W/ BASE MODEL # 1759703 IN HER 2009 LEXUS LX570 SUV. THIS COMPLAINT IS SPECIFIC TO A VEHICLE INTERIOR FEATURE THAT MADE IT VERY DIFFICULT TO CORRECTLY INSTALL THE CHILD RESTRAINT. THE VEHICLE BENCH SEAT IN THE SECOND ROW HAD LEATHER INTERIOR. THE DESIGN OF THE VEHICLE SEAT CUSHION INCLUDES A SUBSTANTIAL ROUNDED CUSHION THAT PROTRUDES FORWARD AT THE VEHICLE
MY 9 YEAR OLD SON NEARLY STRANGLED IN FRONT OF HIS SISTER AND TWIN SIBLINGS (5 YEARS OLD) WHEN THE MIDDLE SEAT BELT OF THE THIRD ROW GOT TANGLED AROUND HIS NECK. THIS SEATBELT HANGS FROM THE CEILING. I COULD NOT DISLODGE THE BELT FROM AROUND HIS NECK, AS IT WAS NOT OBVIOUS HOW TO DISENGAGE THE CEILING LATCH. WE WERE VERY FORTUNATE TO STOP A PASSING CAR, RETRIEVE A PAIR OF SCISSORS AND CUT THE BELT TO FREE MY SON. HE WAS ON THE VERGE OF PASSING OUT FROM LACK OF OXYGEN. THE PARAMEDICS TOO
TL* THE CONTACT OWNS A 2009 LEXUS LX570. WHILE DRIVING APPROXIMATELY 35 MPH, THE VEHICLE ABNORMALLY ACCELERATED. THE GEAR SHIFT WAS PLACED INTO NEUTRAL AND THE VEHICLE STOPPED ACCELERATING WHILE THE ENGINE CONTINUED TO EXHIBIT UNUSUALLY HIGH RPMS. PRESSURE WAS APPLIED TO THE BRAKE PEDAL BUT THE VEHICLE WOULD NOT STOP UNTIL THE IGNITION WAS TURNED OFF. UPON EXAMINATION, THE CONTACT WANTED TO MAKE NOTE THAT THE FAILURE DID NOT INVOLVE THE FLOOR MATS. THE POLICE APPEARED ON THE SCENE TO ASSIST
TL* THE CONTACT OWNS A 2009 LEXUS LX570. THE CONTACT WAS DRIVING 30 MPH AND ATTEMPTING TO STOP WHEN THE BRAKE PEDAL WAS ABNORMALLY DEPRESSED INTO THE FLOORBOARD. THE CONTACT STATED THAT ALL OF THE LIGHTS ON THE INSTRUMENT PANEL ILLUMINATED ACCOMPANIED BY A WARNING SIREN, INDICATING A BRAKE MALFUNCTION. THE CONTACT THEN ENGAGED THE SAFETY BRAKE AS THE VEHICLE COASTED IT TO A STOP. THE VEHICLE WAS TOWED TO A DEALER AND DIAGNOSED AS THE BRAKE PADS AND ROTORS BEING WORN AND A LACK OF BRAKE FLUID.THE
