1996 Cadillac DeVille Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 1996 DeVille trims — Base Sedan 4-Door, d'Elegance Sedan 4-Door, Concours Sedan 4-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual

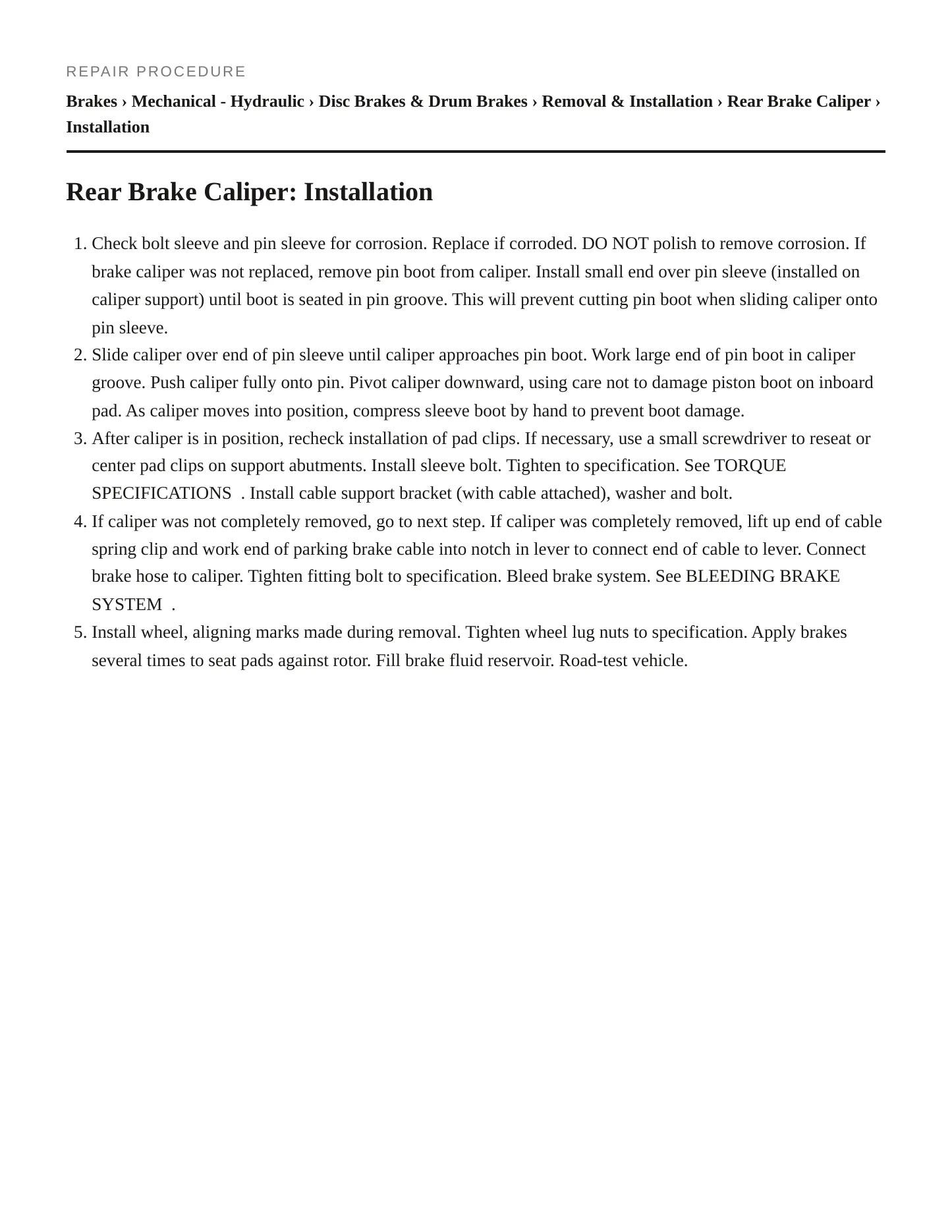

Complete repair procedures

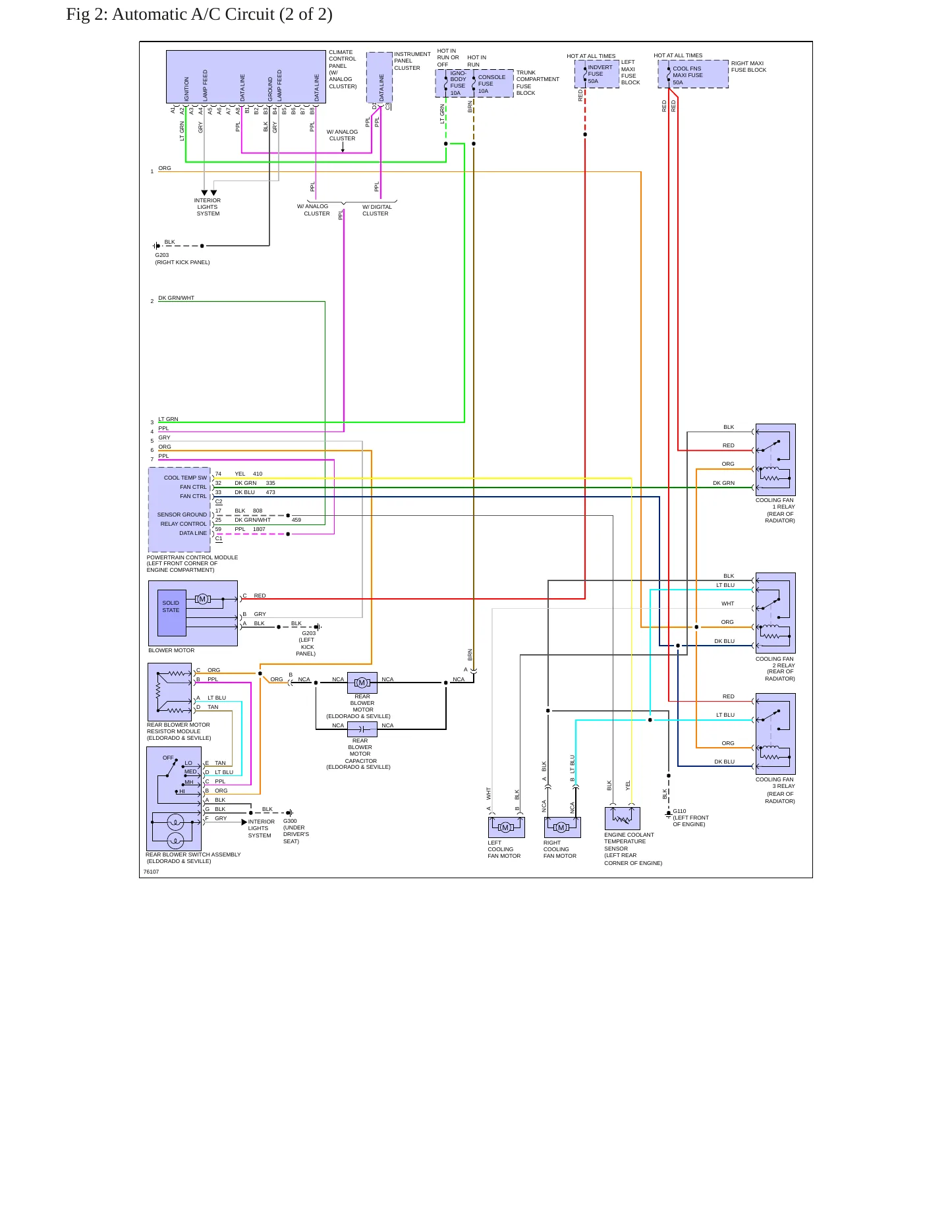

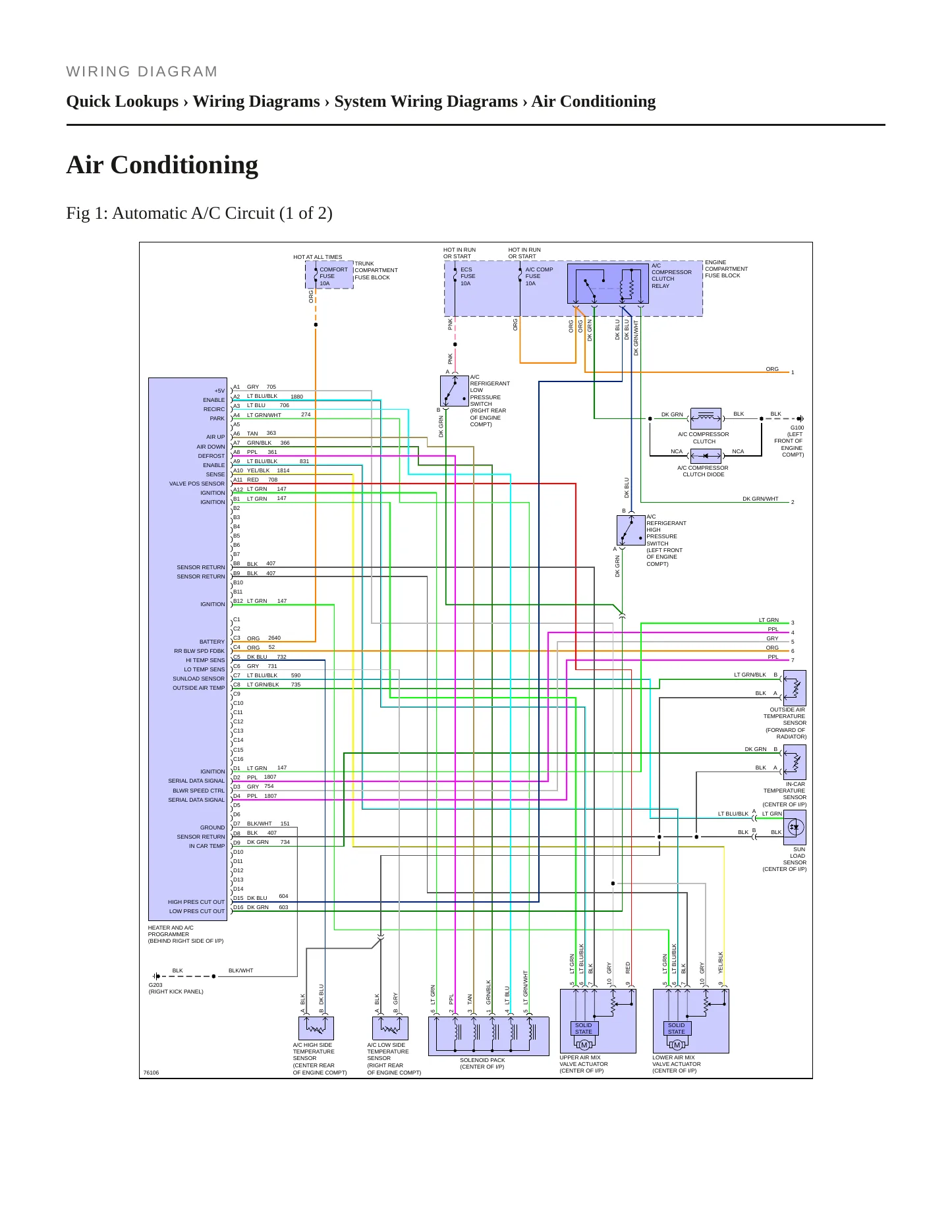

Wiring diagrams & schematics

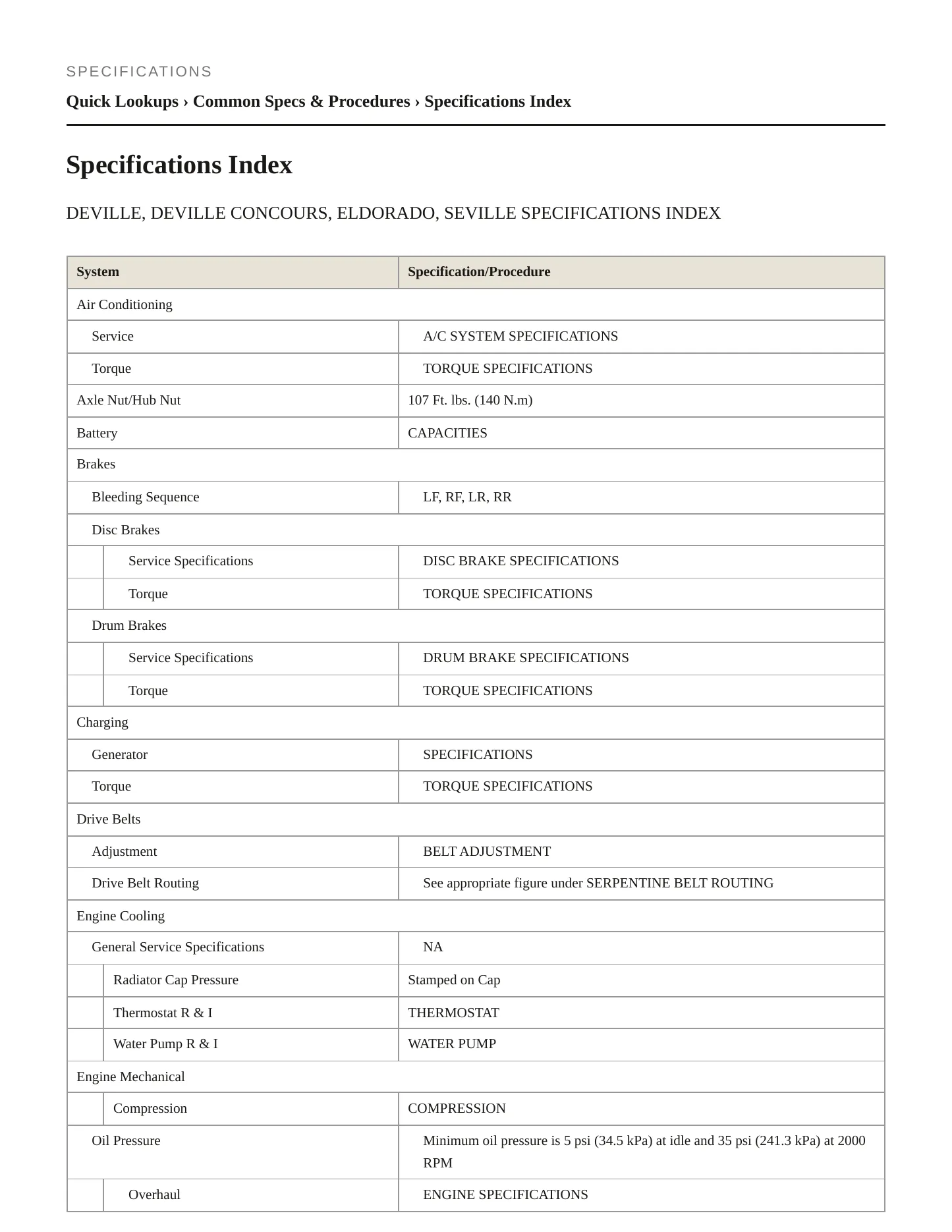

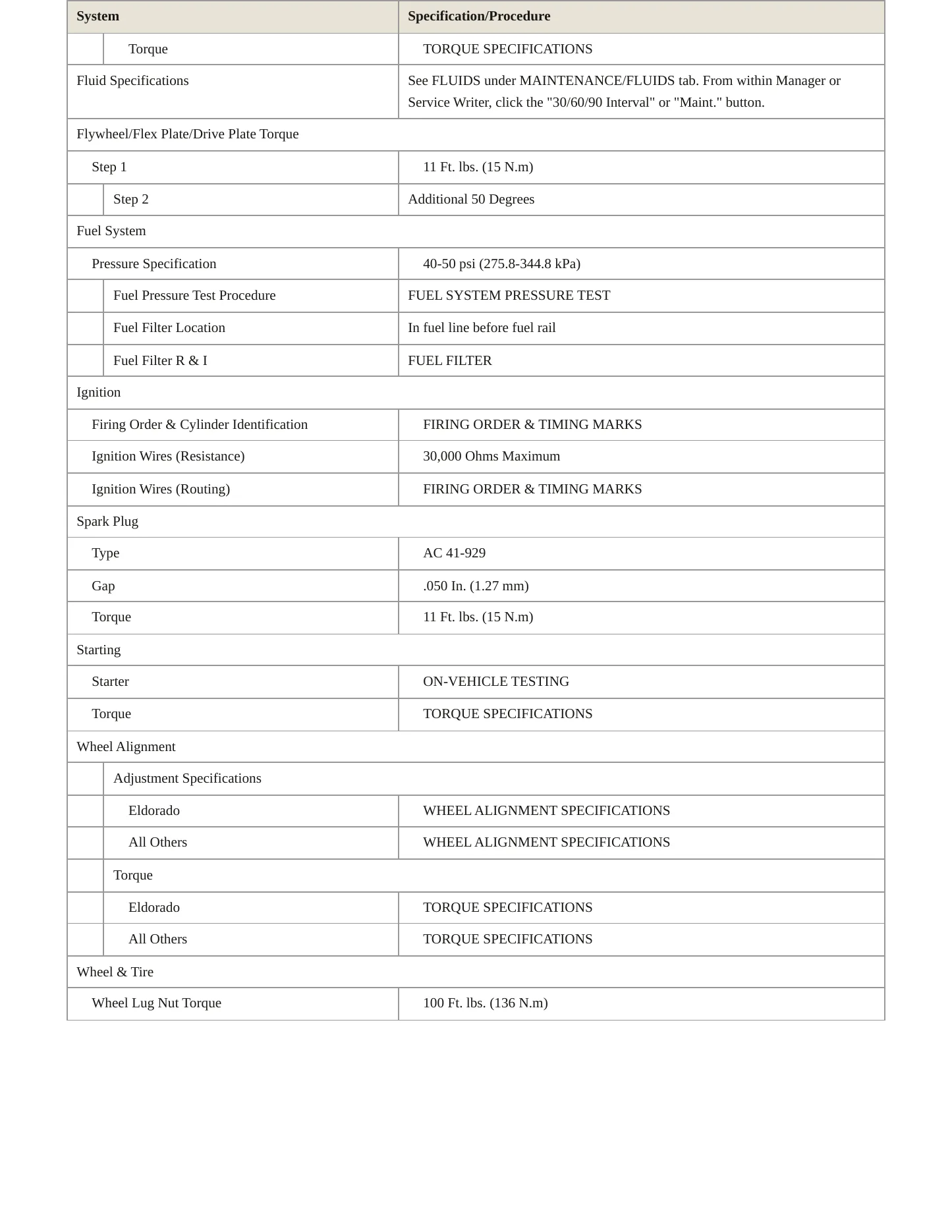

Torque specifications
Full search & bookmarks
$29.99
1996 Cadillac DeVille Service and Repair Manual
Regular price
$29.99 USD
Unit price
The 1996 Cadillac DeVille came with a 4.6L V8 under the hood, offered in two engine calibrations across three trim levels, and this factory service and repair manual carries the torque values and diagnostic steps Cadillac published for those exact combinations.
Engines covered
- 4.6L V8 (281 cu in) — DOHC, naturally aspirated, gasoline
Body styles covered
- 4-door sedan
Trims covered
- Base
- Concours
- d'Elegance
Known issues on the 1996 DeVille. Two recalls are on federal record for this model year. The first covers the fuel delivery system: nylon fuel rail tubing, and on some cars the underhood fuel return line, can degrade and crack, letting fuel leak into the engine compartment where an ignition source could turn that leak into a fire. The second covers the hood hinge and attachments: if the secondary latch was not properly engaged and the primary hood latch also failed to engage, the hood could open unexpectedly while the vehicle is in motion, contacting the windshield, reducing the driver's vision and raising the risk of a crash. Owners have filed 253 complaints for the year, and the factory diagnostic and repair procedures behind both of those systems are in this manual.
From tracing a fuel line leak to inspecting and re-adjusting the hood latch or working through a routine service interval, it keeps you on the OEM procedure and the correct specification for your 1996 DeVille.
SOME PASSENGER VEHICLES EQUIPPED WITH 4.0L V8 ENGINES HAVE A CONDITION IN WHICH THE NYLON TUBING USED IN THE FUEL RAIL CONSTRUCTION MAY DEGRADE AND CRACK. ADDITIONALLY, THE 1995 MODEL YEAR USES A UNI
Consequence
FUEL LEAKAGE, IN THE PRESENCE OF AN IGNITION SOURCE, COULD RESULT IN A FIRE.
Remedy
DEALERS WILL INSPECT AND, IF NECESSARY, REPLACE THE ENGINE FUEL RAIL WITH A NEW STAINLESS STEEL FUEL
This Preliminary Information communicates to the dealer the process for downloading or updating operating software for the Tire Pressure Monitor, Active Fuel Injector tester, multi media tester, PICO Scope, GR8 starting/charging tester and
This Preliminary Information communicates to the dealer the process for downloading or updating operating software for the Tire Pressure Monitor, Active Fuel Injector tester, multi media tester, PICO Scope, GR8 starting/charging tester and
Expanded Availability for Remanufacture and Return (R&R) Electronic Control Modules
KNOCKIG NOISES OR EXCESSIVE OIL CONSUMPTION. VEHICLES WITH LD8 OR L37 4.6L V8 ENGINES. *KB
MISSING CAMSHAFT INTERMEDIATE DRIVE SHAFT PLUG - SERVICE VME. *TT
SERVICE ENGINE SOON LIGHT ON AND CHUGGLE OR SURGE. DIAGNOSTIC TROUBLE CODE P0741 OR DIAGNOSTIC TROUBLE CODE 39 (TCC STUCK OFF). *TT
GM ANNOUNCING ADDITIONAL POPULATION OF VEHICLES EXPOSED TO TIME, HEAT AND CERTAIN FUELS IS CAUSING NYLON TUBING IN THE FUEL RAILS TO DEVELOP AN UNUSUAL NUMBER OF LEAKS. FAILURE OF THE FUEL RAIL TUBING CAN RESULT IN A FUEL LEAK INTO THE ENGI
DIAGNOSTIC TROUBLE CODE (DTC) P0442 SMALL LEAK DETECTED, INSPECT AT FUEL FILLER NECK. *MJ
Showing the 8 most recent of 37 technical service bulletins on file with NHTSA.
WHILE STOPPING AT A RED LIGHT REAR ENDED A TRUCK. UPON IMPACT, NONE OF THE AIRBAGS DEPLOYED, ALSO, DRIVER'S AND PASSENGER'S SEATBACKS COLLAPSED. *AK CONSUMERS VEHICLE WAS TOTALED AND BOTH TH
WHILE STOPPING AT A RED LIGHT REAR ENDED A TRUCK. UPON IMPACT, NONE OF THE AIRBAGS DEPLOYED, ALSO, DRIVER'S AND PASSENGER'S SEATBACKS COLLAPSED. *AK CONSUMERS VEHICLE WAS TOTALED AND BOTH TH
WHILE TRAVELING AT 65 MPH IN HEAVY TRAFFIC ON HIGHWAY A SMALL BLACK OBJECT APPEARED ON PAVEMENT, CONSUMER WAS UNABLE TO STOP OR TURN RIGHT OR LEFT BECAUSE OF HEAVY TRAFFIC, VEHICLE PASSED OVER THE O
WHILE DRIVING DOWN THE STREET AND MAKING A TURN, ANOTHER VEHICLE, TOYOTA PICKUP TRUCK BEHIND, PLOWED INTO CONSUMER'S VEHICLE. UPON IMPACT, AIRBAGS ON BOTH SIDES DIDN'T DEPLOY. ALSO, DRIVER'S SE
WHILE DRIVING DOWN THE STREET AND MAKING A TURN, ANOTHER VEHICLE, TOYOTA PICKUP TRUCK BEHIND, PLOWED INTO CONSUMER'S VEHICLE. UPON IMPACT, AIRBAGS ON BOTH SIDES DIDN'T DEPLOY. ALSO, DRIVER'S SE
Showing the 5 most serious of 281 complaints filed with NHTSA.
