1994 Mitsubishi Eclipse Service and Repair Manual

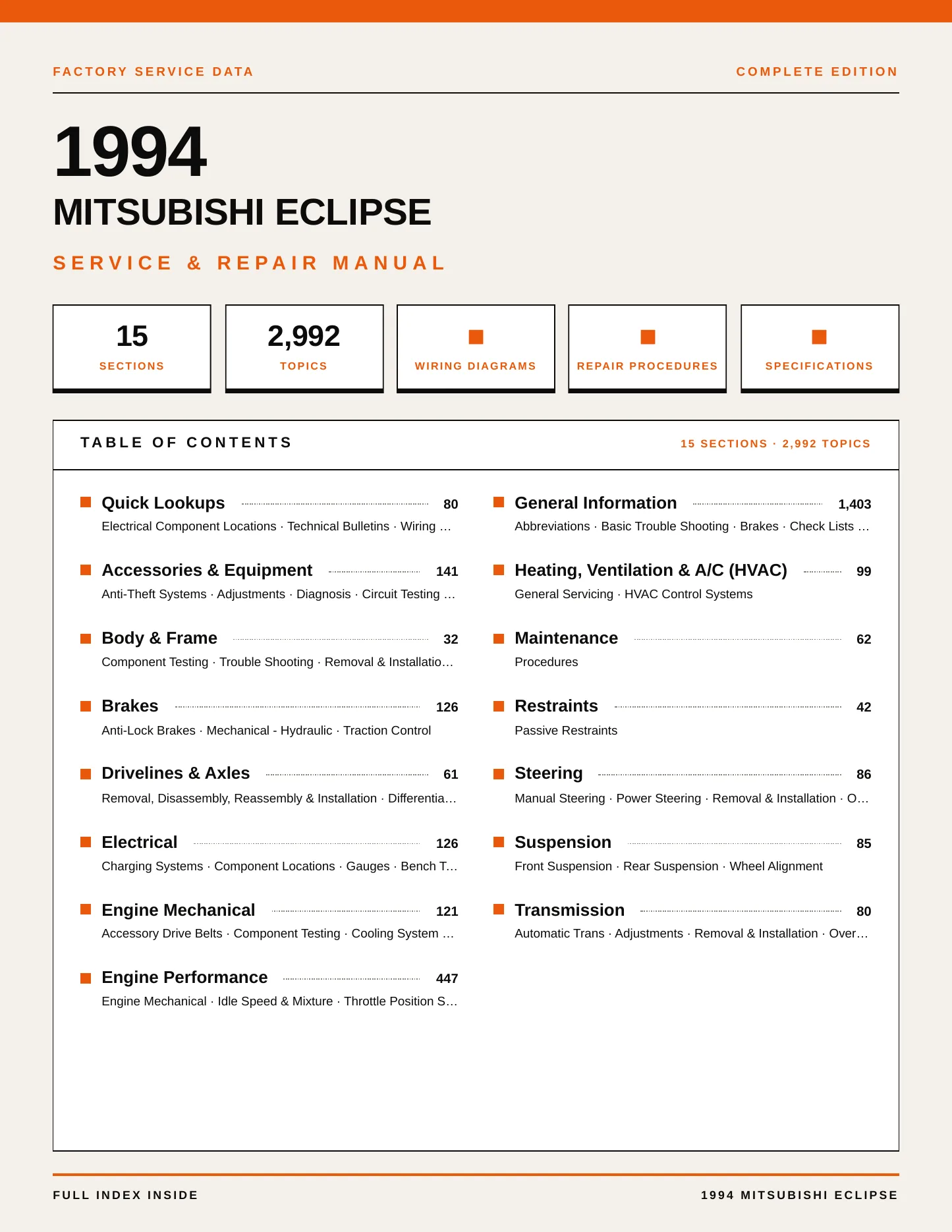

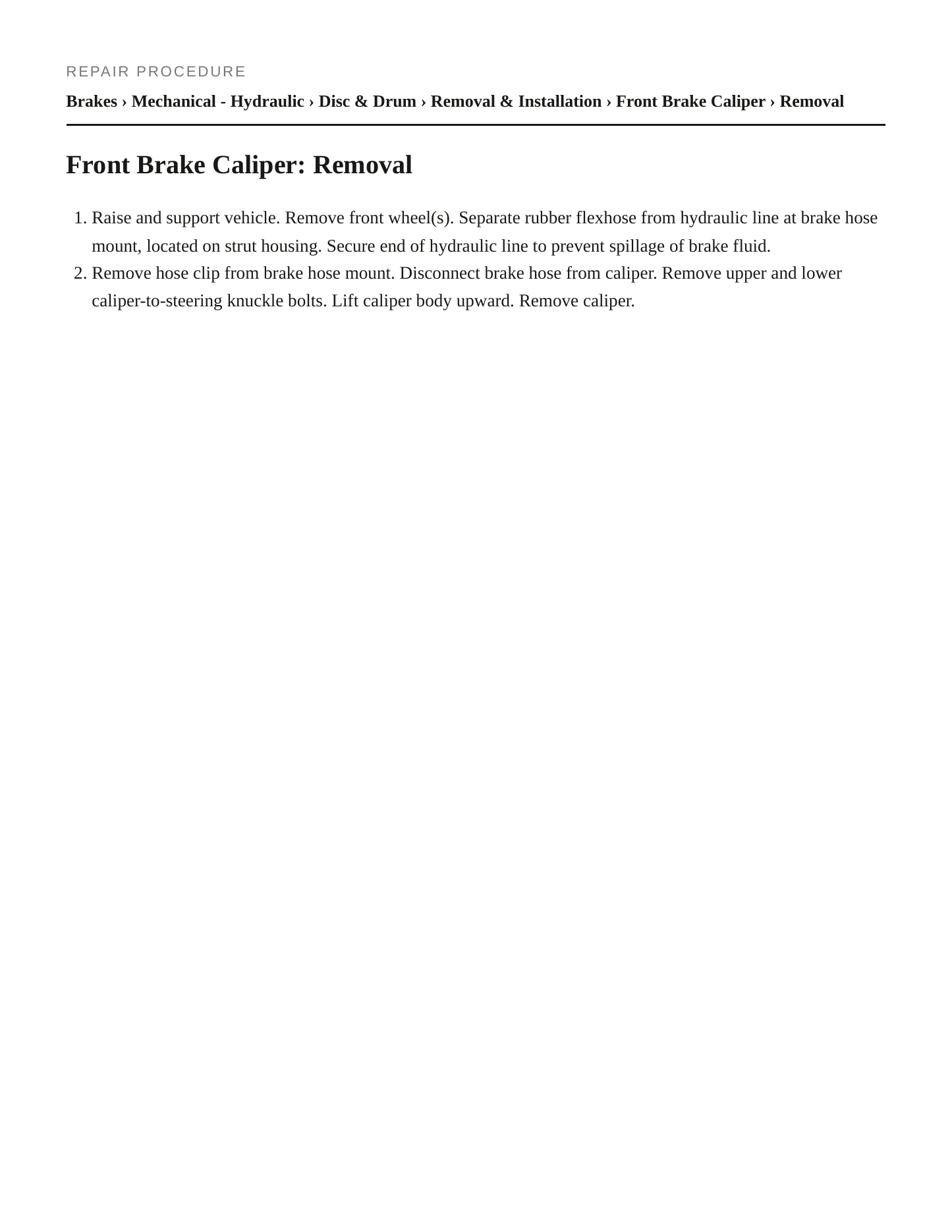

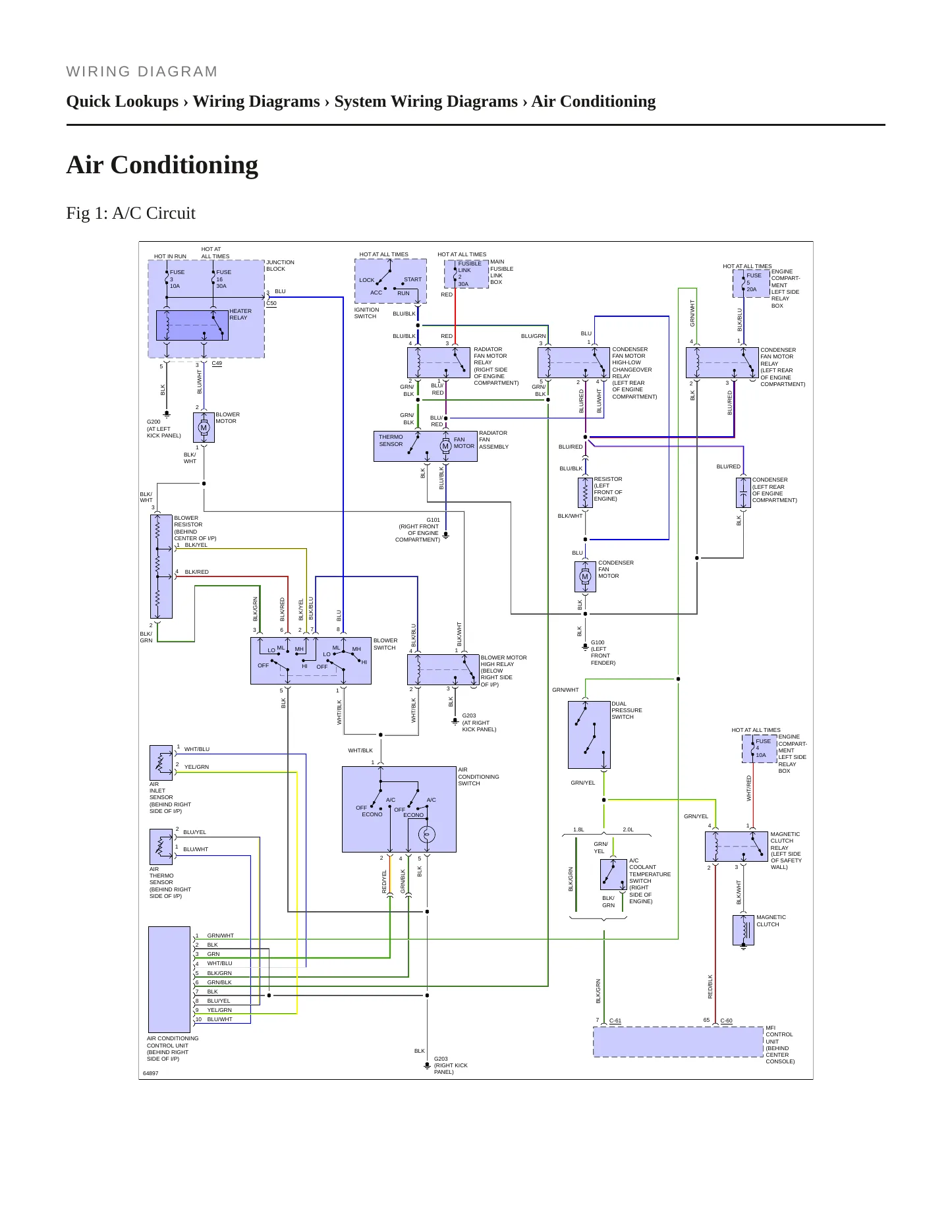

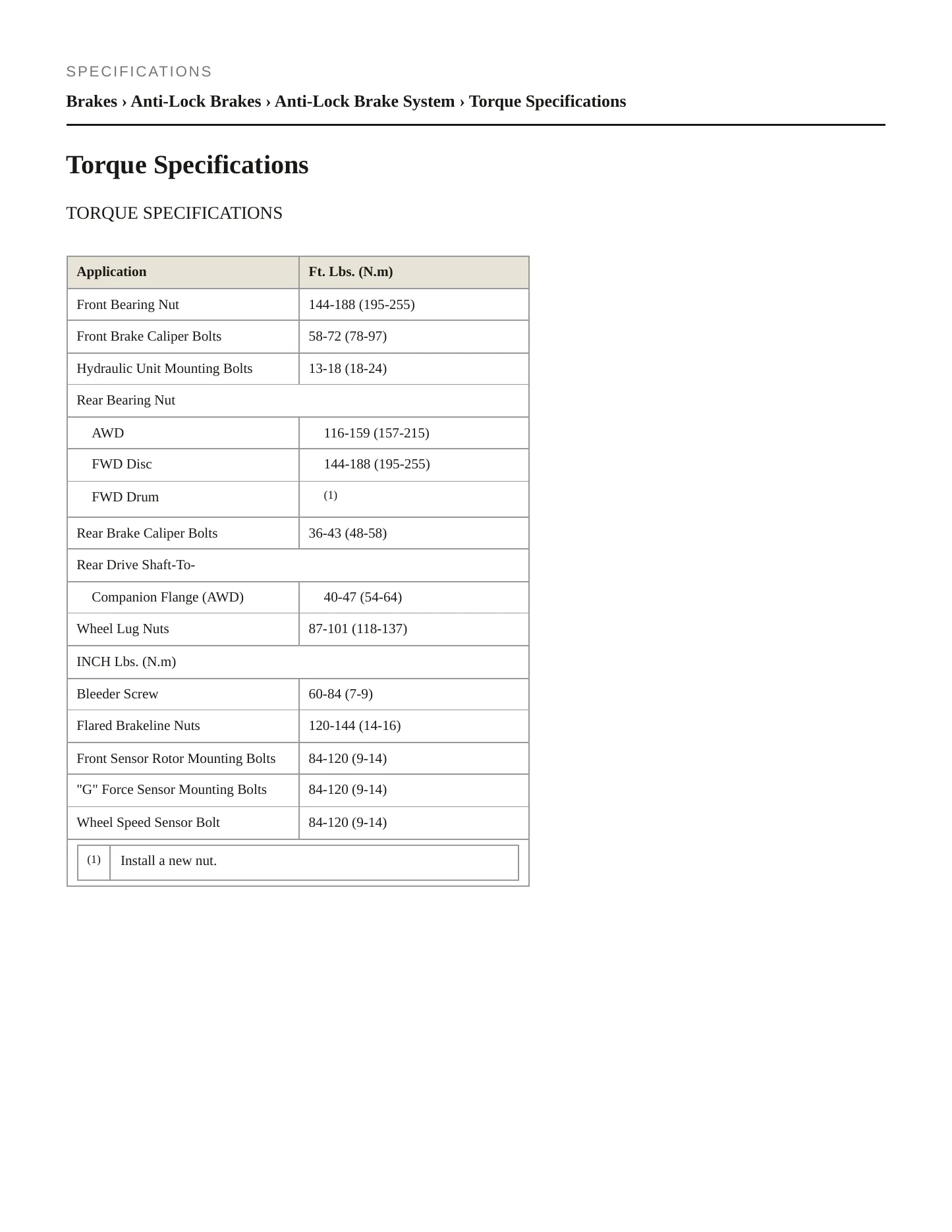

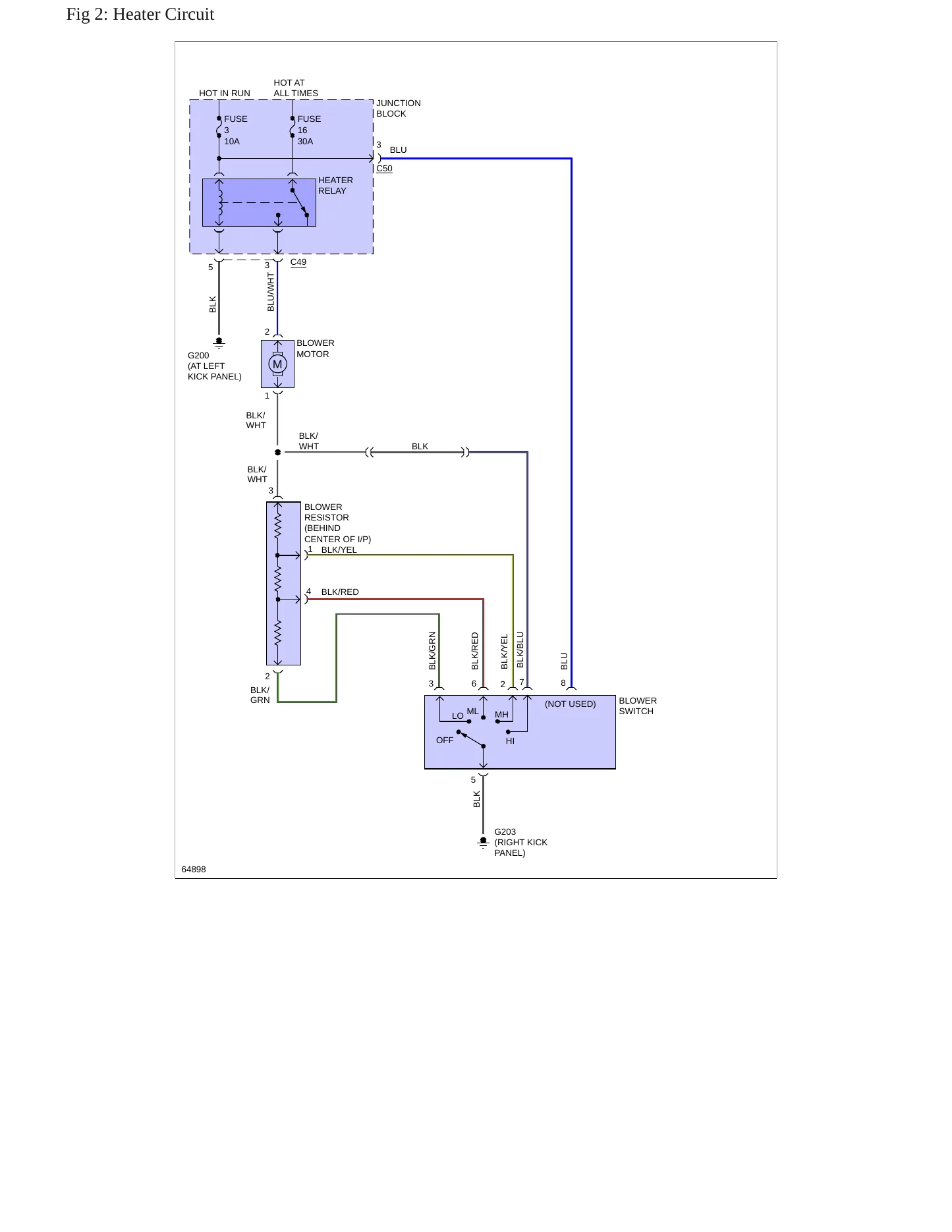

This factory service and repair manual for the 1994 Mitsubishi Eclipse spans four trims, Base, GS, GST and GSX, on a two-door hatchback. Two displacements are offered. The 1.8L (107 cu in) runs a single overhead camshaft, and the 2.0L (122 cu in) has double overhead camshafts, sold either naturally aspirated or turbocharged; the three engines burn gasoline. Procedures, torque values and wiring diagrams follow for the engine, fuel, ignition and cooling systems as well as the transaxle, drivetrain, brakes, suspension, steering and electrical system.

Engines covered

• 1.8L inline-four (107 cu in) — SOHC, naturally aspirated, gasoline
• 2.0L inline-four (122 cu in) — DOHC, naturally aspirated, gasoline
• 2.0L inline-four (122 cu in) — DOHC, turbocharged, gasoline

Body styles covered

• 2-door hatchback

Trims covered

• Base
• GS
• GST
• GSX

Known issues on the 1994 Eclipse. A shortage of lubricant in the transfer case, which could let it lock up and upset vehicle control, is behind the 1 recall recorded for the 1994 Eclipse; it covered certain 1994 Eclipse vehicles, and dealers inspected oil level and leakage. The 34 owner complaints lean toward the power train (10), engine and engine cooling (5), hydraulic service brakes (5), seat belts (4) and suspension (4). Among them, 5 reported a crash, 3 an injury and 1 a fire. Drivetrain, brake and suspension procedures, specifications and torque values in the manual relate to these systems.
