1992 Chevrolet G30 Service and Repair Manual

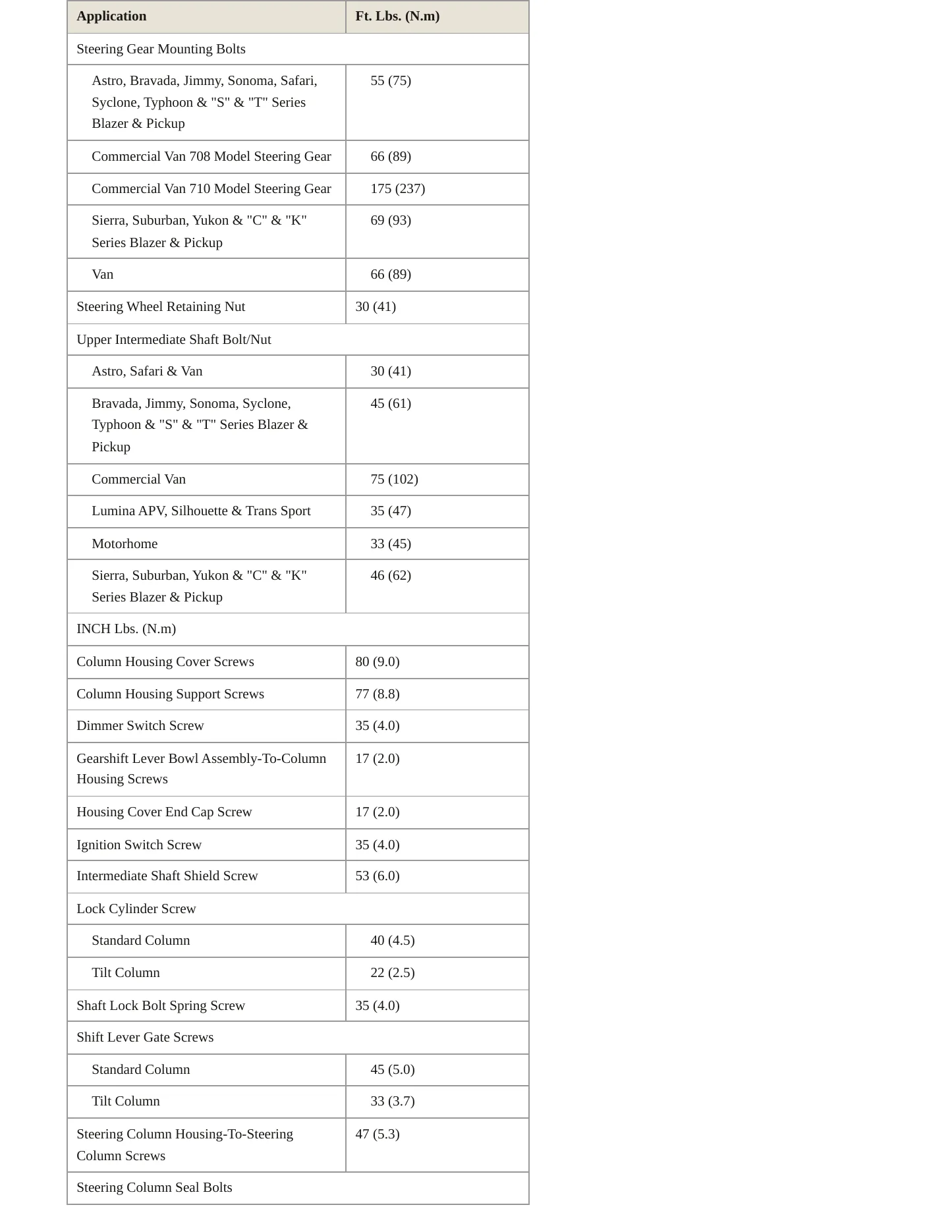

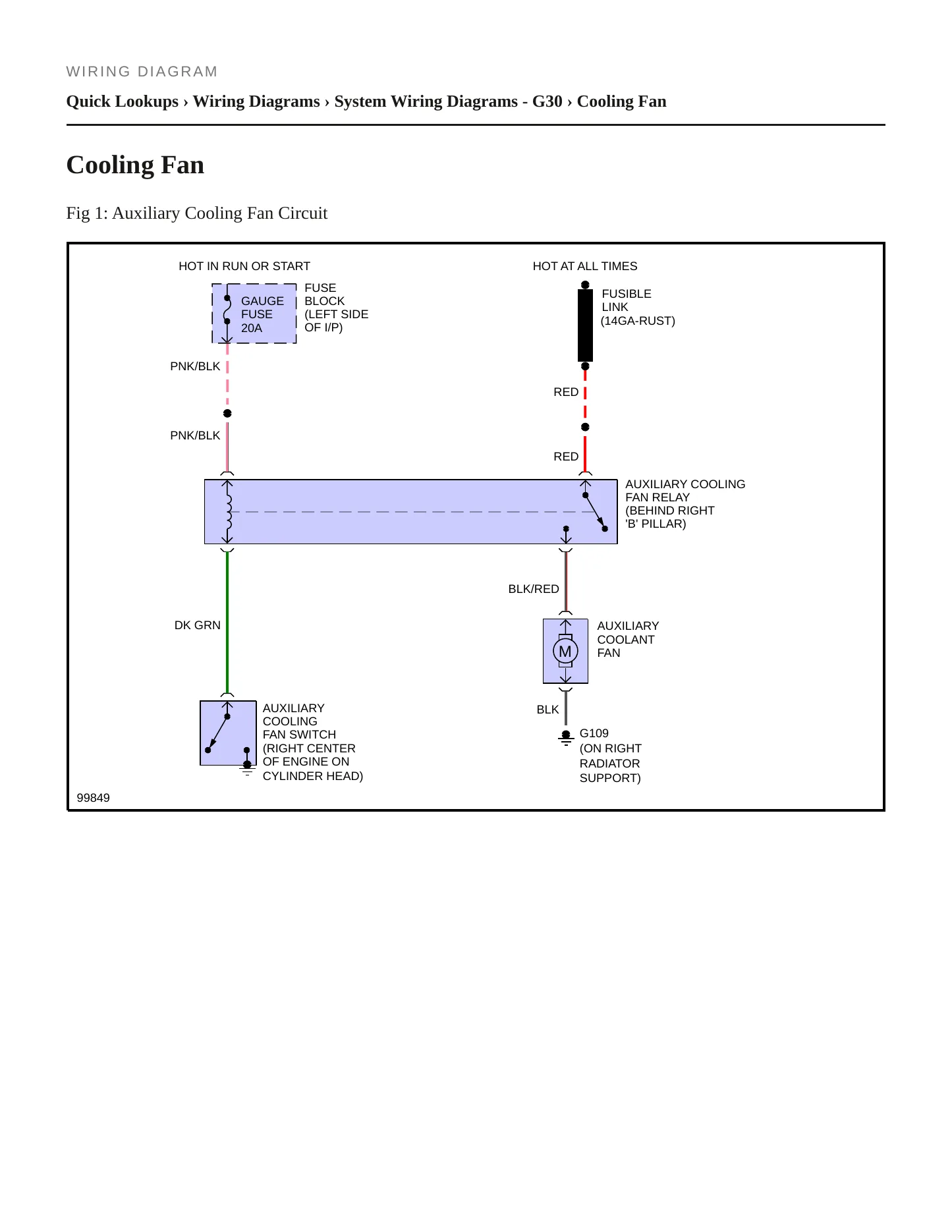

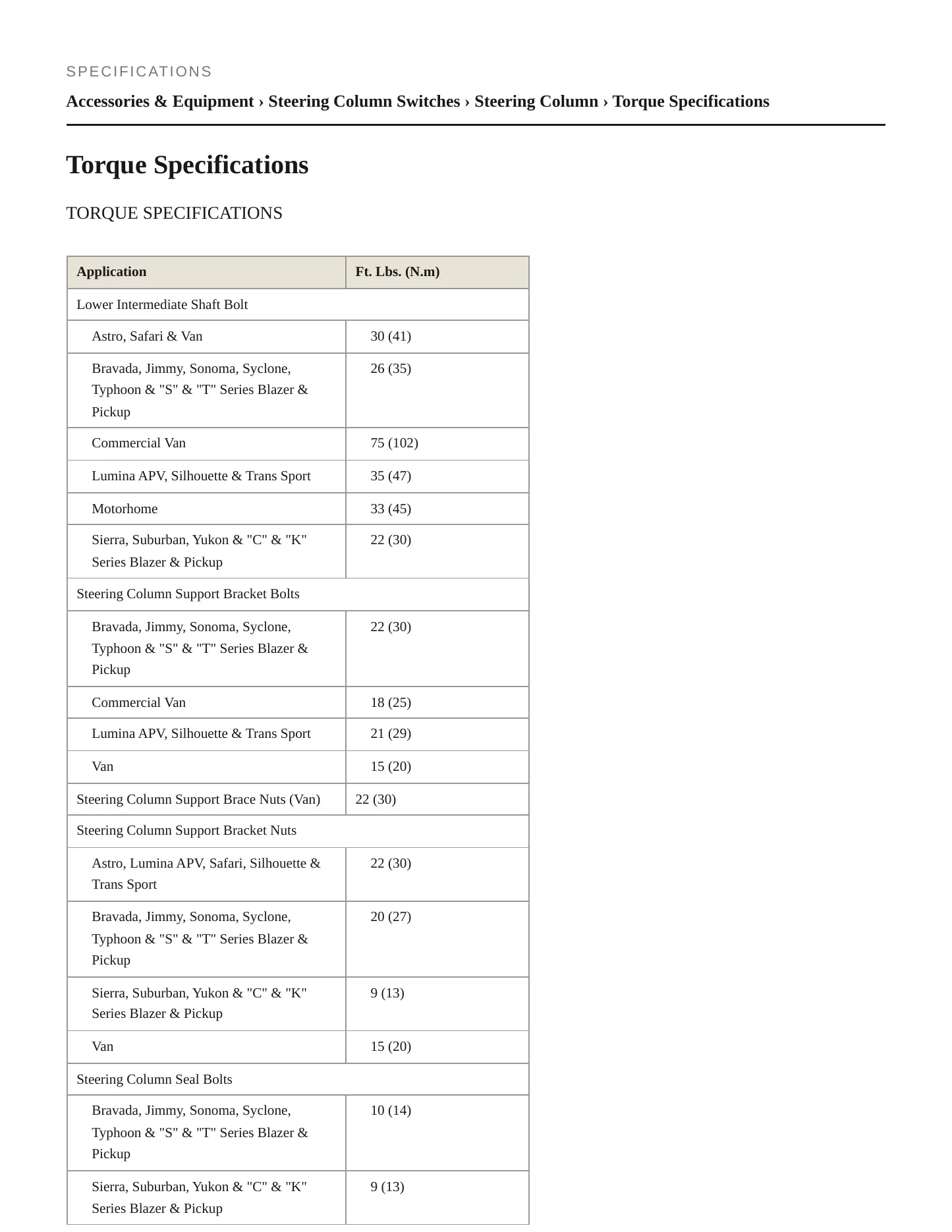

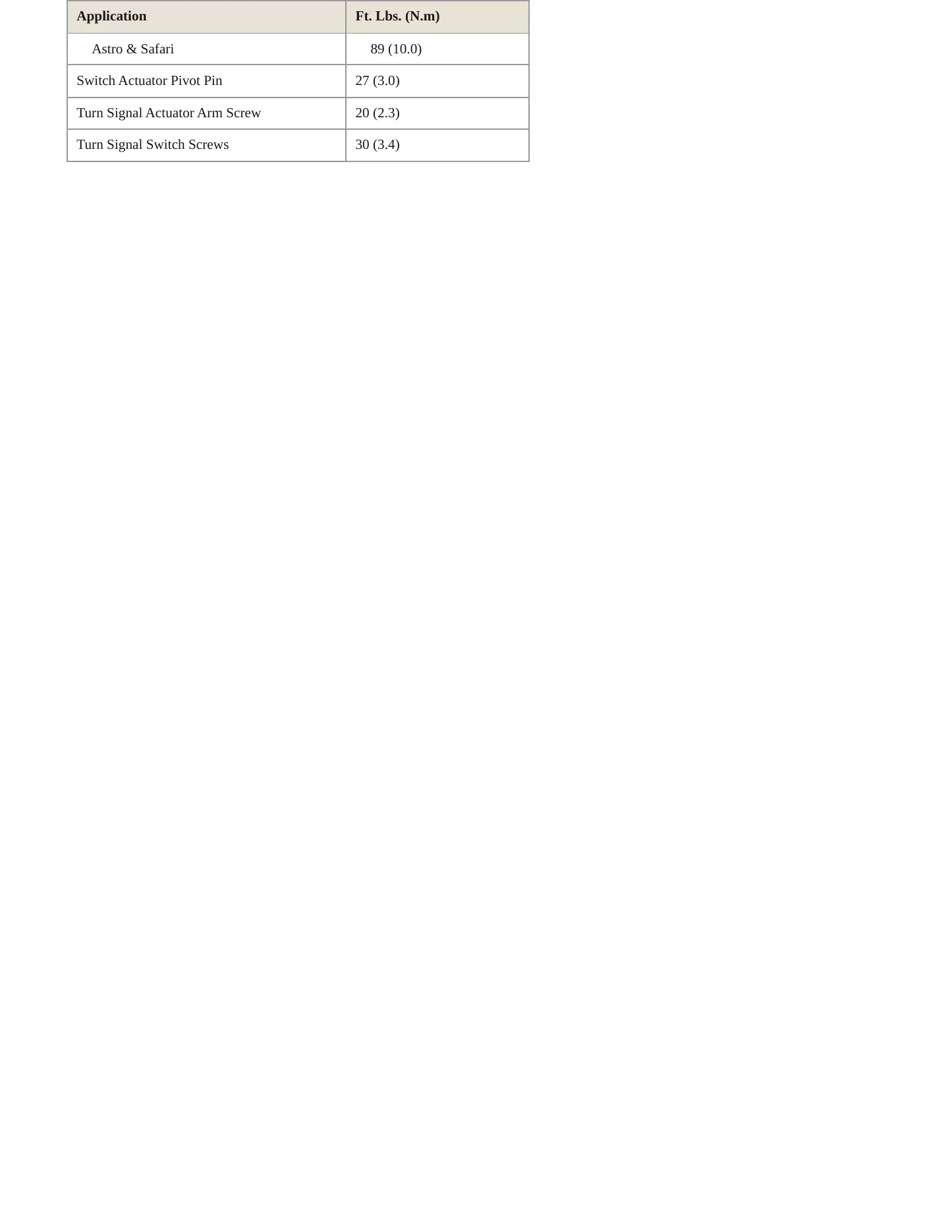

This factory service and repair manual for the 1992 Chevrolet G30 covers six bodies, standard and extended passenger vans, standard and extended cargo vans and two cutaway chassis, in Beauville, Chevy, Hi-Cube and Sportvan trim, with four engines behind them: a 4.3L V6 of 262 cubic inches, a 5.7L V8 of 350, a 7.4L V8 of 454 and a 6.2L diesel V8 of 379, all overhead-valve and naturally aspirated. Wiring diagrams and torque values are given for each configuration.

Engines covered

• 7.4L V8 (454 cu in) — OHV, naturally aspirated, gasoline
• 6.2L V8 (379 cu in) — OHV, naturally aspirated, diesel
• 5.7L V8 (350 cu in) — OHV, naturally aspirated, gasoline
• 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline

Body styles covered

• 3-door standard passenger van
• 2-door van cutaway van
• 3-door extended passenger van
• 3-door van standard cargo van
• 3-door van extended cargo van
• 2-door cutaway van

Trims covered

• Beauville
• Chevy
• Hi-Cube
• Sportvan

Known issues on the 1992 G30. Five recalls sit on the federal record for this year, and three of them affect control of the vehicle. A front lower control arm can crack at the flange near the ball joint pad, and if the ball joint separates the driver loses steering. A brake pedal pushrod pin of the wrong size, fitted in the wrong position, shortens master cylinder stroke and cuts braking capability. Rear door windows built without the riveted seal assemblies may not stay in place in a crash. Two complaints are recorded. Front suspension, brake and glass procedures are specified here.
