1985 Chevrolet G30 Service and Repair Manual
This factory service and repair manual for the 1985 Chevrolet G30 spreads across six bodies, passenger vans in standard and extended length, cargo vans in both lengths and two cutaway chassis, with Beauville, Chevy, Hi-Cube and Sportvan as trims. Four naturally aspirated overhead-valve engines are covered: a 4.3L V6 of 262 cubic inches, a 5.0L V8 of 305, a 5.7L V8 of 350 and a 6.2L diesel V8 of 379. Body length and finish drive most of the differences the diagrams have to account for.
Engines covered
- 6.2L V8 (379 cu in) — OHV, naturally aspirated, diesel
- 5.7L V8 (350 cu in) — OHV, naturally aspirated, gasoline
- 5.0L V8 (305 cu in) — OHV, naturally aspirated, gasoline
- 4.3L V6 (262 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 3-door standard passenger van
- 2-door van cutaway van
- 3-door extended passenger van
- 3-door van standard cargo van
- 3-door van extended cargo van
- 2-door cutaway van
Trims covered
- Beauville
- Chevy
- Hi-Cube
- Sportvan

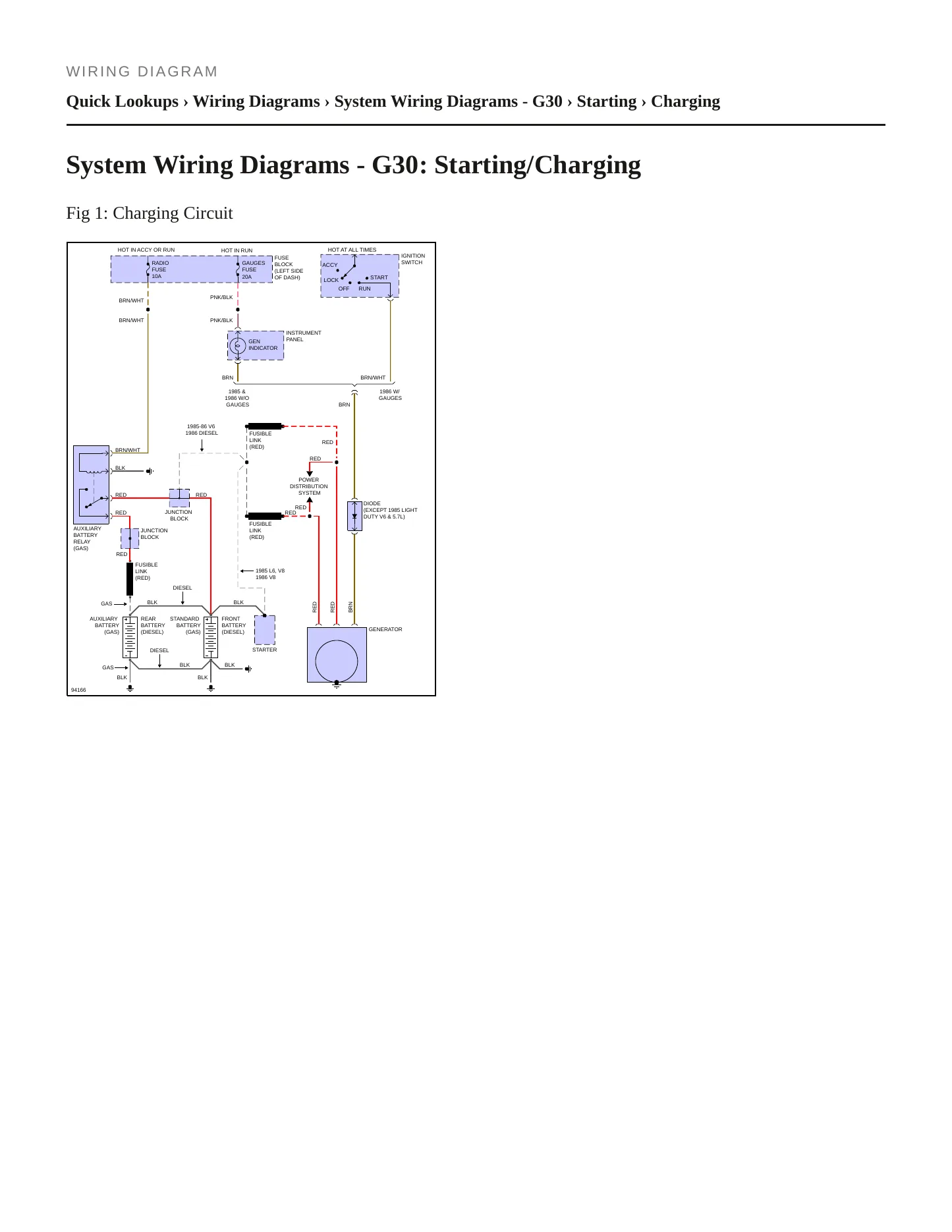

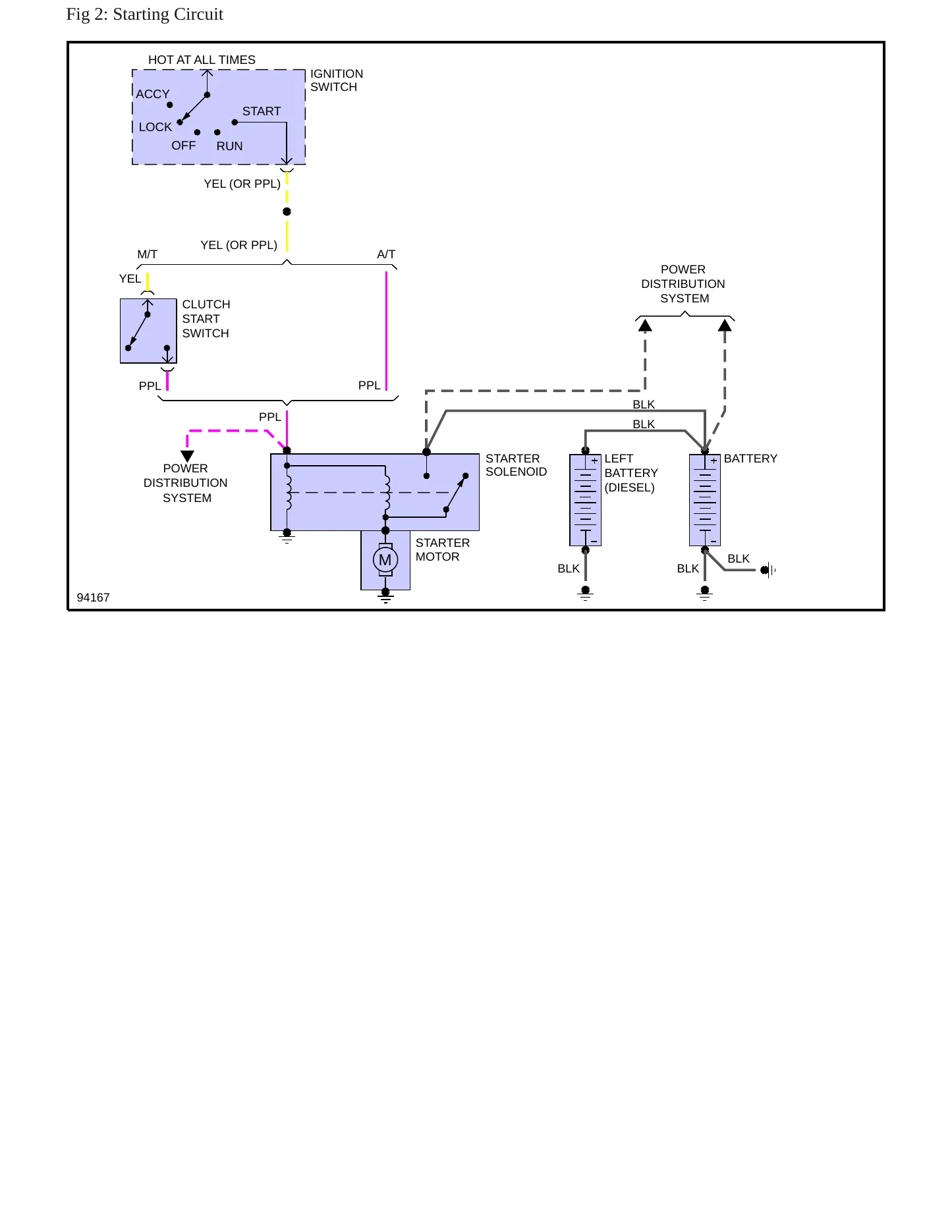

Known issues on the 1985 G30. Nothing sits on the federal record for this year: no recalls and no owner complaints. That leaves the manual as the reference for everything routine and everything awkward, engine mechanical work across the V6, both gasoline V8s and the diesel; fuel and ignition diagnostics; transmission and driveline service; axle, brake, steering and suspension specifications with their torque values; and wiring diagrams covering six bodies whose electrical routing is not identical from one to the next.
LEFT HAND LOWER CONTROL ARM CAN CRACK AND COULD EVENTUALLY CAUSE THE LOWER BALL JOINT TO SEPARATE FROM THE CONTROL ARM.
LOSS OF STEERING CONTROL CAN OCCUR WHICH COULD RESULT INA CRASH WITHOUT PRIOR WARNING.
REPAIR OR REPLACE LOWER LEFT CONTROL ARM.
