2020 Ford F-150 Service and Repair Manual

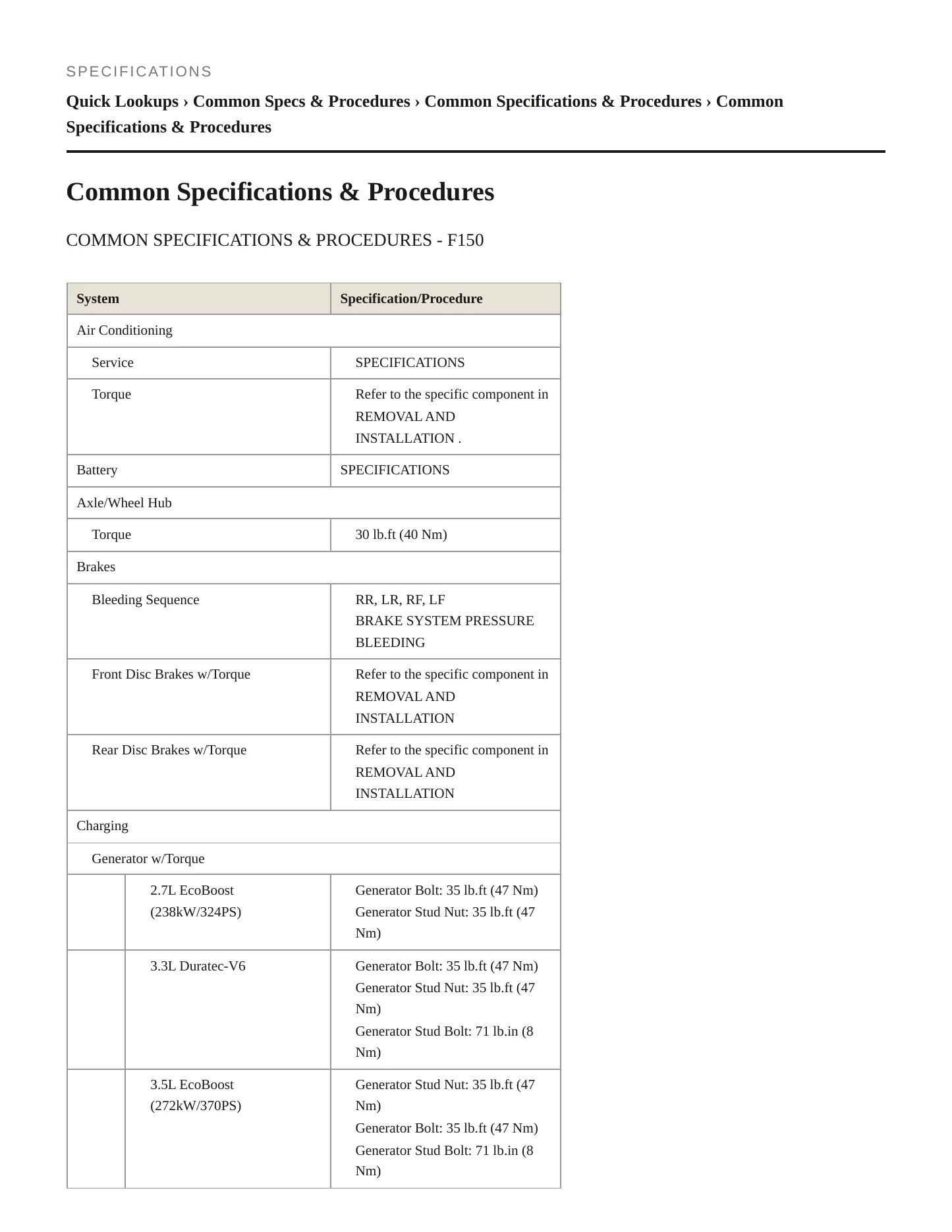

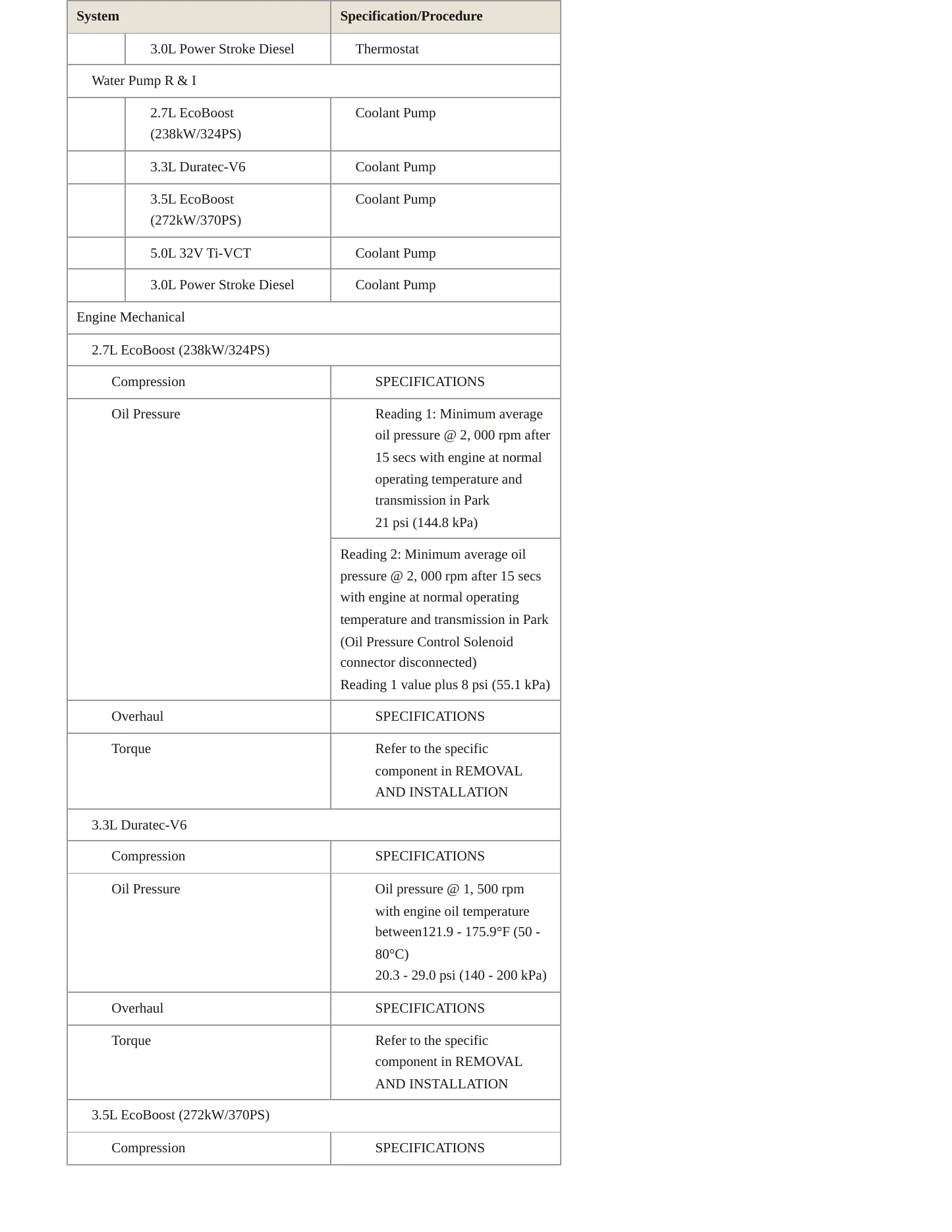

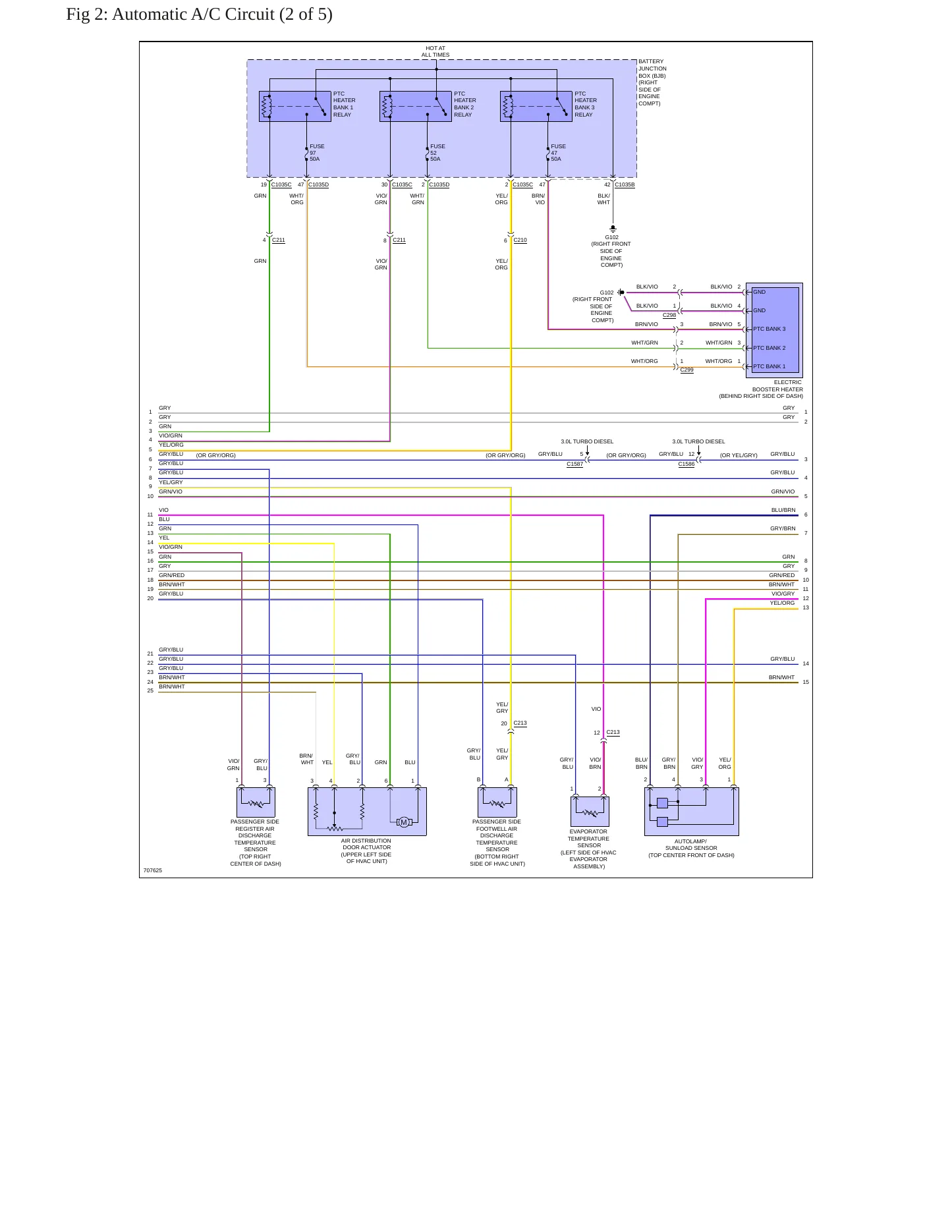

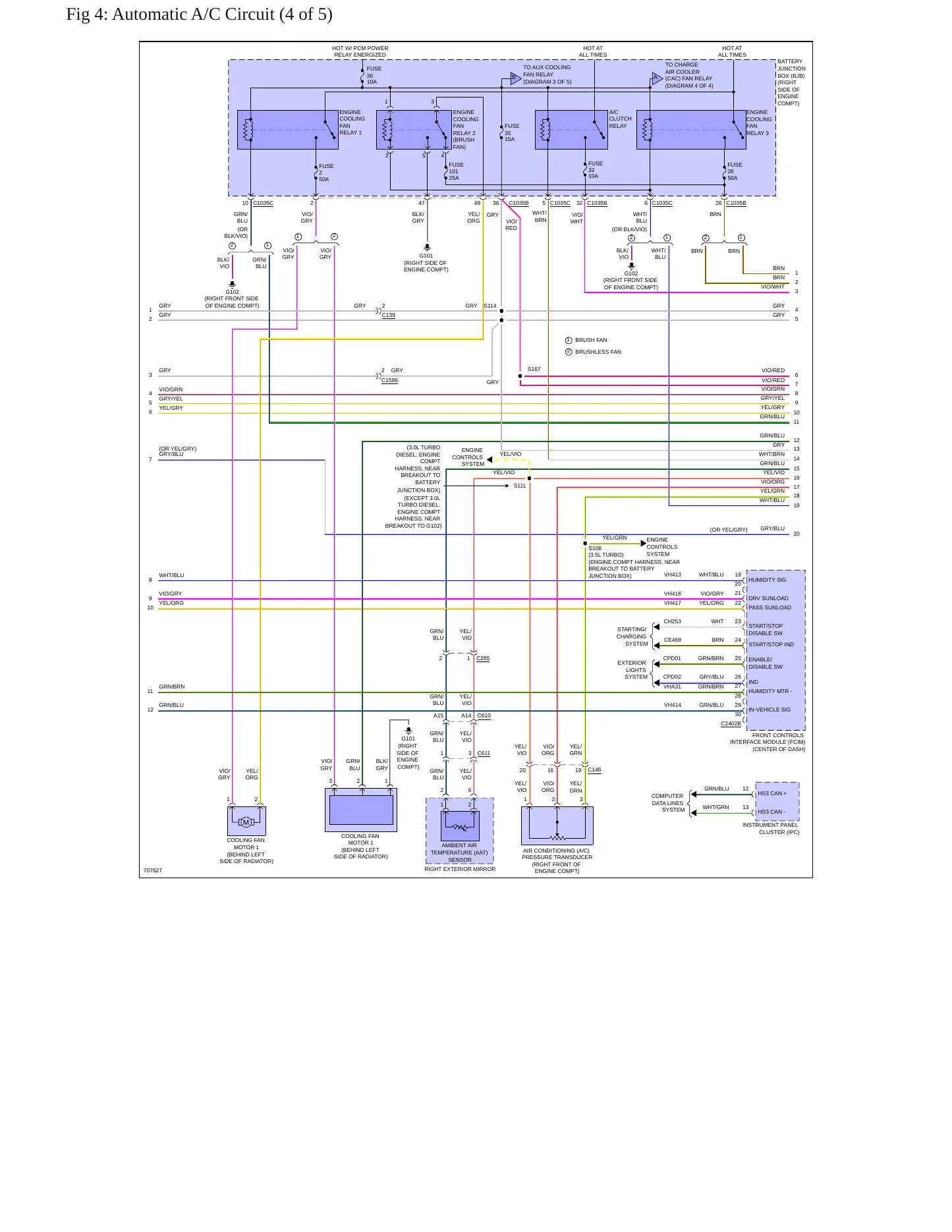

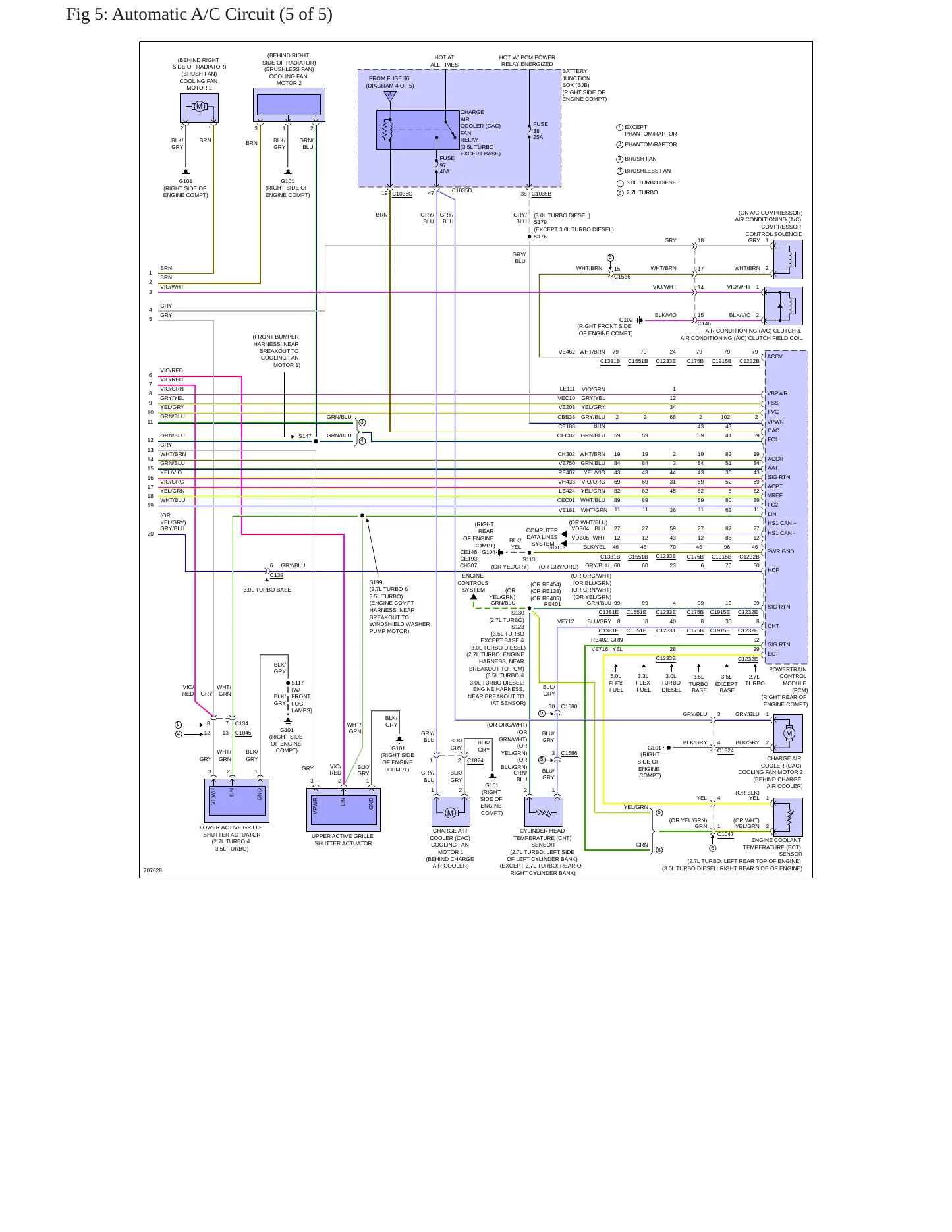

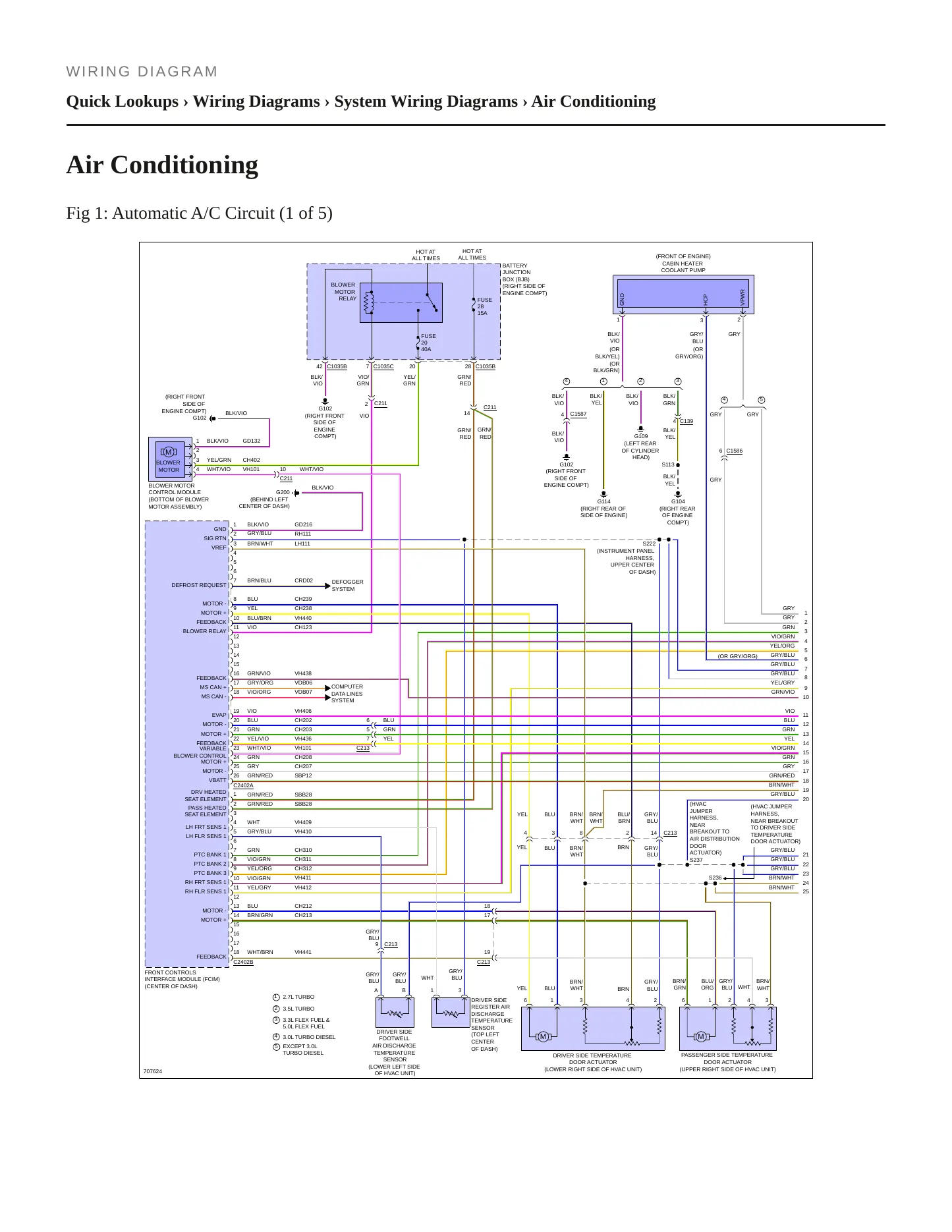

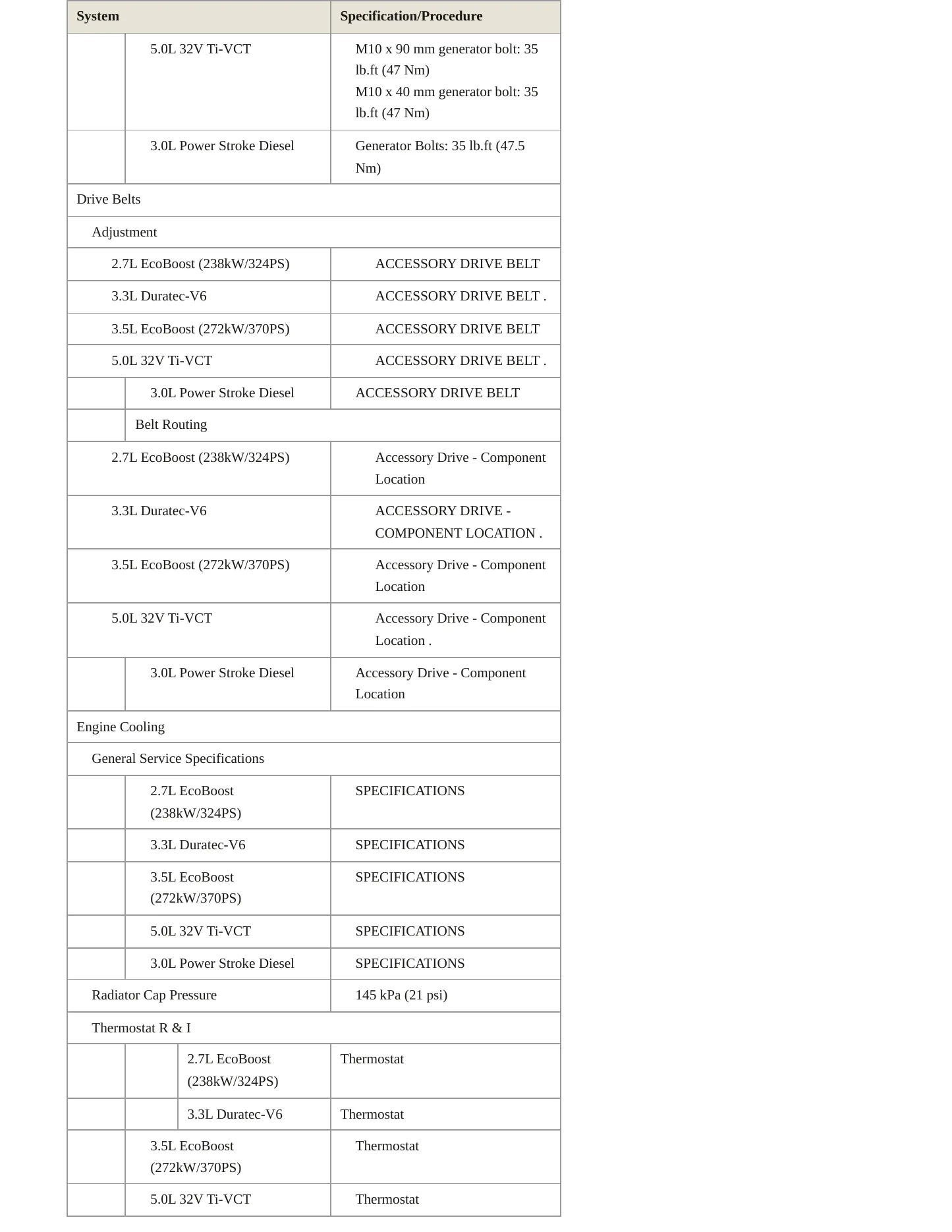

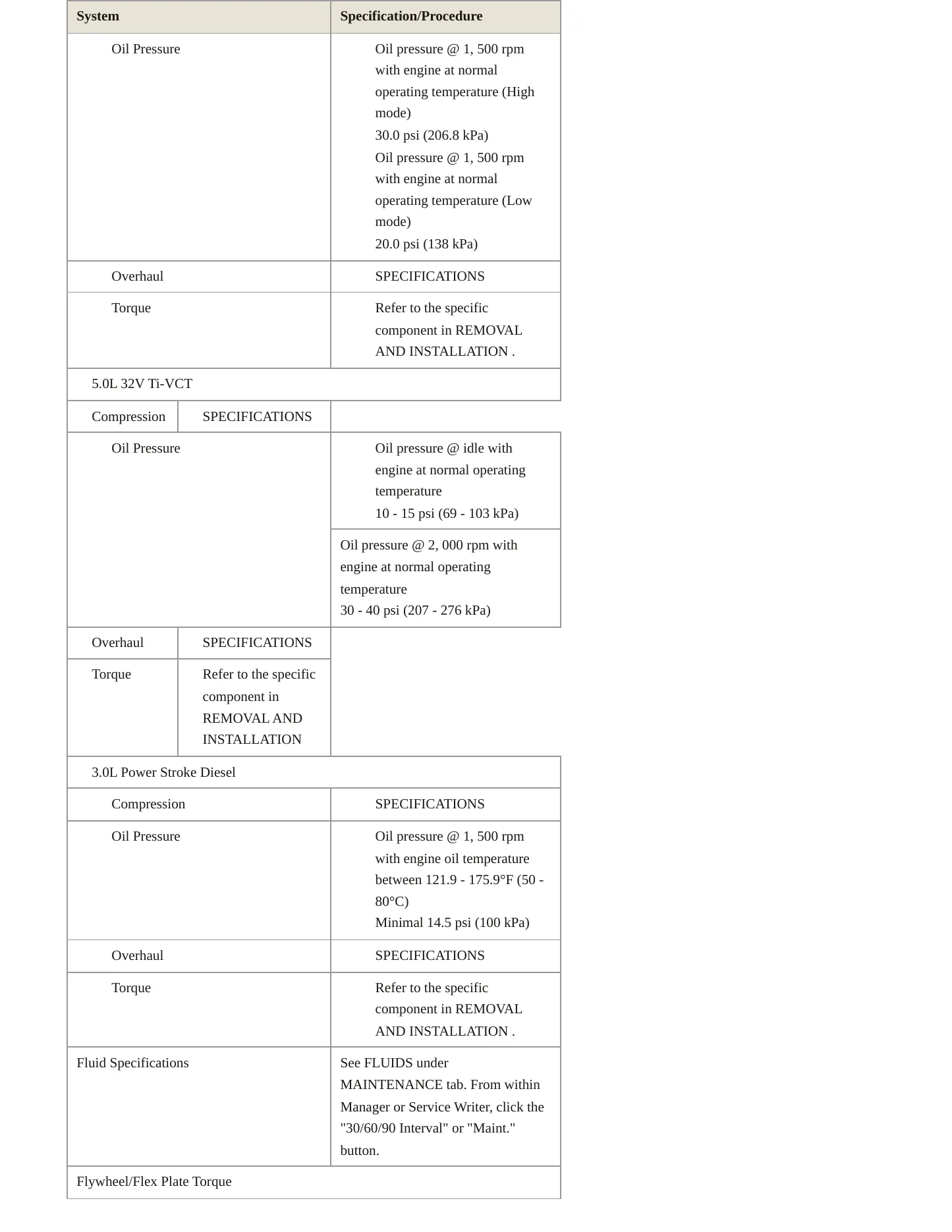

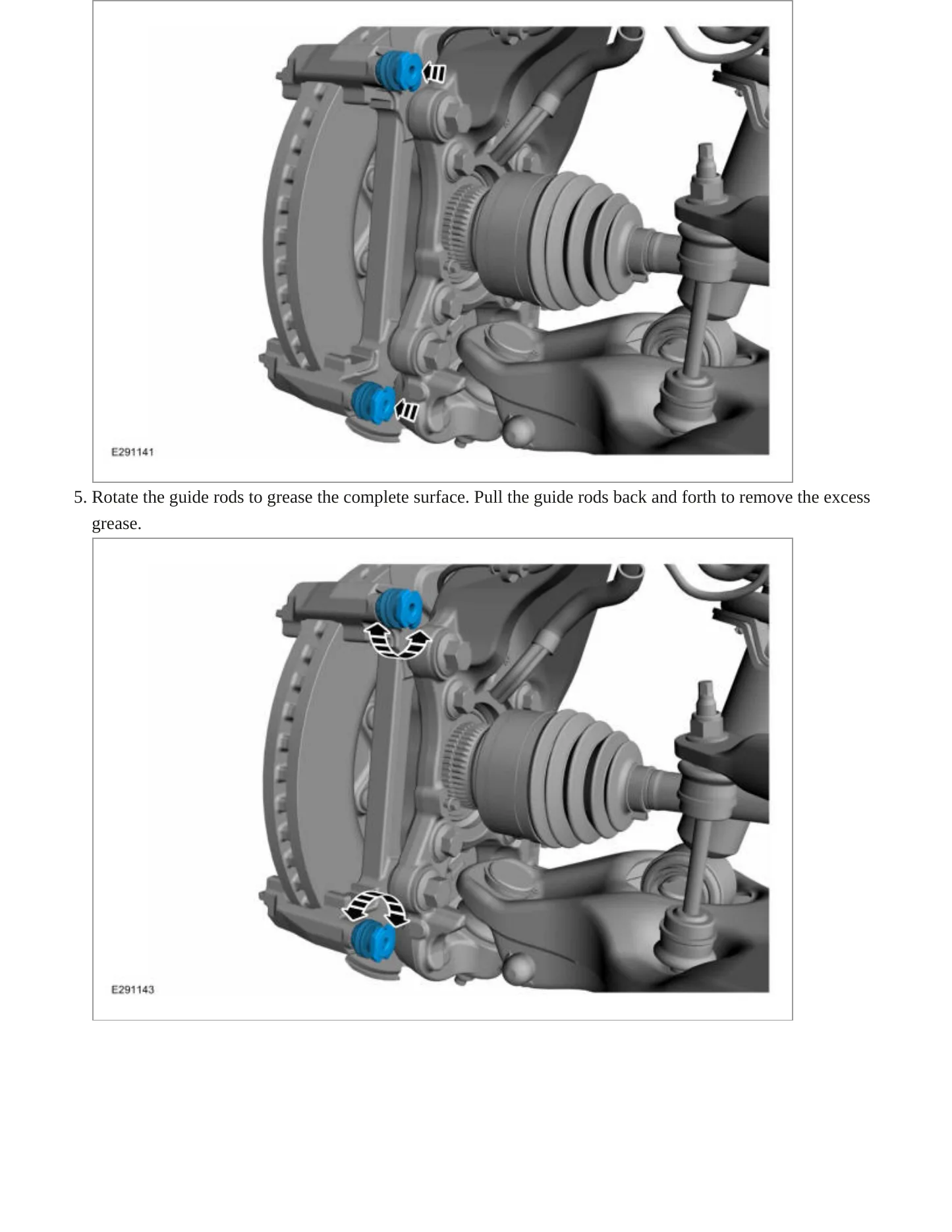

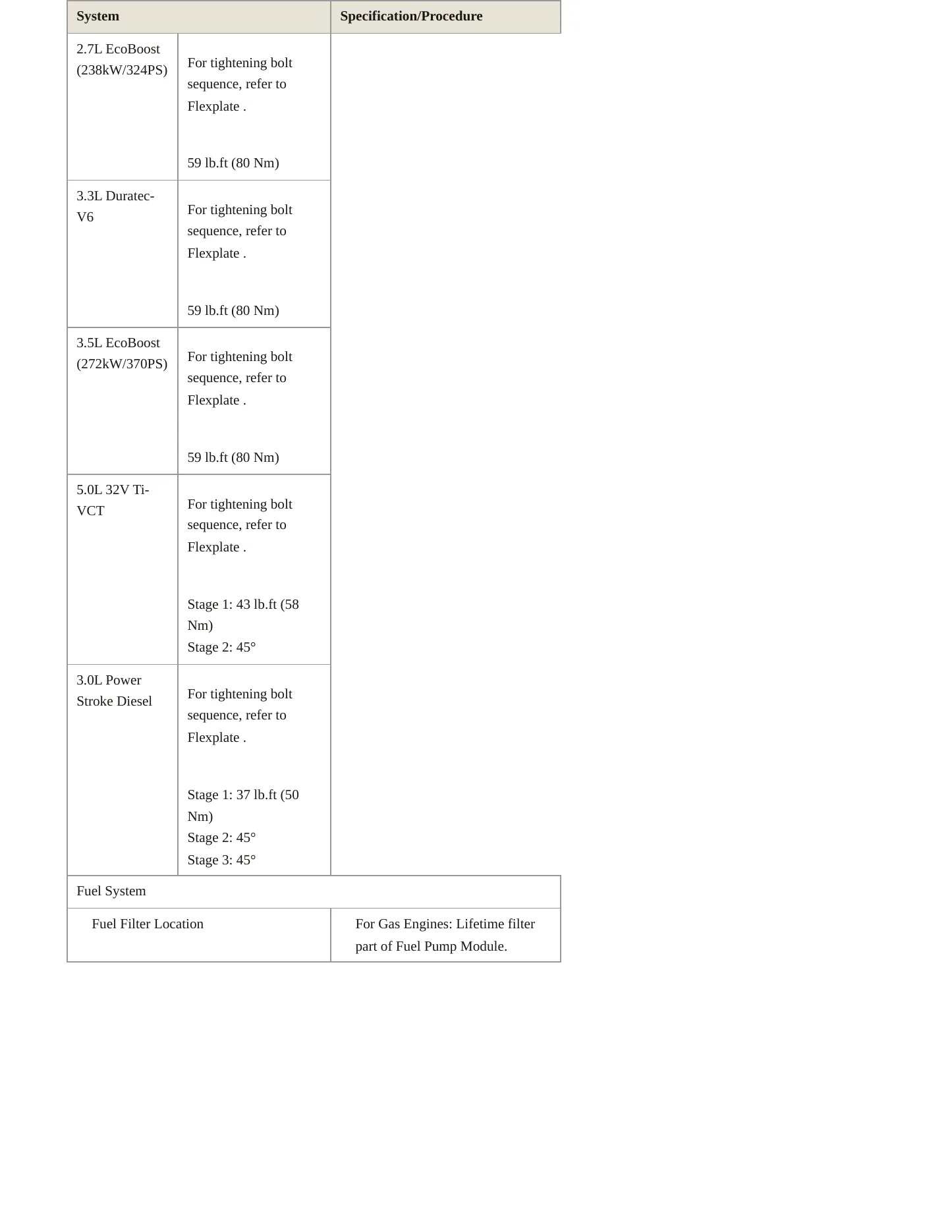

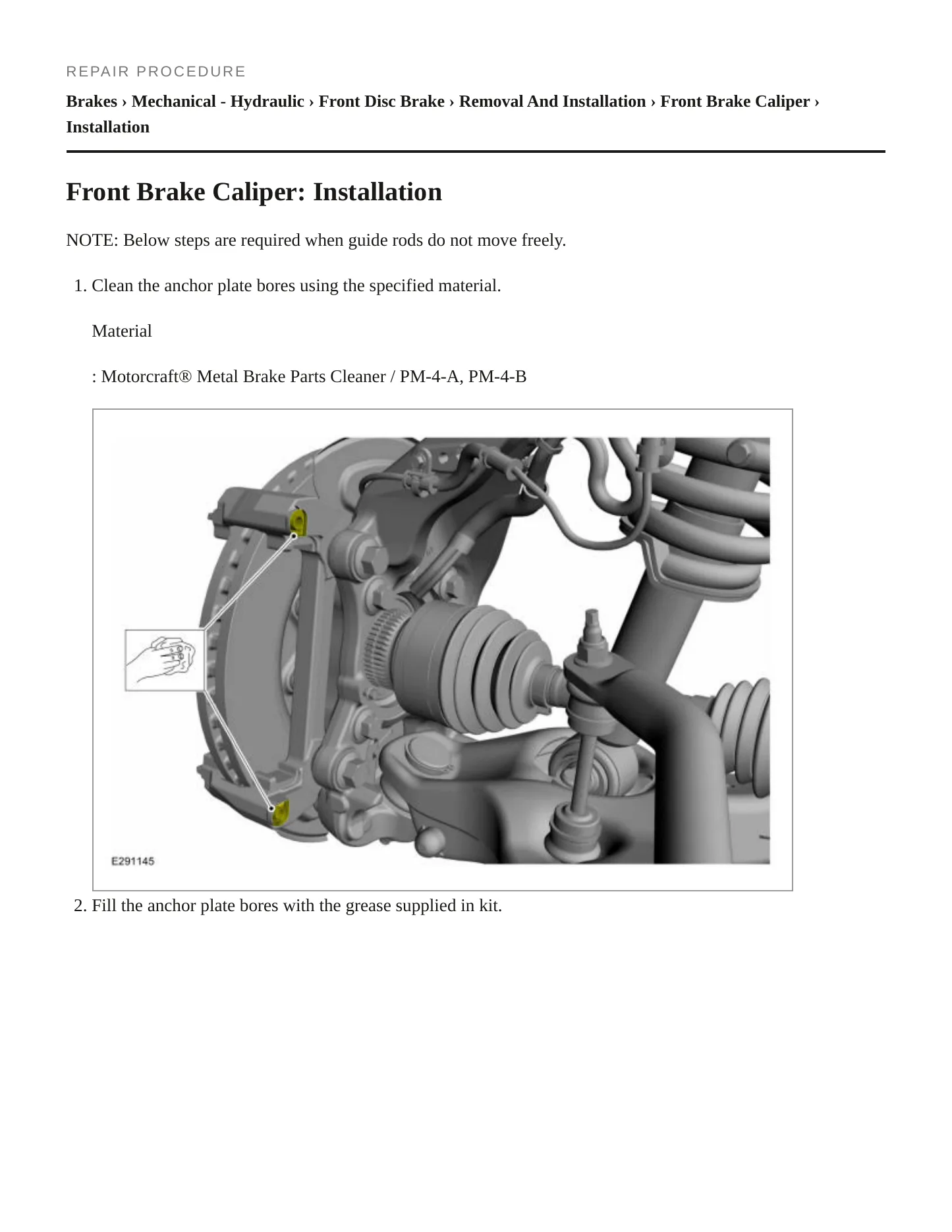

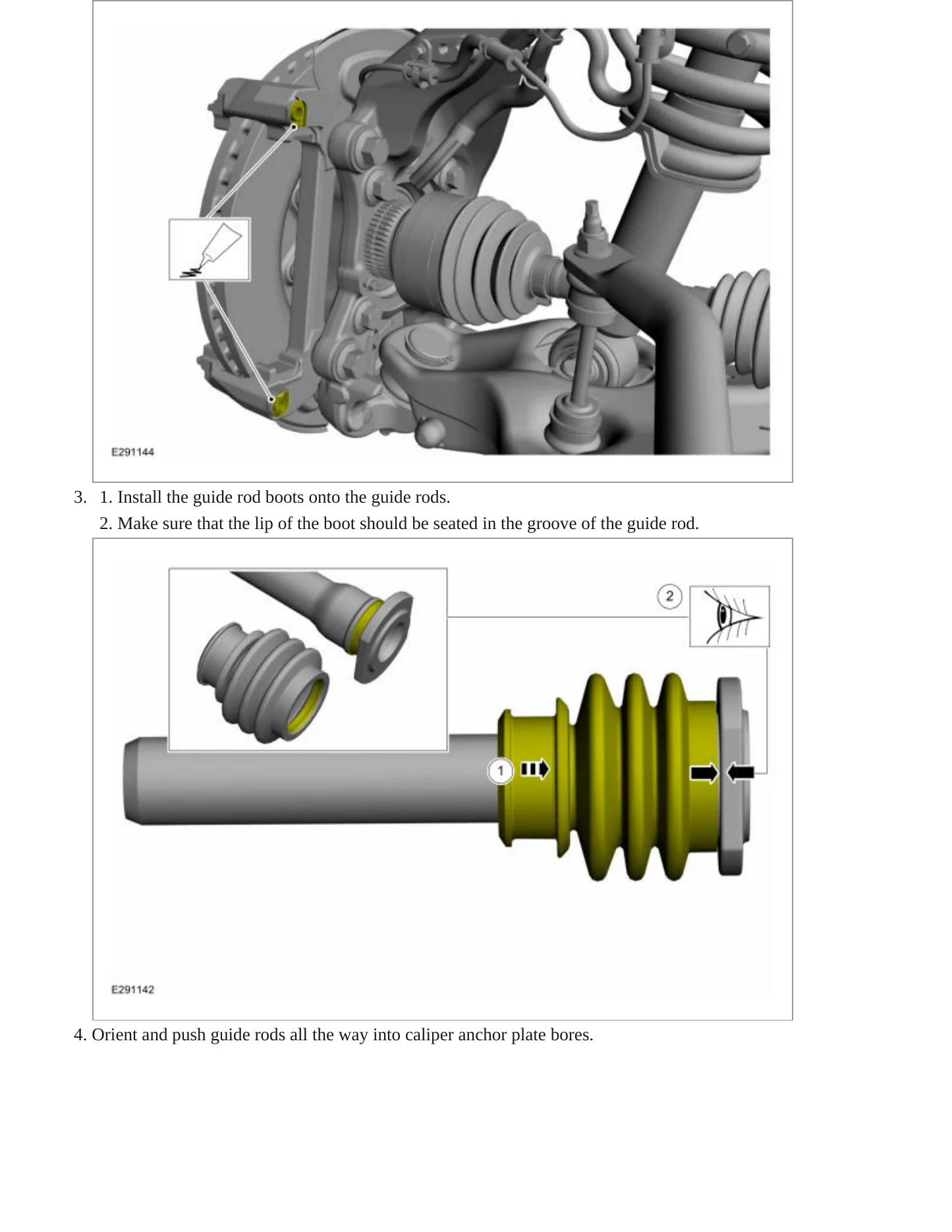

This factory service and repair manual for the 2020 Ford F-150 documents five engines, from the 3.3L V6 up to the 5.0L V8, with turbocharged 2.7L and 3.5L V6s and a turbocharged 3.0L diesel V6 between them. Nine trims are listed, Police Responder and SSV included, and the truck is covered as a crew cab, an extended cab and a standard cab. Every system section carries the procedures, specifications, torque values, wiring diagrams and diagnostics that go with it.

Engines covered

• 3.5L V6 (213 cu in) — DOHC, turbocharged, gasoline
• 3.0L V6 (183 cu in) — DOHC, turbocharged, diesel
• 5.0L V8 (307 cu in) — DOHC, naturally aspirated, flex-fuel or gasoline
• 2.7L V6 (164 cu in) — DOHC, turbocharged, gasoline
• 3.3L V6 (204 cu in) — DOHC, naturally aspirated, flex-fuel or gasoline

Body styles covered

• 4-door crew cab pickup
• 4-door extended cab pickup
• 2-door standard cab pickup

Trims covered

• King Ranch
• Lariat
• Limited
• Platinum
• Police Responder
• Raptor
• SSV
• XL
• XLT

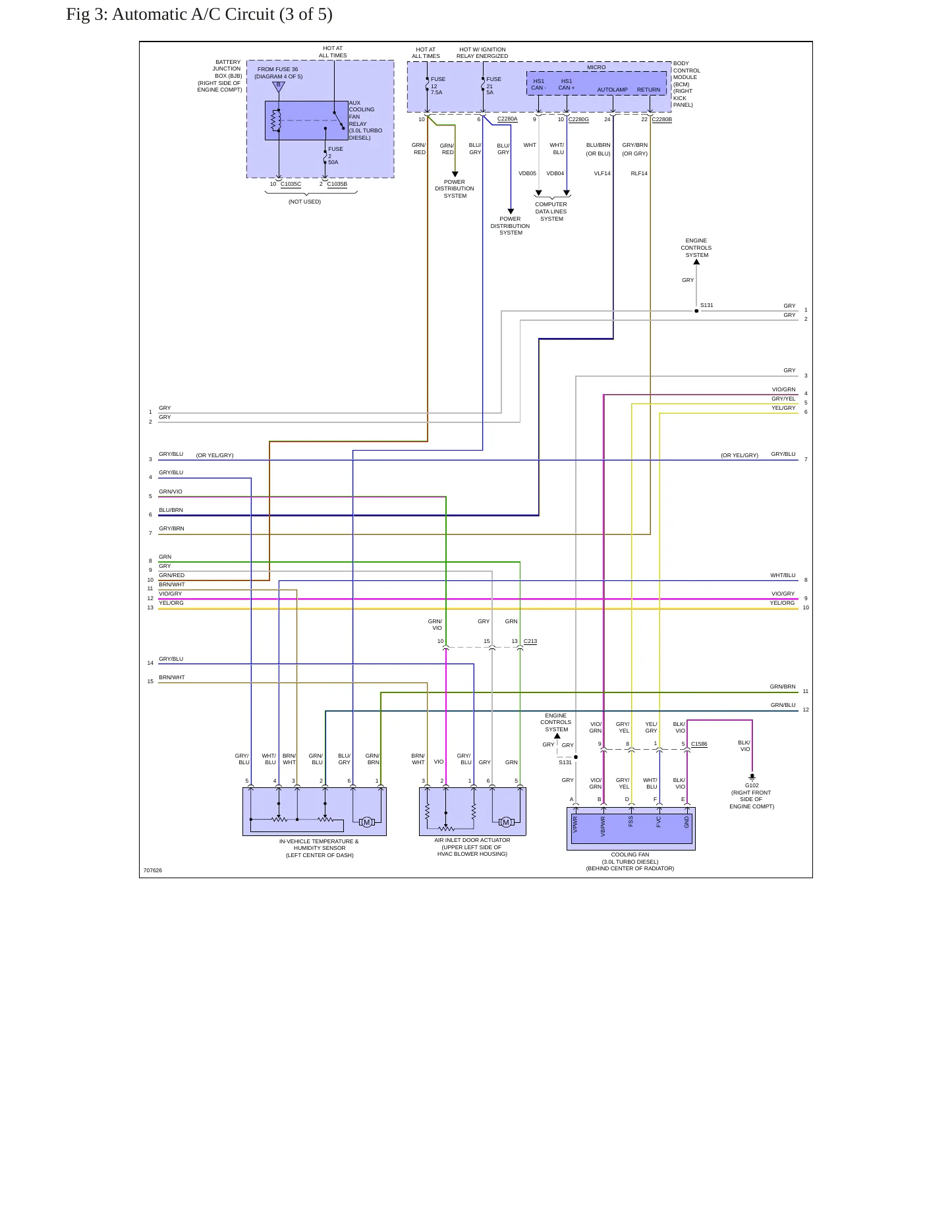

Known issues on the 2020 F-150. Eight recalls were issued against this model year. One describes a transmission shift cable lock clip that may not be fully seated, so the truck can sit in a different gear than the one selected; another a starter attached with an incorrect nut on the battery positive cable; a third a rearview camera that can show a blank or distorted image. Spare tires, wiper linkages, headlamps, battery cables and seat recliners fill out the list. Owners have filed 33 complaints with NHTSA, and the power train accounts for almost all of them. Transmission, starting and camera work all fall inside the diagnostics and wiring diagrams here.
