2016 Mazda CX-5 Service and Repair Manual

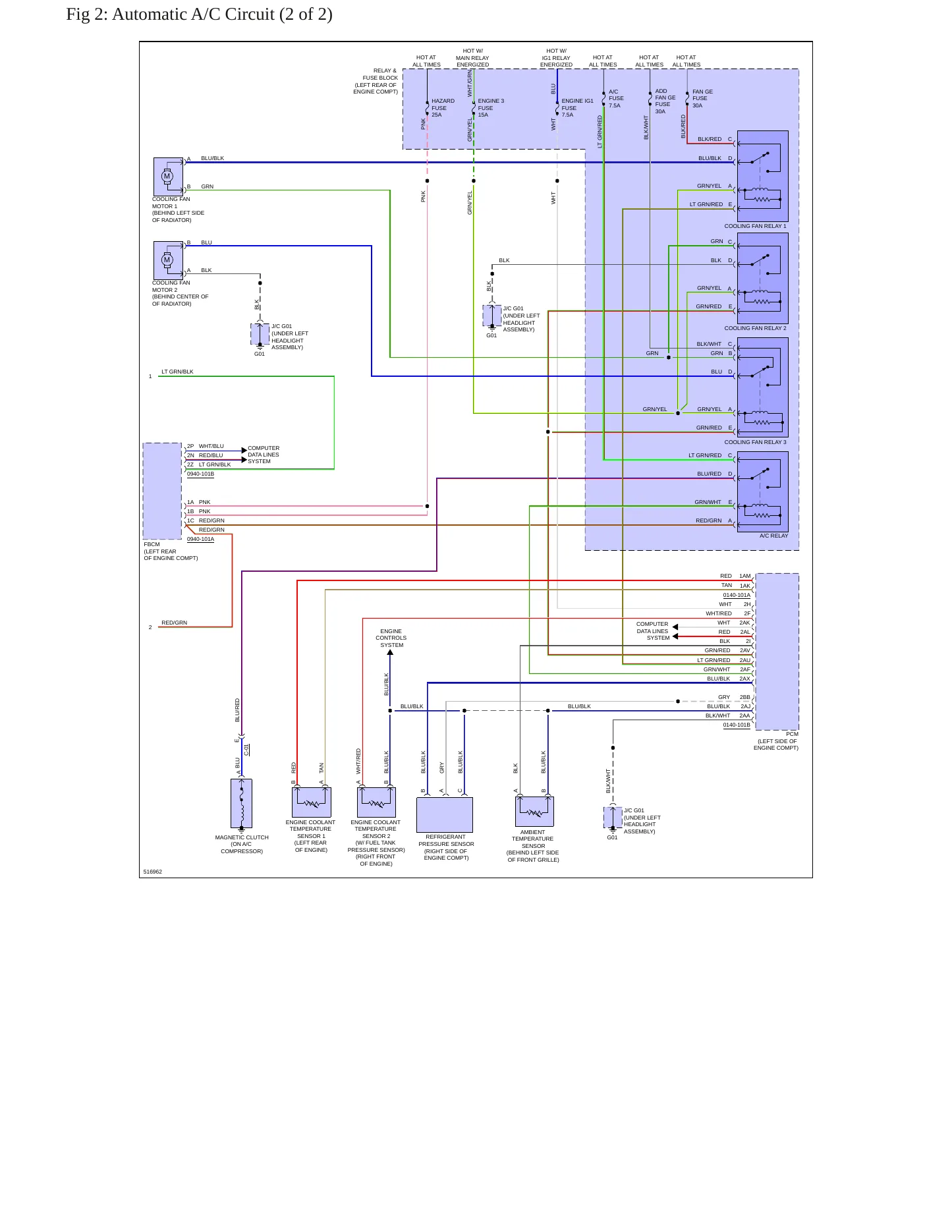

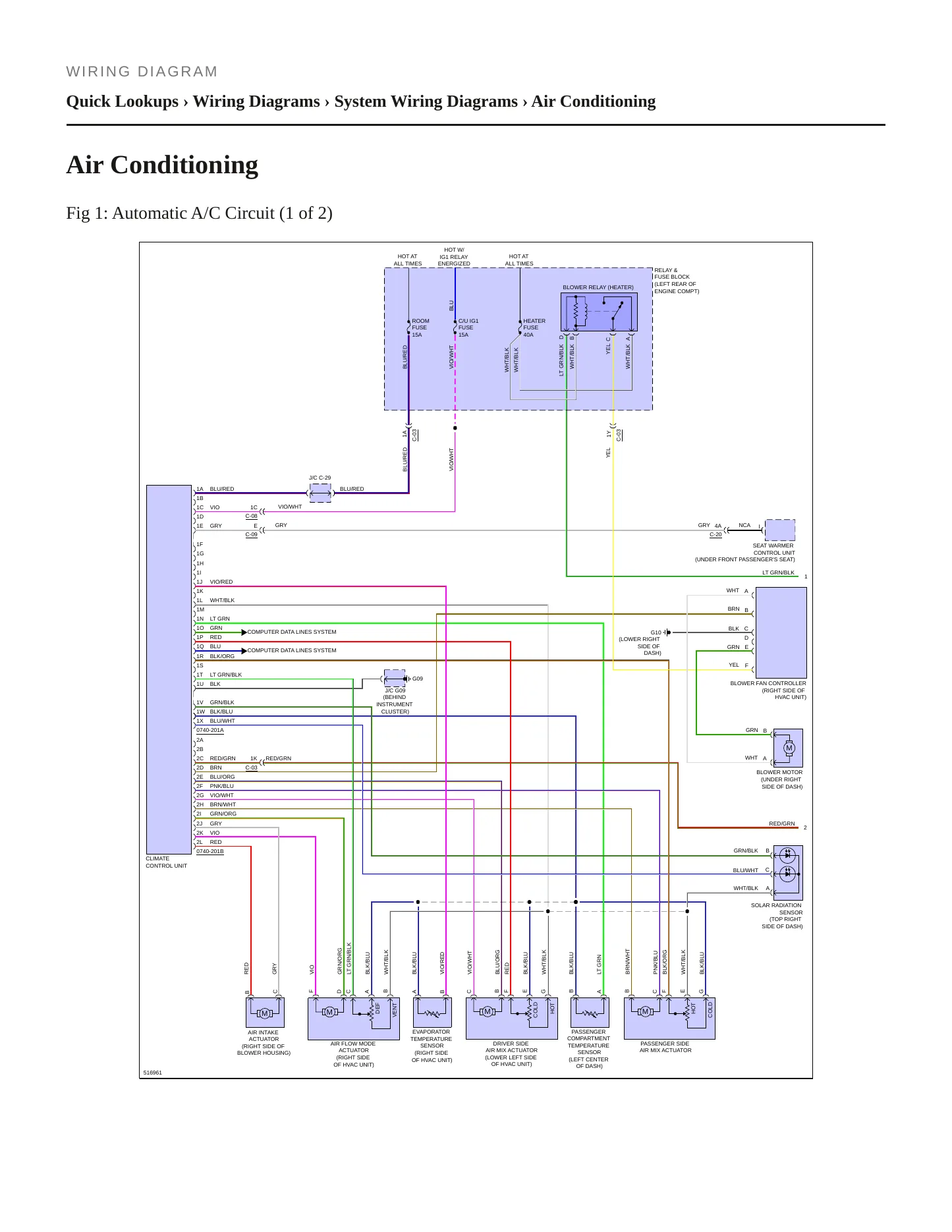

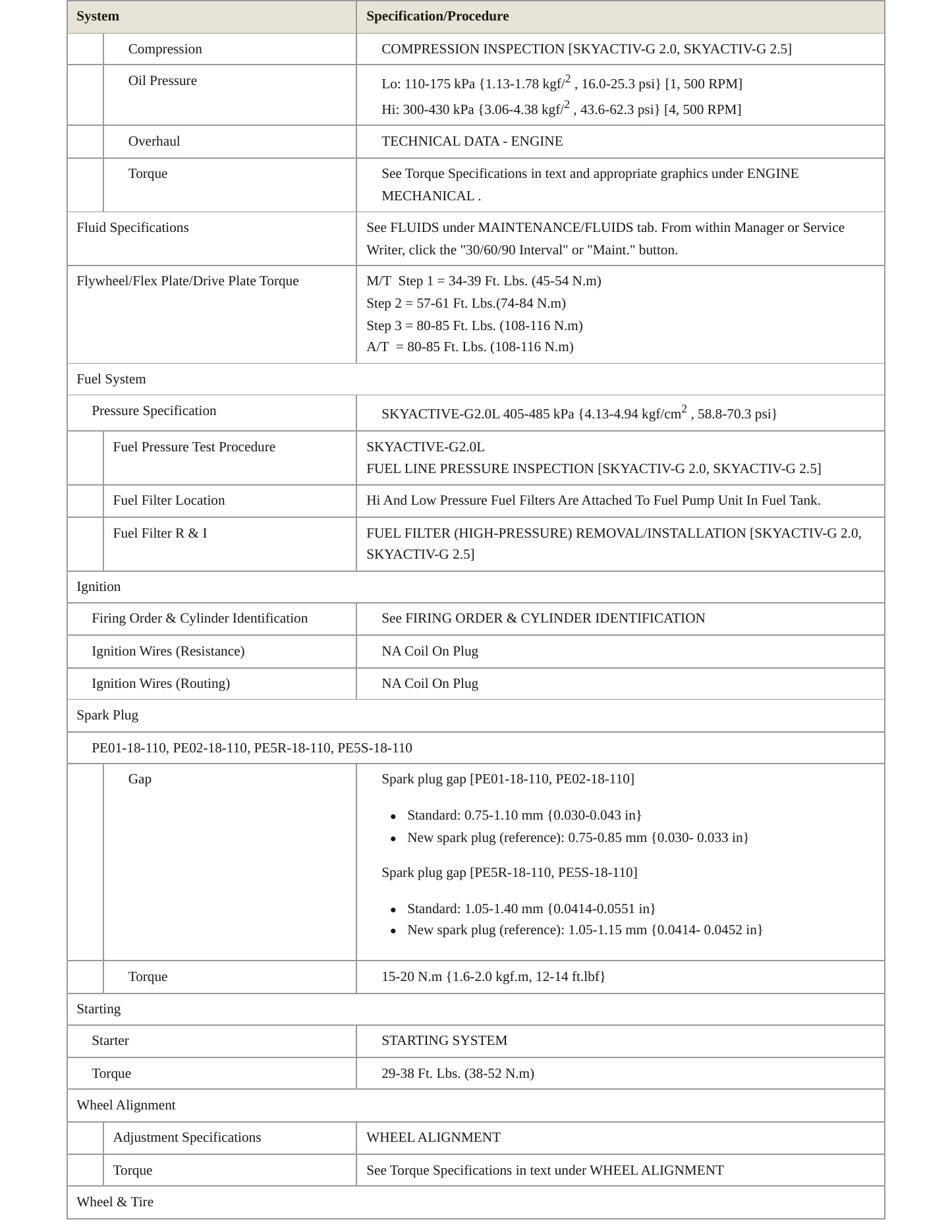

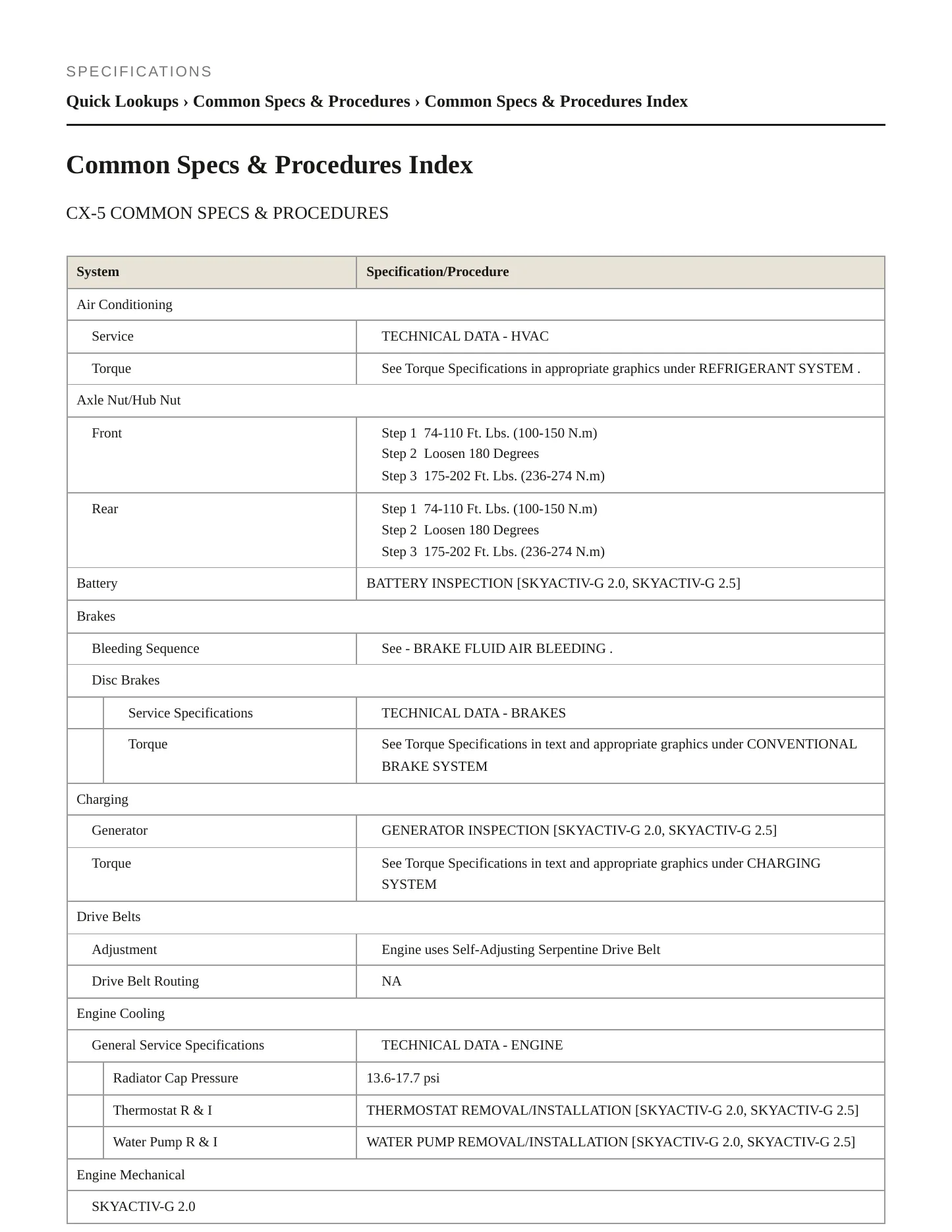

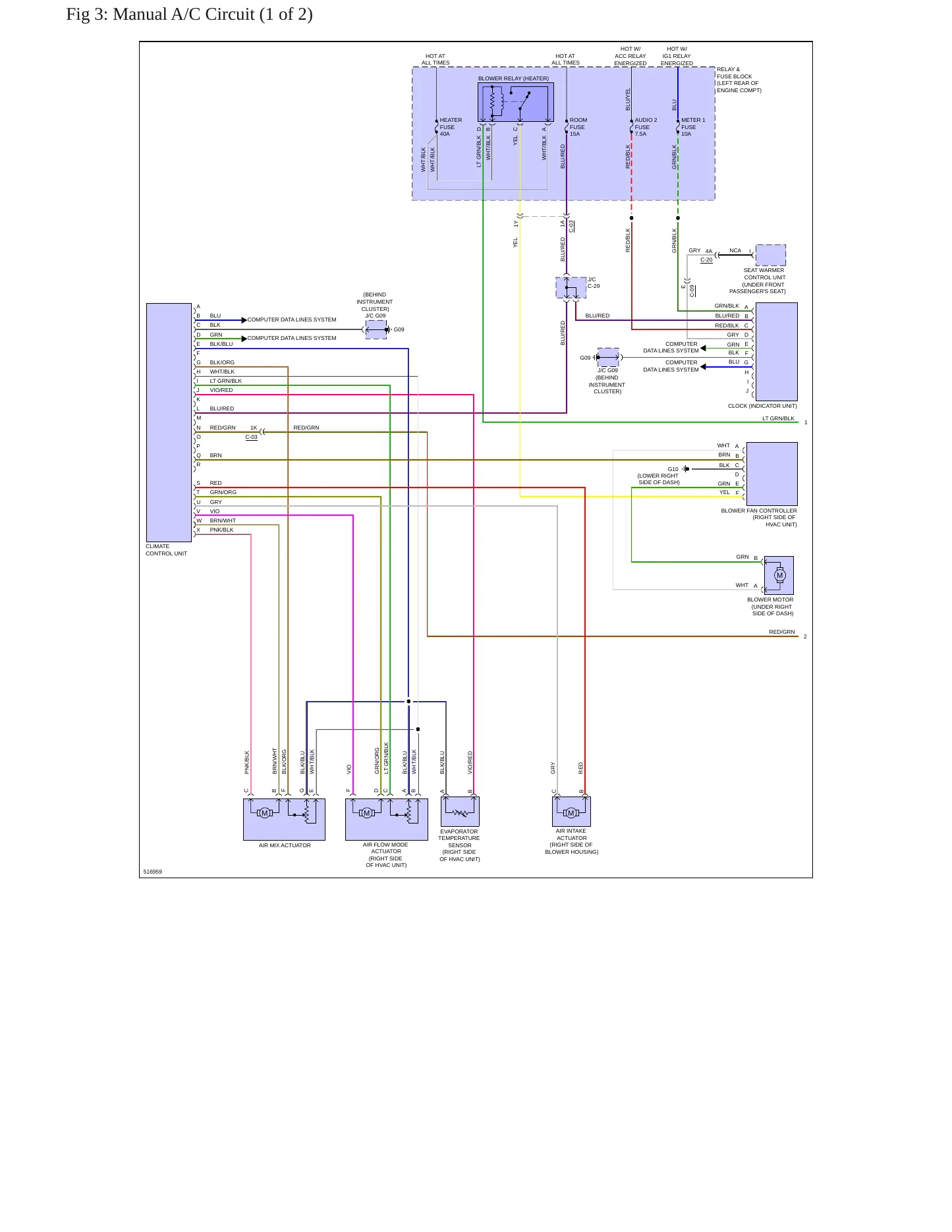

This factory service and repair manual for the 2016 Mazda CX-5 takes in eight trims, namely Grand Touring, GS, GT, GX, i, S, Sport and Touring, on the 4-door sport utility body. Engine choices are a 2.0L inline-four of 122 cubic inches and a 2.5L of 152, both with dual overhead camshafts, natural aspiration and gasoline fuel. Procedures, specifications and torque values reach the engine, fuel system, ignition, cooling and transmission as well as the brakes, suspension and steering, and wiring diagrams and diagnostics are there for the electrical system.

Engines covered

• 2.0L inline-four (122 cu in) — DOHC, naturally aspirated, gasoline
• 2.5L inline-four (152 cu in) — DOHC, naturally aspirated, gasoline

Body styles covered

• 4-door sport utility

Trims covered

• Grand Touring
• GS
• GT
• GX
• i
• S
• Sport
• Touring

Known issues on the 2016 CX-5. Of the 4 recalls recorded for the 2016 CX-5, one covered 36,761 vehicles: certain 2016 CX-5 vehicles whose LED daytime running lights could fail while driving, making the vehicle harder to see; dealers inspected the headlights, replacing assemblies or sealing gaskets where needed. Certain vehicles from set production windows were also recalled for front strut bolts at the steering knuckle that could loosen and let the knuckle separate, and for a fuel filler pipe that could rupture in a crash. Complaints reach 510, with exterior lighting named in 161; 31 reported a crash, 13 an injury and 10 a fire. The manual's lighting wiring diagrams and diagnostics, and its steering and fuel system procedures, fit these concerns.
