2014 Mazda CX-5 Service and Repair Manual

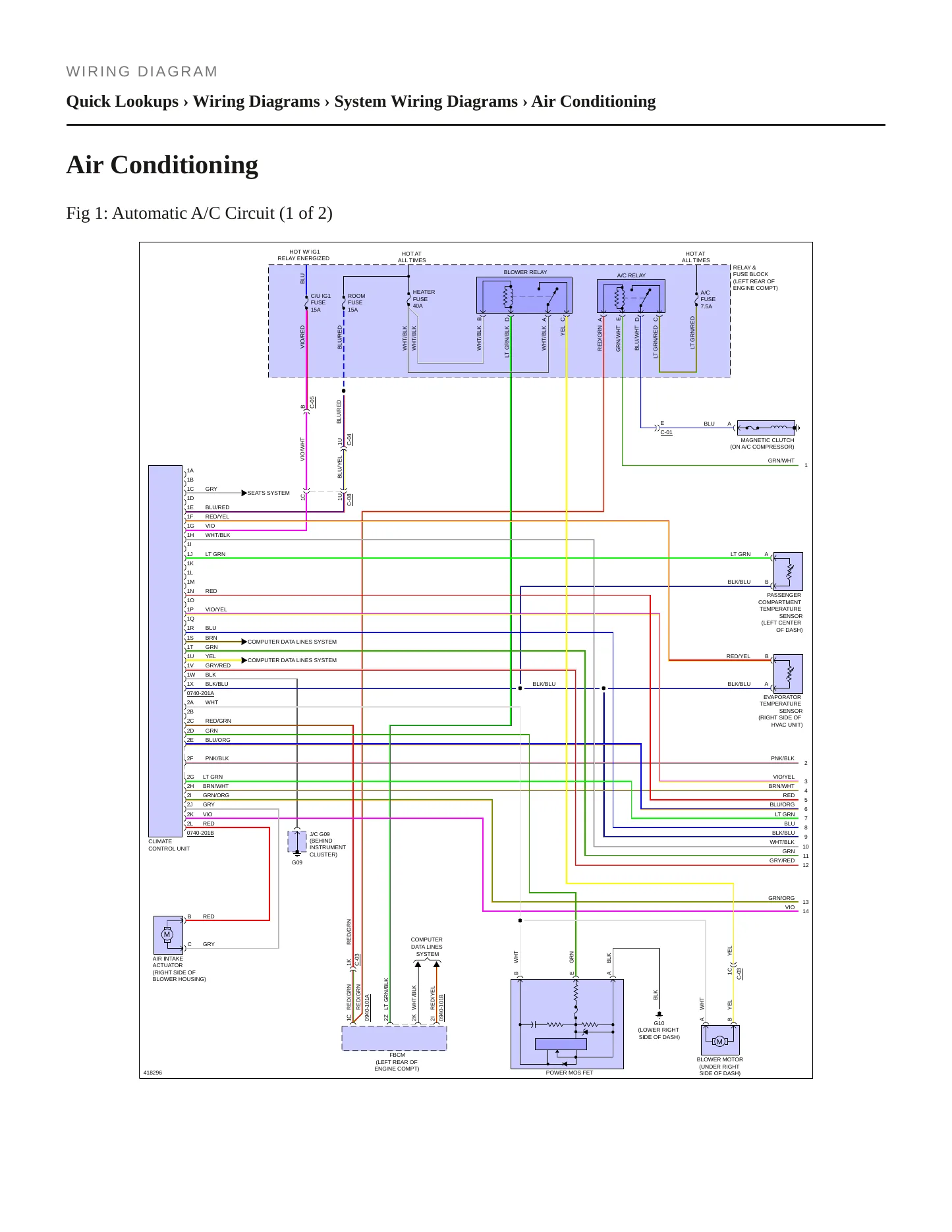

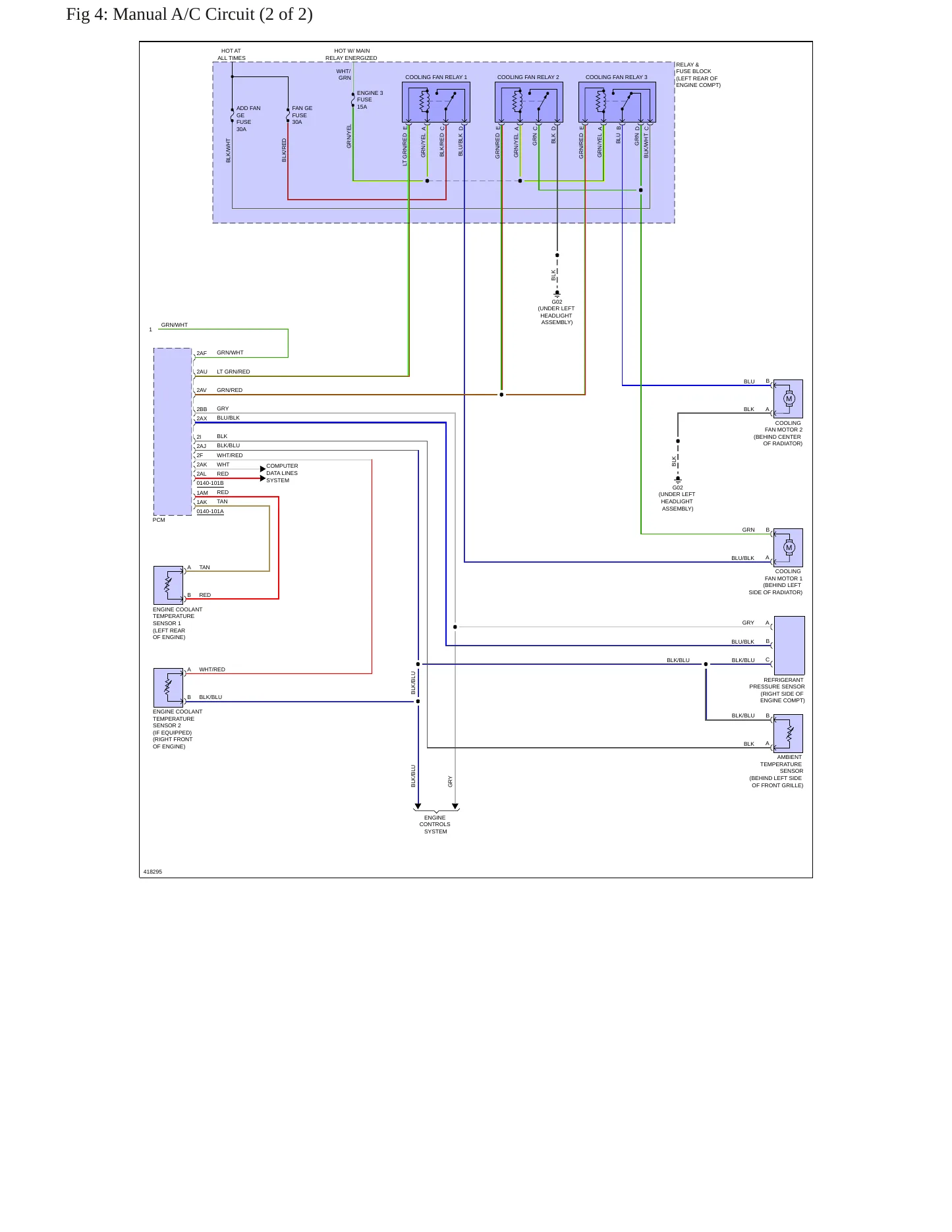

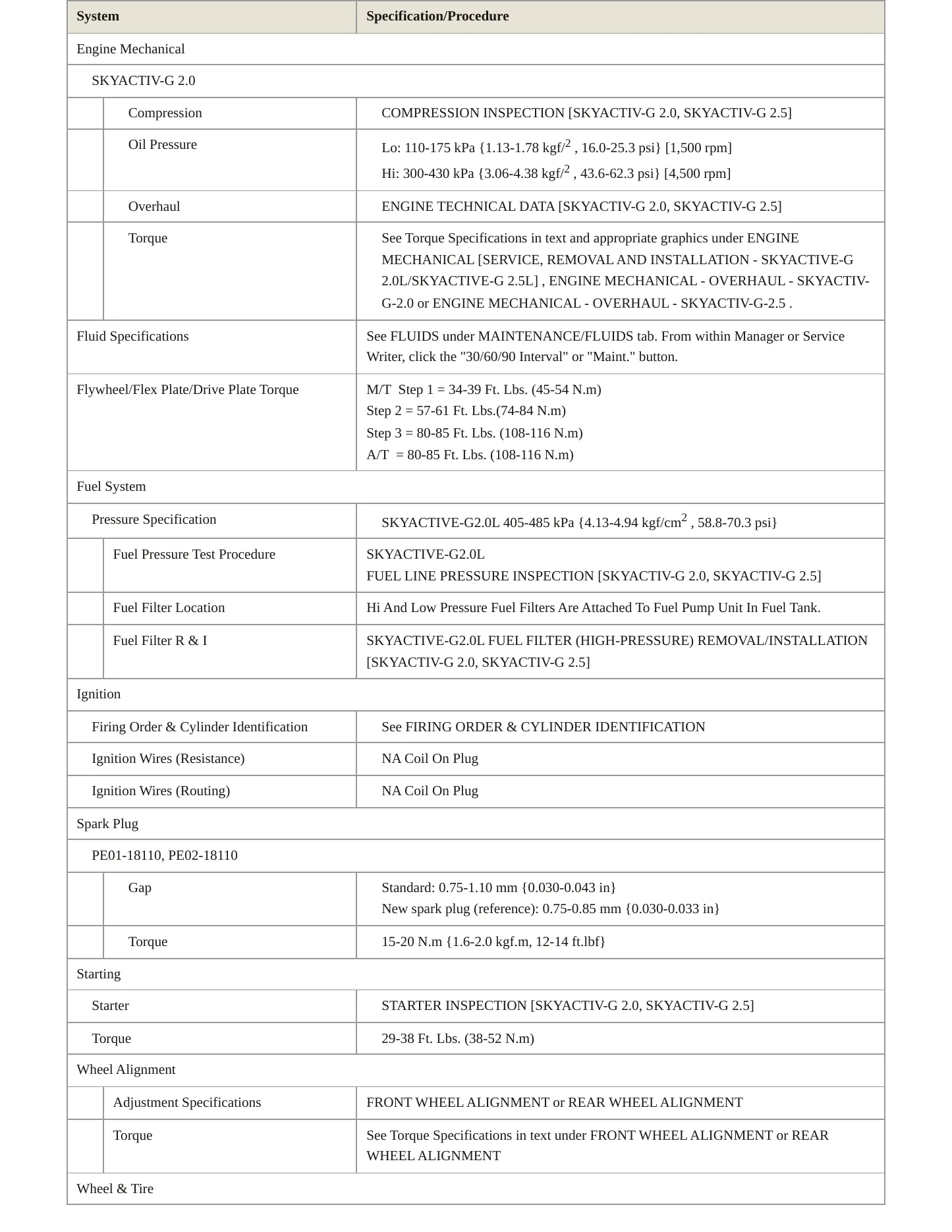

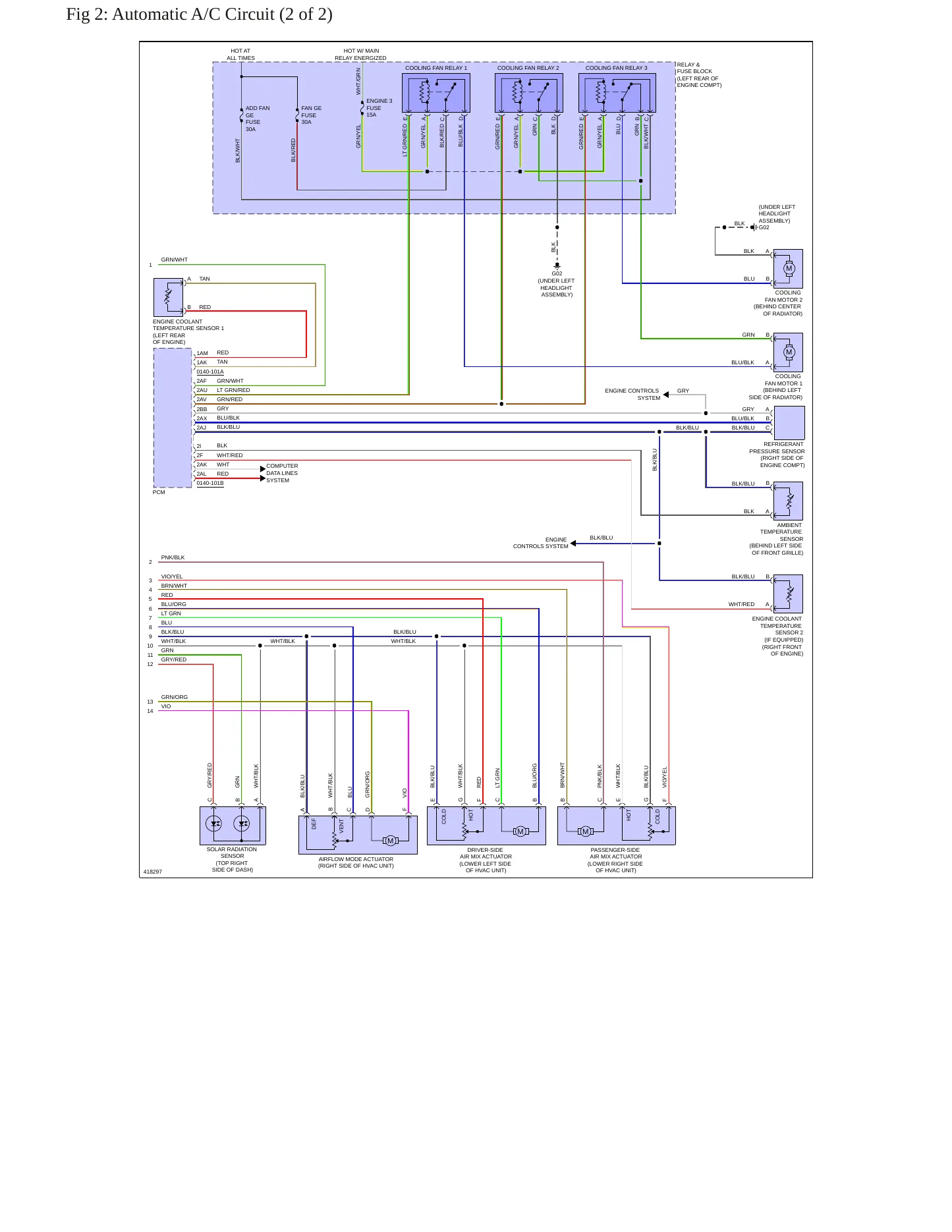

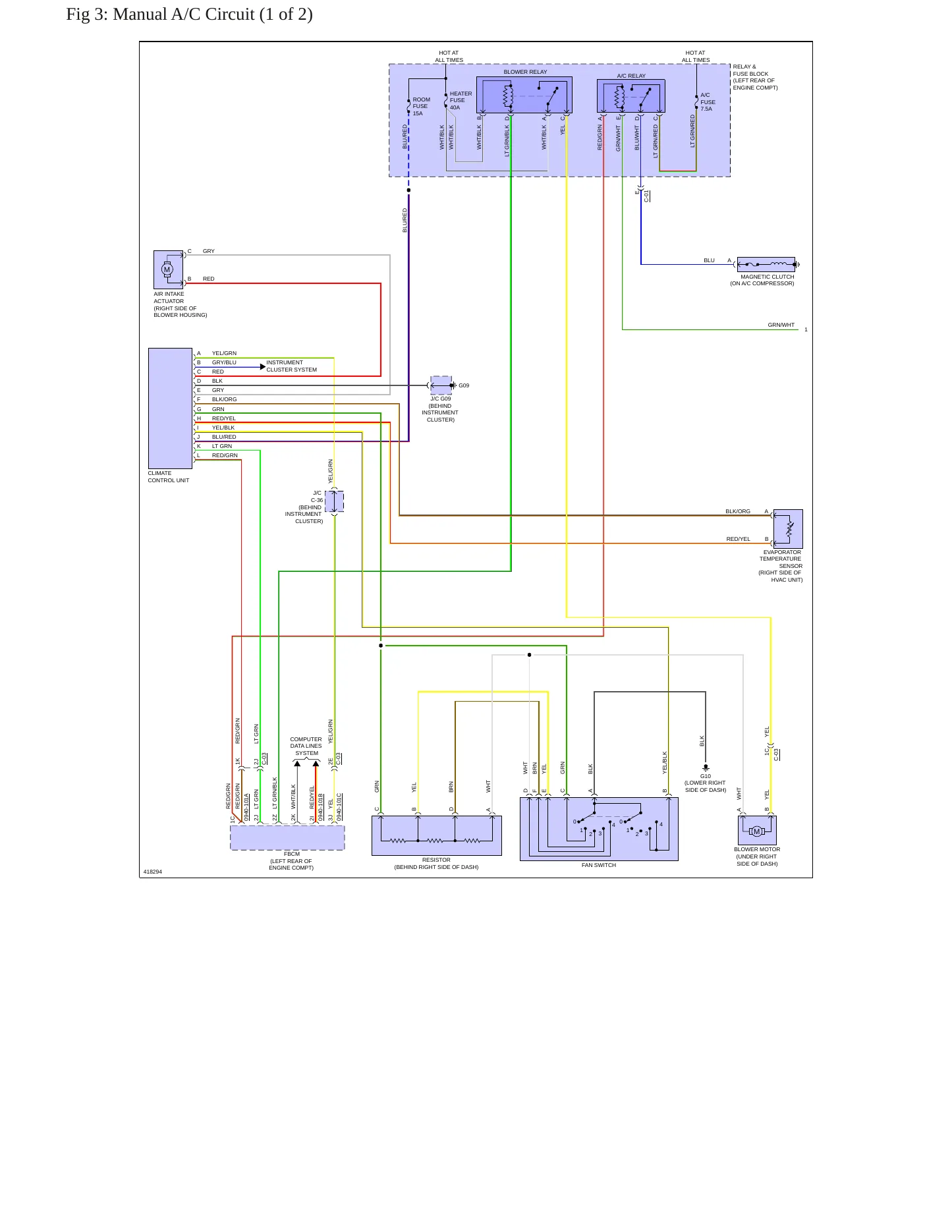

This factory service and repair manual for the 2014 Mazda CX-5 covers the 4-door sport utility with either of two naturally aspirated gasoline inline-fours, both with dual overhead camshafts: a 2.0L of 122 cubic inches and a 2.5L of 152. The trim list runs to eight names, Grand Touring, GS, GT, GX, i, S, Sport and Touring. Engine work, from fuel delivery and ignition to cooling, is backed by procedures, specifications and torque values, the same kinds of data reach the transmission, brakes, suspension and steering, and the electrical system has wiring diagrams and diagnostics.

Engines covered

• 2.0L inline-four (122 cu in) — DOHC, naturally aspirated, gasoline
• 2.5L inline-four (152 cu in) — DOHC, naturally aspirated, gasoline

Body styles covered

• 4-door sport utility

Trims covered

• Grand Touring
• GS
• GT
• GX
• i
• S
• Sport
• Touring

Known issues on the 2014 CX-5. Three recalls are recorded for the 2014 CX-5. On certain vehicles built within a set production window, the lower bolts joining the front strut to the steering knuckle could loosen and let the knuckle separate, costing steering control; dealers inspected them, replacing and retightening loose ones. Certain vehicles from another window had a fuel filler pipe that could rupture in a crash and leak fuel, and dealers modified its attachment to the bracket. Lift gate struts that could corrode and break brought a recall for certain vehicles from a third window, with replacements awaiting parts. Of 377 complaints, 132 cite the electrical system and 7 reported a crash. Suspension, steering, fuel system and body procedures relate to those recalls.
