2009 Toyota Yaris Service and Repair Manual
Regular price
$34.99 USD
Unit price
Covers all 2009 Yaris trims — Base, S ·
Digital format
Any device
Yours forever
Money-back
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of Preview
Unlock the Full Manual
Complete repair procedures

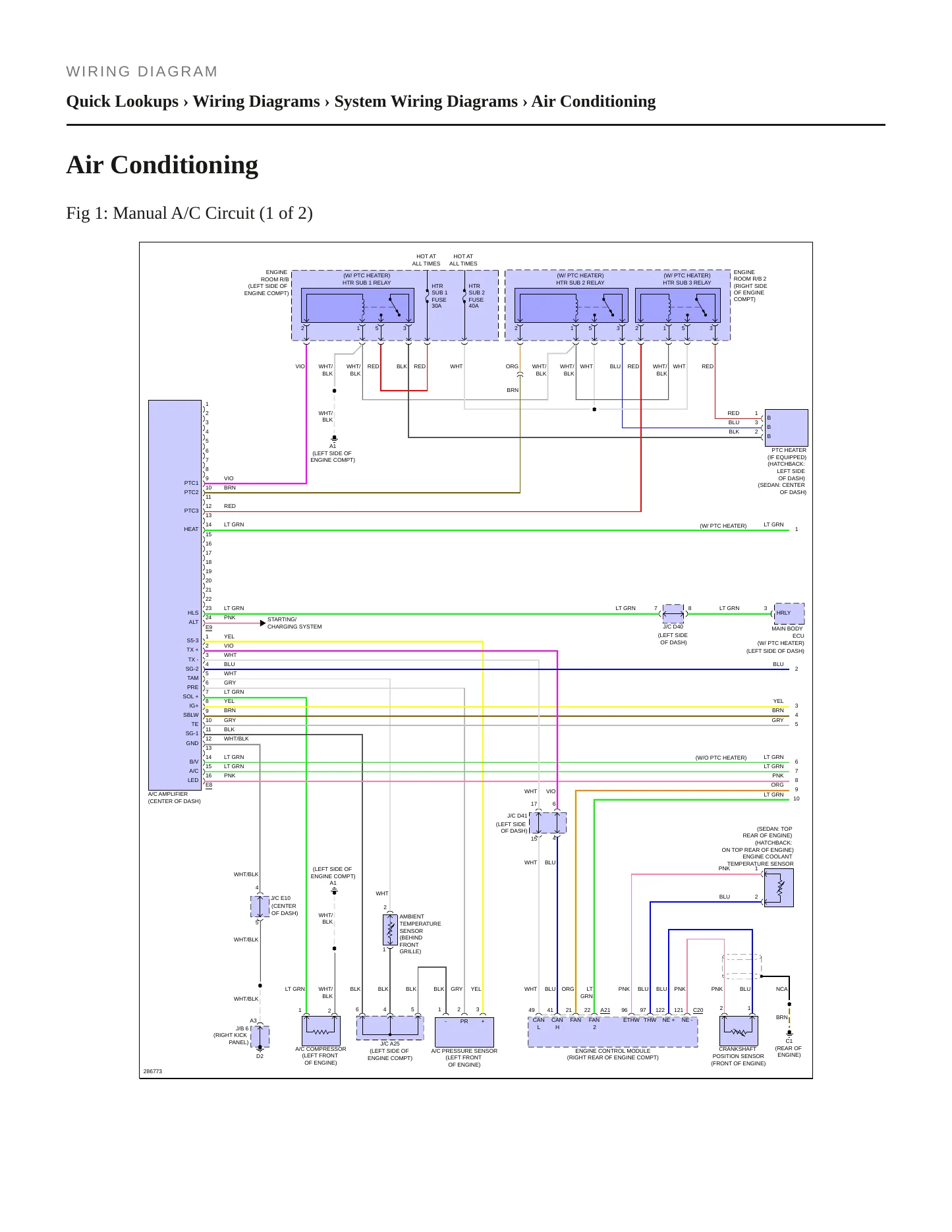

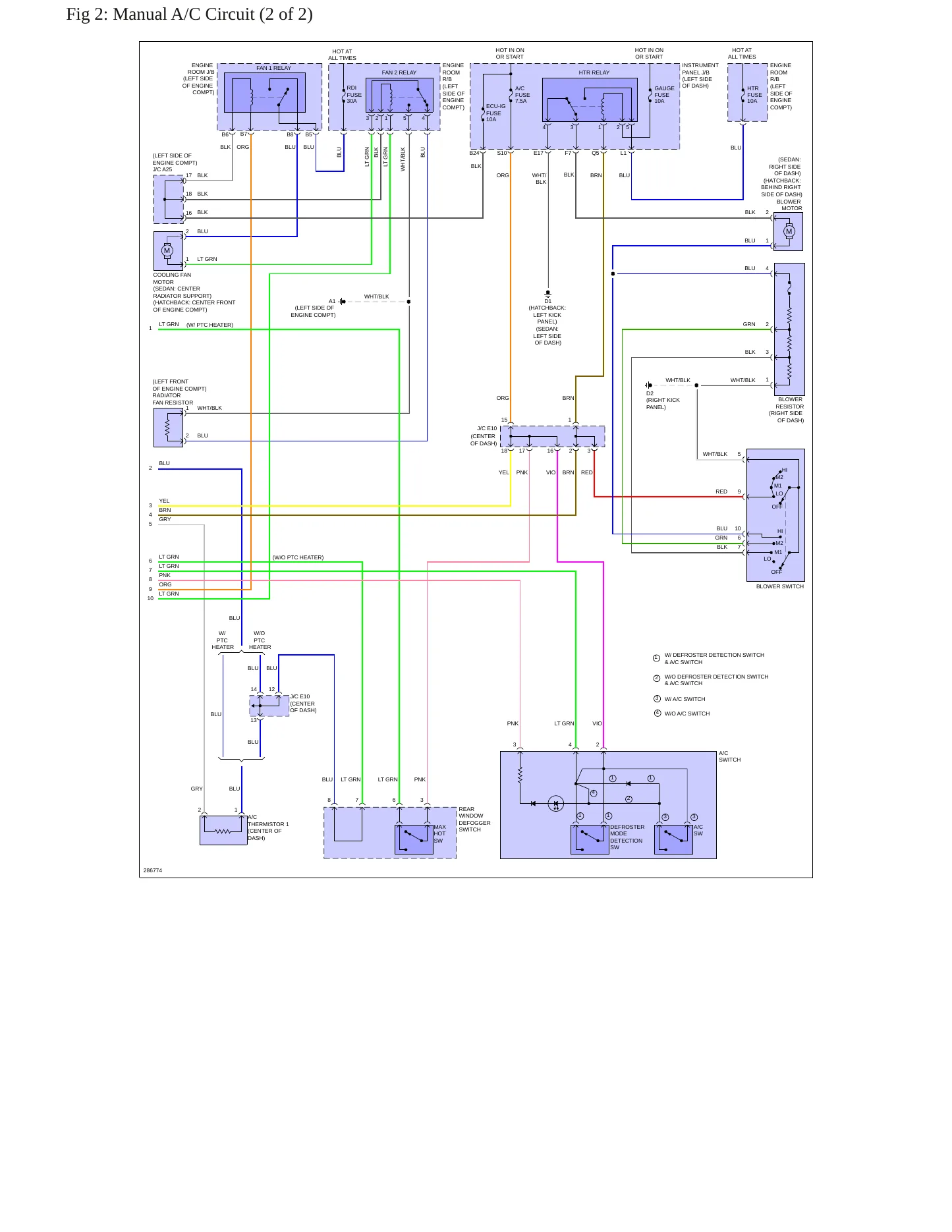

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$34.99
Scroll to view more pages
2009 Toyota Yaris Service and Repair Manual
Regular price
$34.99 USD
Unit price
2009 Toyota Yaris service and repair manual — a detailed, factory-style reference for maintenance, diagnostics, and repair. Use it to confirm correct procedures, specifications, and system coverage before you start work.
Designed for technicians and DIY owners, this manual helps you diagnose issues correctly, follow proven repair steps, and use wiring diagrams and system sections to track faults faster.
What’s included

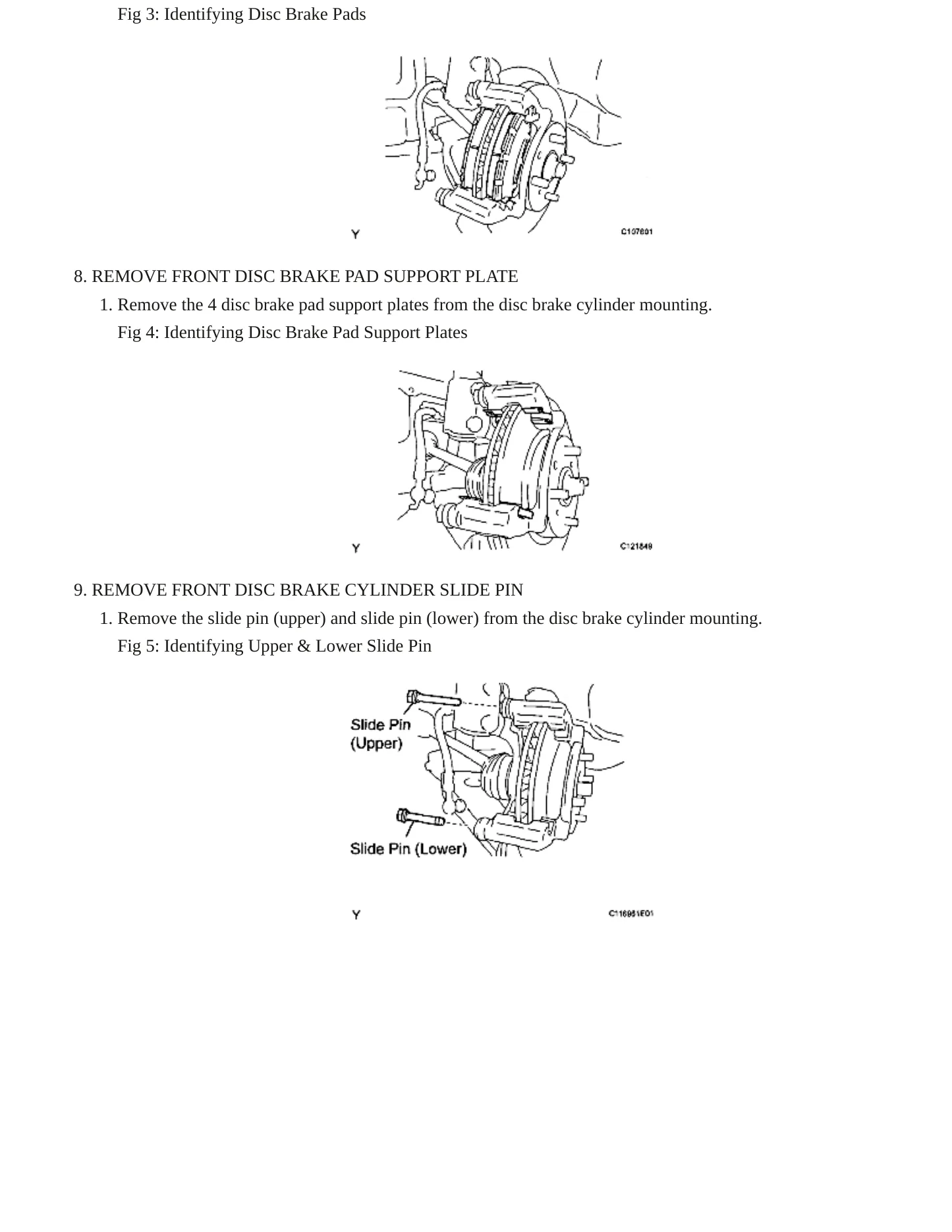

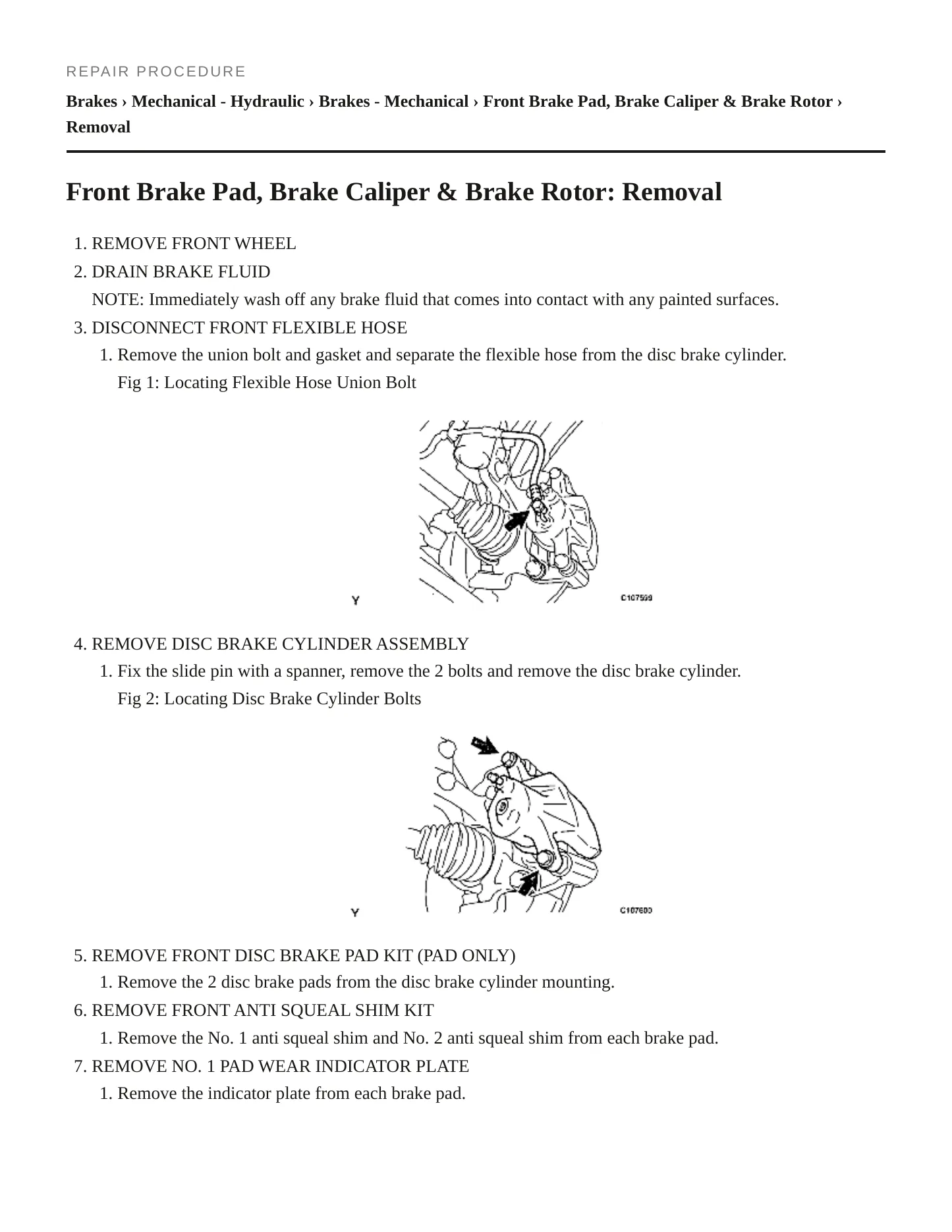

- Step-by-step repair procedures and service information

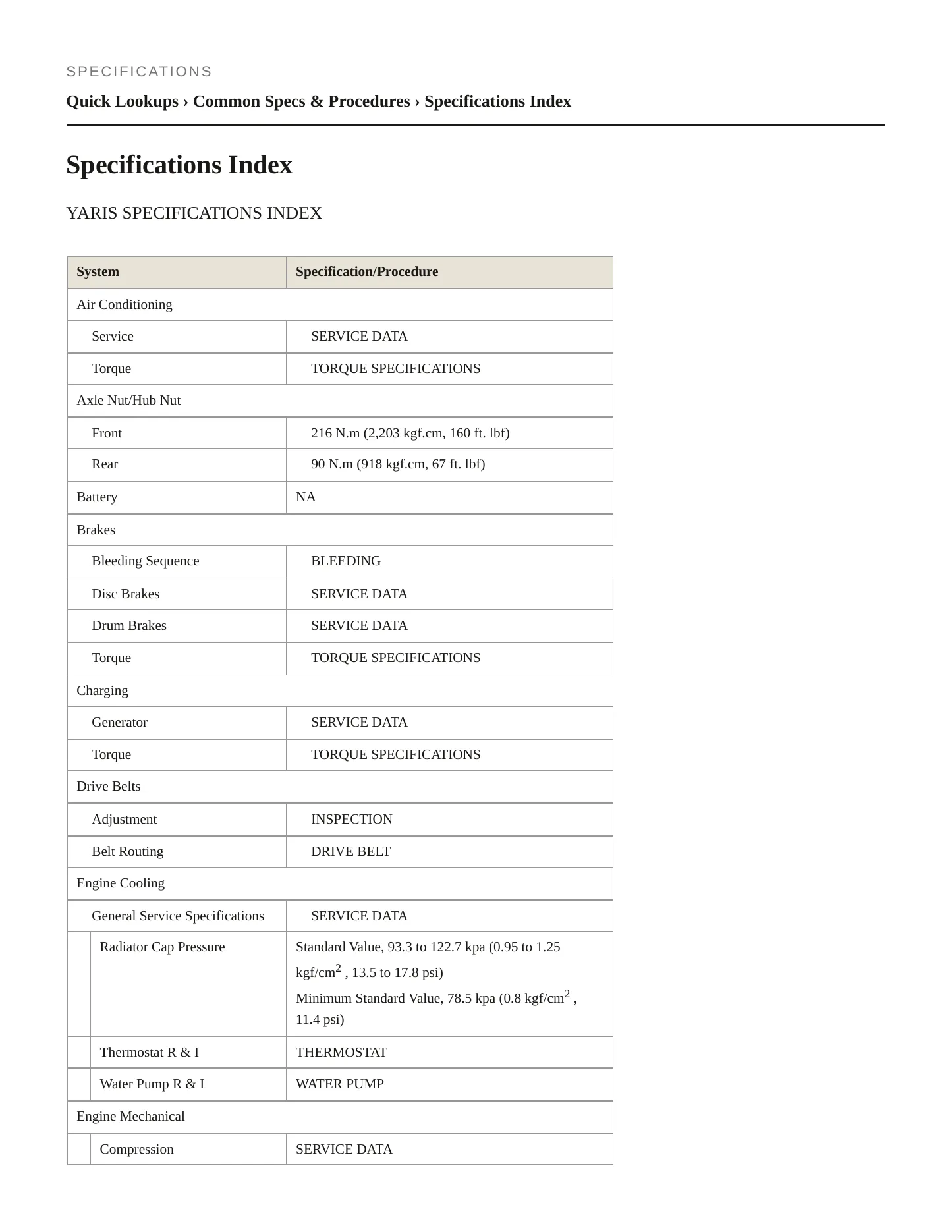

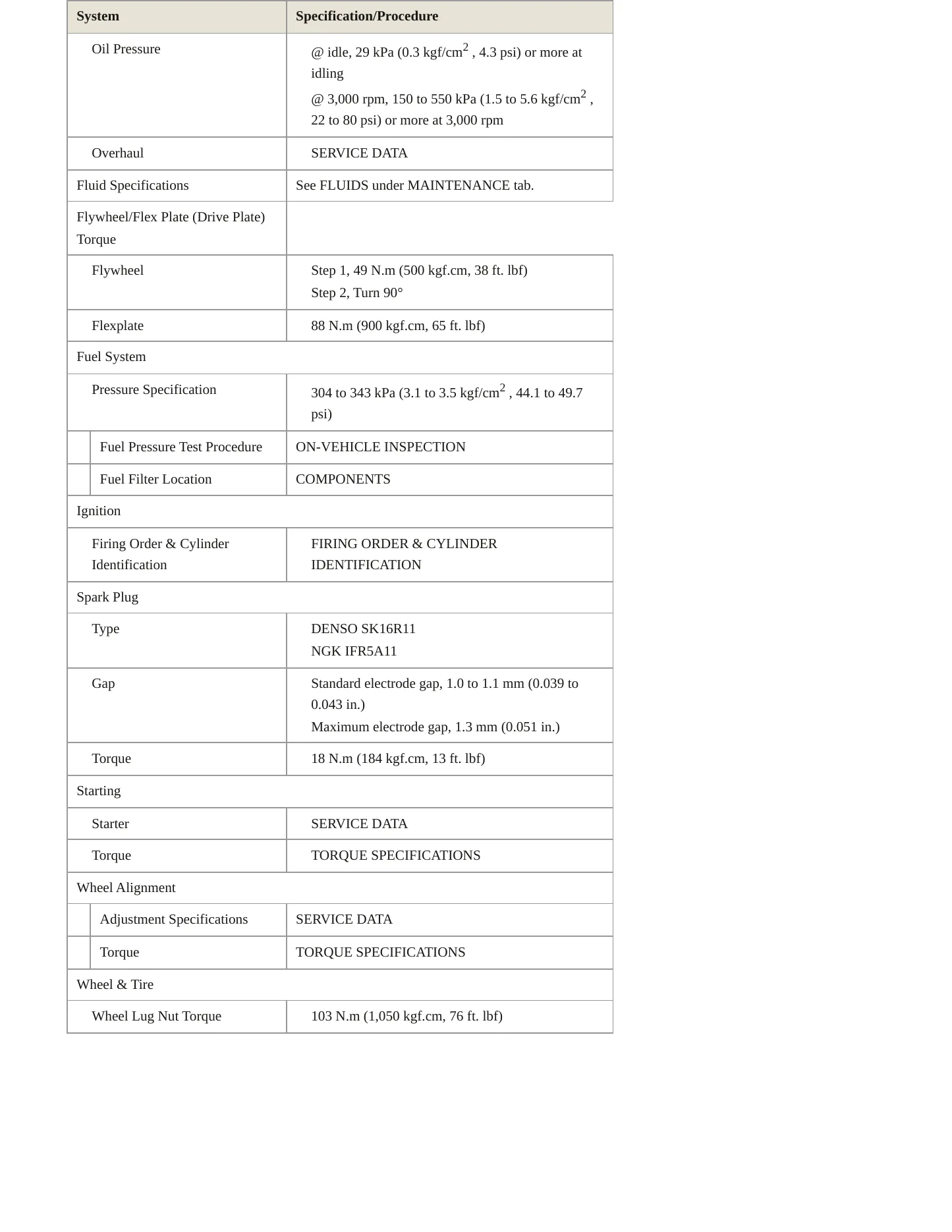

- Specifications, torque values, and reference data
- Electrical diagnostics with full wiring diagrams
- Coverage across major systems: engine, transmission/driveline, brakes, steering, suspension, HVAC, and more
- Diagnostic trouble codes and troubleshooting flow
- Maintenance schedules and fluid capacities
Trims covered
- Base, 2D Hatchback, Automatic
- Base, 2D Hatchback, Standard
- Base, 4D Hatchback
- Base, 4D Sedan, Automatic
- Base, 4D Sedan, Standard
- S, 2D Hatchback, Automatic
- S, 2D Hatchback, Standard
- S, 4D Hatchback
- S, 4D Sedan, Automatic
- S, 4D Sedan, Standard

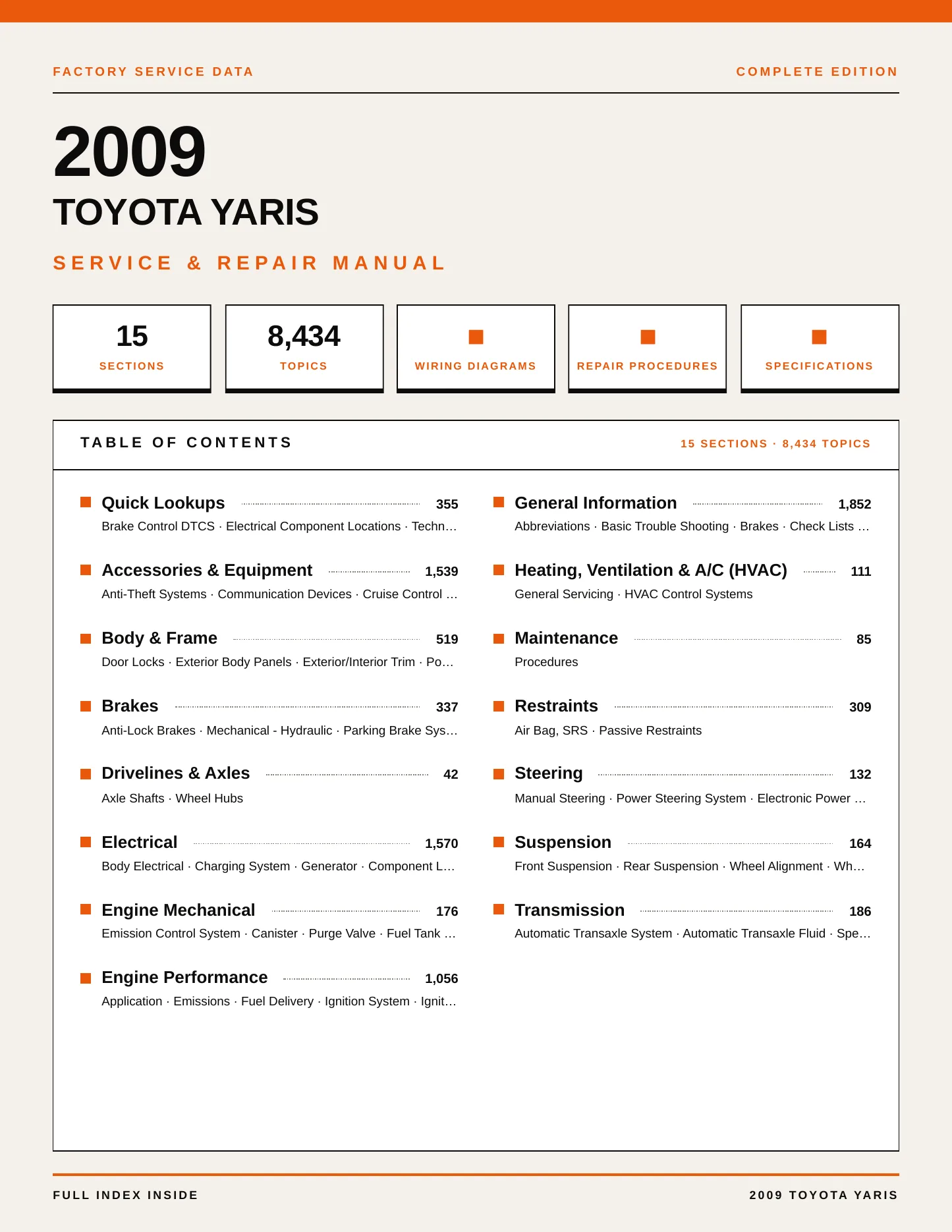

Index / Table of contents
- Body
- Brakes
- Chassis Electrical
- Driveline
- Engine Cooling
- Engine Electrical
- Engine Mechanical
- Engine Performance & Emission Controls
- Fuel System
- General Information & Identification
- Heating, Ventilation, & Air Conditioning
- Maintenance & Lubrication
- Specifications
- Steering
- Suspension
- Transmission, Clutch, & Transfer Case
- Diagnostic Trouble Codes
- Technical Service Bulletins
- Wiring Diagrams
