2004 Mazda Tribute Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 2004 Tribute trims — LX Sport Utility 4-Door, DX Sport Utility 4-Door, ES Sport Utility 4-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

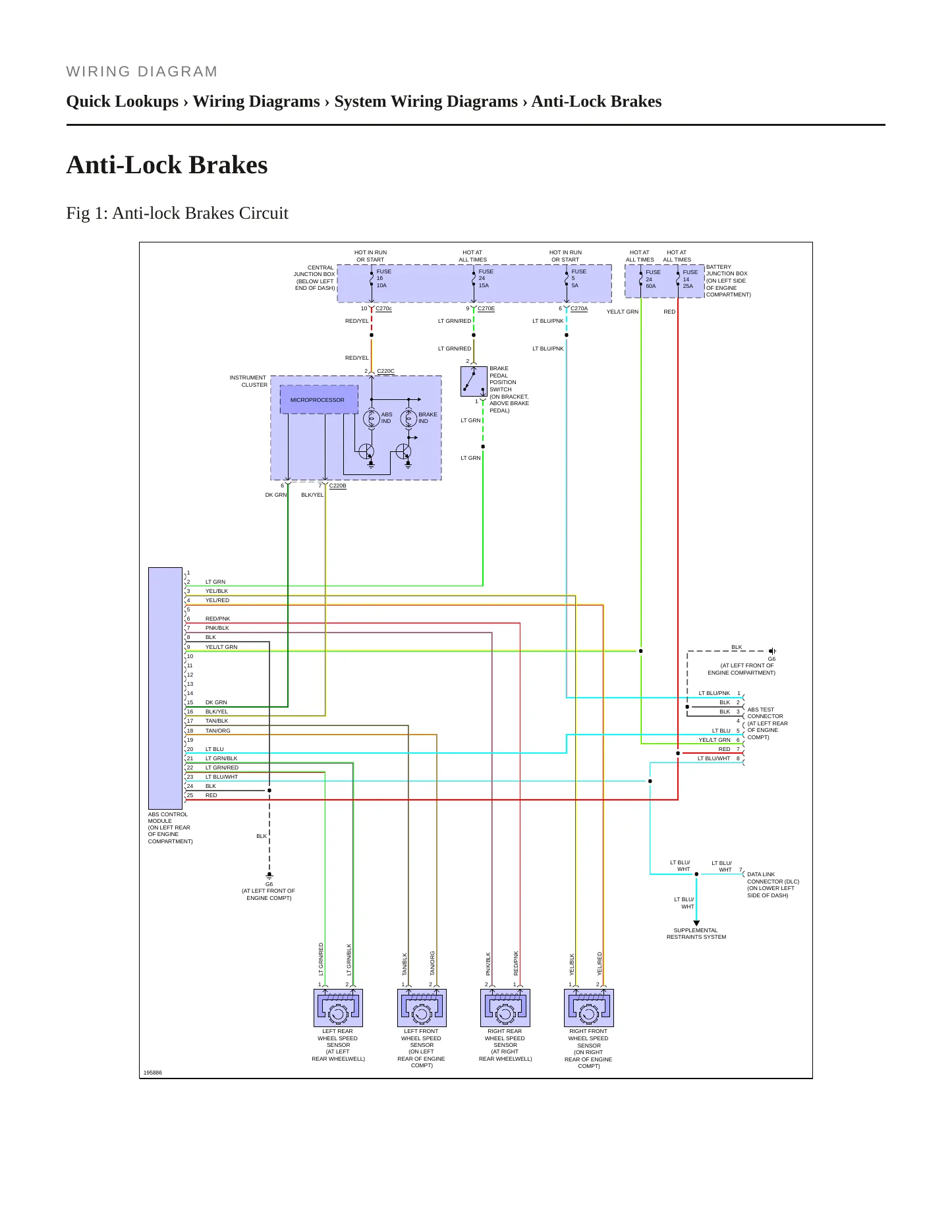

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
2004 Mazda Tribute Service and Repair Manual
Regular price
$29.99 USD
Unit price
Everything in this 2004 Mazda Tribute factory service and repair manual is tied to the vehicle as it was actually built — the model year, the engine under the hood, whether that is the 2.0L four or the 3.0L V6 identified by VIN code 1, and the trim it left the line as — so the clearances, torque values and service sequences you work to are the ones Mazda published for this SUV, not figures borrowed from an adjacent year.
Engines covered
- 3.0L V6 (181 cu in) — DOHC, naturally aspirated, gasoline
- 2.0L inline-four (121 cu in) — DOHC, naturally aspirated, gasoline
Body styles covered
- 4-door sport utility
Trims covered
- DX
- ES
- LX
Known issues on the 2004 Tribute. Seven recalls are on federal record for this model year. One covers the frame and members: excessive corrosion at the forward attachment of the lower control arm on vehicles originally sold or currently registered in a defined list of twenty states and the District of Columbia, where a separation of the lower control arm can result in a significant loss of steering control. A second covers engine and engine cooling on 3.0L V6 vehicles with speed control, where inadequate clearance between the engine cover and the speed control cable connector could result in a stuck throttle with the accelerator fully or almost fully depressed, leading to very high vehicle speeds and making the vehicle hard to stop or slow — a risk that exists whether or not cruise control is being used. A third covers the speed control cables: the accelerator cable may prevent the throttle from returning to the idle position, and the unexpected increase in engine idle speed may increase stopping distance. A fourth covers the ABS control unit, where missing or dislodged wire seals in the module connector can let contamination in and create an electrical short, illuminating the ABS warning light and in some cases overheating the module, resulting in burning odor, smoke, and/or fire, with the ignition off or while the vehicle is being driven. A fifth covers the rear liftgate lock, whose latching system does not meet the inertia load requirement of Federal Motor Vehicle Safety Standard No. 206 in one direction, so a liftgate left unlocked may open during a crash. The last two concern service parts fitted to this vehicle: incorrectly sized aftermarket front wheel bearings, which can adversely affect braking and steering, and replacement master cylinders whose seal can fail and leak brake fluid, resulting in poor braking performance. Owners have filed 182 complaints for the year.
Whether you are chasing a throttle that hangs above idle, inspecting the front lower control arm attachment for corrosion, or tracing an ABS lamp back to its module connector, the manual keeps you on Mazda's own procedure and specification for this 2004 Tribute.
Mazda is recalling certain model year 2001 through 2006, and 2008, Tribute vehicles equipped with 3.0L V6 engines and speed control. Inadequate clearance between the engine cover and the speed contro
Consequence
A stuck throttle may result in very high vehicle speeds and make it difficult to stop or slow the ve
Remedy
Mazda will notify owners, and dealers will repair the vehicles by increasing the engine cover cleara
CERTAIN 2004-2005 SPORT UTILITY VEHICLES AND CERTAIN 2001-2003 SPORT UTILITY VEHICLE HAVING REAR LIFTGATE COMPONENTS SERVICED WITH 2004 EQUIVALENT COMPONENTS FAIL TO COMPLY WITH THE REQUIREMENTS OF FE
Consequence
IF THE LIFTGATE IS LEFT UNLOCKED, THERE IS THE POTENTIAL THAT IT MAY OPEN DURING A CRASH.
Remedy
DEALERS WILL REPLACE THE REAR LIFTGATE LATCH RELEASE ROD, THE RELEASE ROD ATTACHMENT CLIP AND THE DO
ON CERTAIN SPORT UTILITY VEHICLES, THE ACCELERATOR CABLE MAY PREVENT THE THROTTLE FROM RETURNING TO THE IDLE POSITION.
Consequence
AN UNEXPECTED INCREASE IN ENGINE IDLE SPEED MAY INCREASE STOPPING DISTANCE AND MAY RESULT IN A VEHIC
Remedy
DEALERS WILL REPLACE THE ACCELERATOR CABLE. THE RECALL BEGAN ON JANUARY 28, 2005. OWNERS SHOULD CO
This Service Alert supersedes the previously issued SA listed below: The changes are noted in Red. SA-011/24 02/12/24, 06/06/24, 07/29/24 DESCRIPTION Mazda has developed factory recommended scheduled maintenance services that support all ma
In accordance with Federal regulations, follow the procedure listed below when replacing a speedometer. NOTE: Tampering with a motor vehicle odometer is strictly prohibited by Federal, and State laws. It is the dealers responsibility to com
Mazda has developed factory recommended scheduled maintenance services that support all major vehicle systems. Mazda recommends dealers follow the scheduled maintenance tables as cited in the vehicle-specific workshop manual or owner's manu
Mazda has developed factory recommended scheduled maintenance services that support all major vehicle systems. Mazda recommends dealers follow the scheduled maintenance tables as cited in the vehicle-specific workshop manual or owner's manu
Mazda has developed factory recommended scheduled maintenance services that support all major vehicle systems. Mazda recommends dealers follow the scheduled maintenance tables as cited in the vehicle-specific workshop manual or owner's manu
Speedometer replacement procedure
Some customers may complain of signs of oil on the struts or shock absorbers. In most cases the oil that is present is normal, and a result of the oil that remains on the shaft during the normal sweeping process of the shaft seal. Follow th
In accordance with Federal regulations, follow the procedure listed below when replacing a speedometer.
Showing the 8 most recent of 95 technical service bulletins on file with NHTSA.
I am submitting this formal complaint regarding a potential recall failure involving a 2005 Mazda Tribute driven by my fiancé, [XXX], who died following a crash on [XXX]. Mazda has opened Case #[XXX]
I am submitting this formal complaint regarding a potential recall failure involving a 2005 Mazda Tribute driven by my fiancé, [XXX], who died following a crash on [XXX]. Mazda has opened Case #[XXX]
TL* THE CONTACT OWNS A 2004 MAZDA ZH98 (NA). WHILE DRIVING 30 MPH, THE DRIVER CRASHED INTO A GUARDRAIL. THE AIR BAGS FAILED TO DEPLOY. THE CONTACT SUSTAINED A BROKEN ARM THAT REQUIRED MEDICAL ATTENTIO
I WAS SLOWING DOWN TO STOP BEHIND ANOTHER CAR AT A RED LIGHT AND MY CAR SLOWED DOWN BUT DID NOT FULLY STOP. I BARELY BUMPED THE CAR IN FRONT OF ME AT PROBABLY LESS THAN 5 MILES PER HOUR BUT MY AIR BAG
I WAS SLOWING DOWN TO STOP BEHIND ANOTHER CAR AT A RED LIGHT AND MY CAR SLOWED DOWN BUT DID NOT FULLY STOP. I BARELY BUMPED THE CAR IN FRONT OF ME AT PROBABLY LESS THAN 5 MILES PER HOUR BUT MY AIR BAG
Showing the 5 most serious of 232 complaints filed with NHTSA.
