2002 Mazda Tribute Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 2002 Tribute trims — LX Sport Utility 4-Door, DX Sport Utility 4-Door, ES Sport Utility 4-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

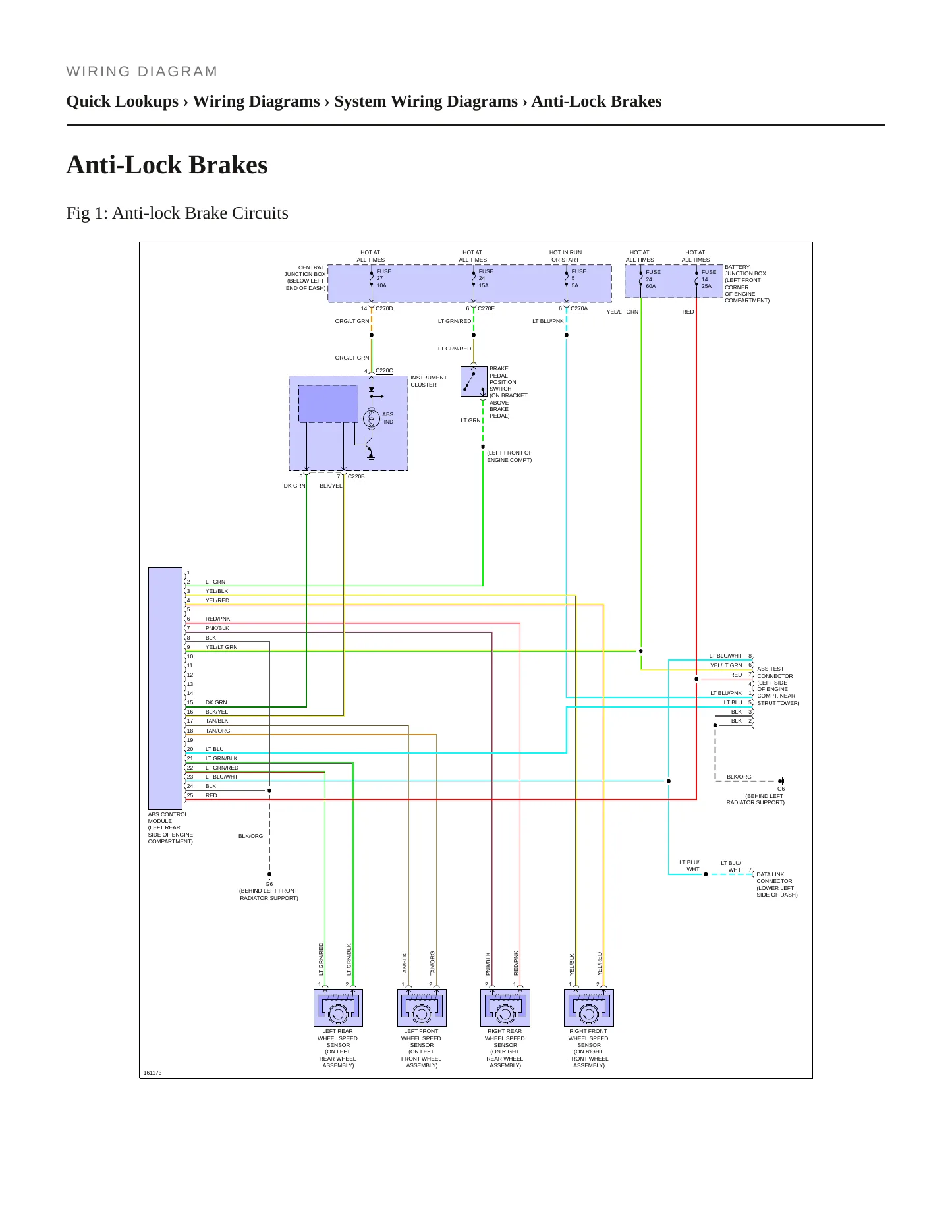

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
2002 Mazda Tribute Service and Repair Manual
Regular price
$29.99 USD
Unit price
The 2002 Tribute is Mazda's four-door Sport Utility, sold in LX, DX and ES trim with either the 2.0L L4 or the 3.0L V6 that carries engine code VIN 1. Those two engines do not share specifications, and this model year does not share them with the neighboring years of the same platform, so the torque figures and clearances you work to have to be the ones Mazda published for the 2002 Tribute in front of you, not numbers that merely happen to be close.
Engines covered
- 3.0L V6 (181 cu in) — DOHC, naturally aspirated, gasoline
- 2.0L inline-four (121 cu in) — DOHC, naturally aspirated, gasoline
Body styles covered
- 4-door sport utility
Trims covered
- DX
- ES
- LX
Known issues on the 2002 Tribute. Nine recalls are on federal record for this model year. One is structural: excessive corrosion at the forward attachment of the lower control arm, where a separation of the arm can result in a significant loss of steering control. Two involve the antilock brake control module — in the first, the brake master cylinder reservoir cap can leak brake fluid onto the ABS module wiring harness connector, where corrosion may develop and lead to melting, smoking or possible fire; in the second, missing or dislodged wire seals let contamination into the module connector and create the potential for an electrical short, which can illuminate the ABS warning light and in some cases overheat the module, producing a burning odor, smoke and/or fire, whether the ignition switch is off or the vehicle is being operated. Two concern throttle return: on 3.0L V6 vehicles with speed control, inadequate clearance between the engine cover and the speed control cable connector can leave the throttle stuck when the accelerator pedal is fully or almost-fully depressed, making the vehicle difficult to slow or stop, and separately an accelerator cable can prevent the throttle from returning to the idle position, raising idle speed and stopping distance. Another covers the automatic transmission control module on vehicles with the 3.0L V6 Duratec, where the engine can stall during deceleration. One covers the rear liftgate lock, whose latching system does not meet the federal inertia load requirement in one direction, so a liftgate left unlocked could open during a crash. The last two are service-part recalls: replacement front wheel bearings of incorrect dimensions, which can adversely affect braking and steering, and replacement master cylinders whose seal can fail and leak brake fluid, resulting in poor braking performance. Owners have submitted 389 complaints for the year.
Whether you are chasing a stall on deceleration, inspecting the lower control arm attachment for corrosion or reading an ABS module connector, it holds you to Mazda's own procedure and the correct specification for this 2002 Tribute.
Mazda is recalling certain model year 2001 through 2006, and 2008, Tribute vehicles equipped with 3.0L V6 engines and speed control. Inadequate clearance between the engine cover and the speed contro
Consequence
A stuck throttle may result in very high vehicle speeds and make it difficult to stop or slow the ve
Remedy
Mazda will notify owners, and dealers will repair the vehicles by increasing the engine cover cleara
CERTAIN 2004-2005 SPORT UTILITY VEHICLES AND CERTAIN 2001-2003 SPORT UTILITY VEHICLE HAVING REAR LIFTGATE COMPONENTS SERVICED WITH 2004 EQUIVALENT COMPONENTS FAIL TO COMPLY WITH THE REQUIREMENTS OF FE
Consequence
IF THE LIFTGATE IS LEFT UNLOCKED, THERE IS THE POTENTIAL THAT IT MAY OPEN DURING A CRASH.
Remedy
DEALERS WILL REPLACE THE REAR LIFTGATE LATCH RELEASE ROD, THE RELEASE ROD ATTACHMENT CLIP AND THE DO
MAZDA IS RECALLING CERTAIN MODEL YEAR 2001-2002 MAZDA TRIBUTE VEHICLES MANUFACTURED FROM APRIL 20, 2000, THROUGH JULY 19, 2002. THE BRAKE MASTER CYLINDER RESERVOIR CAP CAN LEAK BRAKE FLUID. IF BRAKE
Consequence
CORROSION MAY DEVELOP IN THE ELECTRICAL CONNECTOR LEADING MELTING, SMOKING OR POSSIBLE FIRE.
Remedy
MAZDA WILL NOTIFY OWNERS, AND DEALERS WILL REPLACE THE VEHICLE'S BRAKE MASTER CYLINDER RESERVOIR CAP
ON CERTAIN SPORT UTILITY VEHICLES, THE ACCELERATOR CABLE MAY PREVENT THE THROTTLE FROM RETURNING TO THE IDLE POSITION.
Consequence
AN UNEXPECTED INCREASE IN ENGINE IDLE SPEED MAY INCREASE STOPPING DISTANCE AND MAY RESULT IN A VEHIC
Remedy
DEALERS WILL REPLACE THE ACCELERATOR CABLE. THE RECALL BEGAN ON JANUARY 28, 2005. OWNERS SHOULD CO
ON CERTAIN SPORT UTILITY VEHICLES EQUIPPED WITH 3.0L V6 DURATEC ENGINES , DURING DECELERATION, THE ENGINE CAN STALL.
Consequence
SHOULD THE ENGINE STALL, A VEHICLE CRASH COULD OCCUR.
Remedy
DEALERS WILL REPROGRAM THE POWER CONTROL MODULE (PCM) WITH THE APPROPRIATE CALIBRATION. THE RECALL
This Service Alert supersedes the previously issued SA listed below: The changes are noted in Red. SA-011/24 02/12/24, 06/06/24, 07/29/24 DESCRIPTION Mazda has developed factory recommended scheduled maintenance services that support all ma
In accordance with Federal regulations, follow the procedure listed below when replacing a speedometer. NOTE: Tampering with a motor vehicle odometer is strictly prohibited by Federal, and State laws. It is the dealers responsibility to com
Mazda has developed factory recommended scheduled maintenance services that support all major vehicle systems. Mazda recommends dealers follow the scheduled maintenance tables as cited in the vehicle-specific workshop manual or owner's manu
Mazda has developed factory recommended scheduled maintenance services that support all major vehicle systems. Mazda recommends dealers follow the scheduled maintenance tables as cited in the vehicle-specific workshop manual or owner's manu
Mazda has developed factory recommended scheduled maintenance services that support all major vehicle systems. Mazda recommends dealers follow the scheduled maintenance tables as cited in the vehicle-specific workshop manual or owner's manu
Speedometer replacement procedure
Some customers may complain of signs of oil on the struts or shock absorbers. In most cases the oil that is present is normal, and a result of the oil that remains on the shaft during the normal sweeping process of the shaft seal. Follow th
In accordance with Federal regulations, follow the procedure listed below when replacing a speedometer.
Showing the 8 most recent of 118 technical service bulletins on file with NHTSA.
TL* THE CONTACT OWNED A 2002 MAZDA TRIBUTE. WHILE DRIVING FORWARD AT APPROXIMATELY 35 MPH, ANOTHER VEHICLE MADE A LEFT TURN AND CRASHED INTO THE FRONT DRIVER SIDE OF THE CONTACT'S VEHICLE. THE AIR BAG
DRIVER OF VEHICLE 1 RAN RED LIGHT AT AN APPROXIMATE SPEED OF 40-45 MPH AND HIT PASSENGER DOOR OF VEHICLE 2 CAUSING SEVERE DAMAGE TO PASSENGER SIDE OF VEHICLE 2 AND TOTALLY FRONT END OF VEHICLE 1. WE
The contact owned a 2002 Mazda Tribute. The contact stated that while driving at 30 mph, a pop noise was heard, the vehicle had unintended acceleration; the engine revved and sped up to 80 - 90 mph, i
TL* THE CONTACT CALLED ON BEHALF OF THE OWNER OF A 2002 MAZDA TRIBUTE. WHILE DRIVING 30 MPH, ANOTHER VEHICLE ABRUPTLY STOPPED IN FRONT OF THE OWNER'S VEHICLE. THE OWNER WAS NOT ABLE TO STOP THE VEHICL
2002 MAZDA TRIBUTE. CONSUMER WRITES IN REGARDS TO UNEXPECTED HIGH SPEED ACCELERATION CRASH. *SMD THE CONSUMER STATED SHE CRASHED INTO HER GARAGE DOOR. THE DOOR WAS COMPLETELY DEMOLISHED;DAMAGE WAS
Showing the 5 most serious of 502 complaints filed with NHTSA.
