1994 Dodge Grand Caravan Service and Repair Manual
Regular price
$29.99 USD
Unit price
Covers all 1994 Grand Caravan trims — SE Mini Passenger Van 3-Door, LE Mini Passenger Van 3-Door, ES Mini Passenger Van 3-Door +1 more ·
Digital format
Any device
Yours forever
Money-back
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of Preview
Unlock the Full Manual
Complete repair procedures

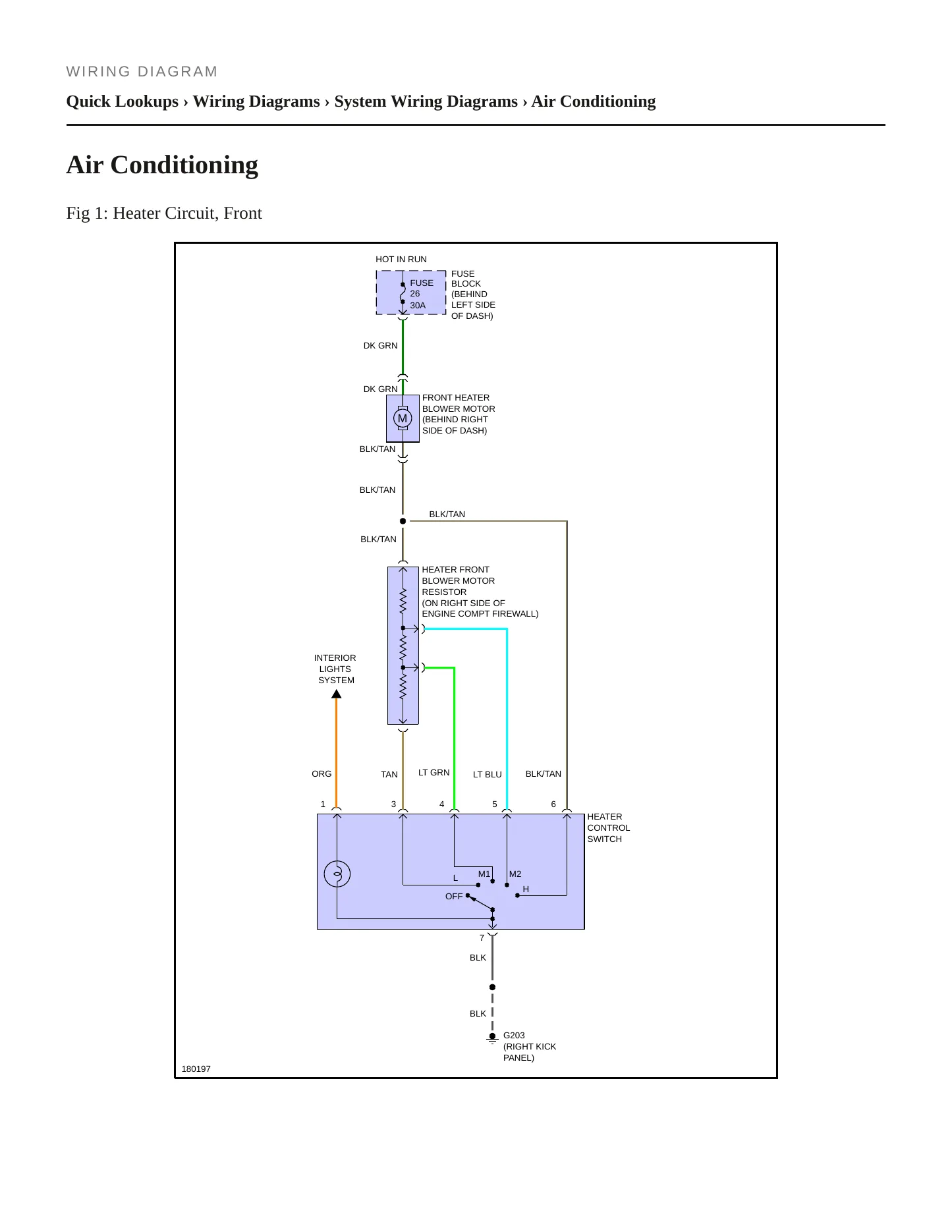

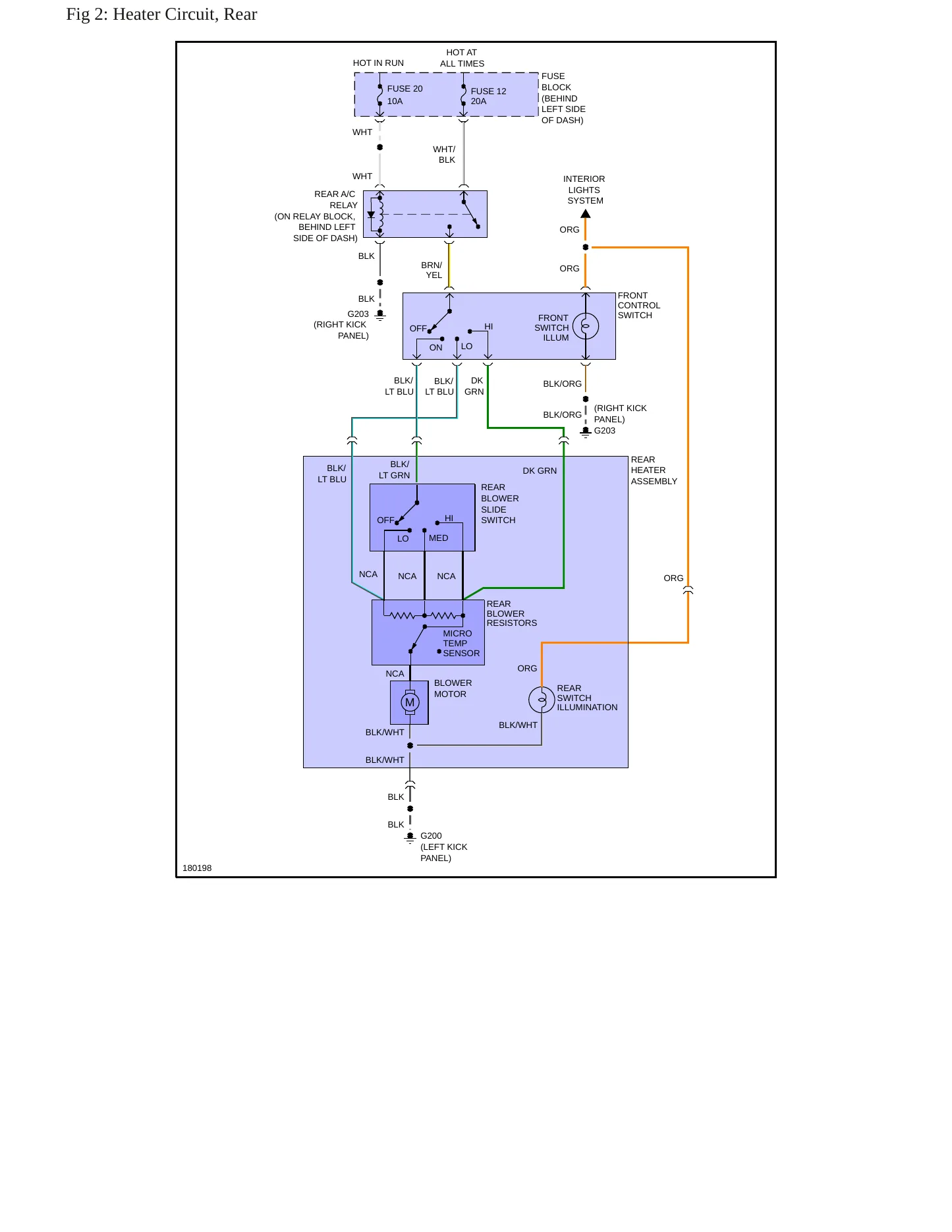

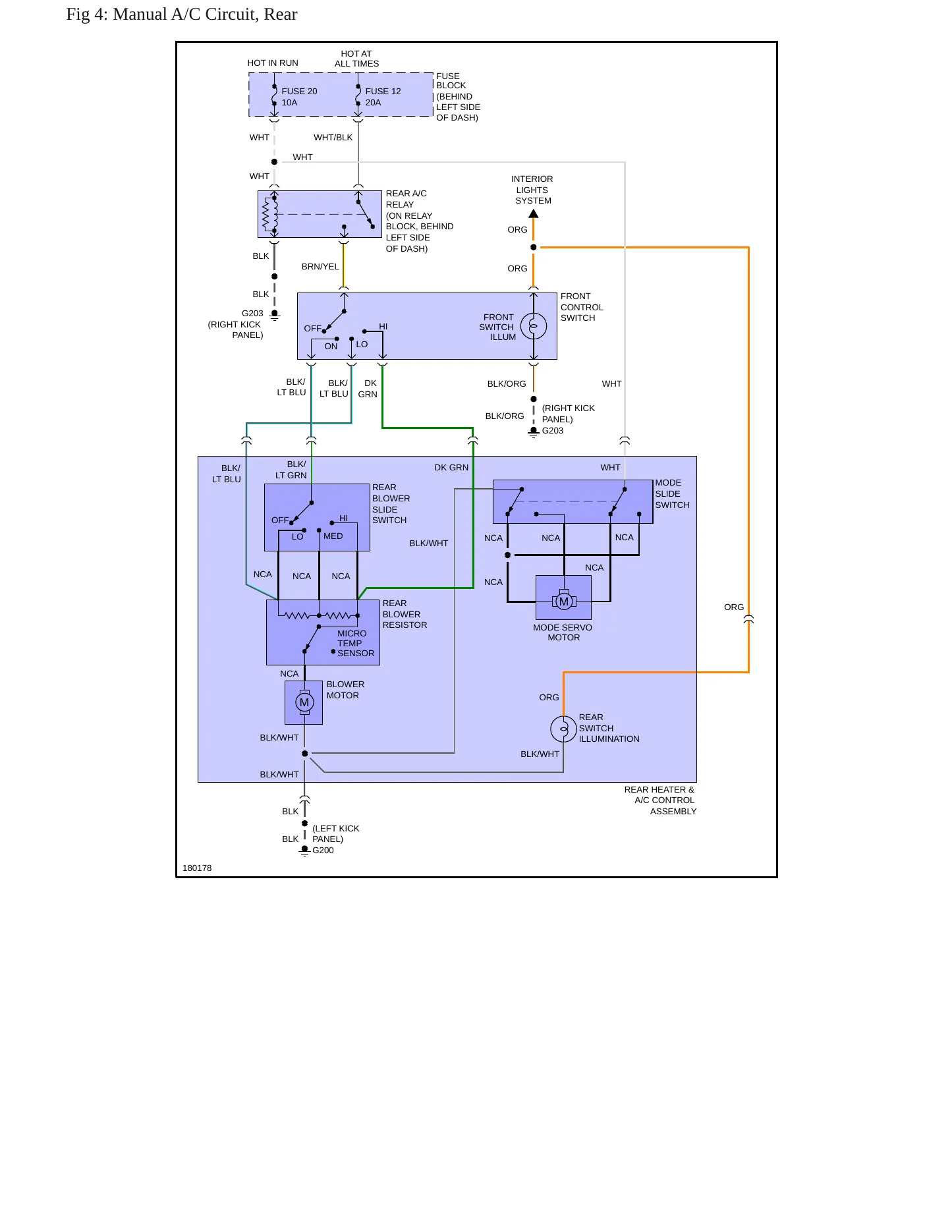

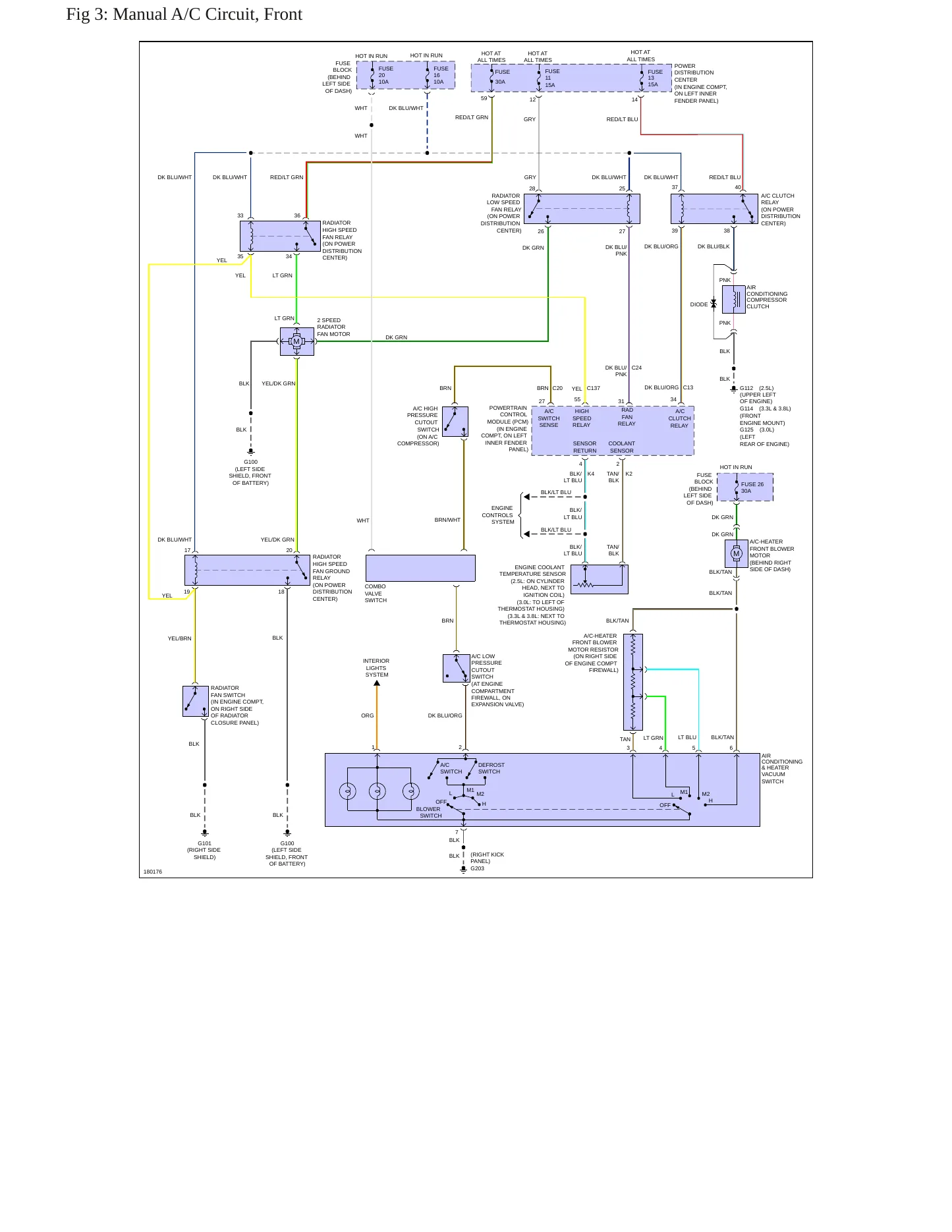

Wiring diagrams & schematics

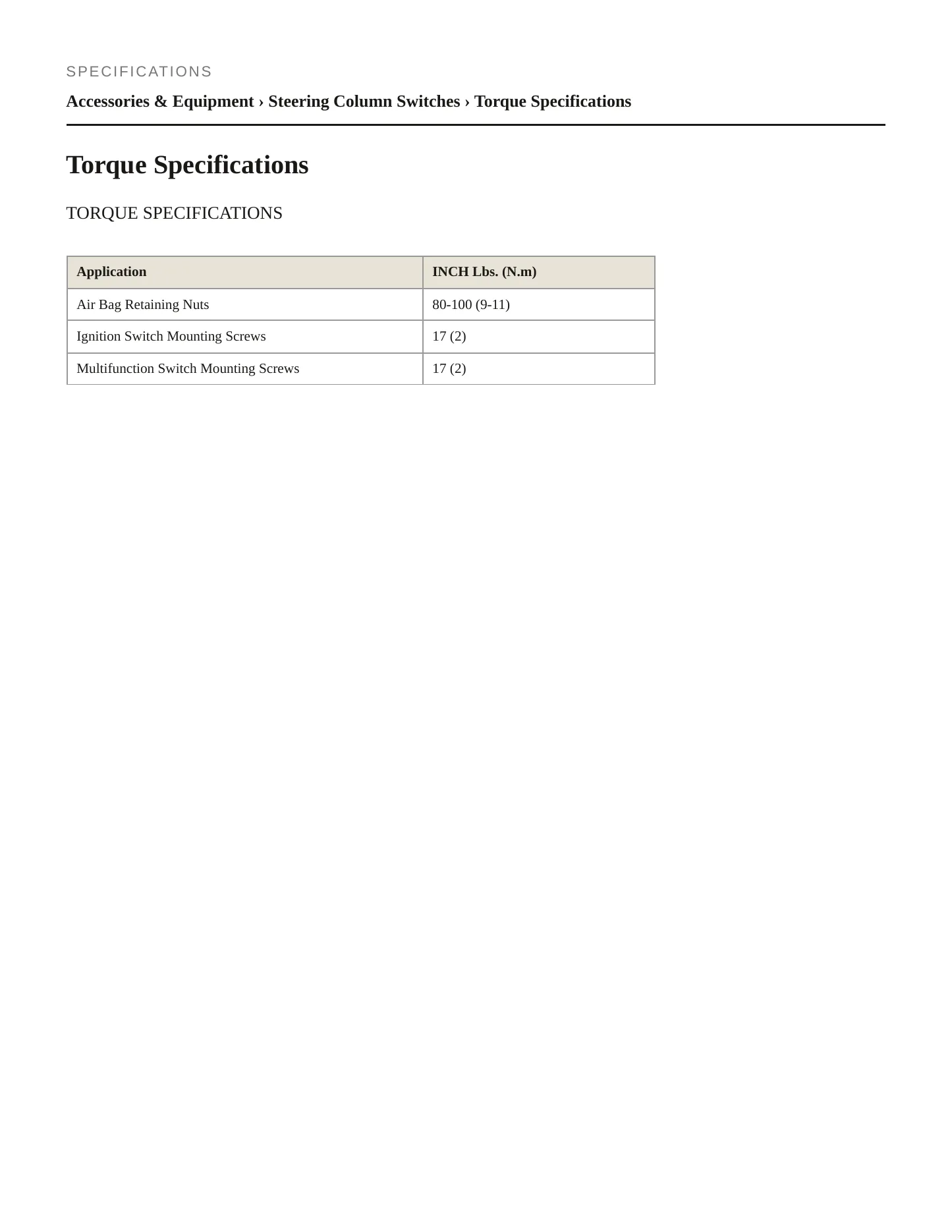

Torque specifications
Full search & bookmarks
$29.99
Scroll to view more pages
1994 Dodge Grand Caravan Service and Repair Manual
Regular price
$29.99 USD
Unit price
1994 Dodge Grand Caravan service and repair manual — a detailed, factory-style reference for maintenance, diagnostics, and repair. Use it to confirm correct procedures, specifications, and system coverage before you start work.
Designed for technicians and DIY owners, this manual helps you troubleshoot accurately, follow step-by-step repair procedures, and reference wiring diagrams and system sections quickly while you work.
What’s included
- Step-by-step repair procedures and service information
- Specifications and reference data (where provided)
- Wiring diagrams and electrical sections
- Powertrain, brakes, steering, suspension, HVAC and more
Trims covered
- SE Mini Passenger Van 3-Door
- LE Mini Passenger Van 3-Door
- ES Mini Passenger Van 3-Door
- Base Mini Passenger Van 3-Door
Engines covered
- 3.0L 2972CC 181Cu. In. V6 GAS SOHC Naturally Aspirated
- 3.3L 3301CC 201Cu. In. V6 GAS OHV Naturally Aspirated
- 3.8L 3778CC 231Cu. In. V6 GAS OHV Naturally Aspirated
Index / Table of contents
- Body
- Brakes
- Chassis Electrical
- Driveline
- Engine Cooling
- Engine Electrical
- Engine Mechanical
- Engine Performance & Emission Controls
- Fuel System
- General Information & Identification
- Heating, Ventilation, & Air Conditioning
- Hybrid & Electric Vehicle Systems
- Steering
- Suspension
- Transmission, Clutch, & Transfer Case
- Wiring Diagrams
VEHICLE DESCRIPTION: LIGHT DUTY PASSENGER MINIVANS WITH REMOTE RELEASE. THIS IS NOT A SAFETY RECALL. THERE HAS BEEN NO DETERMINATION THAT A SAFETY DEFECT EXISTS WITH THE MINIVAN LATCHES. CHRYSLER
Consequence
IF THE LIFTGATE LATCH OPENS, OCCUPANTS CAN BE EJECTED RESULTING IN SIGNIFICANTLY INCREASED RISK OF I
Remedy
CHRYSLER WILL REPLACE THE LIFTGATE LATCH WITH A NEW STRONGER LATCH ASSEMBLY WITHOUT CHARGE. CHRYSLE
VEHICLE DESCRIPTION: LIGHT DUTY PASSENGER MINIVANS WITHOUT REMOTE RELEASE. THIS IS NOT A SAFETY RECALL. THERE HAS BEEN NO DETERMINATION THAT A SAFETY DEFECT EXISTS WITH THE MINIVAN LATCHES. CHRYSL
Consequence
IF THE LIFTGATE LATCH OPENS, OCCUPANTS CAN BE EJECTED RESULTING IN SIGNIFICANTLY INCREASED RISK OF I
Remedy
CHRYSLER DEALERS WILL REPLACE THE LIFTGATE LATCH WITH A NEW STRONGER LATCH ASSEMBLY WITHOUT CHARGE.
WHEELS WITH MISFORMED LUG NUT SEATS WERE INSTALLED ON THESE VEHICLES. THIS CAUSES REDUCED NUT TO WHEEL CONTACT AREA AND LIMITS THE WHEEL SELF-CENTERING CAPABILITY DURING INSTALLATION. THIS RESULTS IN
Consequence
LOSS OF LUG NUT TORQUE RETENTION MAY LEAD TO WHEEL LUGFAILURE WHICH MAY CAUSE WHEEL SEPARATION AND A
Remedy
INSPECT THE WHEEL ASSEMBLY PLANT CODE; REPLACE WHEELS KNOWN TO HAVE THE PROBLEM AND INSTALL NEW LUG
VEHICLE DESCRIPTION: MINI VANS EQUIPPED WITH 2-SPOKE LUXURY WHEELS MANUFACTURED JULY 1992 THROUGH JUNE 1993; OR EQUIPPED WITH 4-SPOKE SPORT WHEELS MANUFACTURED FROM JULY 1992 THROUGH SEPTEMBER 1993.
Consequence
IF THE STEERING WHEEL SEPARATES FROM THE CENTER HUB ATTACHMENT TO THE STEERING COLUMN, LOSS OF CONTR
Remedy
DEALERS WILL INSPECT THE STEERING WHEEL FOR CRACKS AND ANY WHEELS WITH CRACKS WILL BE REPLACED. ALL
VEHICLE DESCRIPTION: MINI VANS. THE WIRING THAT INITIATES THE DRIVER AND/OR PASSENGER AIR BAG COULD ELECTRICALLY SHORT CIRCUIT TO GROUND. A SHORT CIRCUIT TO GROUND THAT EXISTS IMMEDIATELY AFTER TUR
Consequence
INADVERTENT AIR BAG DEPLOYMENT CAN INJURE A FRONT SEAT OCCUPANT.
Remedy
DEALERS WILL PERFORM AN ELECTRONIC DIAGNOSTIC CHECK. ANY SHORT CIRCUITS IDENTIFIED IN EITHER THE DR
VEHICLE DESCRIPTION: MINI VANS. THE BOLTS USED TO ATTACH THE STRUT TO THE BODY AND THE REAR LIFTGATE CAN ACCUMULATE FATIGUE DAMAGE IF THREE FACTORS COMBINE. IF THE BOLT IS LOOSE, THE GAS STRUT IS O
Consequence
PERSONAL INJURY COULD OCCUR IF THE BOLTS BREAK ALLOWING THE LIFTGATE TO FALL SUDDENLY.
Remedy
DEALERS WILL INSPECT FOR LOOSE FASTENERS, IF THE FASTENERS ARE LOOSE, THE STRUT (AND INTEGRAL BOLTS)
Valve Body. These may cause over drive cycling.
INSURED WAS IN TURNING LANE TO MAKE A LEFT TURN AND TURNED IN FRONT OF AN ONCOMING VAN. AIR BAG DID NOT DEPLOY. SHOP STATES THAT SPECIFIC CRUNCH/CRIMPING IN AREA, SENSOR SHOULD HAVE GONE OFF, THERE
OWNER REARENDED IN OPPOSITE LANE AND THE AIR BAG DIDN'T DEPLOY. *AK
WIFE WAS GOING TO HER SECOND JOB ON GRANT AVE THIS MORNING AT 8:30AM,VERY SUNNY WITH SUN GLARE,BLACK ICE ON ROAD,WIFE HIT THE CAR IN FRONT OF HER,THAT HIT SOMEONE ELSE.MY WAE WEARING HER SEAT BELT AT
A YOUNG CHILD GOT IN VEHICLE, PUT KEY IN IGNITION, AND WAS ABLE TO SHIFT FROM PARK TO NEUTRAL WITHOUT APPLYING BRAKES. VEHICLE ROLLED BACKWARDM, AND HIT ANOTHER VEHICLE. DAMAGE TO THAT VEHICLE WAS $20
Showing the 4 most serious of 248 complaints filed with NHTSA.
