1999 Ford Windstar Service and Repair Manual
Regular price
$42.99 USD
Unit price
Covers all 1999 Windstar trims — LX Mini Passenger Van 4-Door, SE Mini Passenger Van 4-Door, 3.0L Mini Passenger Van 3-Door +5 more ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

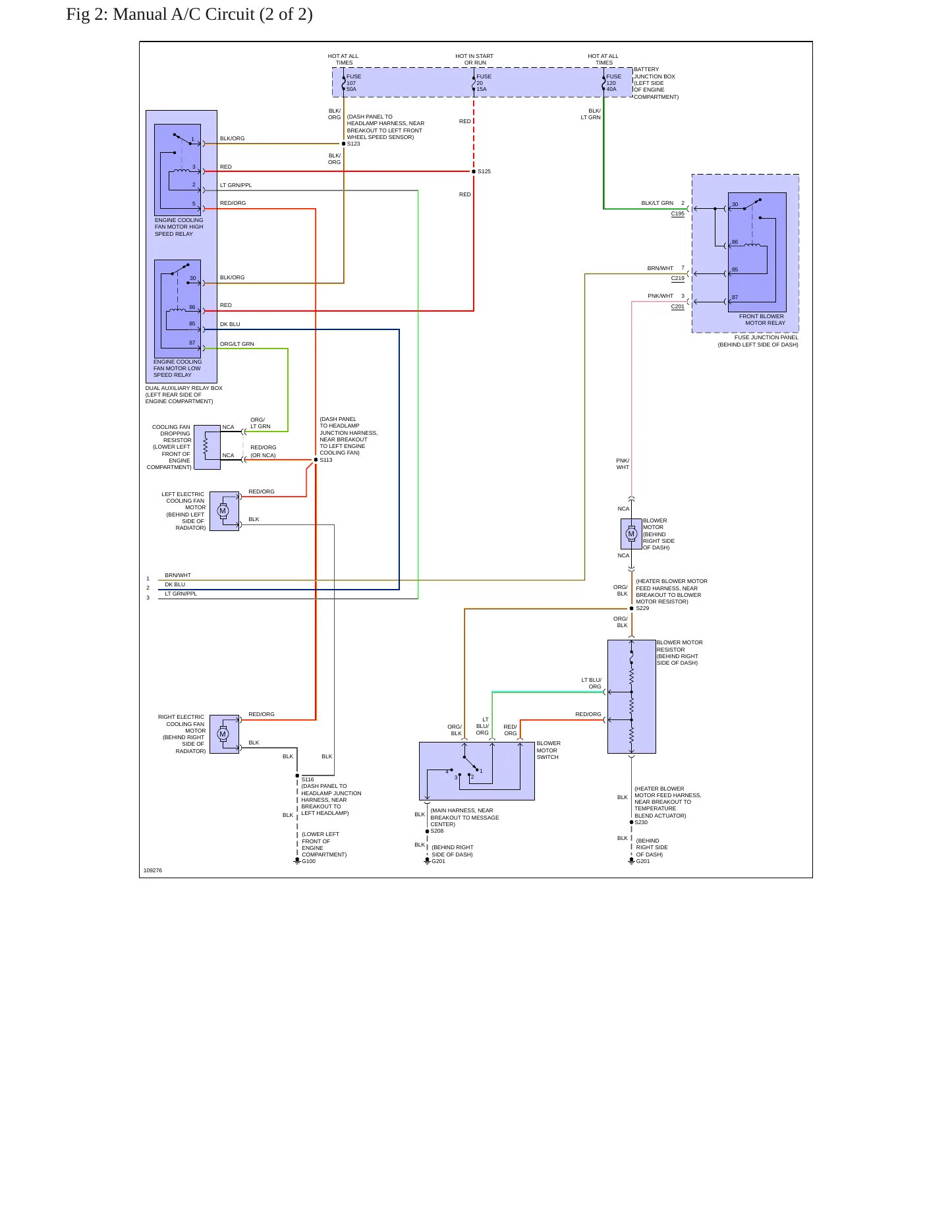

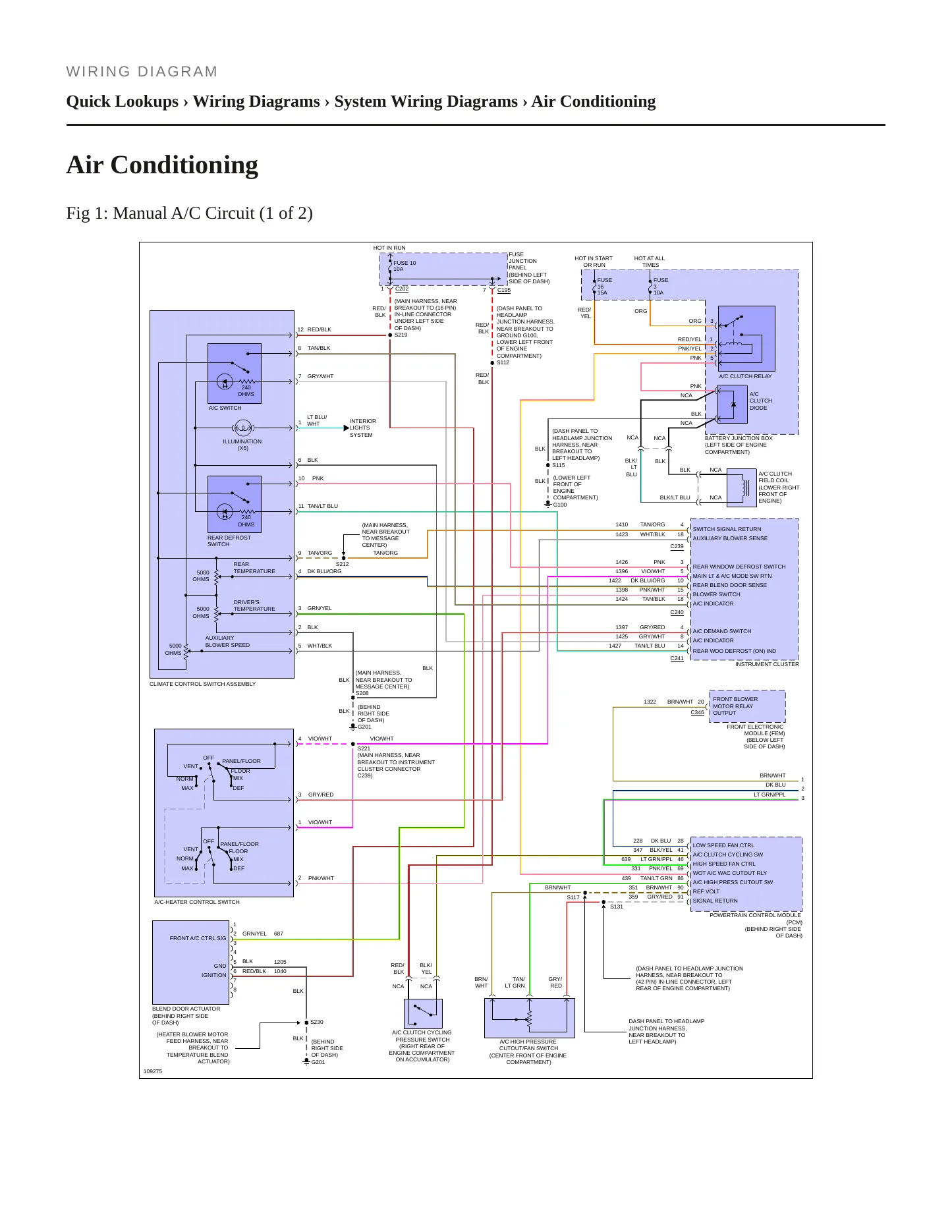

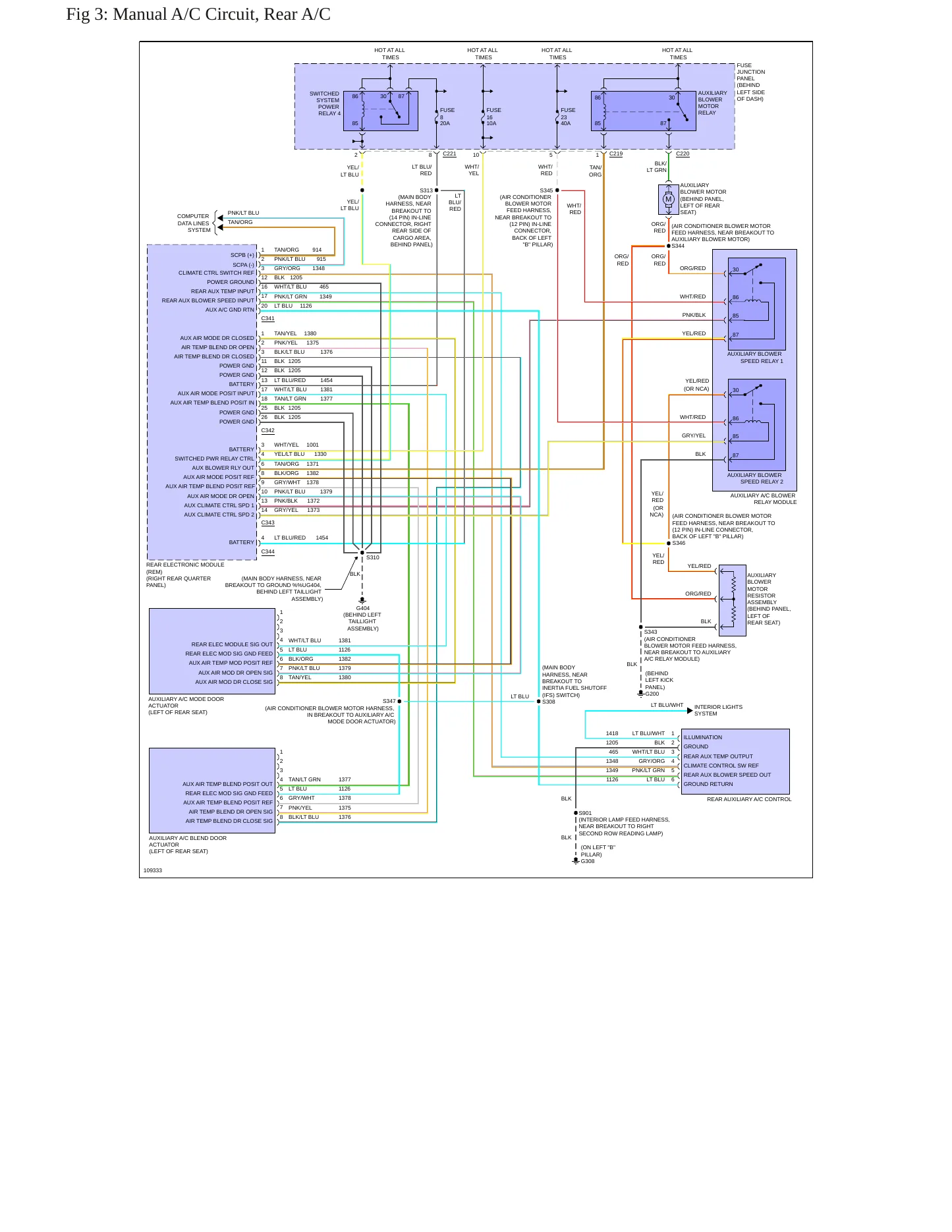

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$42.99
1999 Ford Windstar Service and Repair Manual
Regular price
$42.99 USD
Unit price
This factory service and repair manual for the 1999 Ford Windstar covers the four-door and three-door passenger vans and the three-door cargo van across six trims. Two naturally aspirated overhead-valve V6 engines are documented, the 3.8L and the 3.0L, each with the specifications and torque values that belong to it. Procedures, wiring diagrams and diagnostics run through the engine, transaxle, suspension, brake and electrical systems, which is where a van of this age tends to need attention first.
Engines covered
- 3.8L V6 (232 cu in) — OHV, naturally aspirated, gasoline
- 3.0L V6 (182 cu in) — OHV, naturally aspirated, gasoline
Body styles covered
- 4-door mini passenger van
- 3-door mini passenger van
- 3-door mini cargo van
Trims covered
- Base
- 3.0L
- LX
- LX Plus
- SE
- SEL
Known issues on the 1999 Windstar. Eight recalls are on federal record for this year. Corrosion drives most of them: the rear axle can fracture, the front lower control arm rear attaching brackets and body mounts can break away, and underbody shields were the subject of another campaign tied to reduced steering control. An aftermarket fuel filter with connectors that may not fully seat brought a further recall over the risk of a fuel leak. Owners have filed 1,588 complaints with NHTSA, spread across the power train, the structure and the suspension. Subframe, axle and fuel line procedures are covered here with the torque values they require.
Ford Motor Company (Ford) is recalling certain model year 1998-2003 Windstar vehicles manufactured September 2, 1997, to July 3, 2003. The affected vehicles were previously remedi
FORD IS RECALLING CERTAIN MODEL YEAR 1998-2003 WINDSTAR VEHICLES MANUFACTURED FROM SEPTEMBER 1, 1997 THROUGH FEBRUARY 28, 2003 AND CURRENTLY REGISTERED OR ORIGINALLY SOLD IN CONNEC
VEHICLE DESCRIPTION: MINI VANS. CONTAMINANTS SUCH AS WATER, SALT, AND WINDSHIELD WASHER SOLUTION CAN ENTER THE WIPER MOTOR COVER ASSEMBLY THROUGH PINHOLES ON THE EXTERIOR OF TH
VEHICLE DESCRIPTION: MINI VANS EQUIPPED WITH AUXILIARY REAR AIR-CONDITIONING. IF THE AUXILIARY AIR-CONDITIONING BLOWER MOTOR STOPS TURNING WHILE IN THE MEDIUM-LOW BLOWER SPEED SE
FORD IS RECALLING MODEL YEARS 1995-2003 WINDSTAR, 2000-2003 EXCURSION DIESEL, 1993-1997 AND 1999-2003 F-250 SD THROUGH F-550 SD DIESEL, 1992-2003 E-150 THROUGH E-550, 1995-2002 EXP
FORD IS RECALLING CERTAIN MODEL YEAR 1999-2003 WINDSTAR VEHICLES ORIGINALLY SOLD IN OR CURRENTLY REGISTERED IN THE STATE OF VIRGINIA. CORROSION-RELATED FRACTURES OF THE FRONT LOWER
FORD IS RECALLING CERTAIN MODEL YEAR 1998-2003 WINDSTAR VEHICLES MANUFACTURED FROM SEPTEMBER 1, 1997, THROUGH JULY 3, 2003, REGISTERED IN PUERTO RICO. DUE TO INCREASED STRESSES CA
FORD IS RECALLING CERTAIN MODEL YEAR 1998-2003 WINDSTAR VEHICLES MANUFACTURED FROM SEPTEMBER 1, 1997, THROUGH JULY 3, 2003, AND CURRENTLY REGISTERED OR ORIGINALLY SOLD IN VIRGINIA.
Safety recall 10S13 - Rear axle corrosion - requests for recall service action
Safety recall 11s16 - LCA rear attaching flanges or rear subframe body mount corrosion - requests for recall service action
SUMMARY TO BE PROVIDED ON A FUTURE DATE.
FORD: SAFETY RECALL ON FRONT SUBFRAME LOWER CONTROL ARM (LCA) REAR ATTACHING FLANGE OR REAR BODY MOUNT THAT CAN SEPARATE FROM SUBFRAME IF VEHICLE IS OPERATED, FOR EXTENDED PERIOD, IN HIGH CORROSION AREAS. MODEL 1999-03 WINDSTAR.
FORD: SAFETY RECALL CONCERNING REAR AXLE FRACTURING IF VEHICLE IS OPERATED IN HIGH CORROSION AREAS FOR AND EXTENDED PERIOD. MODEL 1998-03 WINDSTAR. *PE
FORD: ON SOME MINIVANS, REAR AXLE WILL FRACTURE, IN HIGH CORROSION AREA, AFTER OPERATING FOR AN EXTENDED TIME PERIOD, AND VEHICLE HANDLING ABILITY WILL BE AFFECTED. MODEL 1998-2003 WINDSTAR. *PE
FORD: A SAFETY RECALL HAS BEEN ISSUED ON MINIVANS WHERE LOWER CONTROL ARM (LCA) OF FRONT SUBFRAME ATTACHING REAR FLANGE OR REAR BODY MOUNT CAN SEPARATE DUE TO CORROSION. MODEL 1999-2003 WINDSTAR. *PE
FORD: CERTAIN 1999-2001 MODEL YEAR VEHICLES UP TO 6000 LB GVWR REGISTERED IN NEW YORK AND CERTAIN 2001 VEHICLES UP TO 6000 LB GVWR REGISTERED IN THE STATE OF MAINE, CERTIFIED FOR SALE IN CALIFORNIA-FEDERAL EMISSION WARRANTY REFUND. *PE
Showing the 8 most recent of 323 technical service bulletins on file with NHTSA.
CONSUMER WAS INVOLVED IN A HEAD-ON COLLISION, IMPACT SPEED OVER 40 MPH IN WHICH NEITHER DRIVER'S SIDE NOR PASSENGER SIDE AIR BAGS DEPLOYED, CAUSING INJURIES TO THREE OCCUPANTS OF
TL*THE CONTACT OWNS A 1999 FORD WINDSTAR. WHILE DRIVING 45 MPH, THE CONTACT REAR ENDED A PARKED VEHICLE. THE AIR BAGS FAILED TO DEPLOY. THE PASSENGER SUSTAINED BLUNT FORCE TRAUM
Showing the 2 most serious of 1588 complaints filed with NHTSA.
