1996 Audi A4 Service and Repair Manual
Regular price
$40.99 USD
Unit price
Fits the 1996 A4 — Base Sedan 4-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

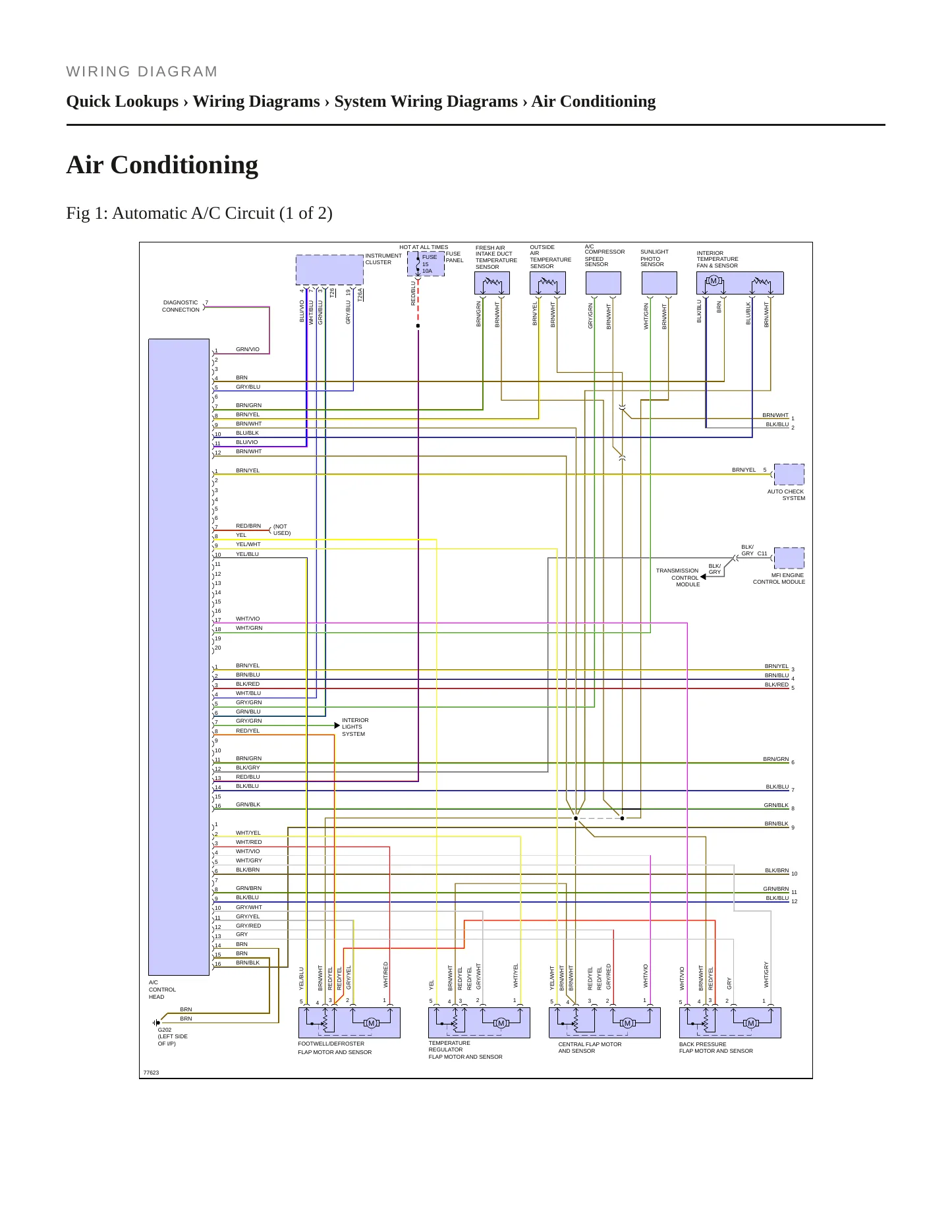

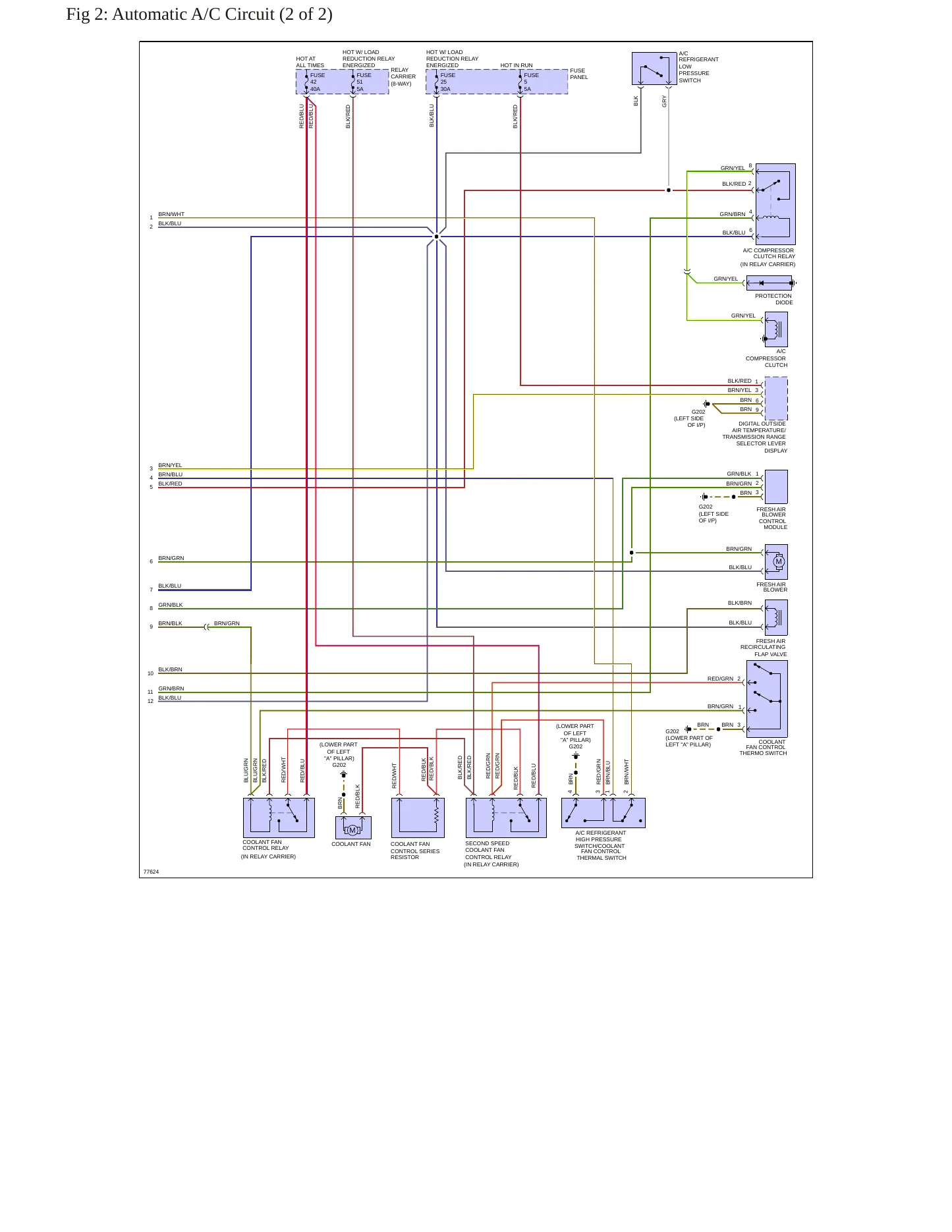

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$40.99
1996 Audi A4 Service and Repair Manual
Regular price
$40.99 USD
Unit price
This factory service and repair manual for the 1996 Audi A4 is built for the exact year, engine and trim combination of your car, so the torque values, wiring diagrams and diagnostic steps inside match what Audi published for the 2.8L V6 (AFC) rather than a generic A4 reference.
Engines covered
- 2.8L V6 — SOHC, naturally aspirated, gasoline
Body styles covered
- 4-door sedan
Trims covered
- Base
Known issues on the 1996 A4. Six recalls are on federal record for this model year. Two cover aftermarket combination lamps sold as replacements that lack amber side reflectors, which reduces visibility to other drivers and can contribute to a crash. Two cover the ignition switch, where a cracked or fractured housing at the return spring anchor point can leave the spring force too weak to return the key to the running position, cutting power to electrical accessories like the wipers and headlights. One covers the horn, which can work only intermittently due to insufficient electrical ground contact. One covers the driver-side front air bag, which static electricity discharged under low humidity while entering or exiting the vehicle can trigger unexpectedly. Owners have filed 99 complaints for the year, and no technical service bulletins are logged. The factory diagnostic and repair procedures behind each of those systems are here.
From tracing an ignition switch fault to checking horn ground continuity or a headlight lamp swap, it keeps you on the OEM procedure and the correct specification for your specific 1996 A4.
CERTAIN AAI MOTORSPORTS COMBINATION LAMPS SOLD AS REPLACEMENT LAMPS FOR USE ON THE ABOVE LIST PASSENGER VEHICLES. COMBINATION LAMPS NOT EQUIPPED WITH AMBER SIDE REFLECTORS FAIL TO CONFORM WITH THE REQUIREMENTS OF FEDERAL MOTOR VEHICLE SAFETY STANDAR
Consequence
LACK OF AMBER SIDE REFLECTORS IN THE LAMPS WILL DECREASE LIGHTING VISIBILITY TO OTHER DRIVERS AND MAY POSSIBLY RESULT IN A VEHICLE CRASH
Remedy
AAI MOTORSPORTS WILL NOTIFY OWNERS AND REPLACE THE LAMPS FREE OF CHARGE. THE RECALL BEGAN ON AUGUST 1, 2006. OWNERS MAY CONTACT AAI MOTORSPORTS AT 909-923-9188.
CERTAIN CK MOTORSPORTS COMBINATION HEADLIGHTS, CLEAR CORNER, BUMPER, AND SIDE MARKER LIGHTS SOLD AS REPLACEMENT LAMPS FOR USE ON THE PASSENGER VEHICLES LISTED ABOVE. SOME COMBINATION LAMPS THAT ARE NOT EQUIPPED WITH AMBER SIDE REFLECTORS FAIL TO CON
Consequence
WITHOUT THE AMBER REFLECTORS, THE VEHICLE WILL BE POORLY ILLUMINATED, POSSIBLY RESULTING IN A VEHICLE CRASH WITHOUT WARNING.
Remedy
CK MOTORSPORT WILL NOTIFY OWNERS AND REPLACE THE NONCOMPLIANT LAMPS FREE OF CHARGE. THE RECALL BEGAN ON JULY 1, 2006. OWNERS MAY CONTACT CK MOTORSPORT AT 1-909-610-7211.
ON CERTAIN PASSENGER VEHICLES, AS A RESULT OF A PROBLEM IN THE PRODUCTION PROCESS OF THE IGNITION SWITCH, THE ANCHOR POINT OF THE SPRING MAY CRACK. THIS COULD POTENTIALLY CAUSE THE RETURN SPRING FORCE TO BE INSUFFICIENT FOR RETURNING THE IGNITION KE
Consequence
THIS CONDITION CAUSES ELECTRICAL ACCESSORIES SUCH AS WINDSHIELD WIPERS AND HEADLIGHTS TO BECOME INOPERATIVE INCREASING THE RISK OF A CRASH.
Remedy
DEALERS WILL INSTALL A NEW IGNITION SWITCH WITH AN OPTIMIZED ANCHOR POINT FREE OF CHARGE. THE RECALL BEGAN ON NOVEMBER 27, 2006. OWNERS MAY CONTACT AUDI AT 1-800-822-2834. NOTE: THIS RECALL SUPERS
VEHICLE DESCRIPTION: PASSENGER VEHICLES. THE PLASTIC IGNITION SWITCH HOUSING CAN FRACTURE AT THE RETURN SPRING ANCHOR POINT. FRACTURE OF THE HOUSING COULD CAUSE THE RETURN SPRING FORCE TO BE INSUFFICIENT FOR RETURNING THE IGNITION KEY TO THE RUNNI
Consequence
THIS CONDITION CAUSES ELECTRICAL ACCESSORIES SUCH AS WINDSHIELD WIPERS AND HEADLIGHTS TO BECOME INOPERATIVE.
Remedy
DEALERS WILL REPLACE THE IGNITION SWITCH.
THE HORN CAN WORK ONLY INTERMITTENTLY DUE TO INSUFFICIENT ELECTRICAL GROUND CONTACT.
Consequence
THIS CONDITION COULD PREVENT A DRIVER FROM SOUNDING A WARNING BY USING THE HORN INCREASING THE POTENTIAL FOR A VEHICLE ACCIDENT.
Remedy
CORRECTIVE ACTION: DEALERS WILL INSTALL A GROUND CONTACT SPRING WHICH WILL ENHANCE THE ELECTRICAL GROUND CONNECTION.
VEHICLE DESCRIPTION: PASSENGER VEHICLES. THE DISCHARGE OF STATIC ELECTRICITY UNDER LOW HUMIDITY CONDITIONS CAN ACTIVATE THE DRIVER SIDE AIR BAG WHEN THE DRIVER ENTERS OR EXITS THE VEHICLE AND FORMS AN ELECTRICAL CIRCUIT BY TOUCHING CERTAIN AREAS OF
Consequence
ACTIVATION OF THE AIR BAG UNDER THESE CONDITIONS CAN CAUSE PERSONAL INJURY.
Remedy
DEALERS WILL INSTALL A GROUND WIRE ON THE DRIVER SIDE AIR BAG.
Discontinuation and mixing of Audi-approved engine coolants.
Discontinuation and mixing of Audi-approved engine coolants.
This communication is issued to inform dealers of updated shipping regulations related to lithium ion batteries.
This communication is issued to remind dealers of the repair validation process for repair group 19. 2005-2019 A3, 1996-2019 A4, 2008-2019 A5, 1992-2019 A6, 2012-2019 A7, 1997-2019 A8, 2019 E-Tron, 2015-2019 Q3, 2010-2019 Q5, 2007-2019 Q7,
This special notice is to inform dealers to return all part numbers listed in the document and order the superseded part numbers going forward.
Supersedes Technical Service Bulletin Group 19 number 14-50 dated June 20, 2014. Discontinuation and mixing of Audi-approved engine coolants. G11, G12, and G12+ coolants have been replaced by an improved version. G12++ coolant (for service
Due to increasing requests for high voltage personal protective equipment (HVE PPE) for dealer technicians working with high voltage vehicles (Hybrid, Plugin Hybrid, Electric Vehicle), the Volkswagen Tools and Equipment Team has identified
This information TSB provides information regarding the correct way to torque adjust a wheel bolt.
Showing the 8 most recent of 51 technical service bulletins on file with NHTSA.
THE VEHICLE WAS INVOLVED IN A FRONTAL COLLISION, AND THE AIR BAGS FAILED TO DEPLOY. *JB
BRAKE FAILURE IN WET CONDITIONS. I WAS DRIVING ON 95N IN PROVIDENCE. AS I WAS CHANGING LANES, I LOST STEERING ABILITIES. WHEN I BRAKED I DID NOT GET A RESPONSE AND CRASHED INTO THE JERSEY BARRIER TH
WHILE TRAVLEING AT 20-25 MPH VEHICLE WAS INVOLED IN A HEAD-ON COLLISION, CRASHED INTO A WALL. UPON IMPACT, DRIVER'S SIDE AND PASSENGER'S SIDE AIR BAGS DID NOT DEPLOY. HAS CONTACTED DEALER, AND THEY
WHILE DRIVING POWER STEERING RACK ASSEMBLY FAILED, CAUSING LOSS OF STEERING AND BRAKE CONTROL. ALSO SEALER BROKE WHICH RESULTED IN POWER STEERING FLUID TO LEAK, DAMAGING BRAKE PADS AND DISC. VEHICLE
1996 AUDI A4 QUATTRO WITH LEATHERETTE PASSENGER SEAT - HEATED SEAT WAS SET AT LEVEL 6 AND WHILE A PASSENGER WAS SITTING ON THE SEAT A HOLE THE SIZE OF TWO QUARTERS WAS BURNT INTO THE PASSENGER SEAT DU
OVER THIS PAST YEAR, I HAVE REPLACED 3 CONTROL ARMS, DEALER POINTS TO DESIGN FLAW. *AK
WHILE DRIVING IN COLD WEATHER OR IF THE VEHICLE HAS NOT BEEN WARMED UP, THE AUTOMATIC TRANSMISSION SYSTEM MALFUNCTIONED, CAUSING THE GEARS NOT TO ENGAGE. MAY STAY IN ONE GEAR FOR ABOUT A MILE. THIS MA
I HAD MY BRAKES AND TIRES REPLACED AND NOW THE ABS AND BRAKE LIGHT ARE ON IN THE CAR THE REAR BRAKES LOCK UP IF THE ABS AND BRAKE LIGHT GO ON ADN THE CAR CAN GET OUT OF CONTROL IN CASE OF BRAKING IN A
Showing the 8 most serious of 99 complaints filed with NHTSA.
