2010 Acura RL Service and Repair Manual
Regular price
$29.99 USD
Unit price
Fits the 2010 RL — Base Sedan 4-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

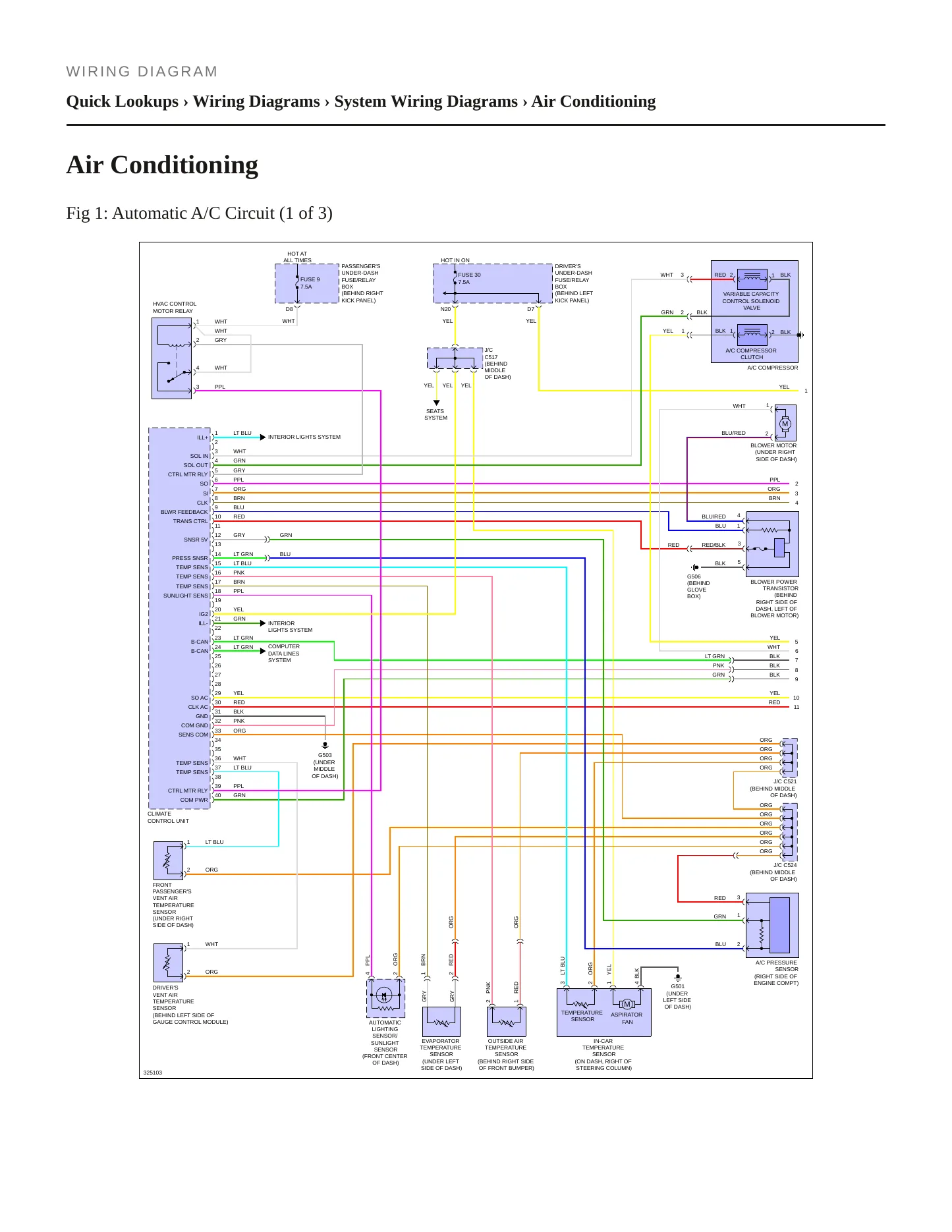

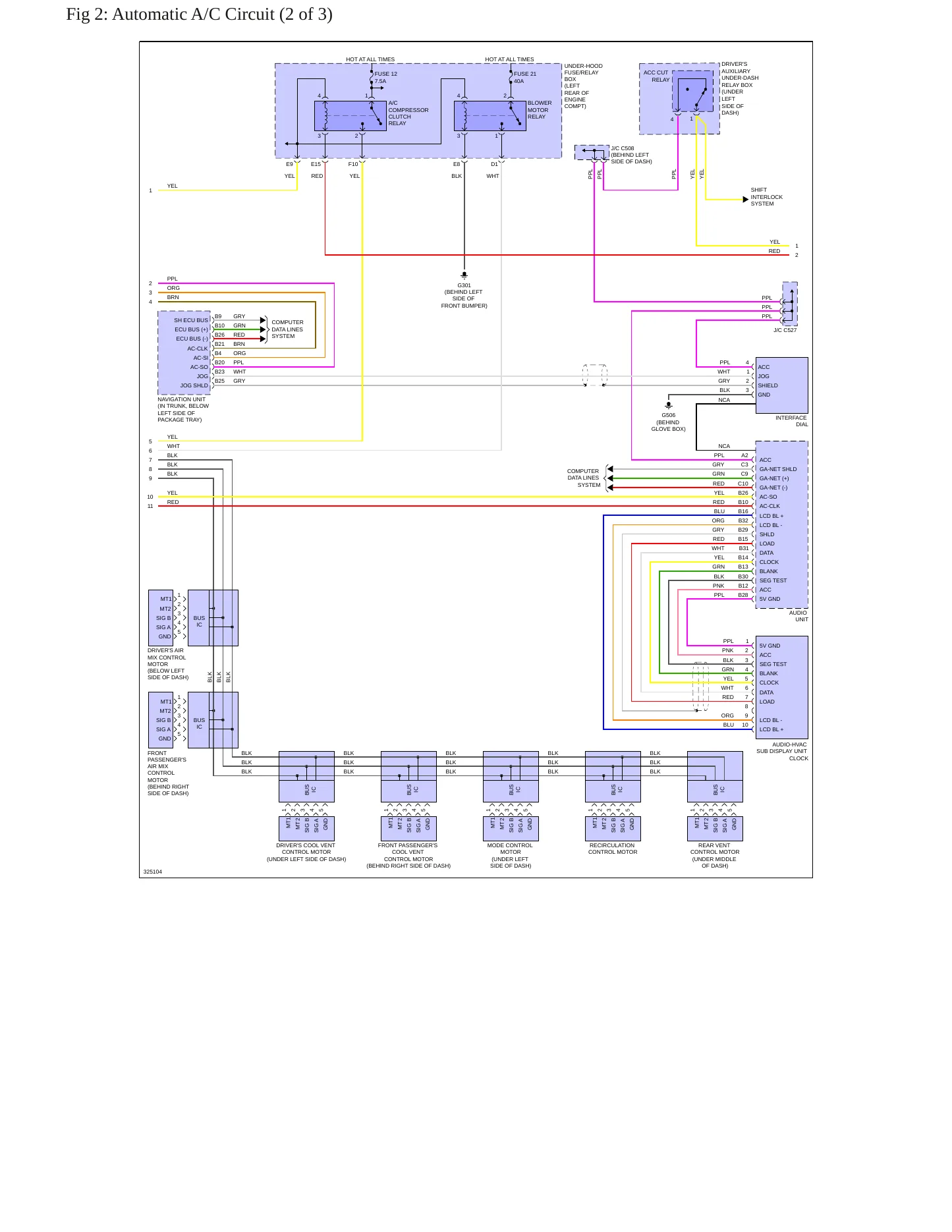

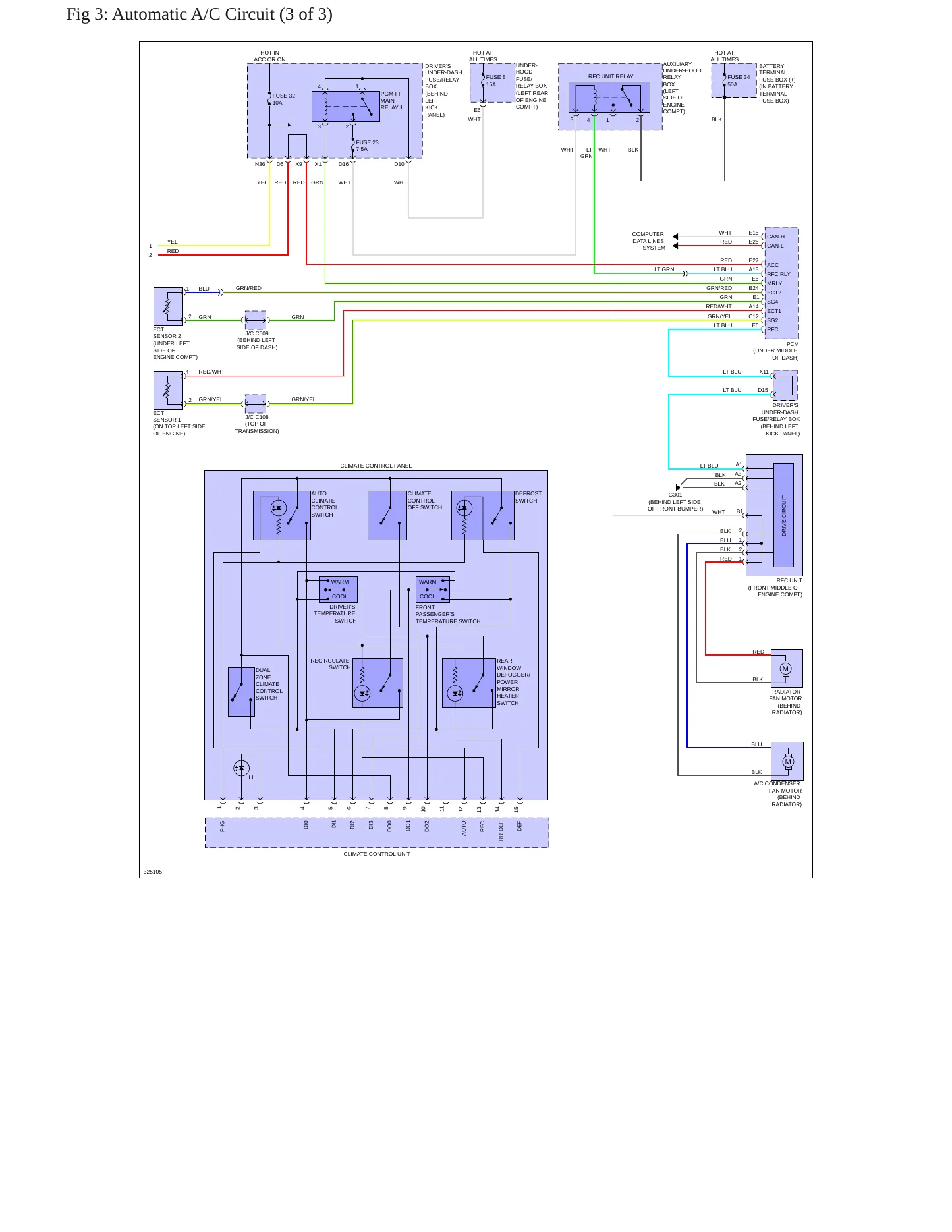

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
2010 Acura RL Service and Repair Manual
Regular price
$29.99 USD
Unit price
The 2010 Acura RL service and repair manual is matched to this exact year and to the single engine and single trim the RL was sold with that year, so every specification and sequence lines up with the car in your driveway.
Engines
- 3.7L V6 — 3664cc (224 cu in), SOHC, naturally aspirated, gas
Trims
- Base Sedan 4-Door
Known issues on the 2010 RL. Five recalls are on federal record for this model year, and all five concern frontal air bag inflator modules. Two cover the driver-side inflator module: in 19V500000 an inflator explosion may result in sharp metal fragments striking the driver or other occupants, and in 16V061000 the inflator could fail in the event of a crash necessitating deployment of the driver’s frontal air bag. Three cover the passenger-side inflator module: 19V501000, where an inflator explosion may result in sharp metal fragments striking the driver or other occupants, and 16V344000 and 17V029000, where an inflator rupture may result in metal fragments striking the vehicle occupants and serious injury. Owners have filed 10 complaints against the 2010 RL, and 42 technical service bulletins have been issued for the year. This manual carries the factory diagnostic and repair procedures behind those systems.
From a routine service interval to an air bag system diagnosis or a hard-to-trace wiring fault, it keeps you on the factory procedure and the correct specification for your specific 2010 RL.
Honda (American Honda Motor Co.) is recalling certain 2014 Honda Ridgeline vehicles nationwide. Honda is also recalling certain 2011-2012 Acura RL, 2011 Honda Element and 2011-2013 Ridgeline vehicles in Arizona, Arkansas, Delaware, the District of Columbia, Illinois, Indiana, Kansas, Kentucky, Maryland, Missouri, Nebraska, Nevada, New Jersey, New Mexico, North Carolina, Ohio, Oklahoma, Pennsylvania, Tennessee, Virginia, and West Virginia. Lastly, if not included above, Honda is recalling certain 2010-2011 Honda Element, 2010-2012 Acura RL and 2010-2013 Ridgeline vehicles in Alaska, Colorado, Connecticut, Idaho, Iowa, Maine, Massachusetts, Michigan, Minnesota, Montana, New Hampshire, Ne
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the passenger frontal air bag inflator, free of charge. The recall began November 6, 2018. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are H2H and S2I.
Honda (American Honda Motor Co.) is recalling certain 2013 Acura ILX, 2015 RDX, 2005-2010 and 2012 RL, 2009-2014 TL, 2010 and 2012 ZDX, 2007-2011 CR-V, 2011-2013 and 2015 CR-Z, 2009-2013 Fit, 2013 Fit EV, 2010-2011 and 2013 Insight and 2007-2014 Ridgeline vehicles. These vehicles are equipped with driver frontal air bag inflators assembled as a recall remedy part or replacement service part, that may explode due to propellant degradation occurring after long-term exposure to high absolute humidity, temperature and temperature cycling.
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the driver frontal air bag inflator, free of charge. The recall began August 12, 2019. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are S5B and W59.
Honda (American Honda Motor Co.) is recalling certain 2003-2006 Acura MDX, 2005-2012 RL, 2003-2007 Honda Accord, 2001-2005 Civic, 2003-2005 Civic Hybrid, 2001-2005 Civic GX NGV, 2002-2006 CR-V, 2003-2011 Element, 2007-2008 Fit, 2002-2004 Odyssey, 2003-2008 Pilot, and 2006-2014 Ridgeline vehicles. The vehicles are equipped with passenger frontal air bag inflators assembled as a recall remedy part or replacement service part, that may explode due to propellant degradation occurring after long-term exposure to high absolute humidity, temperature and temperature cycling.
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the passenger frontal airbag inflator, free of charge. The recall began August 12, 2019. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are E5D and X5C.
Honda (American Honda Motor Co.) is recalling certain 2010-2012 Acura RL, 2010 Honda Element, and 2010-2013 Honda Ridgeline vehicles ever registered in the states of Alabama, California, Florida, Georgia, Hawaii, Louisiana, Mississippi, South Carolina, Texas, Puerto Rico, American Samoa, Guam, the Northern Mariana Islands (Saipan), and the U.S. Virgin Islands or "Zone A." Additionally, Honda is recalling certain 2010 Acura RL, 2010-2011 Honda Element and Honda Ridgeline vehicles ever registered in the states of Arizona, Arkansas, Delaware, District of Columbia, Illinois, Indiana, Kansas, Kentucky, Maryland, Missouri, Nebraska, Nevada, New Jersey, New Mexico, North Carolina, Ohio, Oklahoma
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the passenger frontal air bag inflator, free of charge. The recall began February 16, 2018. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are U0H, and G0I.
Honda (American Honda Motor Co.) is recalling certain 2005-2006 Acura MDX and Honda CR-V vehicles, 2005-2011 Honda Element vehicles, 2005-2012 Acura RL vehicles, 2006-2012 Honda Ridgeline vehicles, 2007-2008 Honda Fit vehicles and 2005-2008 Honda Pilot vehicles originally sold, or ever registered, in Alabama, California, Florida, Georgia, Hawaii, Louisiana, Mississippi, South Carolina, Texas, Puerto Rico, American Samoa, Guam, the Northern Mariana Islands (Saipan), and the U.S. Virgin Islands, or "Zone A." Additionally, if not included in "Zone A" above, Honda is recalling certain 2005-2006 Acura MDX and Honda CR-V vehicles, 2005-2009 Acura RL and Honda Element vehicles, 2007-2008 Honda F
Consequence
An inflator rupture may result in metal fragments striking the vehicle occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the front passenger air bag inflator, free of charge. The recall bagan March 2017. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are KD9 and KE0.
Honda (American Honda Motor Co.) is recalling certain model year 2007-2011 Honda CR-V, 2011-2015 CR-Z, 2010-2014 FCX, and Insight, 2009-2013 Fit, 2013-2014 Fit EV, 2007-2014 Ridgeline, 2013-2016 Acura ILX, 2013-2014 Acura ILX Hybrid, 2007-2016 RDX, 2005-2012 Acura RL, 2009-2014 Acura TL, and 2010-2013 Acura ZDX vehicles. The affected vehicles are equipped with a dual-stage driver frontal air bag that may be susceptible to moisture intrusion which, over time, could cause the inflator to rupture.
Consequence
In the event of a crash necessitating deployment of the driver's frontal air bag, the inflator could rupture with metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the inflator, free of charge. The recall began March 2017. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are JY0, JY1, and JY2.
Honda (American Honda Motor Co.) is recalling certain model year 2003-2006 Acura MDX, 2005-2011 Acura RL, 2005-2006 Honda CR-V, 2003-2011 Element, 2007-2008 Fit, 2003-2008 Pilot, 2002-2004 Odyssey, and 2006-2011 Ridgeline vehicles originally sold, or that have ever been registered, in Alabama, California, Florida, Georgia, Hawaii, Louisiana, Mississippi, South Carolina, Texas, Puerto Rico, American Samoa, Guam, the Northern Mariana Islands (Saipan), and the U.S. Virgin Islands, or "Zone A." Additionally, unless included in "Zone A" above, Honda is recalling certain model year 2003-2006 Acura MDX, 2005-2008 Acura RL, 2005-2006 Honda CR-V, 2003-2008 Element, 2007-2008 Fit, 2003-2008 Pilot
Consequence
An inflator rupture may result in metal fragments striking the vehicle occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the passenger frontal air bag inflator, free of charge. The recall began June 27, 2016. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are KA0, KA1, KA2, and KA3.
Service Bulletin - Warranty Extension: Customer Support Program For Front Passenger's Airbag Inflator.
Service Bulletin - Warranty Extension: Customer Support Program For Driver's Airbag Inflator for 2013-14 ILX Hybrid and Other Listed Years and Models.
Service News - The navigation clock and date are incorrect. This is due to a limited GPS receiver capacity resulting in rollover of internal chip memory. The rollover occurred on January 1, 2022 at 12:00AM local time
Service bulletin - This bulletin is a notification of a class action settlement relating to airbag inflators. American Honda is offering a Customer Support Program (Warranty Extension) to cover any manufacturing defects in the replacement d
Service Bulletin - This bulletin is a notification of a class action settlement relating to airbag inflators. American Honda is offering a Customer Support Program (Warranty Extension) to cover any manufacturing defects in the replacement d
ServiceNews Article - The clock shows the incorrect time. This issue is due to a limited GPS receiver capacity resulting in "rollover" of the internal chip memory; the "rollover" will occur on January 1, 2022, at 12:00AM local time. As a re
Service Bulletin - This bulletin is a notification of a class action settlement relating to airbag inflators. American Honda is offering a Customer Support Program (Warranty Extension) to cover any manufacturing defects in the replacement f
Service Bulletin - This bulletin is a notification of a class action settlement relating to airbag inflators. American Honda is offering a Customer Support Program (Warranty Extension) to cover any manufacturing defects in the replacement d
Showing the 8 most recent of 62 technical service bulletins on file with NHTSA.
TL*THE CONTACT OWNS A 2010 ACURA RL. WHILE PARKING THE VEHICLE, IT ACCELERATED OVER A CURB AND CRASHED INTO A TREE. THERE WAS MINOR VEHICLE DAMAGE. THE CONTACT HAS REPORTED THE FAILURE TO THE DEALER BUT NOT THE MANUFACTURER. THERE WERE NO INJURIES. THE CONTACT IS CONCERNED THAT IF THE BRAKES WERE NOT APPLIED A FATALITY COULD HAVE OCCURRED. THE FAILURE MILEAGE WAS 200.
2010 ACURA RL. CONSUMER STATES FAULT WITH LOW BEAM HEADLIGHT DESIGN WHICH RESULTS IN A SERIOUS LACK OF VISION BEYOND 30 YARDS *TGW THE CONSUMER STATED HE NEARLY HAD AN ACCIDENT ON A RURAL ROAD AS HE WAS UNABLE TO SEE A DETOUR SIGN DUE TO ROAD FLOODING UNTIL IT WAS ALMOST TOO LATE TO STOP. IT APPEARED AS THOUGH THE TOP OF THE FENDER DESIGN SEEMED TO ACT AS A HOOD WHICH OBSCURED ALL OF THE ROADWAY BEYOND THIRTY FEET. *JB
TAKATA RECALL - WE RECEIVED AN "IMPORTANT SAFETY RECALL" NOTICE, INFORMING US OF THE DEFECTS IN PASSENGER-SIDE AIRBAG INFLATORS. NEEDLESS TO SAY, THE NATURE OF THE DEFECT IS SUCH THAT I WOULD NOT FEEL SAFE HAVING MYSELF OR A FAMILY MEMBER RIDE IN THE VEHICLE IN THE PASSENGER-SIDE FRONT SEAT. A SIMILAR RECALL NOTICE CAME OUT ABOUT THE DRIVER-SIDE AIRBAGS A COUPLE OF MONTHS AGO. THAT PART WAS AVAILABLE QUICKLY, AND THE REPAIR WORK FOR THE RECALL DONE EXPEDITIOUSLY. I HAVE TO ASSUME THAT IS BECAUSE
TAKATA RECALL--FIRST CALLED TO ORDER PARTS IN RECALL ( DRIVER AND PASSENGER AIRBAG INFLATORS) ON JULY 7. JUST CALLED ( SEPTEMBER 12) AND PARTS STILL NOT AVAILABLE. I DO NOT FEEL SAFE DRIVING MY CAR SINCE THE DRIVER'S AIRBAG IS AFFECTED BY THIS RECALL. I DO NOT FEEL THEY ARE RESPONDING IN AN APPROPRIATE AMOUNT OF TIME TO RECTIFY THIS ISSUE. DEALER HAD NO IDEA WHEN PARTS WOULD BE AVAILABLE. IT'S BEEN WELL OVER 60 DAYS SINCE I FIRST CALLED TO HAVE PARTS REPLACED.
TL* TAKATA RECALL. THE CONTACT OWNS A 2010 ACURA RL. THE CONTACT RECEIVED NOTIFICATION OF NHTSA CAMPAIGN NUMBERS: 16V061000 (AIR BAGS) AND 16V344000 (AIR BAGS). THE PART TO DO THE REPAIR WAS NOT AVAILABLE. THE CONTACT STATED THAT THE MANUFACTURER EXCEEDED A REASONABLE AMOUNT OF TIME FOR THE RECALL REPAIR. THE MANUFACTURER WAS NOT MADE AWARE OF THE ISSUE.
TAKATA RECALL TRYING TO GET A REPLACEMENT RENTAL NO ONE RETURNS CALLS HAVE CALLED ON SEVERAL OCCASIONS JUST GET A RUN AROUND NAPLETONS PALM BEACH ACURA DOES NOT WANT TO HELP THEY TOLD ME TO CALL ANOTHER DEALER..VERY UNPROFESSIONAL ..I REQUESTED NEW AIR BAG IN MAY 2016 AND THEY SAID NO LATTER THAN JULY...THIS IS TRUELY A POOR ORGANIZATION
TL* THE CONTACT OWNS A 2010 ACURA RL. THE CONTACT RECIEVED NOTIFICATION OF NHTSA CAMPAIGN NUMBERS: 16V344000 (AIR BAGS) AND 16V061000 (AIR BAGS); HOWEVER, THE PART FOR THE RECALL REPAIR WAS UNAVAILABLE. THE CONTACT STATED THAT THE MANUFACTURER EXCEEDED A REASONABLE AMOUNT OF TIME FOR THE RECALL REPAIR. THE CONTACT HAD NOT EXPERIENCED A FAILURE. THE MANUFACTURER WAS NOT MADE AWARE OF THE ISSUE.
TAKATA RECALL: I WAS JUST NOTIFIED ON WEDNESDAY AUGUST 3, 2016 BY TELEPHONE BY ACURA EXECUTIVE CUSTOMER RELATIONS THAT MY PASSENGER AIRBAG REPLACEMENT HAS BEEN ORDERED. THIS WOMAN NOTIFIED ME ADDITIONALLY THAT I SHOULD NOT HAVE ANYONE SIT IN THE FRONT PASSENGER SEAT. I PURCHASED THIS CAR AS A FAMILY CAR, A FAMILY SEDAN. I MUST HAVE AVAILABILITY OF MY FRONT PASSENGER SEAT; IT CANNOT GO EMPTY. I STATED THIS TO ACURA AND REQUESTED THEY TAKE SPECIFIC ACTION BECAUSE THEY NEED TO GET ME A RENTAL
TL* TAKATA RECALL. THE CONTACT OWNS A 2010 ACURA RL. THE CONTACT RECEIVED NOTIFICATION OF NHTSA CAMPAIGN NUMBERS: 16V344000 (AIR BAGS) AND 16V061000 (AIR BAGS); HOWEVER, THE PARTS TO DO THE REPAIRS WERE UNAVAILABLE. THE CONTACT STATED THAT THE MANUFACTURER WAS NOT MADE AWARE OF THE ISSUE. THE CONTACT HAD NOT EXPERIENCED A FAILURE. VIN TOOL CONFIRMS PARTS NOT AVAILABLE. UPDATED 09/28/16*LJ *TR
