2009 Acura RL Service and Repair Manual
Regular price
$29.99 USD
Unit price
Fits the 2009 RL — Base Sedan 4-Door ·
Digital manual — nothing ships
Matched to your exact vehicle
Money-back guarantee, pay once
4.7
·
Trusted by 14,000+ mechanics & DIYers
End of preview
Unlock the full manual
Complete repair procedures

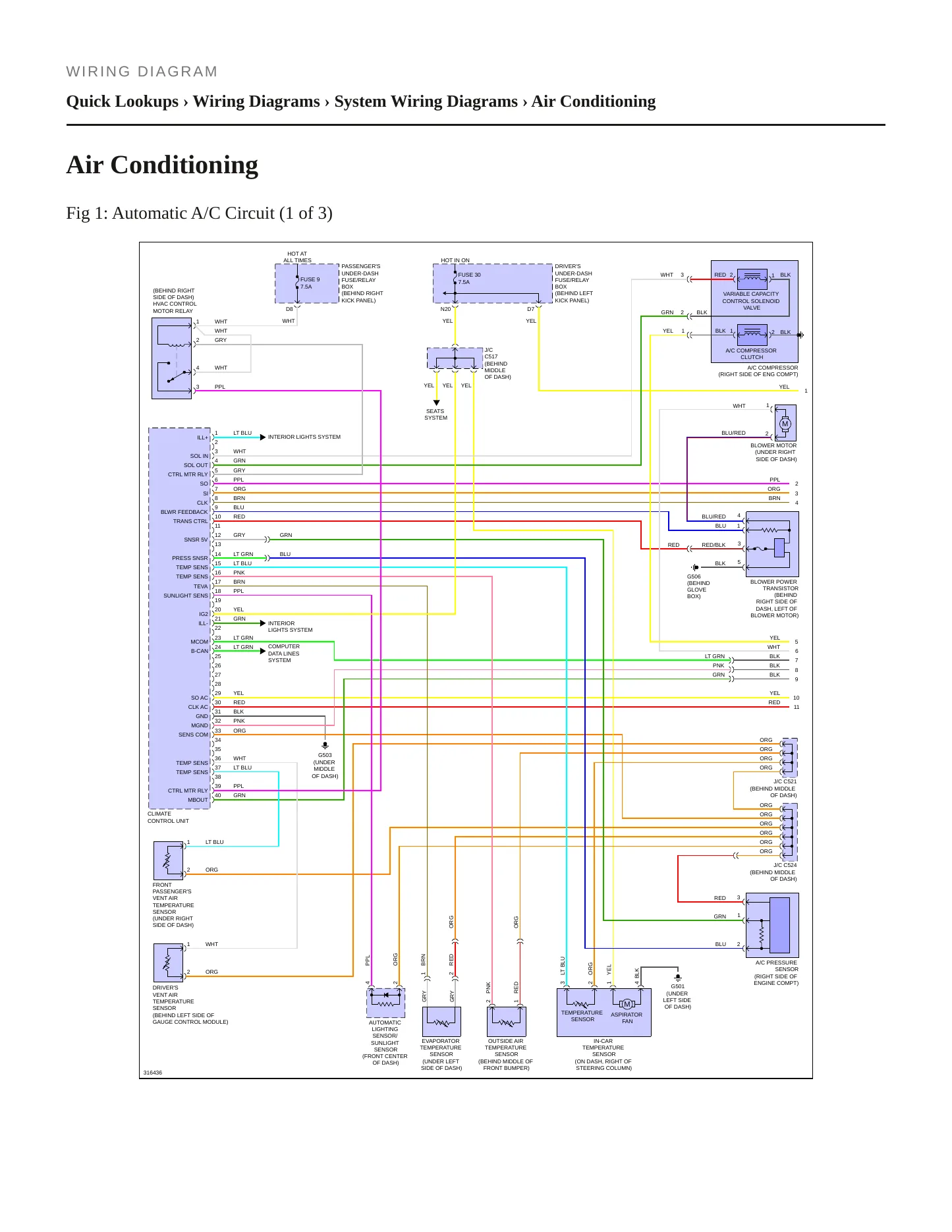

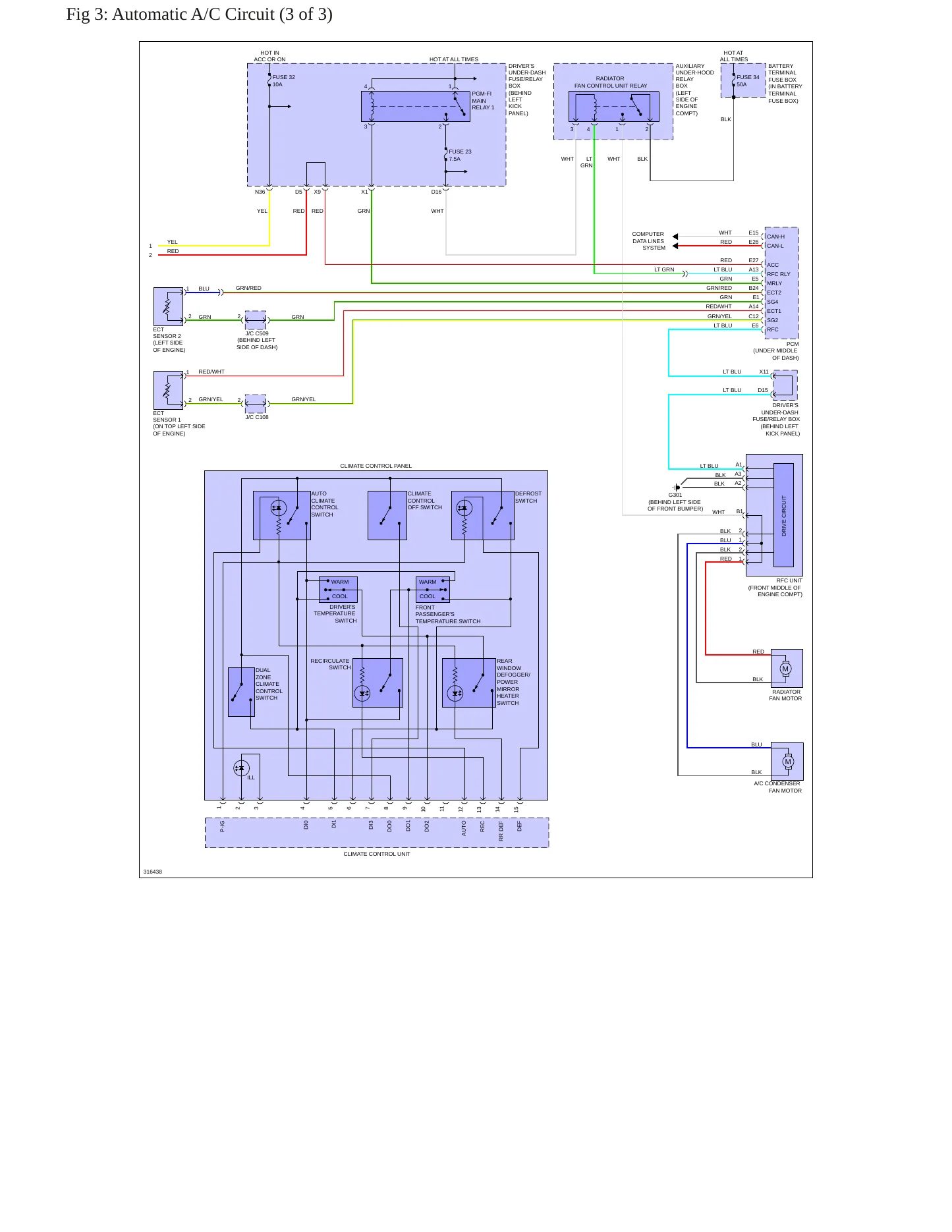

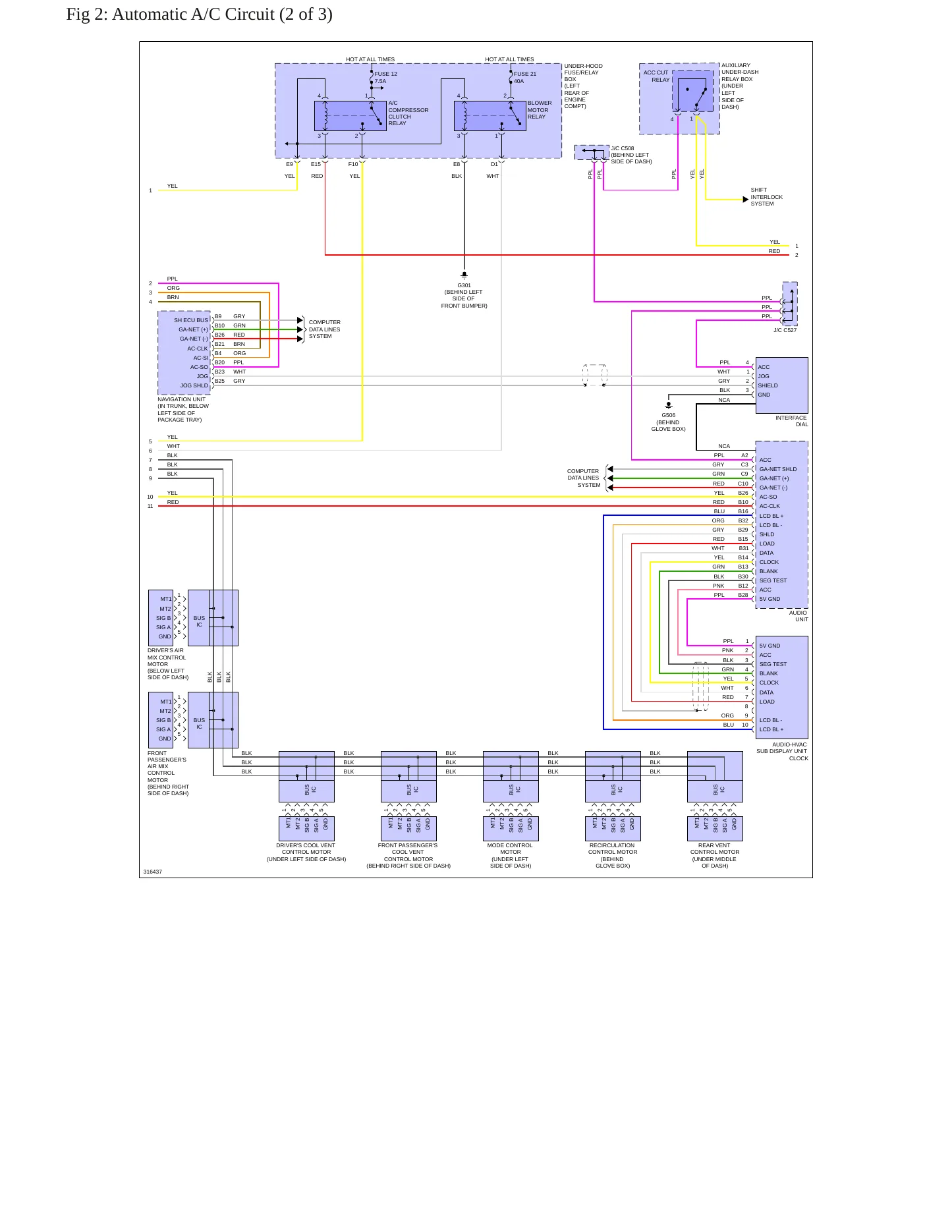

Wiring diagrams & schematics
Torque specifications
Full search & bookmarks
$29.99
2009 Acura RL Service and Repair Manual
Regular price
$29.99 USD
Unit price
The 2009 Acura RL service and repair manual is written around the single 3.7L V6 offered that year in the RL's one Base Sedan 4-Door trim. It is matched to this exact year, so the specifications and service sequences are the ones that apply to your car.
Engines
- 3.7L V6 — 3664cc (224 cu in), SOHC, naturally aspirated, gas
Trims
- Base Sedan 4-Door
Known issues on the 2009 Acura RL. Five recalls are on federal record for this model year, and all five involve frontal air bag inflator modules: two on the driver side, where an inflator explosion may result in sharp metal fragments striking the driver or other occupants, or where the inflator could fail in a crash that deploys the driver's frontal air bag; and three on the passenger side, where an inflator explosion or rupture may result in metal fragments striking the occupants and serious injury. Owners have submitted 14 complaints for this year, and 44 technical service bulletins have been issued. The factory diagnostic and repair procedures for the systems behind those reports, including the supplemental restraint system, are here.
From a scheduled service interval to an air bag circuit test or a hard-to-trace wiring fault, it keeps you on the factory procedure and the correct specification for your specific 2009 RL.
Honda (American Honda Motor Co.) is recalling certain 2003-2006 Acura MDX, 2005-2012 RL, 2003-2007 Honda Accord, 2001-2005 Civic, 2003-2005 Civic Hybrid, 2001-2005 Civic GX NGV, 2002-2006 CR-V, 2003-2011 Element, 2007-2008 Fit, 2002-2004 Odyssey, 2003-2008 Pilot, and 2006-2014 Ridgeline vehicles. The vehicles are equipped with passenger frontal air bag inflators assembled as a recall remedy part or replacement service part, that may explode due to propellant degradation occurring after long-term exposure to high absolute humidity, temperature and temperature cycling.
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the passenger frontal airbag inflator, free of charge. The recall began August 12, 2019. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are E5D and X5C.
Honda (American Honda Motor Co.) is recalling certain 2013 Acura ILX, 2015 RDX, 2005-2010 and 2012 RL, 2009-2014 TL, 2010 and 2012 ZDX, 2007-2011 CR-V, 2011-2013 and 2015 CR-Z, 2009-2013 Fit, 2013 Fit EV, 2010-2011 and 2013 Insight and 2007-2014 Ridgeline vehicles. These vehicles are equipped with driver frontal air bag inflators assembled as a recall remedy part or replacement service part, that may explode due to propellant degradation occurring after long-term exposure to high absolute humidity, temperature and temperature cycling.
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the driver frontal air bag inflator, free of charge. The recall began August 12, 2019. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are S5B and W59.
Honda (American Honda Motor Co.) is recalling certain 2005-2006 Acura MDX and Honda CR-V vehicles, 2005-2011 Honda Element vehicles, 2005-2012 Acura RL vehicles, 2006-2012 Honda Ridgeline vehicles, 2007-2008 Honda Fit vehicles and 2005-2008 Honda Pilot vehicles originally sold, or ever registered, in Alabama, California, Florida, Georgia, Hawaii, Louisiana, Mississippi, South Carolina, Texas, Puerto Rico, American Samoa, Guam, the Northern Mariana Islands (Saipan), and the U.S. Virgin Islands, or "Zone A." Additionally, if not included in "Zone A" above, Honda is recalling certain 2005-2006 Acura MDX and Honda CR-V vehicles, 2005-2009 Acura RL and Honda Element vehicles, 2007-2008 Honda F
Consequence
An inflator rupture may result in metal fragments striking the vehicle occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the front passenger air bag inflator, free of charge. The recall bagan March 2017. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are KD9 and KE0.
Honda (American Honda Motor Co.) is recalling certain 2010-2012 Acura RL, 2010 Honda Element, and 2010-2013 Honda Ridgeline vehicles ever registered in the states of Alabama, California, Florida, Georgia, Hawaii, Louisiana, Mississippi, South Carolina, Texas, Puerto Rico, American Samoa, Guam, the Northern Mariana Islands (Saipan), and the U.S. Virgin Islands or "Zone A." Additionally, Honda is recalling certain 2010 Acura RL, 2010-2011 Honda Element and Honda Ridgeline vehicles ever registered in the states of Arizona, Arkansas, Delaware, District of Columbia, Illinois, Indiana, Kansas, Kentucky, Maryland, Missouri, Nebraska, Nevada, New Jersey, New Mexico, North Carolina, Ohio, Oklahoma
Consequence
An inflator explosion may result in sharp metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the passenger frontal air bag inflator, free of charge. The recall began February 16, 2018. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are U0H, and G0I.
Honda (American Honda Motor Co.) is recalling certain model year 2007-2011 Honda CR-V, 2011-2015 CR-Z, 2010-2014 FCX, and Insight, 2009-2013 Fit, 2013-2014 Fit EV, 2007-2014 Ridgeline, 2013-2016 Acura ILX, 2013-2014 Acura ILX Hybrid, 2007-2016 RDX, 2005-2012 Acura RL, 2009-2014 Acura TL, and 2010-2013 Acura ZDX vehicles. The affected vehicles are equipped with a dual-stage driver frontal air bag that may be susceptible to moisture intrusion which, over time, could cause the inflator to rupture.
Consequence
In the event of a crash necessitating deployment of the driver's frontal air bag, the inflator could rupture with metal fragments striking the driver or other occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the inflator, free of charge. The recall began March 2017. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are JY0, JY1, and JY2.
Honda (American Honda Motor Co.) is recalling certain model year 2003-2006 Acura MDX, 2005-2011 Acura RL, 2005-2006 Honda CR-V, 2003-2011 Element, 2007-2008 Fit, 2003-2008 Pilot, 2002-2004 Odyssey, and 2006-2011 Ridgeline vehicles originally sold, or that have ever been registered, in Alabama, California, Florida, Georgia, Hawaii, Louisiana, Mississippi, South Carolina, Texas, Puerto Rico, American Samoa, Guam, the Northern Mariana Islands (Saipan), and the U.S. Virgin Islands, or "Zone A." Additionally, unless included in "Zone A" above, Honda is recalling certain model year 2003-2006 Acura MDX, 2005-2008 Acura RL, 2005-2006 Honda CR-V, 2003-2008 Element, 2007-2008 Fit, 2003-2008 Pilot
Consequence
An inflator rupture may result in metal fragments striking the vehicle occupants resulting in serious injury or death.
Remedy
Honda will notify owners, and dealers will replace the passenger frontal air bag inflator, free of charge. The recall began June 27, 2016. Owners may contact Honda customer service at 1-888-234-2138. Honda's numbers for this recall are KA0, KA1, KA2, and KA3.
Service Bulletin - Warranty Extension: Customer Support Program For Front Passenger's Airbag Inflator.
Service Bulletin - Warranty Extension: Customer Support Program For Driver's Airbag Inflator for 2013-14 ILX Hybrid and Other Listed Years and Models.
Service News - The navigation clock and date are incorrect. This is due to a limited GPS receiver capacity resulting in rollover of internal chip memory. The rollover occurred on January 1, 2022 at 12:00AM local time
Service bulletin - This bulletin is a notification of a class action settlement relating to airbag inflators. American Honda is offering a Customer Support Program (Warranty Extension) to cover any manufacturing defects in the replacement d
Service Bulletin - This bulletin is a notification of a class action settlement relating to airbag inflators. American Honda is offering a Customer Support Program (Warranty Extension) to cover any manufacturing defects in the replacement d
ServiceNews Article - The clock shows the incorrect time. This issue is due to a limited GPS receiver capacity resulting in "rollover" of the internal chip memory; the "rollover" will occur on January 1, 2022, at 12:00AM local time. As a re
Service Bulletin - This bulletin is a notification of a class action settlement relating to airbag inflators. American Honda is offering a Customer Support Program (Warranty Extension) to cover any manufacturing defects in the replacement f
Service Bulletin - This bulletin is a notification of a class action settlement relating to airbag inflators. American Honda is offering a Customer Support Program (Warranty Extension) to cover any manufacturing defects in the replacement d
Showing the 8 most recent of 63 technical service bulletins on file with NHTSA.
I HAVE A 2009 ACURA RL. WHILE STOPPED AT A LIGHT, THE LIGHT TURNED GREEN. AFTER ABOUT 20 FEET I NEEDED TO BRAKE. THE CAR ACCELERATED INSTEAD OF BRAKING. WE HIT THE CAR IN FRONT OF US. ONLY THE DRIVER AIR BAG DEPLOYED. THE FRONT END OF THE CAR WAS DAMAGED. NON OF THE DOORS WOULD OPEN EITHER FROM THE INSIDE OR THE OUTSIDE. THE TRUNK WOULD NOT OPEN EITHER. I FEEL THAT BECAUSE OF THE SUDDEN ACCELERATION, ONLY ONE AIRBAG DEPLOYING, AND THE DOORS REFUSING TO OPEN, THAT THERE IS AN ELECTRICAL PROBLEM O
THE FRONT PASSENGER DOOR HANDLE STARTED SMOKING AND BURNING ON MY VEHICLE. IT MELTED PART OF THE DOOR HANDLE AND LEFT MOST OF THE ELECTRICAL EQUIPMENT INOPERATIVE INCLUDING THE INABILITY TO START THE CAR. THE VEHICLE WAS PARKED/STATIONARY & OFF AT THE TIME OF OCCURRENCE.
MY HUSBAND DROVE ONTO A SLOPED DRIVEWAY (UPHILL) AND LEFT THE CAR RUNNING, GOT OUT AND RANG THE DOORBELL TO OUR DAUGHTER'S HOUSE TO SEE IF ANYONE WAS HOME. THEY ANSWERED THE DOOR AND HE CAME BACK TO THE CAR AND MOTIONED FOR ME TO GET OUT OF CAR AND COME INTO HOUSE. HE REMEMBERED HE HAD LEFT THE CAR RUNNING, SO AS I GOT OUT OF THE FRONT PASSENGER SEAT, HE REACHED IN AND TURNED THE IGNITION OFF. I TURNED TOWARD THE BACK OF CAR TO GET SOMETHING OUT OF THE BACK SEAT. THE FRONT PASSENGER DOOR WAS STI
TL* TAKATA RECALL. THE CONTACT OWNS A 2009 ACURA RL. THE CONTACT RECEIVED NOTIFICATION OF NHTSA CAMPAIGN NUMBER: 16V344000 (AIR BAGS); HOWEVER, THE PART TO DO THE REPAIR WAS UNAVAILABLE. THE CONTACT STATED THAT THE MANUFACTURER EXCEEDED A REASONABLE AMOUNT OF TIME FOR THE RECALL REPAIR. THE MANUFACTURER WAS NOT NOTIFIED OF THE ISSUE. THE CONTACT HAD NOT EXPERIENCED A FAILURE. PARTS DISTRIBUTION DISCONNECT.
TL*THE CONTACT OWNS A 2009 ACURA RL. THE CONTACT NOTICED THAT THE WHEEL WELLS ON HIS VEHICLE COLLECTED WATER ANYTIME IT RAINED OR IF MOISTURE WAS PRESENT ON THE ROAD SURFACE. HE STATED THAT IT SEEMED AS IF THERE WERE POCKETS ON THE WHEELS. THE CONTACT SLIPPED WHILE WALKING IN HIS GARAGE ON MORE THAN ONE OCCASION DUE TO THE PUDDLES FORMED BY PRECIPITATION. HE TOOK THE VEHICLE TO THE DEALER AND WAS INFORMED THAT THE VEHICLE WAS MANUFACTURED IN THIS MANNER. THE MANUFACTURER HAS NOT BEEN NOTIFI
FAILED TO GET A DATE TO REMEDY THE AIRBAG RECALL ON MY CAR.
ON THREE OCCASIONS THE GAS PEDAL AND BRAKE PEDAL DEPLOYED AT THE SAME TIME ON MY 2009 ACURA RL. THE THIRD TIME THIS RESULTED IN AN IMPACT ON A PARKED VEHICLE. THE BRAKE PEDAL AND ACCELERATOR PEDAL ARE TWO INCHES APART AND WHEN I STEP ON THE BRAKE PEDAL IT STOPS ON A LEVEL EQUAL TO THE ACCELERATOR PEDAL THEREFORE IT CAUSES A CIRCUMSTANCE THAT DEPLOYS BOTH PEDALS SIMULTANEOUSLY.(I ACTUALLY FIND MYSELF AND MY WIFE HITTING THE BRAKE AND THE GAS AT THE SAME TIME BECAUSE THE PEDALS ARE TOO CLOSE TOGET
WAS DRIVING AT HIGHWAY SPEED; SUDDENLY NOTICED VERY SLOW CAR AHEAD; UPON BRAKING, CAR ACCELERATED INSTEAD; TO AVOID HEAD ON COLLISION TO LEFT, OR REAR END COLLISION AHEAD, TOOK TO SHOULDER TO ATTEMPT TO SLOW CAR DOWN; EVENTUALLY GOT CAR UNDER CONTROL AGAIN; HAVE REACHED NO DEFINITE CONCLUSIONS YET AS TO CAUSE, BUT HAVE CONTACTED DEALER FOR HELP, AS STILL WITHIN WARRANTY
