2004 GMC Canyon Service and Repair Manual

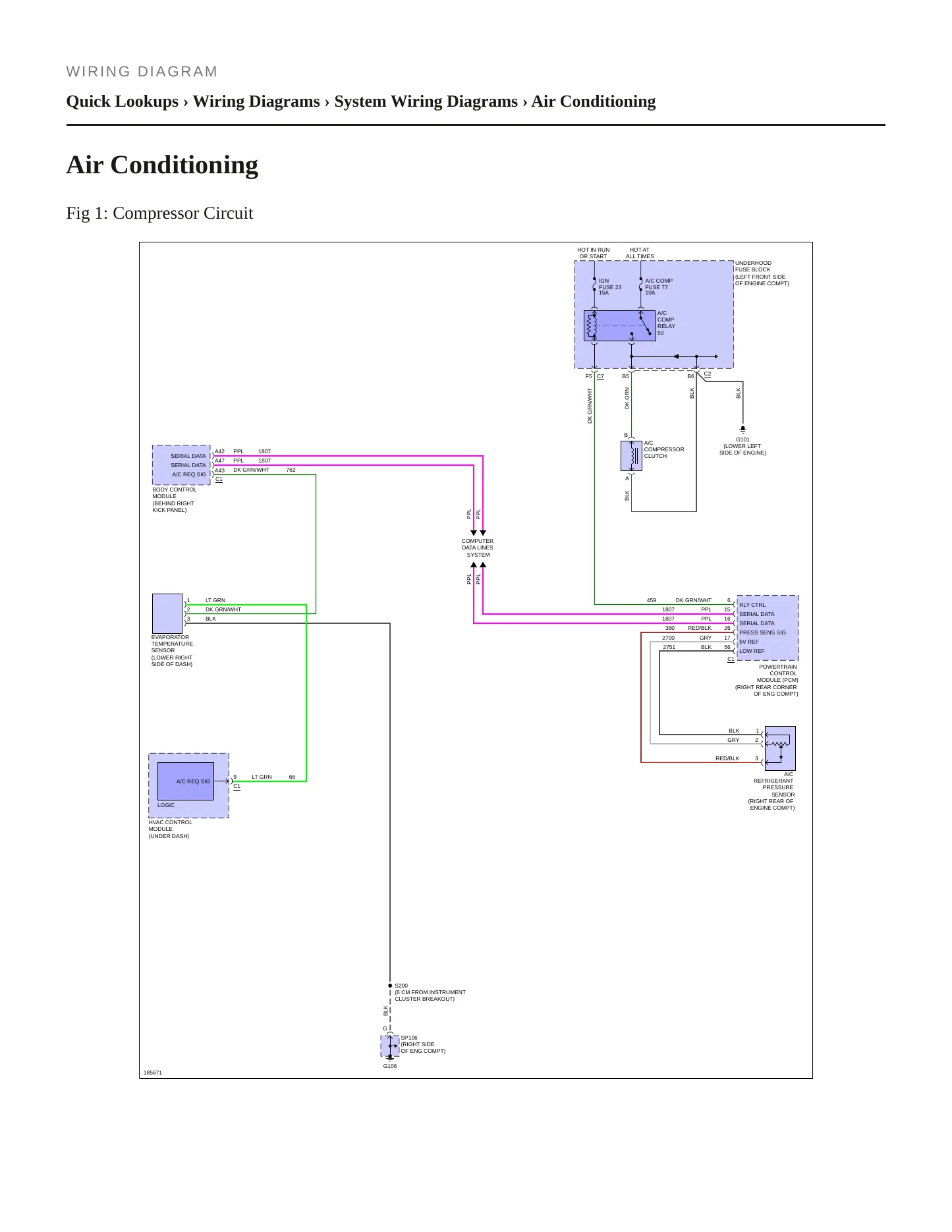

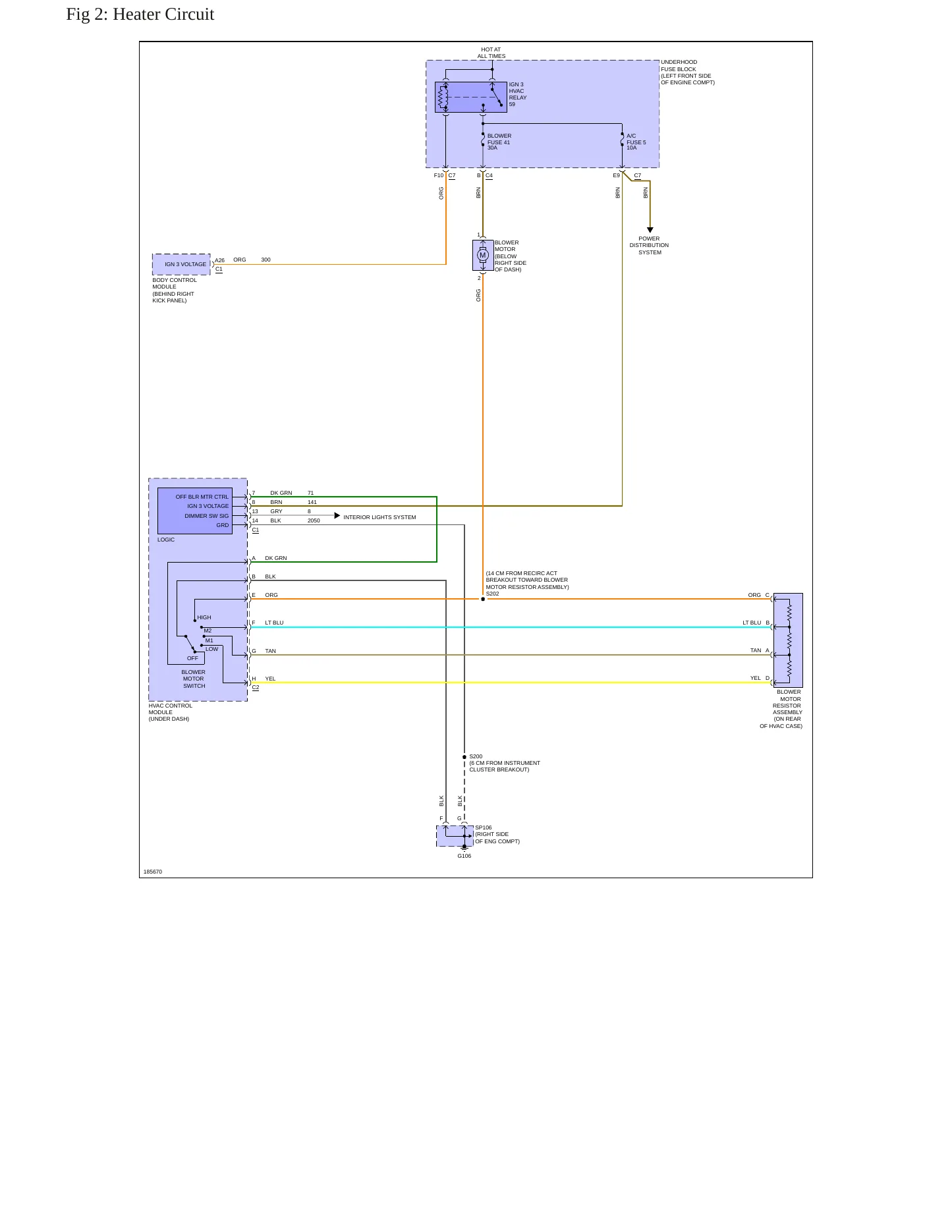

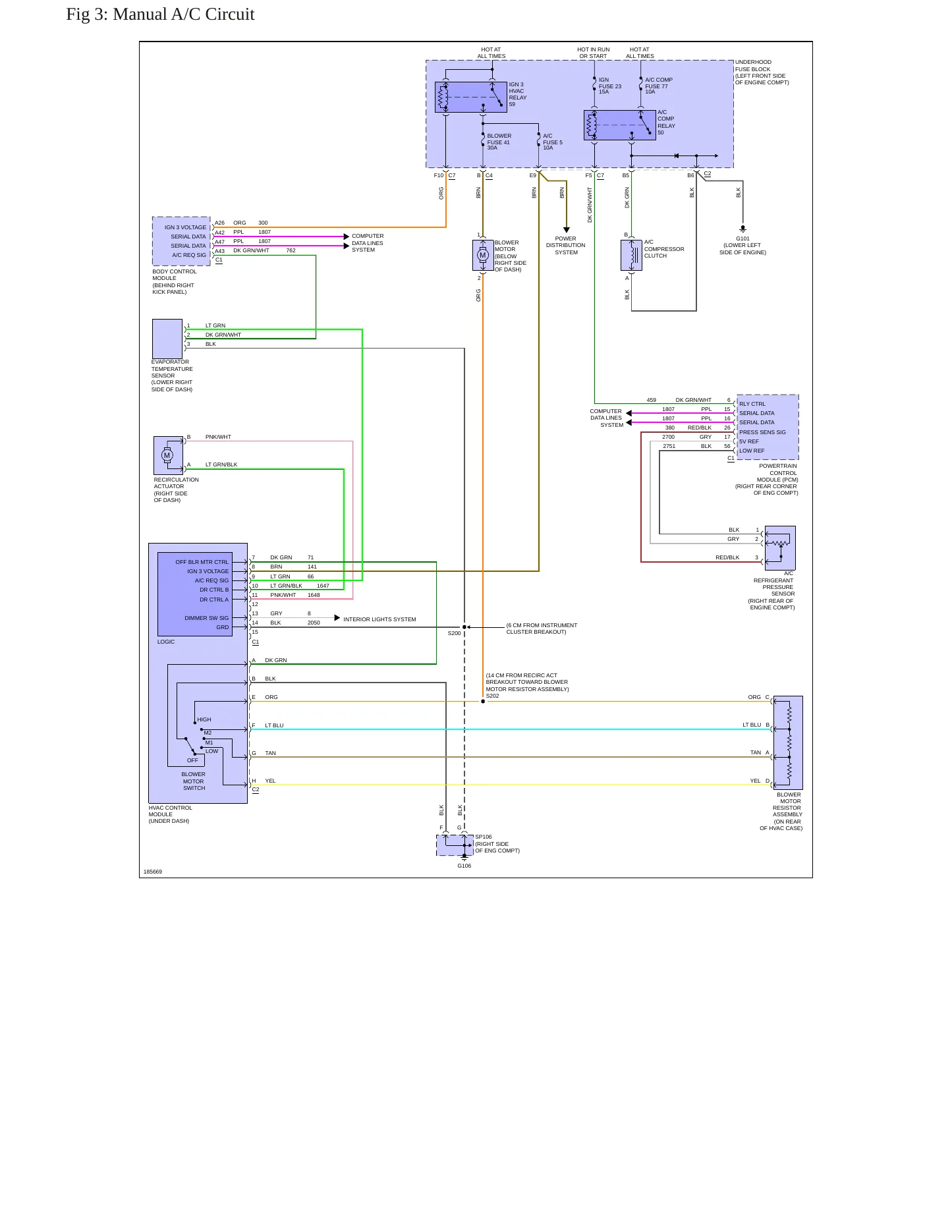

This factory service and repair manual for the 2004 GMC Canyon covers the compact pickup around two naturally aspirated DOHC gasoline engines, a 2.8L inline-four of 169 cubic inches and a 3.5L inline-five of 211. Three cabs are documented, a two-door standard, a four-door extended and a four-door crew, and seven trims are listed, from the plain SL up through the Z71 and Z85 suspension packages in fleet, SL and SLE form. Procedures, specifications, torque values, wiring diagrams and diagnostics are laid out by system across all of them.

Engines covered

• 2.8L inline-four (169 cu in) — DOHC, naturally aspirated, gasoline
• 3.5L inline-five (211 cu in) — DOHC, naturally aspirated, gasoline

Body styles covered

• 2-door standard cab pickup
• 4-door extended cab pickup
• 4-door crew cab pickup

Trims covered

• SL
• SLE
• Z71 Fleet
• Z71 SL
• Z71 SLE
• Z85 SL
• Z85 SLE

Known issues on the 2004 Canyon. The brake lamp circuit accounts for two of the three recalls on this truck's federal record: a fault that either kills the stop lamps outright or leaves them burning continuously, taking the cruise control with it on trucks so equipped. The remaining one covers standard and extended cabs built with a front split bench and no rear seat, where the top tether anchor needed to secure a child restraint could not be reached. Owners have logged 80 complaints, clustering on suspension, body structure and the electrical system, which are the areas this manual's chassis specifications and wiring diagrams address.
