1997 Plymouth Voyager Service and Repair Manual

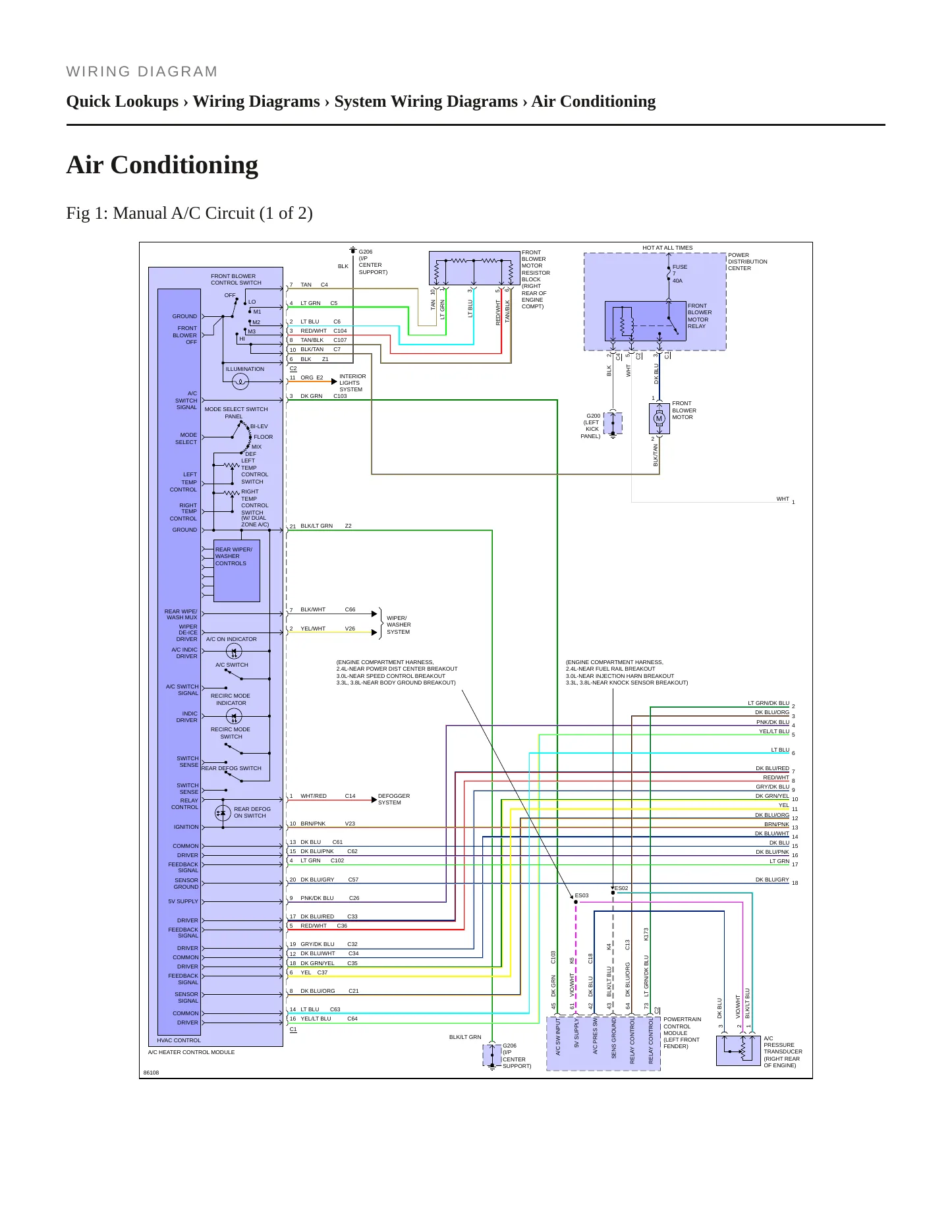

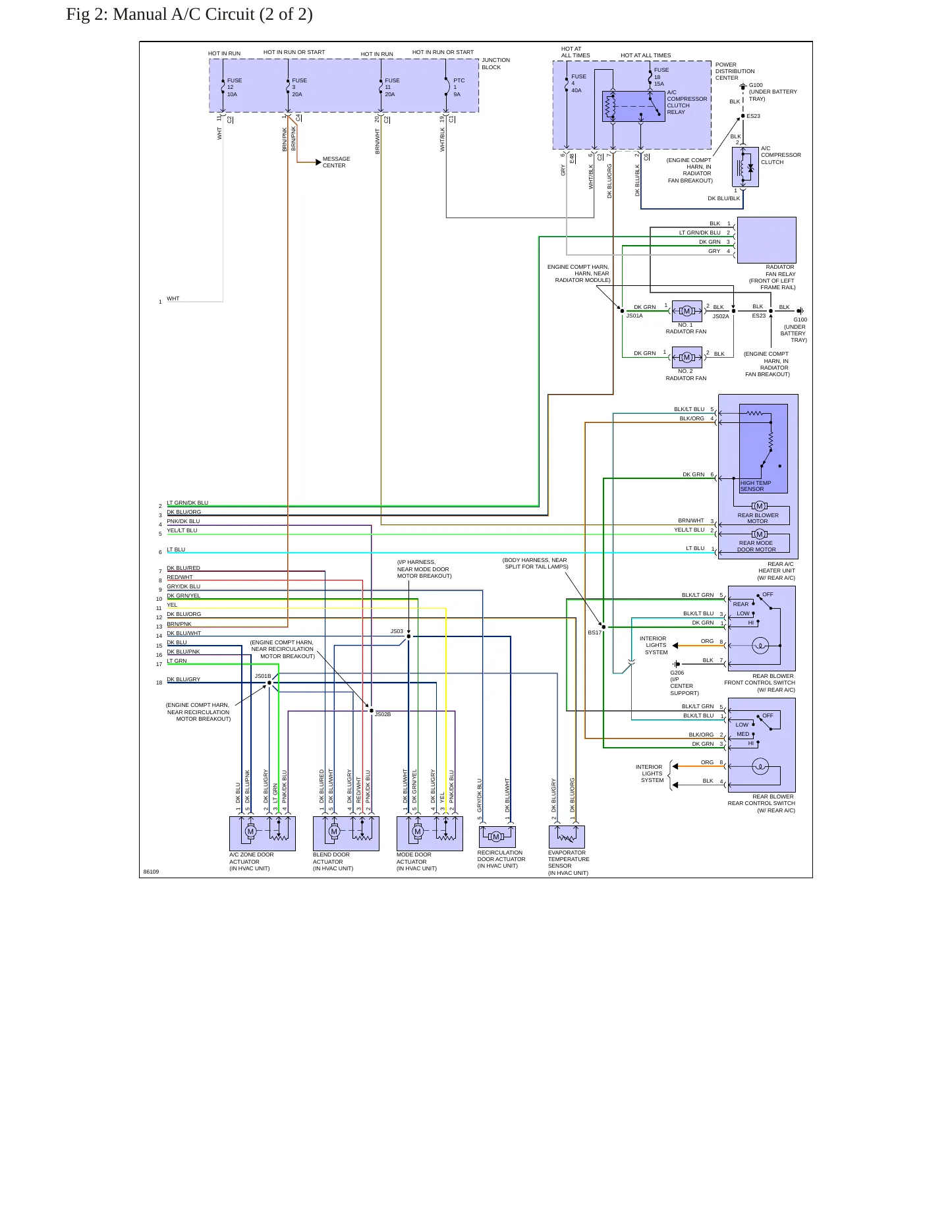

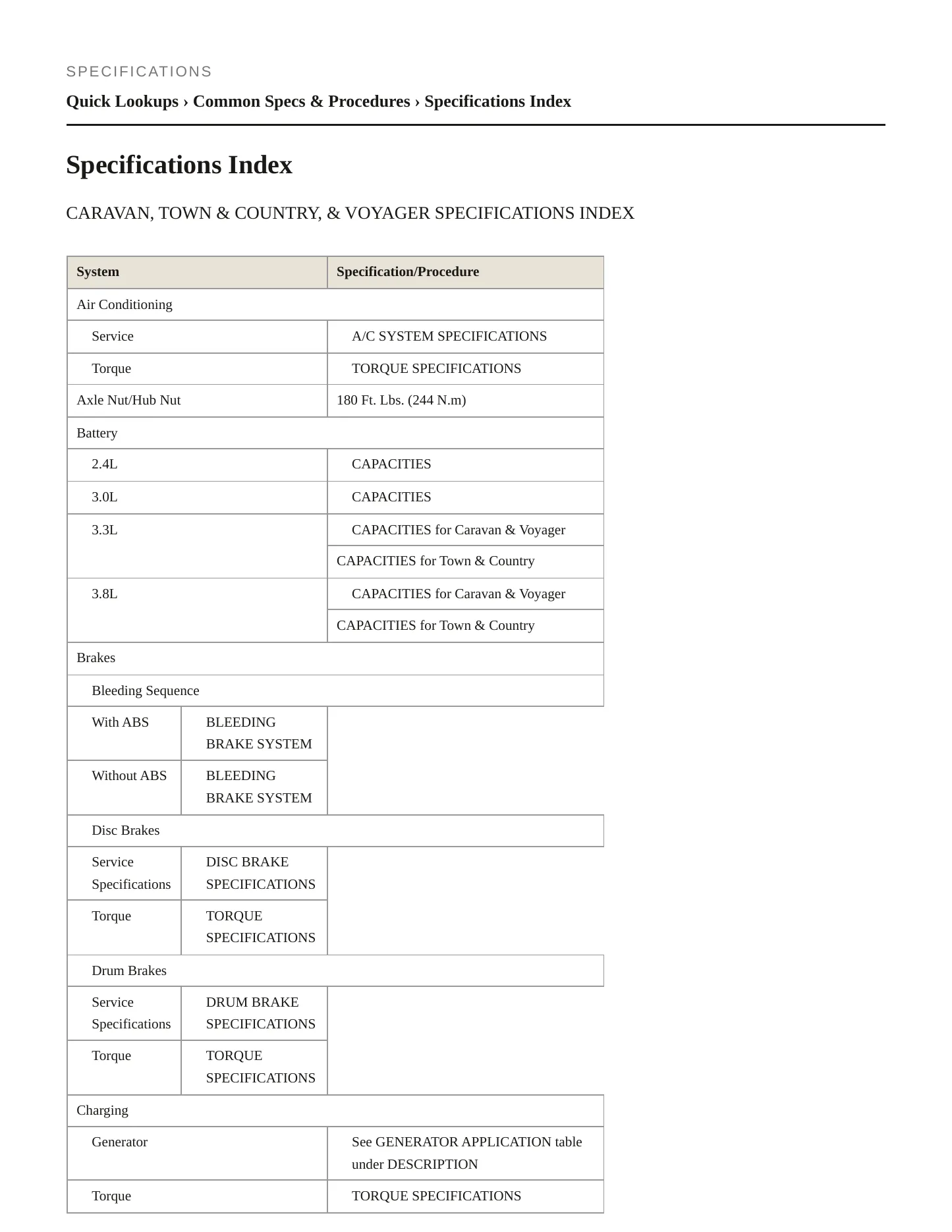

This factory service and repair manual for the 1997 Plymouth Voyager spans four gasoline engines and two bodies. The smallest is a 2.4L double-overhead-cam inline-four; above it sit a single-overhead-cam 3.0L V6 and two overhead-valve V6s of 3.3L and 3.8L, the largest displacing 231 cubic inches, and none is turbocharged. Buyers chose between three-door and four-door mini passenger vans in Base, LE or SE form. Specifications, torque values and procedures are provided for the engines, fuel, ignition and cooling systems, transaxle, brakes and steering, with wiring diagrams and diagnostics for the electrical system.

Engines covered

• 2.4L inline-four (148 cu in) — DOHC, naturally aspirated, gasoline
• 3.0L V6 (181 cu in) — SOHC, naturally aspirated, gasoline
• 3.3L V6 (201 cu in) — OHV, naturally aspirated, gasoline
• 3.8L V6 (231 cu in) — OHV, naturally aspirated, gasoline

Body styles covered

• 4-door mini passenger van
• 3-door mini passenger van

Trims covered

• Base
• LE
• SE

Known issues on the 1997 Voyager. Six recalls apply to the 1997 Voyager. On certain 1997 Voyager vans with either overhead-valve V6, the rubber O-rings sealing the fuel rail could break down with age and leak fuel under the hood, where it could catch fire. Certain vans may have had a steering-wheel clockspring wound wrongly at assembly, which lights the air bag warning lamp and can eventually open the driver air bag circuit. On certain others, loose trim could fall into a rear outboard seat belt and jam it. Owners have filed 346 complaints, led by air bags (64), engine and engine cooling (56) and power train (55); 14 reported a crash, 16 a fire and 13 an injury. Air bag wiring diagrams and fuel system diagnostics apply.
