1996 Eagle Vision Service and Repair Manual

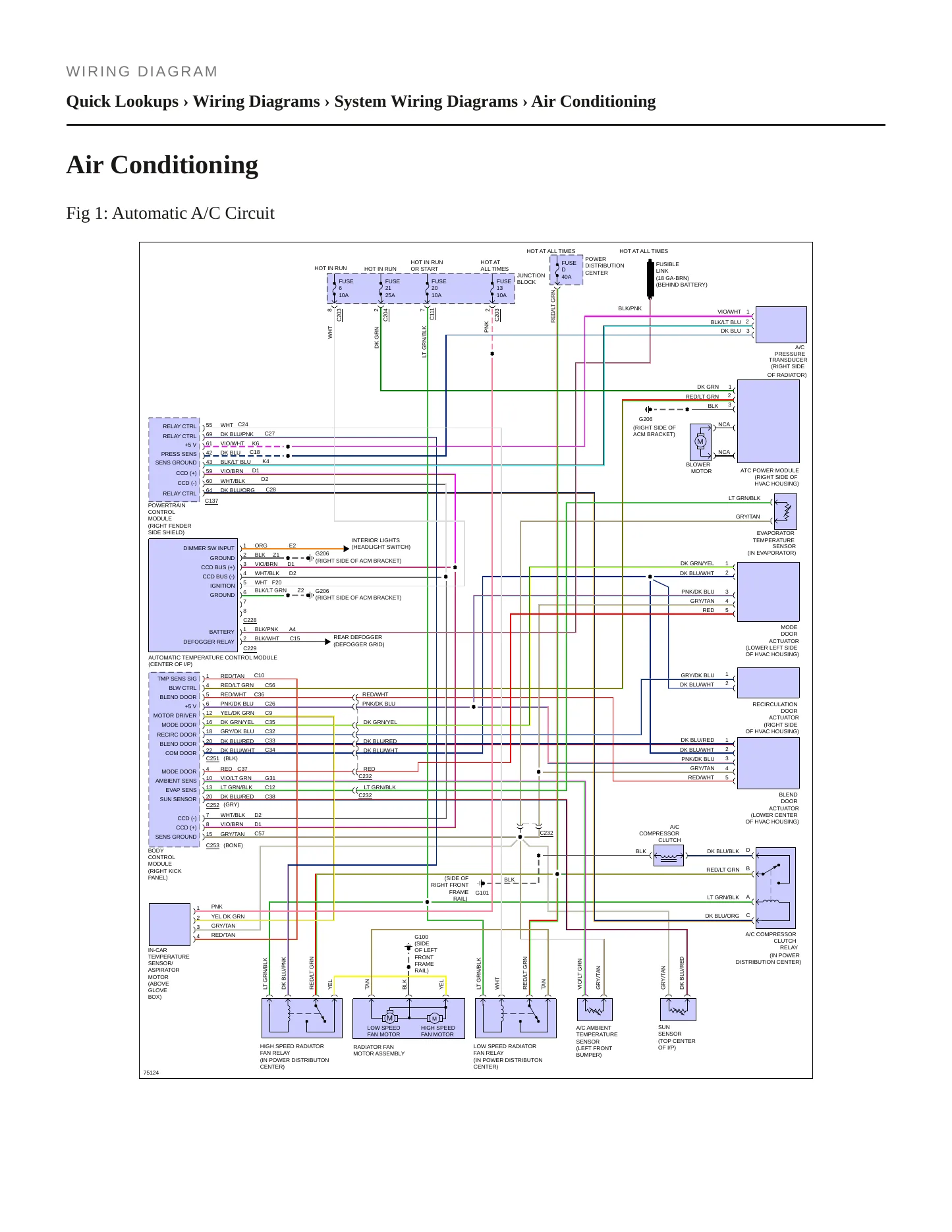

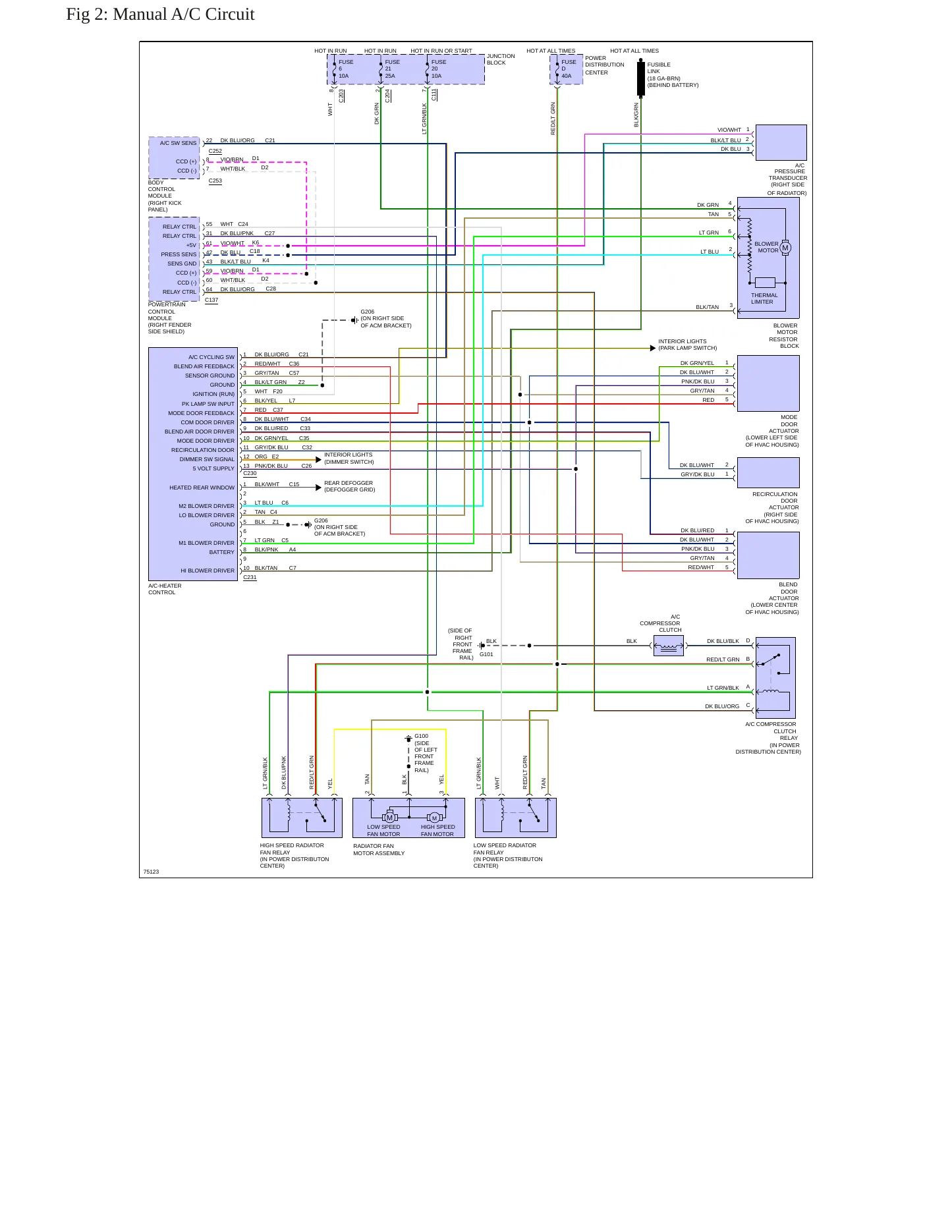

This factory service and repair manual for the 1996 Eagle Vision matches a two-engine, two-trim sedan. ESi and TSi share a 4-door body, and power comes from either a 3.3L V6 with overhead valves or a 3.5L V6 with a single overhead camshaft layout, both naturally aspirated gasoline engines. The manual supplies procedures, specifications and torque values for the engine, fuel, ignition and cooling systems, and wiring diagrams and diagnostics for the transaxle, brakes, suspension, steering and electrical system.

Engines covered

• 3.3L V6 (201 cu in) — OHV, naturally aspirated, gasoline
• 3.5L V6 (215 cu in) — SOHC, naturally aspirated, gasoline

Body styles covered

• 4-door sedan

Trims covered

• ESi
• TSi

Known issues on the 1996 Vision. Steering tops the complaints for the 1996 Vision at 16 of 46, with fuel system at 5 and air bags, hydraulic service brakes and suspension at 4 each. Five complaints reported a crash, 2 an injury and 2 a fire. The model year has 2 recalls. Certain 1996 Vision cars with the single-overhead-camshaft engine could leak fuel from rail seals or from fine cracks in the fuel rail, a fire hazard near an ignition source; seals were replaced and the rail reinforced or, where it leaked, replaced. Certain vehicles with a floor shifter were also recalled because the ignition-park interlock could fail, letting the lever leave park with the key out or releasing the key when the car was not in park, so it could roll away. Steering, fuel system and transaxle procedures and diagnostics apply.
